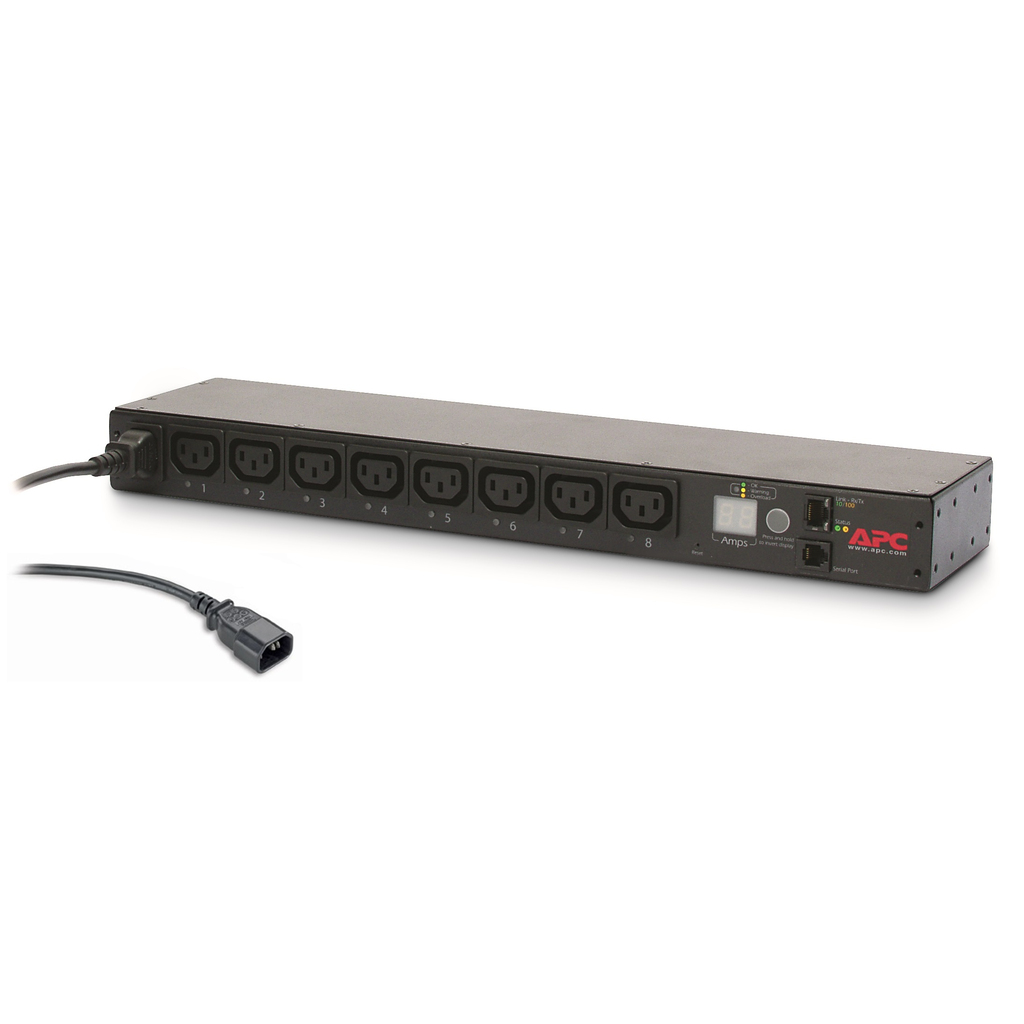

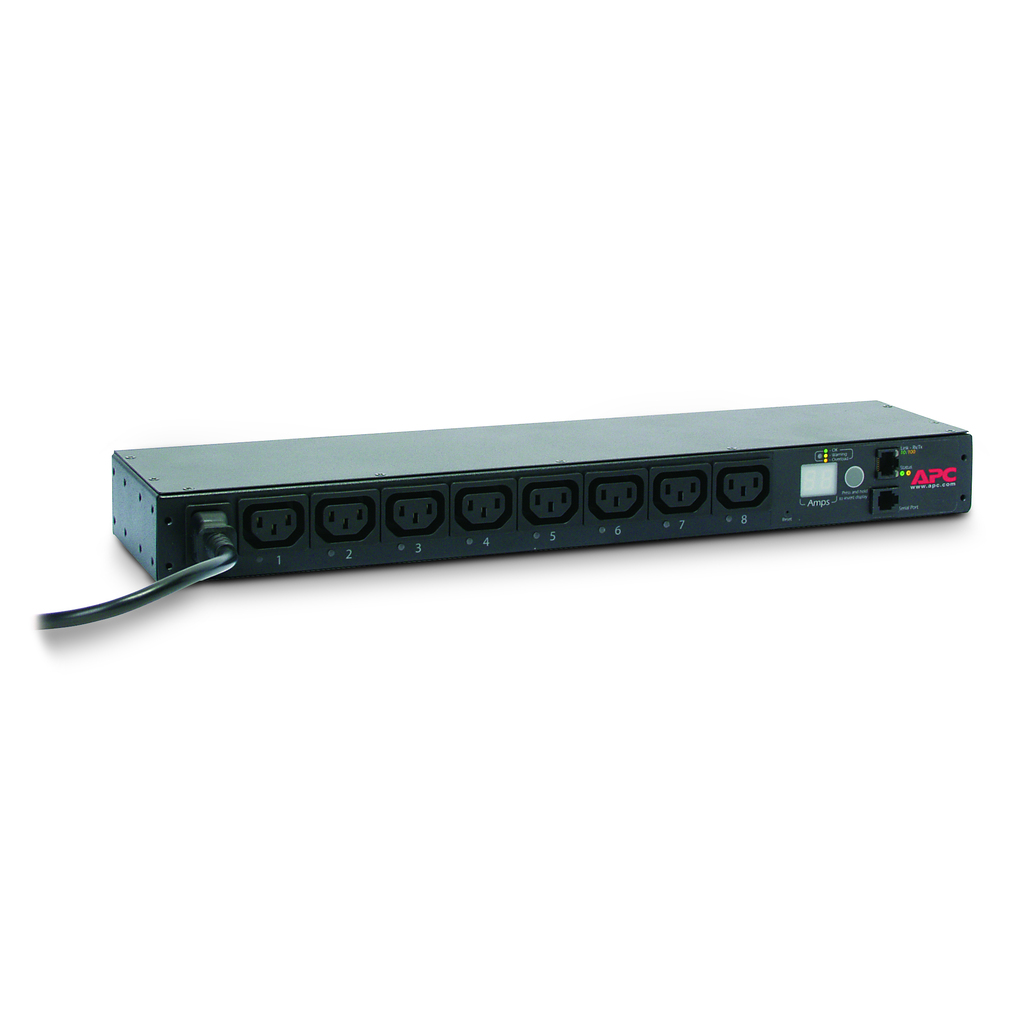

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord
NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Additional information
| Weight | 4.11 lbs |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
| Monitoring | Current, Power, Voltage |
| Nominal input voltage | 200-230 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 445 mm |
| Depth | 108 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
| Package weight | 3.45 kg |
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 70 mm |
| Total carbon footprint (kg of CO2e) | 915.89 |
| Maximum current | 10 A |
| Power plug | C14 coupler |
| Cable length | 1.98 m |
| Nominal output voltage | 208-230 V |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 1 – 15000 m |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Packaging content | Installation Guide, Rack Mounting Brackets, User Manual |
