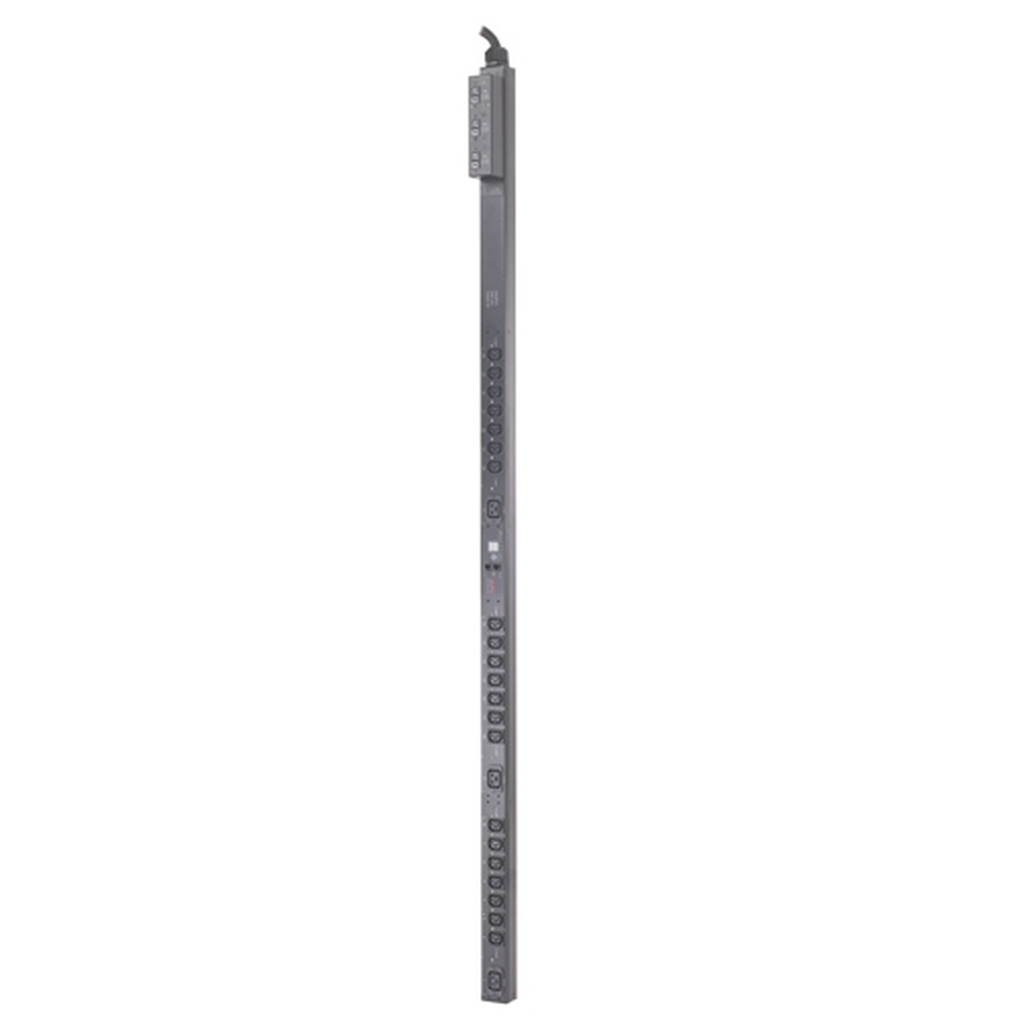

APC AP7968B power distribution unit (PDU) 24 AC outlet(s) 0U Black
208V, 50/60Hz, 35A, 12.5kVA, 0U, 56 x 89 x 1778mm, 8.08kg, Black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Power Delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Additional information
| Weight | 11.02 lbs |
|---|---|
| PDU types | Monitored, Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | CS8365 |
| Monitoring | Current |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 12500 VA |
| Maximum total current draw per phase | 35 A |
| Certification | cUL, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL, REACH |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 56 mm |
| Depth | 89 mm |
| Height | 1778 mm |
| Weight | 8.08 kg |
| Package weight | 11 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2108 mm |
| Maximum current | 35 A |
| Cable length | 0.91 m |
| Nominal output voltage | 208 V |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Power protection features | Overload |
| Outlet control | Recycle, Turn off |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network |
| Packaging content | Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit |
