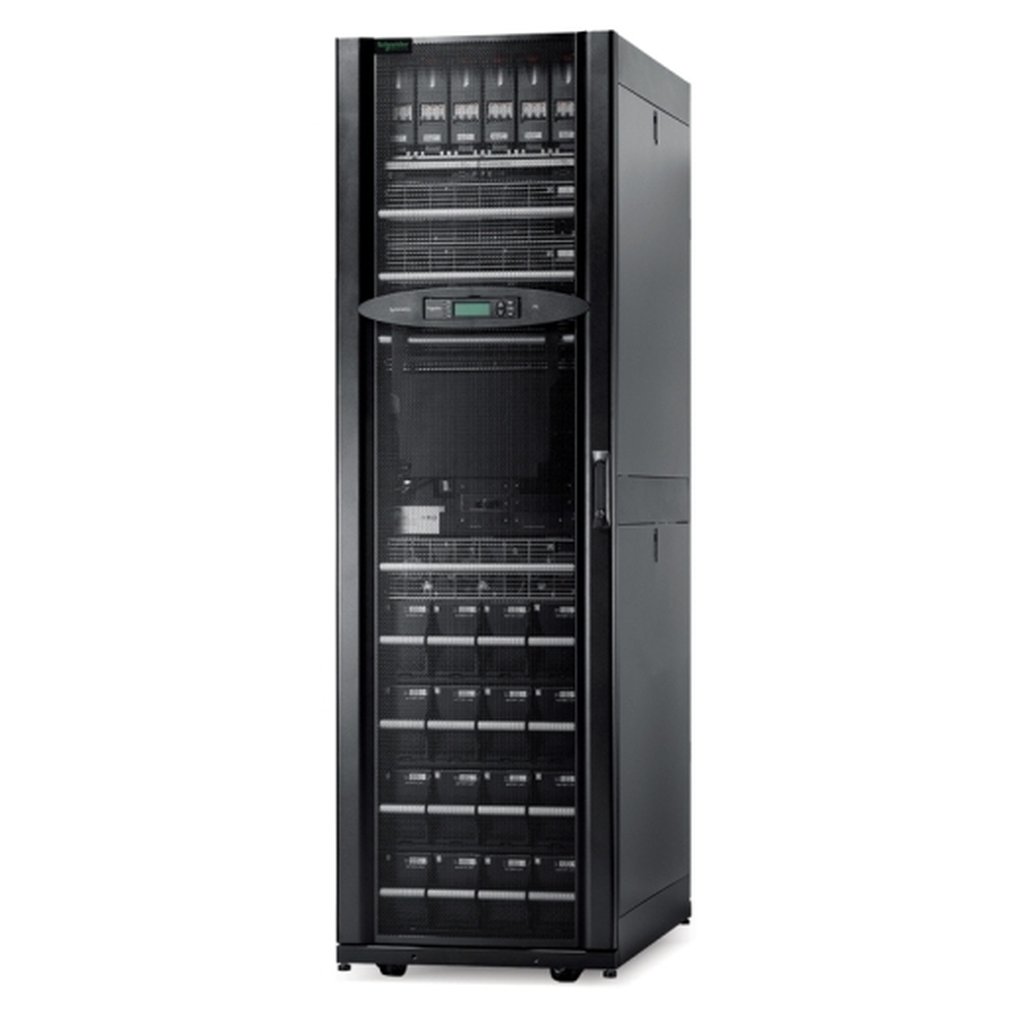

APC Symmetra PX 48kW All-In-One Frame, 400V

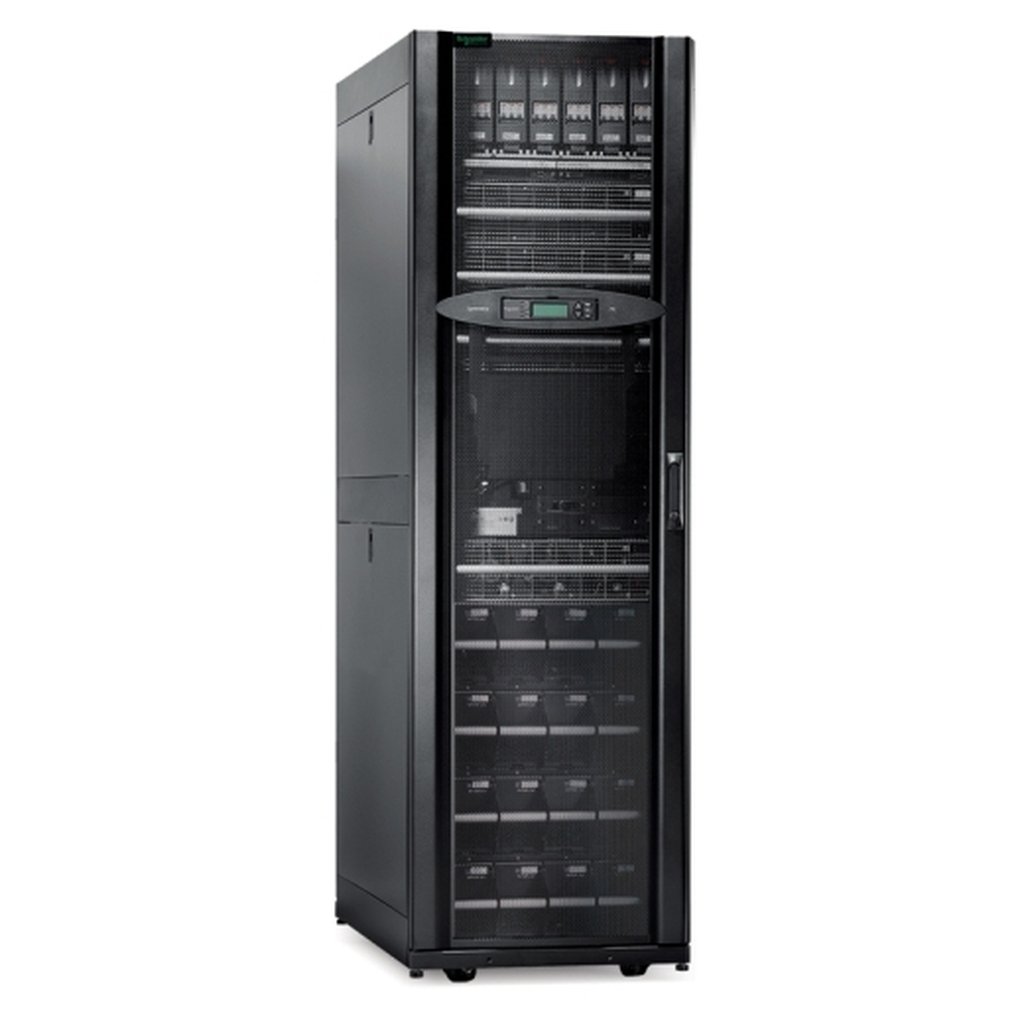

APC Symmetra PX 48kW All-In-One Frame, 400V - Image 2

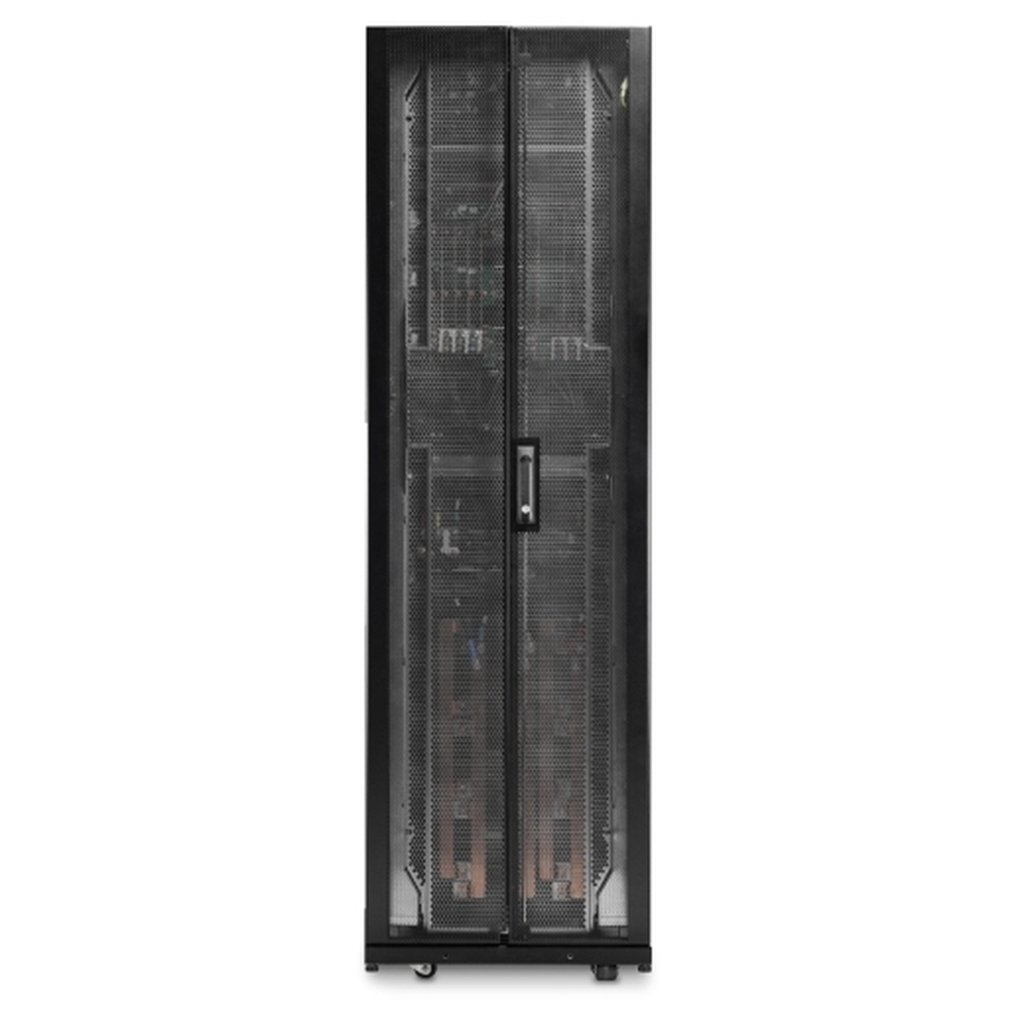

APC Symmetra PX 48kW All-In-One Frame, 400V - Image 3

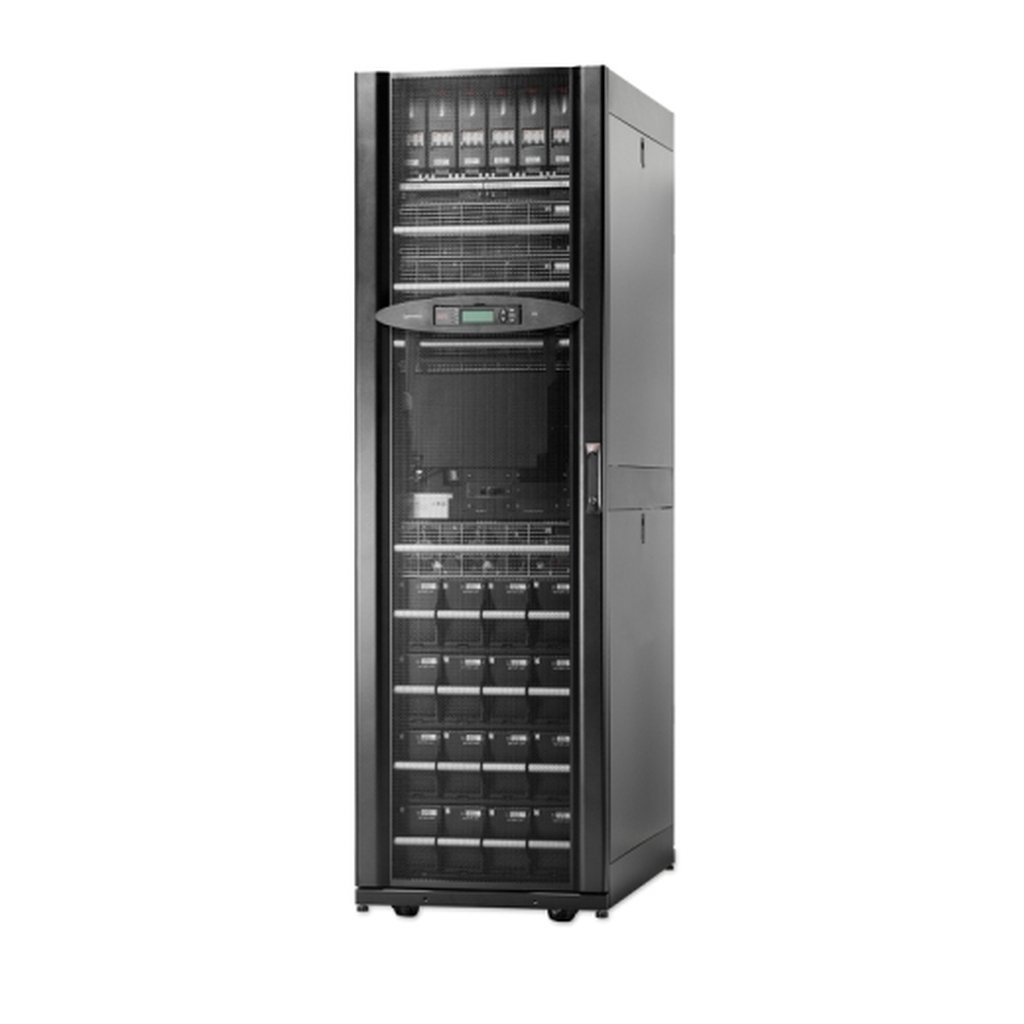

APC Symmetra PX 48kW All-In-One Frame, 400V - Image 4

APC Symmetra PX 48kW All-In-One Frame, 400V

In Stock

Symmetra PX 48kW All-In-One Frame, 400V

Add to wishlist
  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: SYCF48KH
Categories: ,
Brand:

Description

Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160 kW/160 kVA. Suitable for small, medium & large data centers applications.

Additional information

Weight 368 lbs
Output power capacity

48 kVA
Output power

48000 W
Input frequency

40/70 Hz
Battery recharge time

3 h
Product colour

Black, Grey
Operating temperature (T-T)

0 – 40 °C
Storage temperature (T-T)

-15 – 40 °C
Operating relative humidity (H-H)

0 – 95%
Storage relative humidity (H-H)

0 – 95%
Operating altitude

0 – 999.9 m
Non-operating altitude

0 – 15000 m
Certification

EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111
Weight

796 kg
Harmonized System (HS) code

85078000
Input operation voltage (max)

400 V
Maximum current

98 A
Form factor

Tower
Width

600 mm
Depth

1070 mm
Height

1991 mm
UPS topology

Double-conversion (Online)
Waveform

Sine
Output operation voltage (min)

230 V
Output operation voltage (max)

400 V
Number of output phases

3
Noise level

61 dB
Serial interface

Yes
Serial interface type

RS-232
Battery technology

Sealed Lead Acid (VRLA)
Battery capacity

13824 VAh
Hot-swap battery

Yes
Total carbon footprint (kg of CO2e)

1004.35
Serial ports quantity

2
Output frequency

50/60 Hz
Output voltage Total Harmonic Distortion (THD)

2%
Number of input phases

3
Number of batteries supported

4
Three-phase input voltage supported

380,400,415 V
Three-phase output voltage supported

380,400,415 V
