ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
PCIe 4.0/3.0 x16, Up to 4 x M.2, 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functions
RAID on CPU
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms’ RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
Design for unthrottled transfer speed

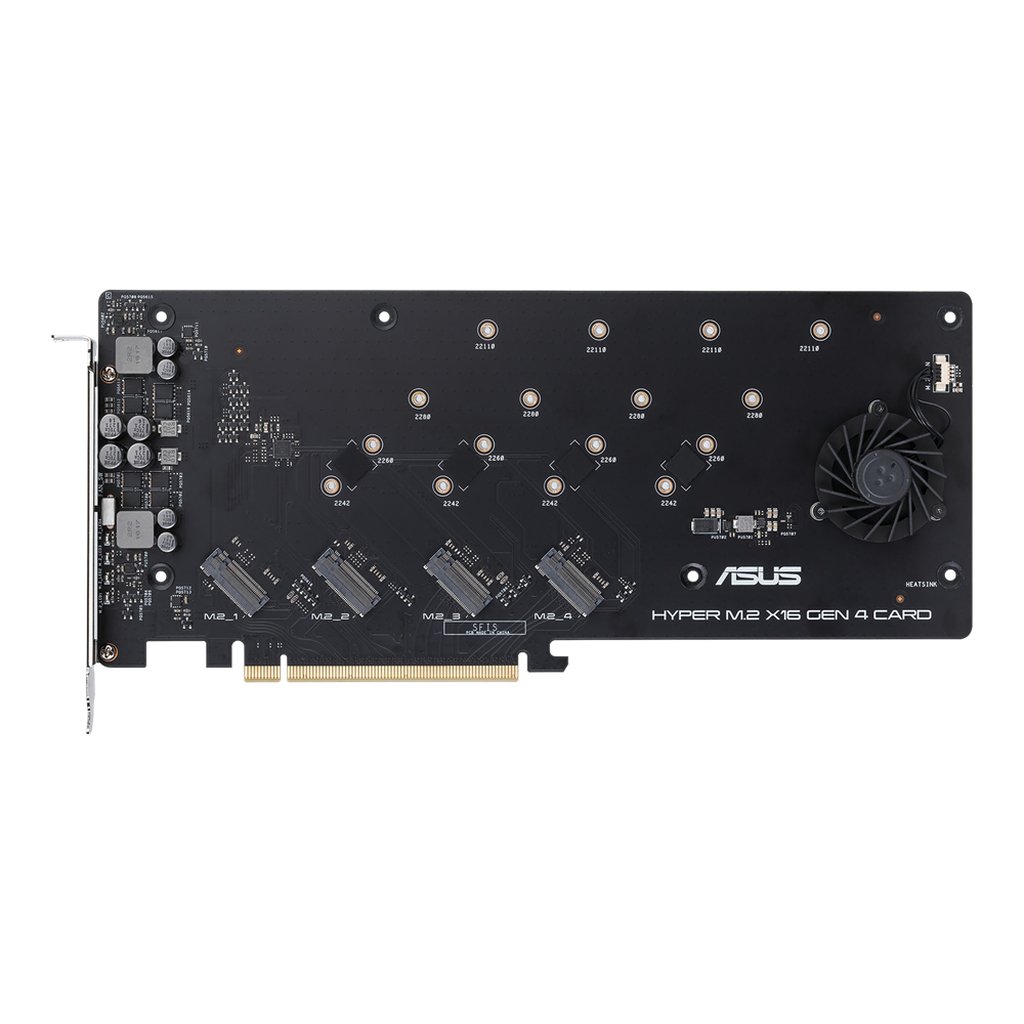

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
Additional information
| Weight | 0.9 lbs |
|---|---|
| Product colour | Silver |
| Host interface | PCIe |
| Output interface | M.2 |
| Data transfer rate (max) | 256 Gbit/s |
| Depth | 122 mm |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
| Purpose | PC |
| Cooling type | Active |
| Width | 270 mm |
| Height | 15 mm |
| Quantity | 1 |
| Harmonized System (HS) code | 84733020 |
| Number of fans | 1 fan(s) |
| Number of expansion slots | 4 |
| LED indicators | Access |
| Easy to install | Yes |
| Package type | Box |
