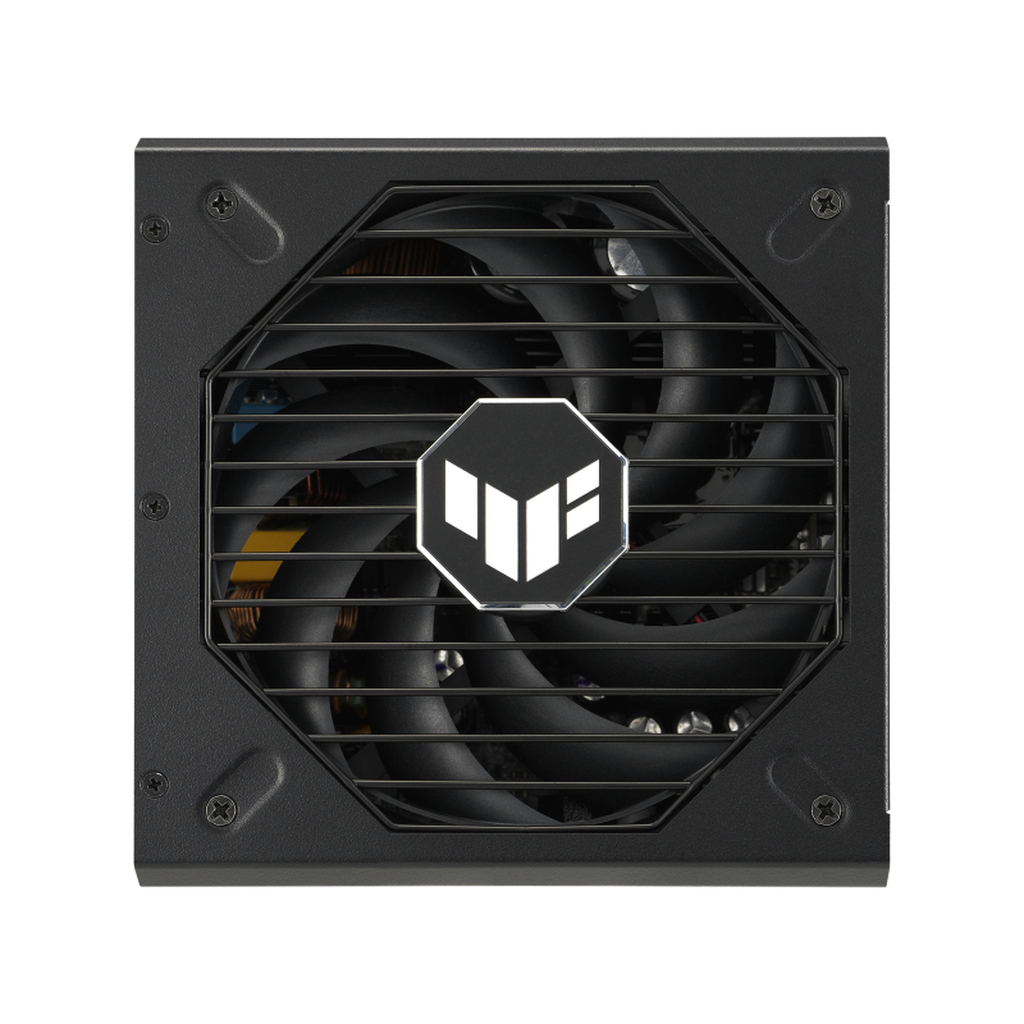

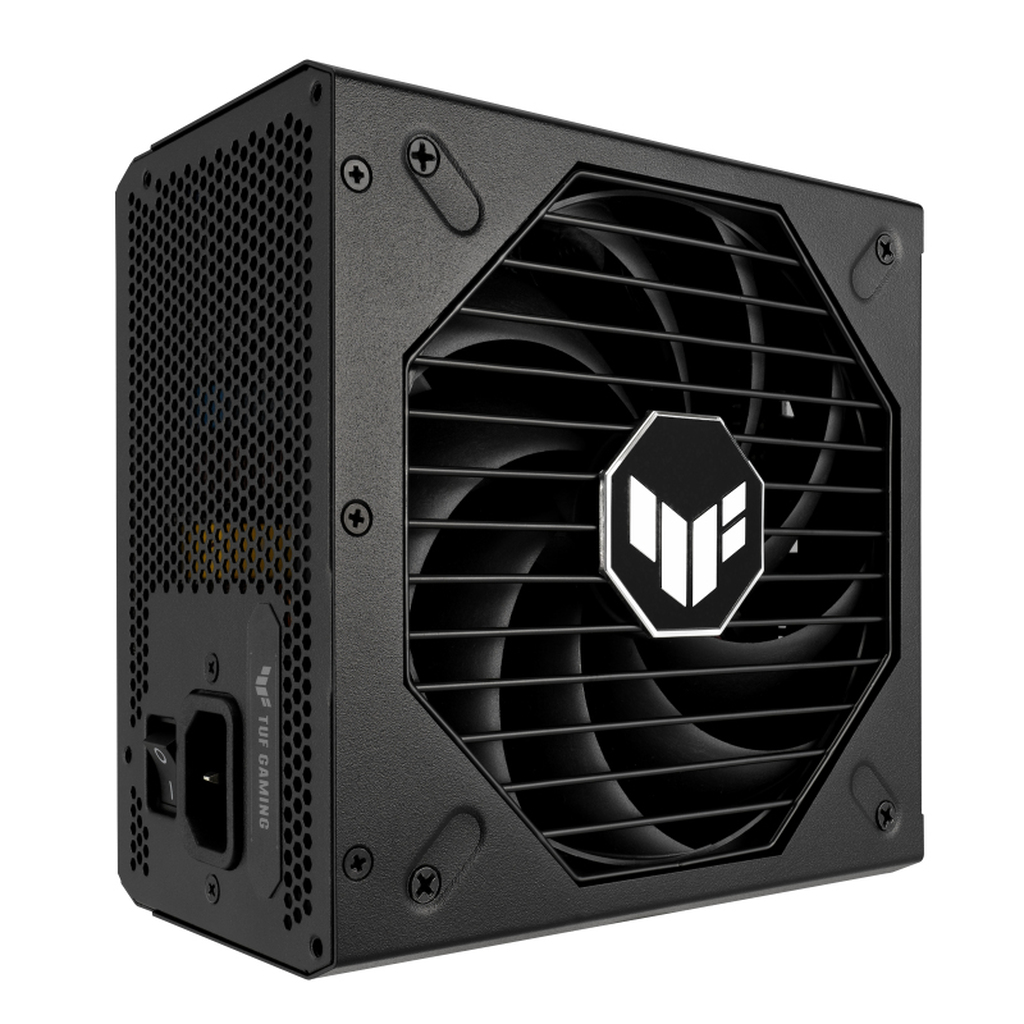

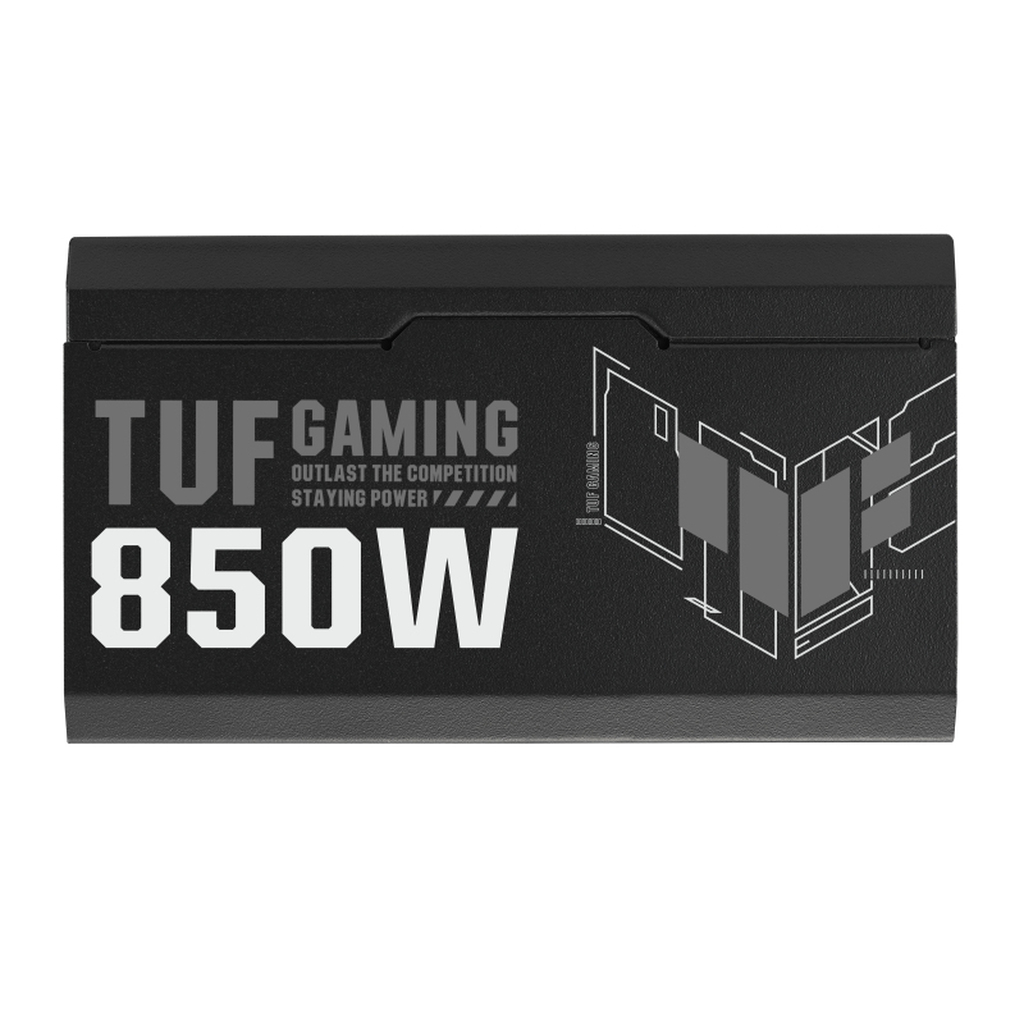

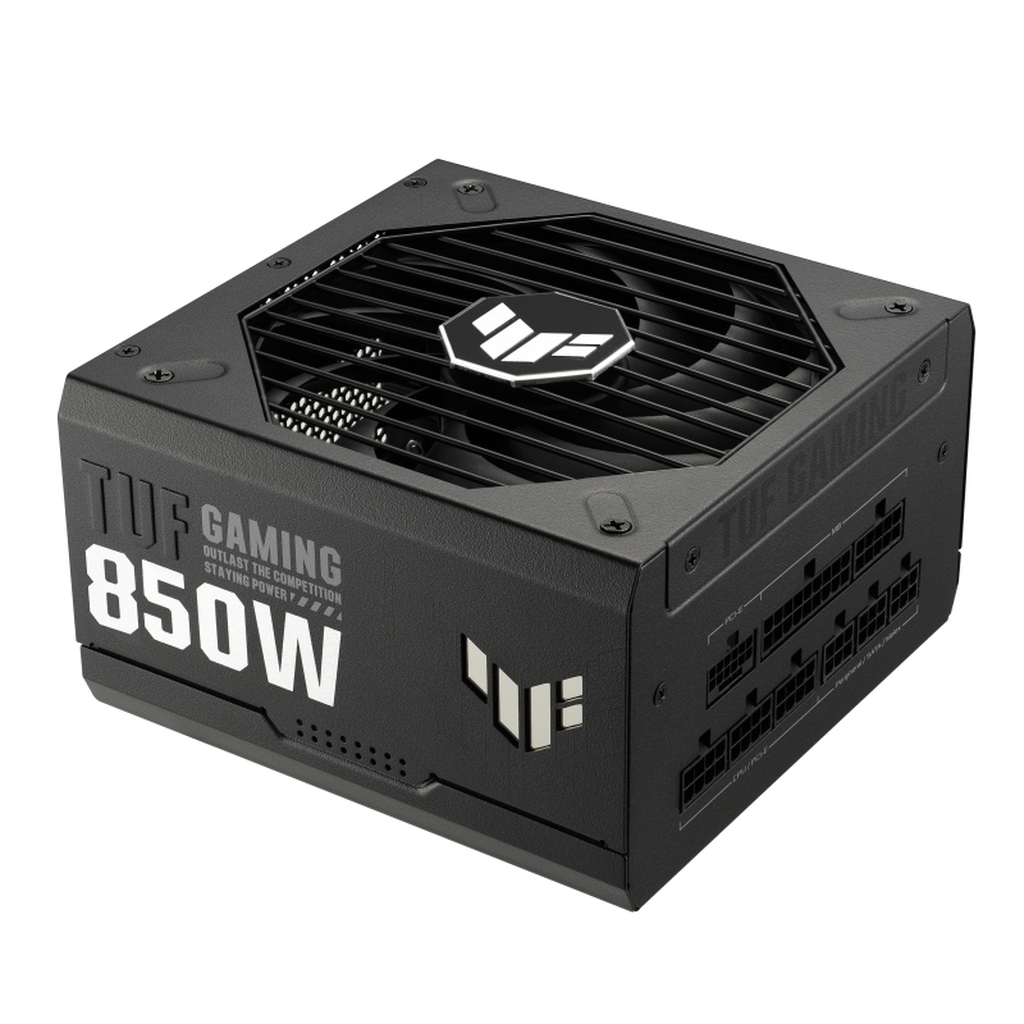

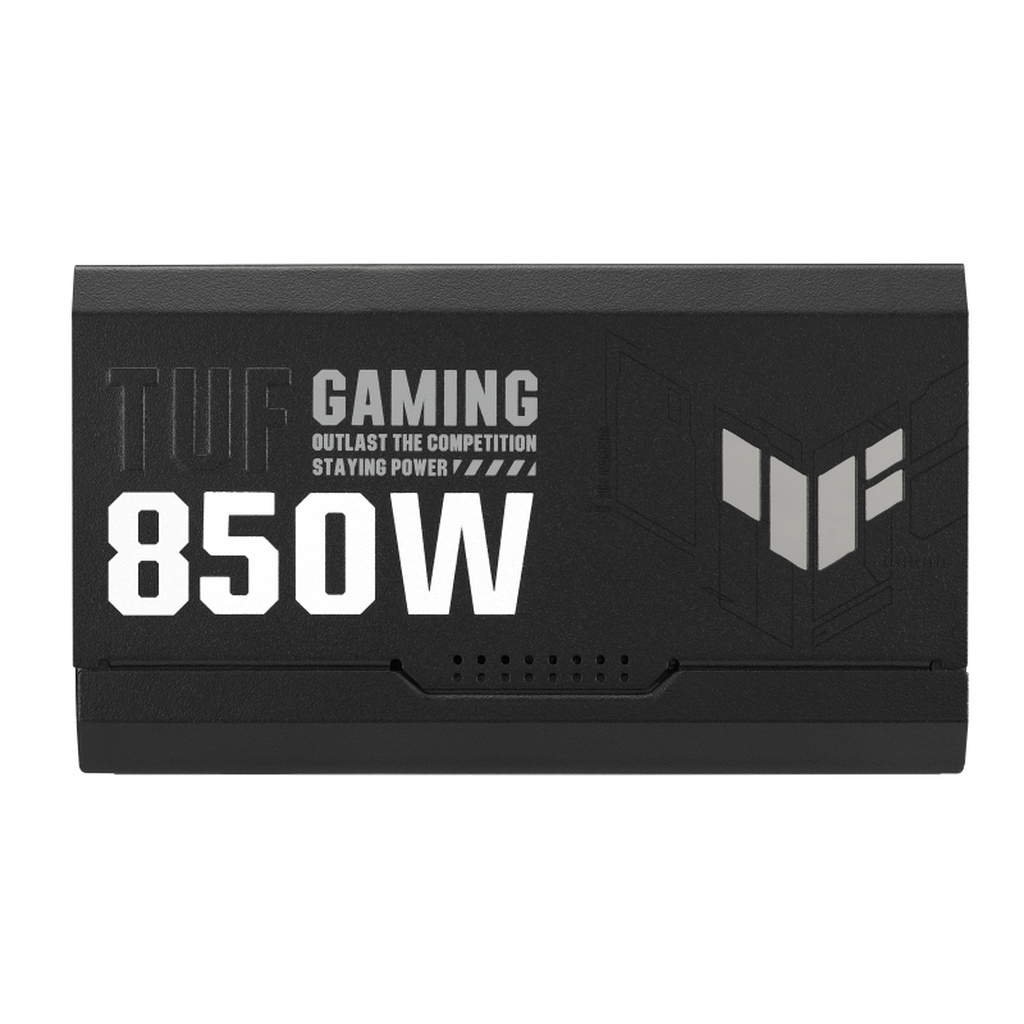

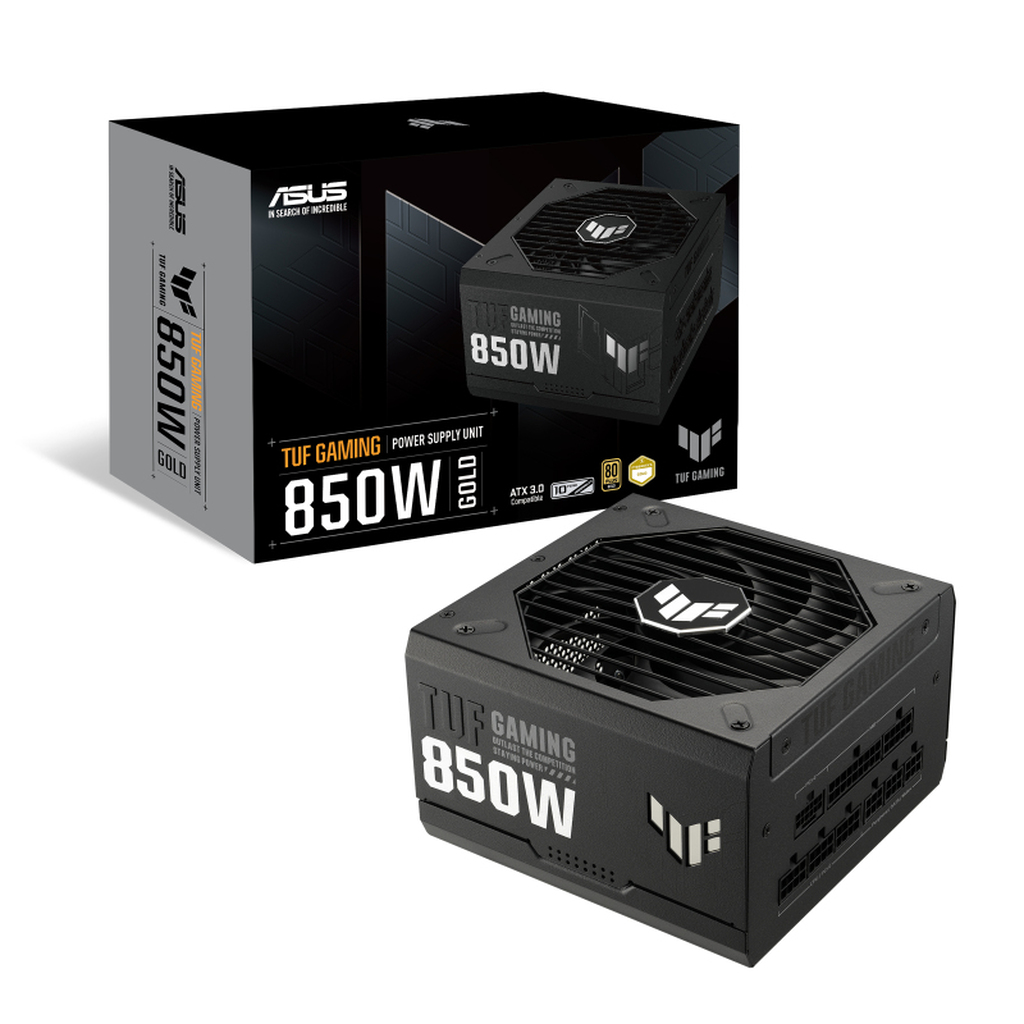

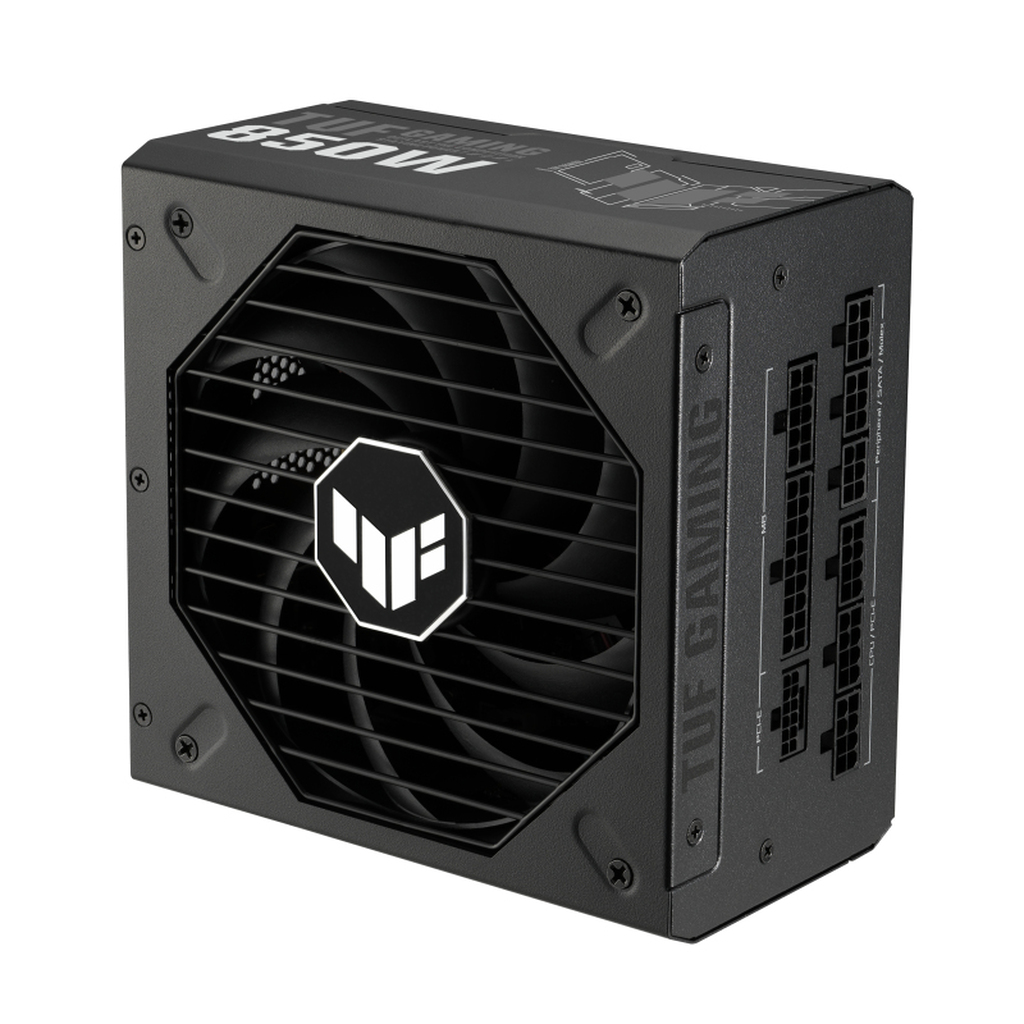

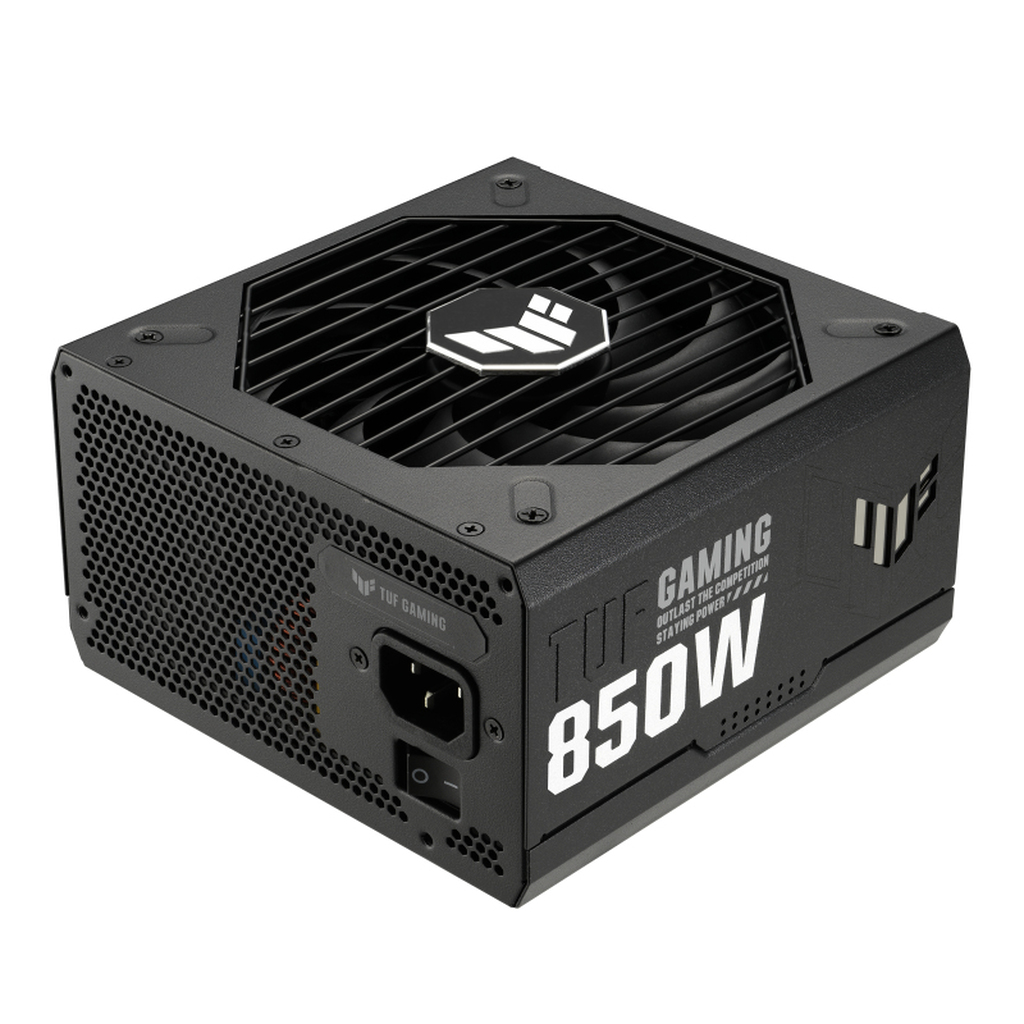

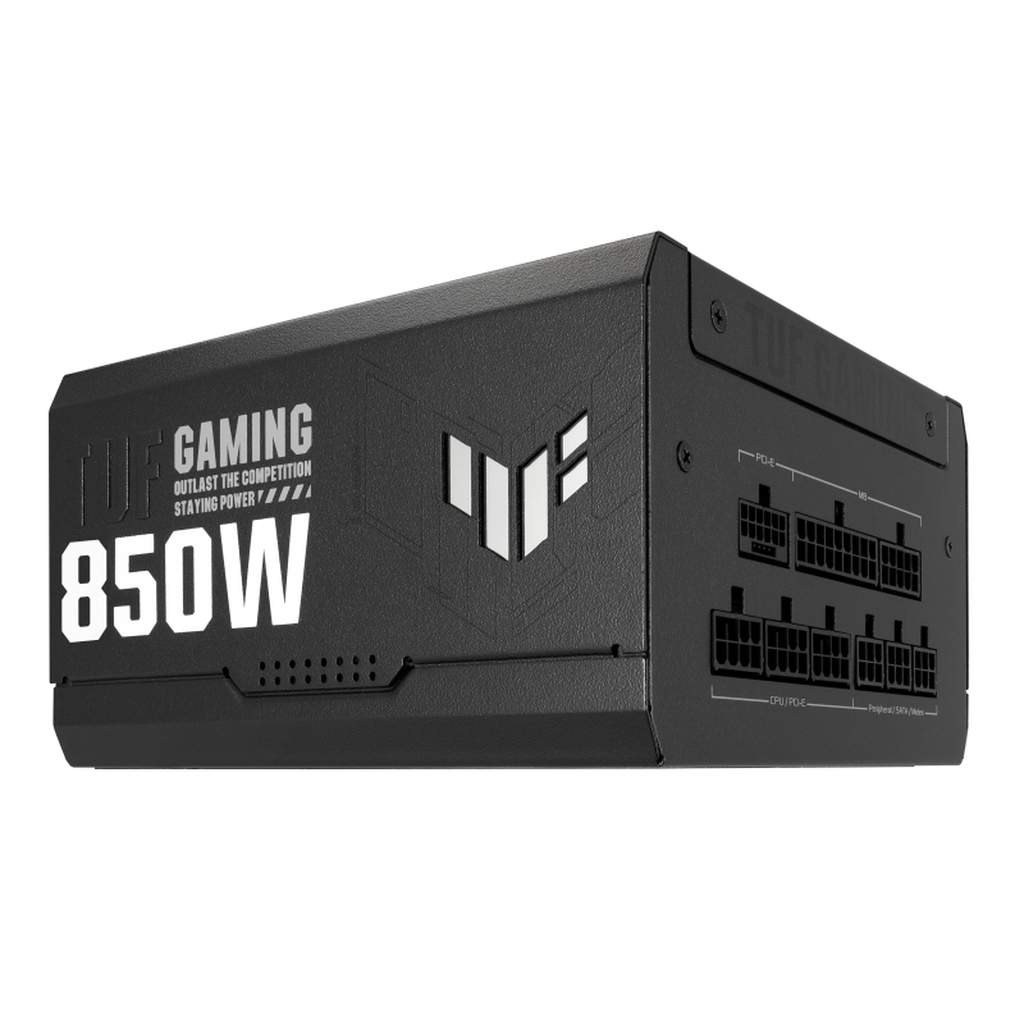

ASUS TUF Gaming 850W Gold power supply unit 24-pin ATX ATX Black
850 watt, fully modular power supply, ATX 3.0 compatible, Axial-tech fan, PCB coating, double ball bearings
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
Built For The Long Haul
The ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.
80 Plus Gold Certification
Heart of gold
The TUF Gaming 850W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
10-year Warranty
A decade of power
We’re so confident about the reliability of the TUF Gaming 850W Gold that we back it with a 10-year worldwide warranty.
Additional information
| Weight | 3.12 lbs |
|---|---|
| Weight | 2.38 kg |
| Total power | 850 W |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Compliance certificates | RoHS |

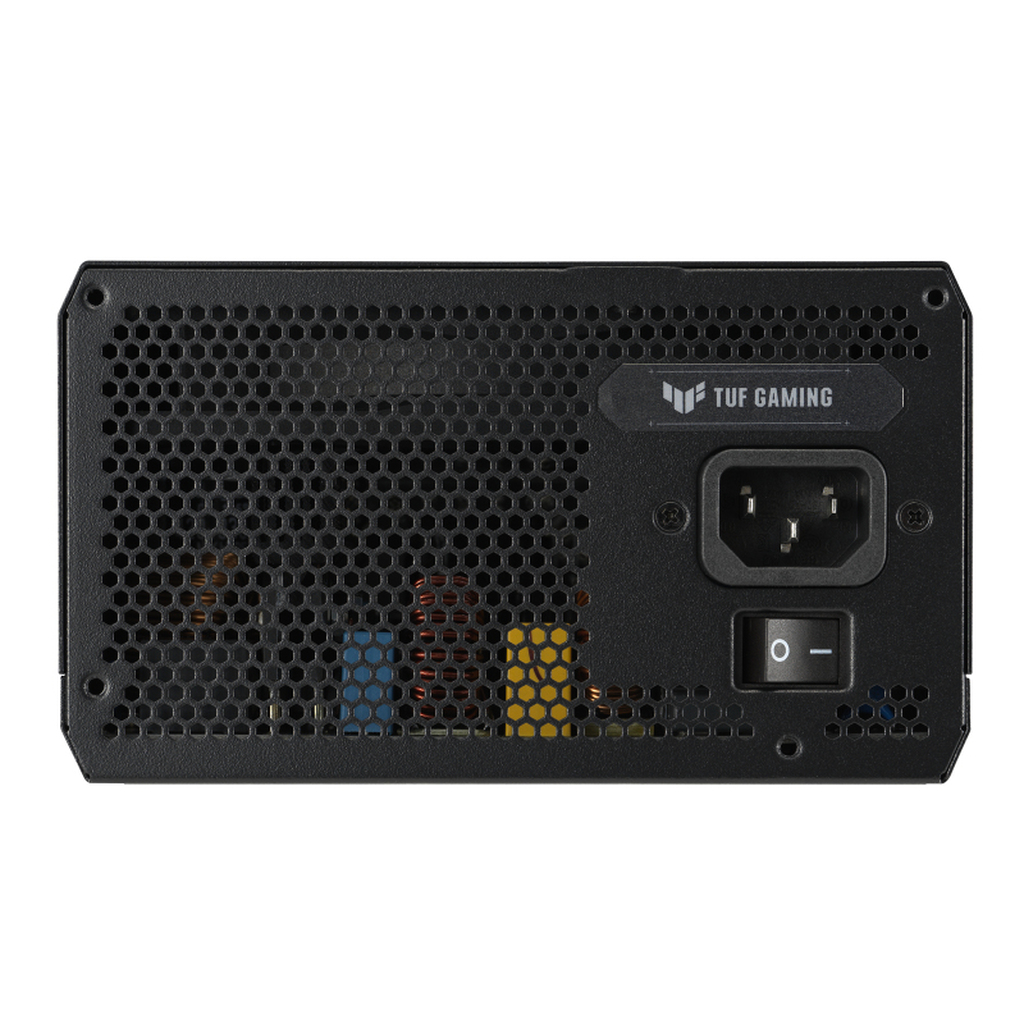

| AC input voltage | 100 – 240 V |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |

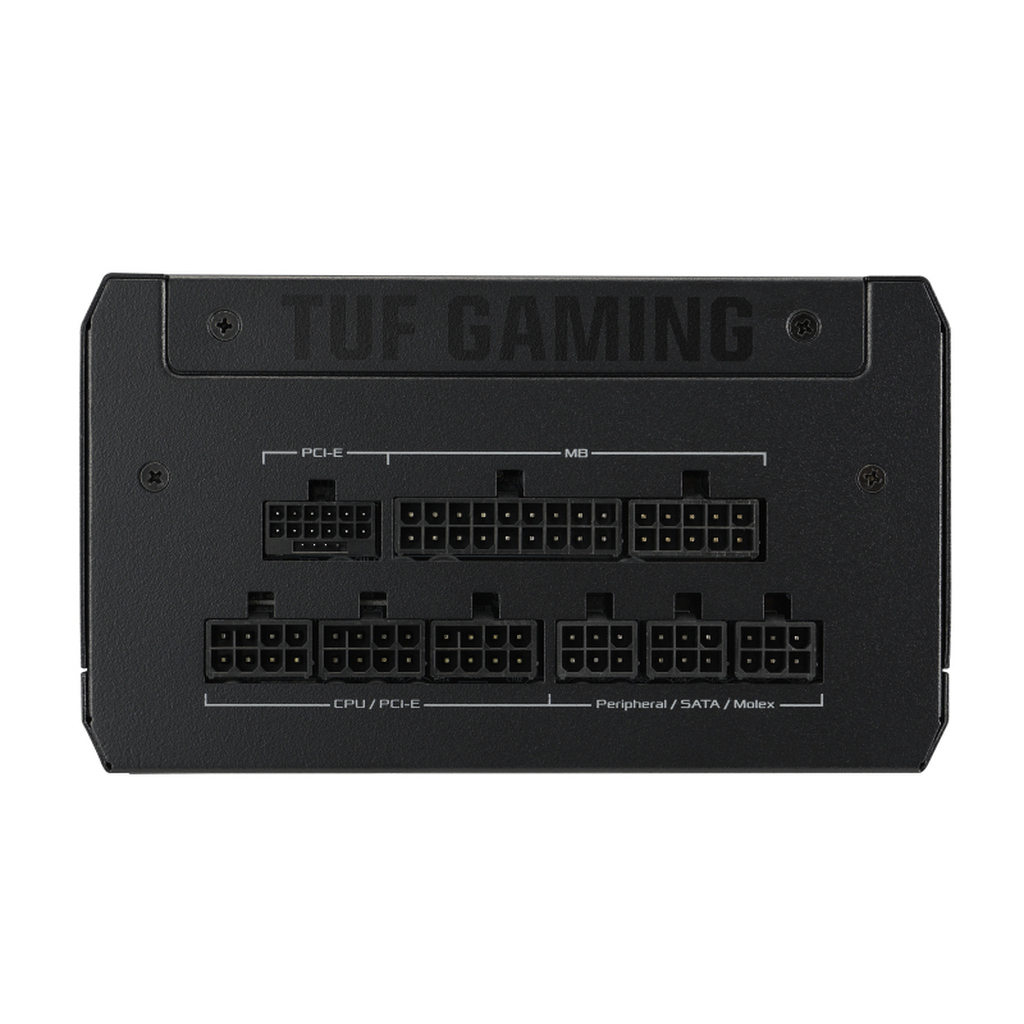

| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Package width | 310 mm |
| Package depth | 200 mm |
| Package height | 108 mm |
| Package weight | 3.07 kg |
| Package type | Box |
| Illumination | No |
| PCI Express connector | Yes |
