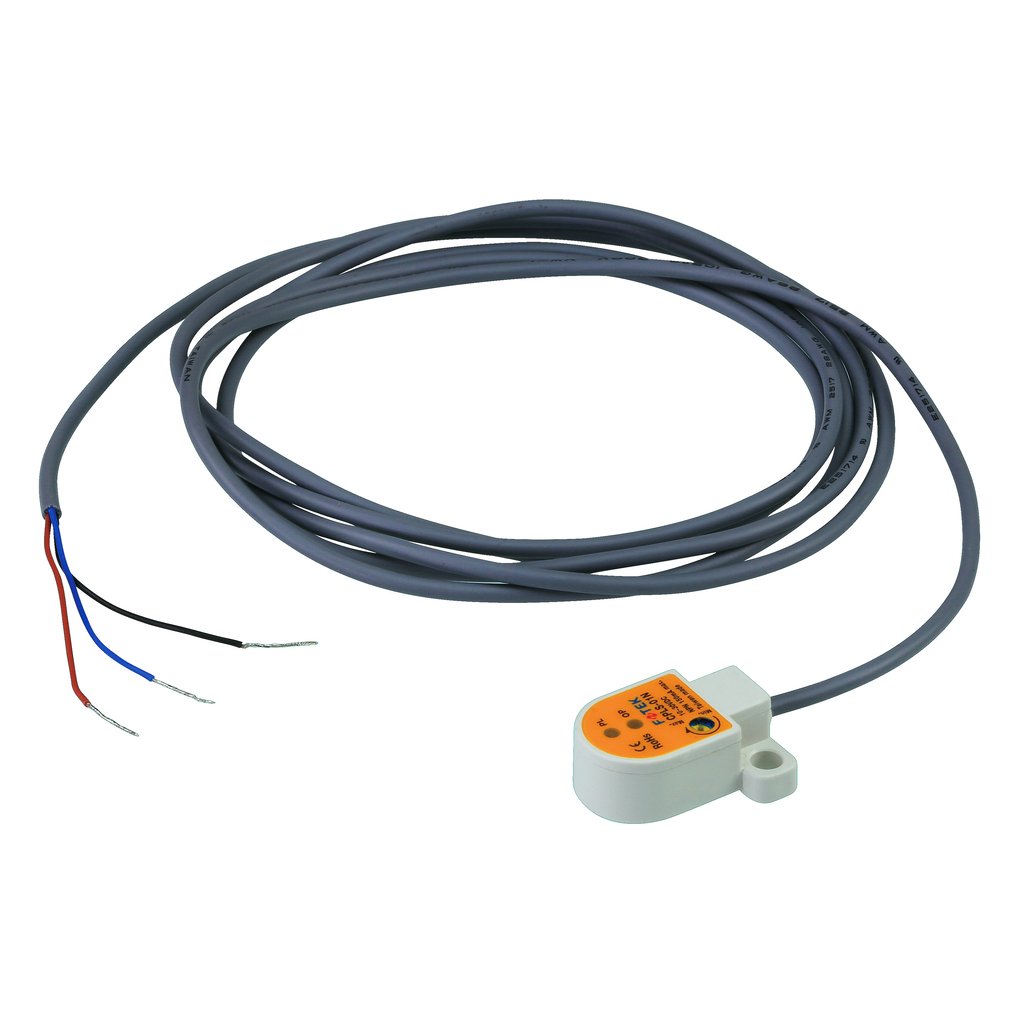

ATEN Capacitive Leakage Sensor
Capacitive Leakage Sensor
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

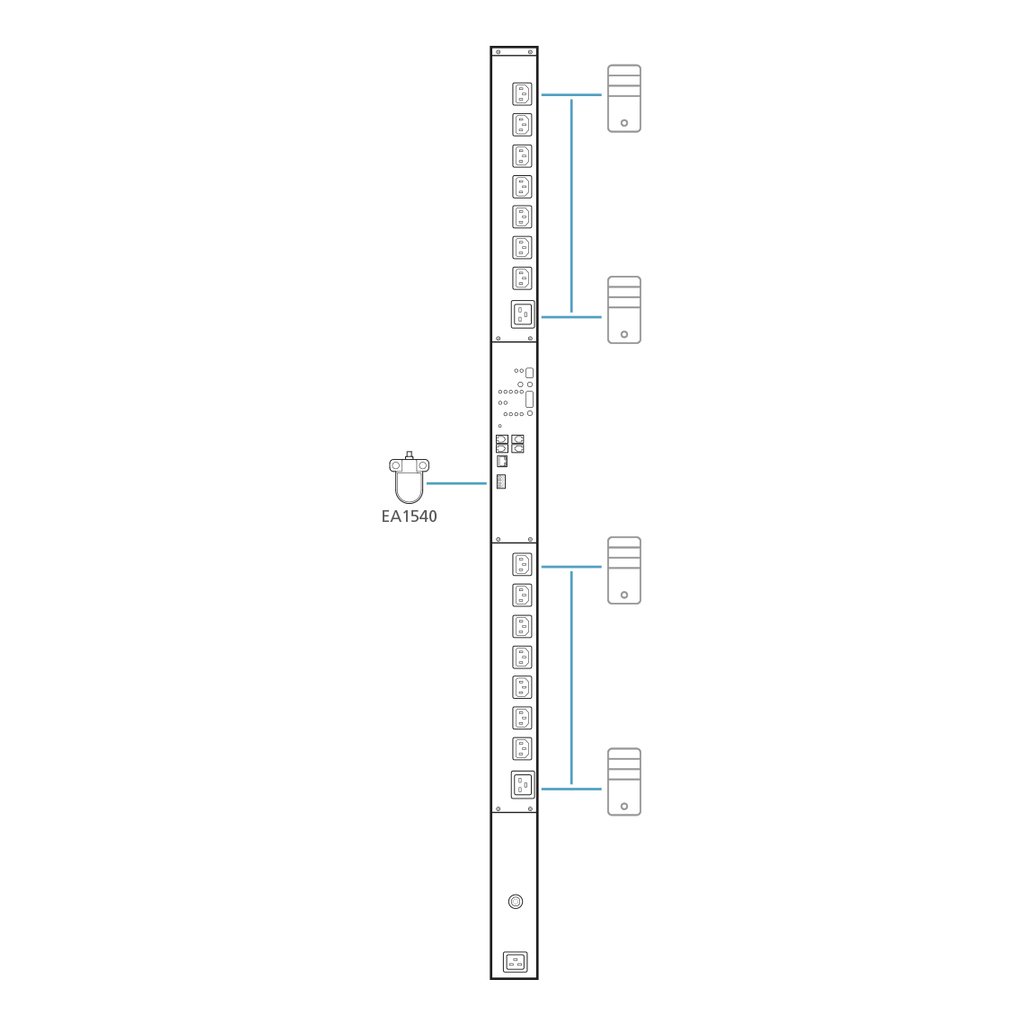

The EA1540 Capacitive Leakage Sensor can automatically detect and notify users of any liquid in close proximity with the connected PDU. When any liquid is detected, the EA1540’s beeper sounds, and its red LED lights up, calling for immediate attention and response, thereby effectively decreases the risks of damages to both the PDU and powered devices. It is ideal for PDU installation environments such as subway data centers located underground.
Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.
The EA1540 is the perfect solution for those who need to ensure PDU’s daily operations and prevent any potential risks of device damages in advance.
Additional information
| Weight | 0.028 lbs |
|---|---|
| Product type | Sensor & alert system |
| Product colour | Black, Grey |
| Connectivity technology | Wired |
| Housing material | Polypropylene (PP) |
| Insulation resistance | 100 MΩ |
| AWG wire size | 22 |
| International Protection (IP) code | IP66 |
| Power source type | DC |
| AC input voltage | 10 – 30 V |
| Nominal current output | 0.15 A |
| Power consumption | 20 mA |
| Package volume | 566.34 cm³ |
| Package width | 85 mm |
| Package depth | 110 mm |
| Package height | 45 mm |
| Package weight | 1.25 kg |
| Country of origin | Taiwan |
| Master (outer) case volume | 25485.16 cm³ |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 480 mm |
| Master (outer) case gross weight | 720 g |
| Products per master (outer) case | 12 pc(s) |
