C2G Dual 4K HDMI® HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter – 4K 60Hz
Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter – 4K 60Hz
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter – 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. The USB Micro-B input supports necessary firmware updates. Advanced users can control one-way IR pass through from the transmitter to the connected receiver and also control and configure both local and remote devices via RS232.
Additional information
| Weight | 0.1 lbs |
|---|---|
| Supply type | 340 MHz |
| Type | AV transmitter |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| DC-in jack | Yes |
| Power source type | DC |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Maximum resolution | 3840 x 2160 pixels |
| VGA (D-Sub) input ports | 1 |

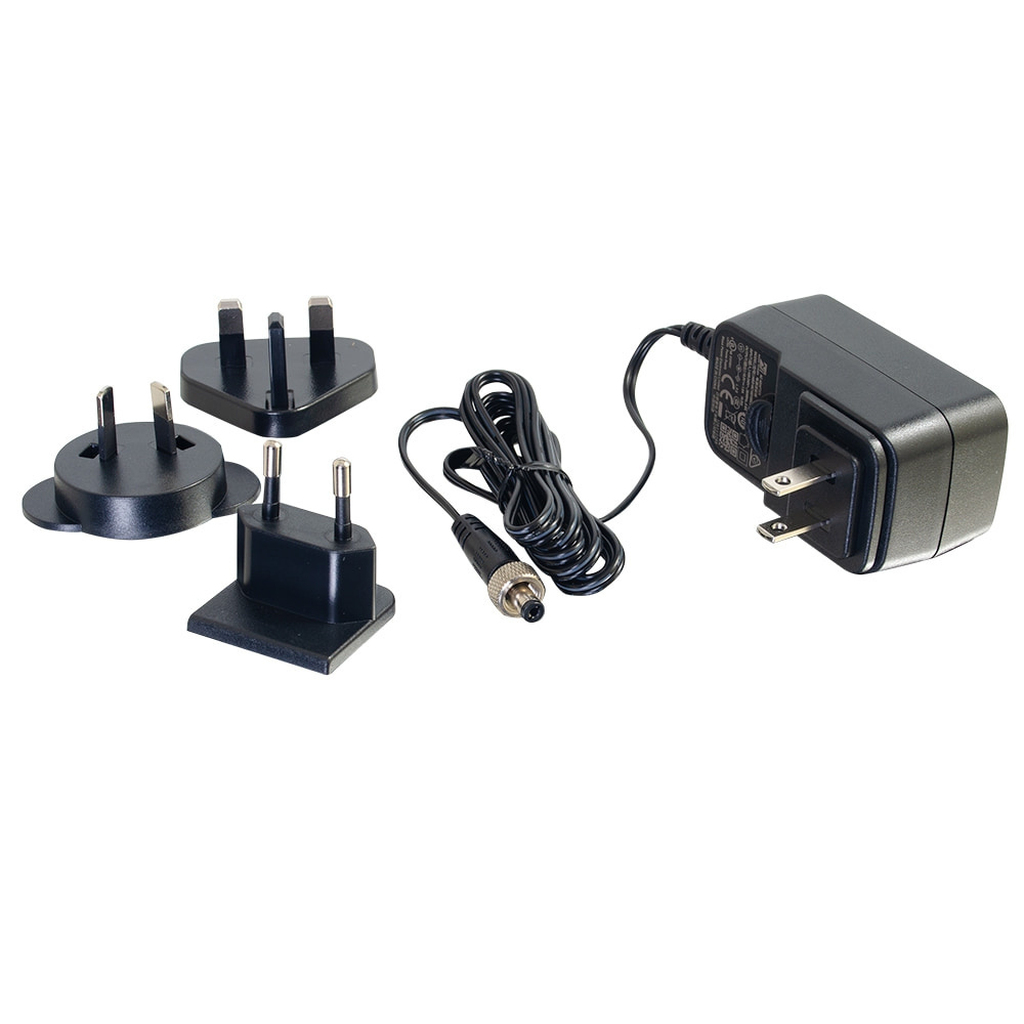

| AC adapter included | Yes |
| Chipset | VS010-TX LBGA-196, EP92A6SQ QFN-128, MS9282 LQFP-64, STM32F103RCT6 LQFP-64, STM8S105K6T6C LQFP-32 |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 10.2 Gbit/s |
| HDBaseT certified | Yes |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| Width | 194.7 mm |
| Depth | 94 mm |
| Height | 20 mm |
| Quantity per pack | 1 pc(s) |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 1.4 |
| Extended display identification data (EDID) | Yes |

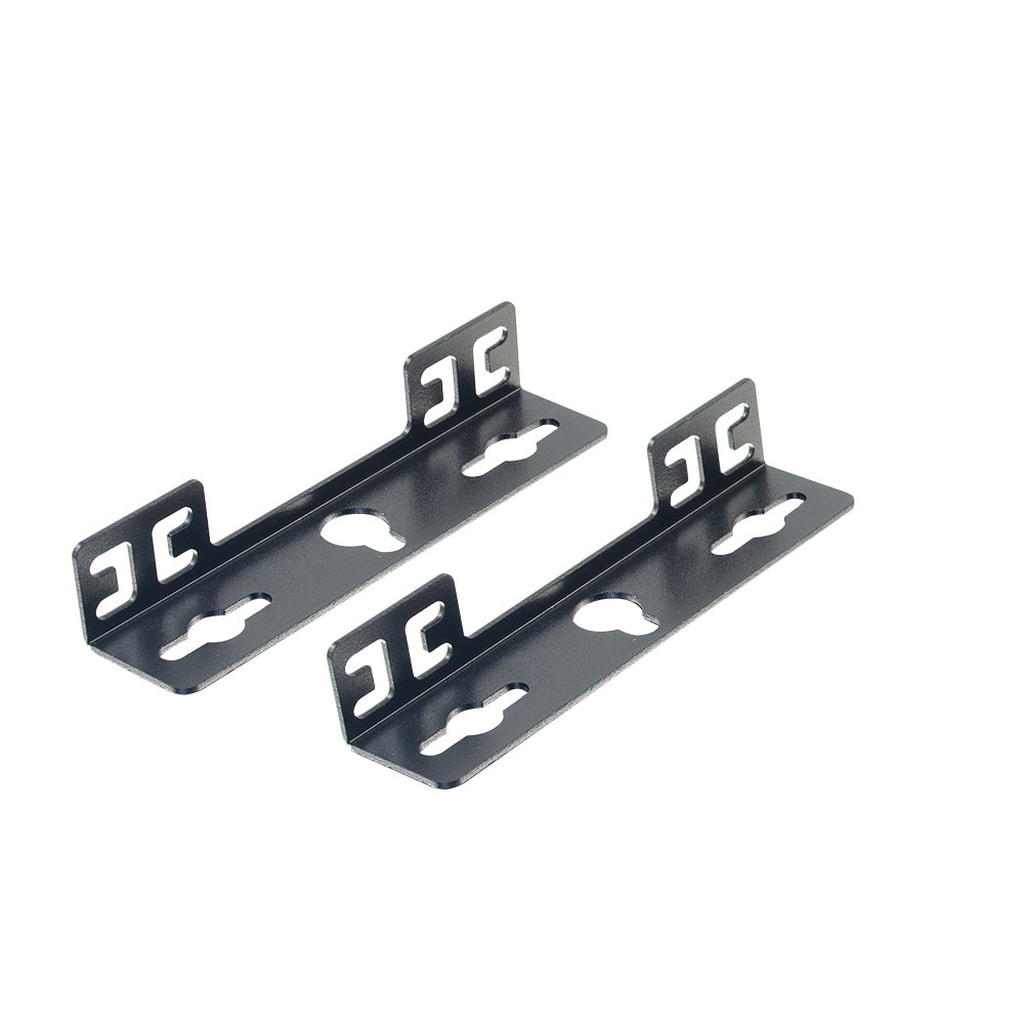

| Mounting kit | Yes |
| Country of origin | China |
