C2G HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver – 4K 60Hz
HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver – 4K 60Hz
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver – 4K 60Hz allows a 4K HDMI source to be extended up to 40m to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 40m and 1080p at 60Hz up to 70m when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 35m and 1080p at 60Hz up to 60m when using Cat5e or Cat6 cabling.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.
Additional information
| Weight | 0.68 lbs |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6a, Cat7 |
| Maximum transfer distance | 39.62 m |
| Material | SGCC |
| Product colour | Black |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Maximum resolution | 3840 x 2160 pixels |
| Input current | 0.6 A |
| AC input voltage | 100 – 240 V |
| Operating voltage | 18 V |
| Weight | 630 g |

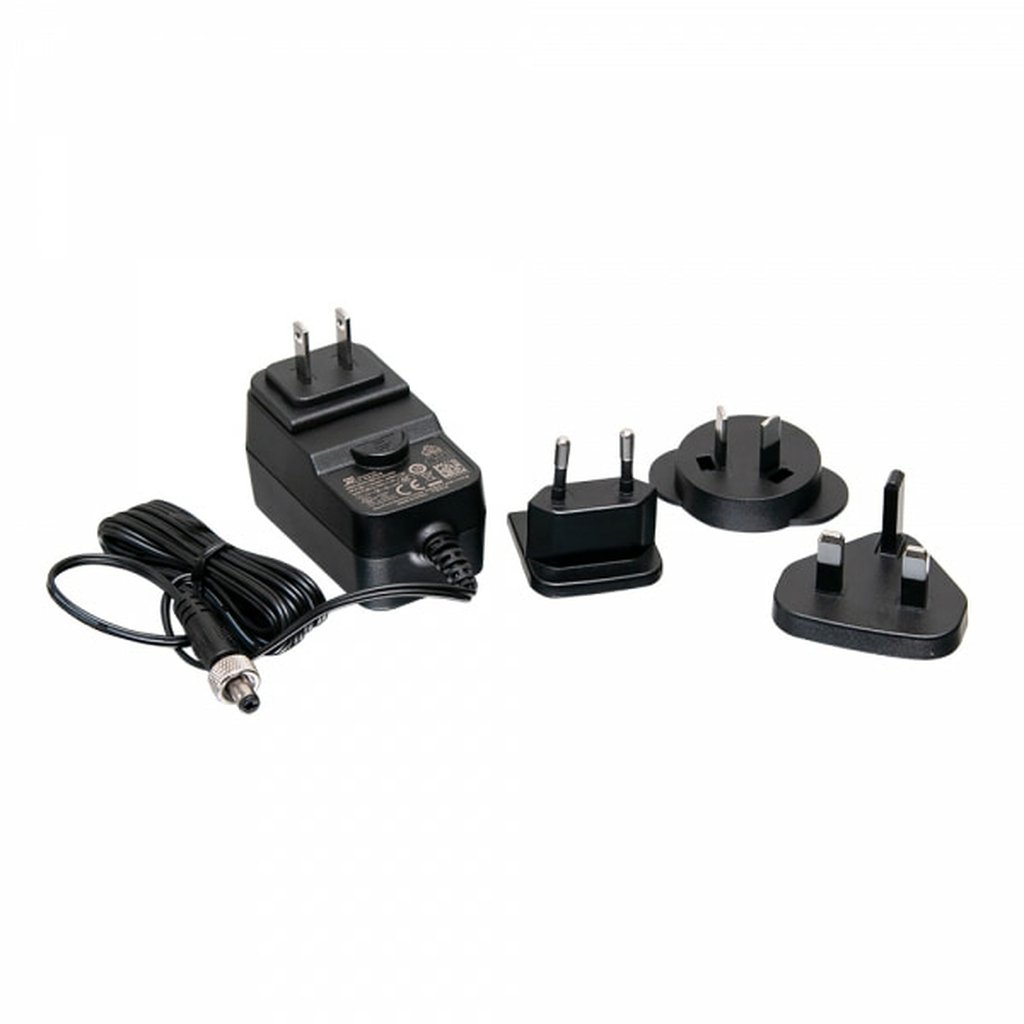

| AC adapter included | Yes |
| Maximum refresh rate | 60 Hz |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| AC input frequency | 50 – 60 Hz |
| Output current | 1 A |
| Storage relative humidity (H-H) | 10 – 90% |
| Quantity per pack | 1 pc(s) |
| HDCP | Yes |
| Mounting kit | Yes |
| Bidirectional | Yes |
