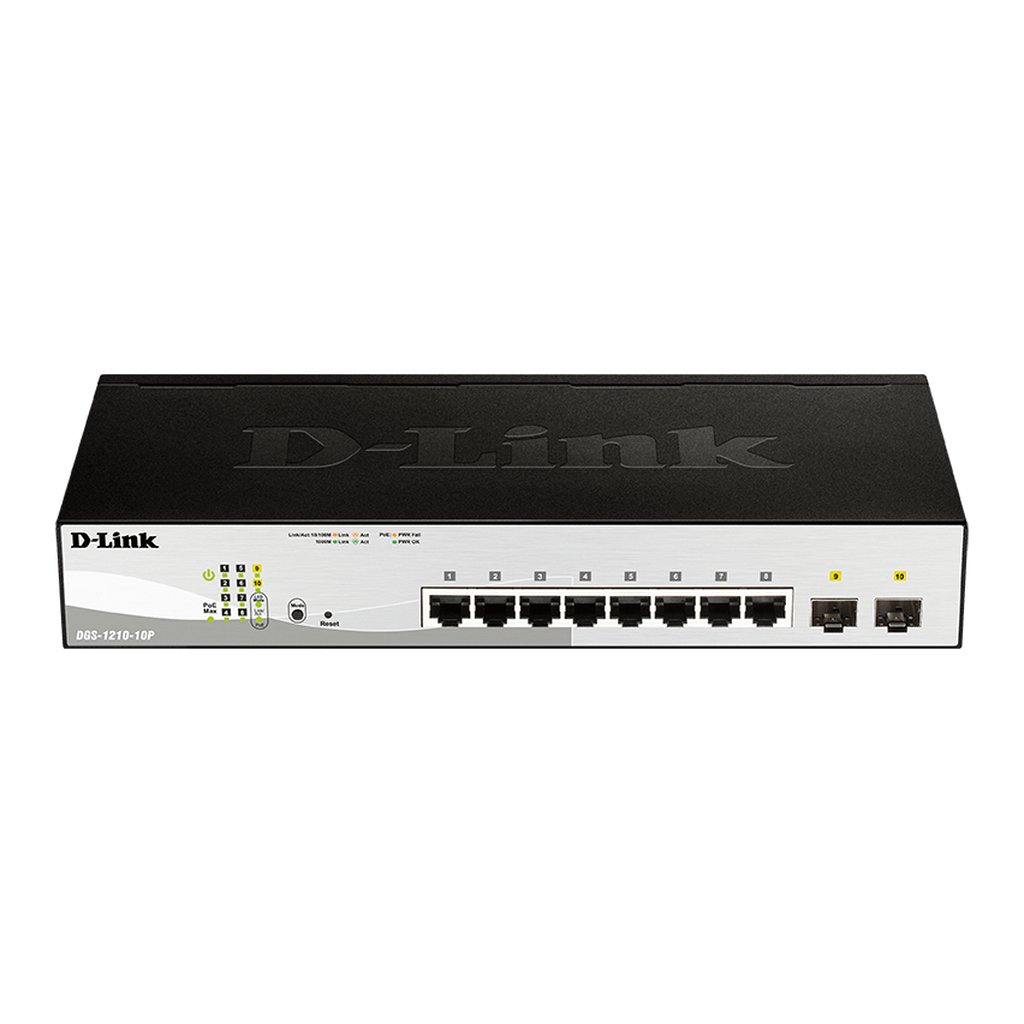

D-Link DGS-1210-10P – 10-Port Gigabit Smart Managed Switch including 2x SFP ports
DGS-1210-10P – 8-port PoE/PoE+ Gigabit WebSmart Switch with 2 Combo 1000 Base-T/SFP Ports
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D‑Link’s DGS‑1210 Smart+ Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.
Designed for flexible and efficient network management, The DGS-1210 series supports both D-Link Nuclias Connect, an on-premises network management platform, and Nuclias Unity, a native cloud-based management platform. This gives businesses the flexibility to choose the deployment and management approach that best suits their needs.
Key benefits include:
Licence-free cloud management: Enjoy the benefits of Nuclias Unity Essential with no additional licence fees.
Centralised control: Manage network devices and settings from a single, intuitive interface.
Simplified administration: Streamline configuration, monitoring and ongoing network management.
Scalability: Suitable for growing business networks and evolving requirements.
Flexible deployment: Choose between on-premises management with Nuclias Connect or native cloud management with Nuclias Unity.
AI-powered insights: Unlock powerful AI-driven tools and intelligent network management capabilities through Nuclias Unity (Pro version required).
MSP capabilities: Benefit from multi-tenant network management features, enabling managed service providers to efficiently manage multiple customer networks through Nuclias Unity (MSP version required).
Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.
PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Additional information
| Weight | 2.7 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 729258 h |
| Power consumption (max) | 80.6 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 950 g |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Flow control support | Yes |
| Access Control List (ACL) | Yes |
| Package weight | 2.21 kg |
| Certification | EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC |
| Stackable | Yes |
| Form factor | 1U |
| Total Power over Ethernet (PoE) budget | 78 W |
| Power connector | DC-in jack |
| Port mirroring | Yes |
| Forwarding rate | 14.88 Mpps |
| Power over Ethernet (PoE) ports quantity | 8 |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Noise level | 0 dB |
| Heat dissipation | 373.96 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Package width | 288 mm |
| Package depth | 331 mm |
| Package height | 72 mm |
| MAC address filtering | Yes |
| Multicast support | Yes |
| SFP module slots quantity | 2 |
| Cable types supported | Cat5, Cat5e |
| Shipping (inner) case height | 31.7 cm |
| Shipping (inner) case width | 34.6 cm |
| Shipping (inner) case length | 38.2 cm |
| Shipping (inner) case net weight | 11.1 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 449.5 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 180 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 140.3 cm |
| Pallet gross weight (sea) | 662 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 270 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 11.8 kg |
