D-Link 1-port Mini-GBIC SFP to 1000BaseSX, 550m for all – 10 Pack

In Stock

1000BASE-SX Multi-Mode 550 M LC SFP Transceiver, 850 nm, 50/125 um, Pack of 10

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DEM-311GT/10
Brand:

Description

High-Speed Network Transmission for Business Environments

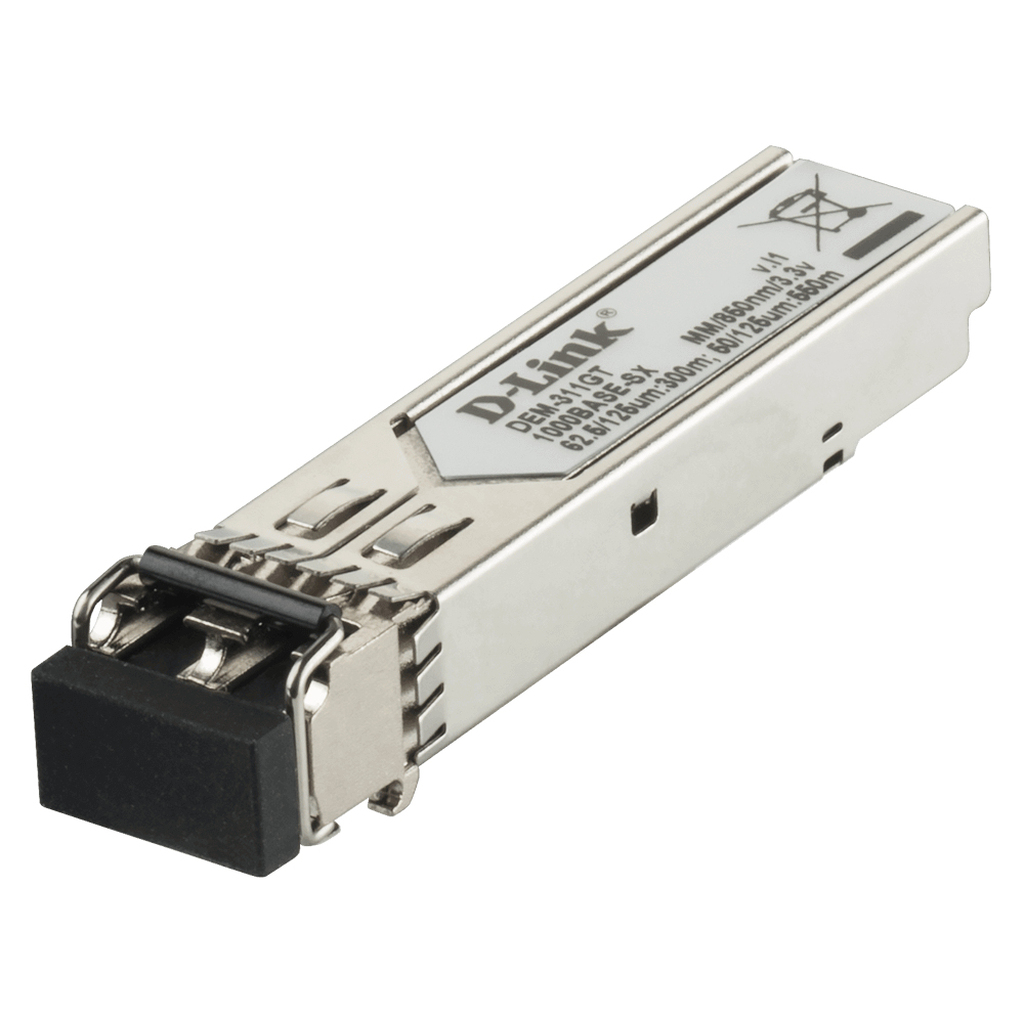

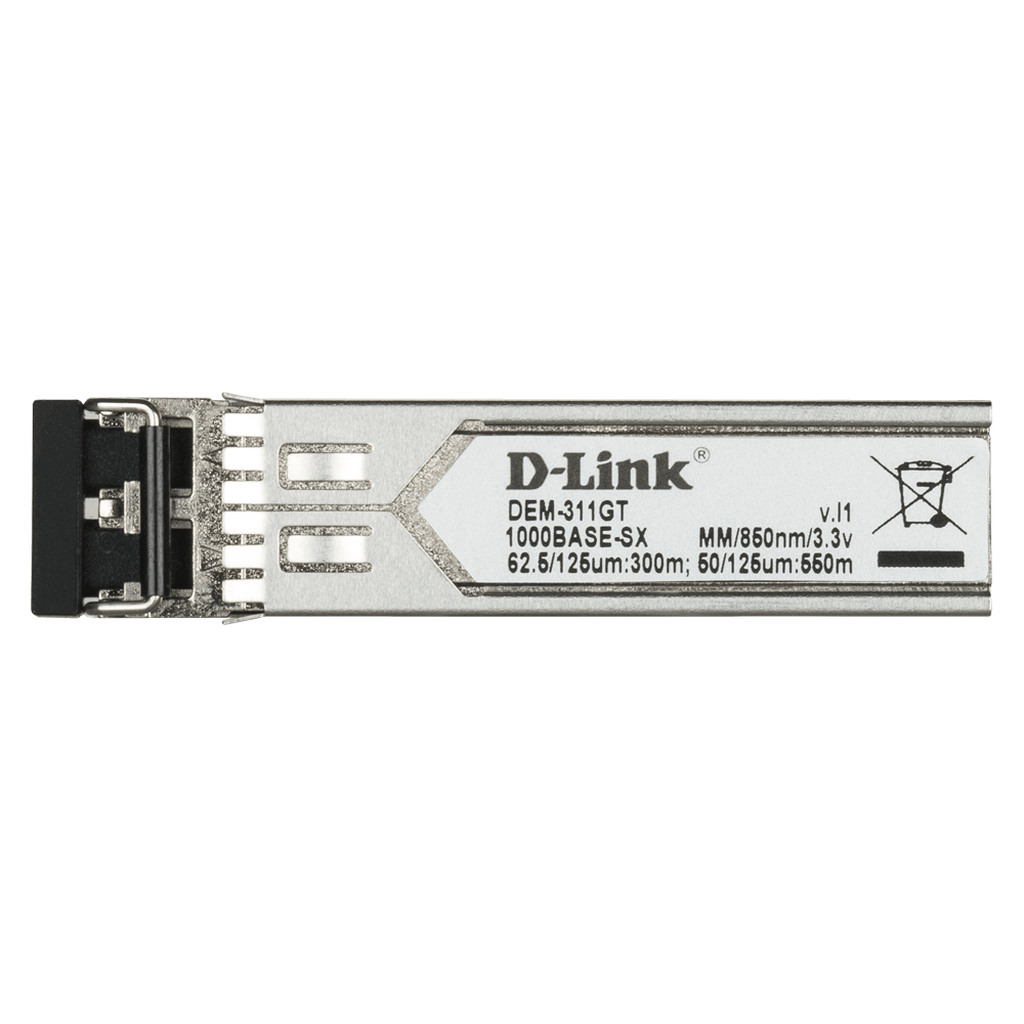

D-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-311GT is a high-performance 850 nm multi-mode SFP transceiver supporting Gigabit speeds on multi-mode fiber for distances of up to 550 m. The unit features a metal housing to reduce EMI and to increase durability.

Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

Multiple Applications
Applications of the DEM-300 Series fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.

Small Form Pluggable (SFP) Package
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.

Additional information

Weight 0.3 lbs
SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

LC

Maximum transfer distance

550 m

Wavelength

850 nm

Networking standards

IEEE 802.3z

Product colour

Black, Stainless steel

Hot-Plug support

Yes

Certification

FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-40 – 85 °C

Quantity per pack

10 pc(s)

Fiber ethernet cabling technology

1000BASE

Compliance certificates

RoHS

Width

13.4 mm

Depth

56.4 mm

Height

10.3 mm

Weight

15.5 g

Operating relative humidity (H-H)

10 – 90%

Fiber cable diameters supported (core/cladding)

50/125,62.5/125 µm

Input voltage

3.3 V

Minimum operating temperature

0 °C

Maximum operating temperature

70 °C

Storage relative humidity (H-H)

5 – 90%

Sustainability compliance

Yes

Tx power (min)

-4 dBmW

Tx power (max)

-17 dBmW

Rx power (max)

-3 dBmW

Maximum current

0.24 A

RX sensitivity

-17 dB
