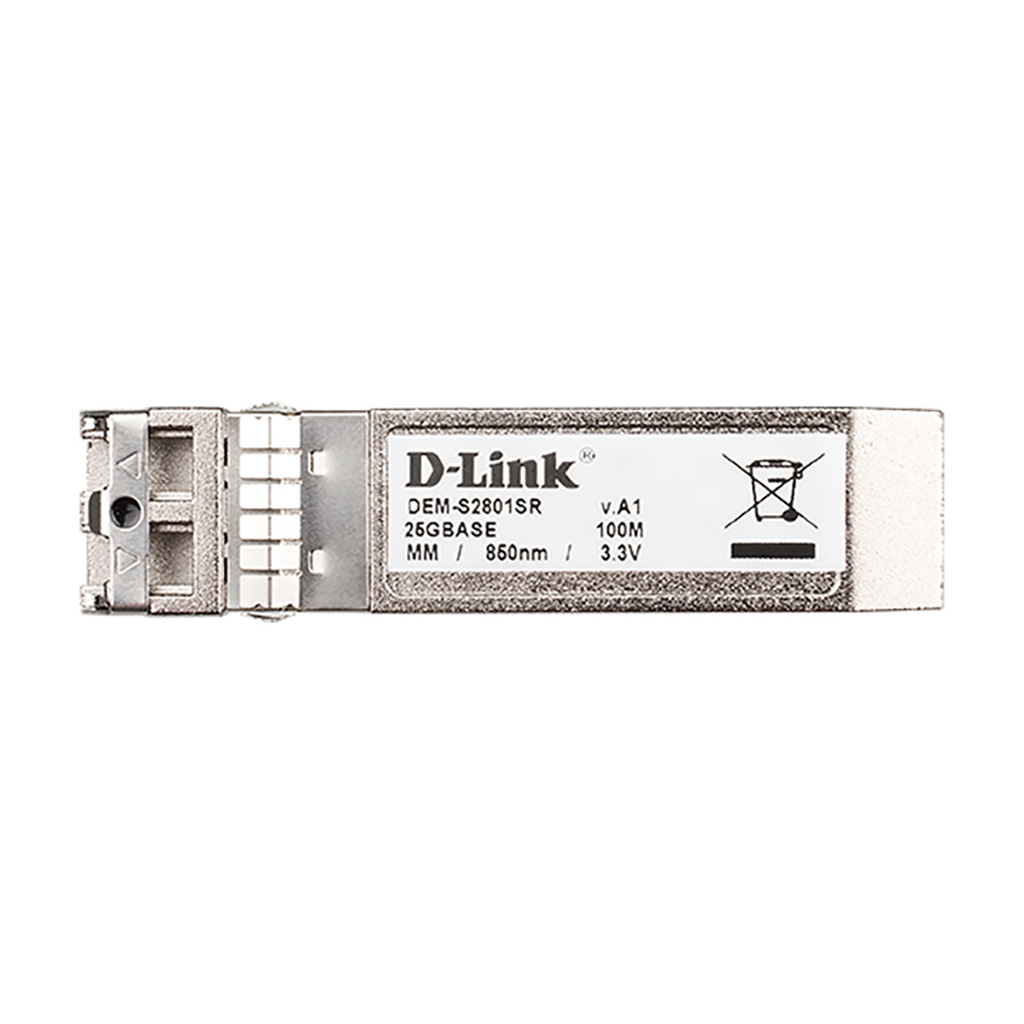

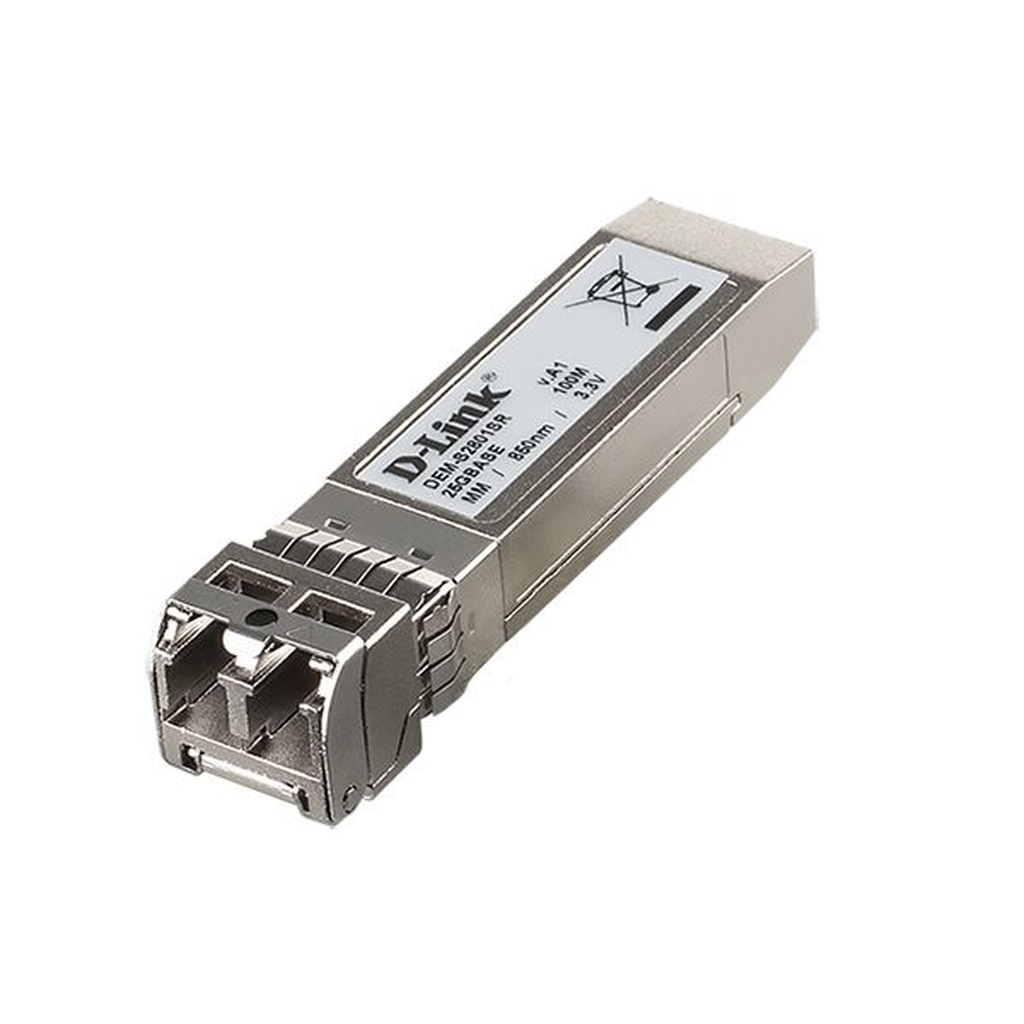

D-Link DEM-S2801SR network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm
SFP28, 25GBase-SR, Duplex LC, Multi-mode, 850 nm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Additional information
| Weight | 0.062 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Hot-Plug support | Yes |
| Certification | MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2 |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Fiber ethernet cabling technology | 25GBASE |
| Width | 57.3 mm |
| Depth | 13.7 mm |
| Height | 8.5 mm |
| Weight | 25 g |
| Operating relative humidity (H-H) | 5 – 95% |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Input voltage | 3.3 V |
| Storage relative humidity (H-H) | 5 – 95% |
| Tx power (min) | -9.1 dBmW |
| Rx power (min) | -11 dBmW |
| Tx power (max) | 2.4 dBmW |
| Rx power (max) | 2.4 dBmW |
| Maximum current | 0.3 A |
