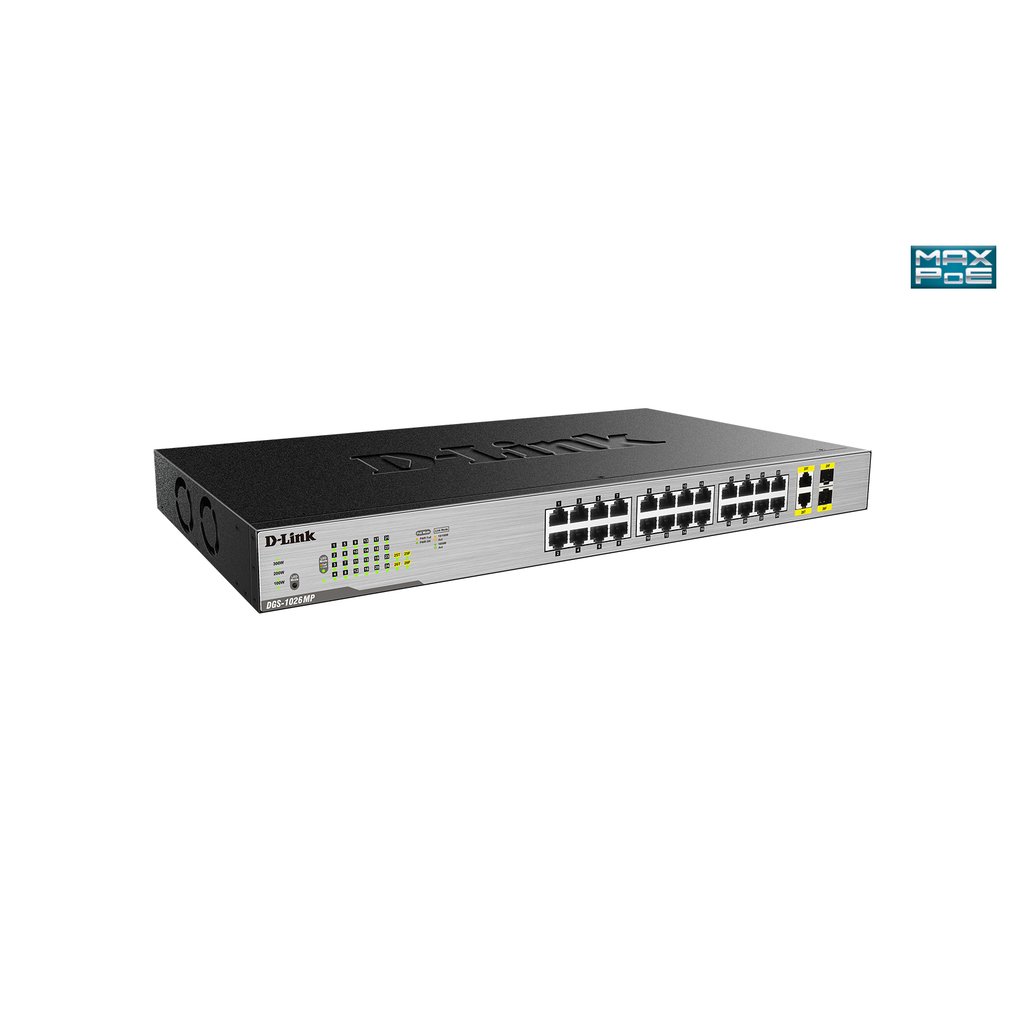

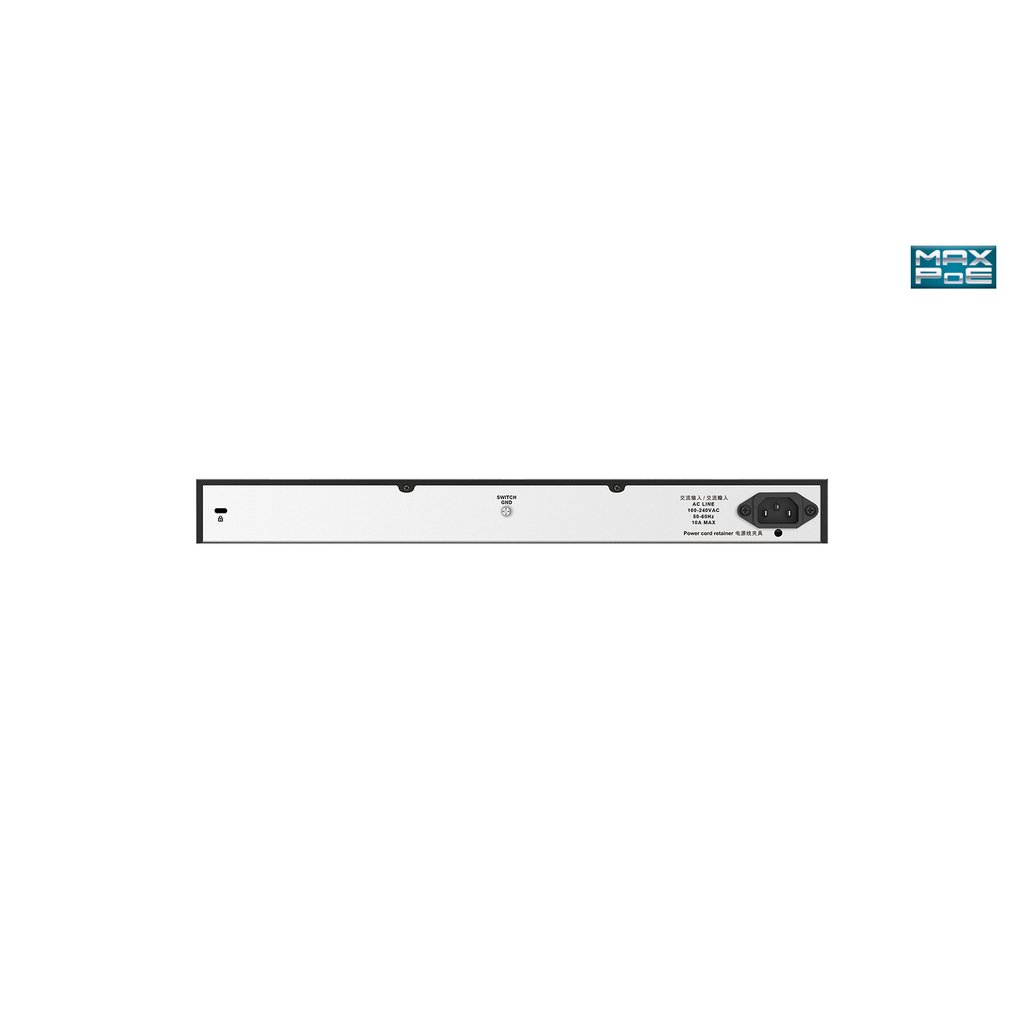

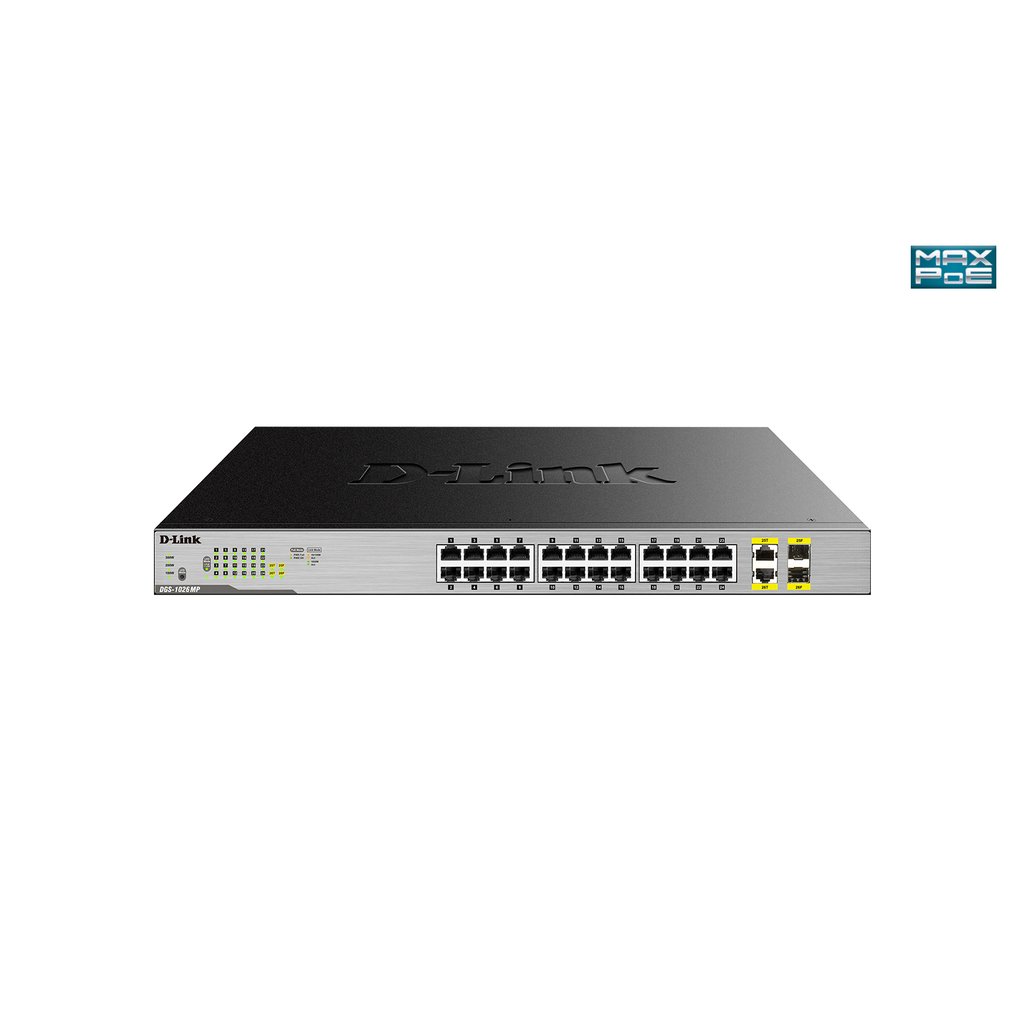

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports
Unmanaged, PoE, 52 Gbps, 24 x 10/100/1000 Mbps, 2 x 10/100/1000BASE-T/SFP, 38.69 Mpps, Store-and-forward, max. 82.1 W (PoE off)3.1 kg
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
26 Port Gigabit Max PoE Switch
DGS-1026MP
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.
Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.
Additional information
| Weight | 4.48 lbs |
|---|---|
| Brand compatibility | 38.69 Mpps |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 MB |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, PoE, Power, Power fail, Speed |
| Mean time between failures (MTBF) | 205975 h |
| Power consumption (max) | 444.1 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 250.4 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
| Harmonized System (HS) code | 85176990 |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Combo SFP ports quantity | 2 |
| Number of fans | 2 fan(s) |
| Power source | AC |
| Power supply included | Yes |
| Package weight | 3.7 kg |
| Certification | FCC Class ACECCCRoHSVCCIBSMIRCM |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Total Power over Ethernet (PoE) budget | 370 W |
| Forwarding rate | 38.69 Mpps |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Heat dissipation | 1515 BTU/h |
| Package width | 388 mm |
| Package depth | 506 mm |
| Package height | 90 mm |
| Buffer size | 512 KB |
| Shipping (inner) case height | 41 cm |
| Shipping (inner) case width | 20.5 cm |
| Shipping (inner) case length | 52 cm |
| Shipping (inner) case net weight | 8.39 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Pallet gross weight (air) | 281.8 kg |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Products per pallet (air) | 60 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 136.5 cm |
| Pallet gross weight (sea) | 369.8 kg |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Products per pallet (sea) | 80 pc(s) |
| Pallet height (sea) | 177.5 cm |
| Shipping (inner) case gross weight | 8.79 kg |
