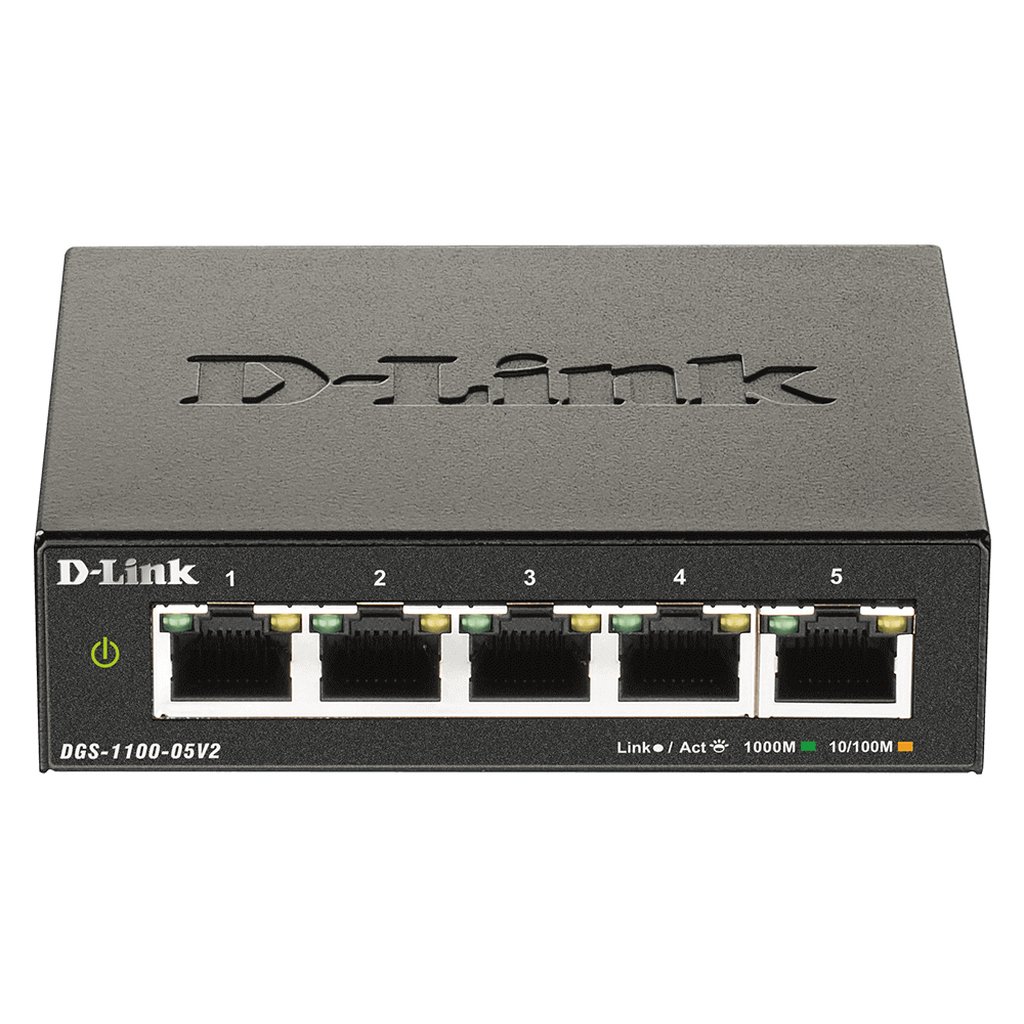

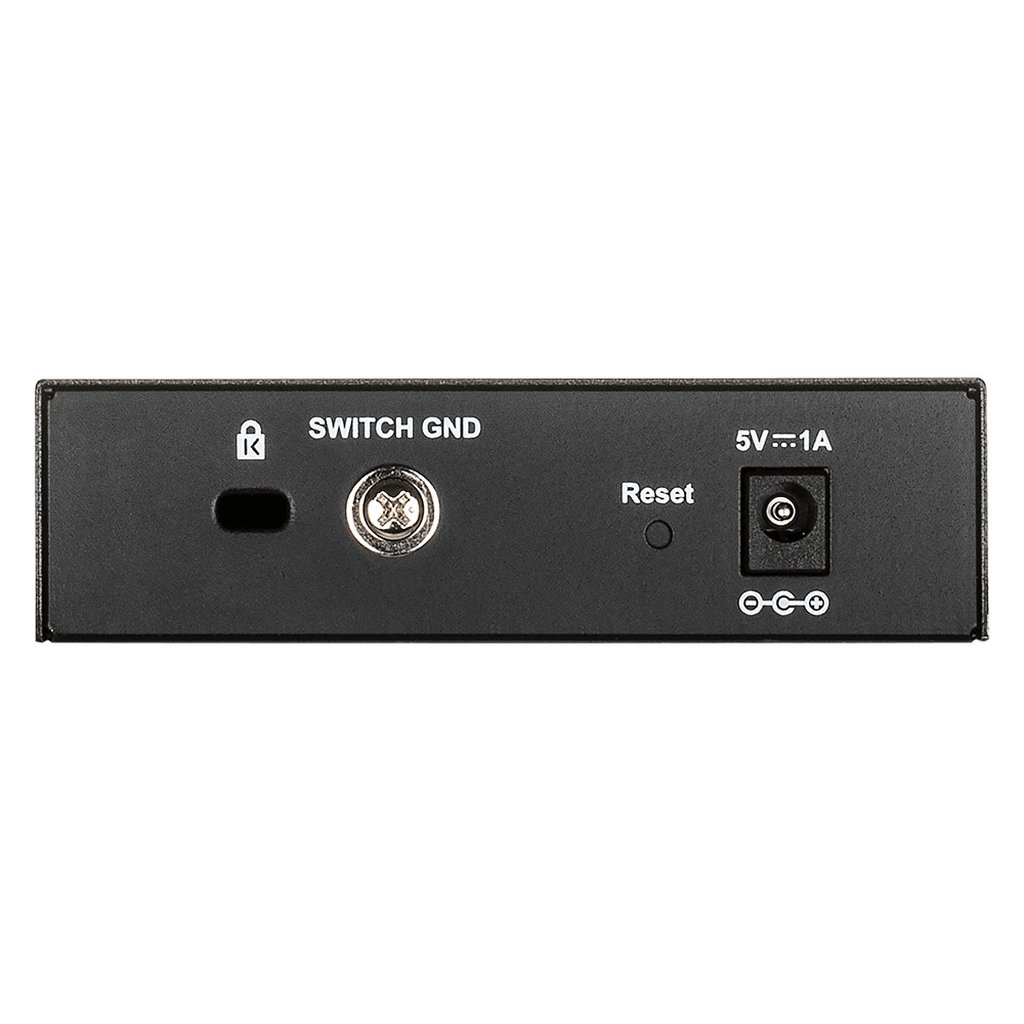

D-Link 5-Port Gigabit Smart Managed Switch
5 x 10/100/1000 Mbps RJ-45, 10 Gbps, 7.44 Mpps, 2K MAC, 100.5 x 82 x 28 mm, UK
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
Additional information
| Weight | 0.56 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| Rack mounting | No |
| Product colour | Black |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3.42 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 100.5 mm |
| Depth | 28 mm |
| Height | 82 mm |
| Weight | 230 g |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Reset button | Yes |
| Number of fans | 0 fan(s) |
| Power source | AC |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Forwarding rate | 7.4 Mpps |
| Cloud-managed | Yes |
| Fanless | Yes |
| Noise level | 0 dB |
| Operating altitude | 0 – 2000 m |
