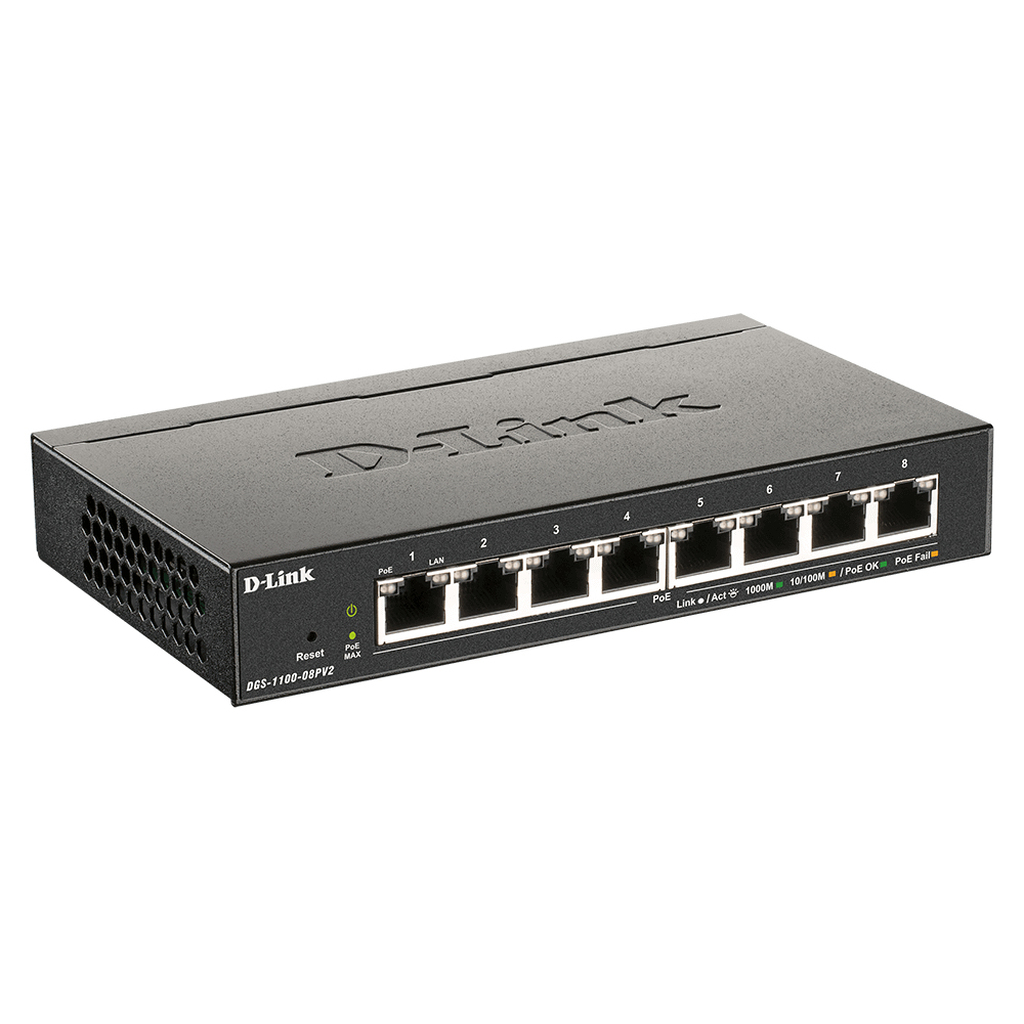

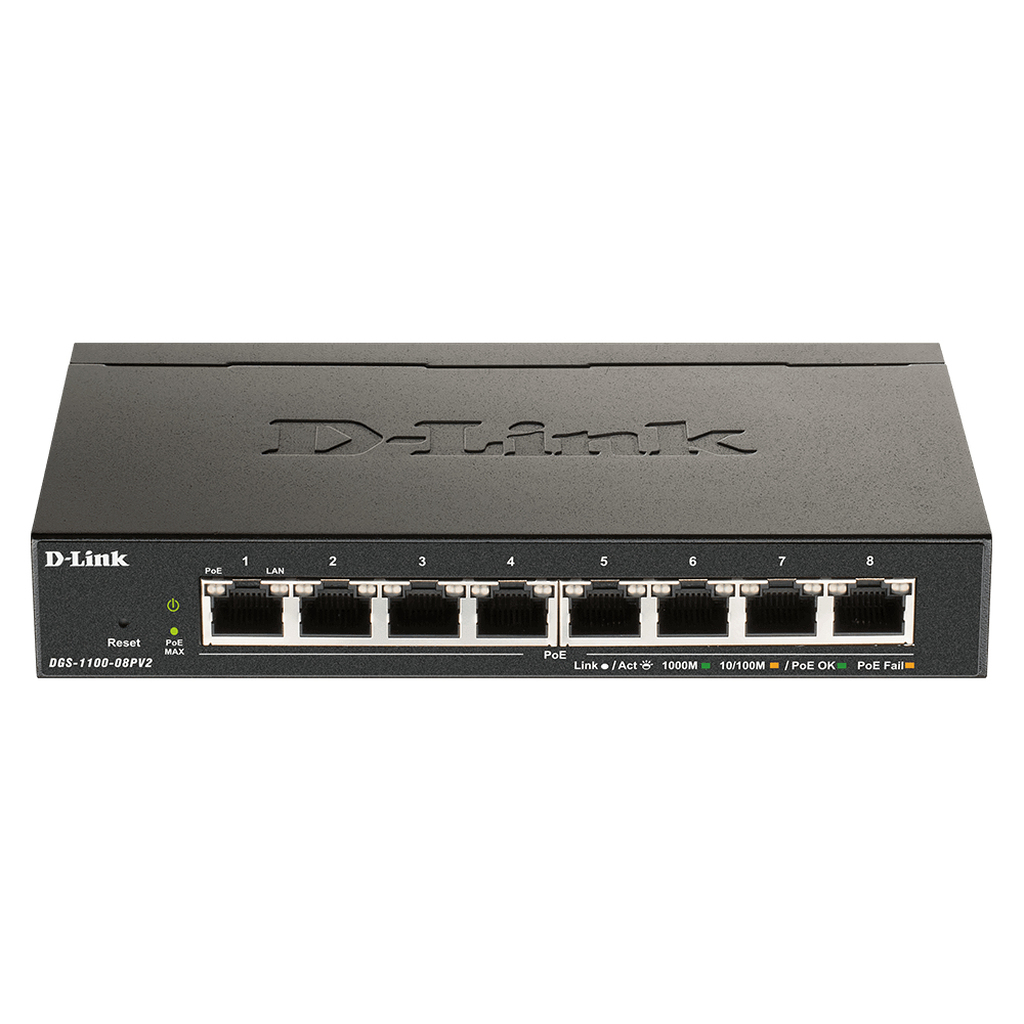

D-Link DGS-1100-08PV2/B network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
8-Port Gigabit PoE Smart Managed Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Powerful and flexible networking solution for small, medium, and enterprise businesses.
Simple. Easy. Smart
WebUI Web UI
Easy to use web interface to access management features.
Static Routing VLANs
Segment your network into VLANs.
Surveillance mode Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
Additional information
| Weight | 1.22 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 786841 h |
| Power consumption (max) | 77.9 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 171 mm |
| Depth | 97.8 mm |
| Height | 28.6 mm |
| Weight | 430 g |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Power supply included | Yes |
| Certification | FCC Class B, CE Class B, VCCI Class B, BSMIcUL, CE LVD, CB, BSMI |
| AC input voltage | 100 – 240 V |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Loop protection | Yes |
| Total Power over Ethernet (PoE) budget | 64 W |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 11.9 Mpps |
| Flash memory | 2 MB |
| Power over Ethernet (PoE) power per port | 30 W |
| Link aggregation | Yes |
| Fanless | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Half duplex | Yes |
| Heat dissipation | 265.85 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Multicast support | Yes |
| Number of queues | 4 |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
