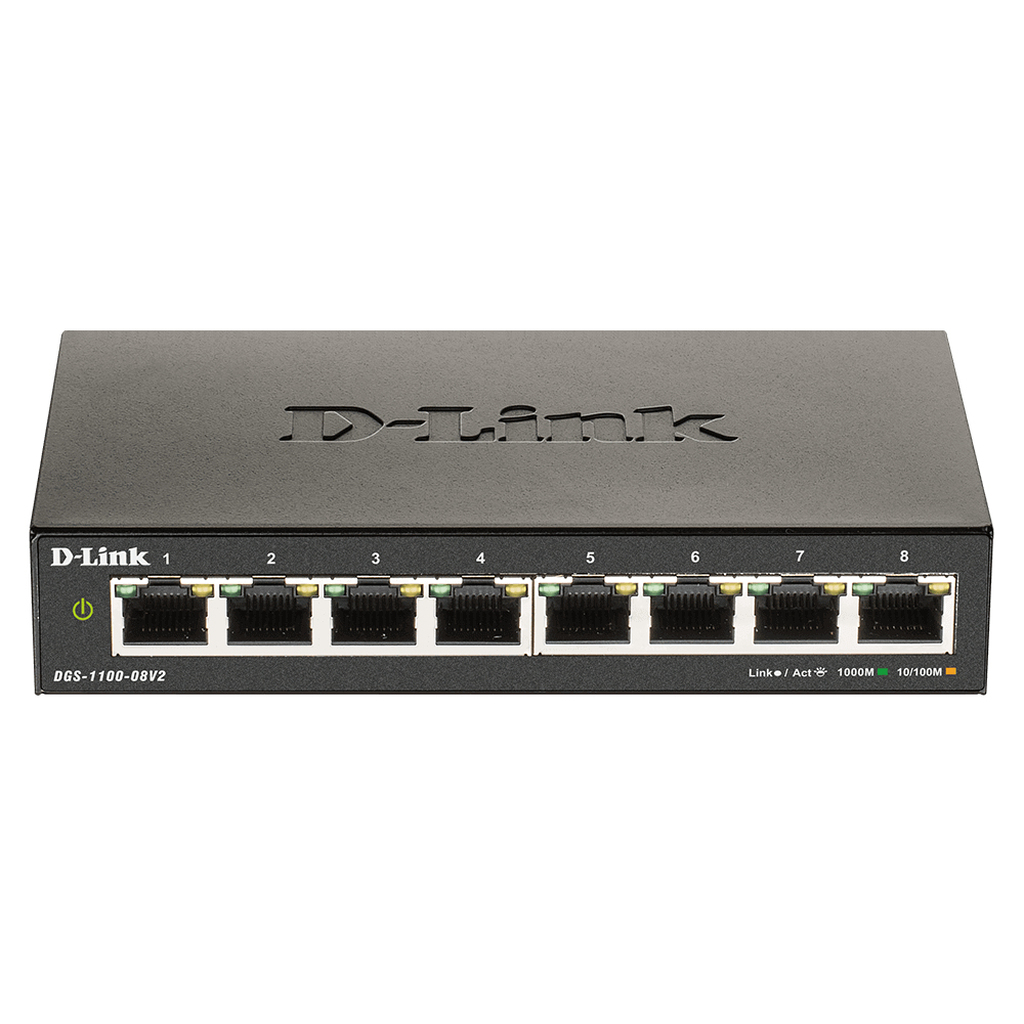

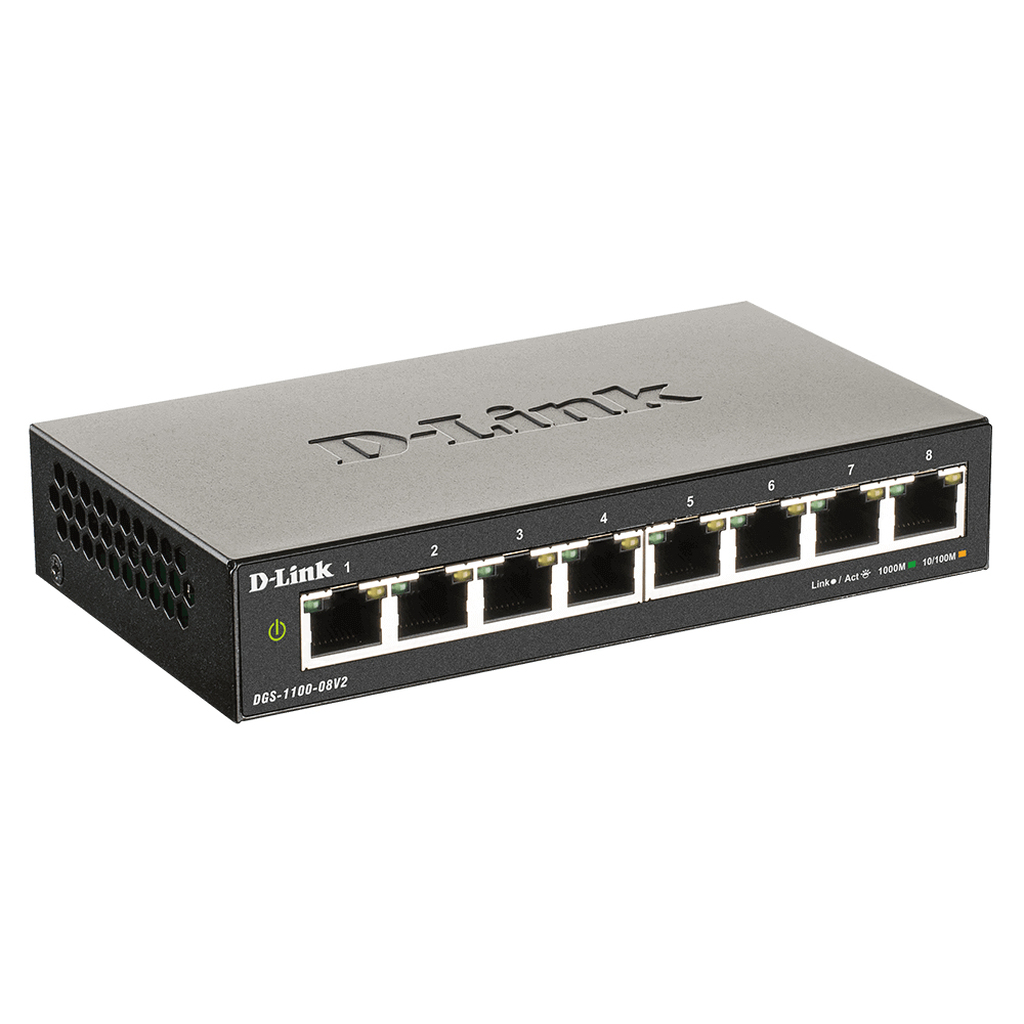

D-Link Gigabit Smart Managed Switches DGS-1100 Series
8-Port Gigabit Smart Managed Switch, 16 Gbps, Auto MDI/MDIX
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100’s web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Additional information
| Weight | 0.72 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| Rack mounting | No |
| Product colour | Black |
| Mean time between failures (MTBF) | 1456992 h |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 4.94 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 145 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 340 g |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2 |
| Web-based management | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Reset button | Yes |
| Number of fans | 0 fan(s) |
| Power source | DC |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL |
| Power connector | DC-in jack |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 11.9 Mpps |
| IGMP entries | 128 |
| Fanless | Yes |
| Half duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Noise level | 0 dB |
| Operating altitude | 0 – 2000 m |
| Heat dissipation | 16.85 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Static port security | Yes |
| Number of queues | 4 |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
