D-Link 24 Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+

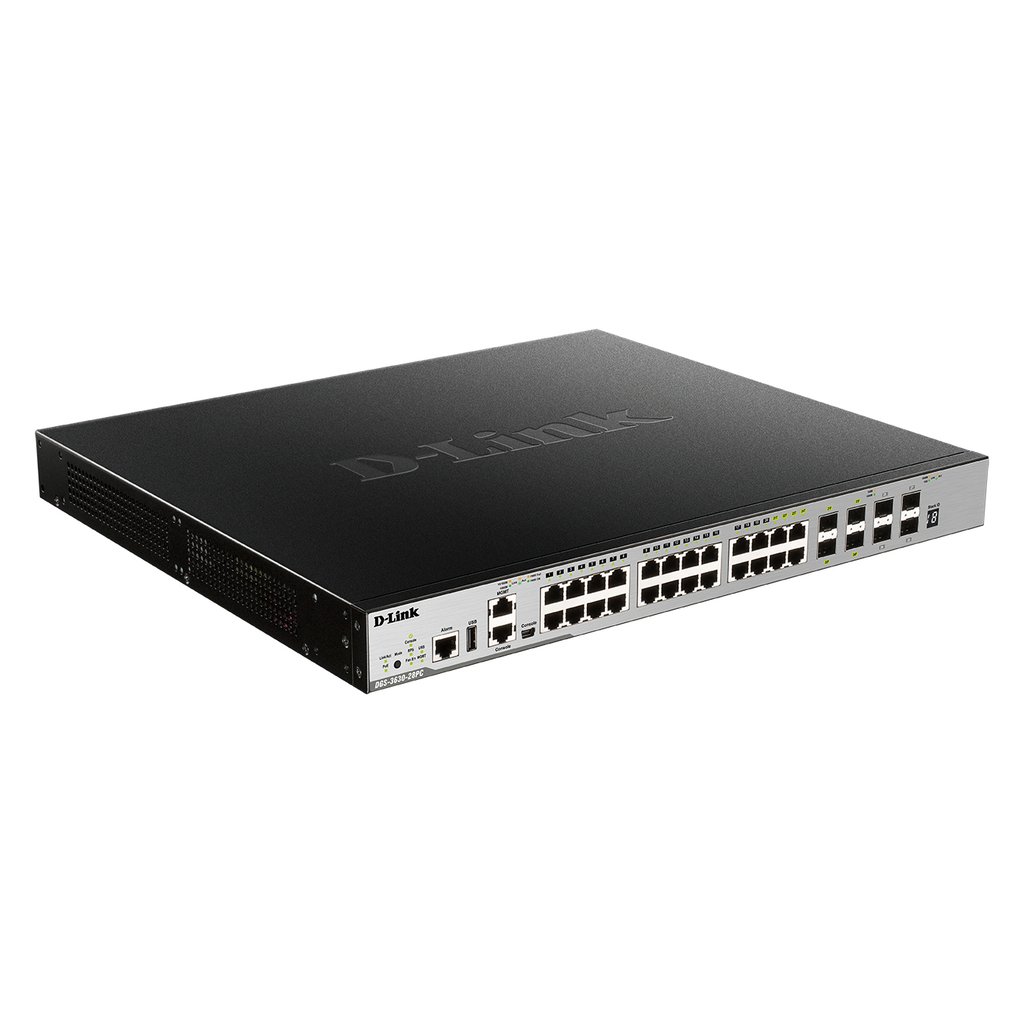

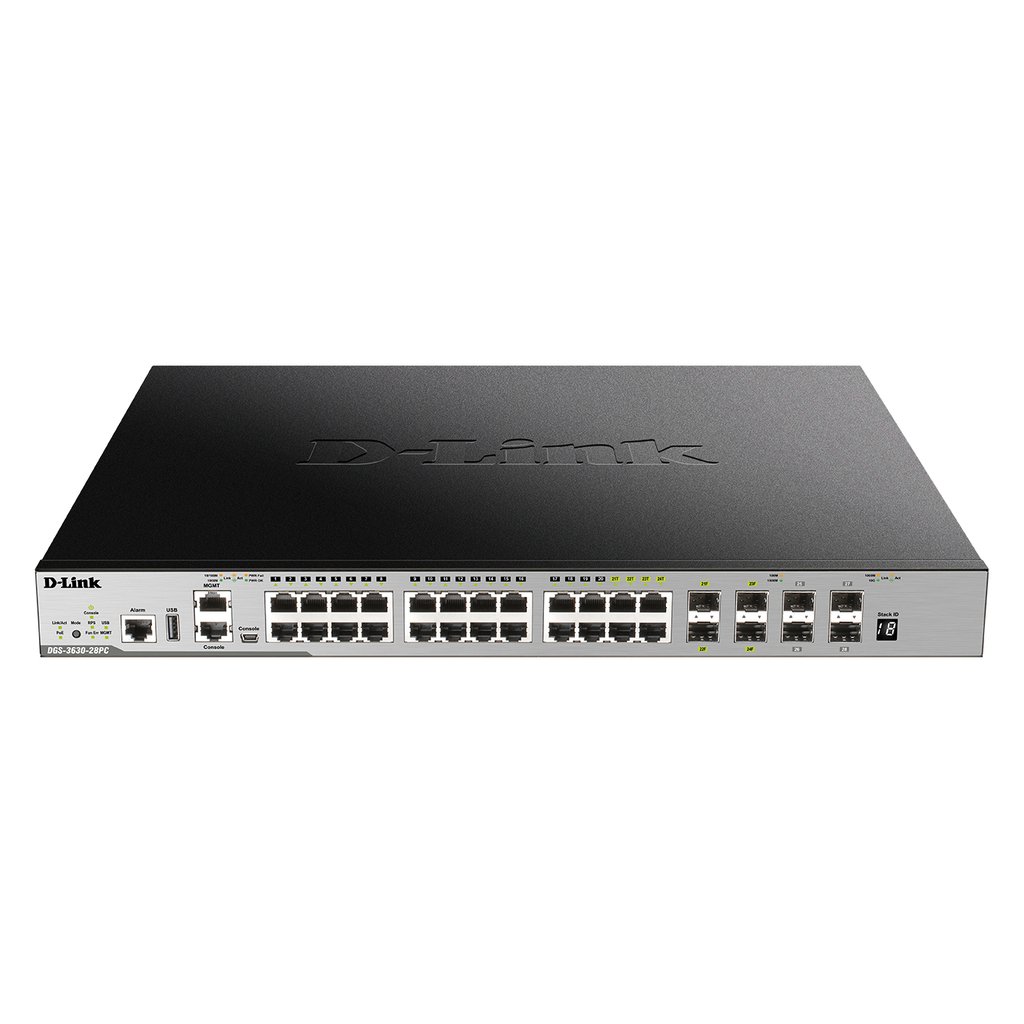

D-Link DGS-3630-28PC/SI – 24 port Gigabit PoE Layer 3 Stackable Managed Switch (370w)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor’s device. It matched or exceeded the competitor’s performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
– Network Assistant Utility
– Industry-standard CLI
– Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
Additional information
| Weight | 8.18 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 68000 entries |
| Switching capacity | 128 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 4 MB |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 441 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Weight | 5.88 kg |
| Harmonized System (HS) code | 85176990 |
| Safety | cUL, CB, CE, CCC, BSMI |
| Switch layer | L3 |
| Web-based management | Yes |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45/Mini-USB |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 4 fan(s) |
| Electromagnetic compatibility | CE, FCC A, C-Tick, VCCI, BSMI, CCC |
| Package weight | 8.24 kg |
| Stackable | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Static route | Yes |
| Loop protection | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Forwarding rate | 95.24 Mpps |
| Number of static routes | 512 |
| Power over Ethernet (PoE) power per port | 30 W |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Head-of-line (HOL) blocking | Yes |
| Package width | 538 mm |
| Package depth | 560 mm |
| Package height | 170 mm |
| SFP+ module slots quantity | 4 |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| IP routing | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS |
| USB 2.0 ports quantity | 1 |
| Built-in processor | Yes |
| Redundant power supply (RPS) support | Yes |
| Routing entries | 16000 |
| Fiber optic connector | SFP+ |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Virtual stacking (units) | 32 |
| Physical stacking (units) | 9 |
| Shipping (inner) case height | 57.2 cm |
| Shipping (inner) case width | 36.2 cm |
| Shipping (inner) case length | 57.9 cm |
| Shipping (inner) case net weight | 12.9 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Pallet gross weight (air) | 342.4 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 185.1 cm |
| Pallet gross weight (sea) | 342.4 kg |
| Master (outer) cases per pallet (sea) | 18 pc(s) |
| Products per pallet (sea) | 36 pc(s) |
| Pallet height (sea) | 185.1 cm |
| Shipping (inner) case gross weight | 18 kg |
