D-Link SFP 10/100/1000 BASE-T Copper Transceiver
1000Base-T Copper SFP Transceiver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications

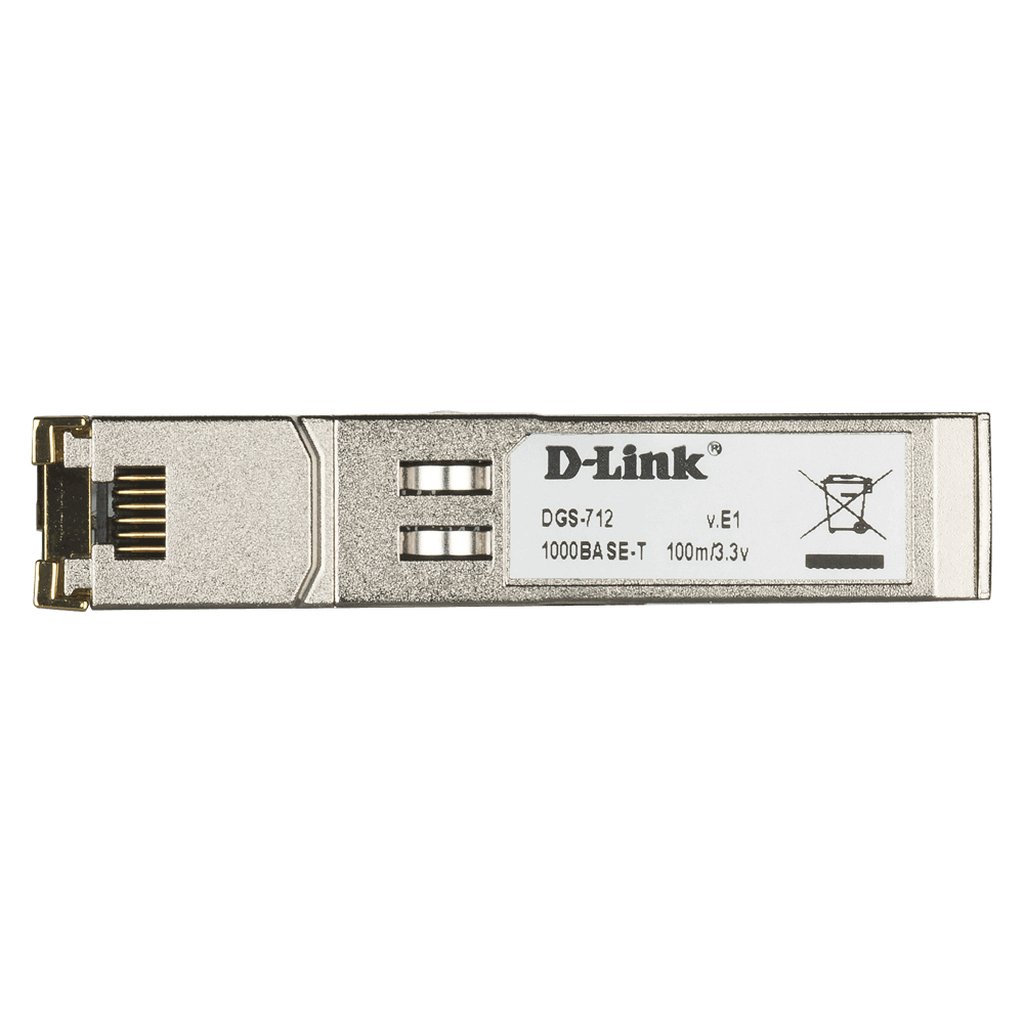

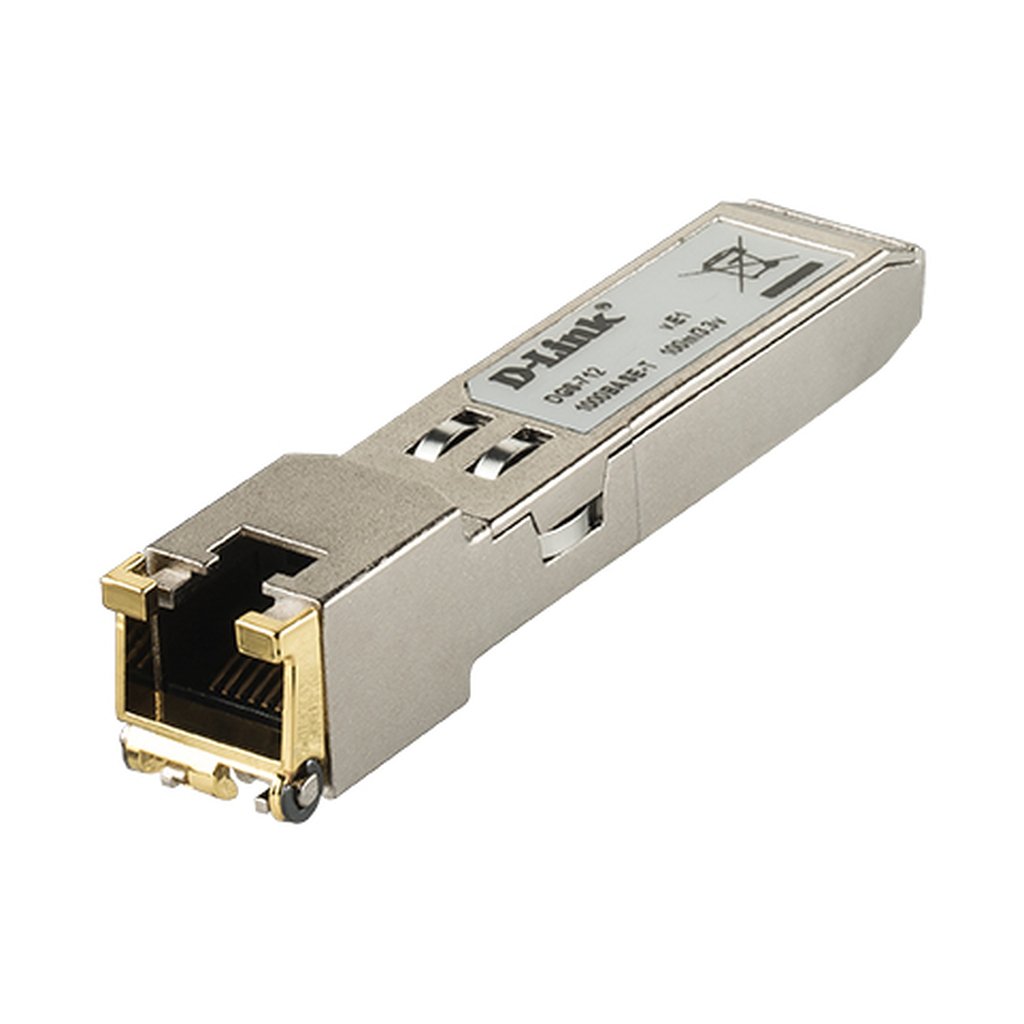

The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP+ |
| SFP transceiver standard | T, TX |
| Maximum transfer distance | 100 m |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Product colour | Metallic |
| Maximum voltage | 3.3 V |
| Certification | FCC Class ACE Class AVCCI Class A |
| Operating temperature (T-T) | 0 – 85 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 5617000 h |
| Width | 13.7 mm |
| Depth | 70.2 mm |
| Height | 13.4 mm |
| Weight | 20 g |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage relative humidity (H-H) | 0 – 80% |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 10BASE, 100BASE, 1000BASE |
| Safety | CSA, TUV |
