D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP
8 x 10/100/1000BASE-, 2 x SFP, 20 Gbps, 4K MAC, 190 x 100 x 28 mm, IP40
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment

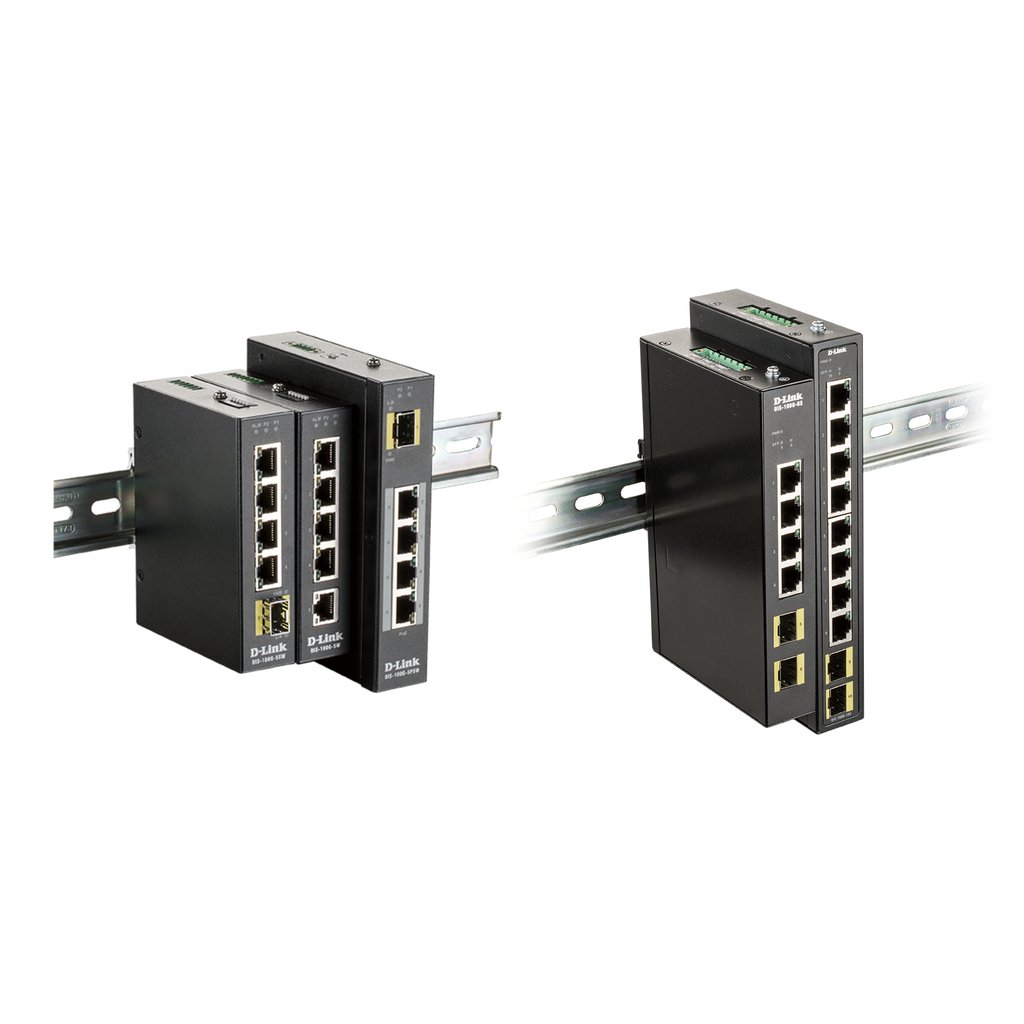

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 190 x 100 x 28 mm.
Additional information
| Weight | 0.72 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 392267 h |
| DC input voltage | 12 – 48 V |
| Input current | 1 A |
| Power consumption (max) | 7.44 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -20 – 65 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 190 mm |
| Depth | 28 mm |
| Height | 100 mm |
| Weight | 498 g |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 1000BASE-T |
| Power source | DC |
| Certification | 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8IEC 60068-2-27 Shock, • IEC 60 |
| Stackable | Yes |
| Form factor | DIN rail |
| Forwarding rate | 14.88 Mpps |
| Fanless | Yes |
| SFP module slots quantity | 2 |
| International Protection (IP) code | IP40 |
| Transmission method | Store-and-forward |
