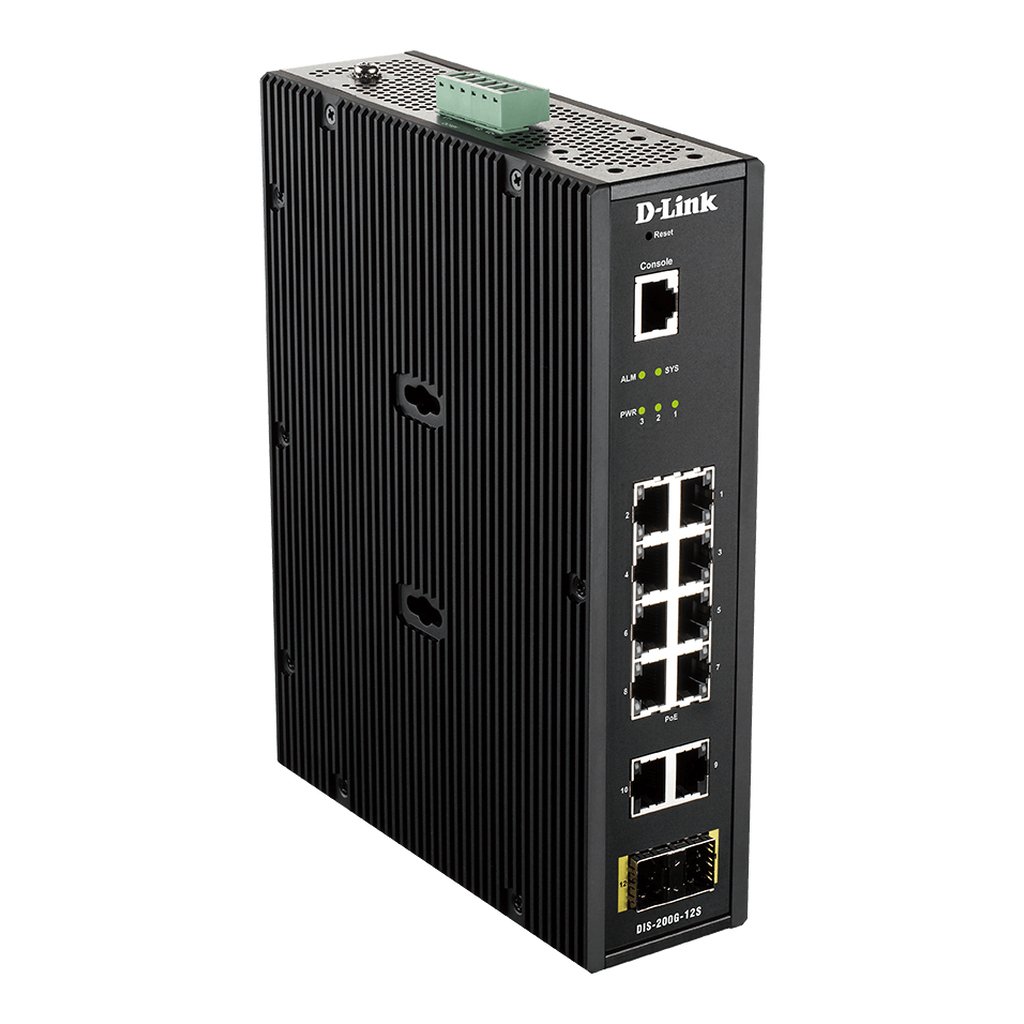

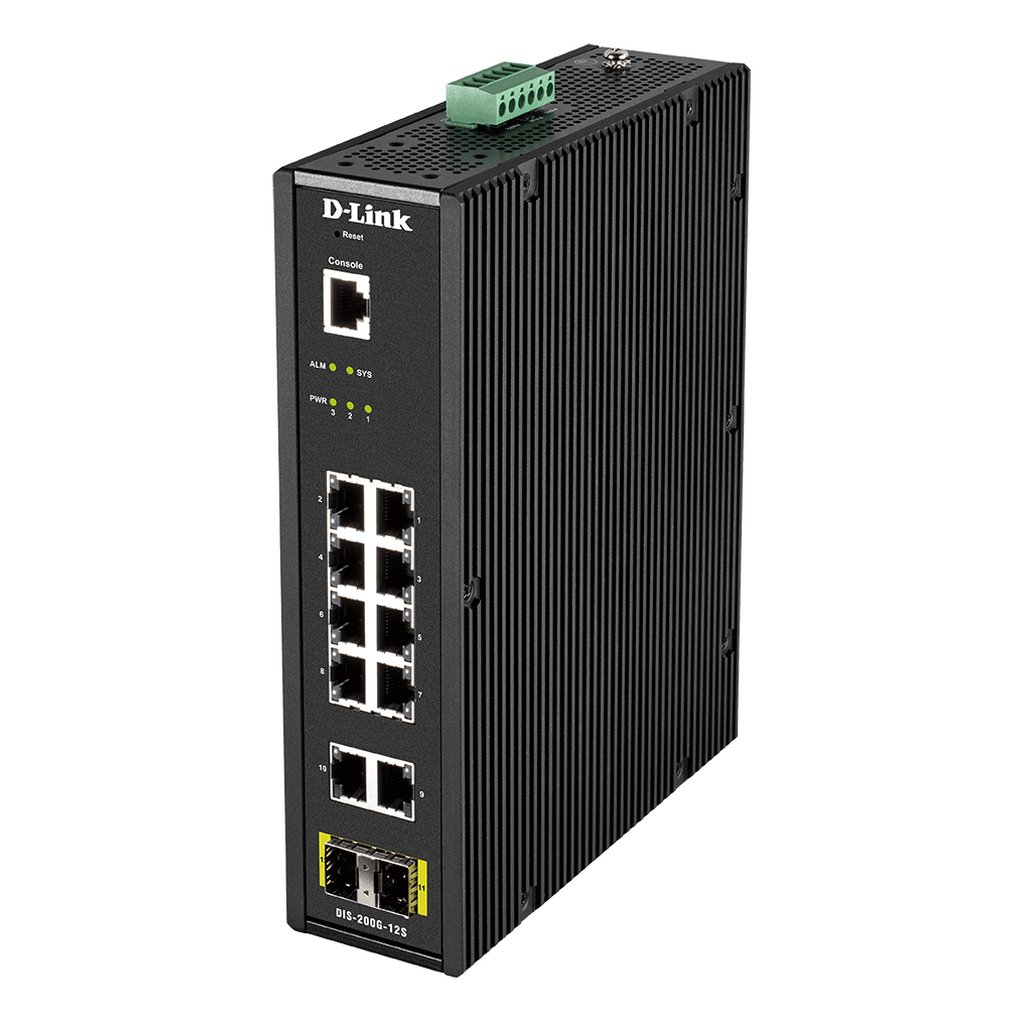

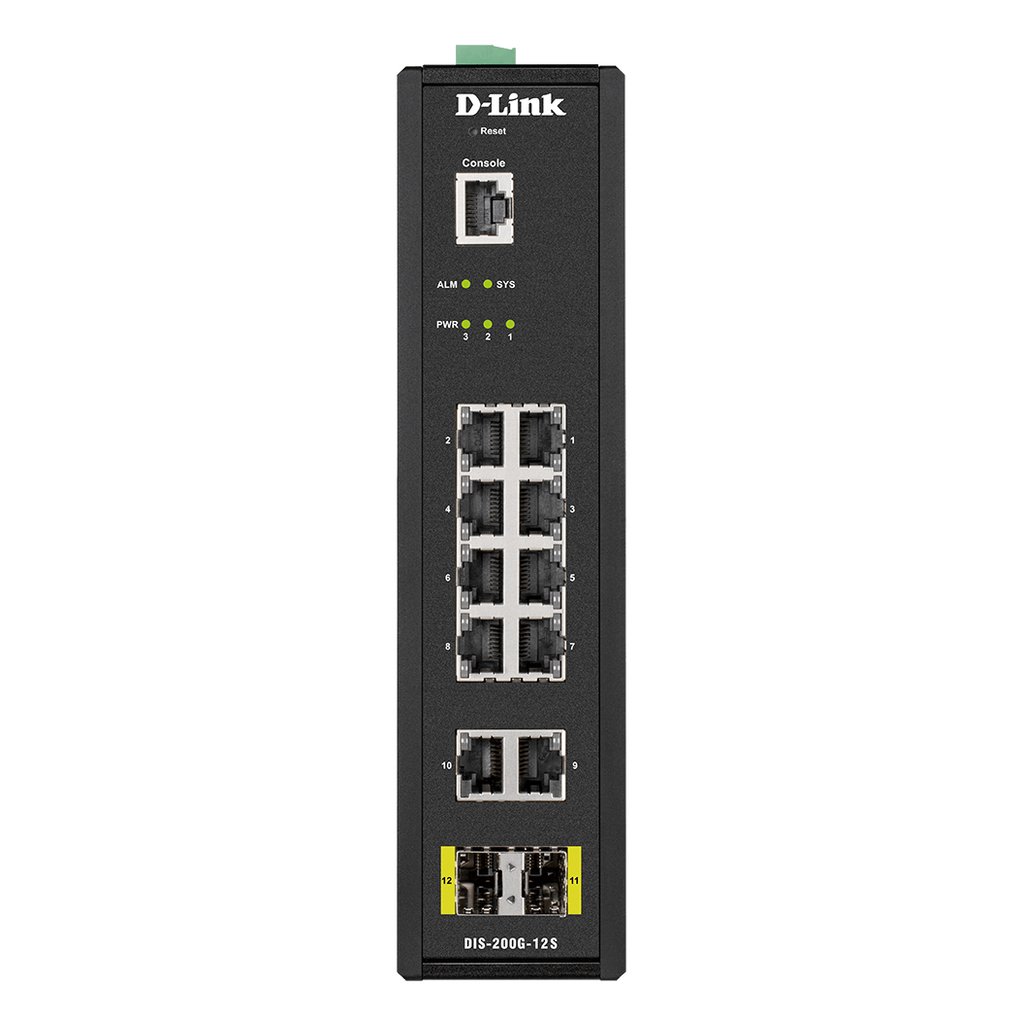

D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) & 2 x SFP

In Stock

10 x 10/100/1000BASE-T, 2 x SFP, 1 x RJ-45 Console, 24 Gbps, 8K MAC, 210 x 171.2 x 53 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DIS-200G-12S
Brand:

Description

Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with SFP ports
Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged.

Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment

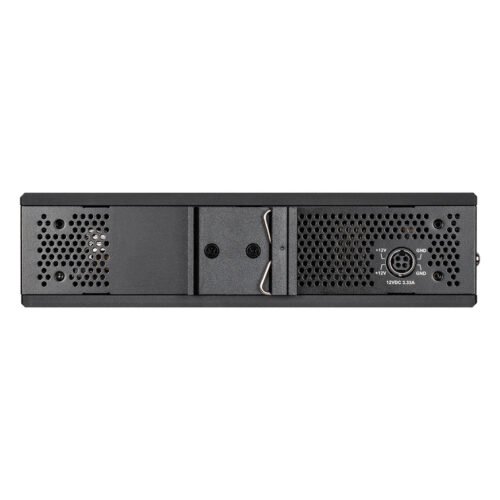

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

Additional information

Weight 2.1 lbs
Switch type

Managed

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

No

Full duplex

Yes

Auto MDI/MDI-X

Yes

MAC address table

8000 entries

Switching capacity

24 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9216

Rack mounting

Yes

Product colour

Black

Housing material

Metal

LED indicators

Yes

Mean time between failures (MTBF)

276773 h

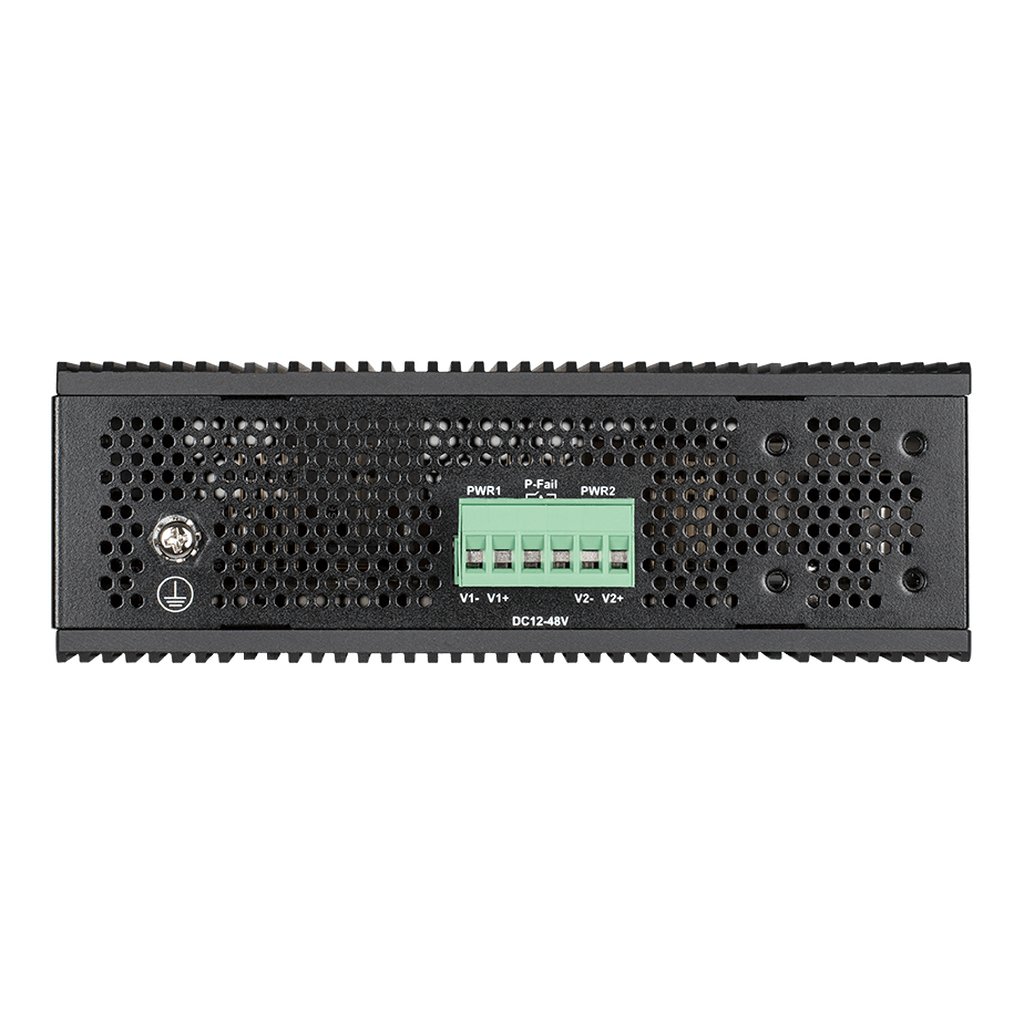

DC input voltage

12 – 48 V

Power consumption (max)

10.26 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-40 – 65 °C

Storage temperature (T-T)

-40 – 85 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Width

171.2 mm

Depth

53 mm

Height

210 mm

Weight

1.63 kg

Harmonized System (HS) code

85176990

Switch layer

L2

Web-based management

Yes

Console port

RJ-45

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Voice VLAN, Tagged VLAN, Port-based VLAN

Fiber ethernet cabling technology

1000BASE-X

DHCP features

DHCP client

IGMP snooping

Yes

Number of fans

0 fan(s)

Electromagnetic compatibility

CISPR 22, FCC Part 15B Class A

Certification

CE, FCC, BSMIEN 61000-4-2 ESDEN 61000-4-3 RSEN 61000-4-4 EFTEN 61000-4-5EN 61000-4-6 CSEN 61000-4-8IEC 60068-2-27IEC 60068-2-32IEC 60068-2-6

System event log

Yes

Port mirroring

Yes

Broadcast storm control

Yes

Number of VLANs

4094

Forwarding rate

17.85 Mpps

Authentication type

RADIUS

Wall mountable

Yes

Heat dissipation

35.01 BTU/h

Gigabit Ethernet (copper) ports quantity

10

Configuring Location Settings (CLI)

Yes

Authentication

Port-based authentication

Multicast support

Yes

DIN rail mounting

Yes

Queue scheduling algorithms

SPQ, Weighted Round Robin (WRR)

SFP module slots quantity

2

Security algorithms

802.1x RADIUS, SSL/TLS

Management protocols

SNMP v1/v2c/v3, SNTP, Telnet

International Protection (IP) code

IP30
