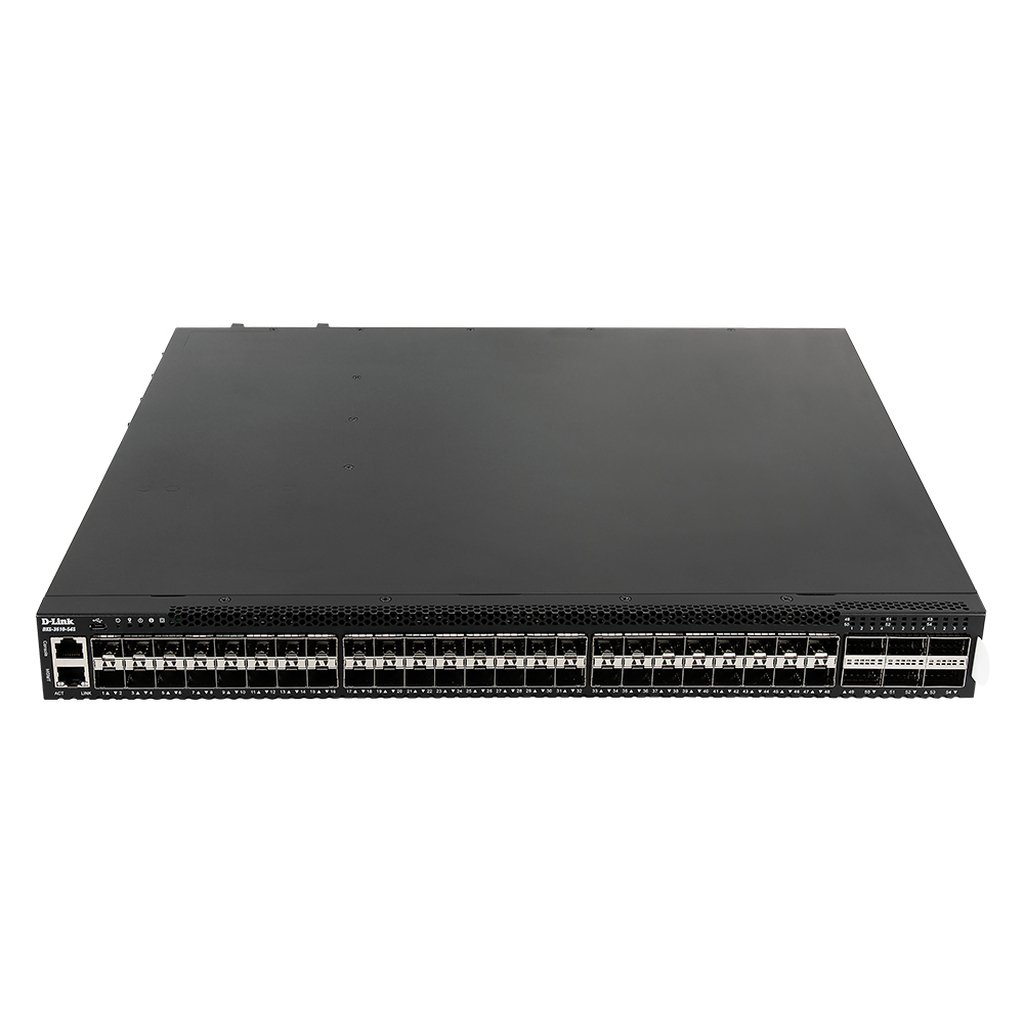

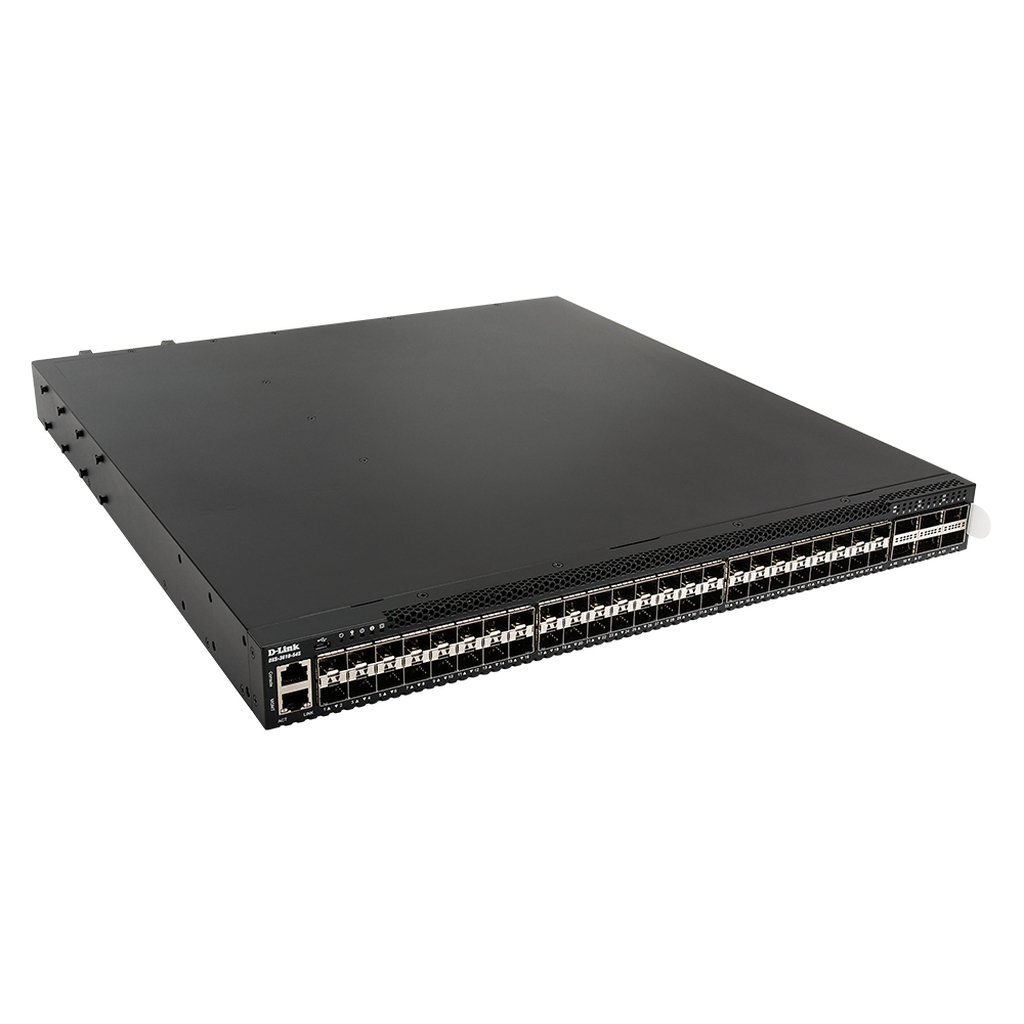

D-Link 48-port 10G SFP+ Layer 3 Stackable 10G Managed Switch
DXS-3610-54S – Layer 3 Stackable 10G / 100G Managed, 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-toback fan modules
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy

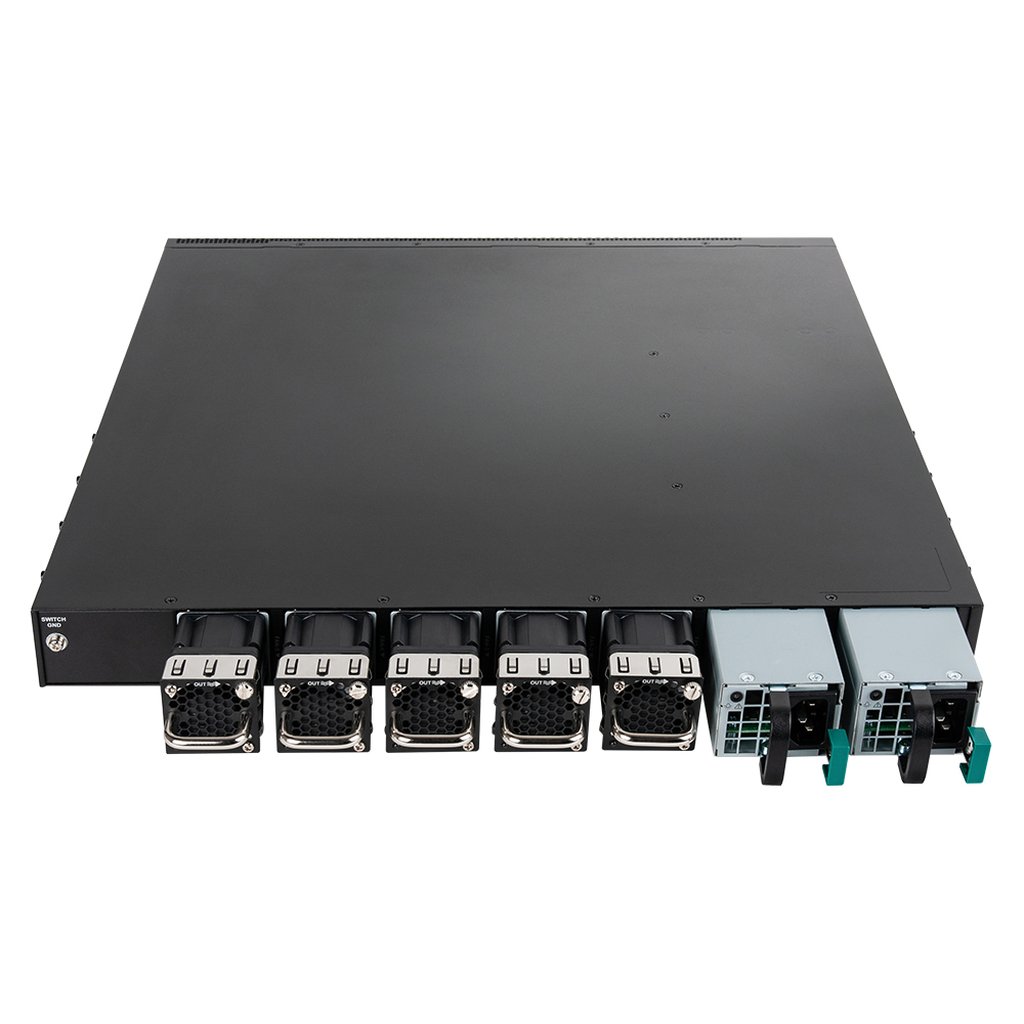

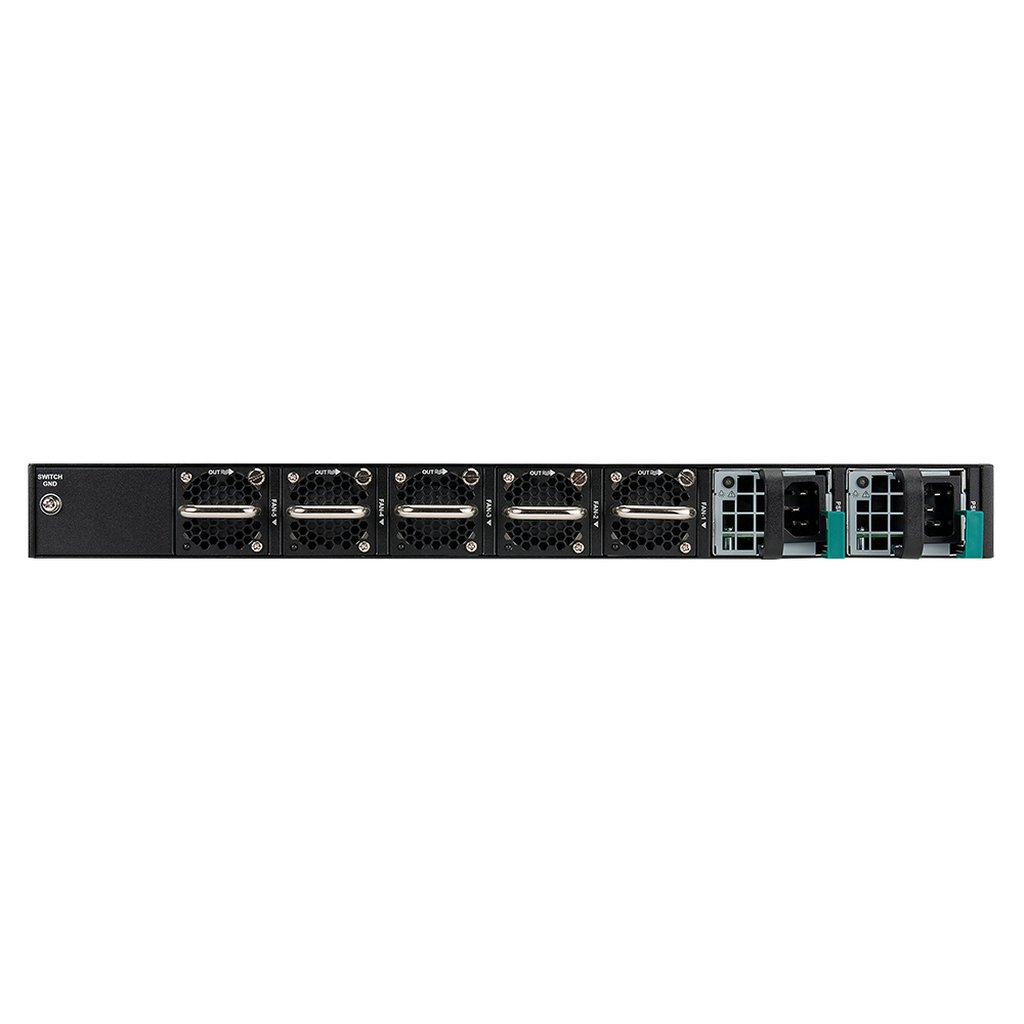

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Additional information
| Weight | 15.34 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 294912 entries |
| Switching capacity | 2211.84 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
| Rack mounting | Yes |
| Product colour | Black |
| Mean time between failures (MTBF) | 94262 h |
| Power consumption (max) | 320.8 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 441 mm |
| Depth | 487.4 mm |
| Height | 43.5 mm |
| Weight | 9.8 kg |
| Harmonized System (HS) code | 85176990 |
| Power consumption (typical) | 120.6 W |
| Switch layer | L3 |
| Web-based management | Yes |
| Console port | RJ-45 |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 5 fan(s) |
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
| Power supply included | Yes |
| Certification | CB, cUL, LVD |
| Stackable | Yes |
| Form factor | 1U |
| AC input voltage | 110 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Static route | Yes |
| ARP inspection | Yes |
| Port mirroring | Yes |
| Forwarding rate | 1607.04 Mpps |
| Link aggregation | Yes |
| Head-of-line (HOL) blocking | Yes |
| Noise level | 79.4 dB |
| Heat dissipation | 1083 BTU/h |
| SFP+ module slots quantity | 48 |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Multicast support | Yes |
| Number of queues | 8 |
| IP routing | Yes |
| Management protocols | SNMP v1/v2c/v3 |
| USB 2.0 ports quantity | 1 |
| Redundant power supply (RPS) support | Yes |
| QSFP28 ports quantity | 6 |
| Virtual stacking (units) | 32 |
| Physical stacking (units) | 12 |
