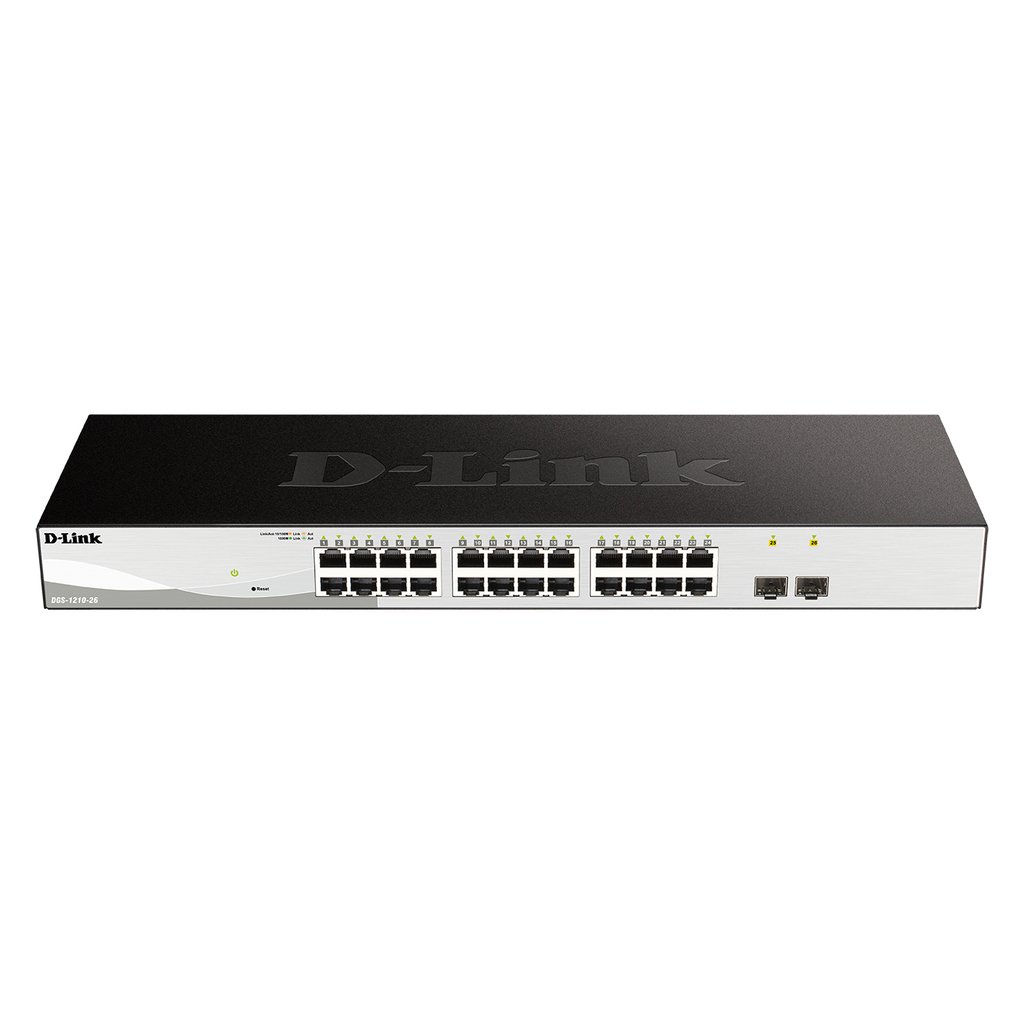

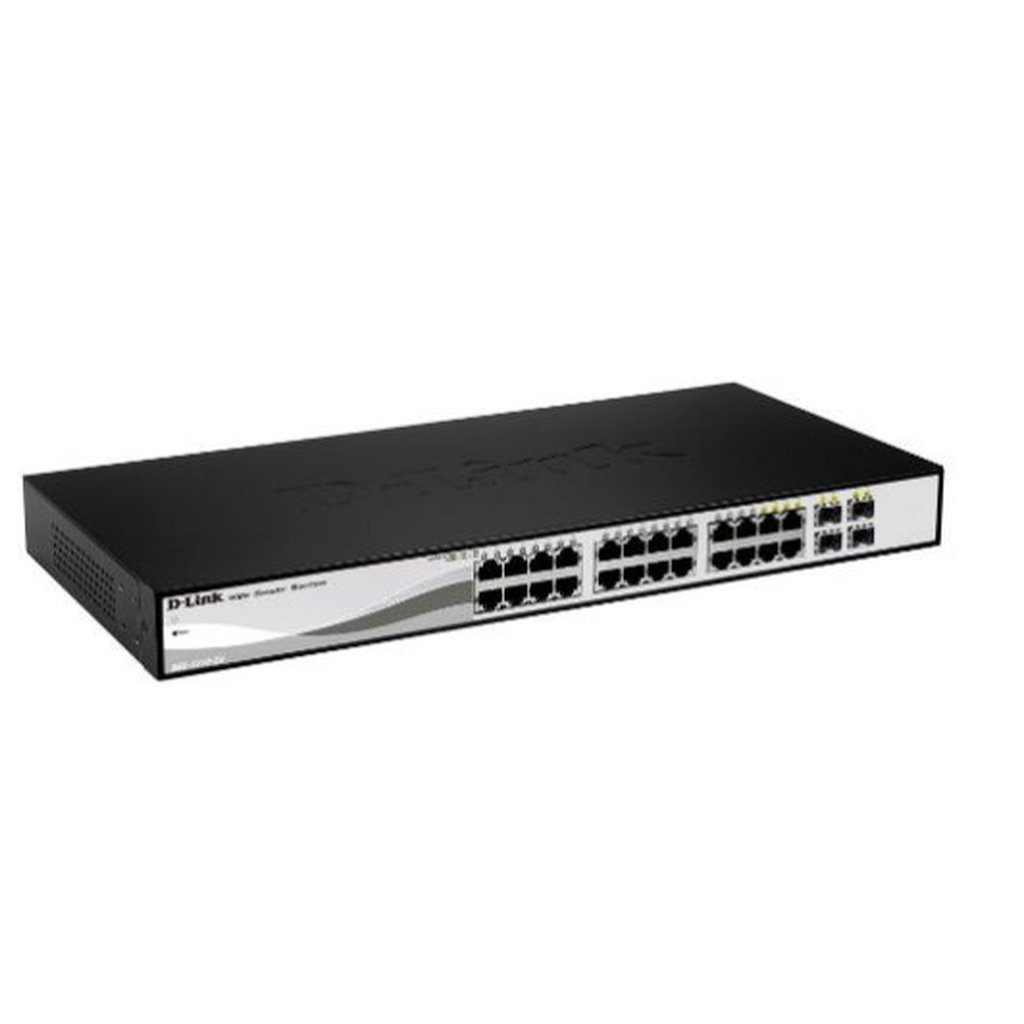

D-Link 26-Port Gigabit Smart Managed Switch including 2 SFP ports
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Additional information
| Weight | 3.08 lbs |
|---|---|
| Brand compatibility | 38.7 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Mean time between failures (MTBF) | 1082534 h |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 440 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.06 kg |
| Harmonized System (HS) code | 85176990 |
| Safety | CCC, CE LVD, UL/cUL |
| Power consumption (typical) | 15.11 W |
| Switch layer | L2 |
| Web-based management | Yes |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Number of fans | 2 fan(s) |
| Electromagnetic compatibility | FCC A, CE A, VCCI, C-Tick, BSMI, CCC |
| Package weight | 3.13 kg |
| Certification | IEC61000-4-5, RoHS |
| Stackable | Yes |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| System event log | Yes |
| Loop protection | Yes |
| MIB support | RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925 |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Link aggregation | Yes |
| Heat dissipation | 51.57 BTU/h |
| Package width | 249 mm |
| Package depth | 493 mm |
| Package height | 72 mm |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Multicast support | Yes |
| SFP module slots quantity | 2 |
| IP routing | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| Traffic classification | Yes |
| Shipping (inner) case height | 28.2 cm |
| Shipping (inner) case width | 38.1 cm |
| Shipping (inner) case length | 51 cm |
| Shipping (inner) case net weight | 15.7 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 422.4 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 130.3 cm |
| Pallet gross weight (sea) | 621.3 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 188.7 cm |
| Shipping (inner) case gross weight | 16.5 kg |
