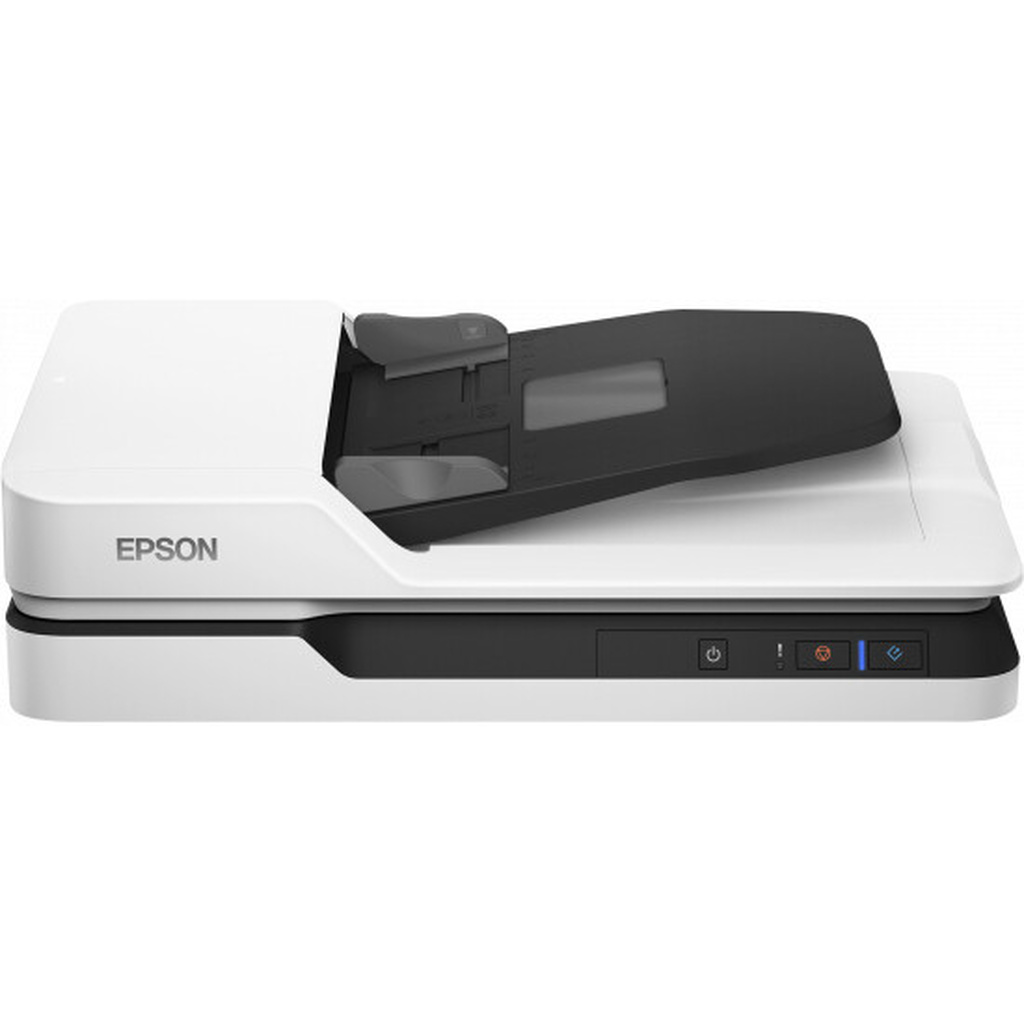

Epson WorkForce DS-1630
A4, Flatbed, 600 x 600DPI, ReadyScan LED, Duplex, USB 3.0, 55dB
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Affordable flatbed scanner
Combining a flatbed scanner with the convenience of a 50-page ADF makes it possible to scan a wide range of challenging documents, including books, bound documents, passports and delicate items while quickly and simply scanning stacks of office documents. Its small footprint makes it easy to position in front office and customer-facing environments, as well as back office workgroups.
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson’s Image Processing Technology. With long document mode it’s possible scan over three metres (3048mm) of paper single sided.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1630 also encourages easy, one-touch scanning to folders, email, online storage accounts{s2 and more.
Additional information
| Weight | 4.88 lbs |
|---|---|
| Optical scanning resolution | 1200 x 1200 DPI |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 25 ppm |
| Scanner type | Flatbed scanner |
| Built-in display | No |
| Product colour | Black, White |
| Display | LCD |
| Daily duty cycle (max) | 1500 pages |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Maximum ISO A-series paper size | A4 |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | AC |
| Width | 451 mm |
| Depth | 318 mm |
| Height | 121 mm |
| Weight | 3.9 kg |
| Sustainability certificates | ENERGY STAR |
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Maximum scan size | 210 x 3048 mm |
| Colour scanning | Yes |
| Light source | ReadyScan LED |
| Scan file formats | PDF, TIFF |
| Quantity per pack | 1 pc(s) |
| Scan drivers | TWAIN, SANE, WIA, ICA, ISIS |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Letter | Yes |
| Legal | Yes |
| Package width | 195 mm |
| Package depth | 520 mm |
| Package height | 405 mm |
| Package weight | 4.83 kg |
| Cables included | AC, USB |
| Windows operating systems supported | Yes |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Harmonized System (HS) code | 84716070 |
| Output colour depth | 24 bit |
| Country of origin | Indonesia |
| ADF scan speed (colour, A4) | 25 ppm |
| Input colour depth | 30 bit |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Scanning noise level | 55 dB |
| Standard input capacity | 50 sheets |
| Bundled software | Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2 |
| Auto Document Feeder (ADF) media weight | 50 – 120 g/m² |
| Image formats supported | BMP, JPEG, TIFF, MTIFF |
| Products per pallet | 40 pc(s) |
| Products per pallet (UK) | 50 pc(s) |
| Maximum scan area (ADF) | 89 x 127 mm |
| Minimum scan area (ADF) | 210 x 3048 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Box contents | Main unit, Power cable, Setup guide, Software (CD), USB cable, Warranty Documents |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Drivers included | Yes |
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| Data compression | Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression, JPEG compression |
| Pallet gross height | 15 cm |
| Products per pallet layer | 8 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 15 cm |
| Interface | USB 3.2 Gen 1×1 |
| Printer features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Advanced editing, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Unshar |
| Scanner features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Advanced editing, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Unshar |
| Linear scan speed (metric) | Monochrome:25 pages/min – Color:25 pages/min , Resolution: 200 / 300 dpi, Monochrome:10 image/min – Color:10 image/min , Resolution: 200 / 300 dpi |
