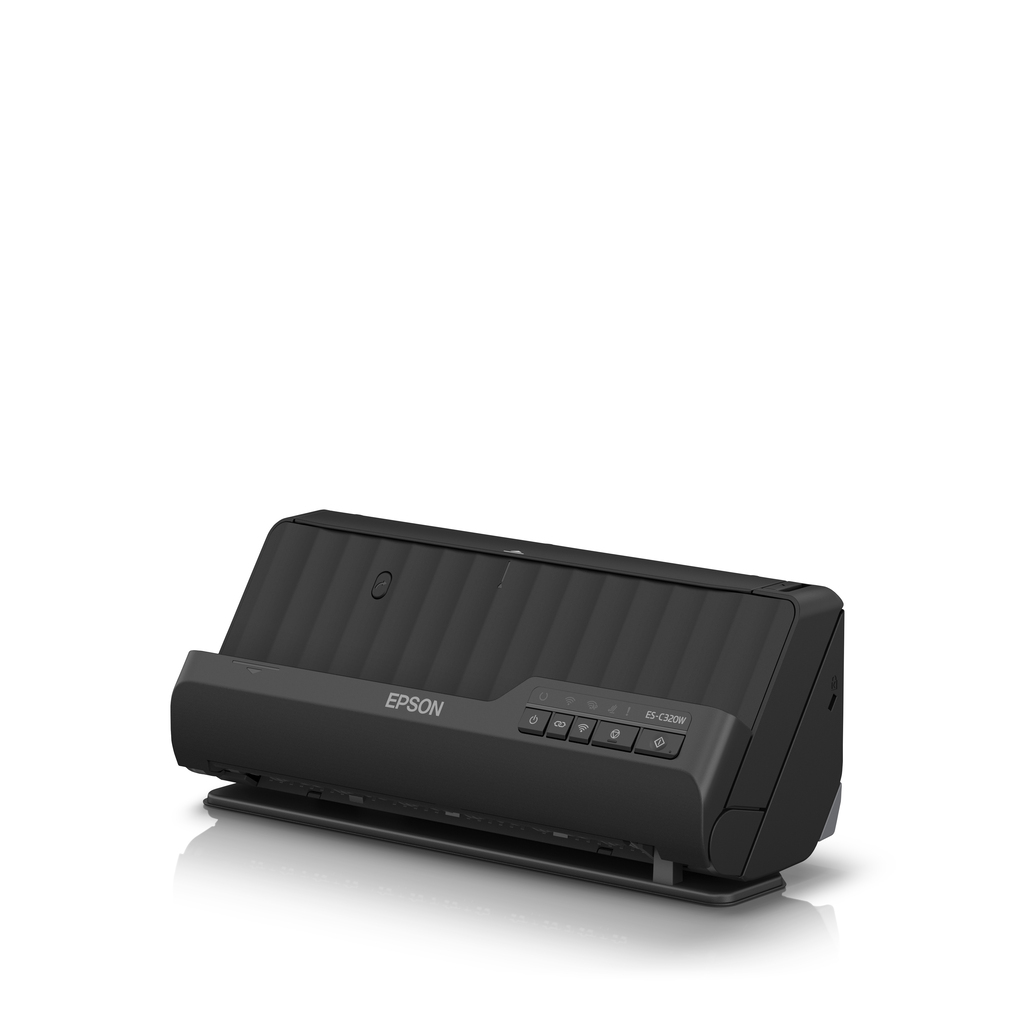

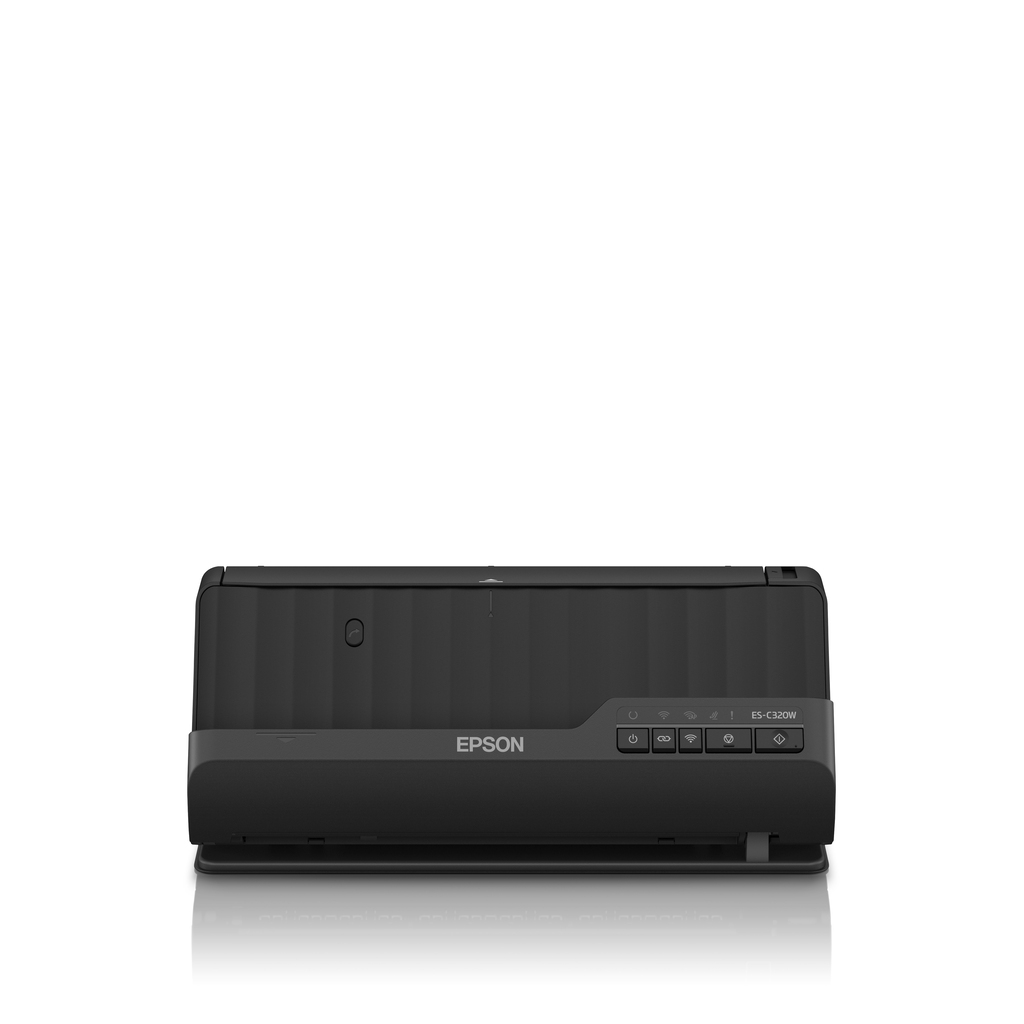

Epson ES-C320W
ES-C320W
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

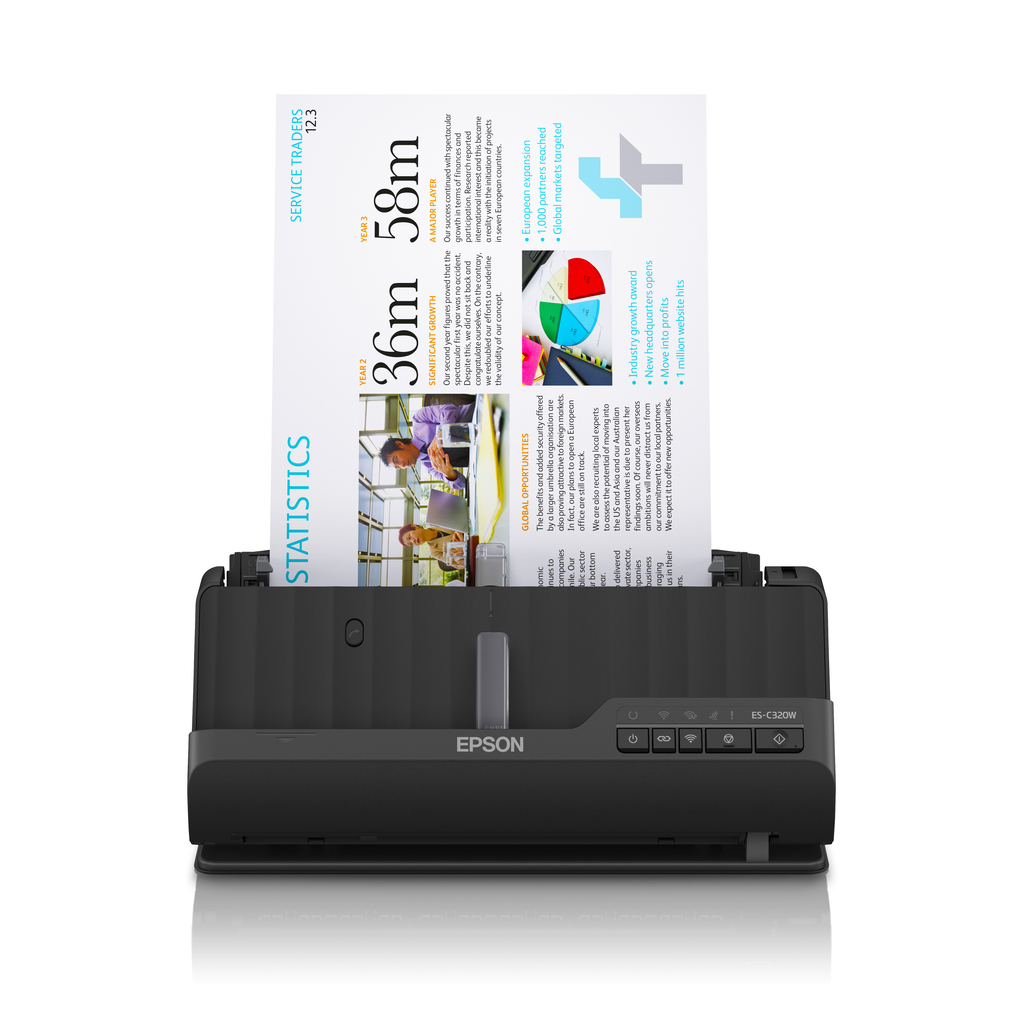

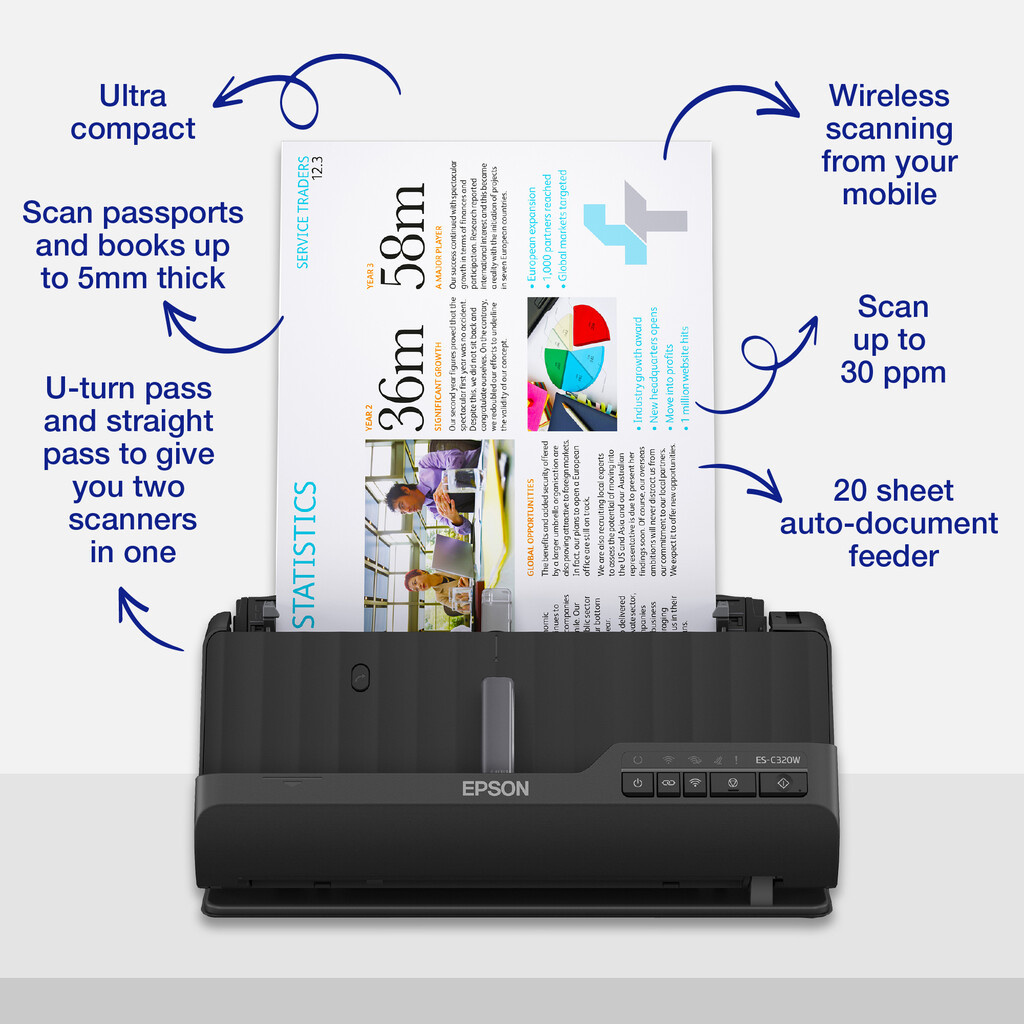

Compact Wi-Fi scanner

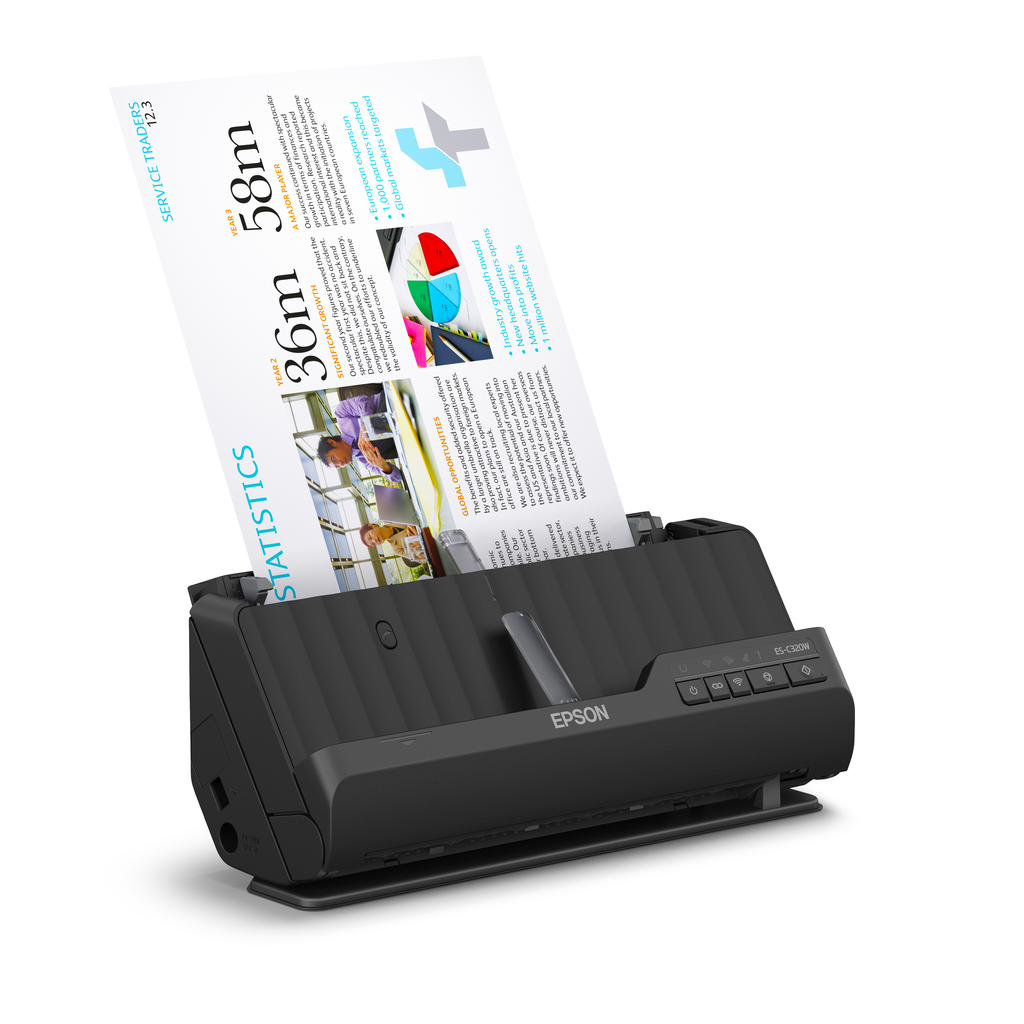

The scanner’s U-turn path position allows paper to be scanned without adding to the footprint of the device. Switch to straight path mode to scan passports and booklets up to 5mm thick. Paper protection technology ensures that the original documents remain pristine. With a low power consumption, it also has a lower environmental impact.

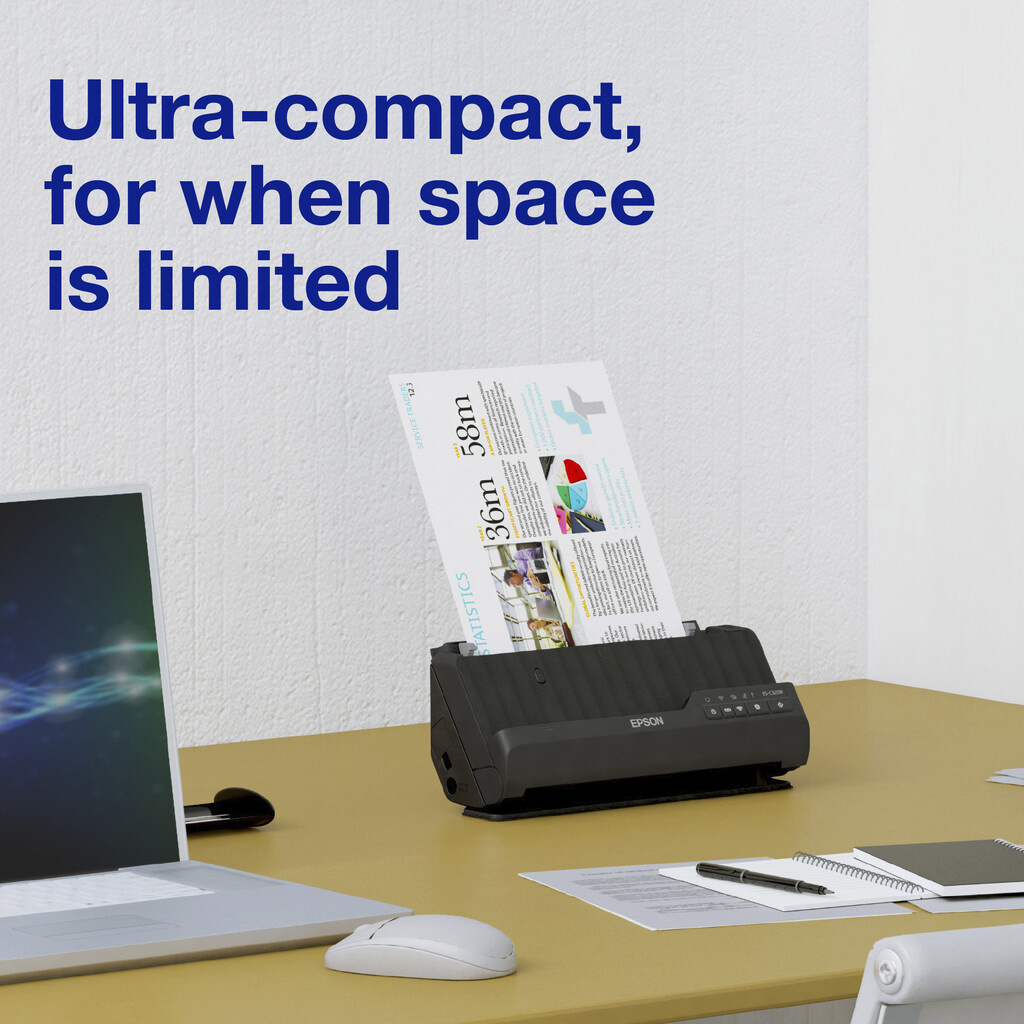

Ultra-compact

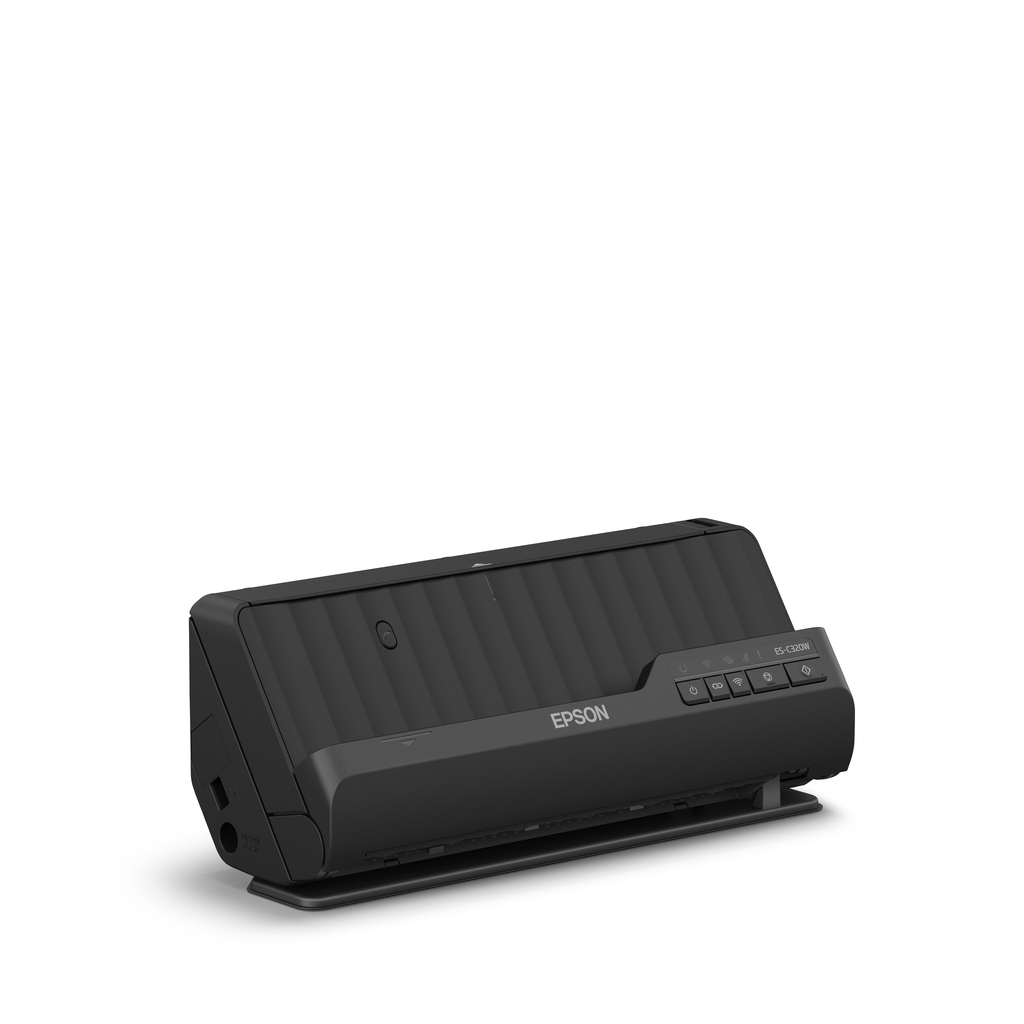

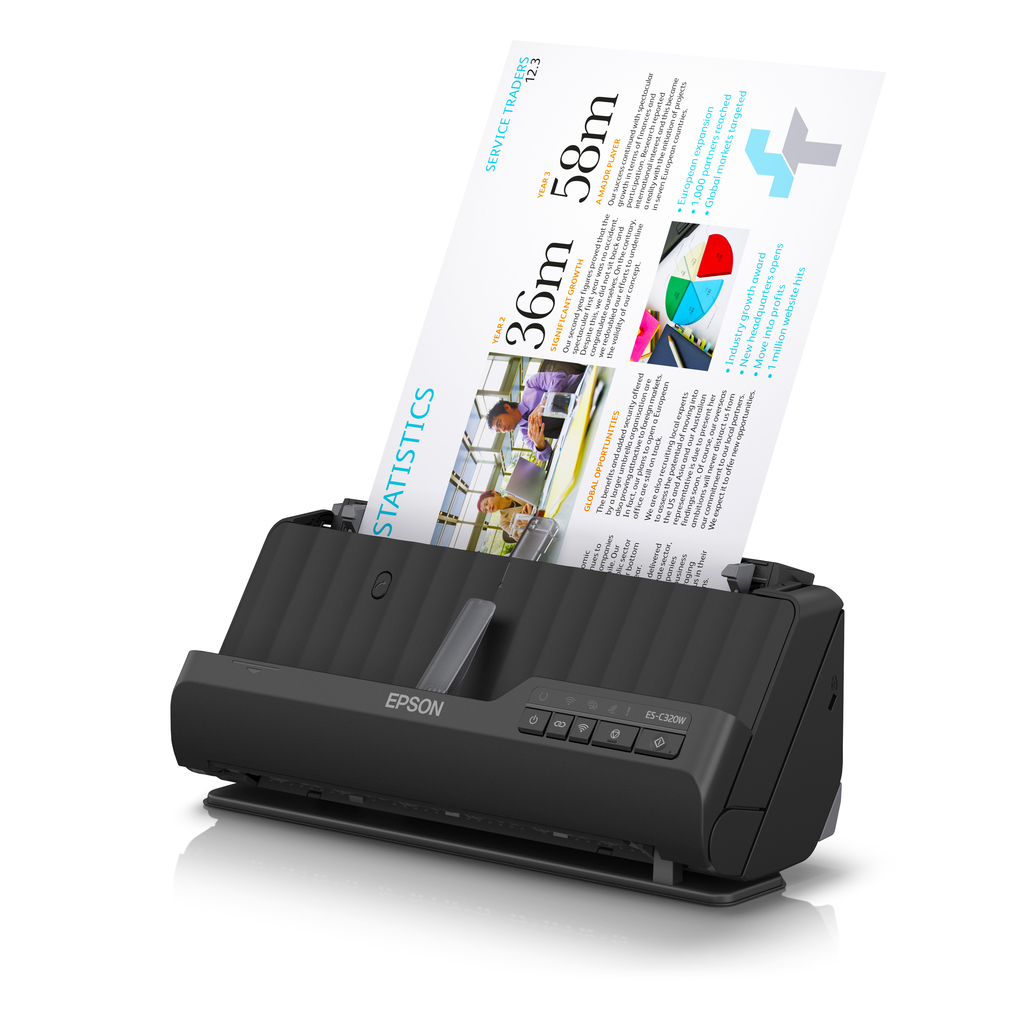

When the scanner is in U-turn path position, paper can be scanned without adding to the device’s footprint, making it the perfect choice when space is at a premium. Wi-Fi connectivity allows for more flexible placement options. Compatible with Windows, Mac, Chromebook, Android Mopria, Apple Airprint and Epson’s Smart Panel app*.
Versatile

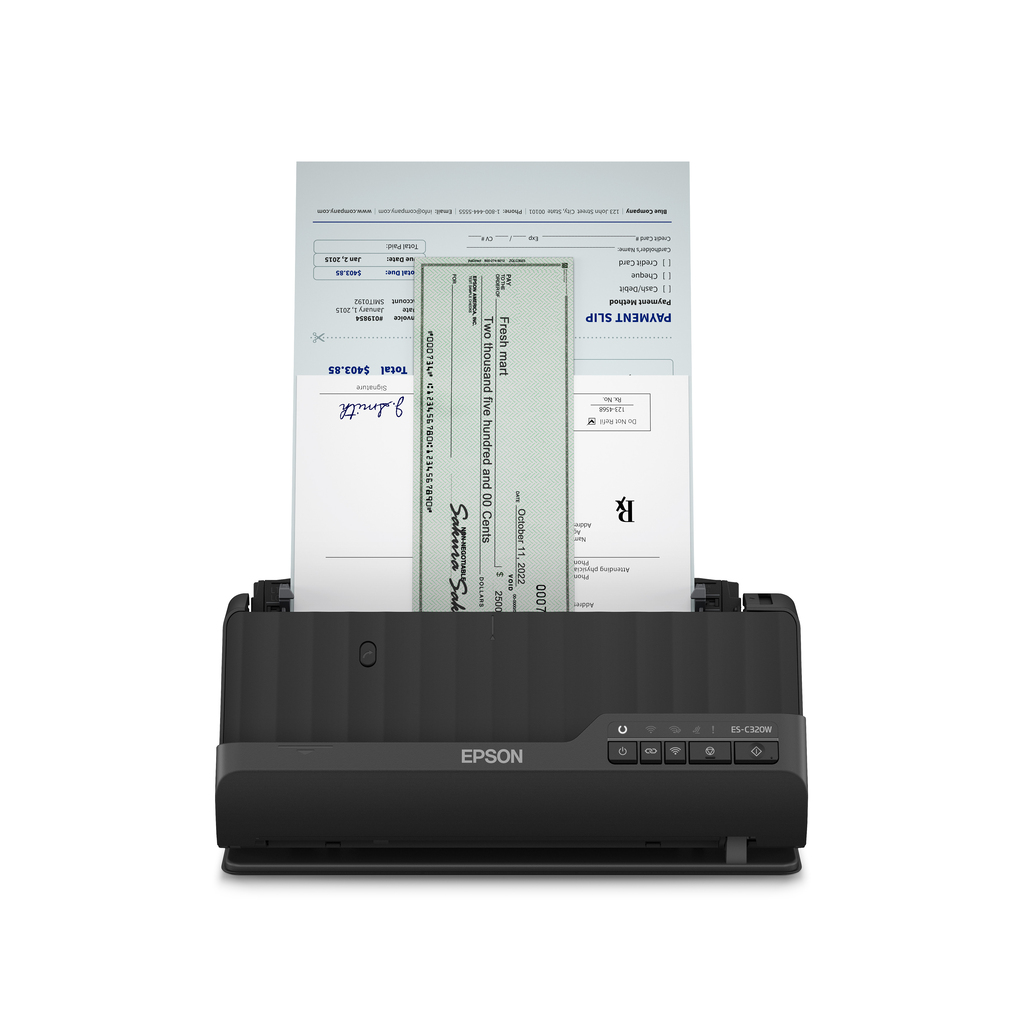

The ES-C320W is extremely versatile, handling from envelopes and PL cards to long paper and A3 (stitched). With the use of a carrier sheet, it can even scan passports and booklets up to 5mm thick. The ES-C320W also comes with a host of enhancement features, enabling you to improve text sharpness, as well as correcting edge folds, tears, border shadows and punch hole removal.

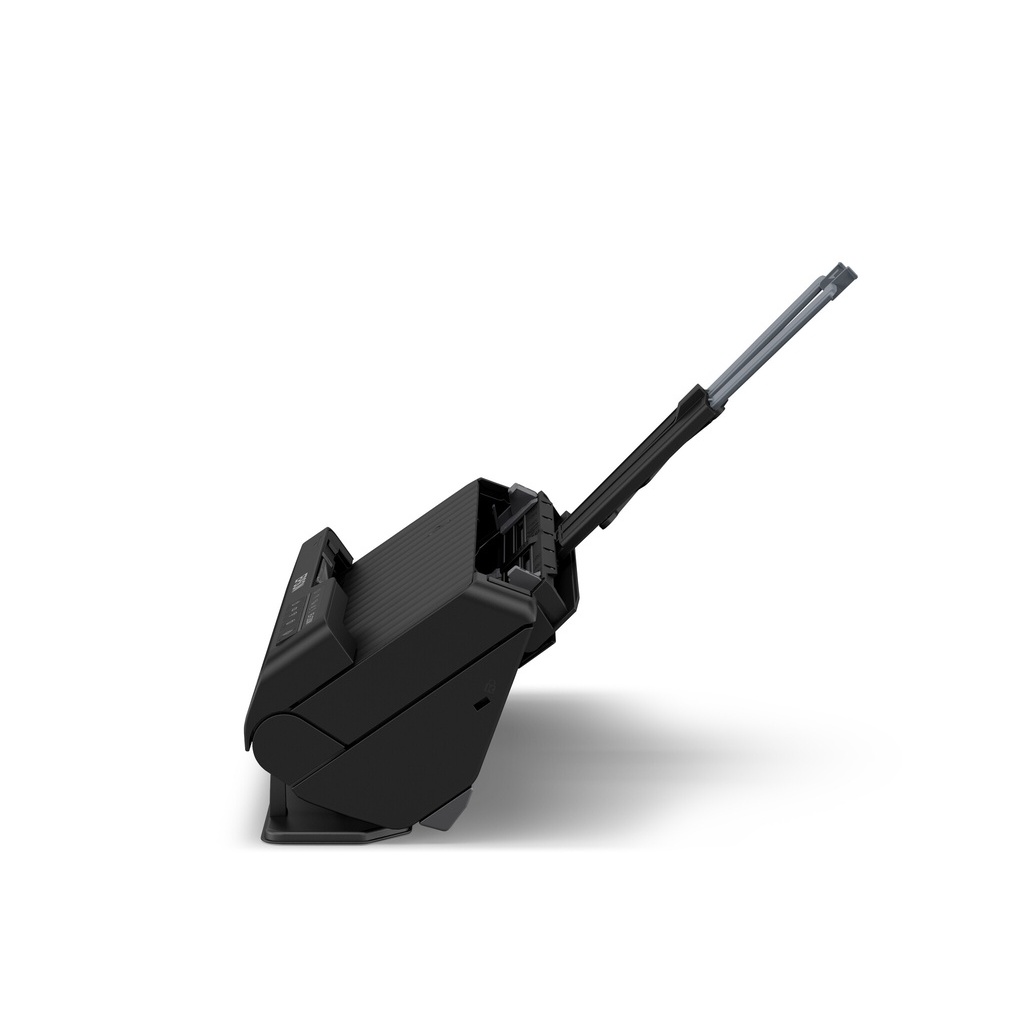

Two-in-one

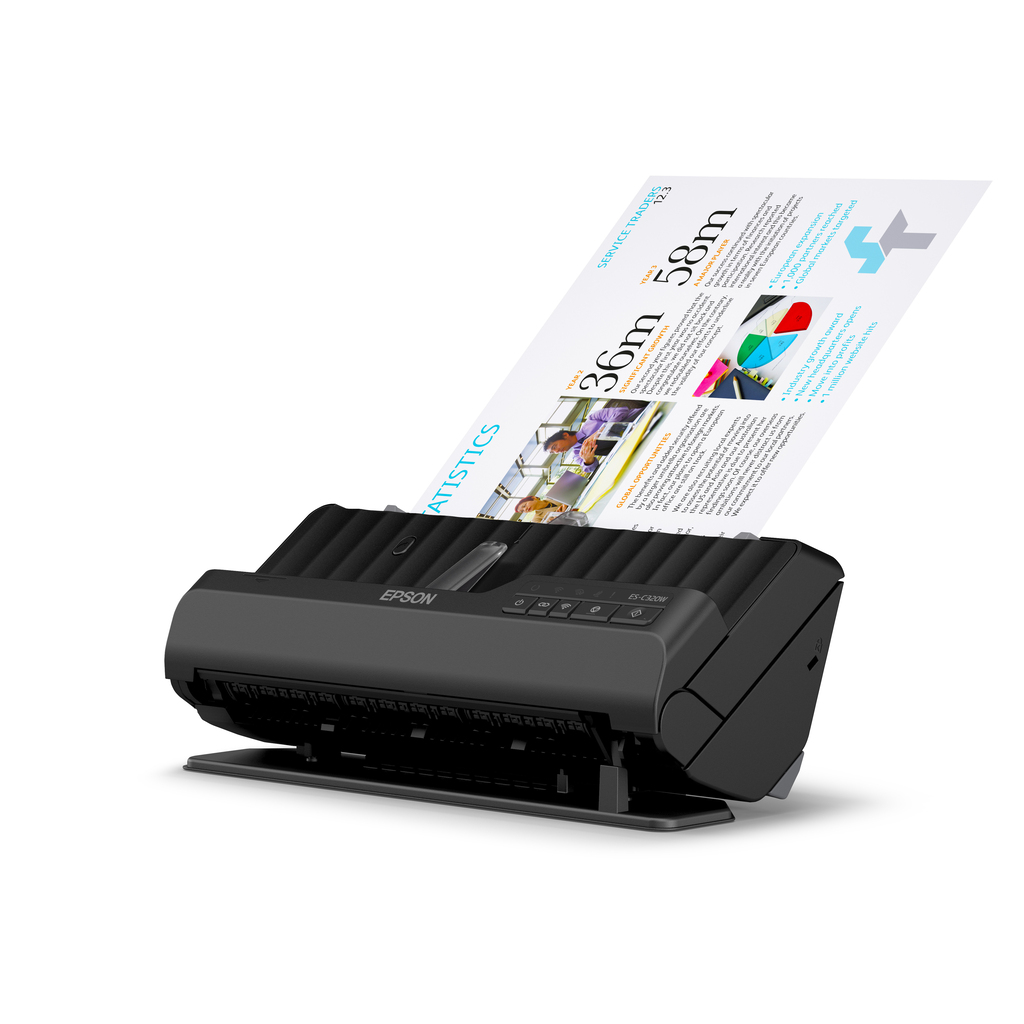

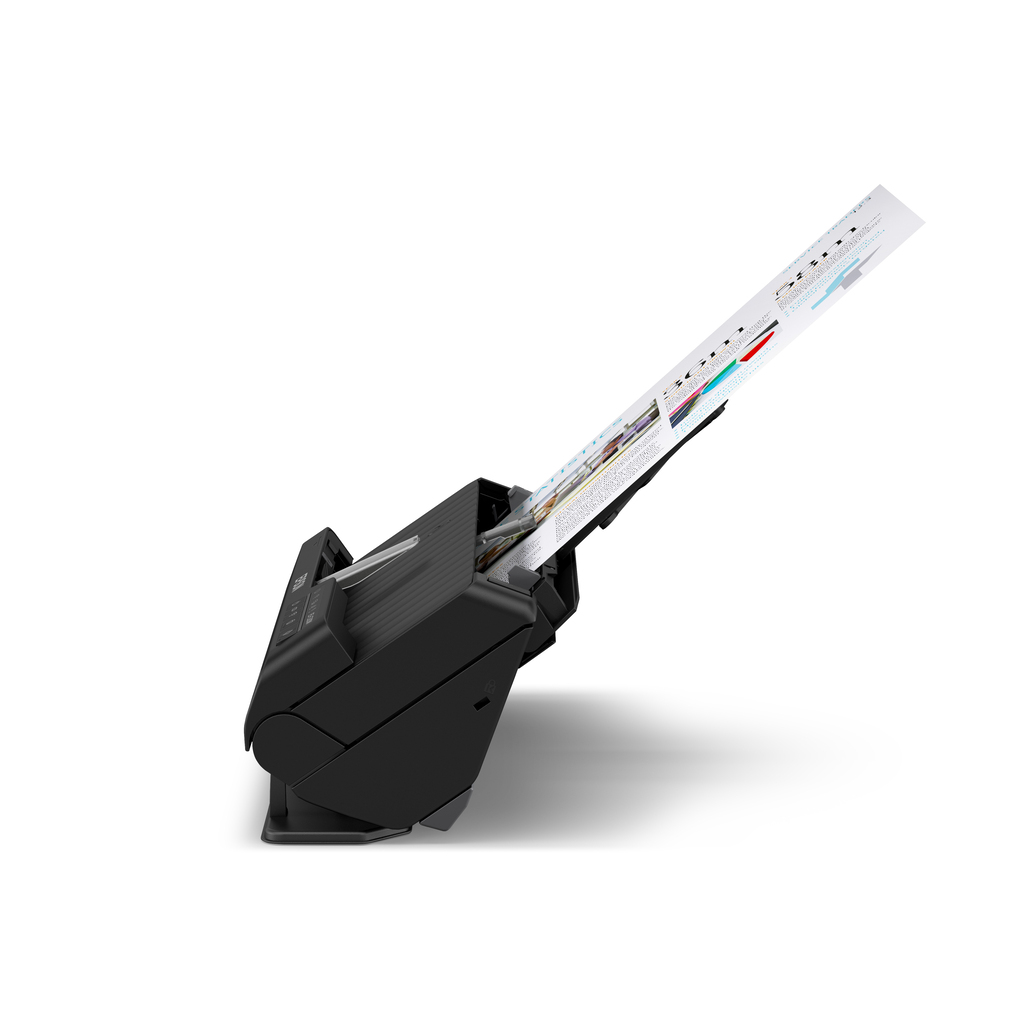

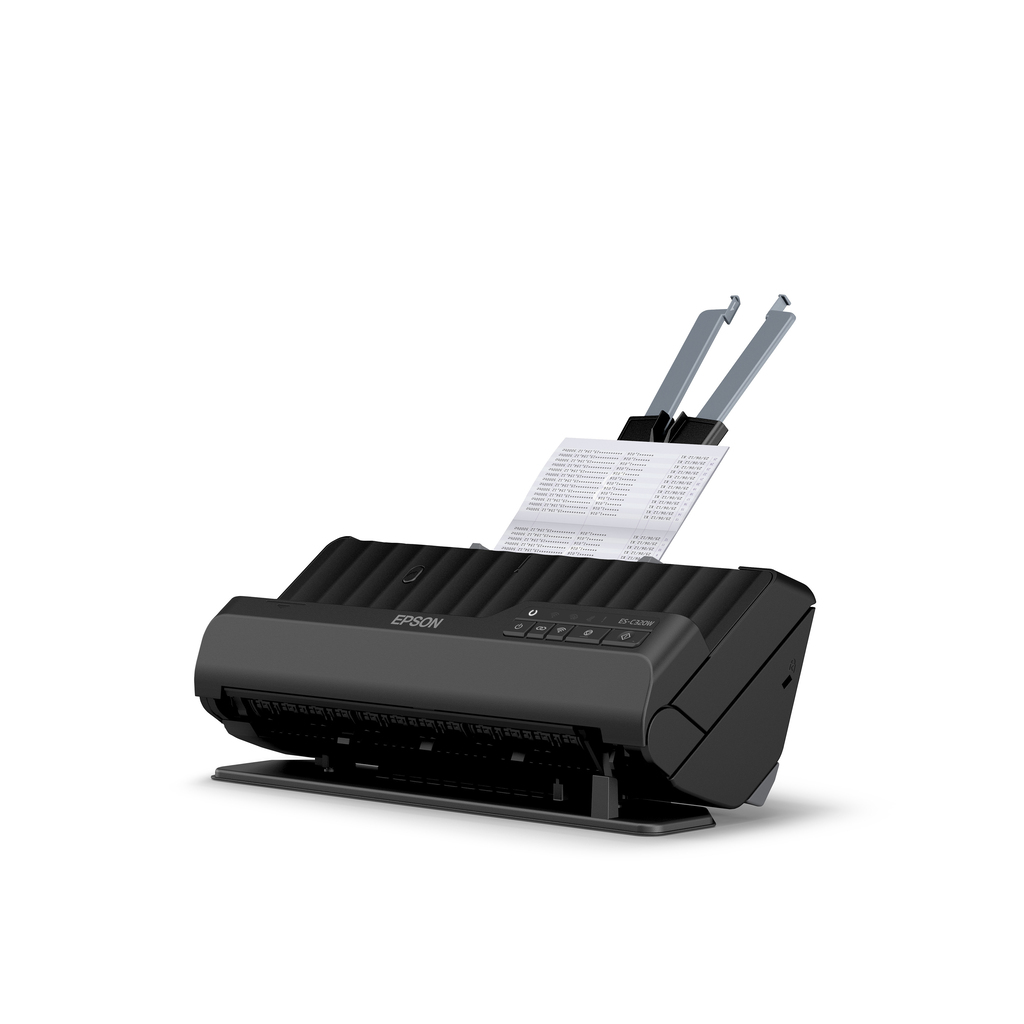

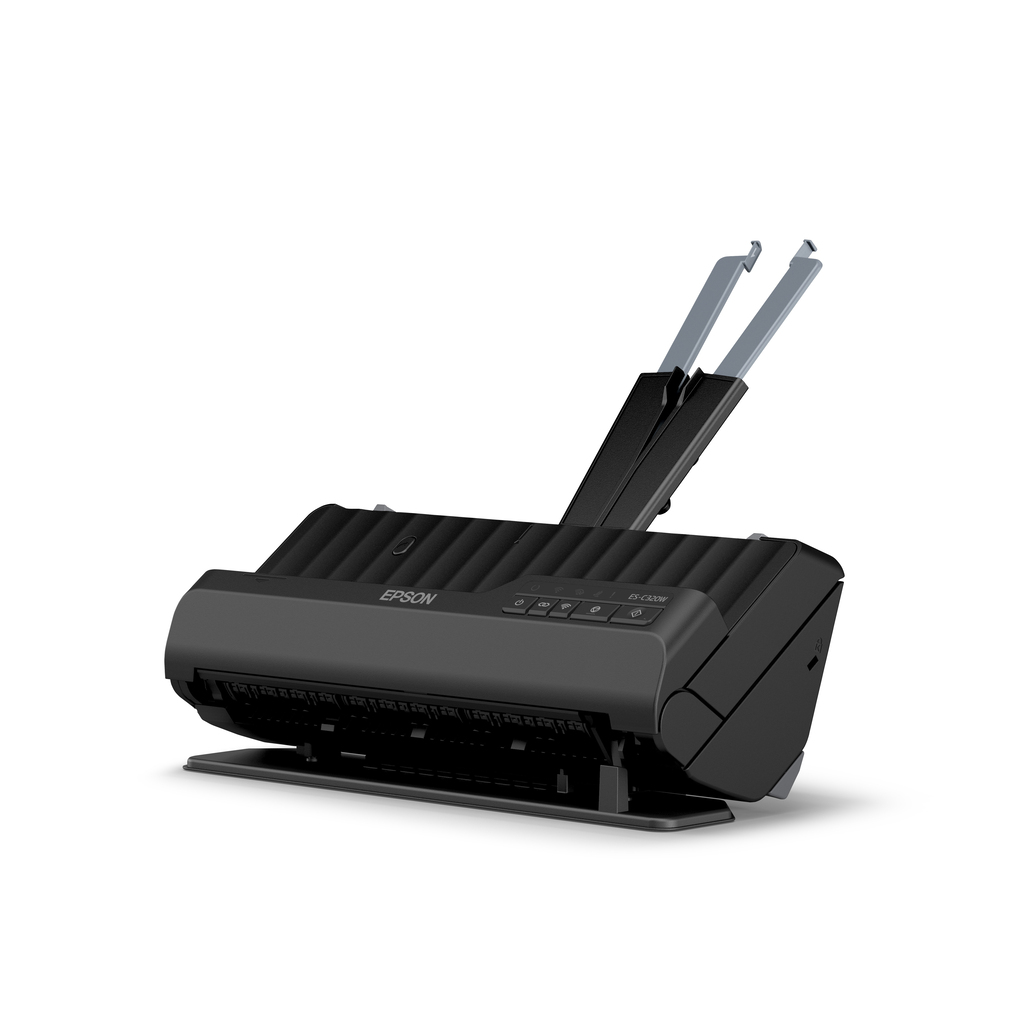

The selector allows you to easily switch between straight path mode and U-turn mode, even while in operation, enabling you to create a single PDF. When the scanner is in U-turn mode, paper can be scanned without adding to the device’s footprint, making it the perfect choice when space is at a premium. This makes it the ideal for any environment where desk space is limited.
Energy saving
With a power consumption of only 3.3W in ready mode and 1.0W in sleep mode, it will save you energy.
Additional information
| Weight | 2.76 lbs |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
| Sensor type | CIS |
| Daily duty cycle (max) | 3500 pages |
| Scan to | E-mail, Print |
| Auto document feeder (ADF) input capacity | 20 sheets |
| Maximum ISO A-series paper size | A4 |
| USB port | Yes |
| USB version | 2.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Power supply type | AC |
| Input voltage | 100 – 240 V |
| Width | 296 mm |
| Depth | 104 mm |
| Height | 125 mm |
| Weight | 1.8 kg |
| Operating temperature (T-T) | 5 – 35 °C |
| Operating relative humidity (H-H) | 15 – 80% |
| Maximum scan size | 215.9 x 3048 mm |
| Light source | ReadyScan LED |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Power consumption (typical) | 10 W |
| Quantity per pack | 1 pc(s) |
| Control type | Buttons |
| Scan drivers | TWAIN, SANE, WIA, ICA |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Letter | Yes |
| Legal | Yes |
| Paper tray media weight | 40 – 413 g/m² |
| Power consumption (PowerSave) | 3.3 W |
| Package width | 230 mm |
| Package depth | 370 mm |
| Package height | 215 mm |
| Package weight | 2.7 kg |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016 |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Output colour depth | 24 bit |
| Output monochrome depth | 8 bit |
| Power consumption (standby) | 1 W |
| Country of origin | Indonesia |
| Input colour depth | 30 bit |
| Storage temperature (T-T) | -25 – 60 °C |
| Storage relative humidity (H-H) | 15 – 85% |
| Standard input capacity | 20 sheets |
| Bundled software | Epson Device Admin, Epson Scan 2, Epson ScanSmart |
| Image formats supported | BMP, JPEG, TIFF, MTIFF, PNG |
| Products per pallet | 90 pc(s) |
| Products per pallet (UK) | 117 pc(s) |
| Maximum scan area (ADF) | 50.8 x 50.8 mm |
| Box contents | Main unit, Power cable, Setup guide, USB cable, Warranty document |
| Compatible operating systems | Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.9.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Windows 10 (32/64 bit), Windows 11, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windo |
| Output resolutions | 75, 100, 150, 200, 240, 300, 400, 600, 1200 DPI |
| Data compression | Hardware JPEG compression |
| Pallet gross height | 2.08 m |
| Products per pallet layer | 10 pc(s) |
| Products per pallet layer (UK) | 13 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.08 m |
| Interface | Hi-Speed USB – compatible with USB 2.0 specification, Wireless LAN IEEE 802.11a/b/g/n, Wi-Fi Direct |
| Printer features | RGB colour dropout, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM) |
| Scanner features | RGB colour dropout, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM) |
| Linear scan speed (metric) | Monochrome:30 pages/min – Color:30 pages/min measured with Size: A4 , Resolution: 300 dpi, Monochrome:60 image/min – Color:60 image/min measured with Size: A4 , Resolution: 300 dpi |
