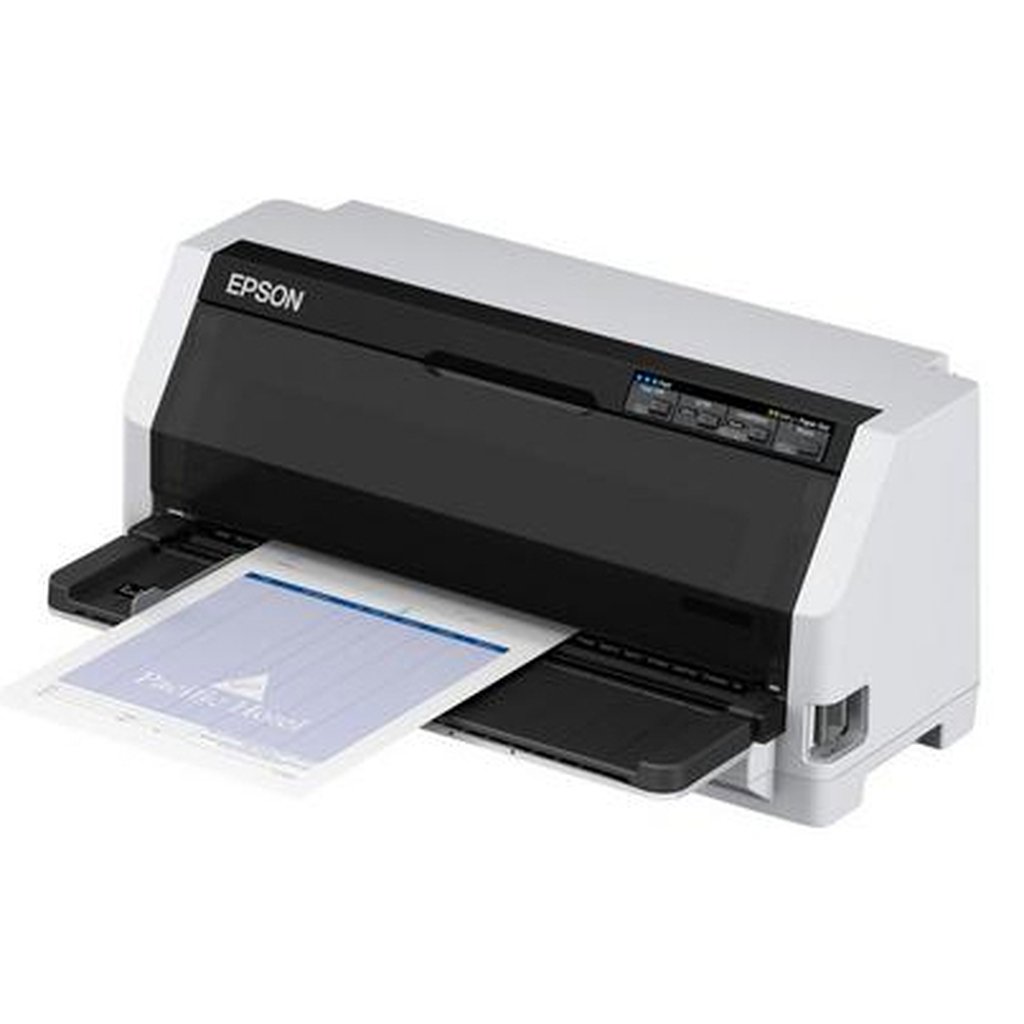

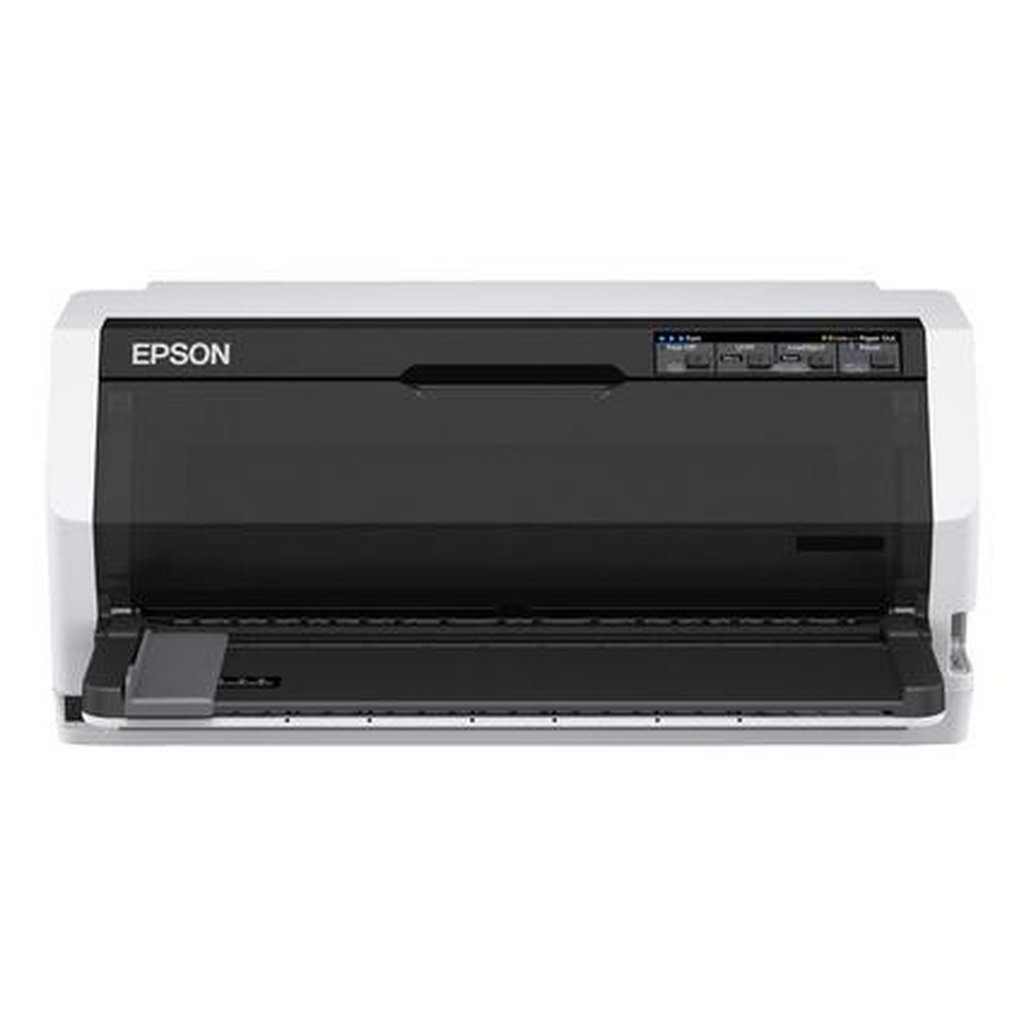

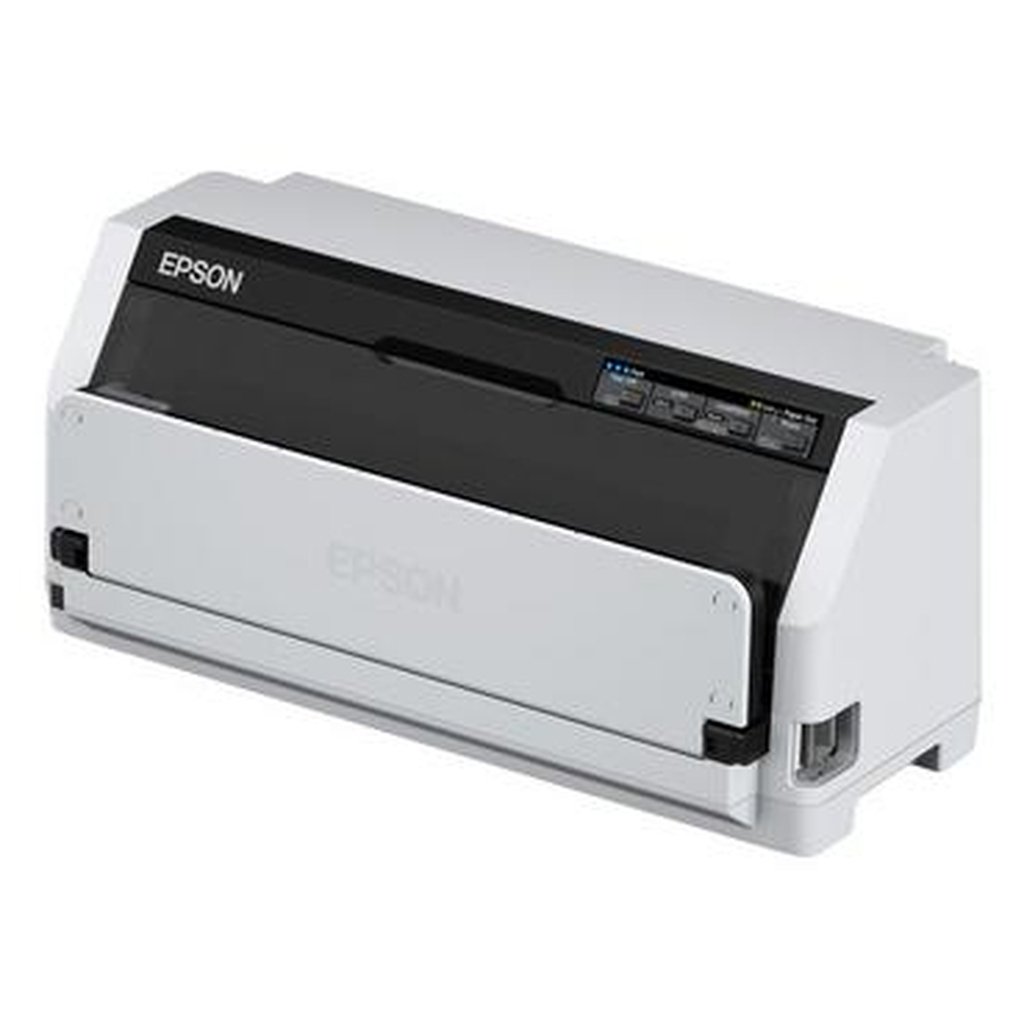

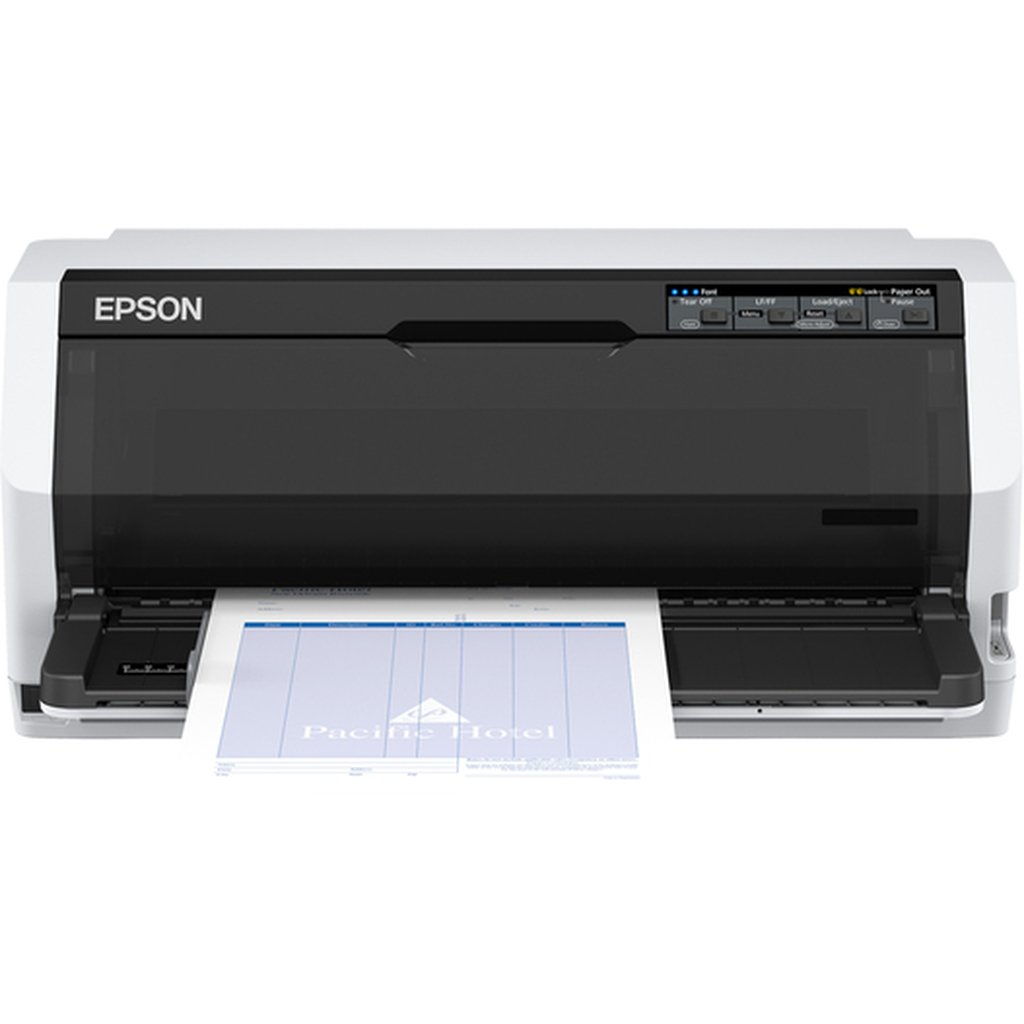

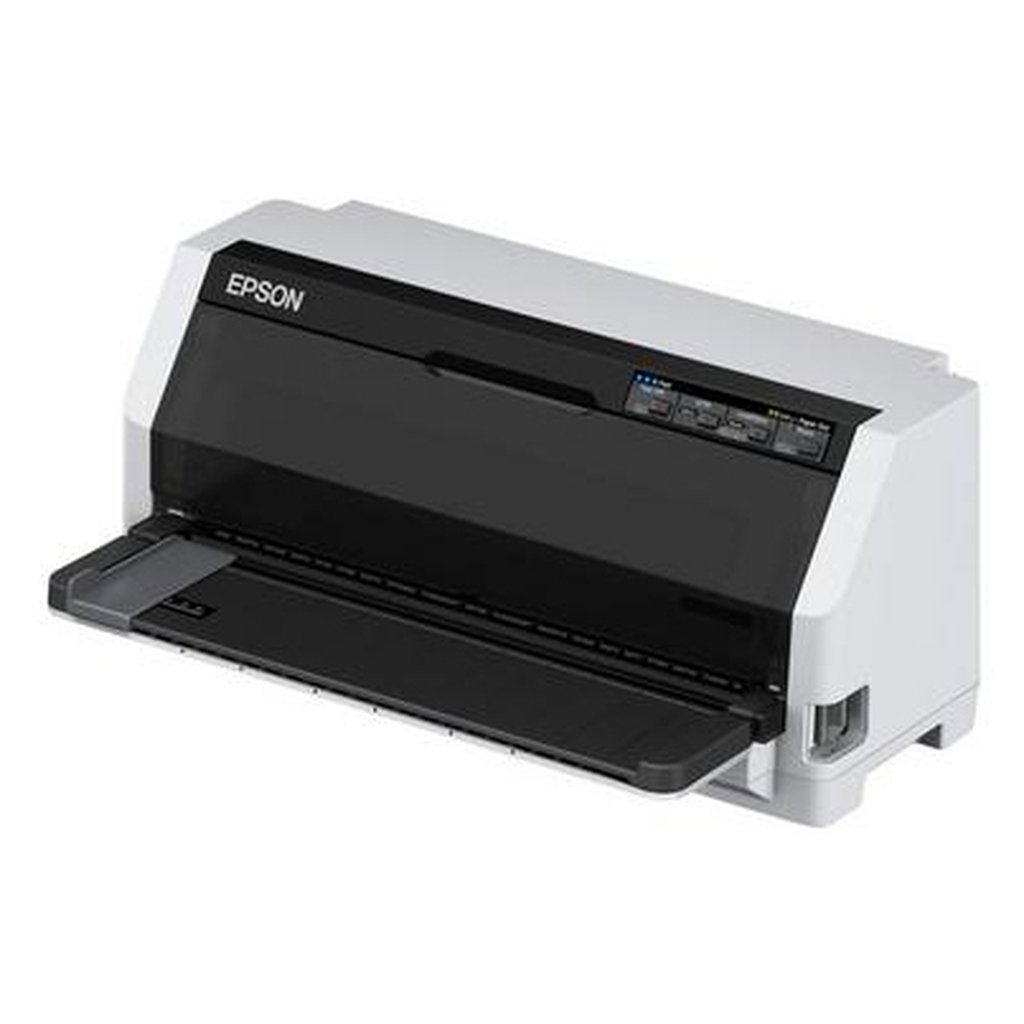

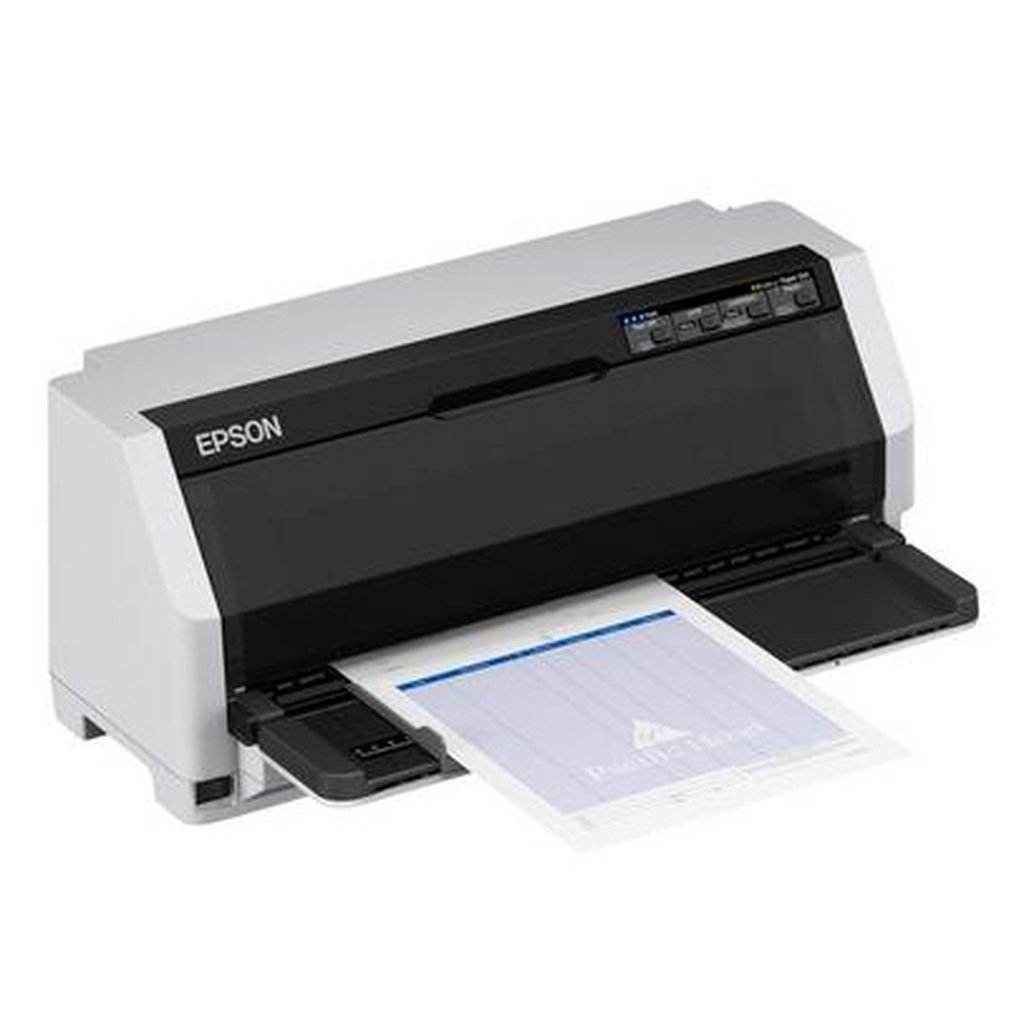

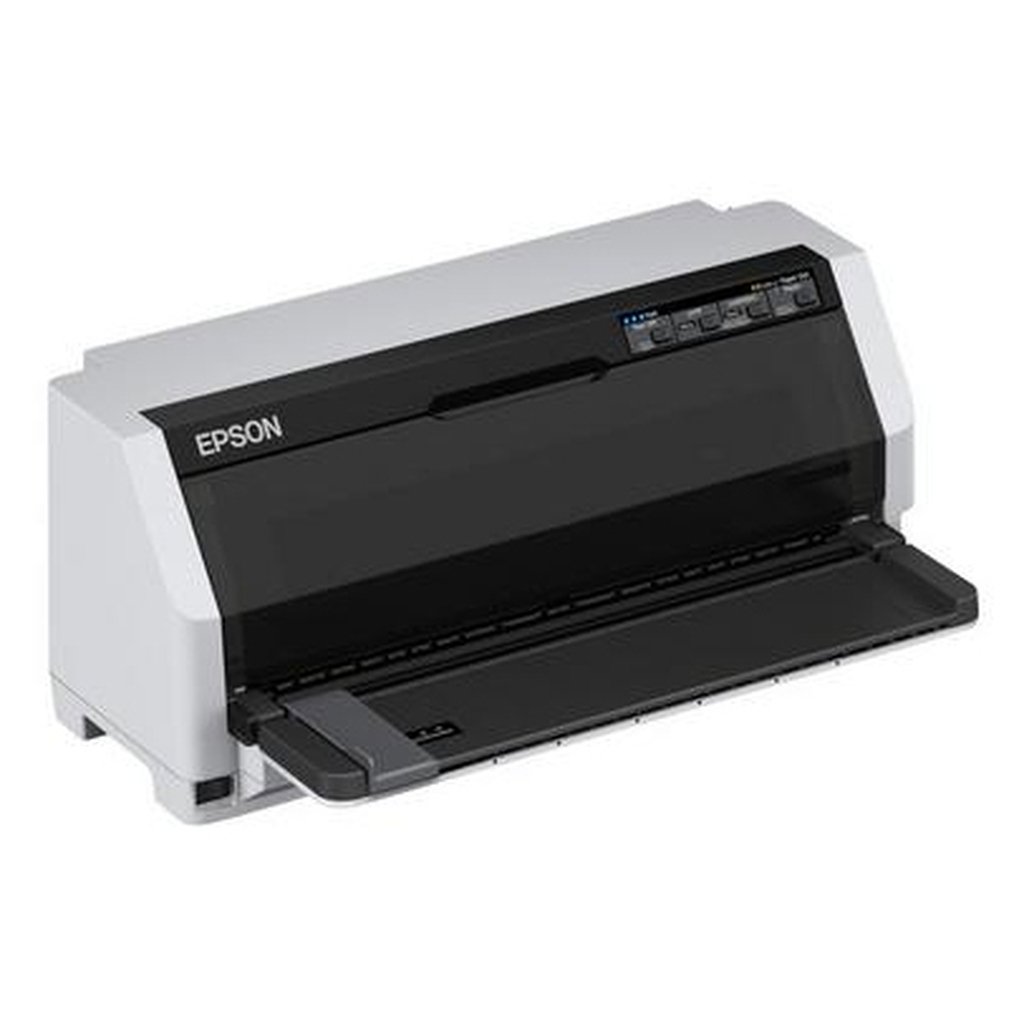

Epson LQ-690IIN dot matrix printer 360 x 180 DPI 487 cps
24-pin dot matrix printer, 487 cps, 1+6 copies, 106 columns,Ethernet interface, USB 2.0, Bidirectional parallel
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Designed with productivity in mind, the LQ-690IIN is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.
Fast printing:
Print faster and more productively. The LQ-690IIN prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690IIN as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and with its network capabilities, the LQ-690IIN is perfect for all your work requirements. This results in greater productivity and less maintenance from down time – essential when producing large amounts of documents and data.
Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Additional information
| Weight | 8.68 lbs |
|---|---|
| Colour | No |
| Maximum print speed | 487 cps |
| Maximum resolution | 360 x 180 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed (draft) | 366 cps |
| Maximum print speed (LQ) | 121 cps |
| Maximum number of copies | 7 copies |
| Built-in barcodes | CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Character sets | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8 |
| Paper tray media types | Envelopes, Labels, Plain paper, Roll |
| Continuous paper thickness range | 0.065 – 0.49 mm |
| Multi-part paper thickness range | 0.12 – 0.49 mm |
| Single sheet thickness range | 0.065 – 0.15 mm |
| Product colour | Black, White |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |

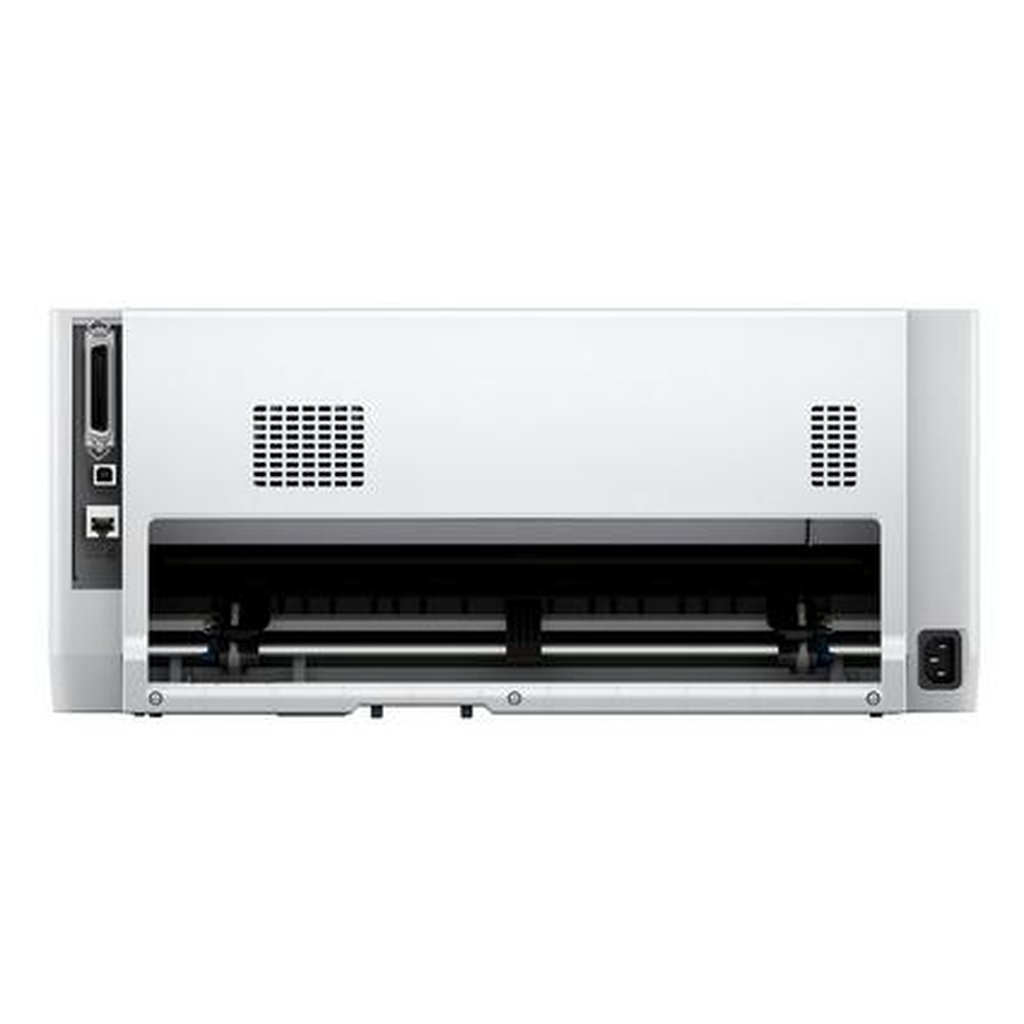

| Standard interfaces | Ethernet, Parallel, USB 2.0 |
| Print head | 24-pin |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 20000 h |
| Power consumption (typical) | 38 W |
| Power consumption (standby) | 3 W |
| Operating temperature (T-T) | 5 – 35 °C |
| Windows operating systems supported | Yes |
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.8 kg |
| Buffer size | 128 KB |
| Label thickness range | 0.16 – 0.19 mm |
| Ribbon life | 10 million characters |
| Cabling technology | 10/100Base-T(X) |
| Bundled software | Epson Status Monitor |
| Paper feed | Manual, Pull tractor |
