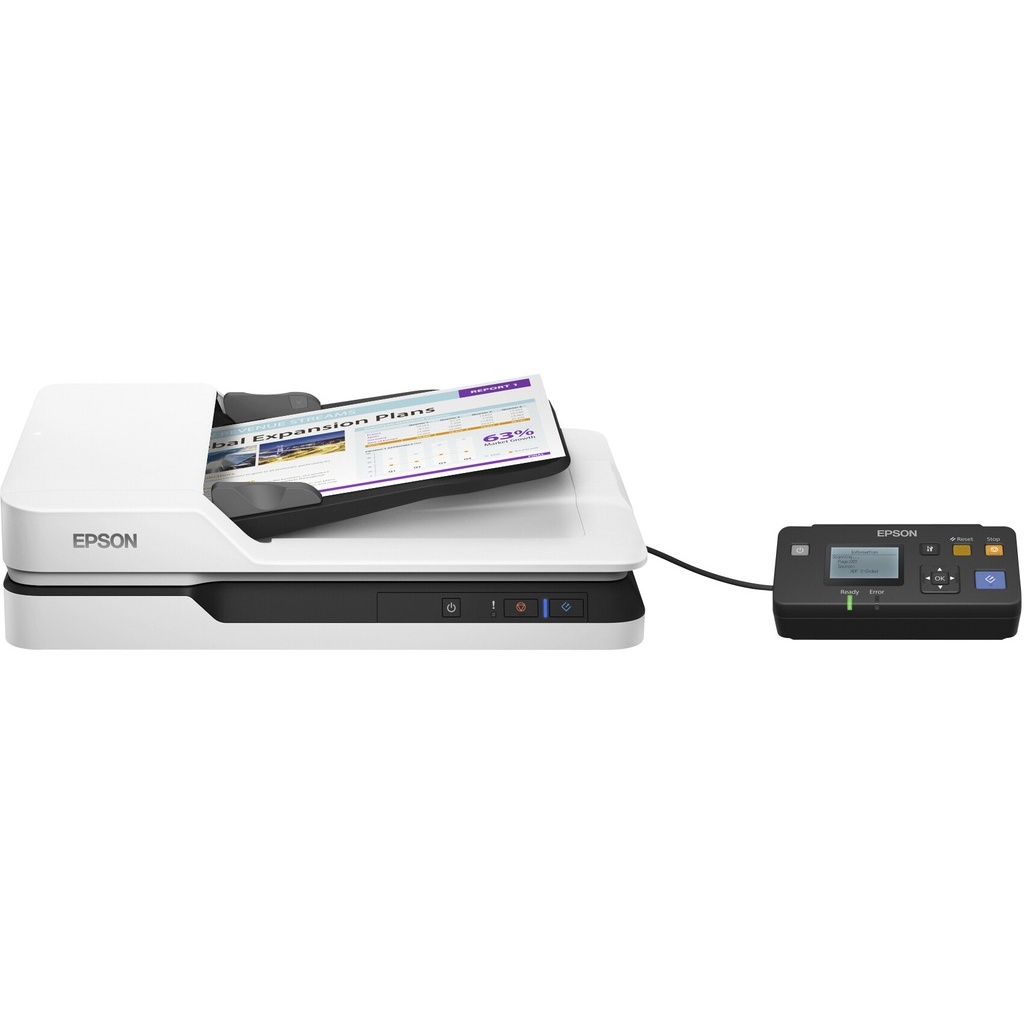

Epson WorkForce DS-1630 Power PDF
Color, CIS, 1200dpi, 8.5×14″, USB 3.0, WhiteBlack
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Affordable flatbed scanner
Combining a flatbed scanner with the convenience of a 50-page ADF makes it possible to scan a wide range of challenging documents, including books, bound documents, passports and delicate items while quickly and simply scanning stacks of office documents. Its small footprint makes it easy to position in front office and customer-facing environments, as well as back office workgroups.
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson’s Image Processing Technology. With long document mode it’s possible scan over three metres (3048mm) of paper single sided.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1630 also encourages easy, one-touch scanning to folders, email, online storage accounts{s2 and more.
Additional information
| Weight | 4.88 lbs |
|---|---|
| Optical scanning resolution | 1200 x 1200 DPI |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 25 ppm |
| Duplex ADF scan speed (b/w, A4) | 10 ipm |
| Scanner type | Flatbed scanner |
| Built-in display | No |
| Product colour | Black, White |
| Sensor type | CIS |
| Daily duty cycle (max) | 1500 pages |
| Scan to | File, PC |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Maximum ISO A-series paper size | A4 |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | AC |
| Power consumption (off) | 0.15 W |
| AC input frequency | 50 – 60 Hz |
| Input voltage | 100 – 120 V |
| Width | 451 mm |
| Depth | 315 mm |
| Height | 120 mm |
| Weight | 3.7 kg |
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Maximum scan size | 210 x 3048 mm |
| Colour scanning | Yes |
| Light source | RGB LED |
| Scan file formats | |
| Power consumption (typical) | 11 W |
| Quantity per pack | 1 pc(s) |
| Scan drivers | TWAIN, ISIS |
| Power consumption (PowerSave) | 0.8 W |
| Package width | 195 mm |
| Package depth | 520 mm |
| Package height | 405 mm |
| Package weight | 4.83 kg |
| Cables included | AC, USB |
| Windows operating systems supported | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84716070 |
| Output colour depth | 30 bit |
| Output greyscale depth | 8 bit |
| Power consumption (standby) | 5.8 W |
| Country of origin | Indonesia |
| Input colour depth | 30 bit |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leo |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Scanning noise level | 55 dB |
| Standard input capacity | 50 sheets |
| Bundled software | Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2 |
| Auto Document Feeder (ADF) media weight | 50 – 120 g/m² |
| Image formats supported | BMP, JPEG, TIFF, MTIFF |
| Maximum scan area (ADF) | 89 x 127 mm |
| Box contents | Main unit, Power cable, Setup guide, Software (CD), USB cable, Warranty Documents |
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Vista, Win |
| Data compression | Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression, JPEG compression |
| Interface | USB 3.2 Gen 1×1 |
| Printer features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Advanced editing, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Unshar |
| Scanner features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Advanced editing, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Unshar |
| Linear scan speed (metric) | Monochrome:25 pages/min – Color:25 pages/min , Resolution: 200 / 300 dpi, Monochrome:10 image/min – Color:10 image/min , Resolution: 200 / 300 dpi |
