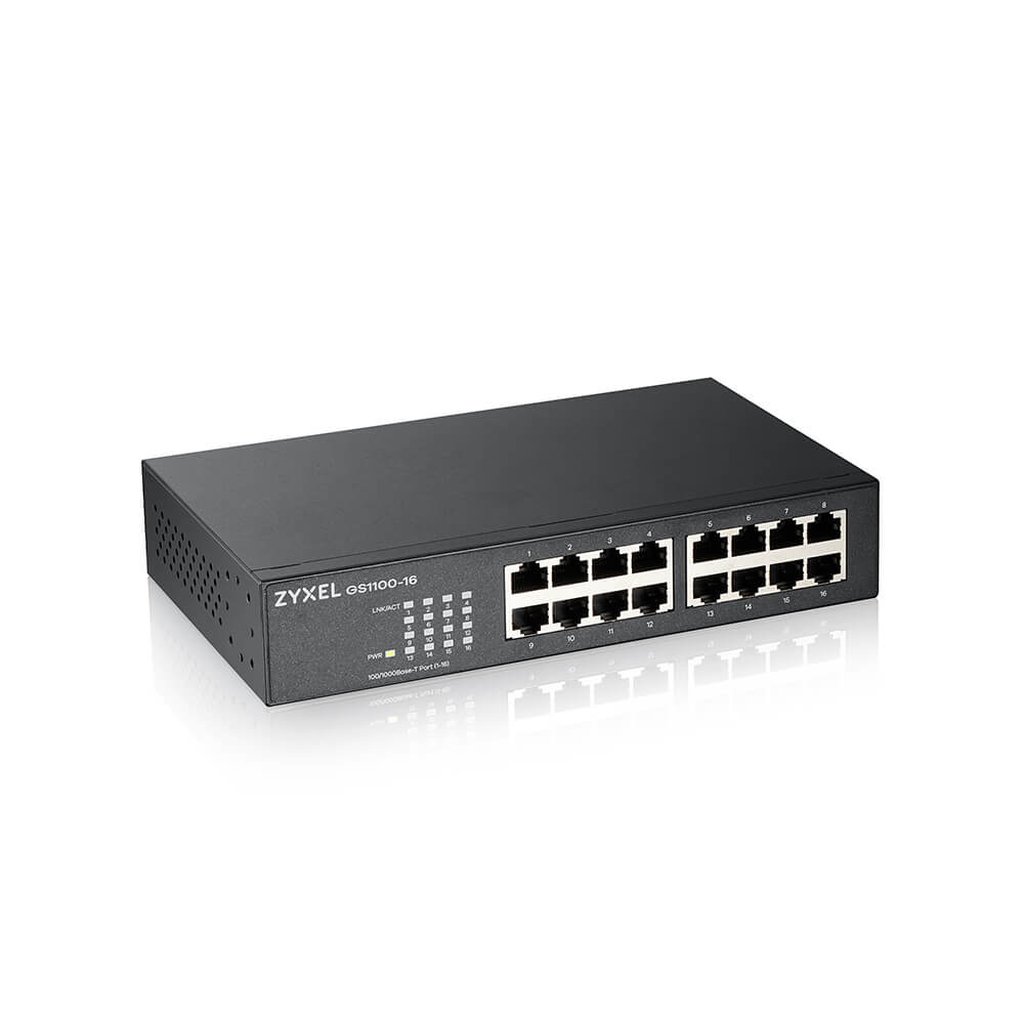

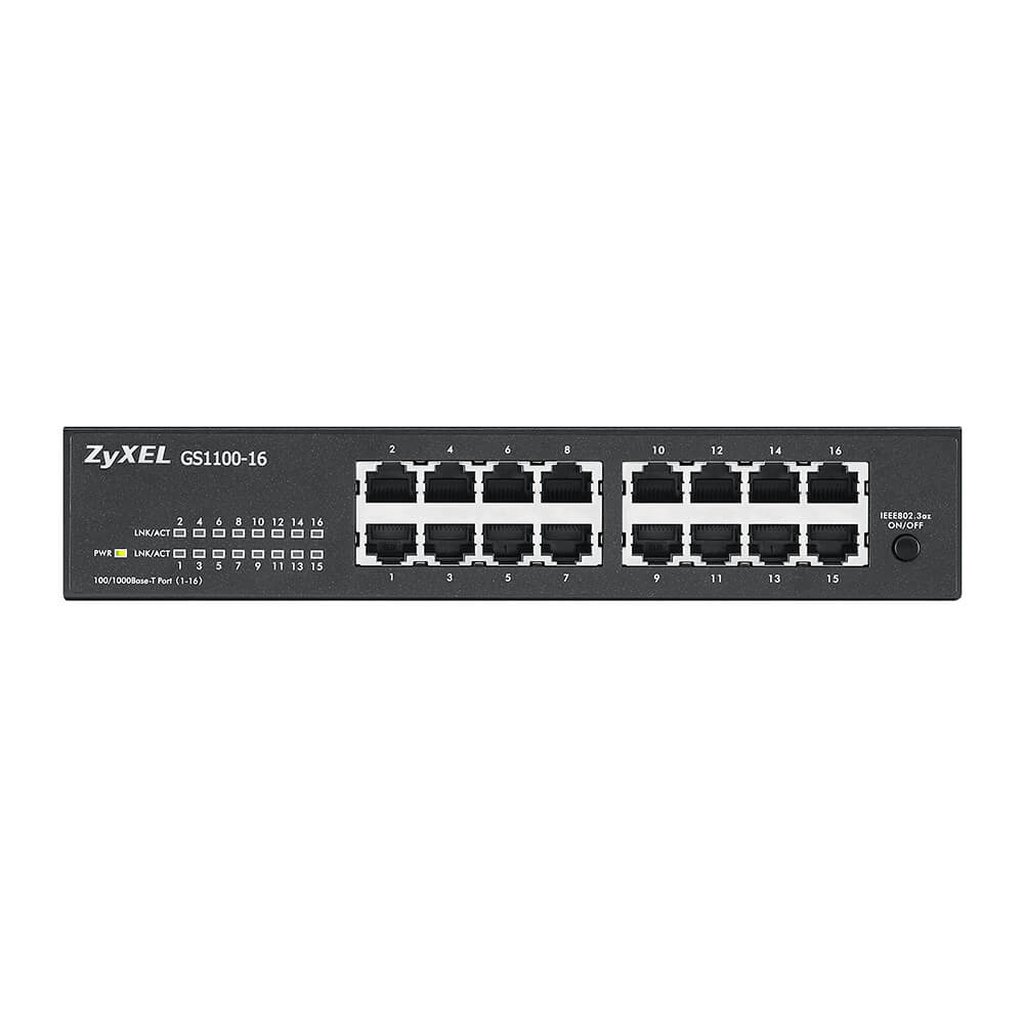

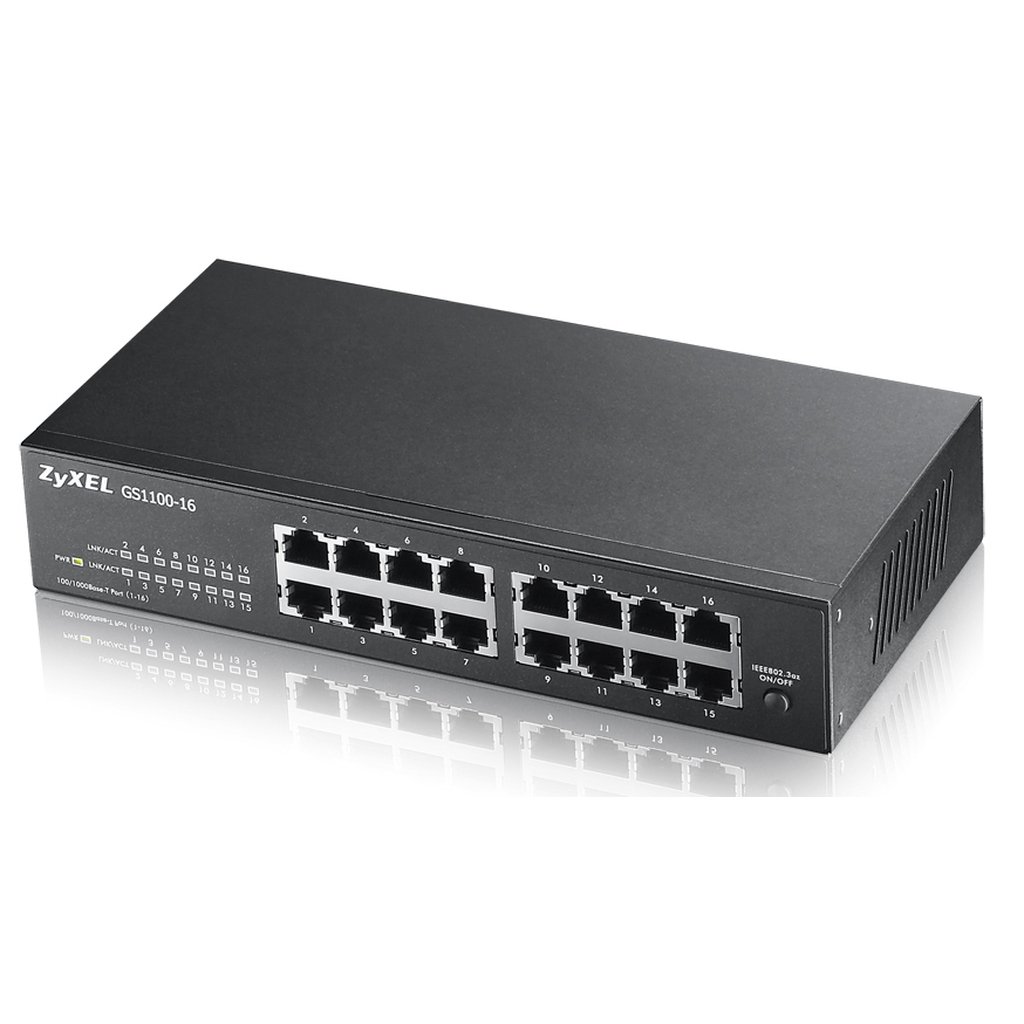

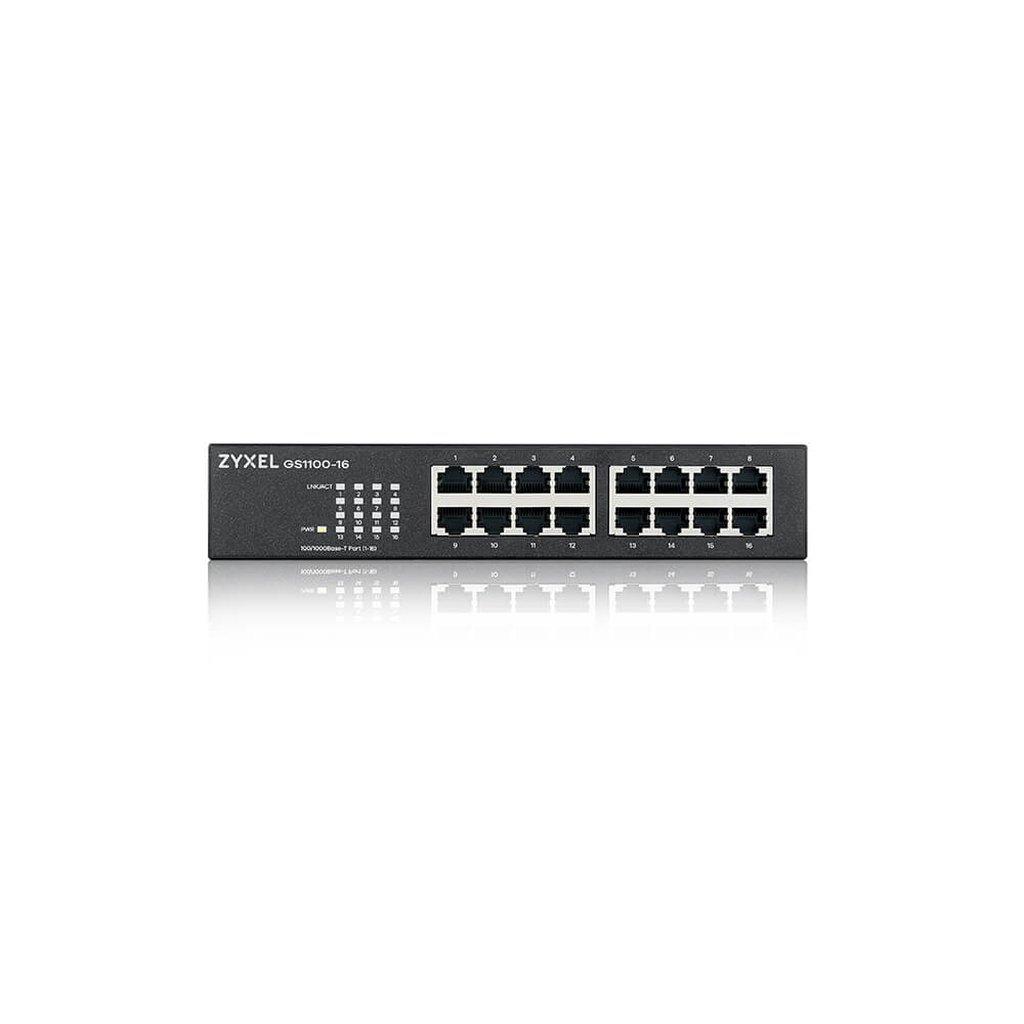

Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)
GS1100-16 Revision B1 – 16-port GbE Unmanaged, GB
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

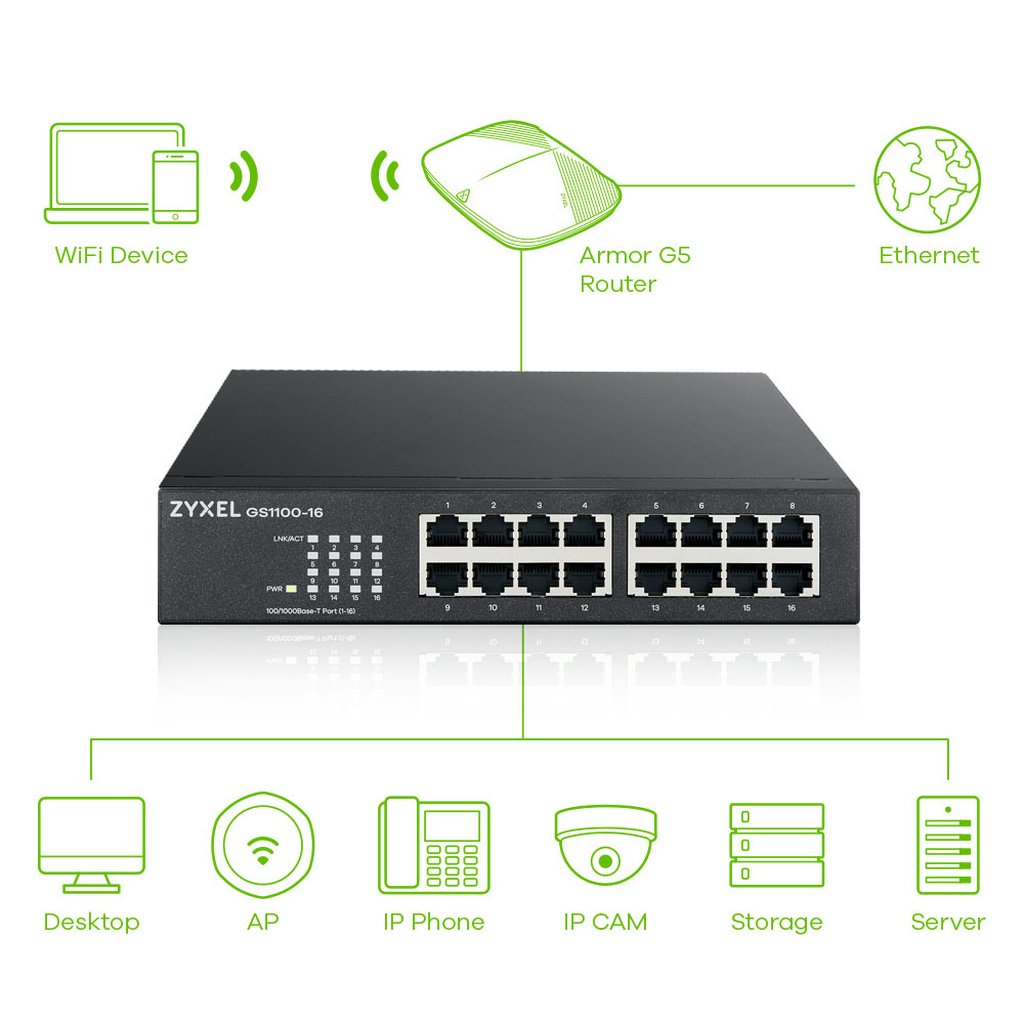

Plug and play connectivity
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Additional information
| Weight | 1.66 lbs |
|---|---|
| Switch type | Unmanaged |

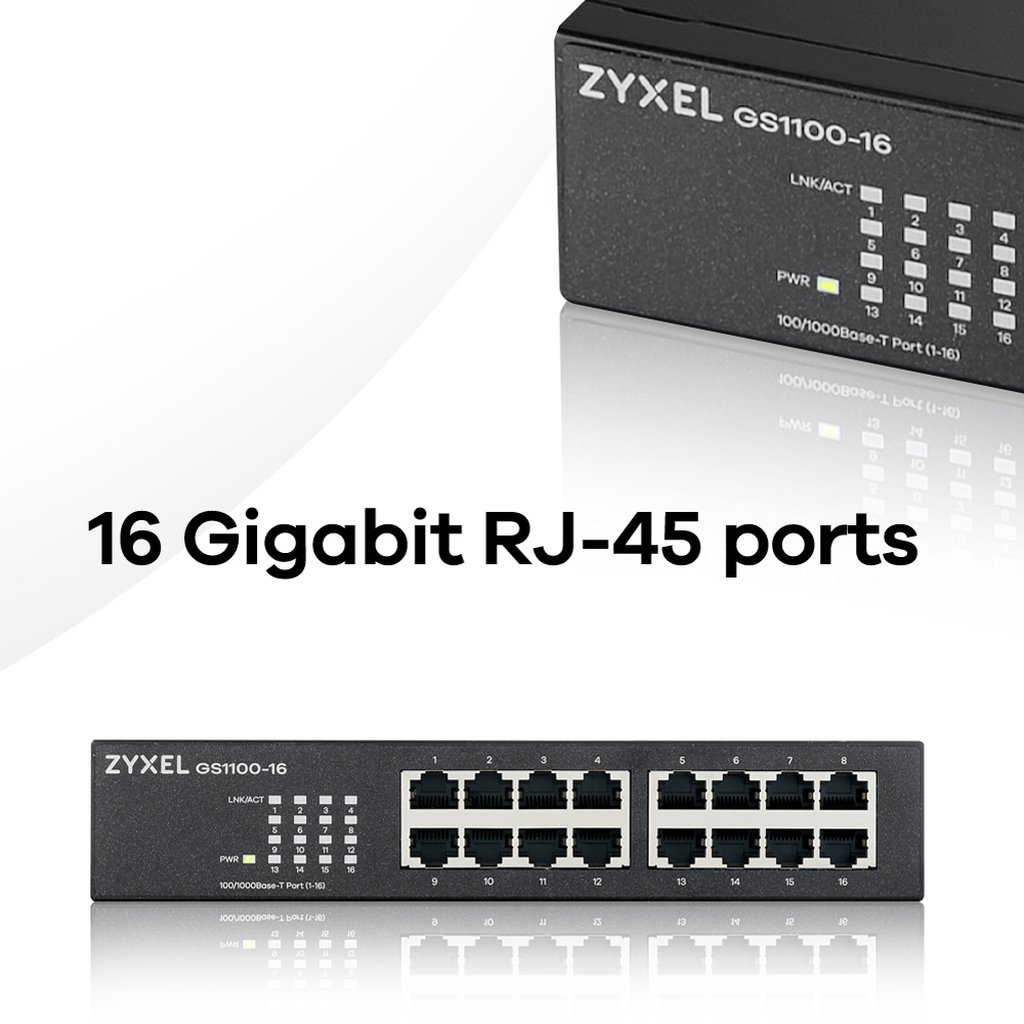

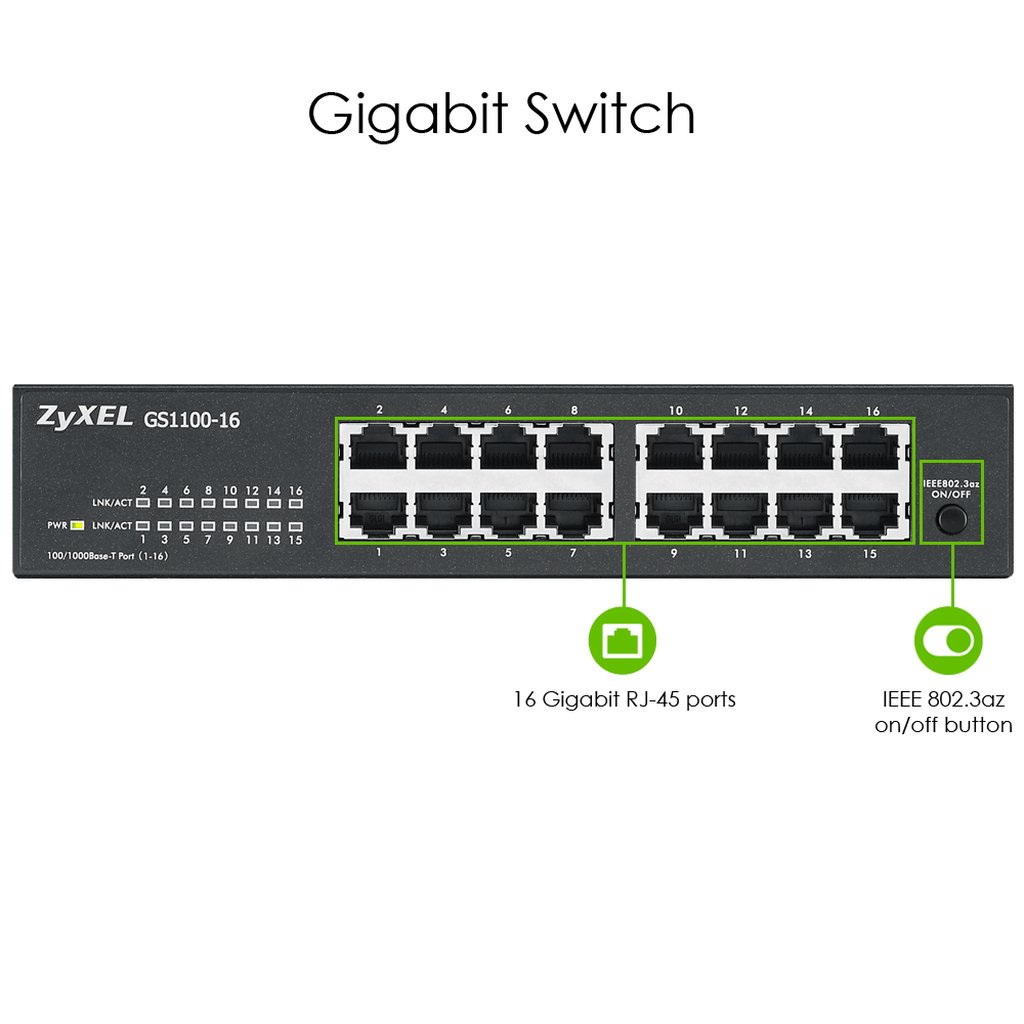

| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Rack mounting | Yes |
| LED indicators | Activity, Link, Power |
| Mean time between failures (MTBF) | 1156942 h |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 42 mm |
| Weight | 19.8 kg |
| Harmonized System (HS) code | 85176990 |
| Flow control support | Yes |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Power supply included | Yes |
| Cables included | AC |
| Certification | LVD, BSMIRoHS, REACH |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Forwarding rate | 23.8 Mpps |
| Wall mountable | Yes |
| Fanless | Yes |
| Package type | Box |
| Heat dissipation | 32.86 BTU/h |
| Active link detection | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Number of power supply units | 1 |
| Rack mount kit | Yes |
