C2G HDMI Inline Extender 4K60
HDMI Inline Extender 4K60
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The HDMI In-Line Extender is the perfect solution for extending HDMI A/V signals over HDMI cabling. This extender is capable of supporting a 4k60 resolution at extension distances up to 25 metres (82ft) and a 1080p resolution at extension distances up to 50 metres (164ft). The female to female connector configuration makes this device easy to install and, in most instances, no external power is required*. Simply connect an HDMI cable from a Blu-ray[TM] player, laptop or other HDMI device to the HDMI port of the extender labelled Source, and then connect an HDMI cable from the HDMI port of the extender labelled Display to a HDTV, projector, or monitor.
The HDMI In-Line Extender is HDCP 2.2 compliant and supports exceptional 4K resolutions up to 3840 x 2160 at 60hz with 4:4:4 chroma sub-sampling, handling total HDMI data rates up to 18Gbps.

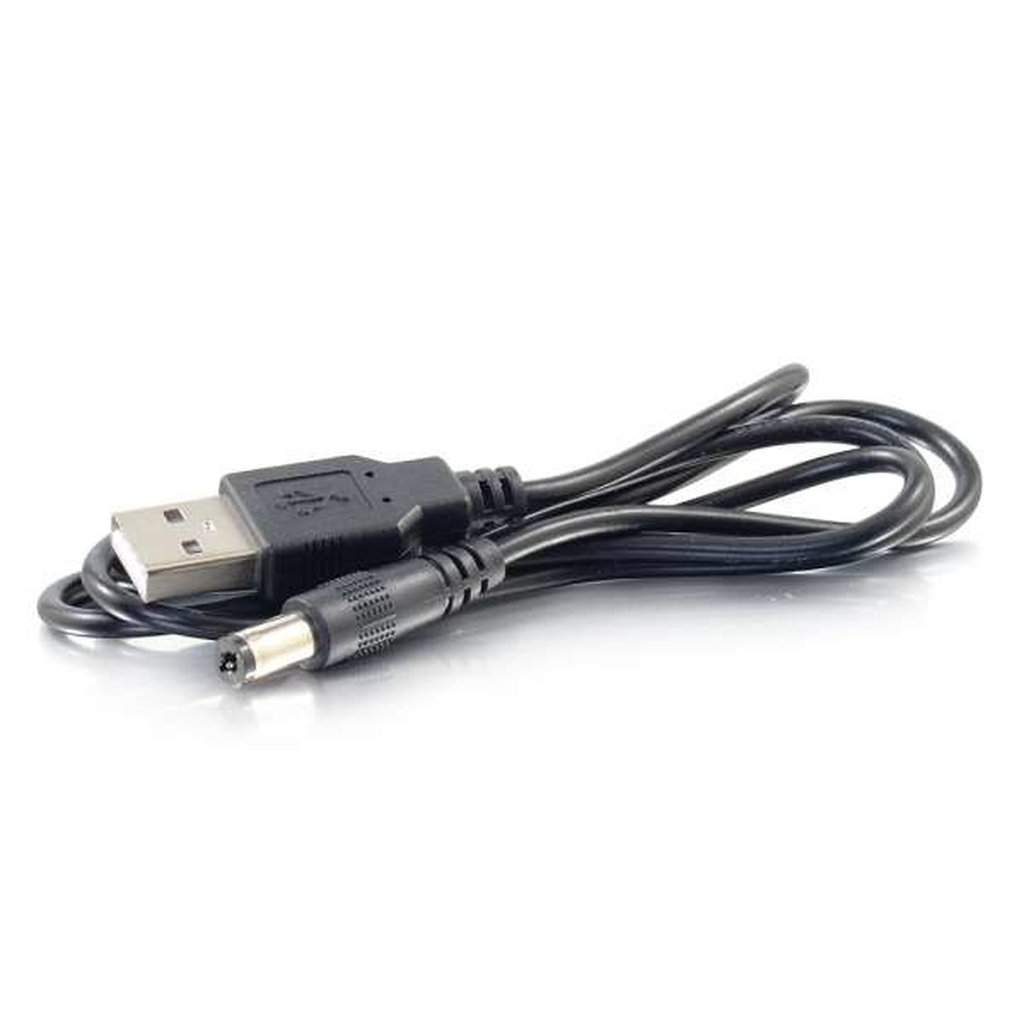

*Note: Some HDMI source devices are unable to output the power required by the HDMI In-Line Extender, which results in no image being displayed. In those instances, use the included DC to USB power cable or an HDMI Voltage Inserter (82236) may be required.
Additional information
| Weight | 0.14 lbs |
|---|---|
| Connectivity technology | Wired |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Weight | 128 g |
| Bandwidth | 18 Gbit/s |
| HDMI in | 1 |
| Power consumption (max) | 1 W |
| Number of HDMI outputs | 1 |
| Storage relative humidity (H-H) | 0 – 80% |
| Width | 45 mm |
| Depth | 52 mm |
| Height | 21 mm |
| HDCP | Yes |
| HDMI version | 2.0 |
