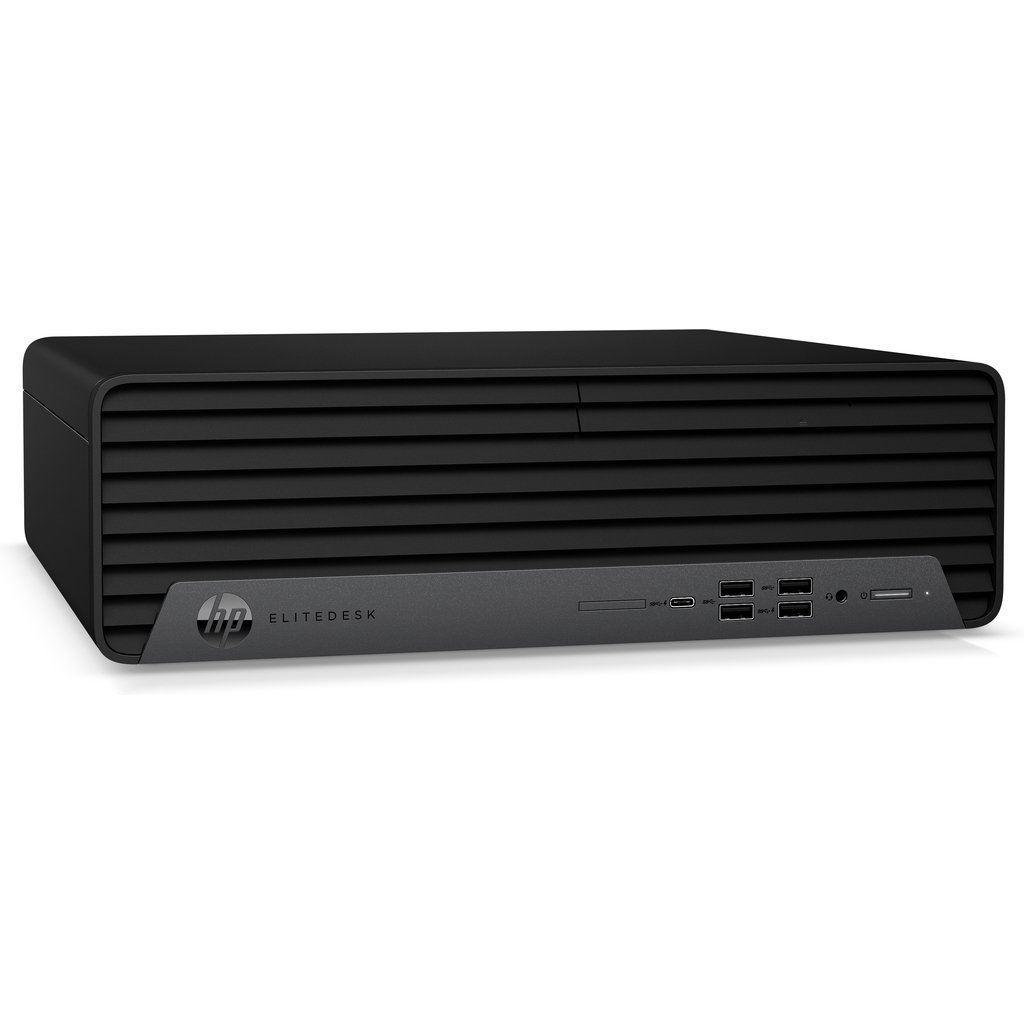

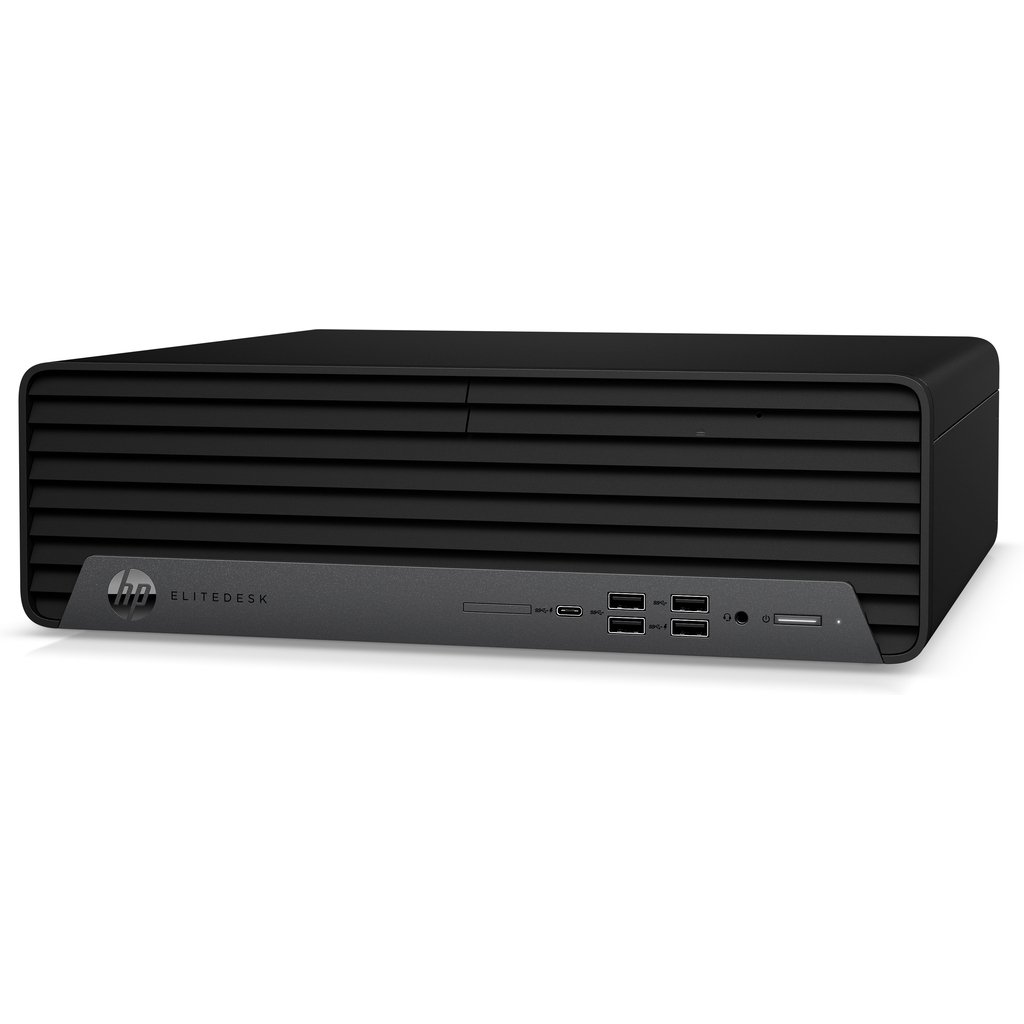

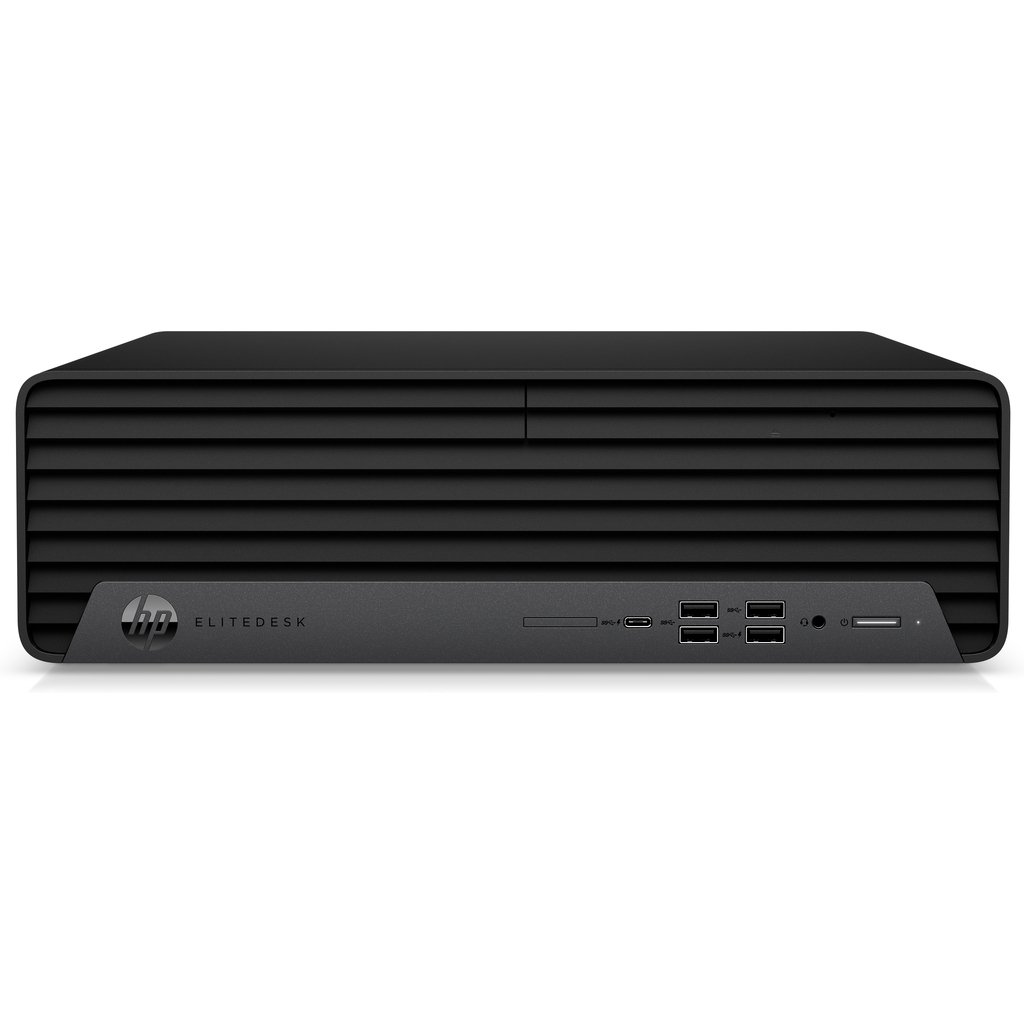

HP EliteDesk 800 G6 Intel® Core™ i5 i5-10500 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black
EliteDesk 800 G6 Small Form Factor PC, Windows 10 Pro, Intel® Core™ i5, 16GB RAM, 256GB SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
All the power, neatly packaged
The redesigned HP EliteDesk 800 Small Form Factor delivers high performance and broad expandability in a compact business-class SFF PC. Featuring powerful components, and strong security, this small PC handles big workloads.
Additional information
| Weight | 6.84 lbs |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-10500 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express, NVMe |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board GPU manufacturer | Intel |

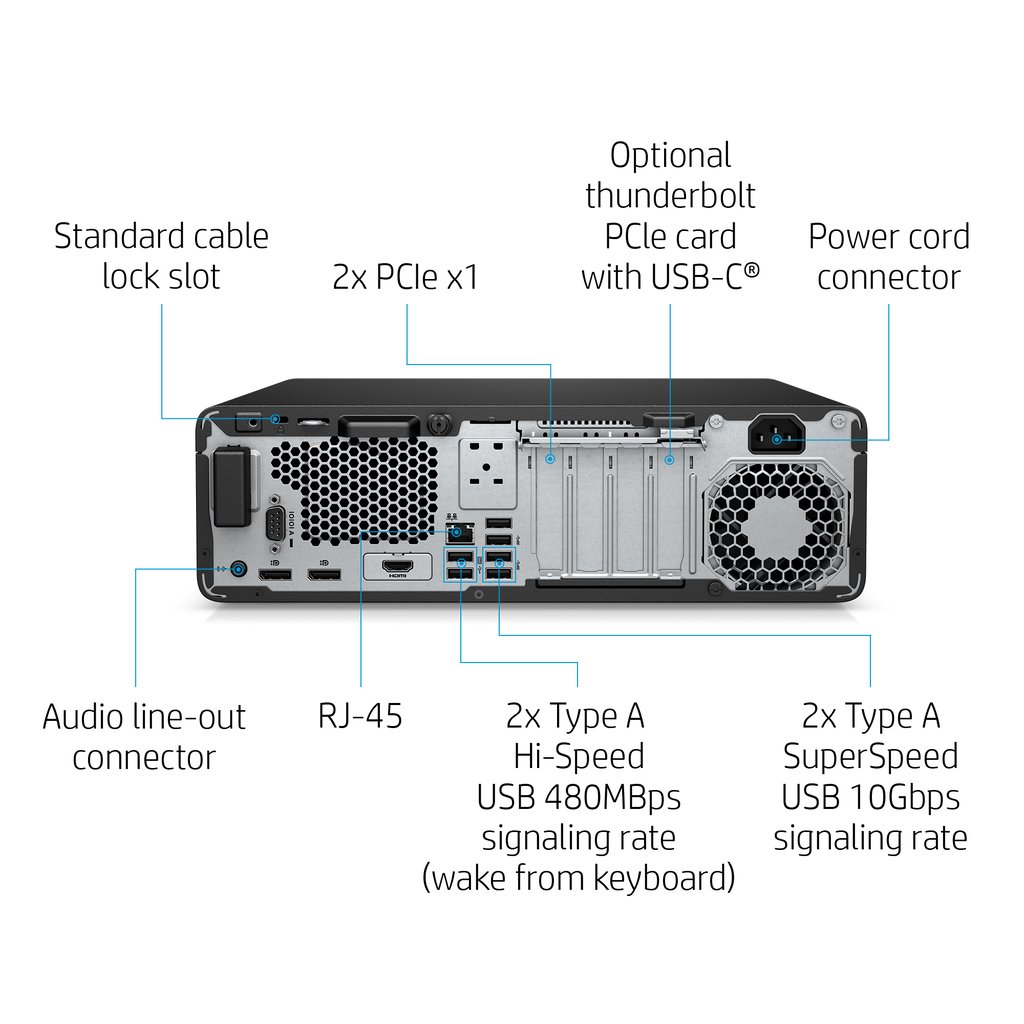

| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |

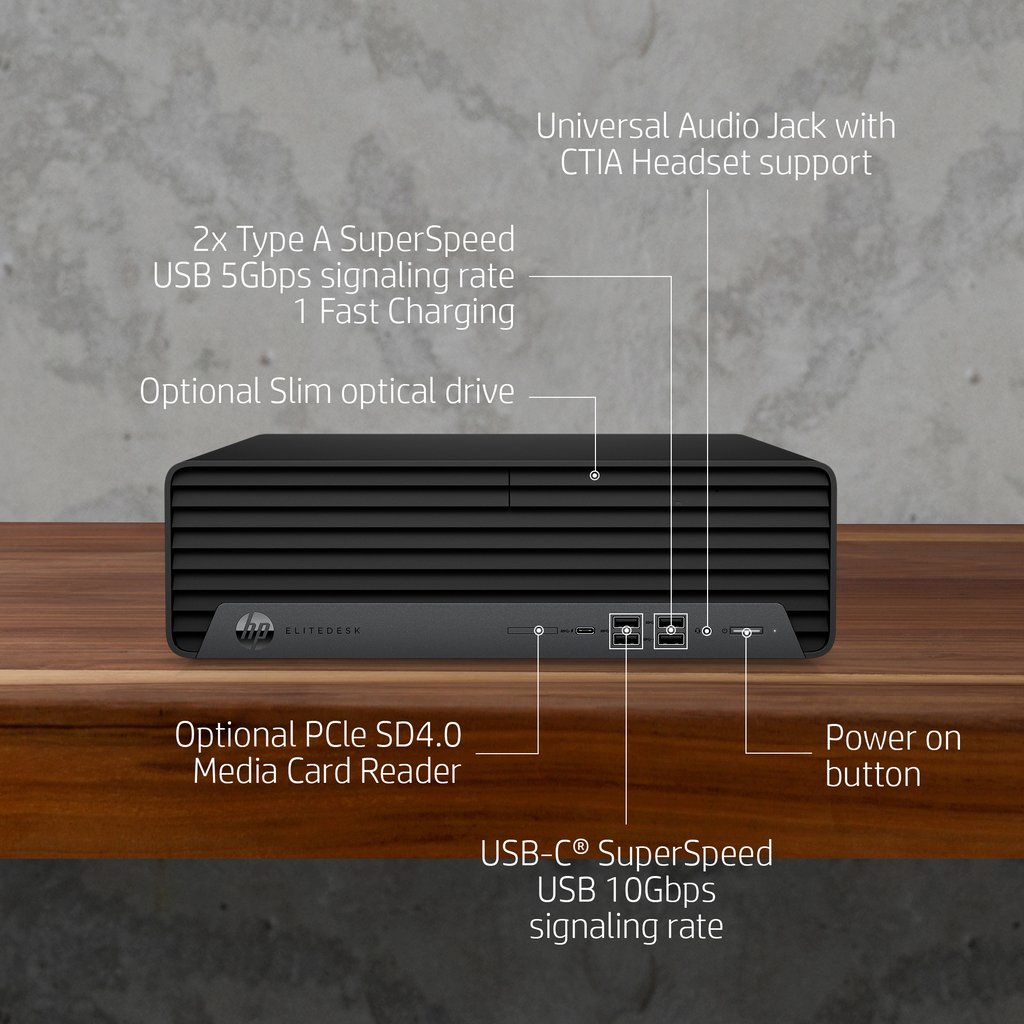

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Chassis type | SFF |
| Product colour | Black |
| Product type | PC |
| Motherboard chipset | Intel Q470 |
| Market positioning | Business |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Power supply | 350 W |

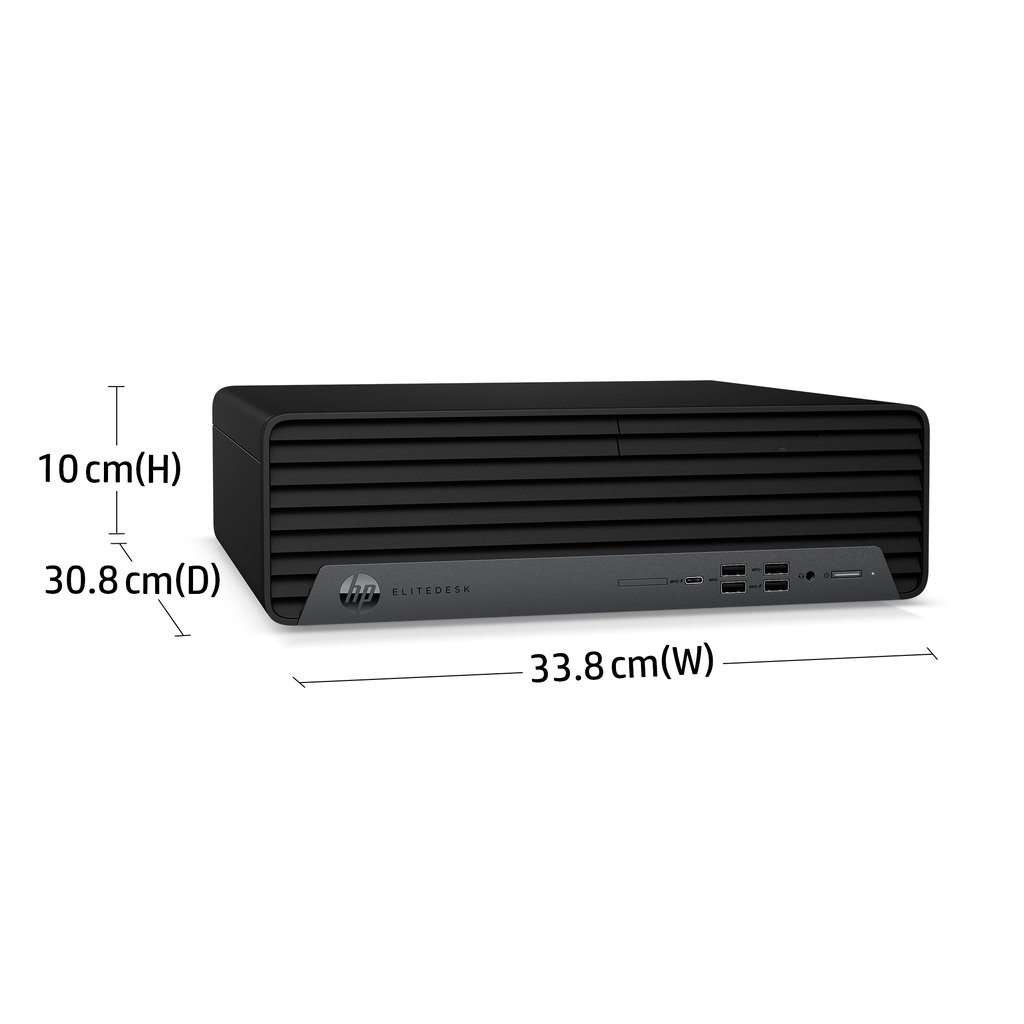

| Width | 338 mm |
| Sustainability certificates | ENERGY STAR |
| Depth | 308 mm |
| Height | 100 mm |
| Display included | No |
| Product series | 800 |
| Processor frequency | 3.1 GHz |
| ECC | No |
| HDMI ports quantity | 1 |
| Memory clock speed | 2666 MHz |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| HDMI version | 2.0 |
| Antenna type | 2×2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| HP Support Assistant | Yes |
| HP Management tools | HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4 |
| HP segment | Business |
| Weight | 6.13 kg |
| Sustainable technologies and materials | Low halogen |
| Package width | 399 mm |
| Package depth | 499 mm |
| Package height | 230 mm |
| Mouse included | Yes |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Package weight | 9 kg |
| Microphone in | No |
| Headphone outputs | 1 |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Low halogen | Yes |
| HP JumpStart | Yes |
| DVI port | No |
| Processor socket | LGA 1200 (Socket H5) |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9BC8 |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Scalability | 1S |
| Thermal solution specification | PCG 2015C |
| Processor ARK ID | 199277 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
