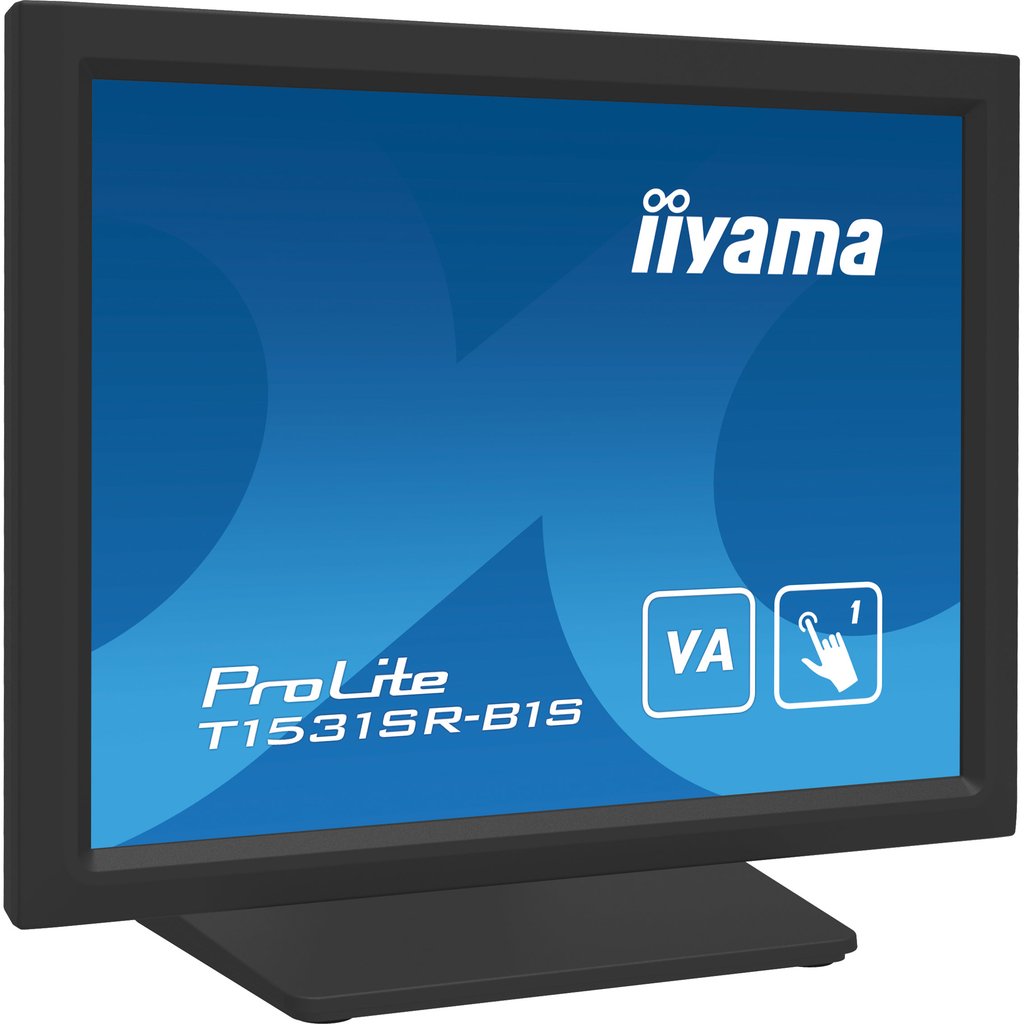

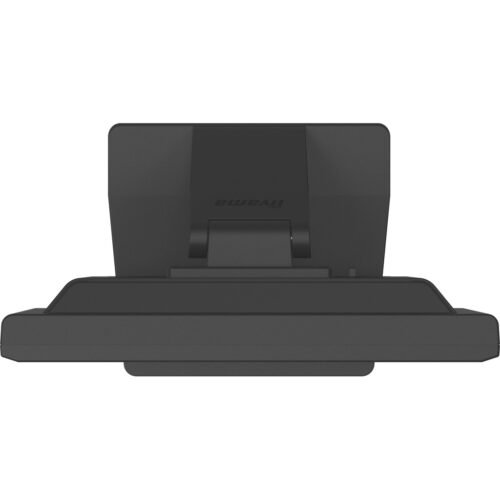

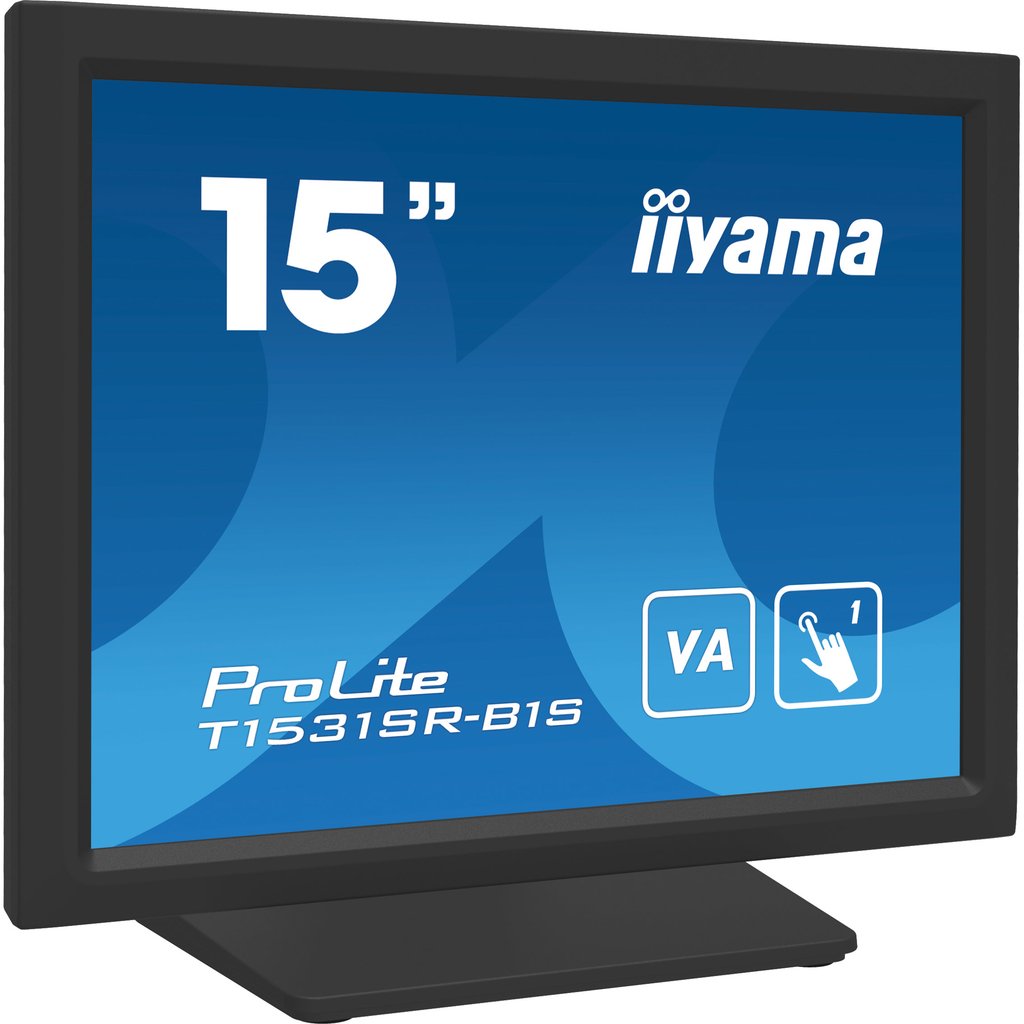

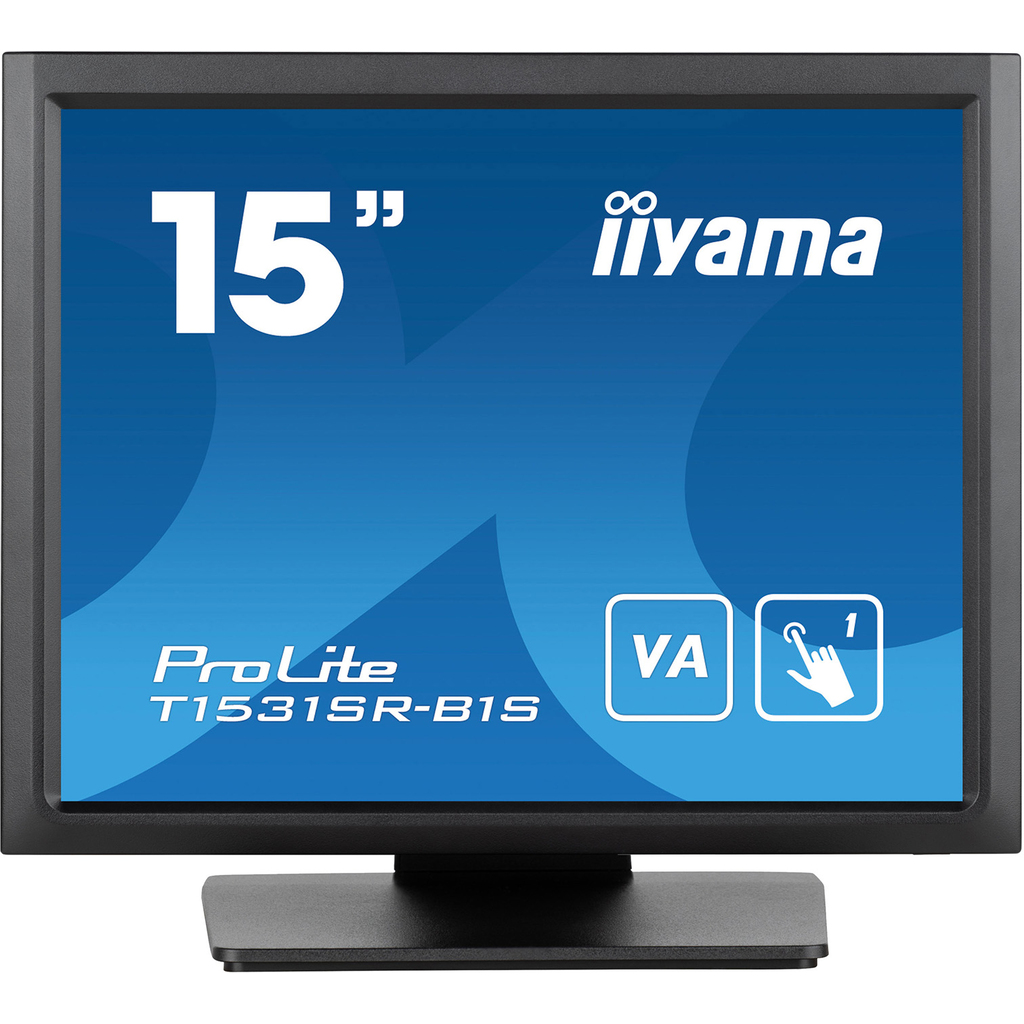

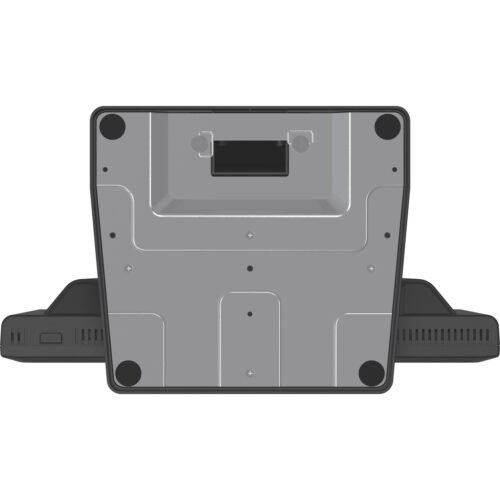

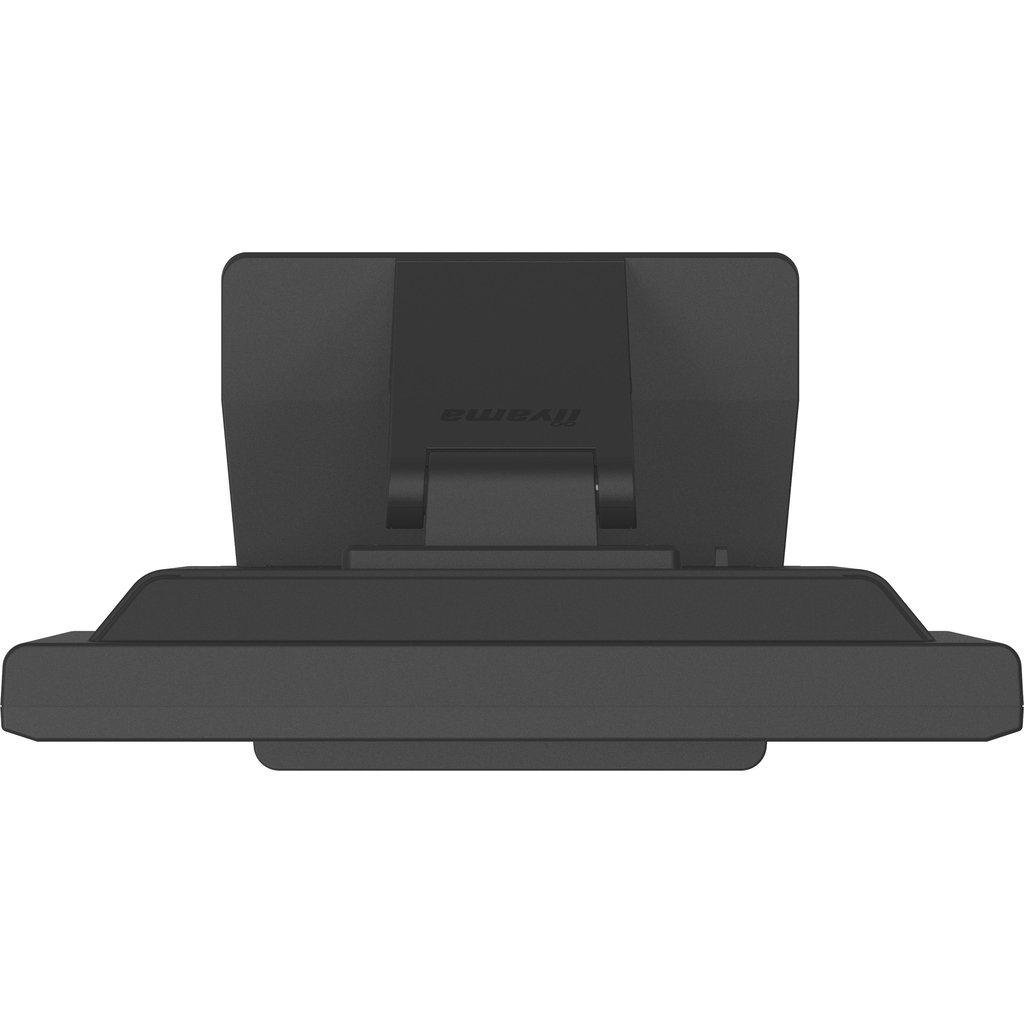

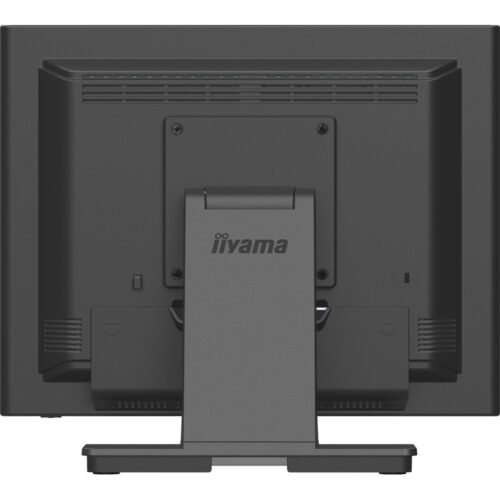

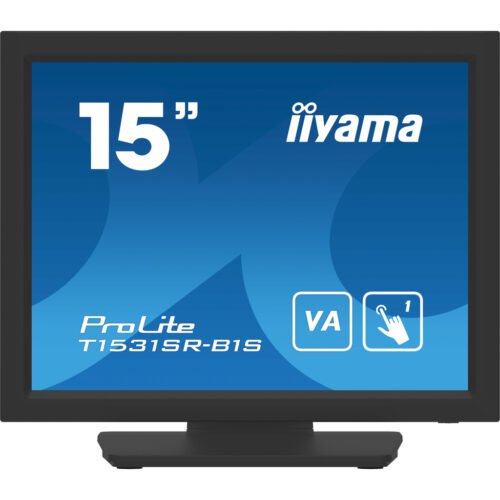

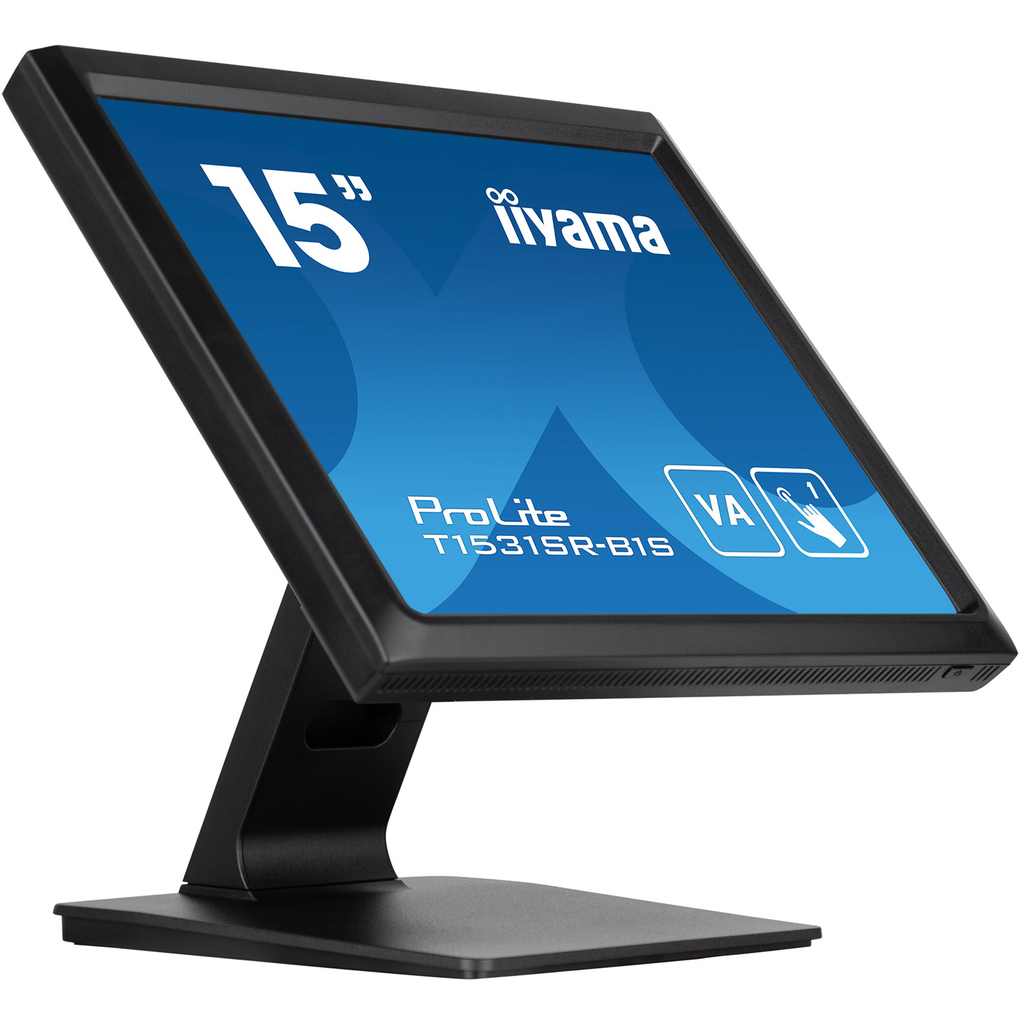

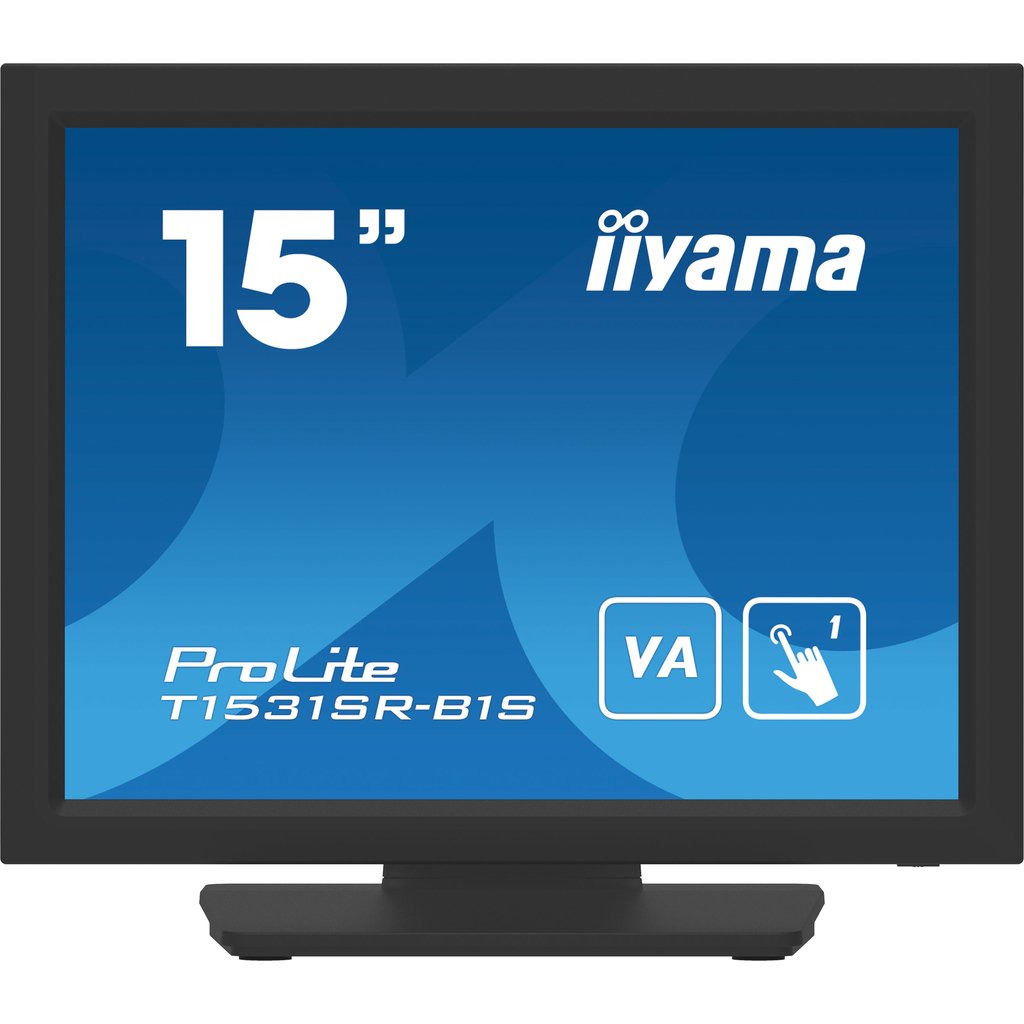

iiyama T1531SR-B1S computer monitor 38.1 cm (15″) 1024 x 768 pixels XGA LCD Touchscreen Black
15” Touchscreen with 5-wire Resistive Touch Technology
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ProLite T1531SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1531SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
Additional information
| Weight | 5.8 lbs |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | XGA |
| Panel type | VA |
| Response time | 18 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 2500:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 16.2 million colours |
| Display brightness (typical) | 350 cd/m² |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.5 – 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Product colour | Black |
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Height adjustment | No |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -5 – 90° |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Width (with stand) | 351 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 306.5 mm |
| Weight (with stand) | 4.1 kg |
| Package width | 425 mm |
| Package depth | 160 mm |
| Package height | 410 mm |
| Package weight | 5.9 kg |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Quick start guide | Yes |
| Sustainability certificates | ErP |
| Weight | 4.1 kg |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Cable management | Yes |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Front bezel colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| Mean time between failures (MTBF) | 50000 h |
| Audio input | Yes |
| Height | 306.5 mm |
| Width | 351 mm |
| Depth | 200 mm |
| Power cable length | 1.8 m |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the dow |
| DisplayPort cable length | 1.8 m |
| Display brightness (peak) | 350 cd/m² |
| HDMI cable length | 1.8 m |
| USB cable length | 1.8 m |
| Touchscreen technology | Resistive |
| Touch technology | Single-touch |
| Display brightness | 270 cd/m² |
| USB Touch port | Yes |
| Number of simultaneous touchpoints | 1 |
| International Protection (IP) code | IP54 |
| Active display area (W x H) | 304 x 228 mm |
| Touch method | stylus, finger, glove, glove (latex) |
| Audio cable length | 1.8 m |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source |
| Brightness | 270 cd/m² |
| Packaging content | Screwdriver |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Native refresh rate | 60 Hz |
