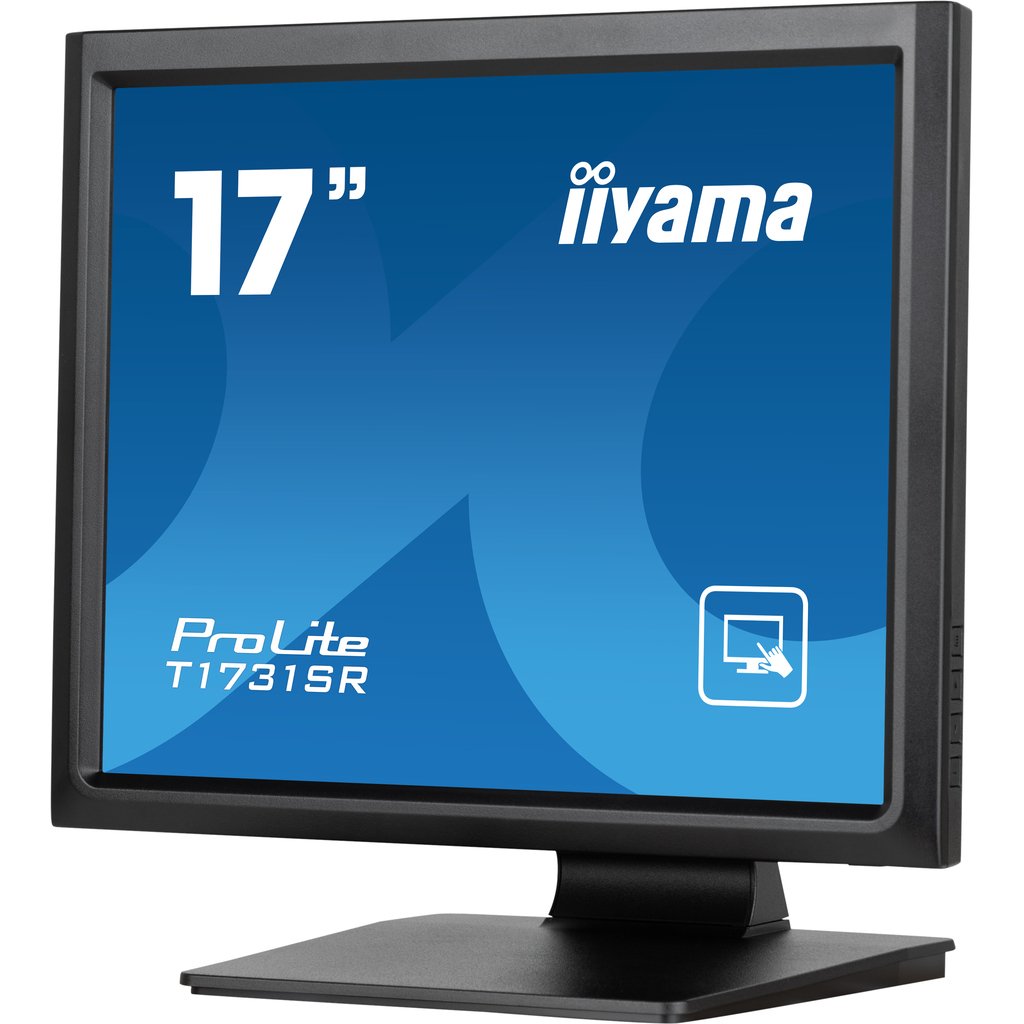

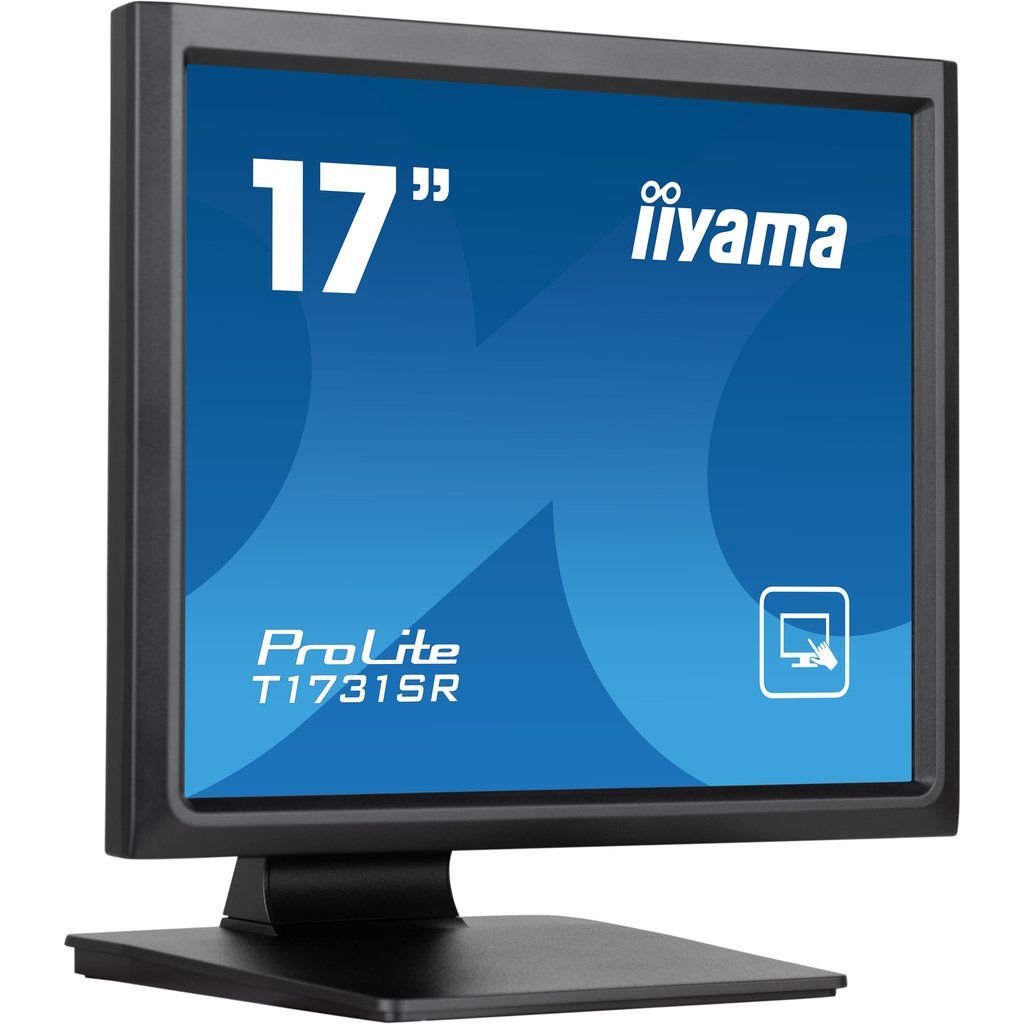

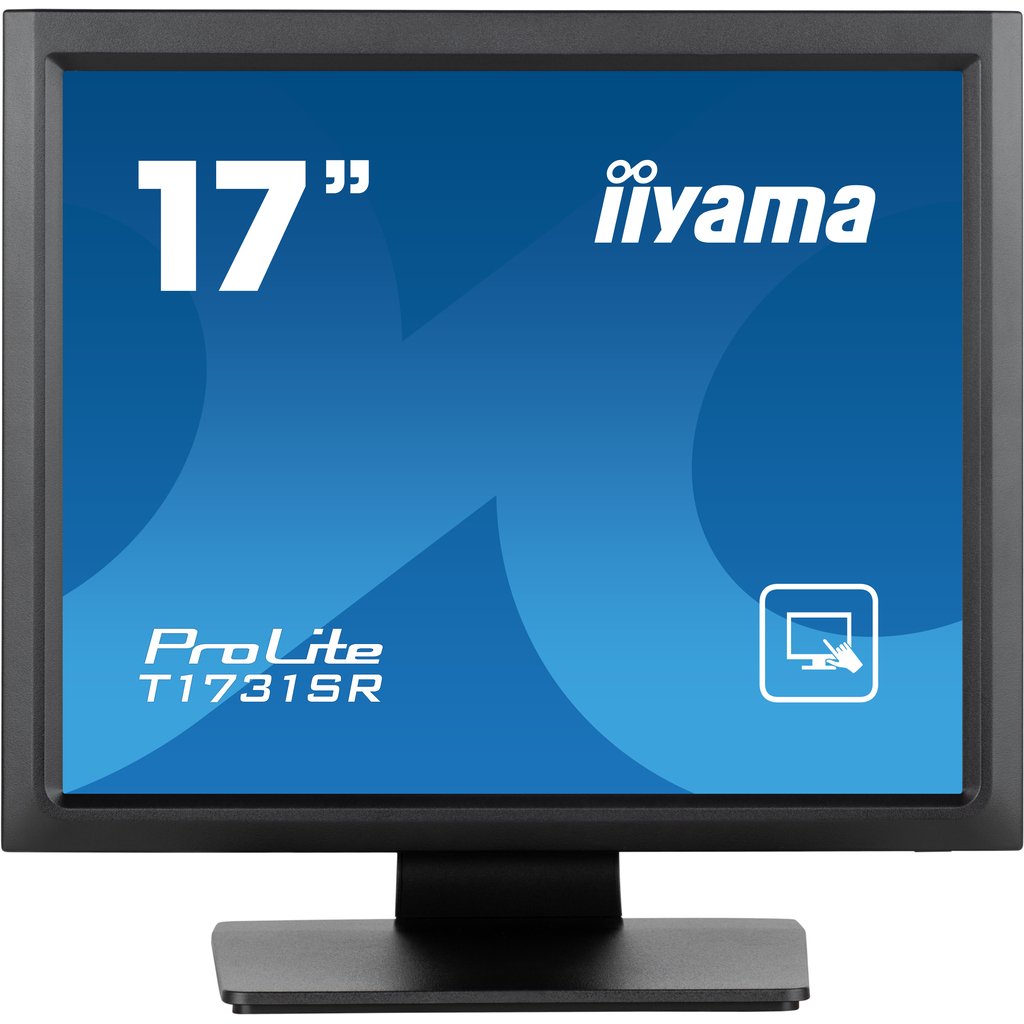

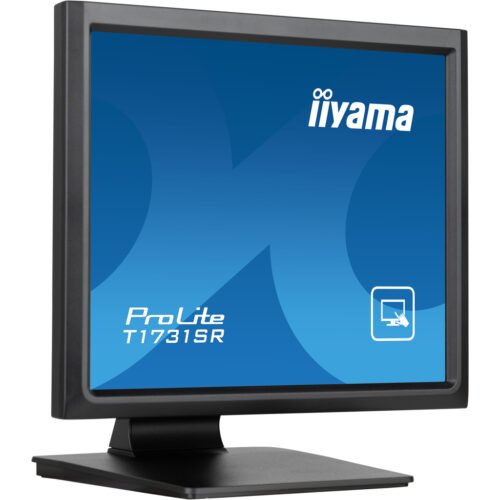

iiyama ProLite T1731SR-B1S computer monitor 43.2 cm (17″) 1280 x 1024 pixels SXGA LCD Touchscreen Black
17” Touchscreen with 5-wire Resistive Touch Technology
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

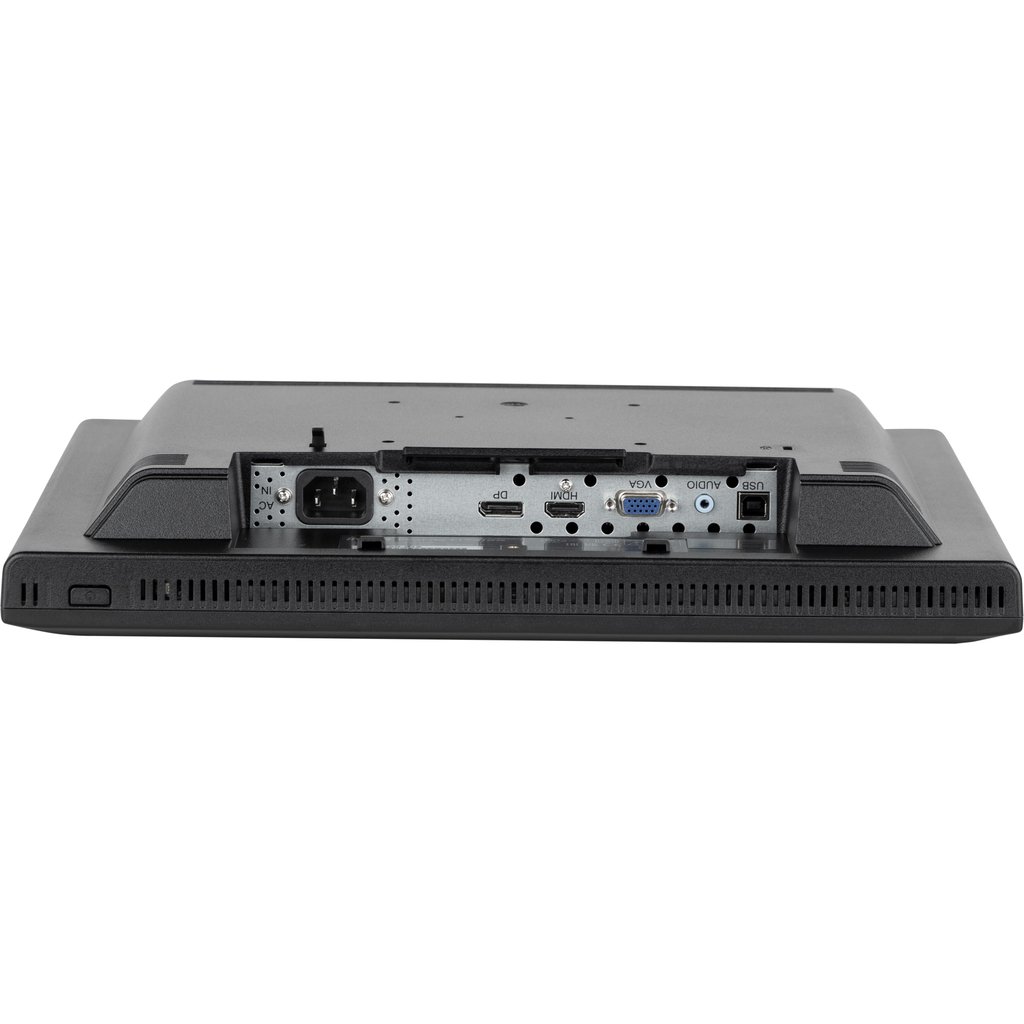

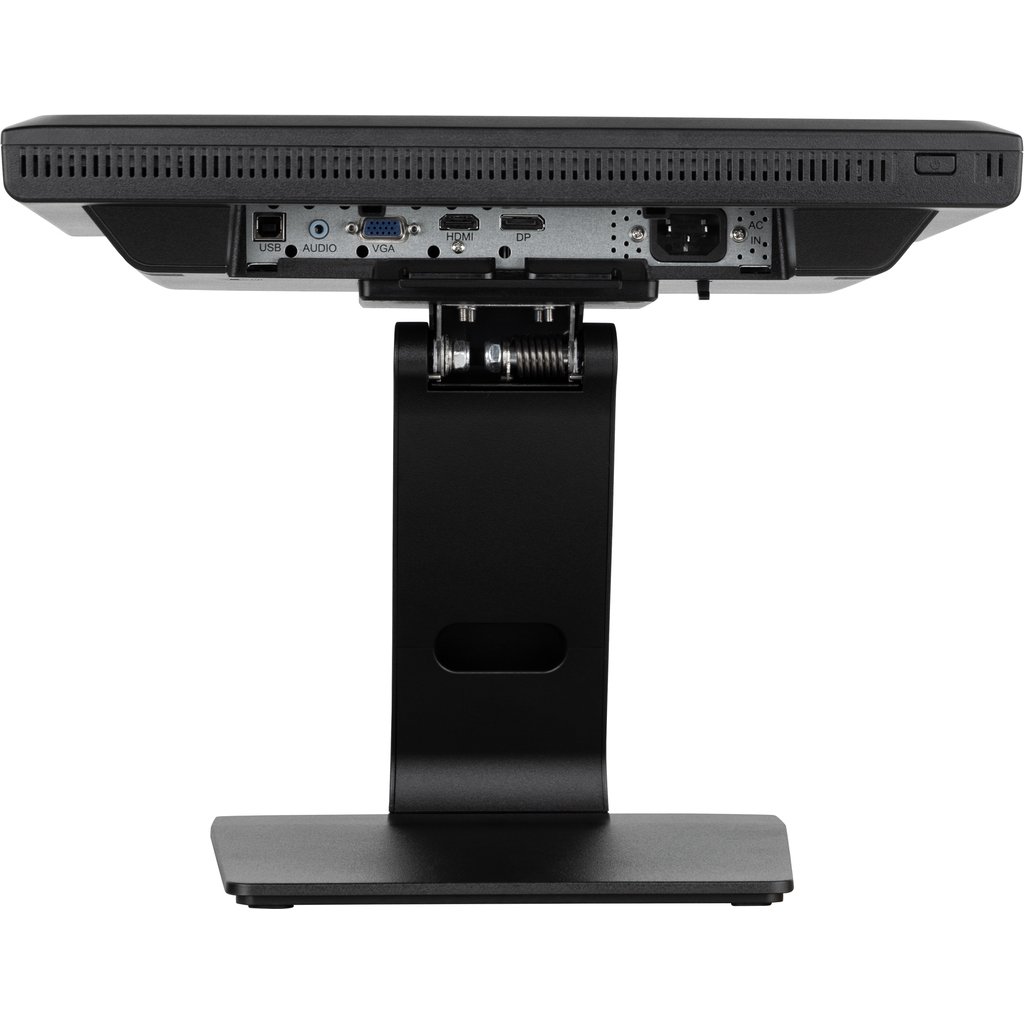

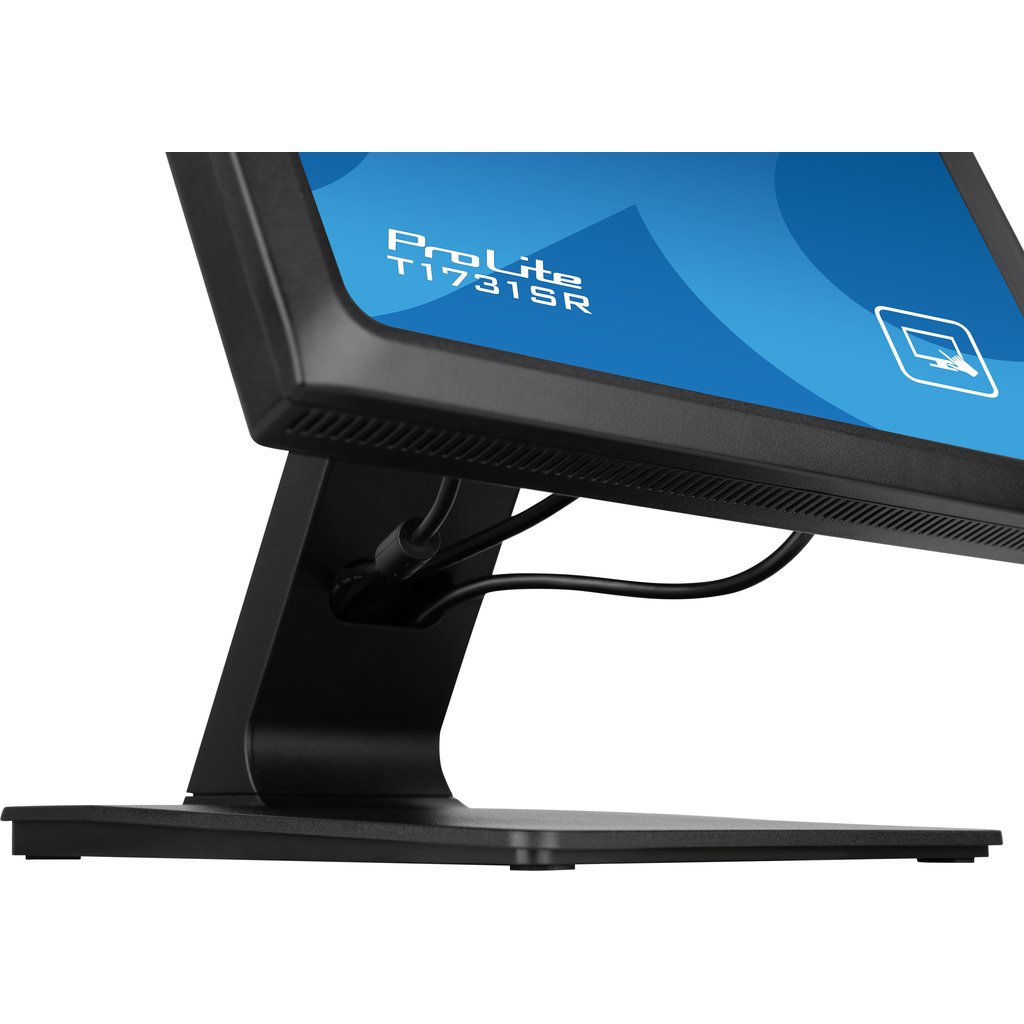

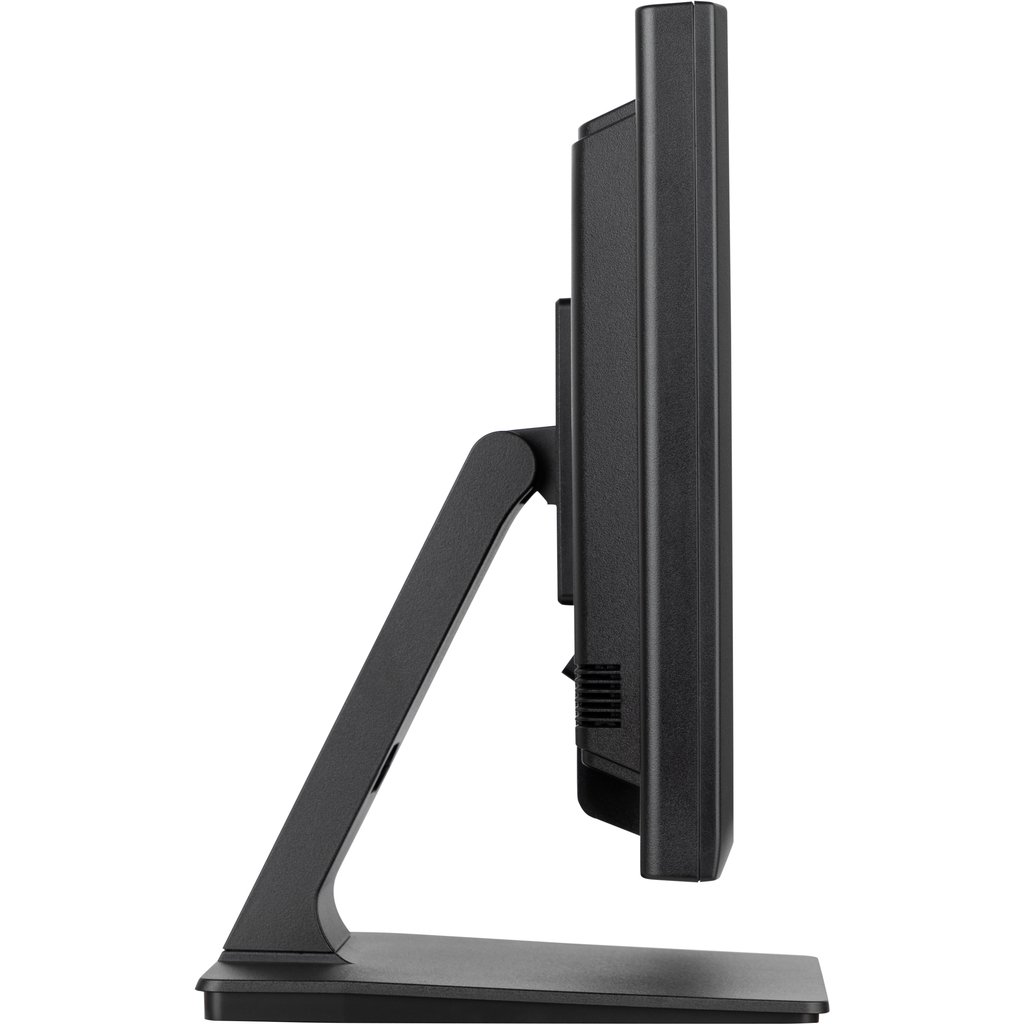

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
Additional information
| Weight | 6.94 lbs |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 250 cd/m² |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.5 – 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Product colour | Black |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |

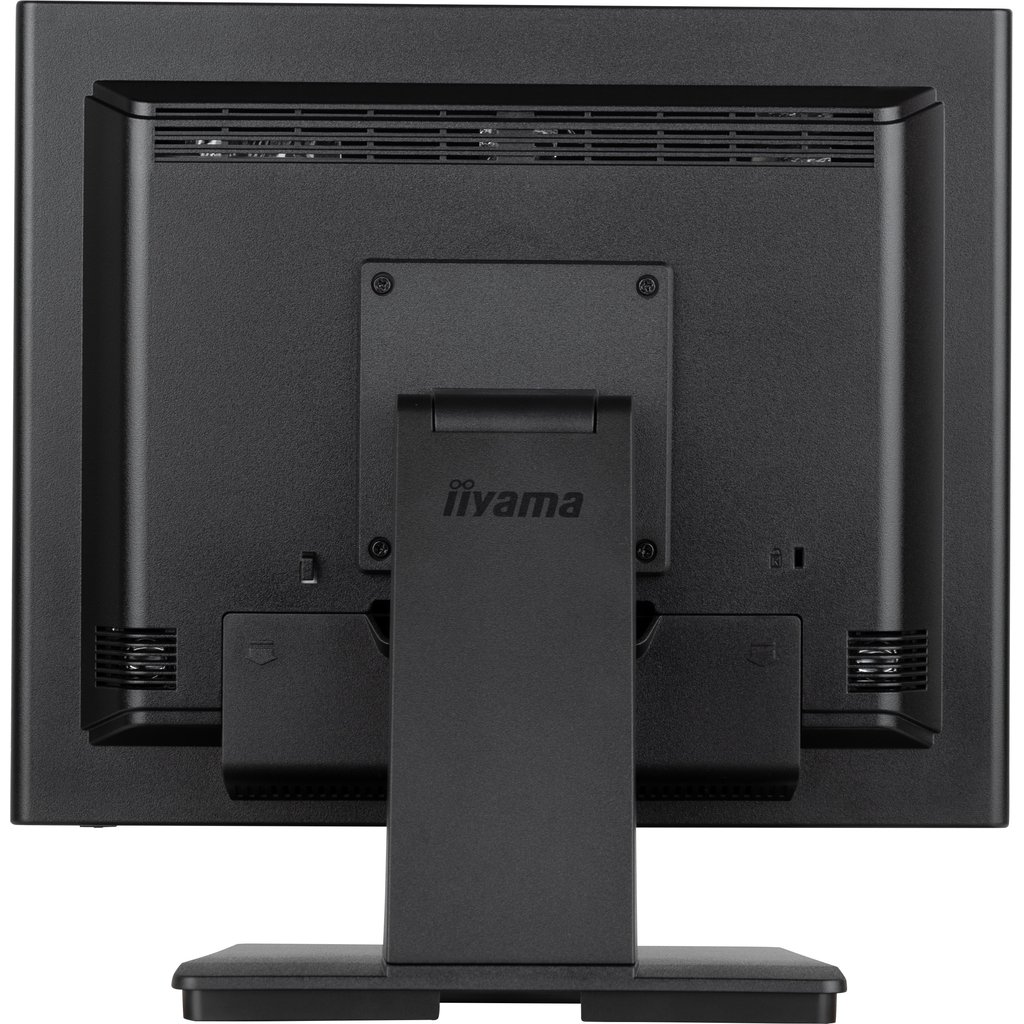

| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |

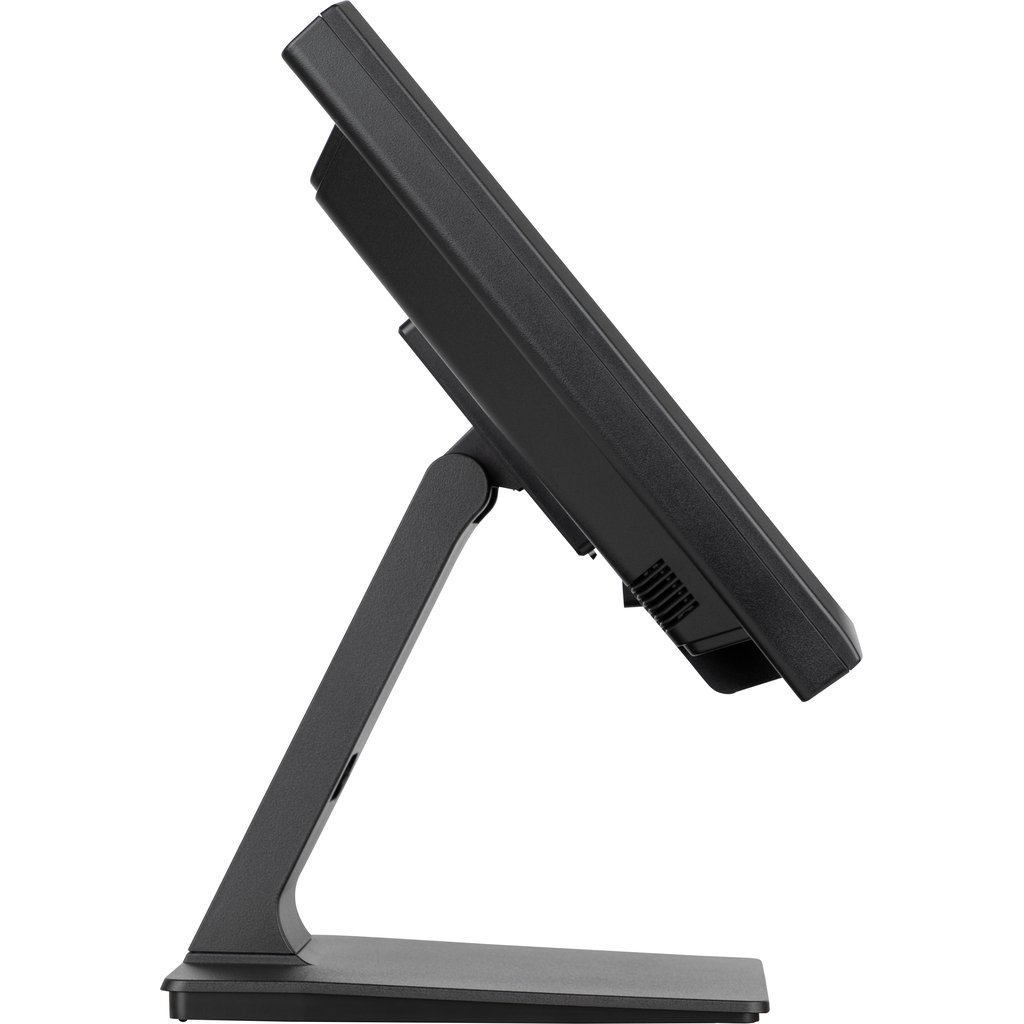

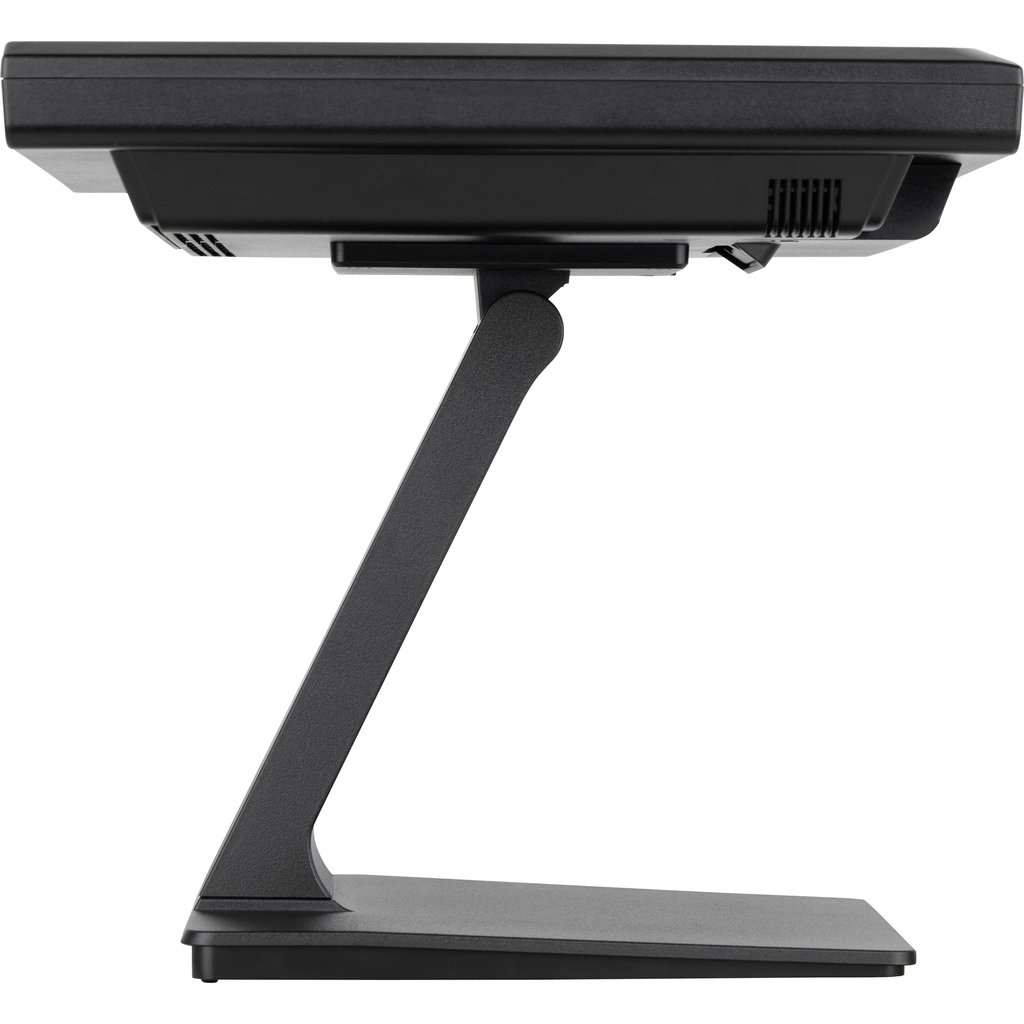

| Tilt adjustment | Yes |

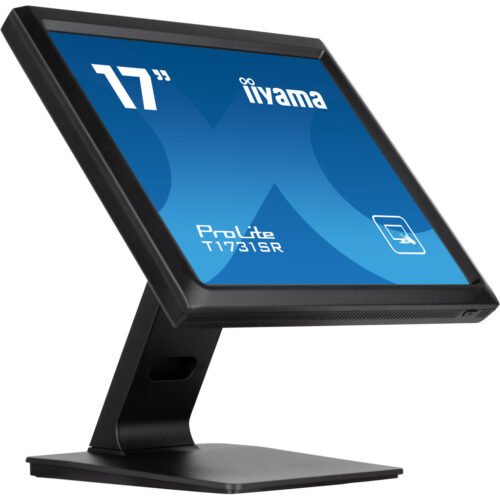

| Tilt angle range | -5 – 90° |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Width (with stand) | 387 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 5.4 kg |

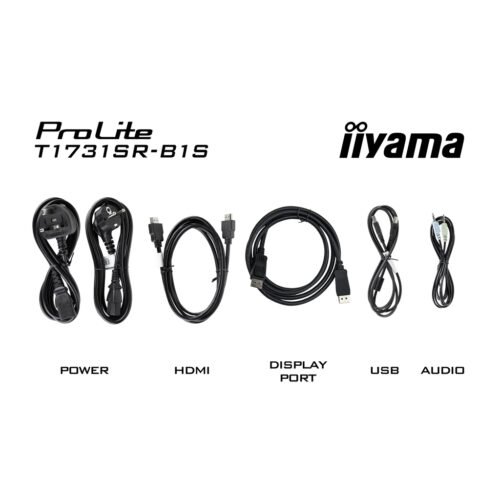

| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Quick start guide | Yes |
| Sustainability certificates | ErP |
| Weight | 5.4 kg |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Cable management | Yes |
| Cable lock slot type | Kensington |
| European Product Registry for Energy Labelling (EPREL) code | 1552074 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Front bezel colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| Stand included | Yes |
| Detachable stand | No |
| Height | 378 mm |
| Width | 387 mm |
| Depth | 239.5 mm |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the dow |
| Touchscreen technology | Resistive |
| Touch technology | Single-touch |
| Display brightness | 200 cd/m² |
| USB Touch port | Yes |
| Number of simultaneous touchpoints | 1 |
| International Protection (IP) code | IP54 |
| Active display area (W x H) | 338 x 270 mm |
| Touch method | stylus, finger, glove |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour tempera |
| Brightness | 200 cd/m² |

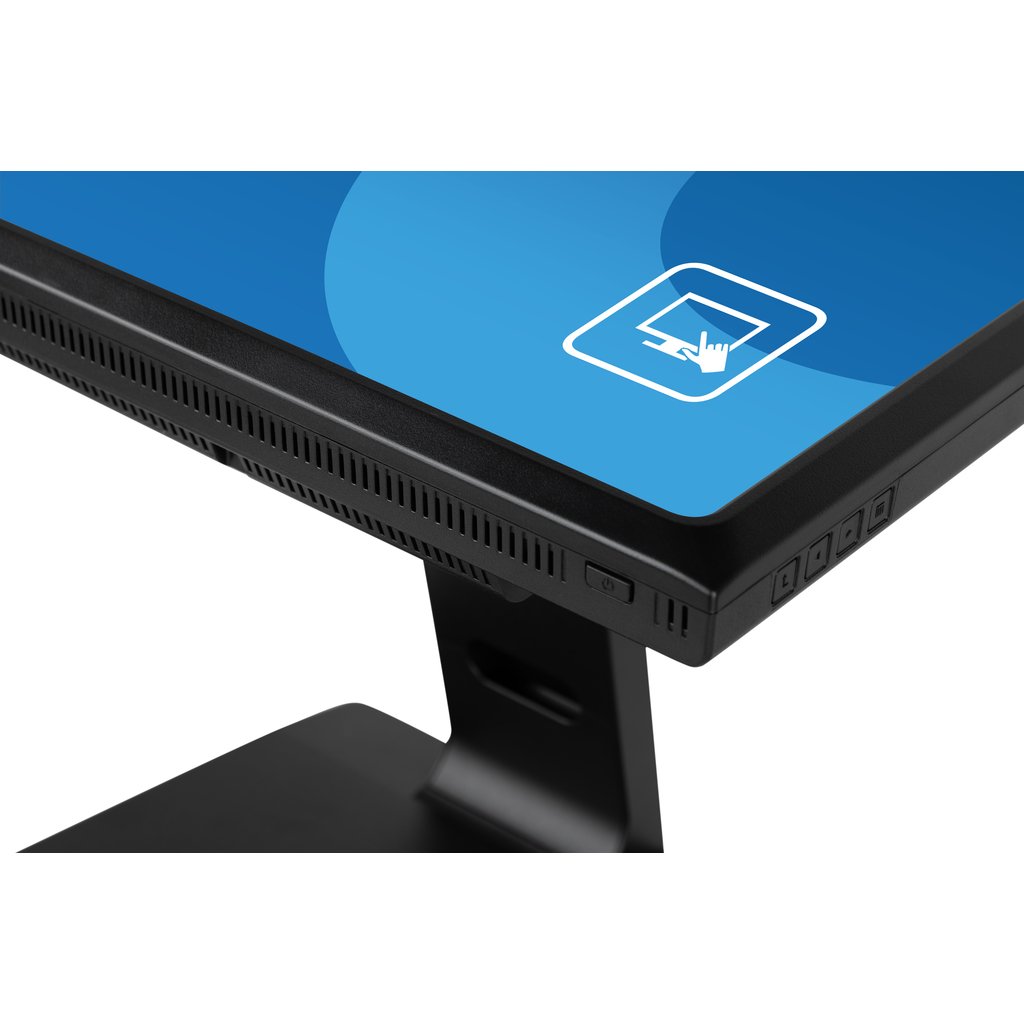

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
