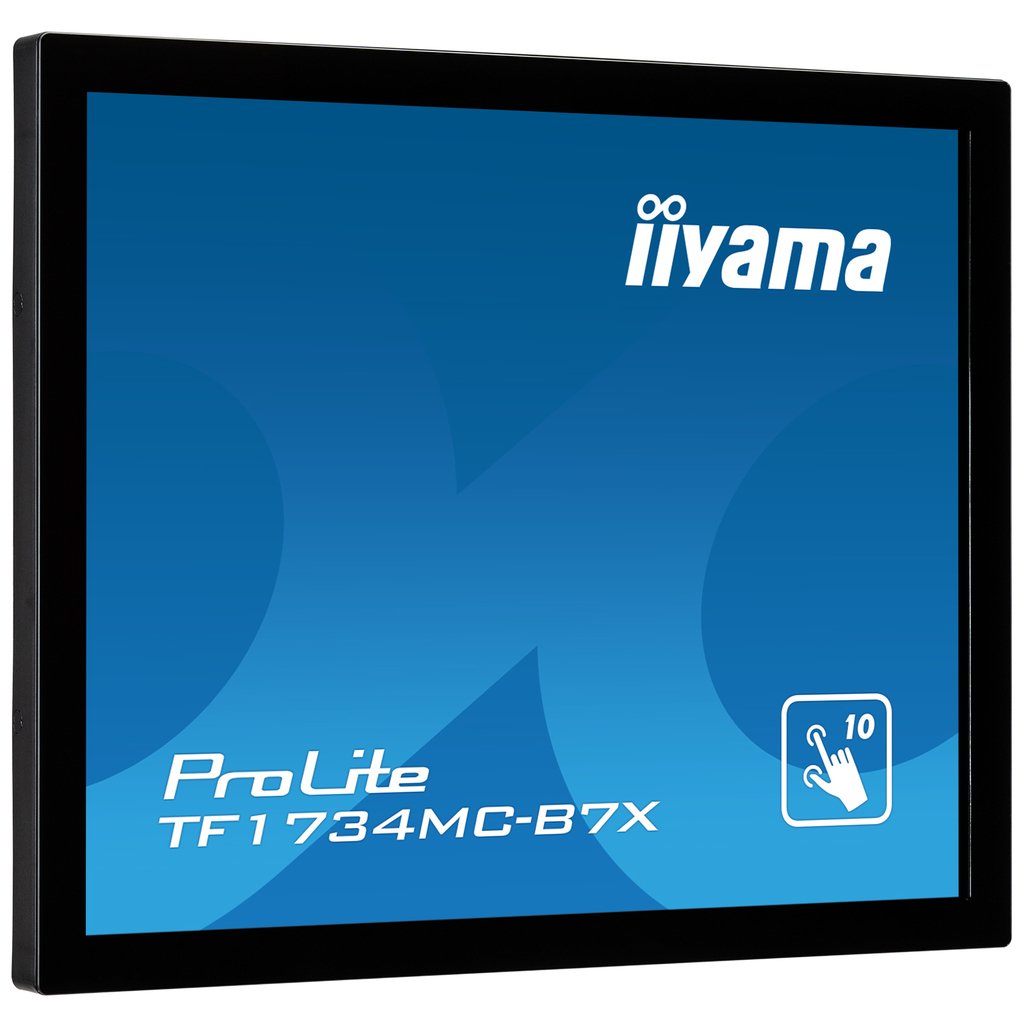

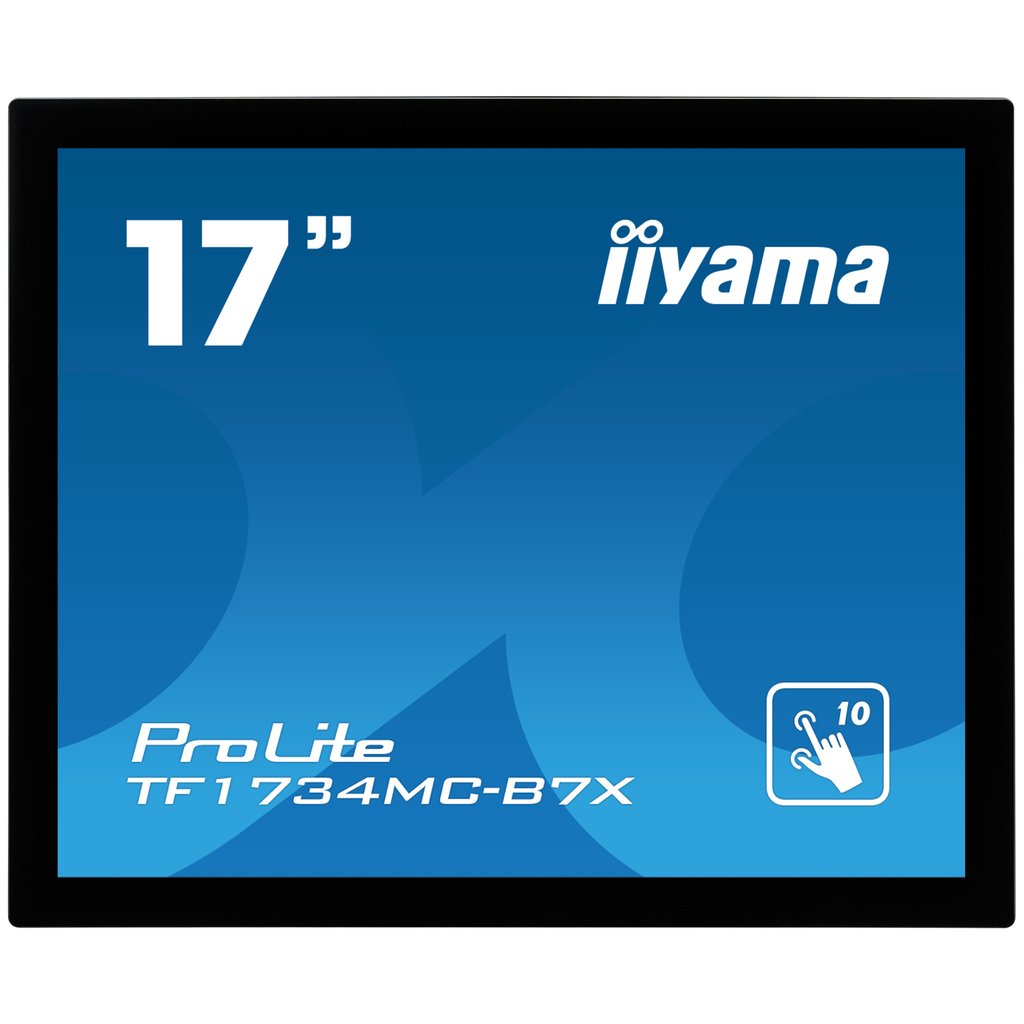

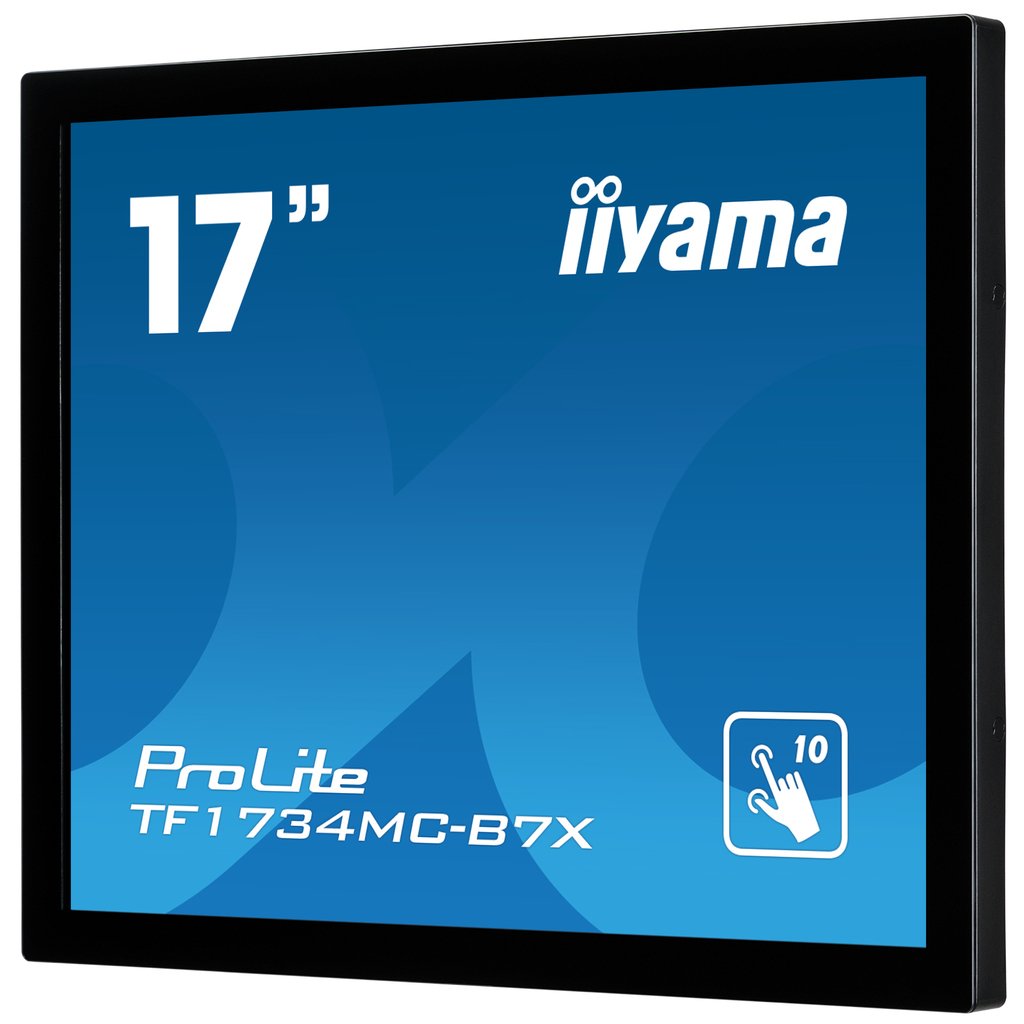

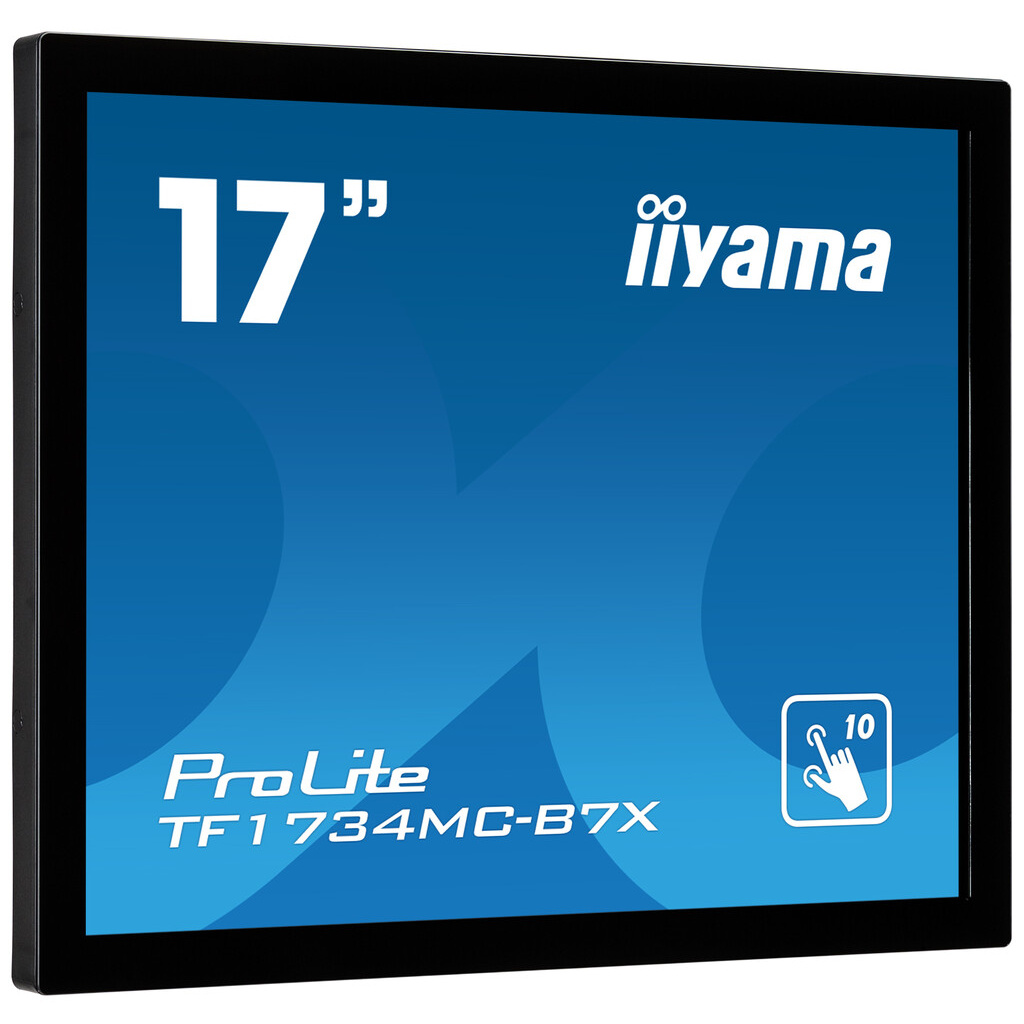

iiyama TF1734MC-B7X computer monitor 43.2 cm (17″) 1280 x 1024 pixels SXGA LED Touchscreen Black
17’’ 10pt touch Open Frame monitor with Touch Through-Glass function
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

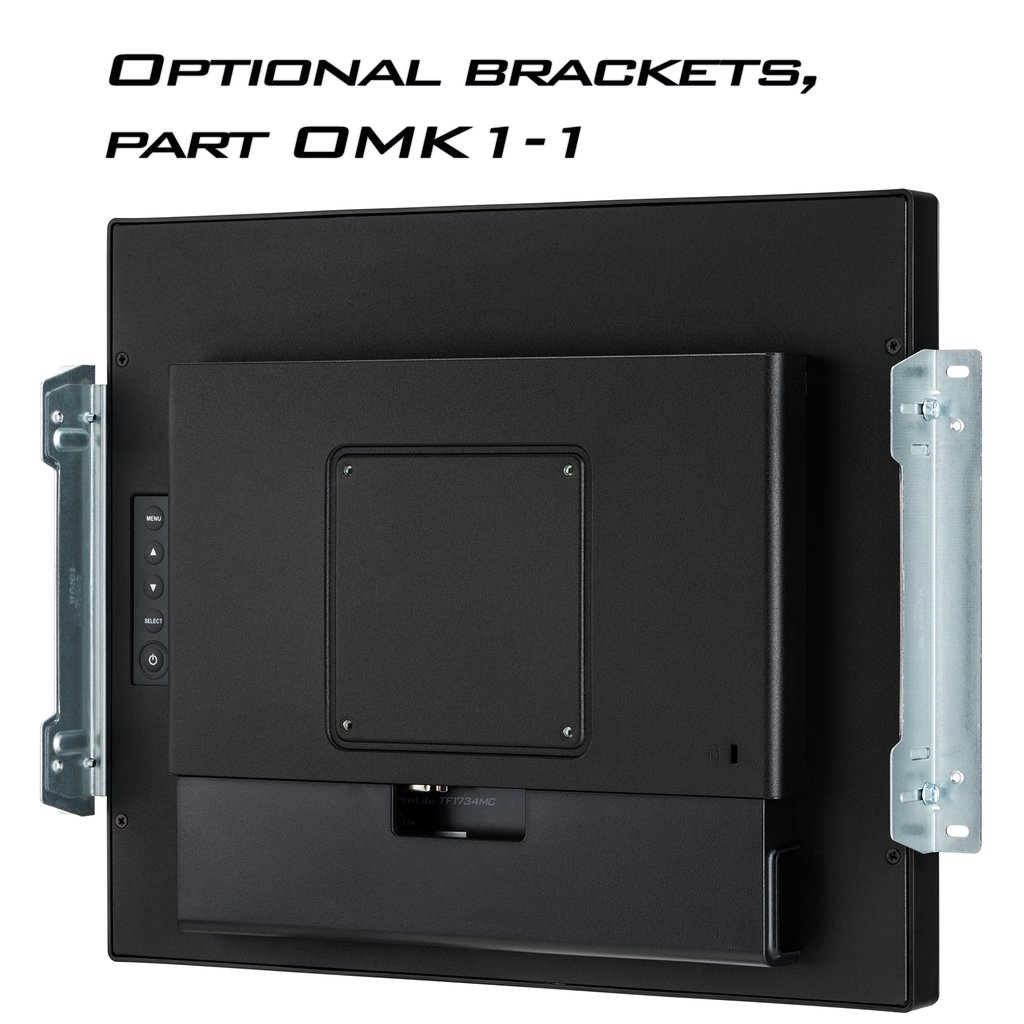

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Additional information
| Weight | 5.6 lbs |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 350 cd/m² |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 5:4 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 – 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
| Colour depth | 8 bit |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in camera | No |
| Product colour | Black |

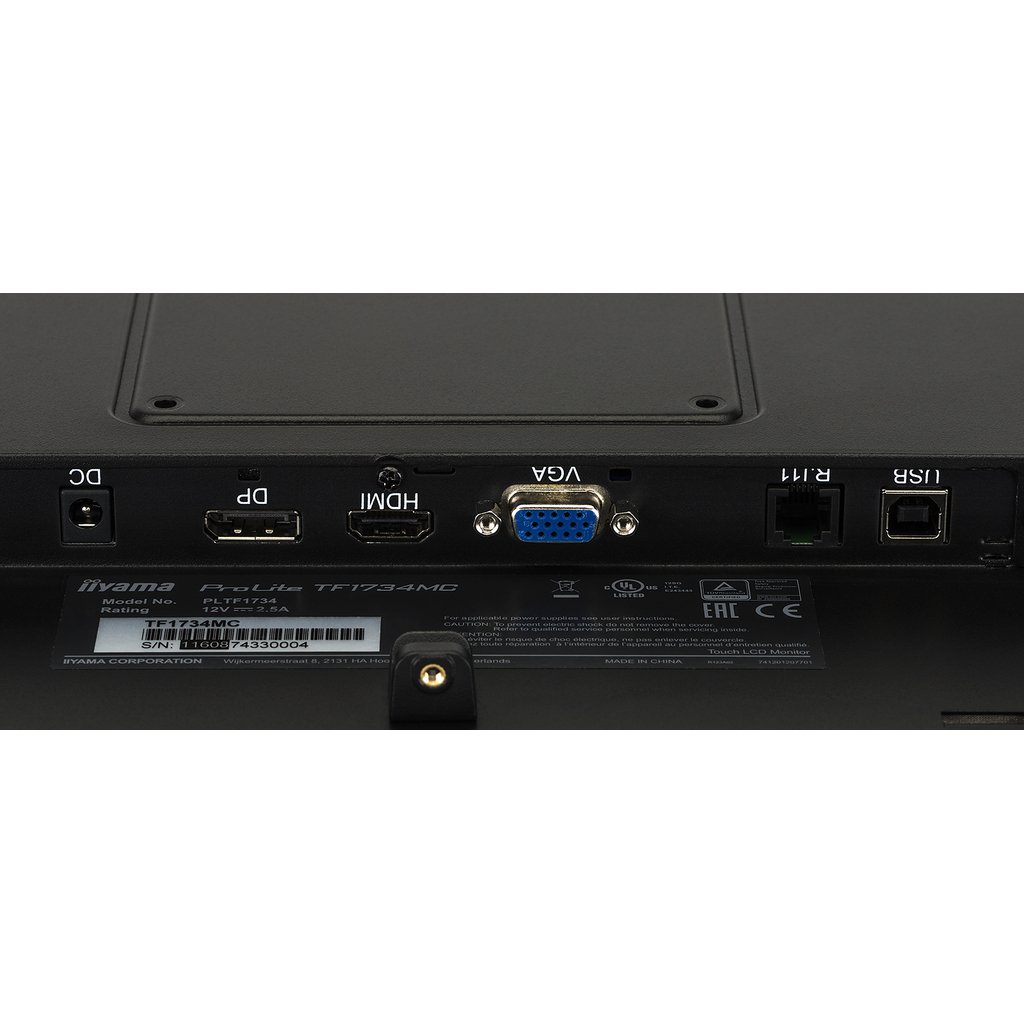

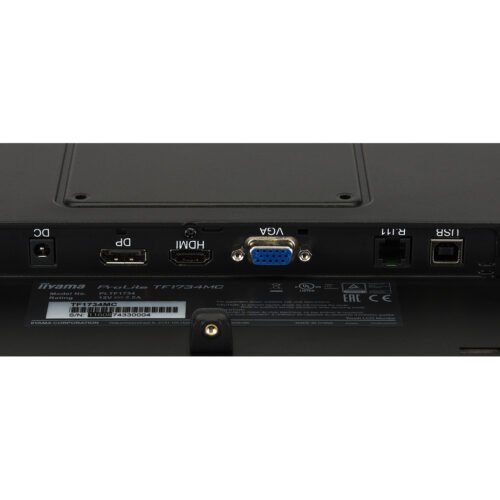

| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |

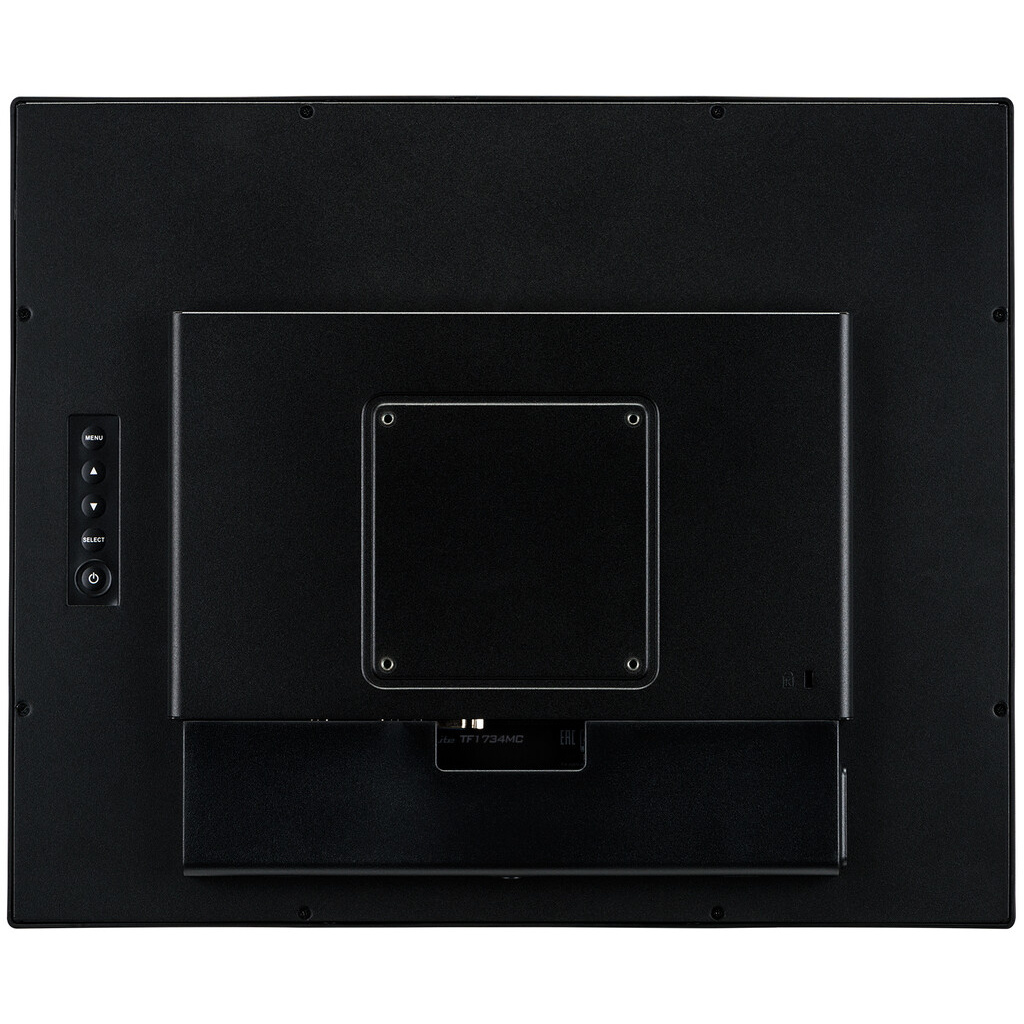

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Width (with stand) | 369 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 307 mm |
| Weight (with stand) | 3.6 kg |
| Width (without stand) | 369 mm |
| Depth (without stand) | 47.5 mm |
| Height (without stand) | 307 mm |
| Weight (without stand) | 3.6 kg |
| Package width | 455 mm |
| Package depth | 455 mm |
| Package height | 387 mm |
| Package weight | 4.9 kg |

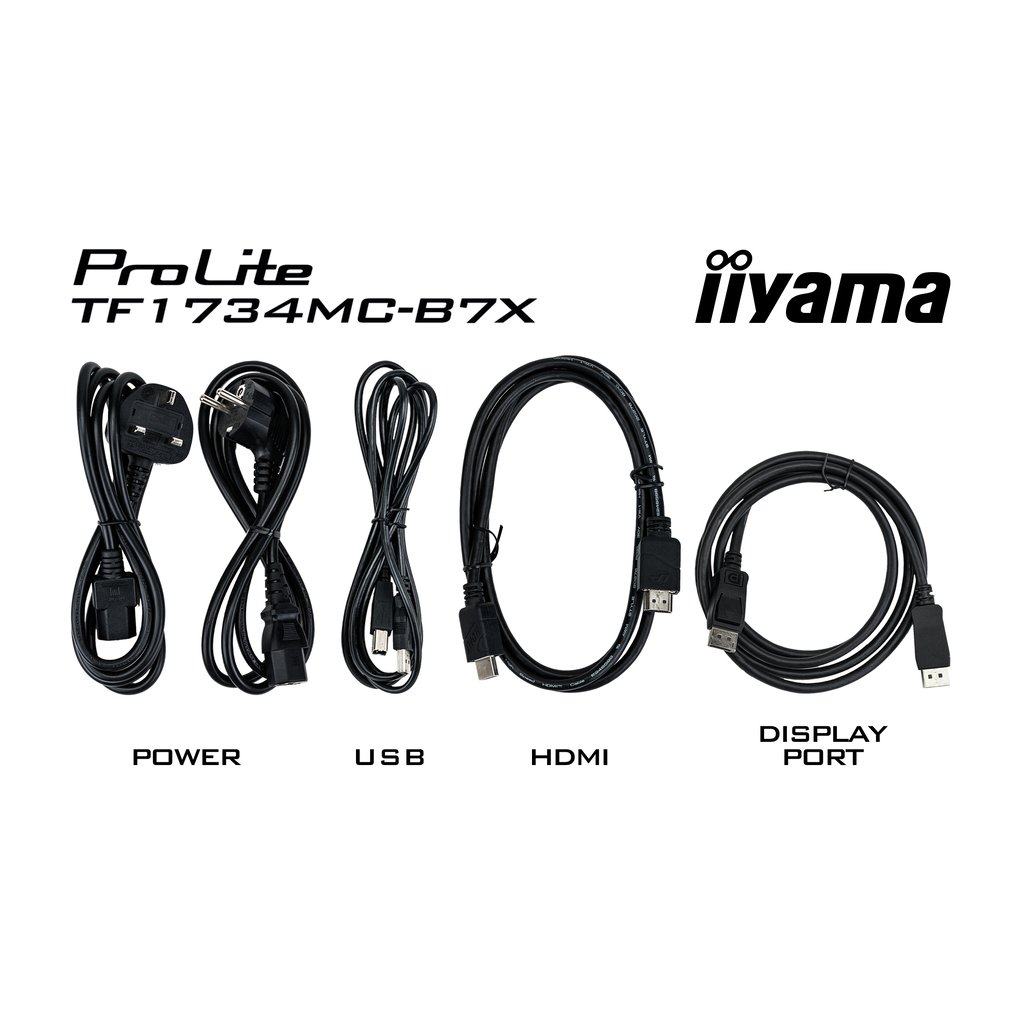

| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Front bezel colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Built-in microphone | No |
| Supported video modes | 1024p |
| AC adapter output voltage | 12 V |
| Harmonized System (HS) code | 85285210 |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 350 cd/m² |
| USB Touch port | Yes |
| USB Touch ports quantity | 1 |
| Placement supported | Horizontal/Vertical |
| Number of simultaneous touchpoints | 10 |
| Glass thickness | 3 mm |
| International Protection (IP) code | IP65 |
| Viewable size diagonal | 43 cm |
| Display viewable area (HxV) | 338 x 270 mm |
| Connection to PC | Yes |
| USB required | Yes |
