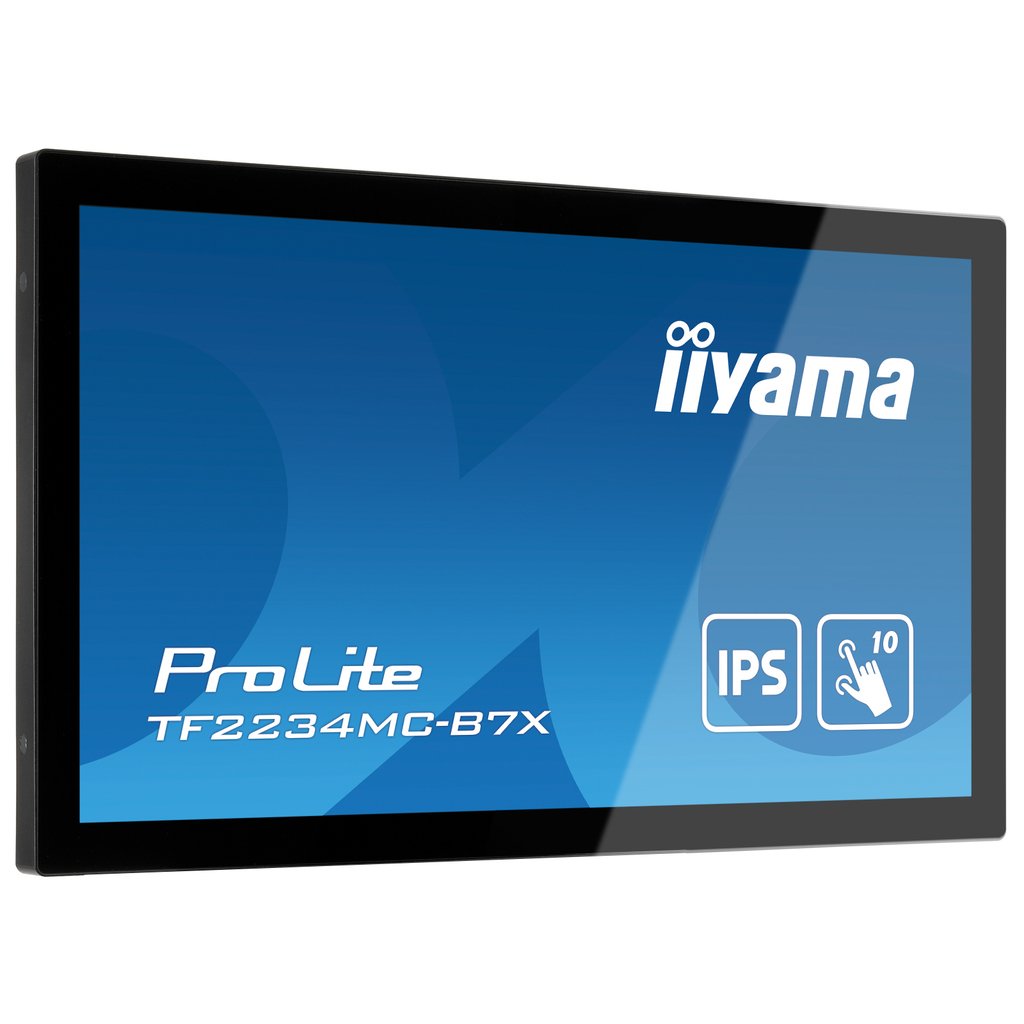

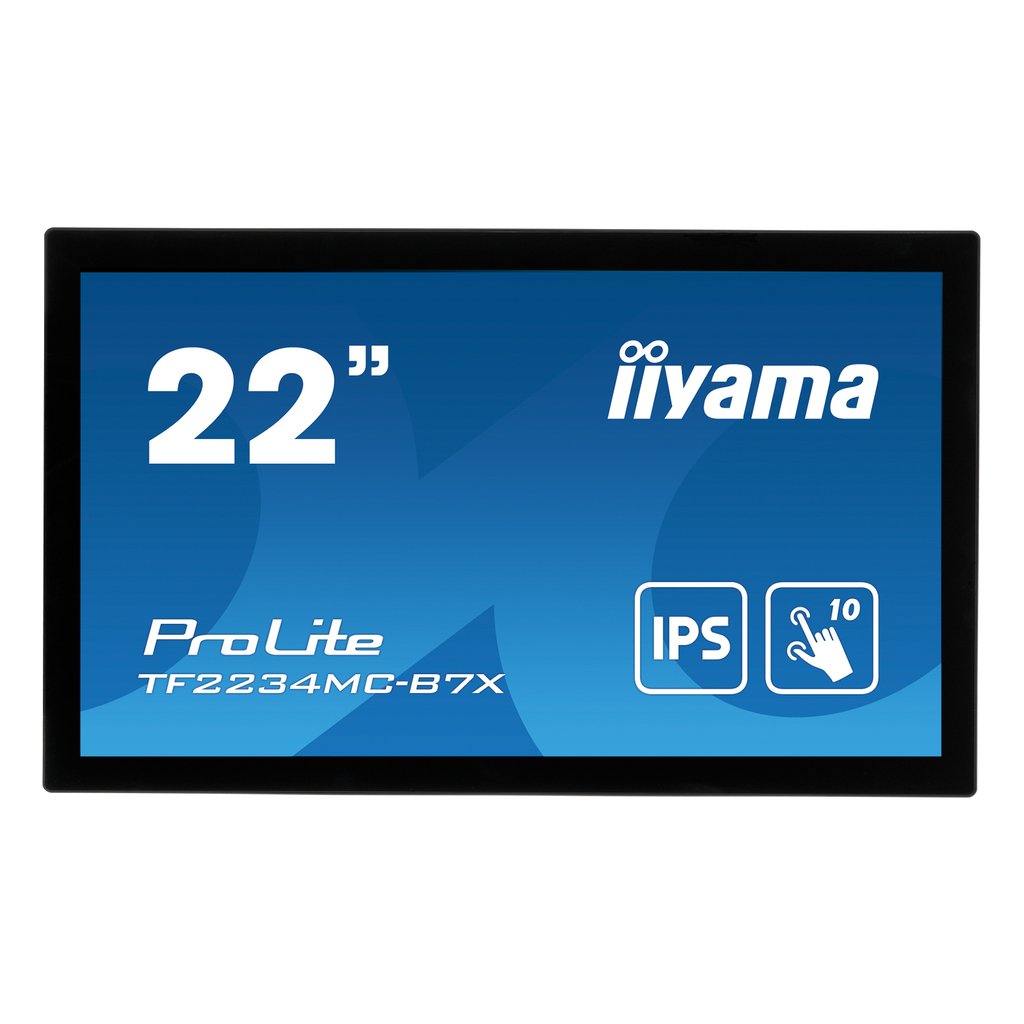

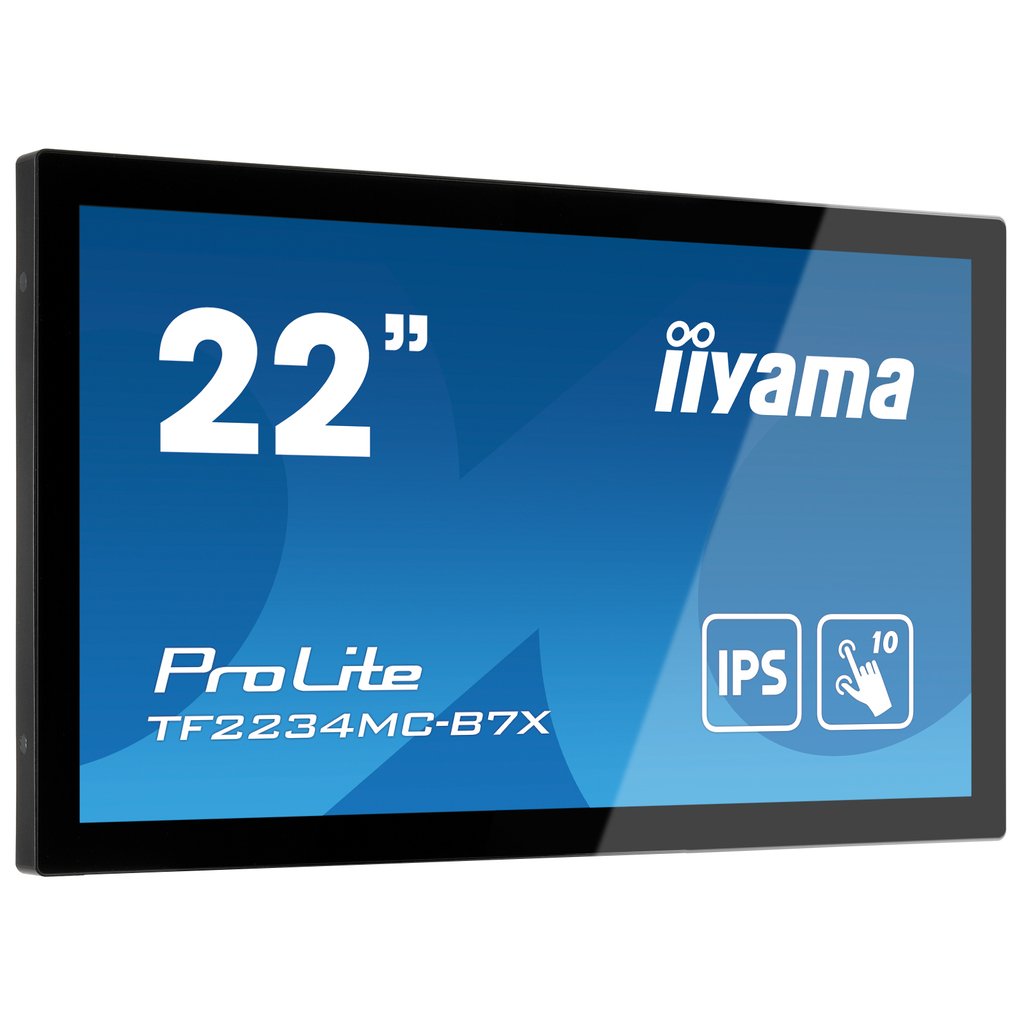

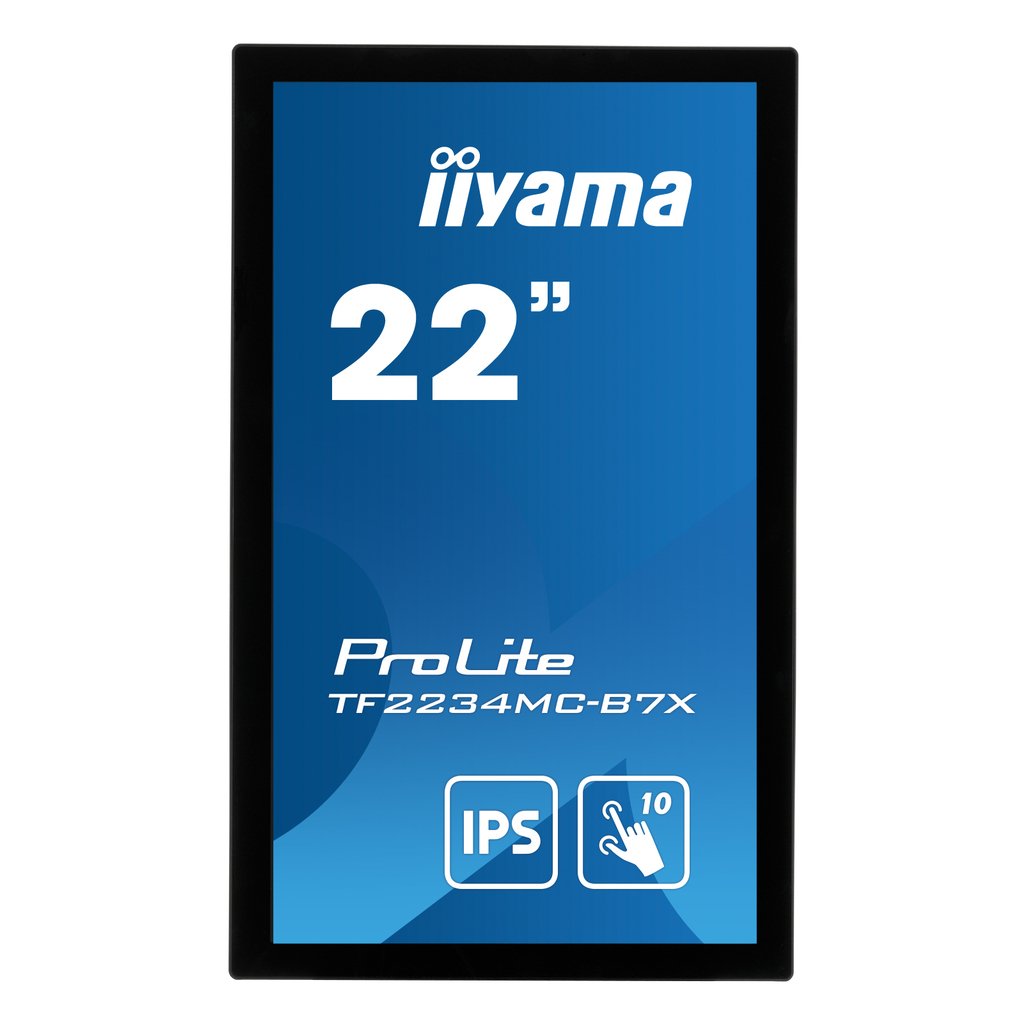

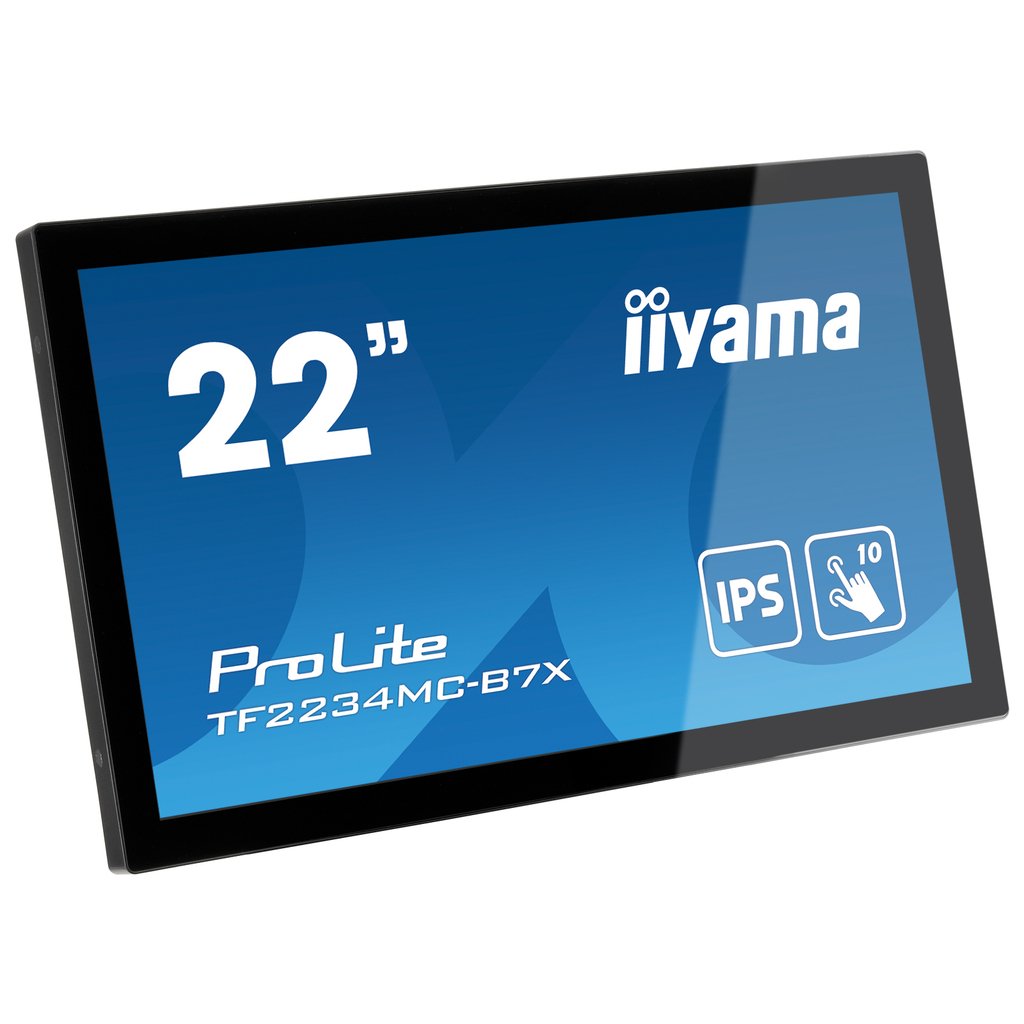

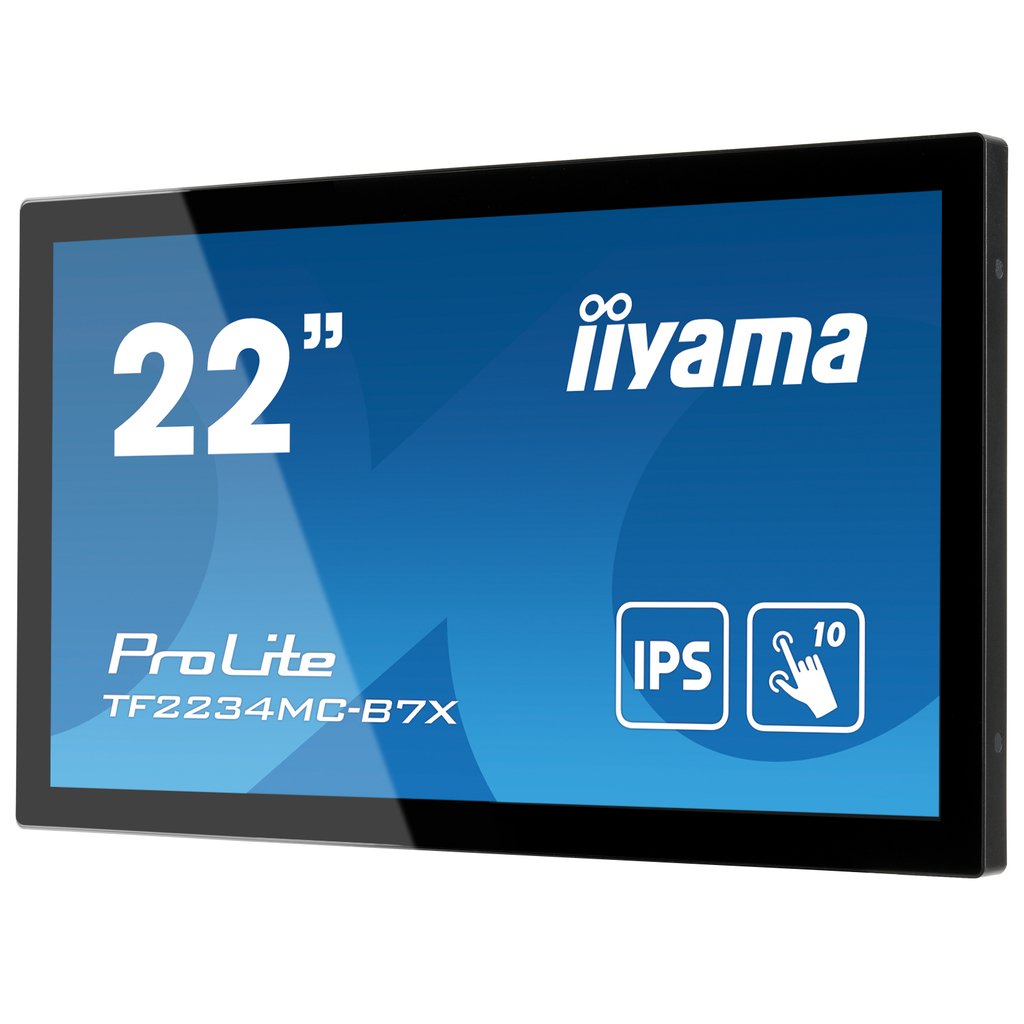

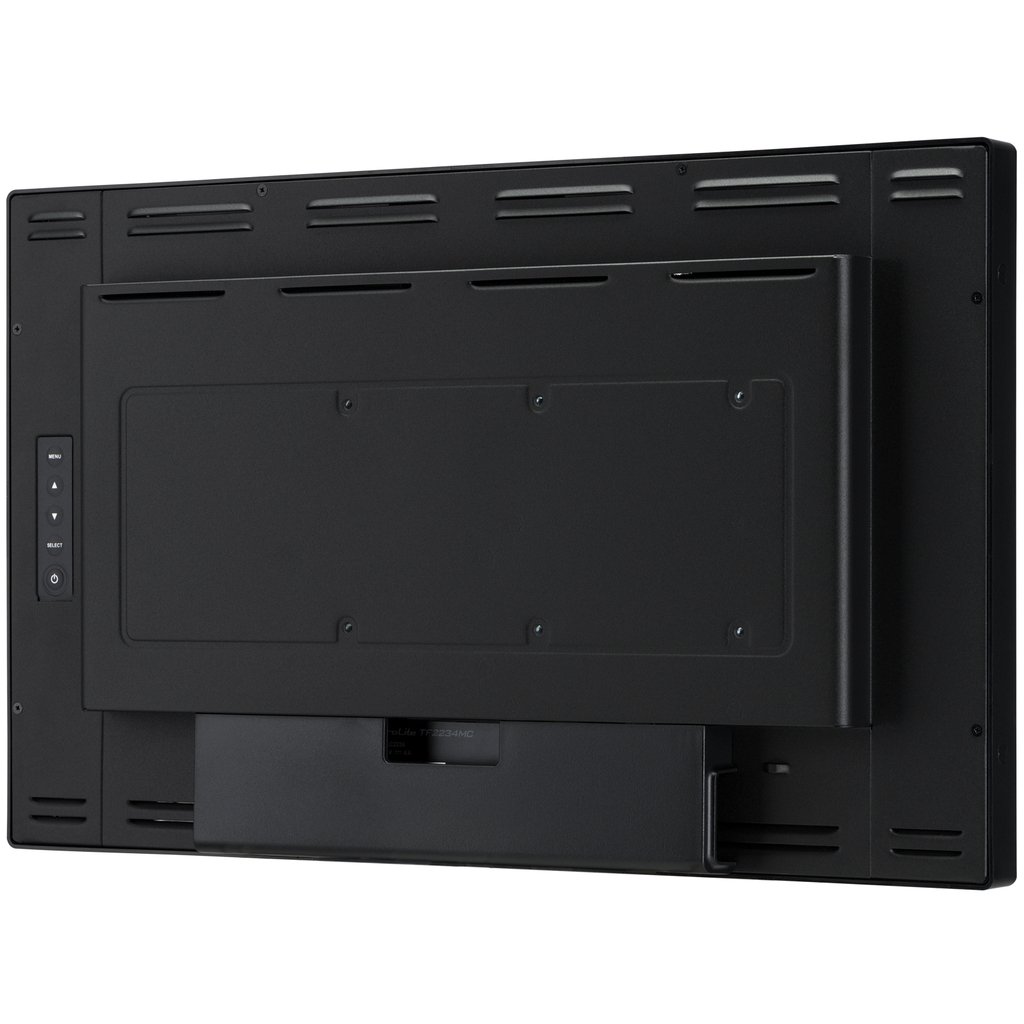

iiyama ProLite TF2234MC-B7X computer monitor 54.6 cm (21.5″) 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
22″ 10pt touch Open Frame monitor with IPS panel and touch through glass function
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Additional information
| Weight | 5.86 lbs |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 350 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 – 84 kHz |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 7H |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in camera | No |
| Product colour | Black |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| VESA mounting | Yes |

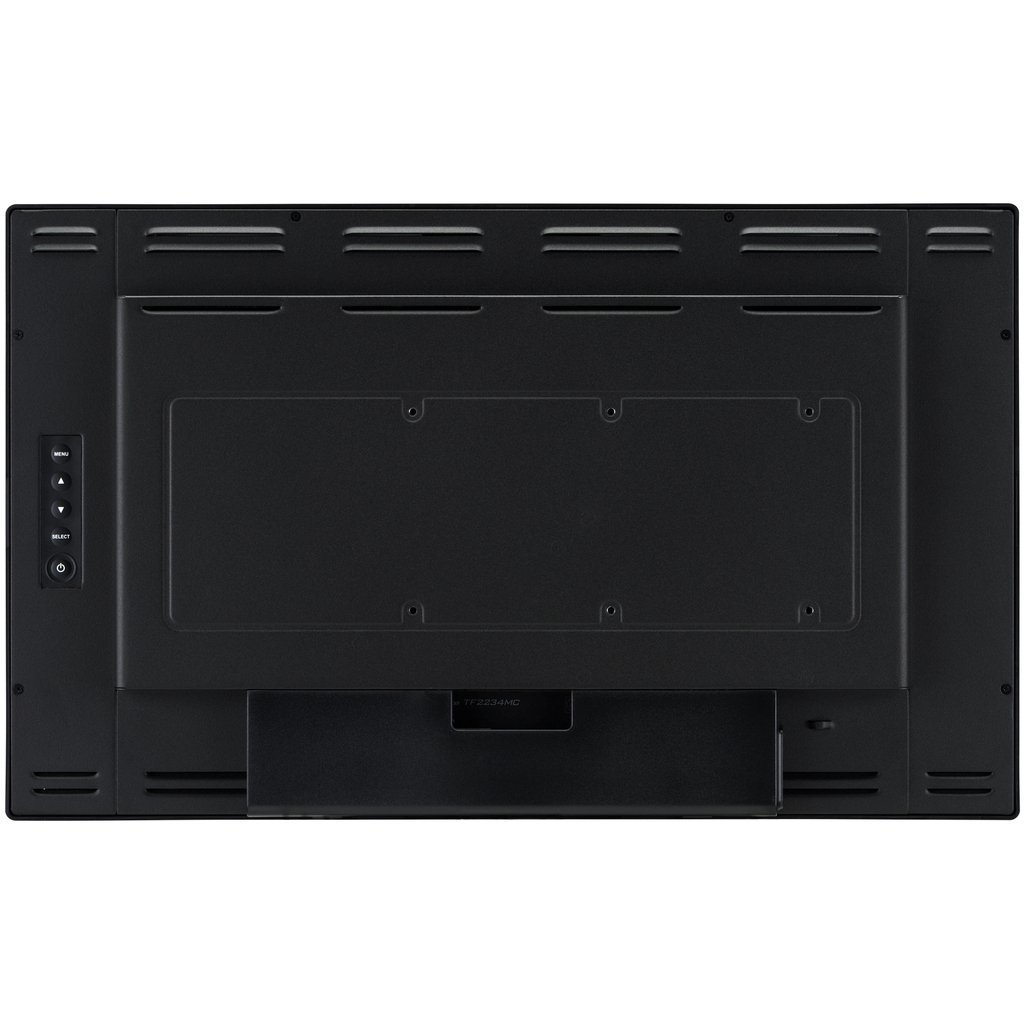

| Panel mounting interface | 100 x 100 mm |

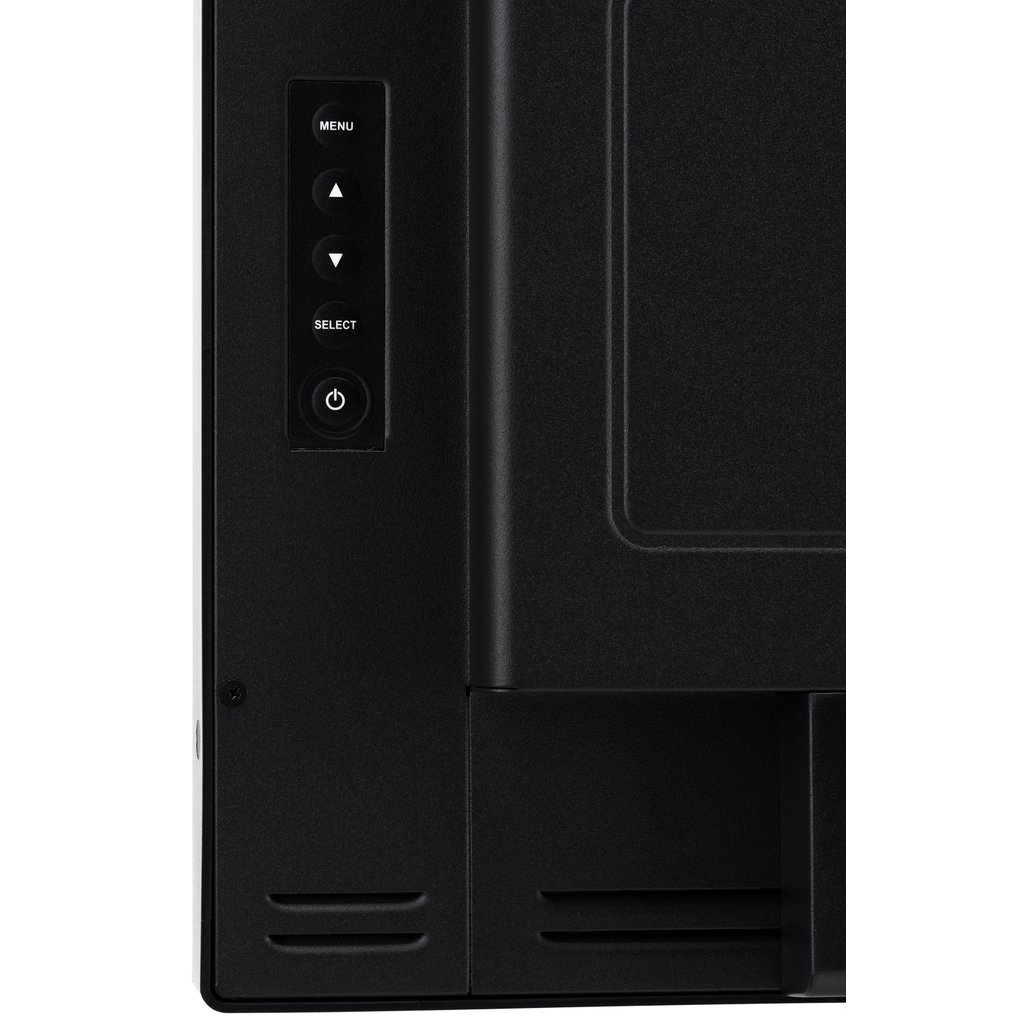

| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
| Package width | 610 mm |
| Package depth | 610 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |

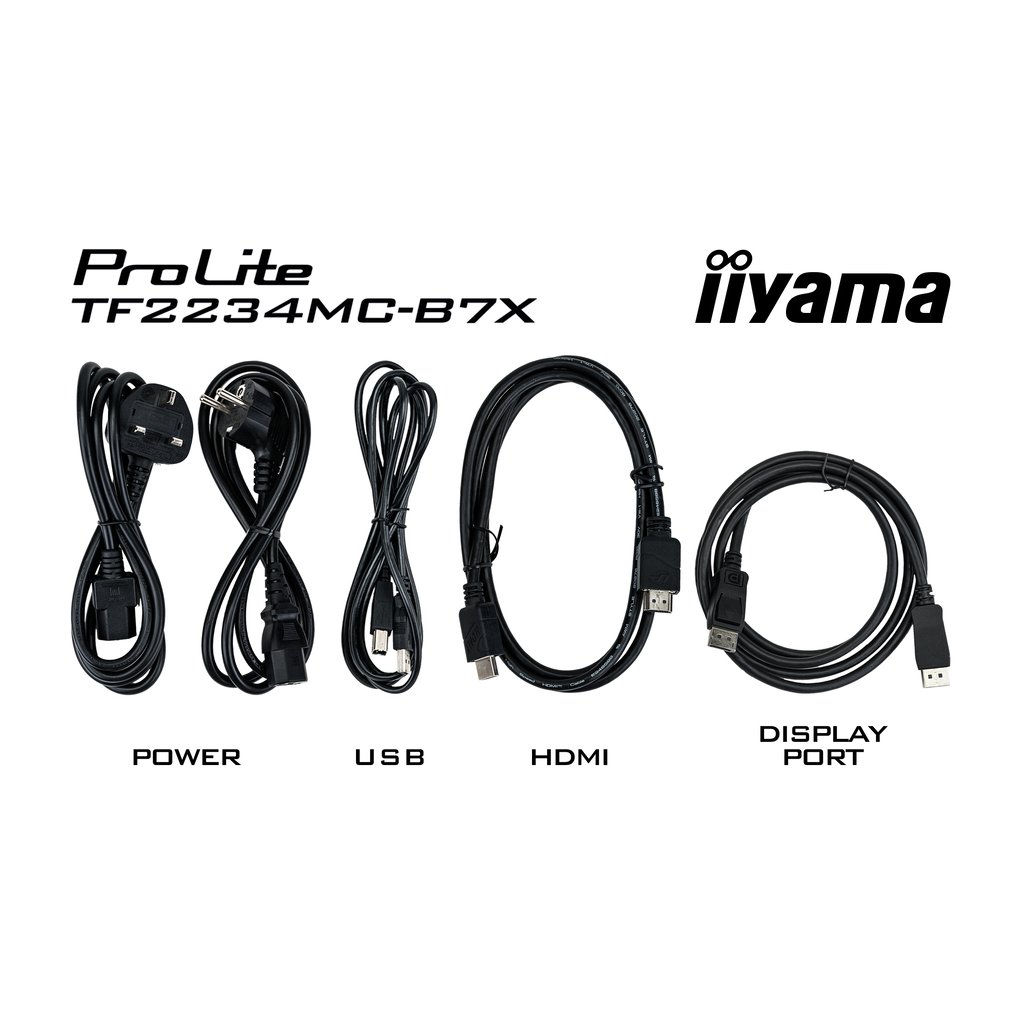

| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Wall mountable | Yes |
| European Product Registry for Energy Labelling (EPREL) code | 388725 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Russian |
| Front bezel colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| Number of OSD languages | 8 |
| Built-in microphone | No |
| AC adapter output voltage | 12 V |
| Harmonized System (HS) code | 85285210 |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 350 cd/m² |
| USB Touch port | Yes |

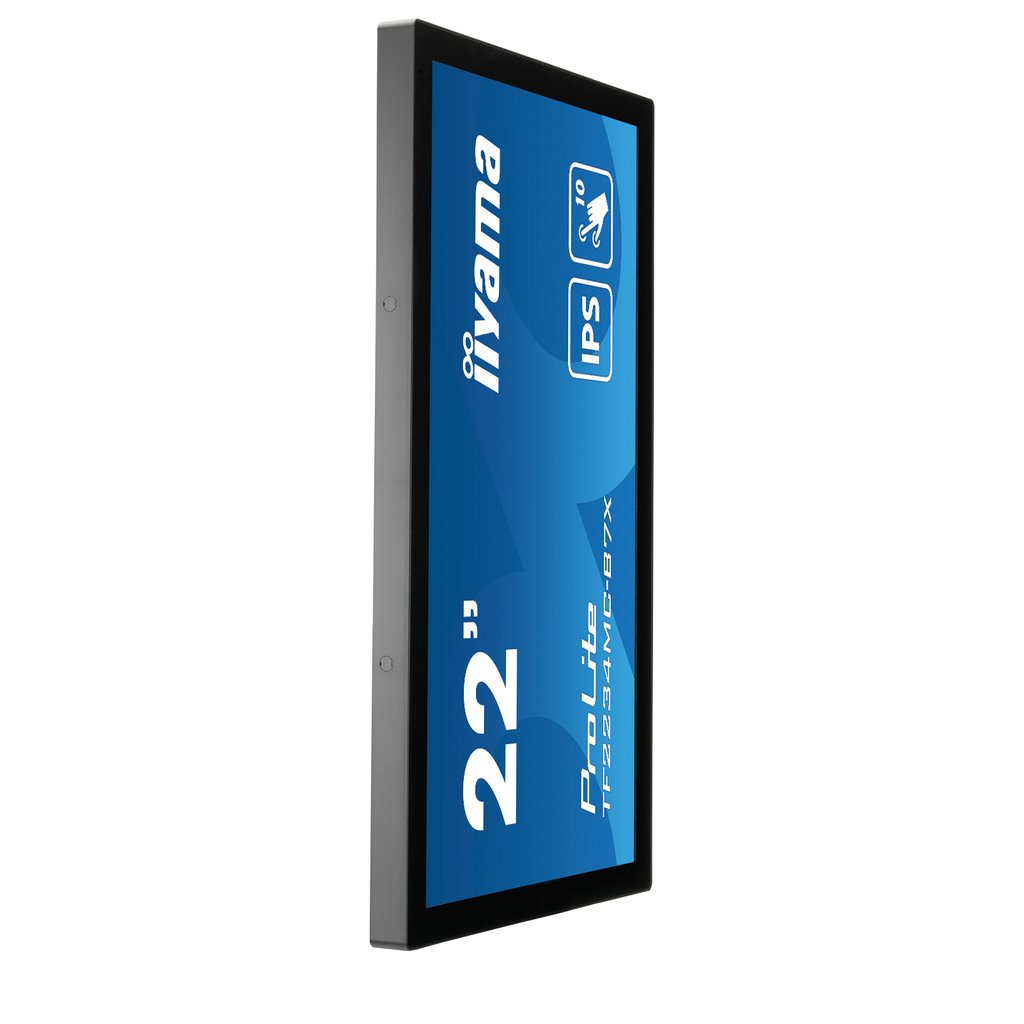

| Placement supported | Horizontal/Vertical |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Glass thickness | 1.5 mm |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Products per pallet | 48 pc(s) |
| Pallet net width | 109 cm |
| Pallet net length | 192.7 cm |
| Pallet net height | 109 cm |
