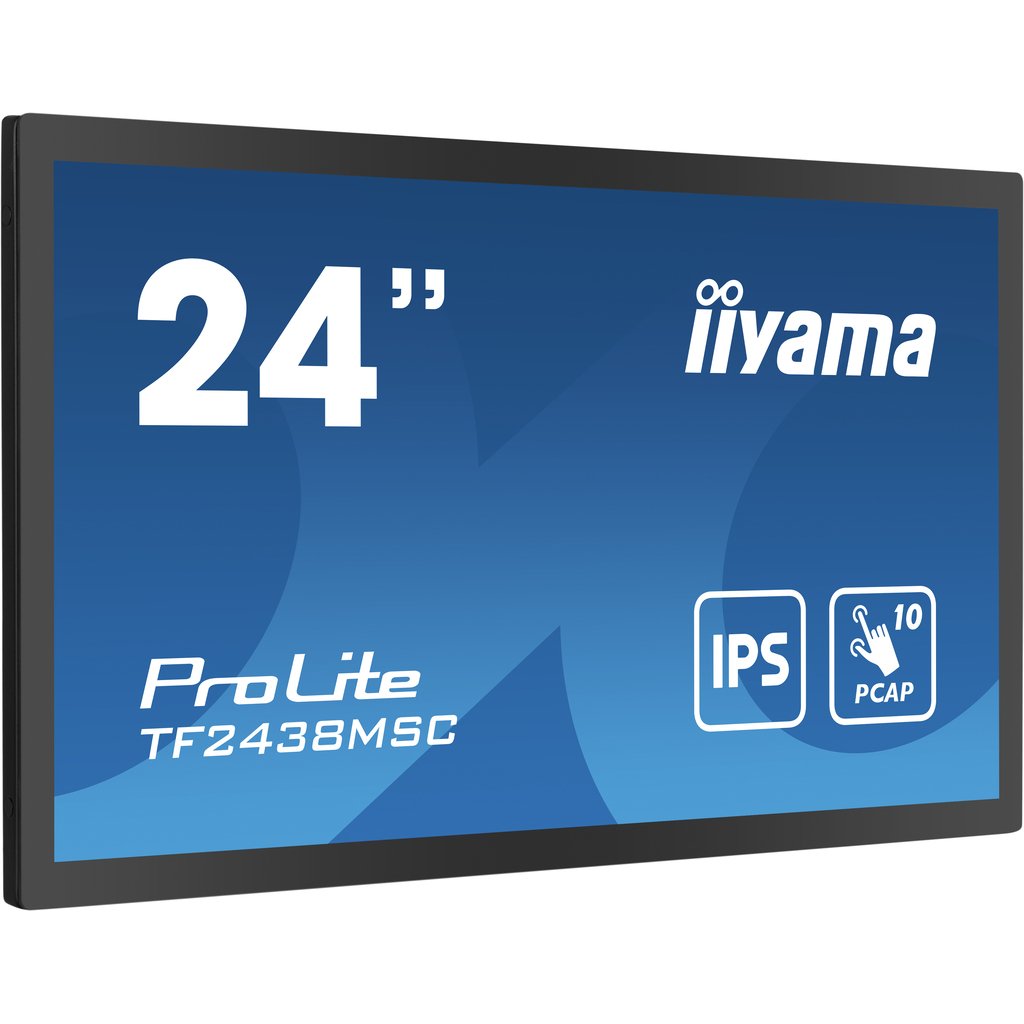

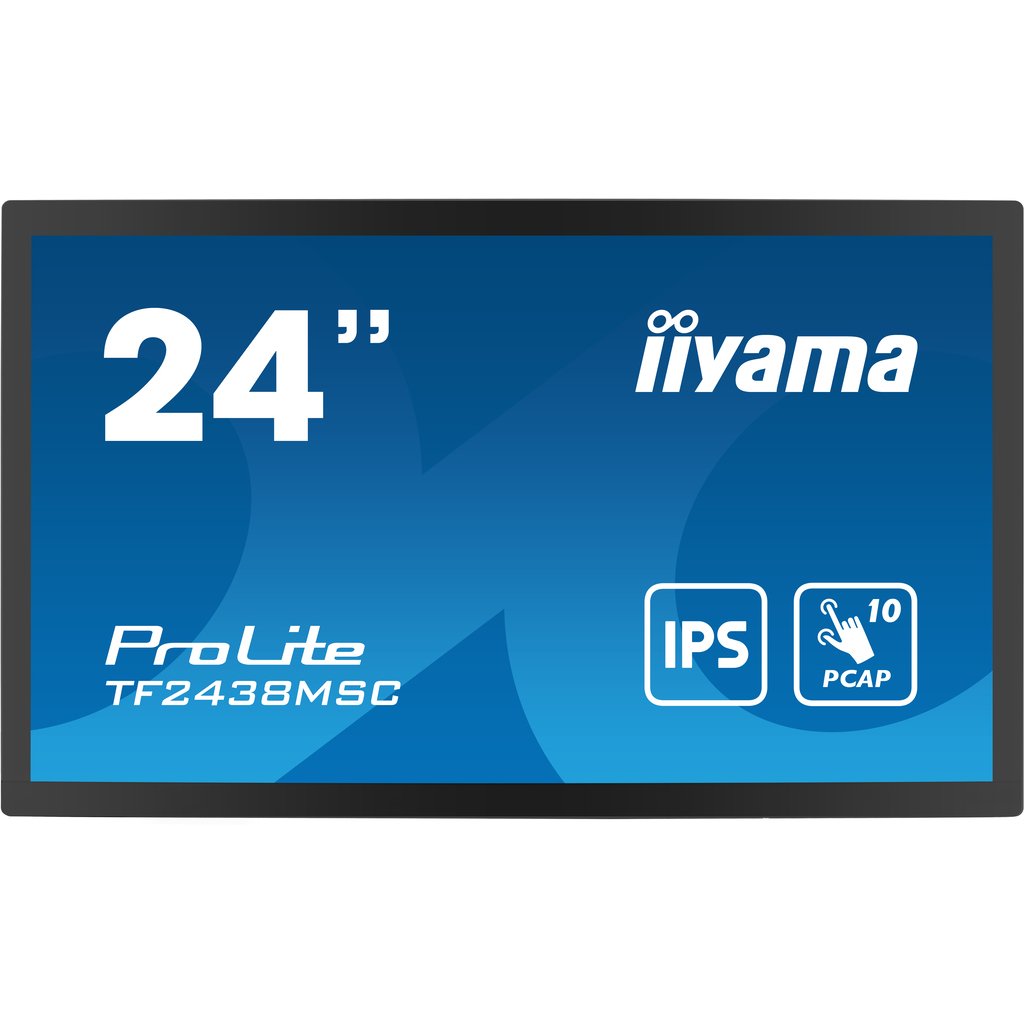

iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fin
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

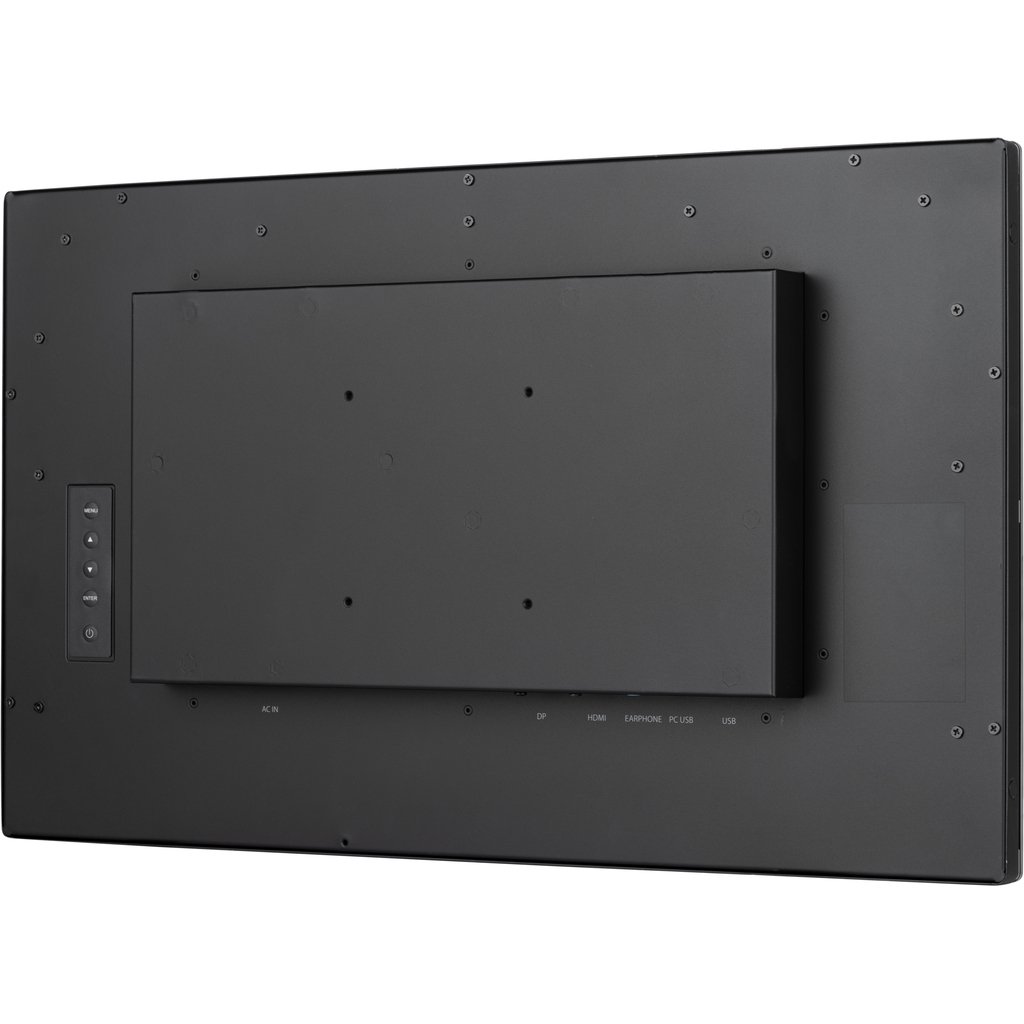

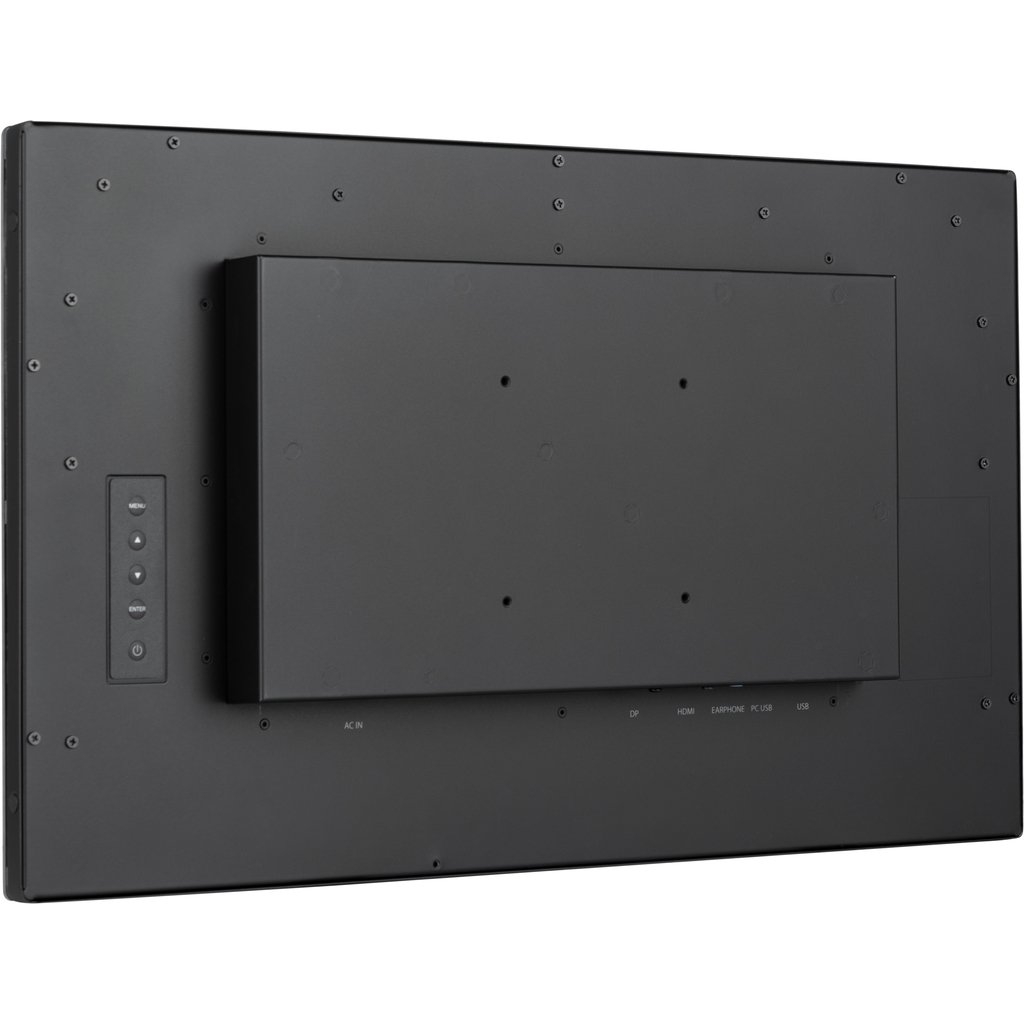

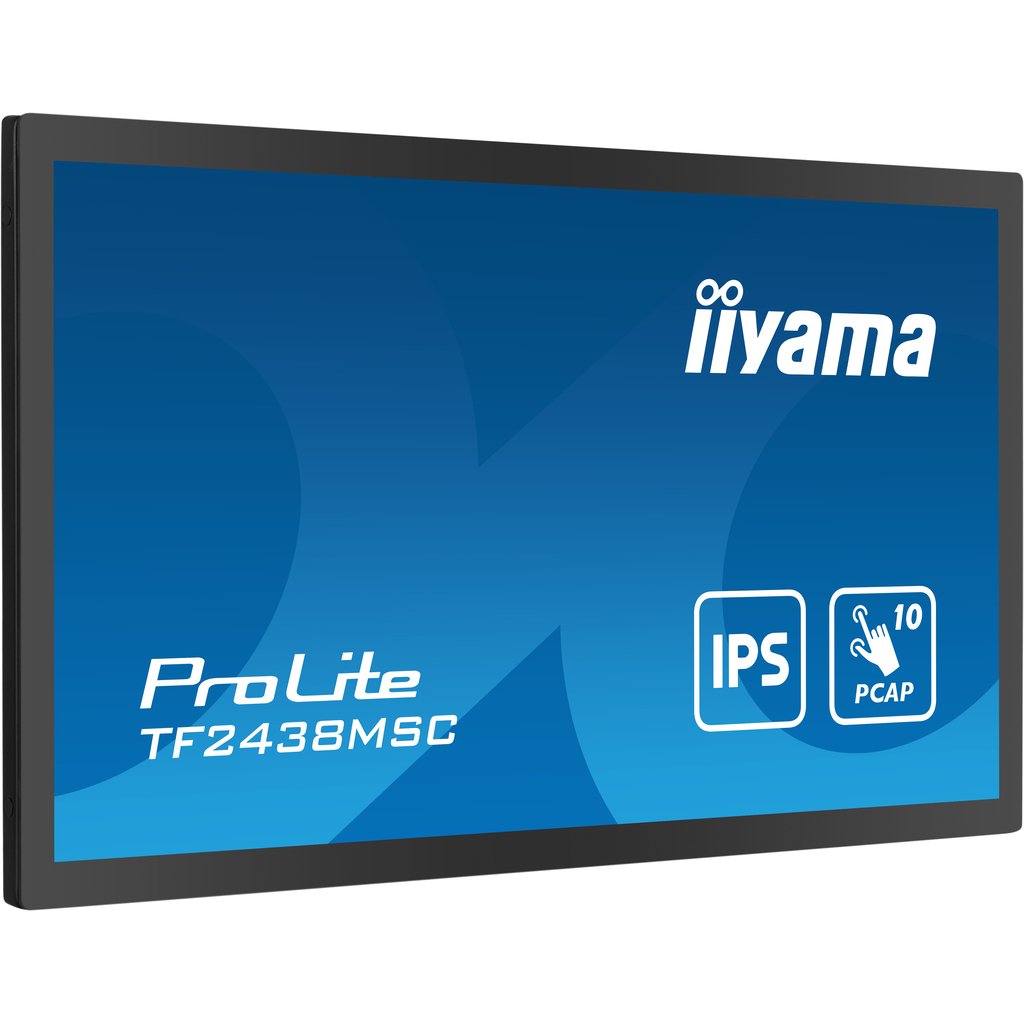

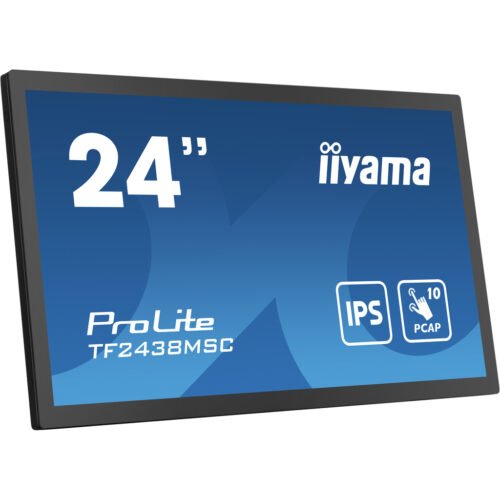

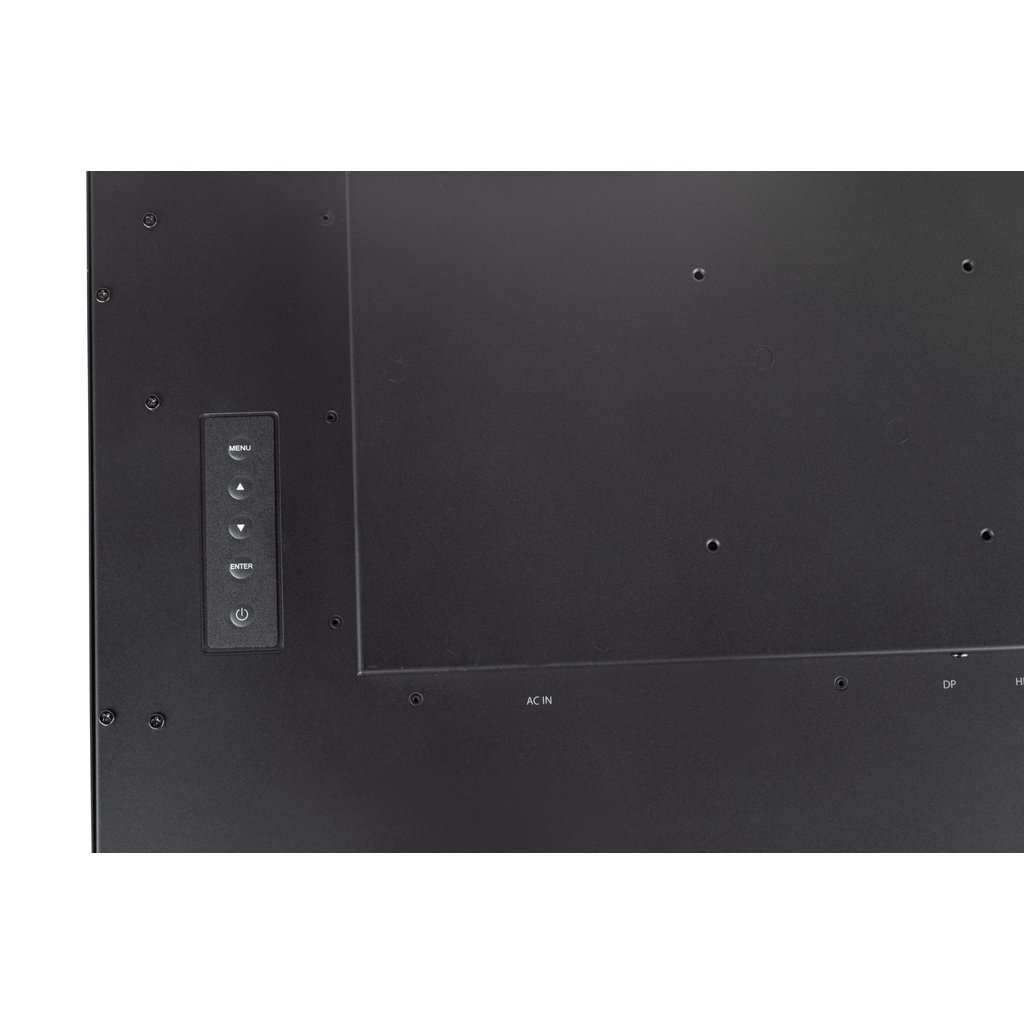

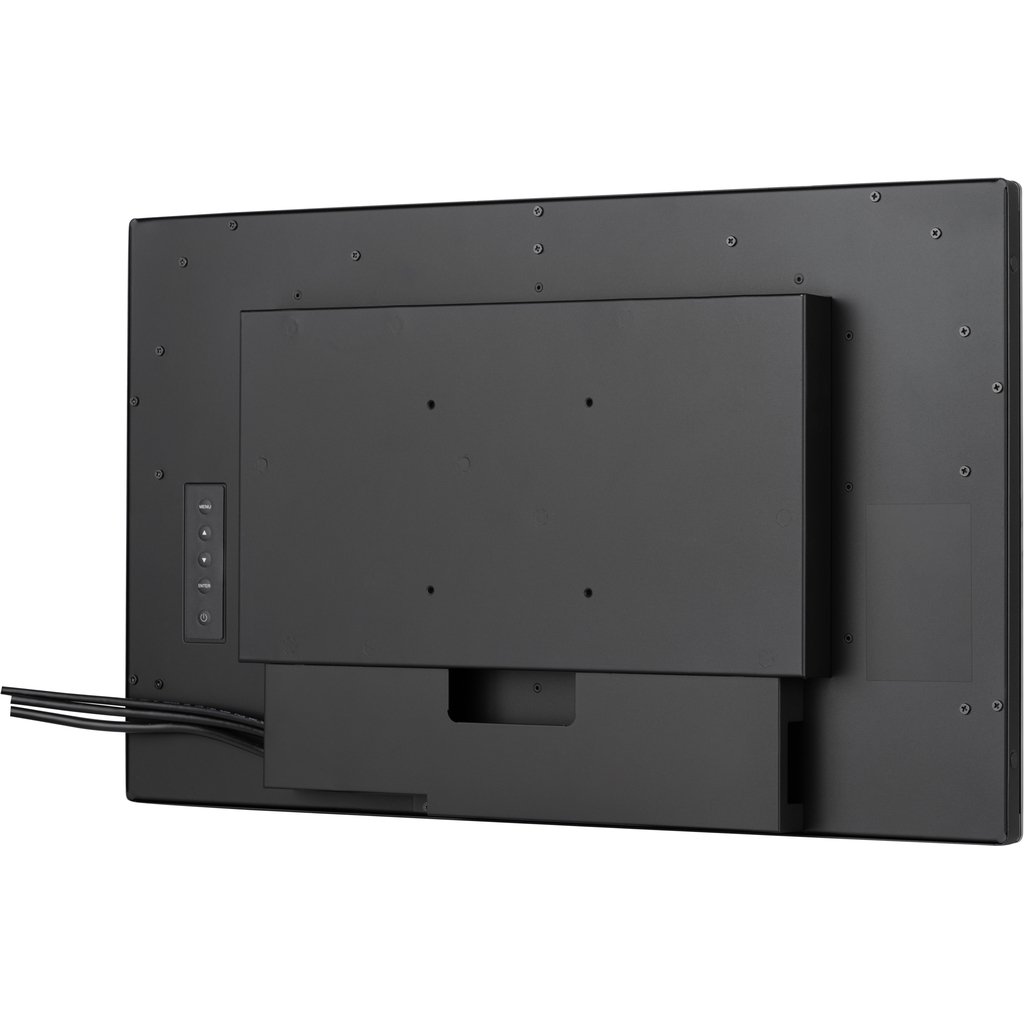

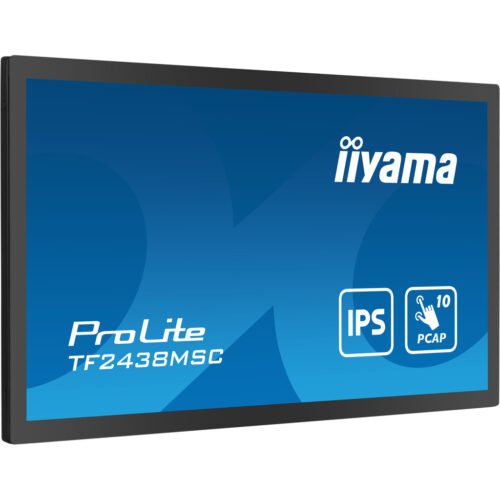

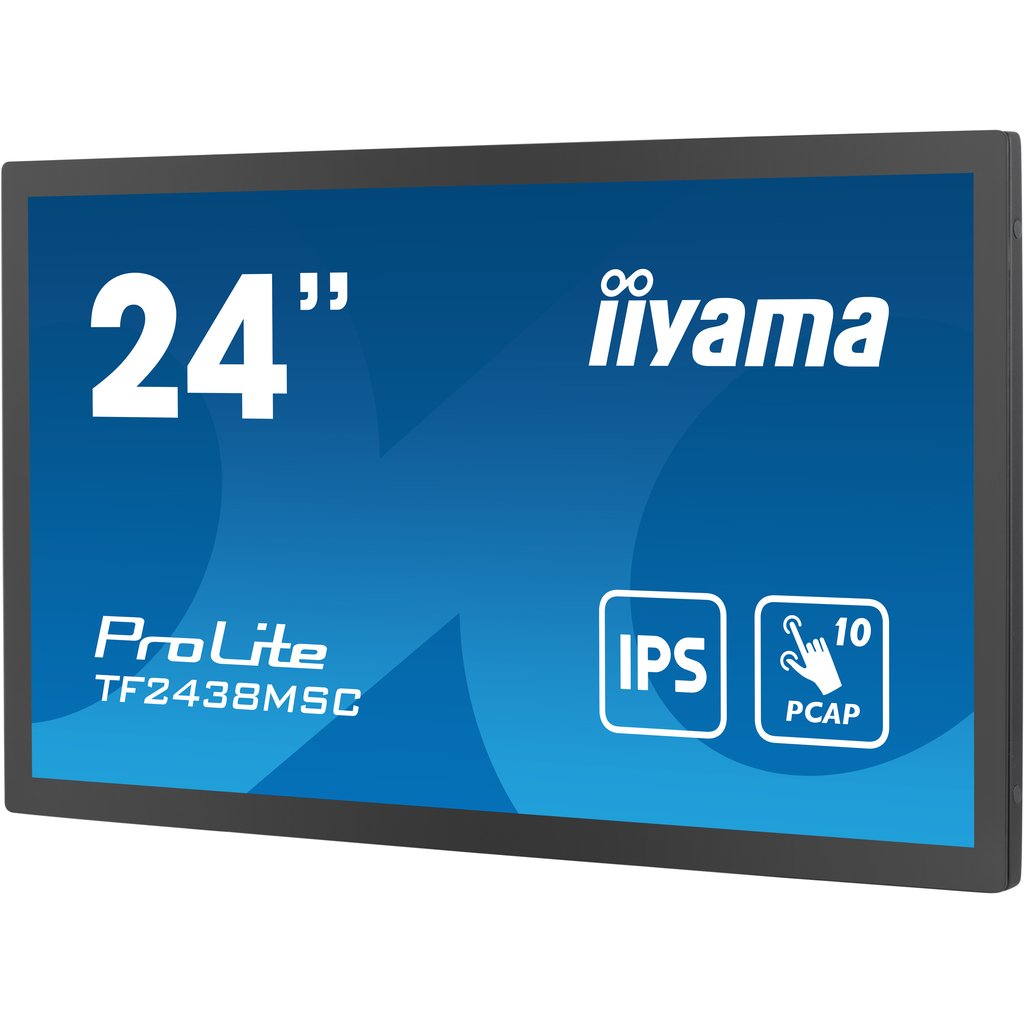

The Full HD (1920×1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
Additional information
| Weight | 11 lbs |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 527 x 296.5 mm |
| Horizontal scan range | 30 – 83 kHz |
| HDMI ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN | No |
| Wi-Fi | No |
| USB ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Product design | Digital A-board |
| Product colour | Black |
| Purpose | Universal |
| International Protection (IP) code | IP1X |
| Power consumption (typical) | 22 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Display width | 561.5 mm |
| Display depth | 47.5 mm |
| Display height | 337 mm |
| Weight (with stand) | 6.5 kg |
| Package width | 635 mm |
| Package weight | 8.1 kg |

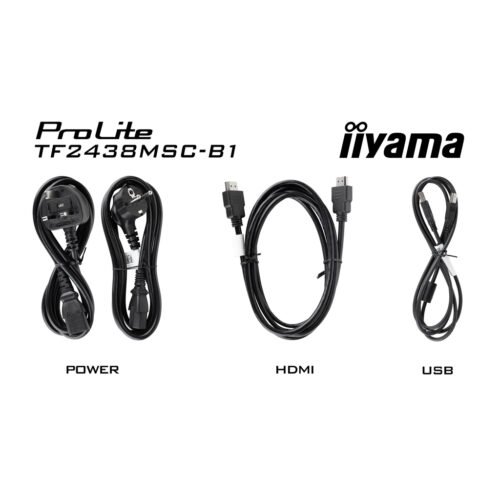

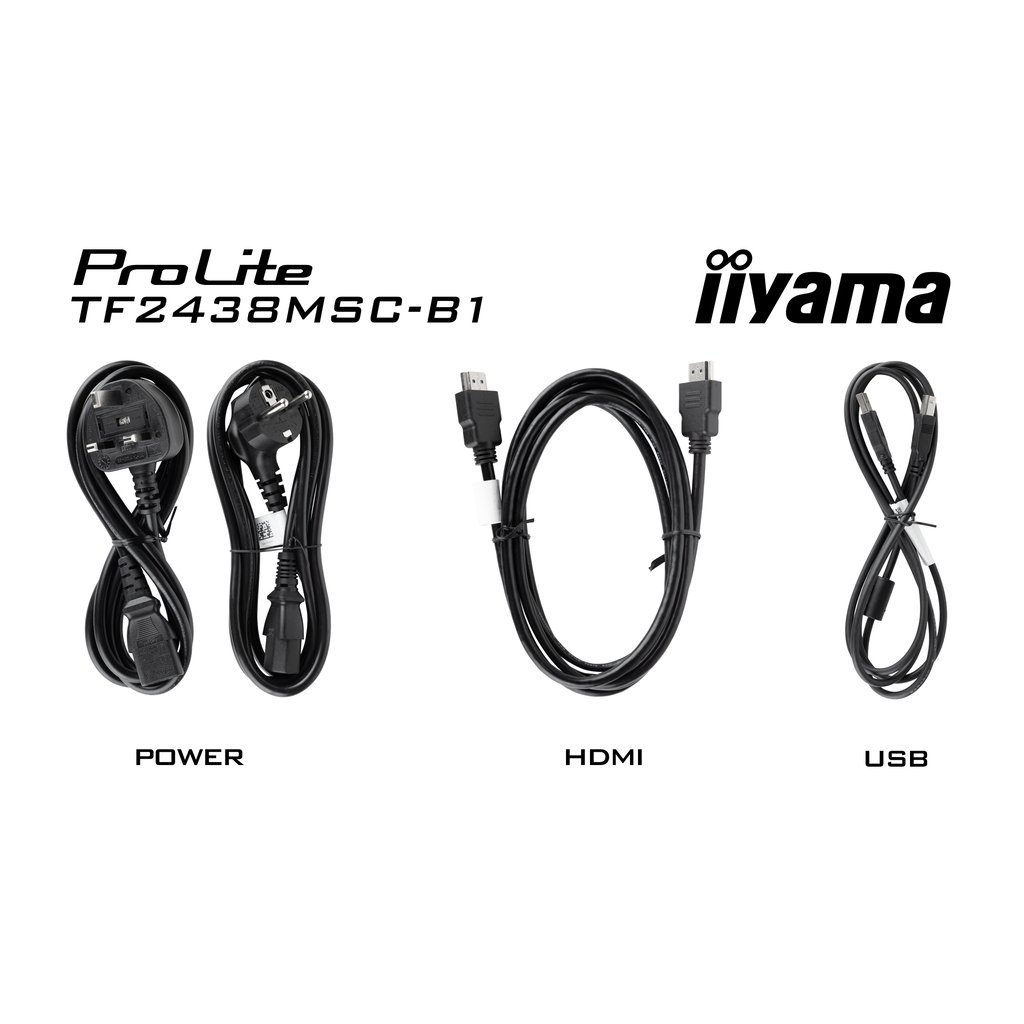

| Cables included | HDMI, Power, USB |
| HD type | Full HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Pixel pitch | 0.275 x 0.275 mm |
| Native refresh rate | 60 Hz |
| DVI port | No |
| Placement supported | Indoor |

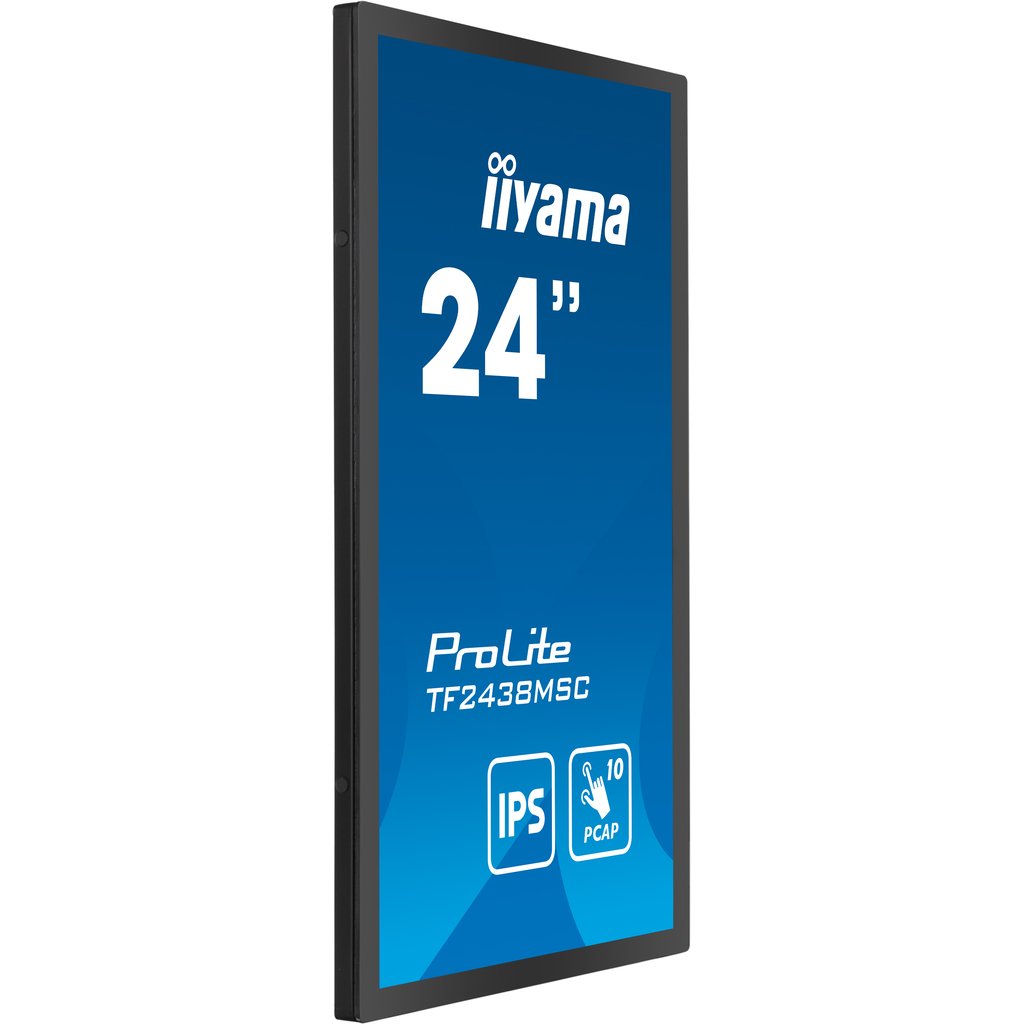

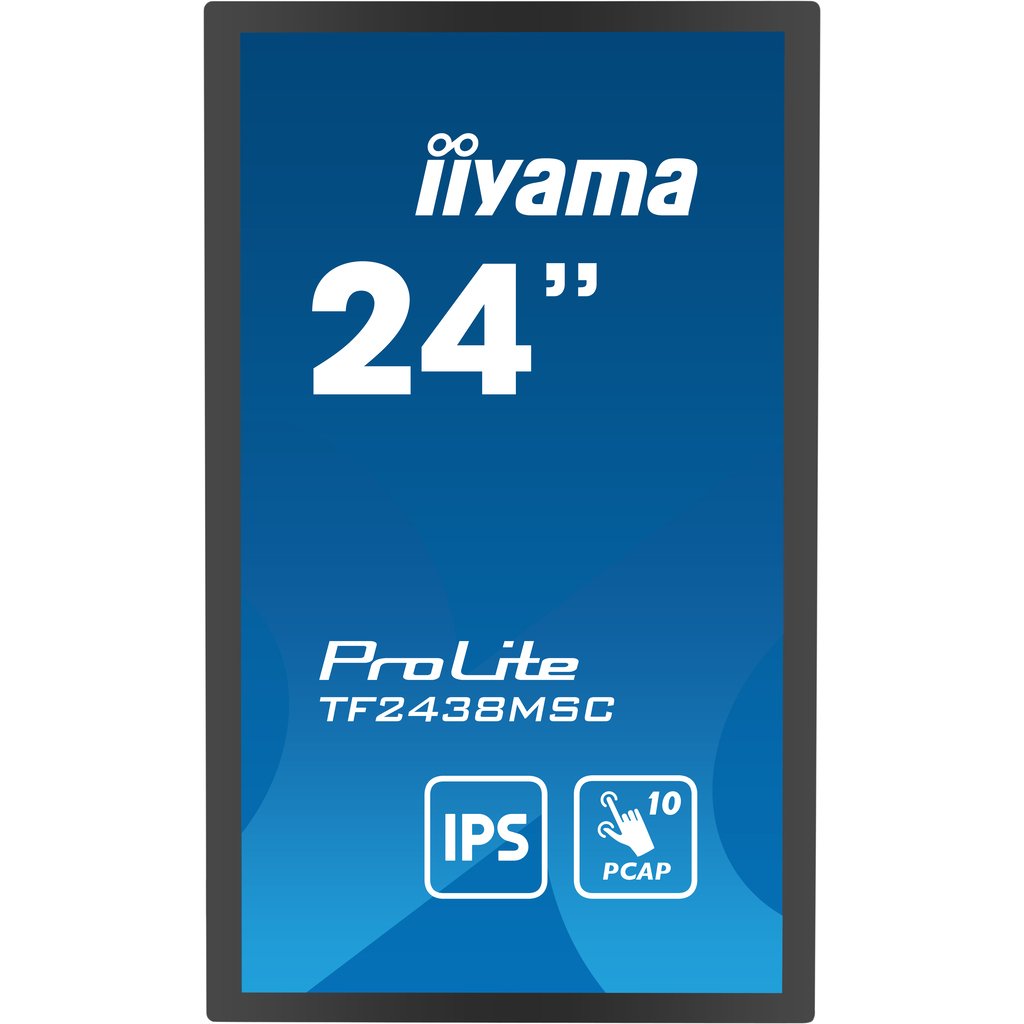

| Orientation | Horizontal/Vertical |
| HDCP | Yes |
| Power consumption (standby) | 1.5 W |
| Display weight | 6.5 kg |
| Width (with stand) | 561.5 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 337 mm |
| Package depth | 635 mm |
| Package height | 409 mm |
| Panel type | IPS |
| Response time | 5 ms |
| DisplayPorts quantity | 1 |

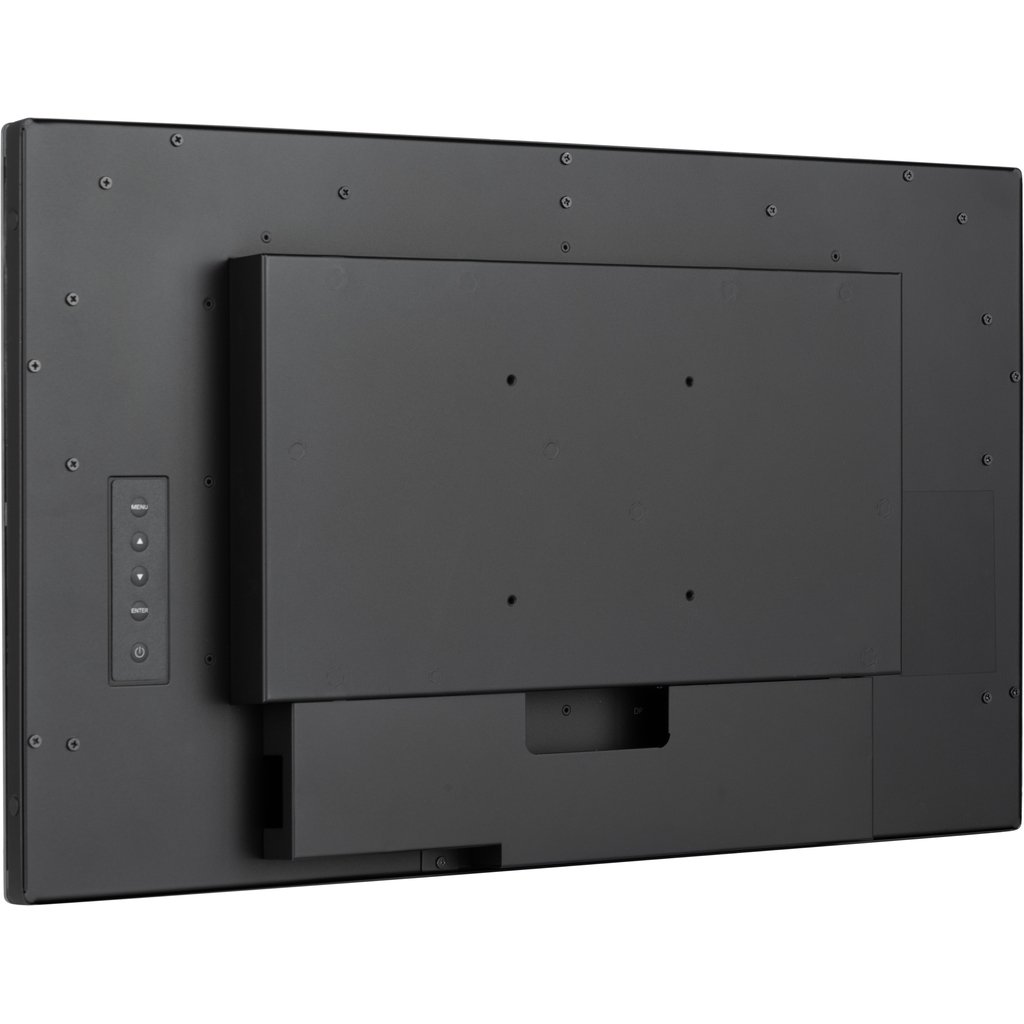

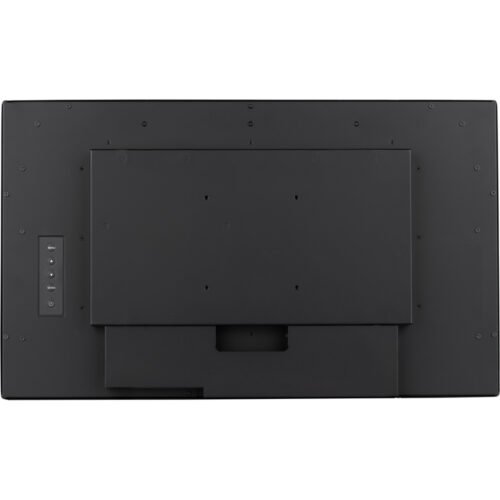

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Surface hardness | 7H |
| Computer system | No |
| Built-in processor | No |
| Display number of colours | 16.7 million colours |
| Display diagonal (metric) | 60.5 cm |
| Glass thickness | 3.6 mm |
| Power consumption (off) | 0.3 W |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, French, Japanese, Polish, Russian |
| Energy efficiency class (SDR) | E |
| Quick start guide | Yes |
| Bezel width (bottom) | 2.03 cm |
| Bezel width (side) | 1.73 cm |
| Bezel width (top) | 2.03 cm |
| Power supply type | Internal |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
