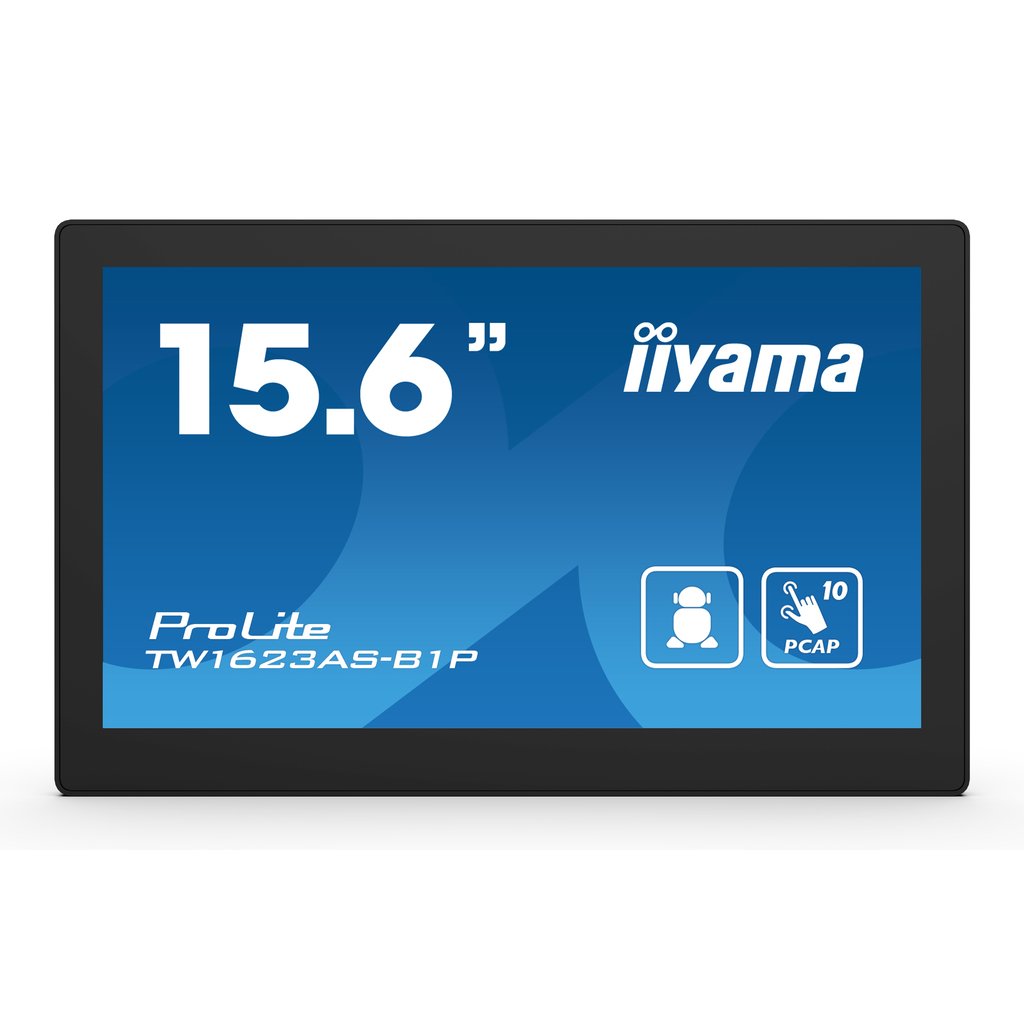

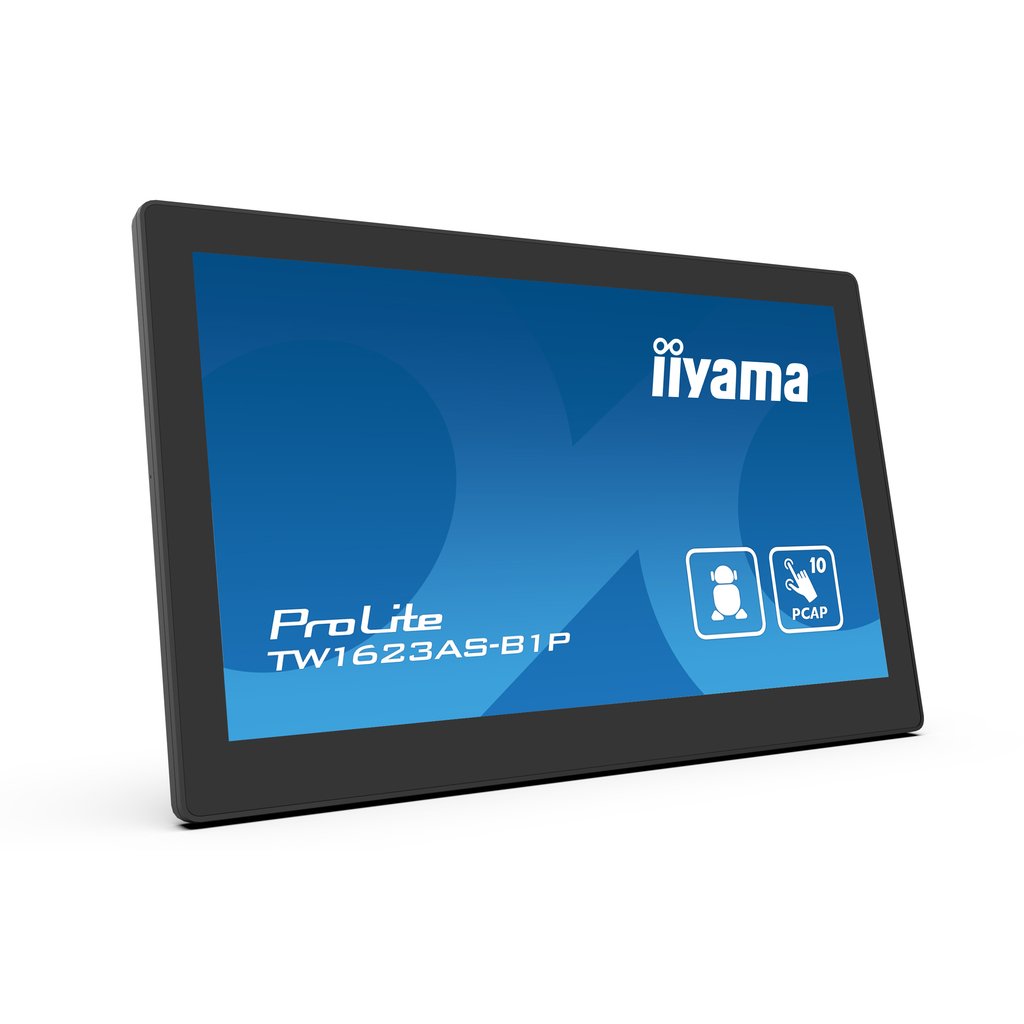

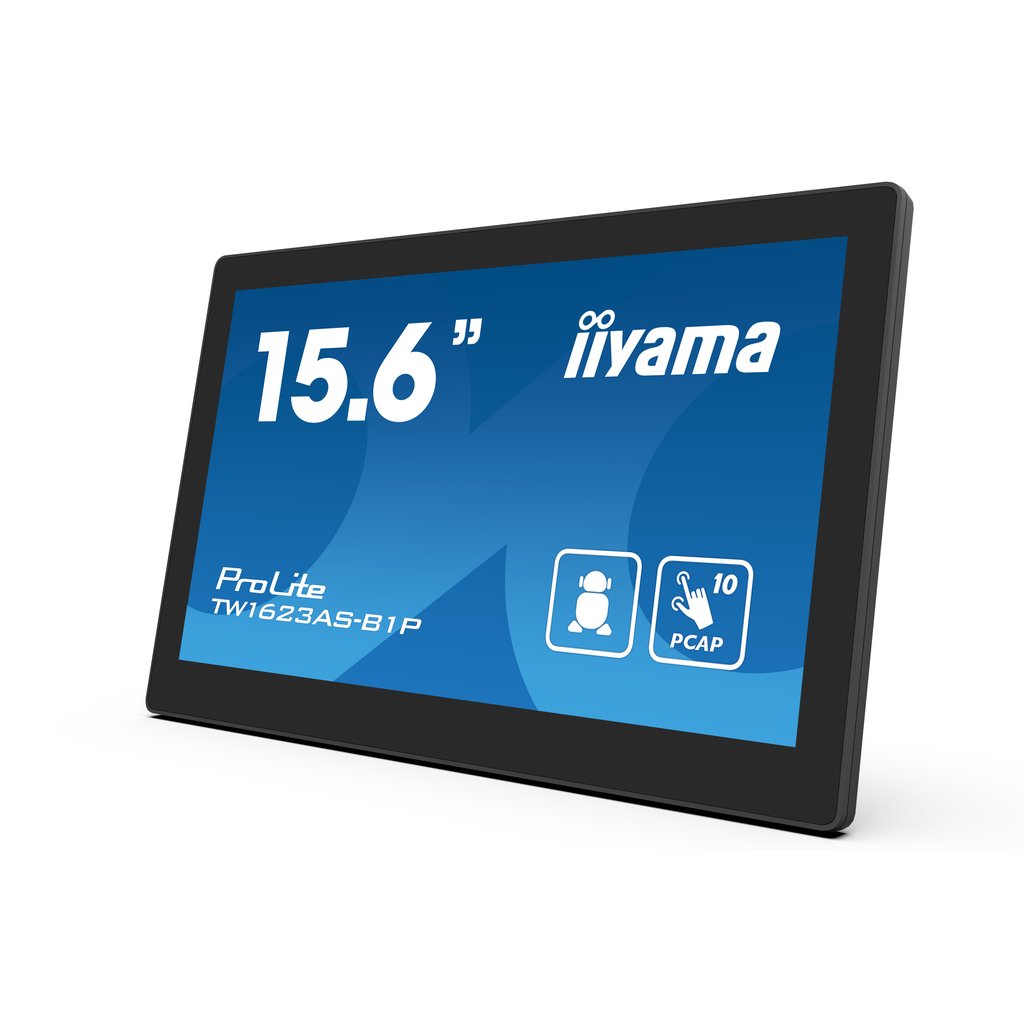

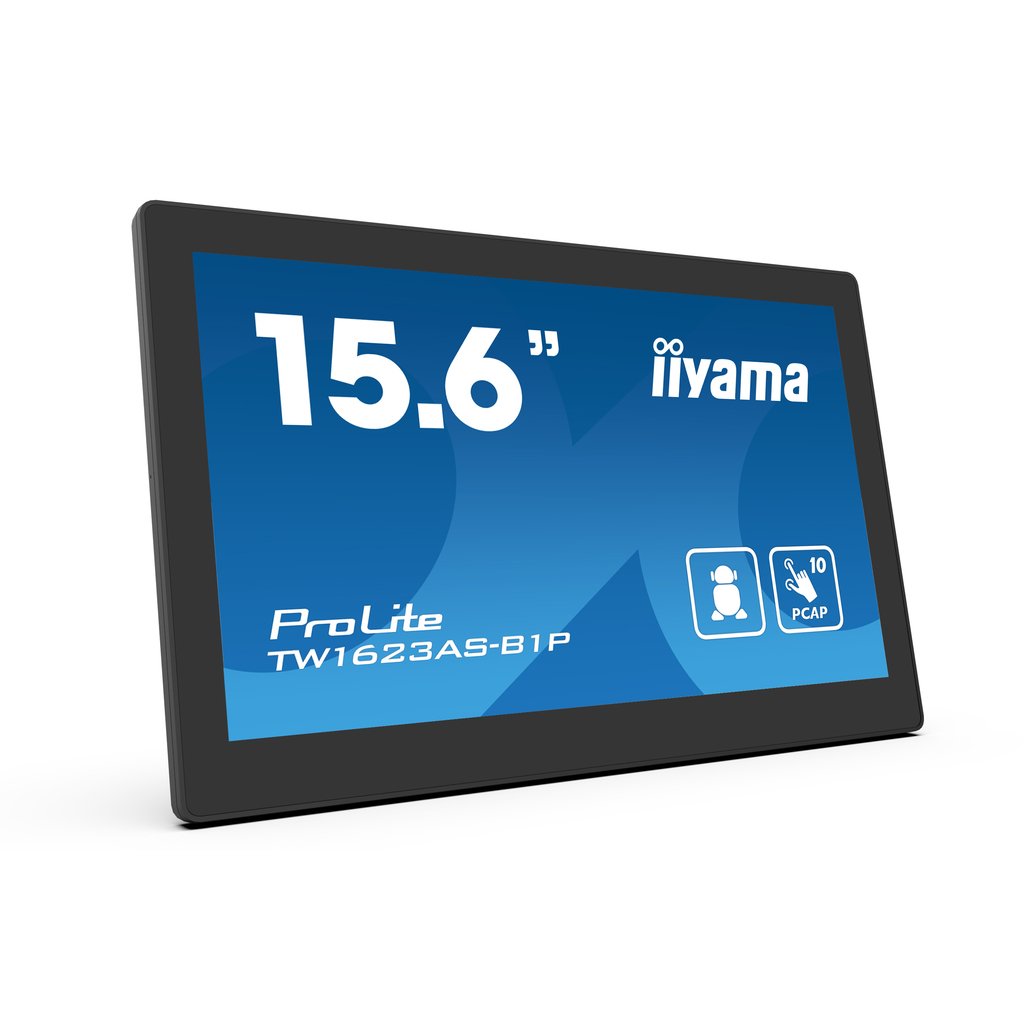

iiyama TW1623AS-B1P Signage Display Interactive flat panel 39.6 cm (15.6″) Wi-Fi 385 cd/m² Double Full HD Black Touchscreen Bu
15.6” Full HD PCAP 10pt touch screen with Android and POE Technology
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ProLite TW1623AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.
Additional information
| Weight | 2.42 lbs |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 385 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Active display area (W x H) | 344.2 x 193.6 mm |
| HDMI ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| HDMI input ports quantity | 1 |

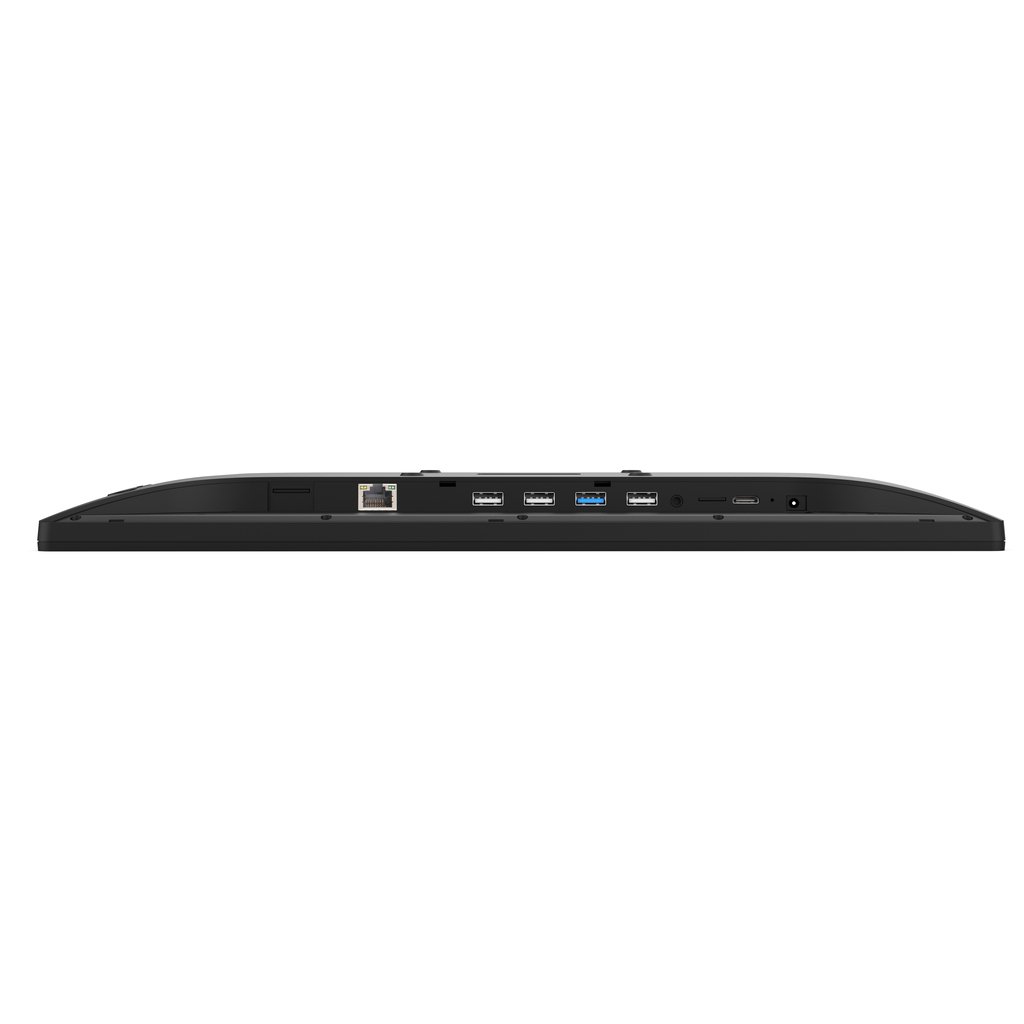

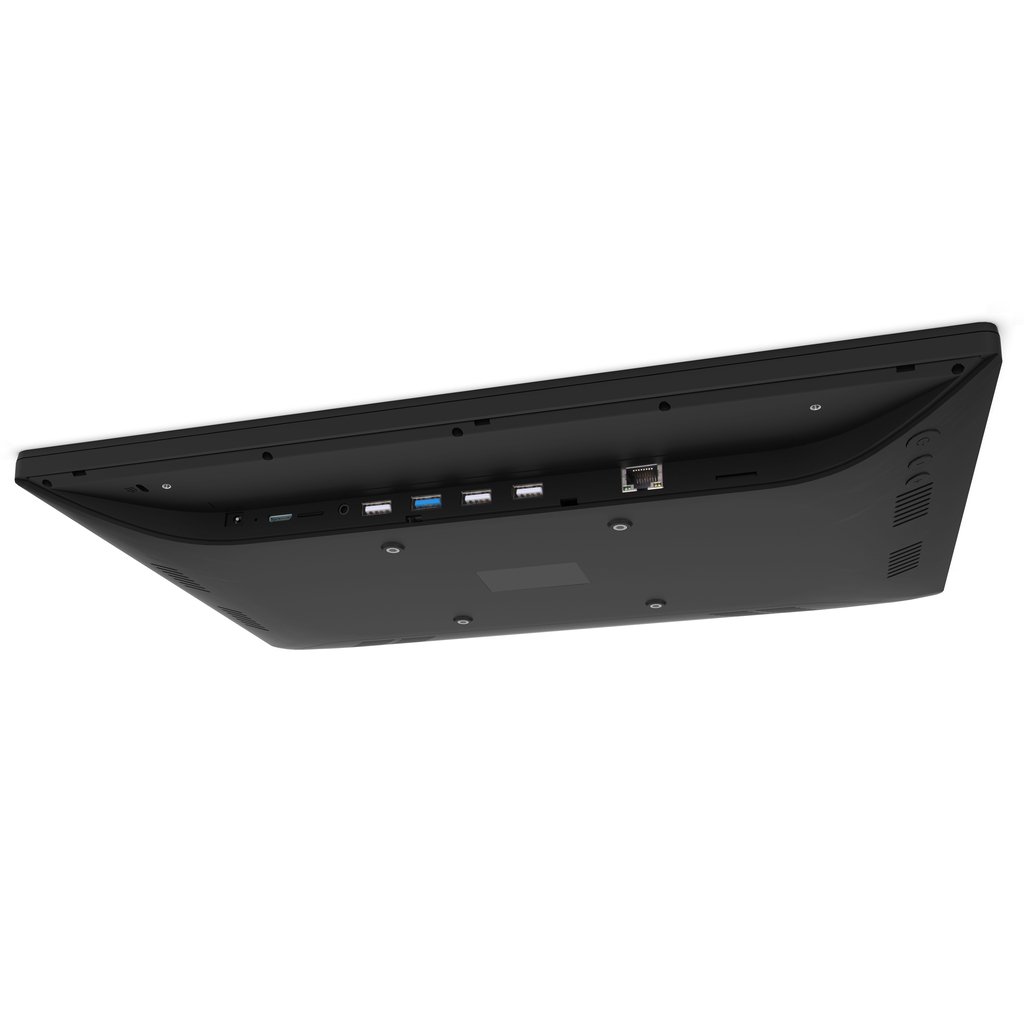

| USB ports quantity | 3 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Product design | Interactive flat panel |
| Product colour | Black |
| Purpose | Commercial |
| Power consumption (typical) | 24 W |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Display width | 387 mm |
| Display depth | 30.5 mm |
| Display height | 244 mm |
| Weight (with stand) | 1.5 kg |
| Package width | 477 mm |
| Package weight | 2.4 kg |
| HD type | Double Full HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Power consumption (standby) | 0.5 W |
| Internal memory | 4 GB |
| Display weight | 1.5 kg |
| Width (with stand) | 387 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 244 mm |
| Package depth | 75 mm |
| Package height | 295 mm |
| Panel type | IPS |
| Response time | 30 ms |

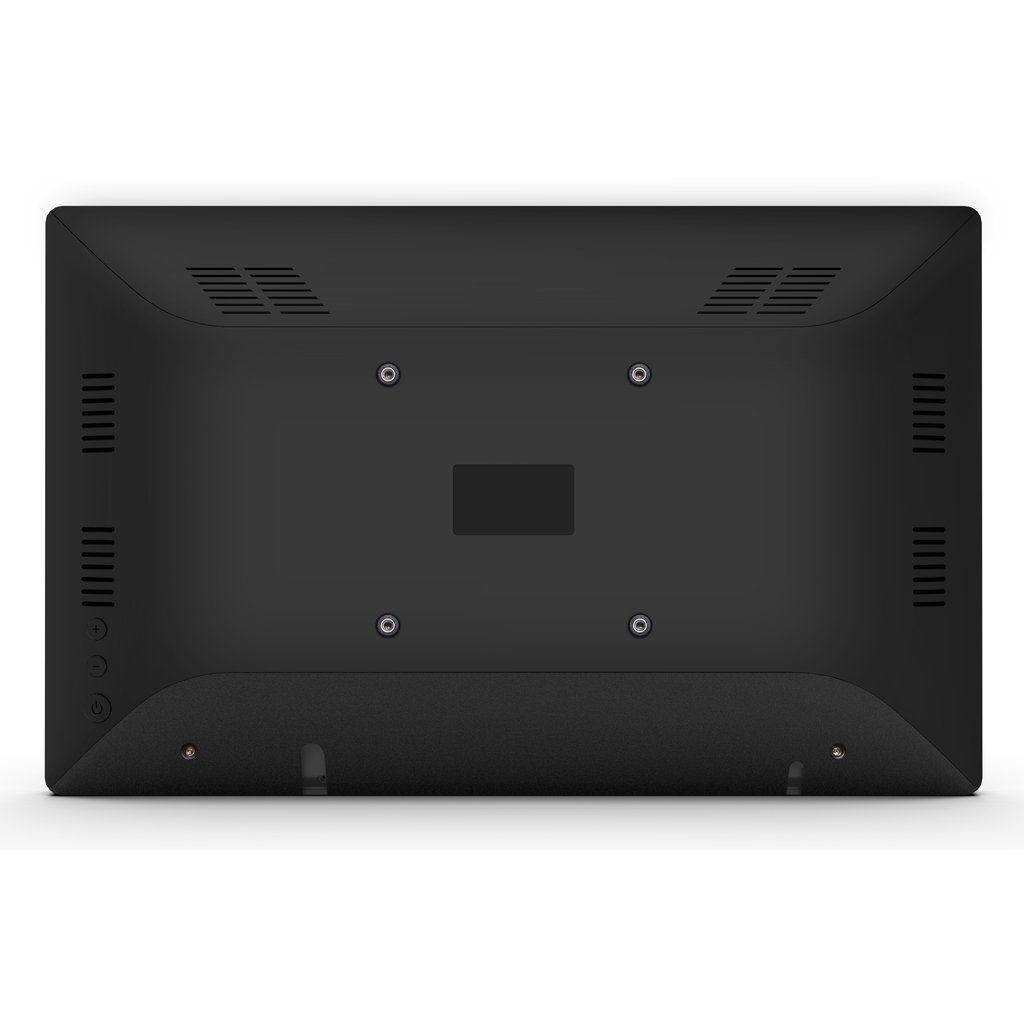

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Operating hours (hours/days) | 24/7 |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Surface hardness | 6H |
| Microphone in | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| On-board graphics card model | ARM Mali-G52 |
| Operating system version | 13 |
| Products per pallet | 150 pc(s) |
| Display number of colours | 16.7 million colours |
| Display diagonal (metric) | 39.5 cm |
| Glass thickness | 1.8 mm |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Power consumption (off) | 0.3 W |
| Processor family | ARM Rockchip |
| Processor frequency | 2 GHz |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Multi-touch | Yes |
| Fingerprint resistant | Yes |
| On Screen Display (OSD) | Yes |
| Processor manufacturer | Rockchip |
| Processor model | RK3568 |
| Package volume | 2400 cm³ |
| Power adapter included | Yes |
| Audio input | Mini Jack |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Quick start guide | Yes |
| Bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Power supply type | External |
| Built-in microphone | Yes |
| Width | 387 mm |
| Depth | 30.5 mm |
| Height | 244 mm |
| Weight | 1.5 kg |
| Colour depth | 8 bit |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| User controls | Volume +, volume -, power |
| AC adapter included | Yes |
| Brightness | 385 cd/m² |
| Pallet net height | 120 cm |
| Pallet net length | 176 cm |
| Pallet net width | 100 cm |
