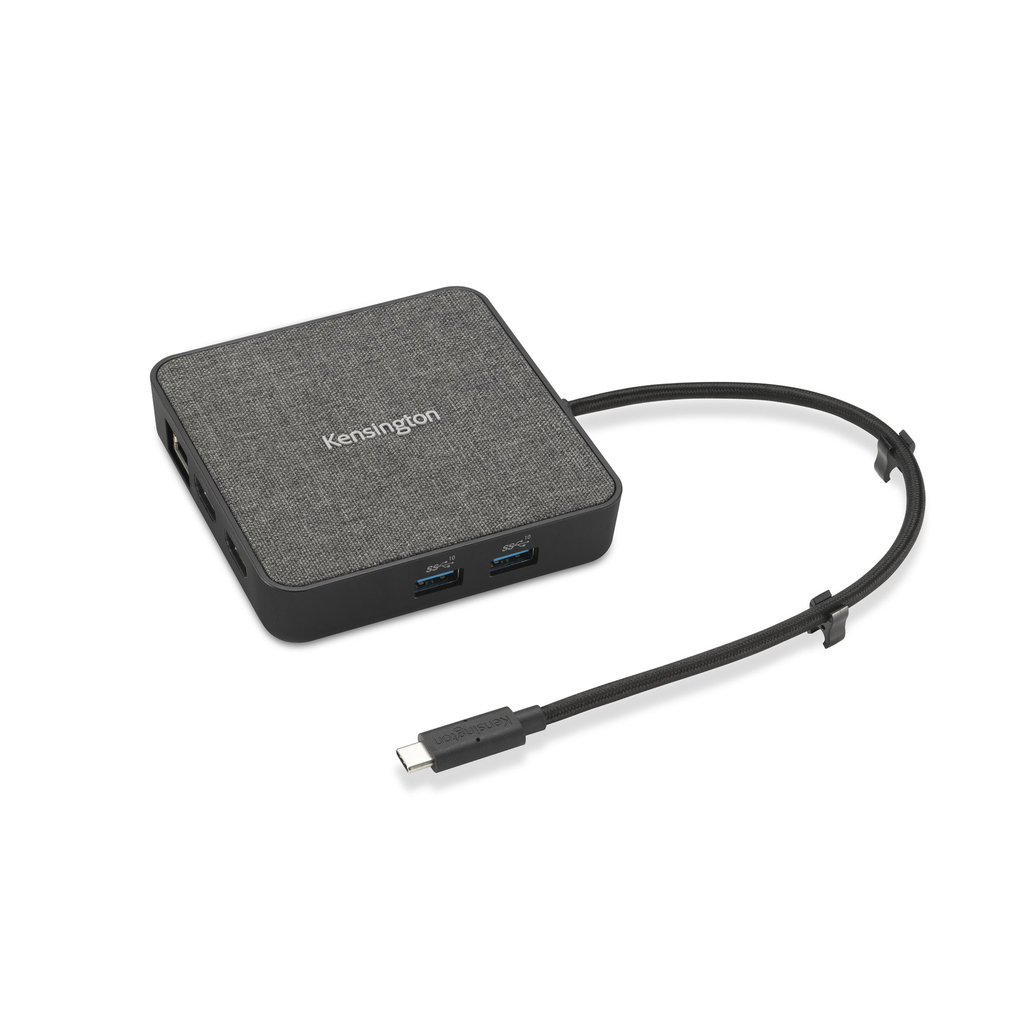

Kensington MD120U4 USB4 Portable Docking Station
MD120U4 USB4 Portable Docking Station
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

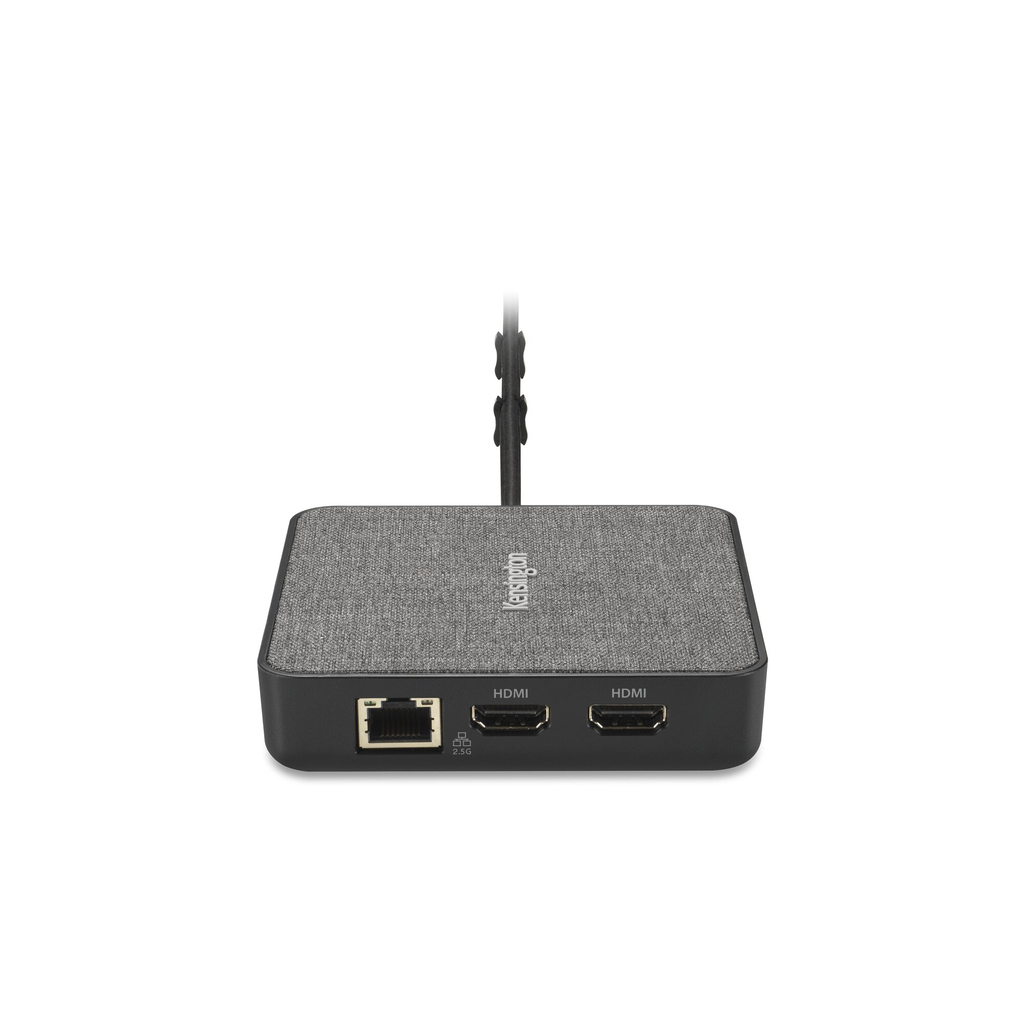

Pioneering innovation with one of the first mobile USB4 docking stations, Kensington proudly presents the MD120U4 USB4 Portable Docking Station. MD120U4 delivers all the power of USB4, including dual 4K* support, up to 40Gbps upstream speed and 100W power pass-through – in a solution designed to support numerous devices and operating systems. An ideal choice for hybrid workers who wish to travel with less weight and clutter, power pass-through eliminates the need to travel with an additional power brick. A variety of productivity ports minimise the need for additional adapters. Includes 2 x HDMI ports, 1 x USB-C port, 2 x USB-A ports and 1 x 2.5Gbps Ethernet port for productivity anywhere.
Universal Compatibility

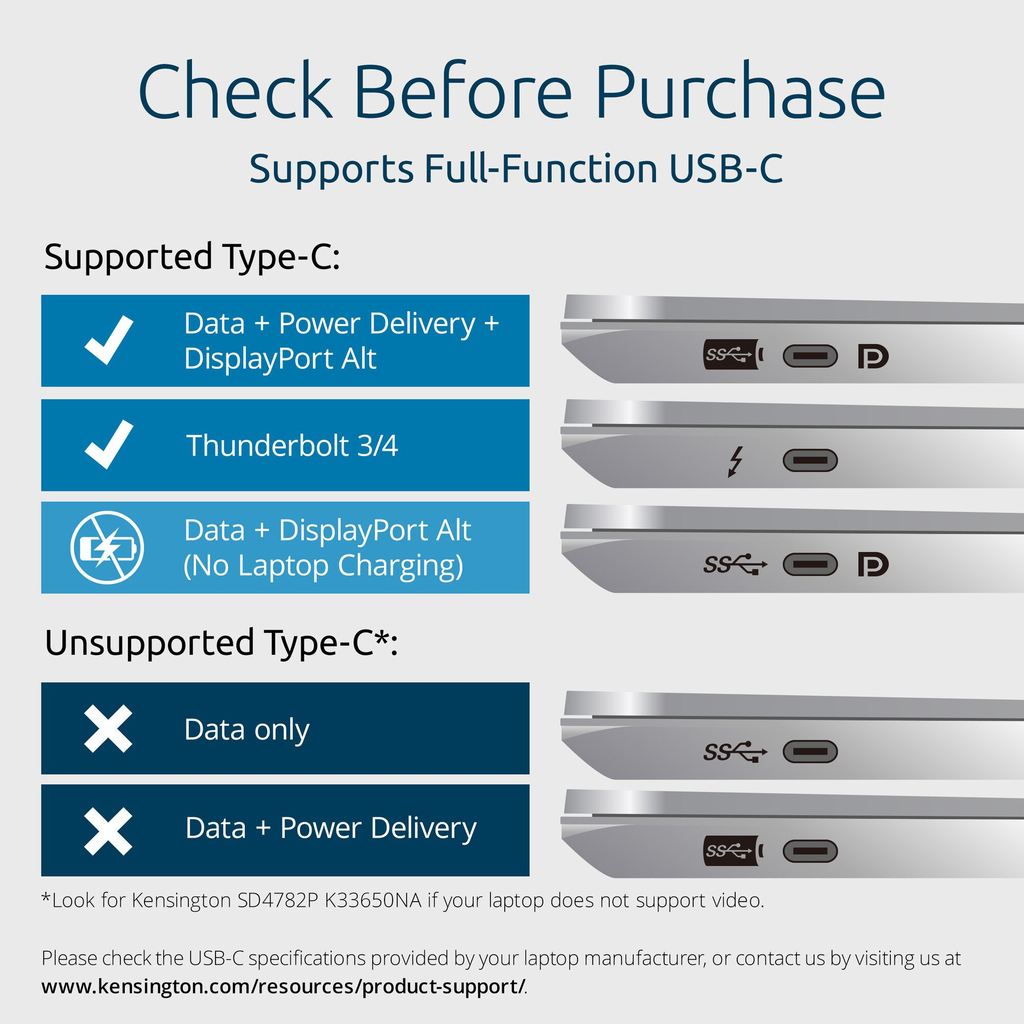

Leading the way with USB4, this dock supports numerous technologies, operating systems and devices. These include USB4, Thunderbolt 3, Thunderbolt 4, and USB-C 3.2 devices running Windows, macOS, iPadOS and Samsung DeX. Ideal for MacBooks with Apple Silicon, USB-C based iPads, USB4-enabled AMD laptops and more
Maximises Video Output
2 x HDMI 2.1 ports deliver up to 8K @ 60Hz for single monitor and up to 4K @ 120Hz for dual monitors* so you can extend your visual productivity with the resolution, contrast and colour depth of Ultra HD.*Dual 4K not applicable to all devices. Single monitor only for MacBook up to 4K @ 60Hz, and up to 2K @ 60Hz for iPads and Samsung DeX enabled devices (resolution may vary based on device).
Up to 100W Power Pass-Through
Plug your laptop’s USB-C power adapter (80W or greater) into the dock for pass-through power to the laptop (USB-C device must support Power Delivery), or power the dock and connected devices using the laptop’s battery when travelling. Add the optional 100W Power Adapter (sold separately) for video, data and power all in one dock.
Productivity Ports

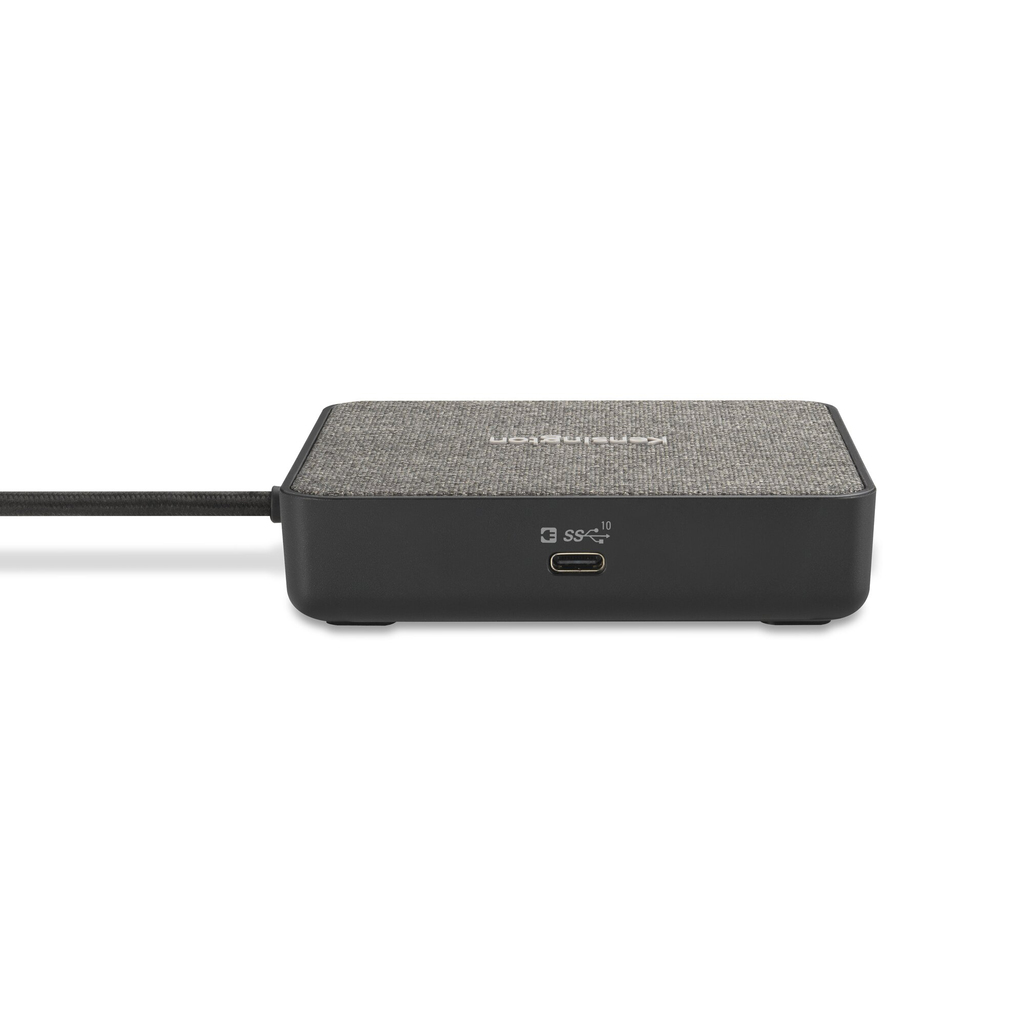

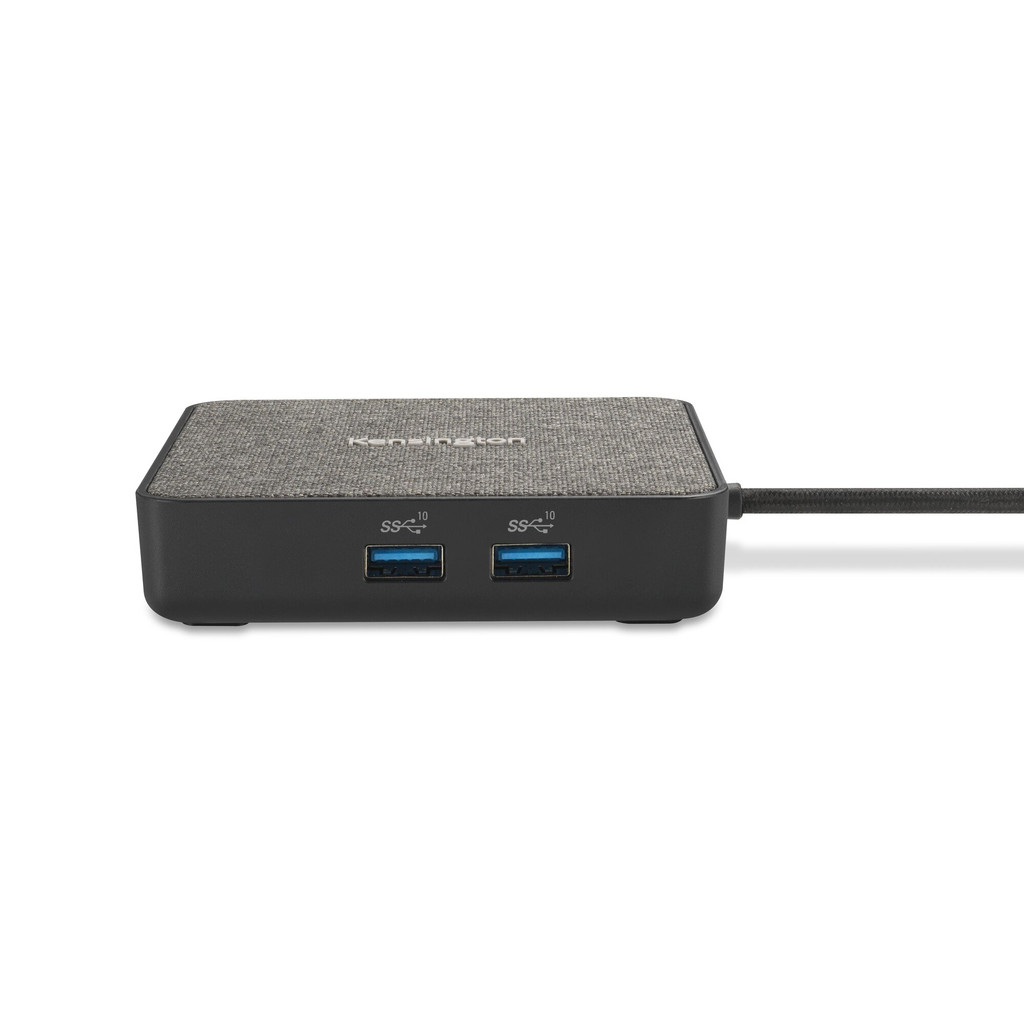

Extend productivity with up to 40Gbps upstream speed. Includes 1 x USB-C 3.2 Gen2 port supporting data transfer and power pass-through (5V/0.9A charging via bus power, up to 100W charging via power pass-through), 2 x USB-A 3.2 Gen2 ports and 1 x 2.5Gbps Ethernet port.
Sleek, Compact Design
Ideal for the hybrid worker, the dock fits into your backpack or carrying case for productivity on the go. The matte, soft-touch coating and soft fabric surface add protection while visually complementing your workspace.
Cable Storage Clips
Neatly stow the 25cm (9.8”) USB4 cable during transport and when not in use.
Additional information
Weight | 0.3 lbs |
---|---|
Connectivity technology | Wired |
Host interface | USB4 |
HDMI ports quantity | 2 |
HDMI version | 2.1 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 1000,2500,10,100 Mbit/s |
Product colour | Black |
Card reader integrated | No |
HD type | 8K Ultra HD |
Maximum refresh rate | 144 Hz |
Country of origin | China, Taiwan |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
Operating temperature (T-T) | 0 – 45 °C |
Operating relative humidity (H-H) | 0 – 55% |
Width | 101 mm |
Depth | 101 mm |
Height | 22.9 mm |
Weight | 190 g |
Quantity per pack | 1 pc(s) |
Package width | 123 mm |
Package depth | 201 mm |
Package height | 41 mm |
Package weight | 430 g |
Plug and Play | Yes |
Storage temperature (T-T) | 0 – 60 °C |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB Power Delivery (USB PD) | Yes |
USB Power Delivery revision | 3.0 |
USB Power Delivery up to | 100 W |
Number of displays supported | 2 |
Housing material | Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC), Steel |
Output voltage | 5 – 20 V |
Output current | 5 A |
Warranty card | Yes |
Quick start guide | Yes |
Compliance certificates | CB, Federal Communications Commission (FCC), RoHS |
Products per master (outer) case | 5 pc(s) |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Data transfer rate | 10 Gbit/s |
Power source type | USB |
Microphone in | No |
USB Type-C DisplayPort Alternate Mode | Yes |
Mobile operating systems supported | iPadOS |
Compatible operating systems | macOS 11 or above; Samsung DeX®; iPadOS 13 or above; Windows 10 or above |
USB ports quantity | 3 |
