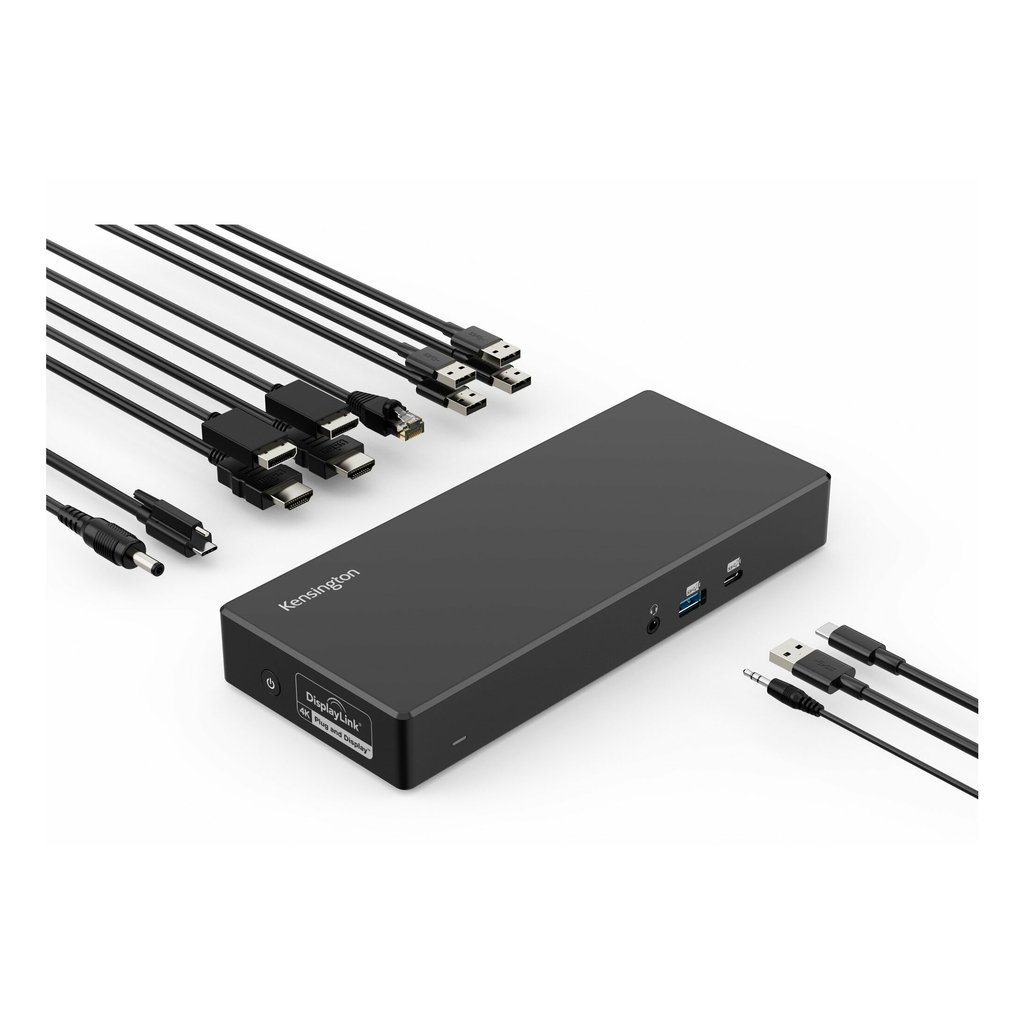

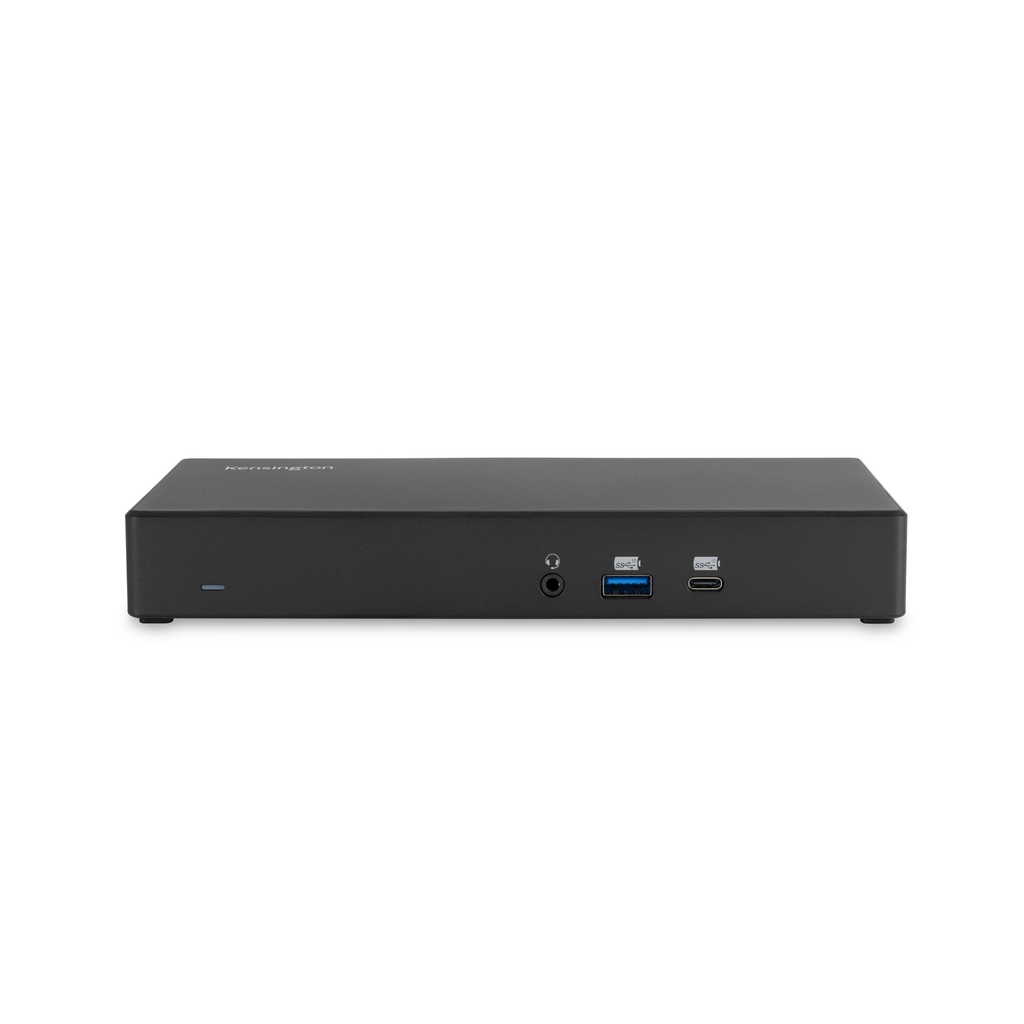

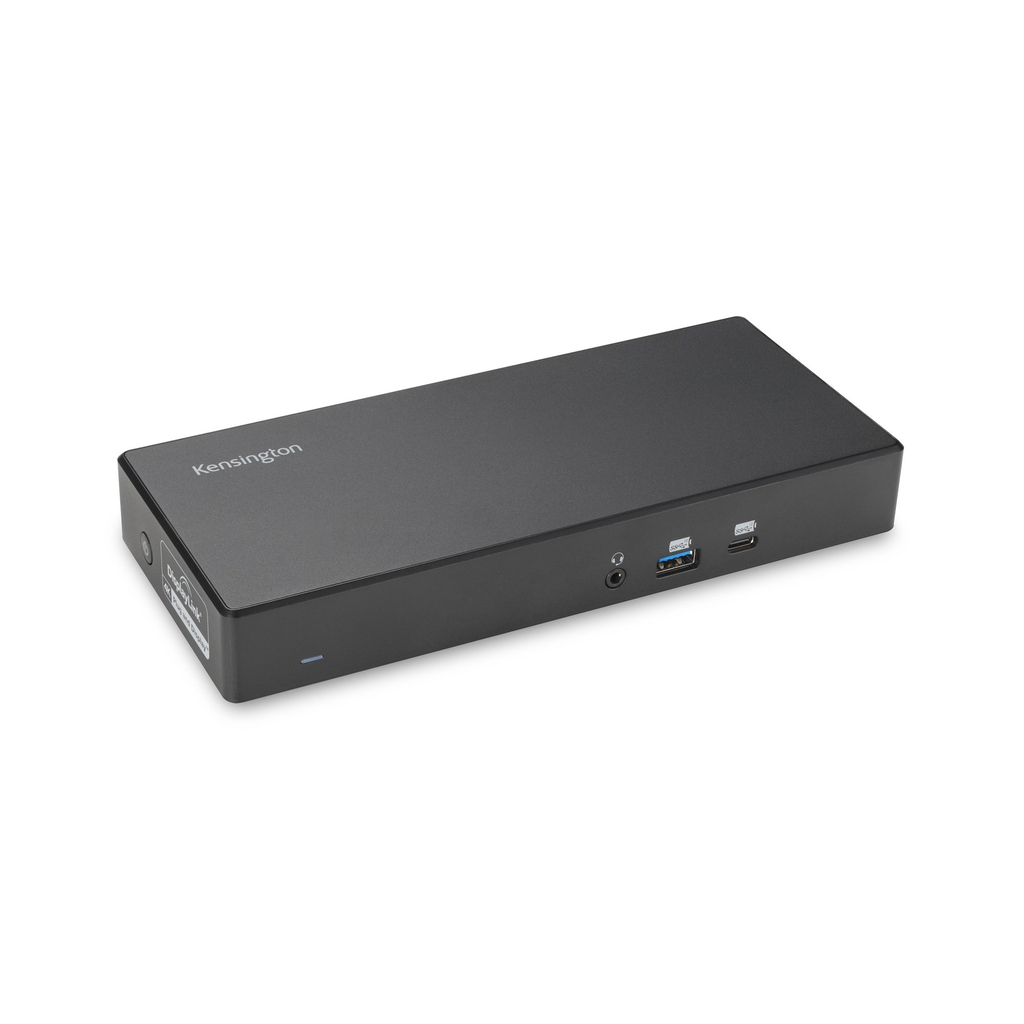

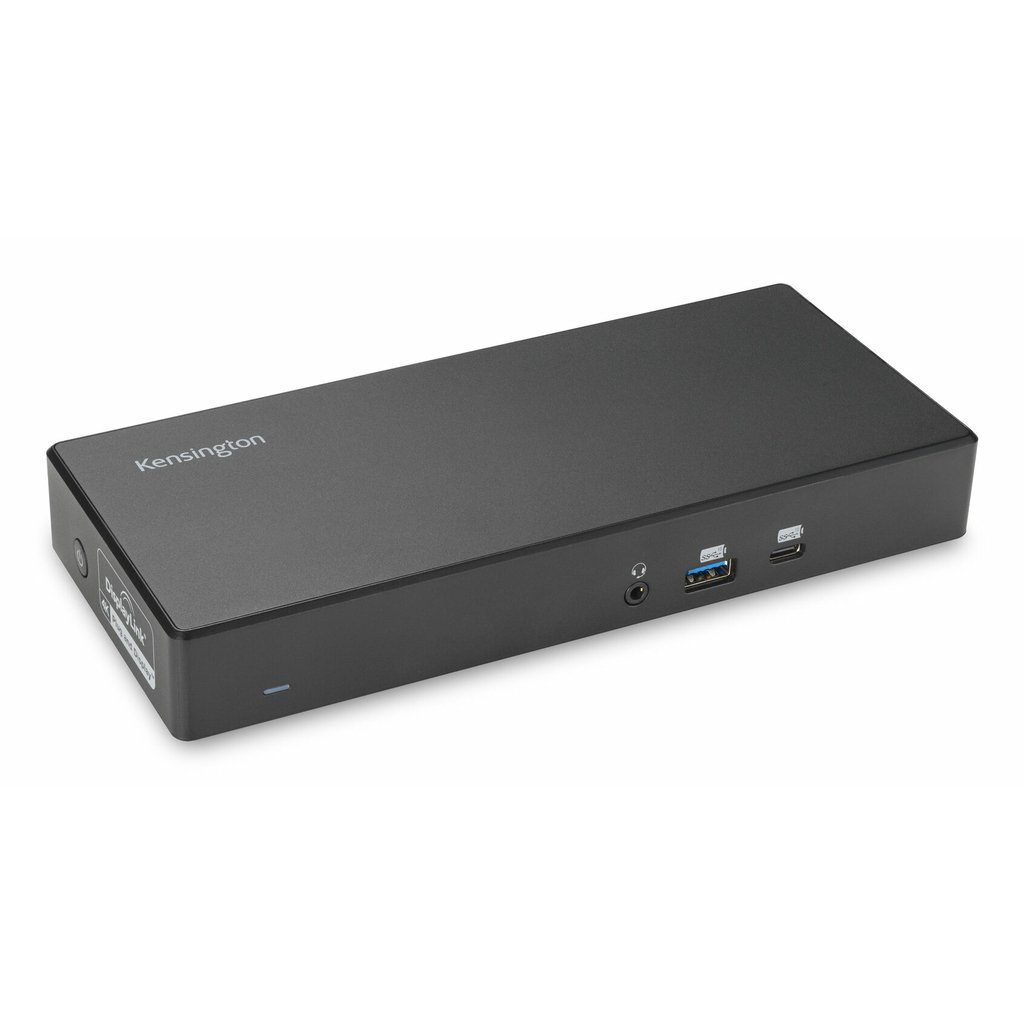

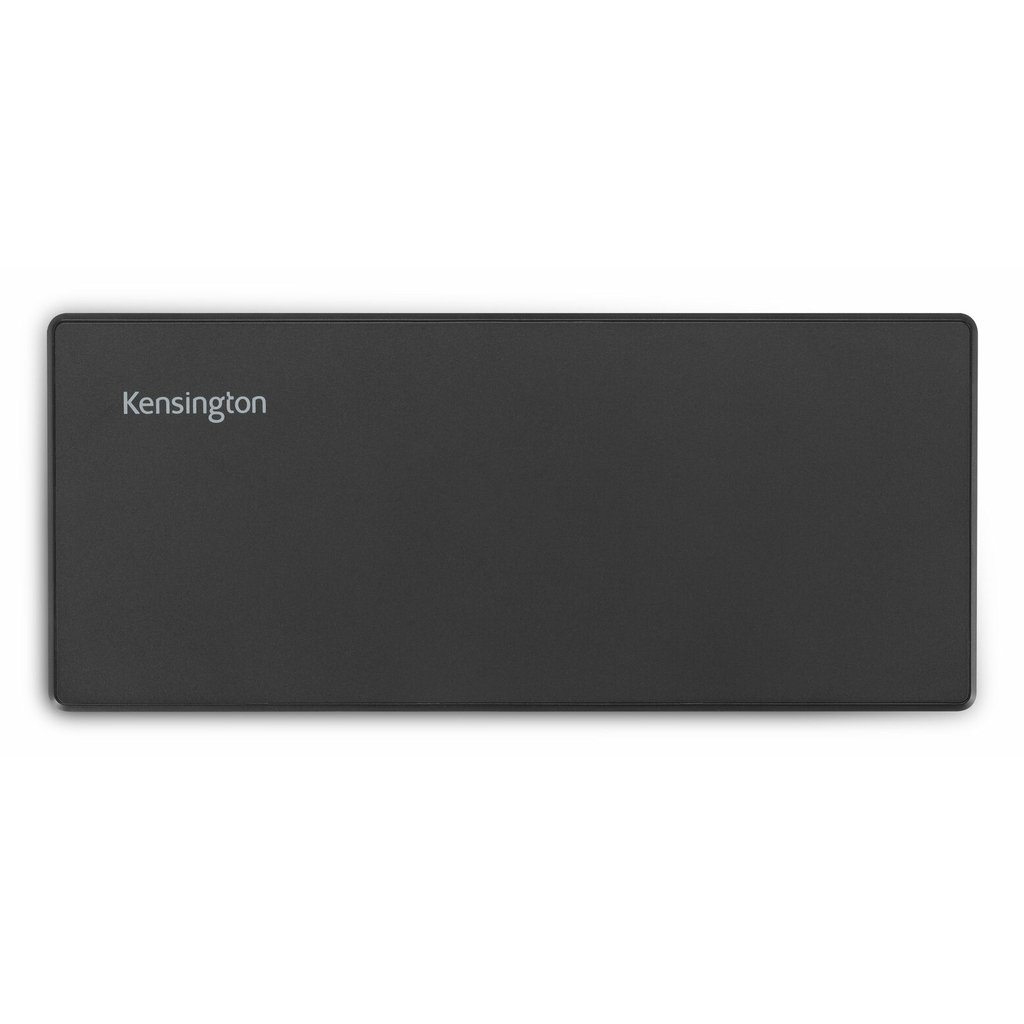

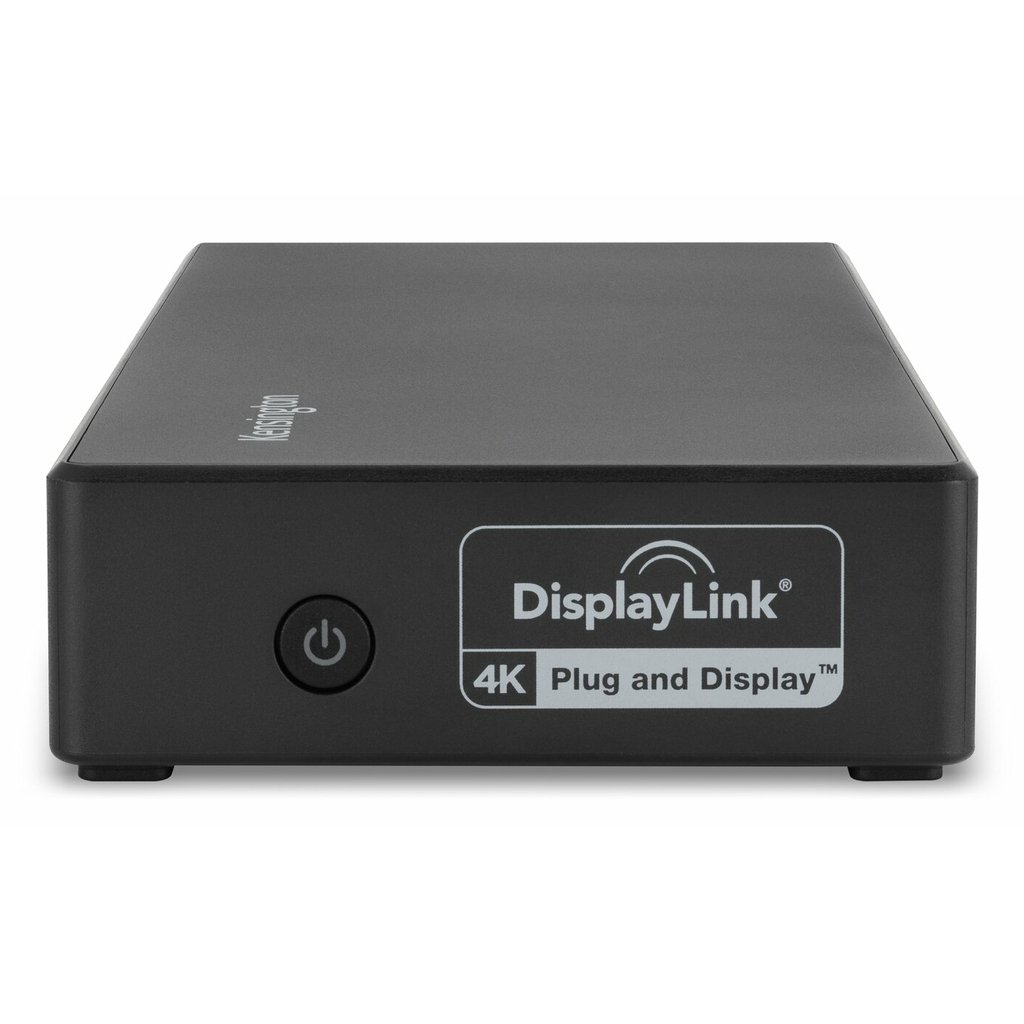

Kensington SD4781P EQ USB-C & USB-A Dual 4K Docking Station
SD4781P EQ USB-C & USB-A Dual 4K Docking Station
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

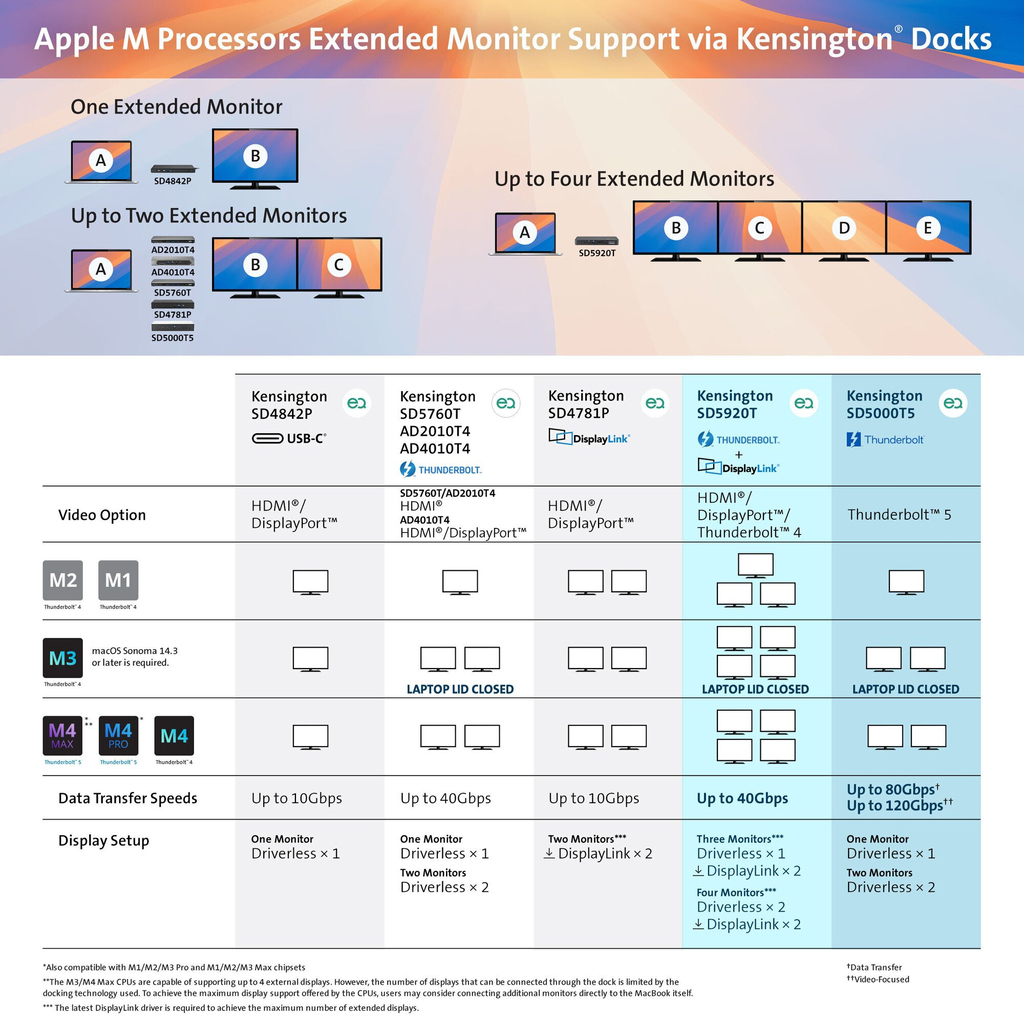

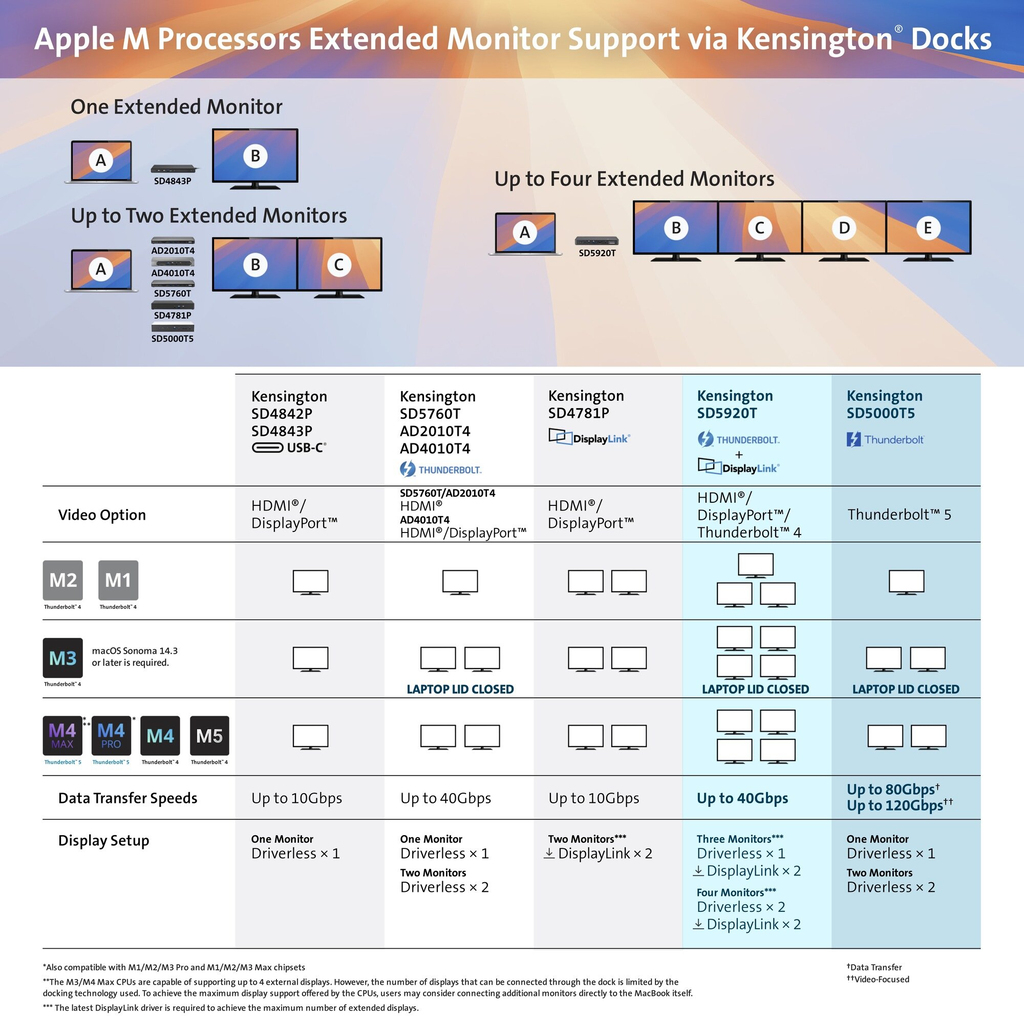

Ideal for professionals requiring a single docking solution for a mixed estate of devices and organisations putting sustainability at the forefront, the SD4781P EQ USB-C® & USB-A Dual 4K Docking Station is a versatile dock that supports the latest USB-C® and legacy USB-A* laptops – including dual monitor support for MacBook M1/M2/M3 laptops.

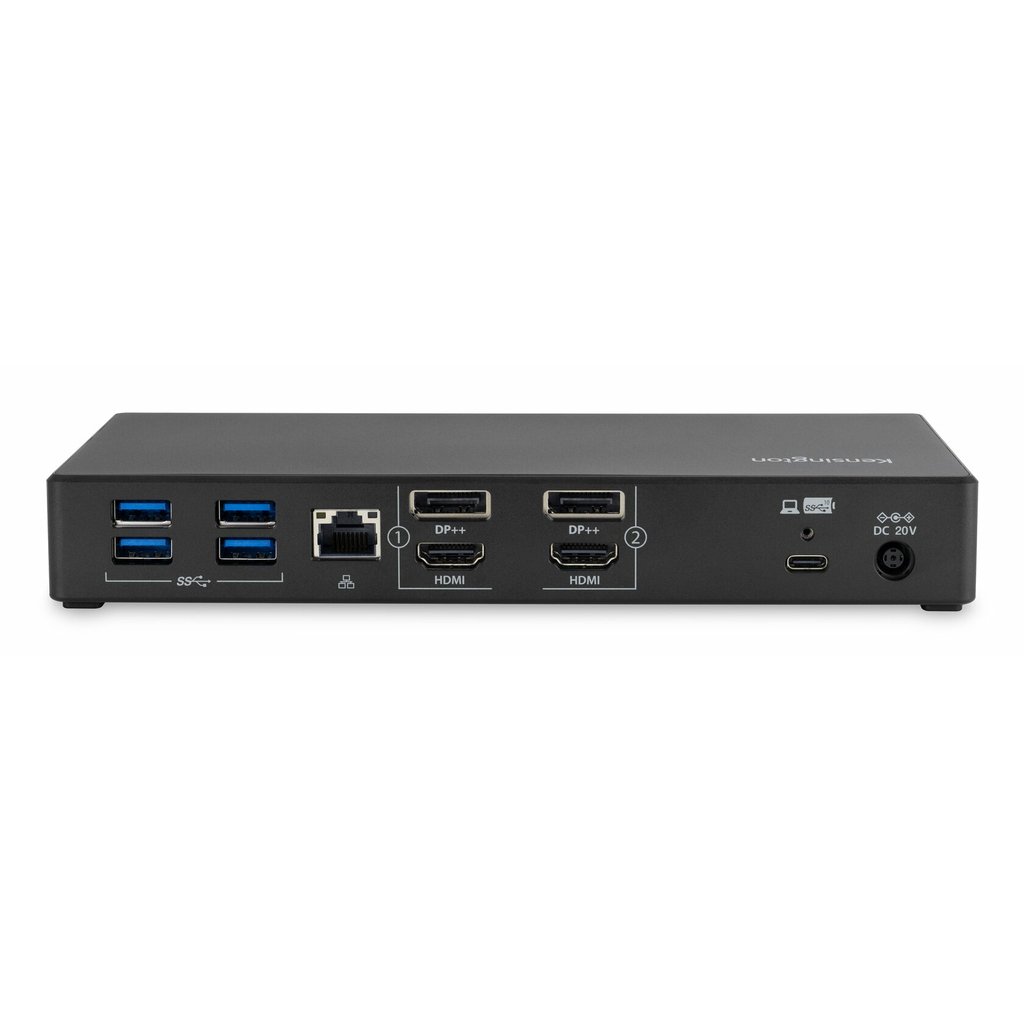

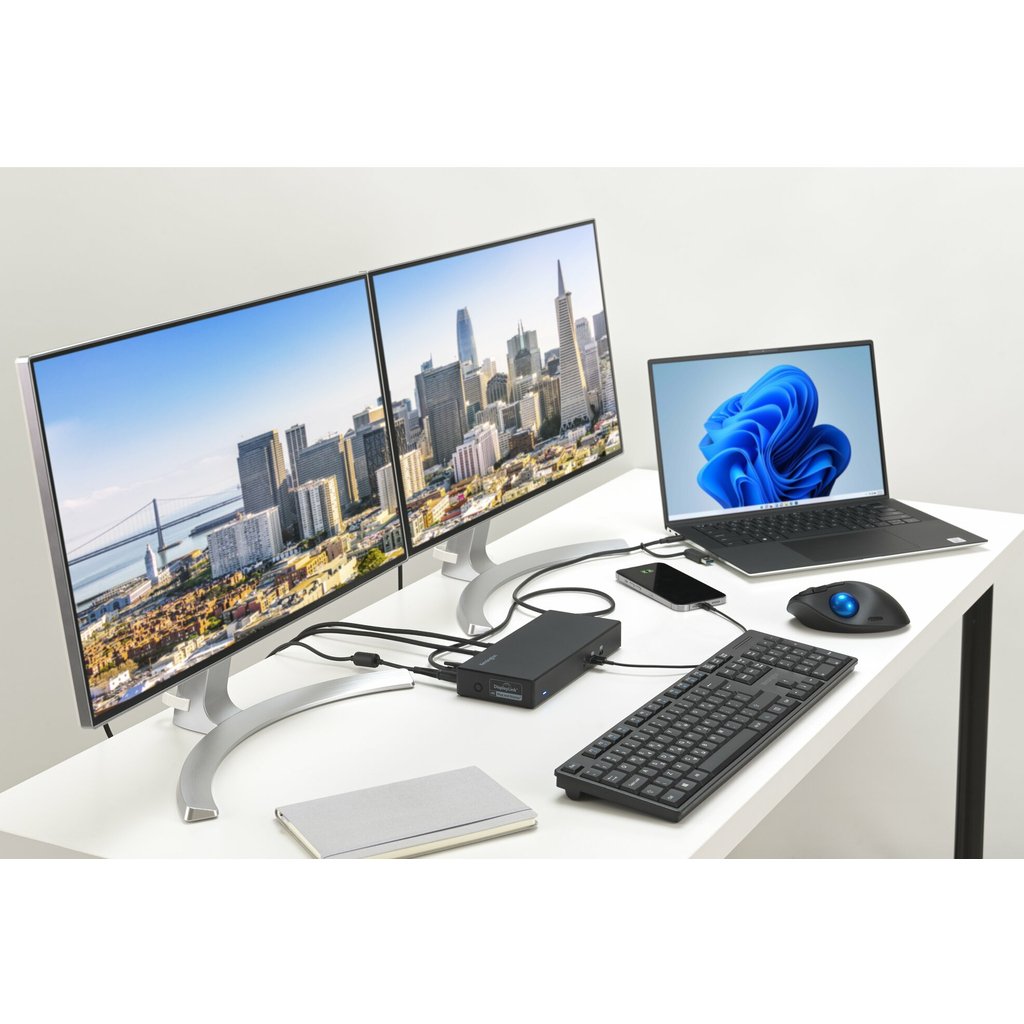

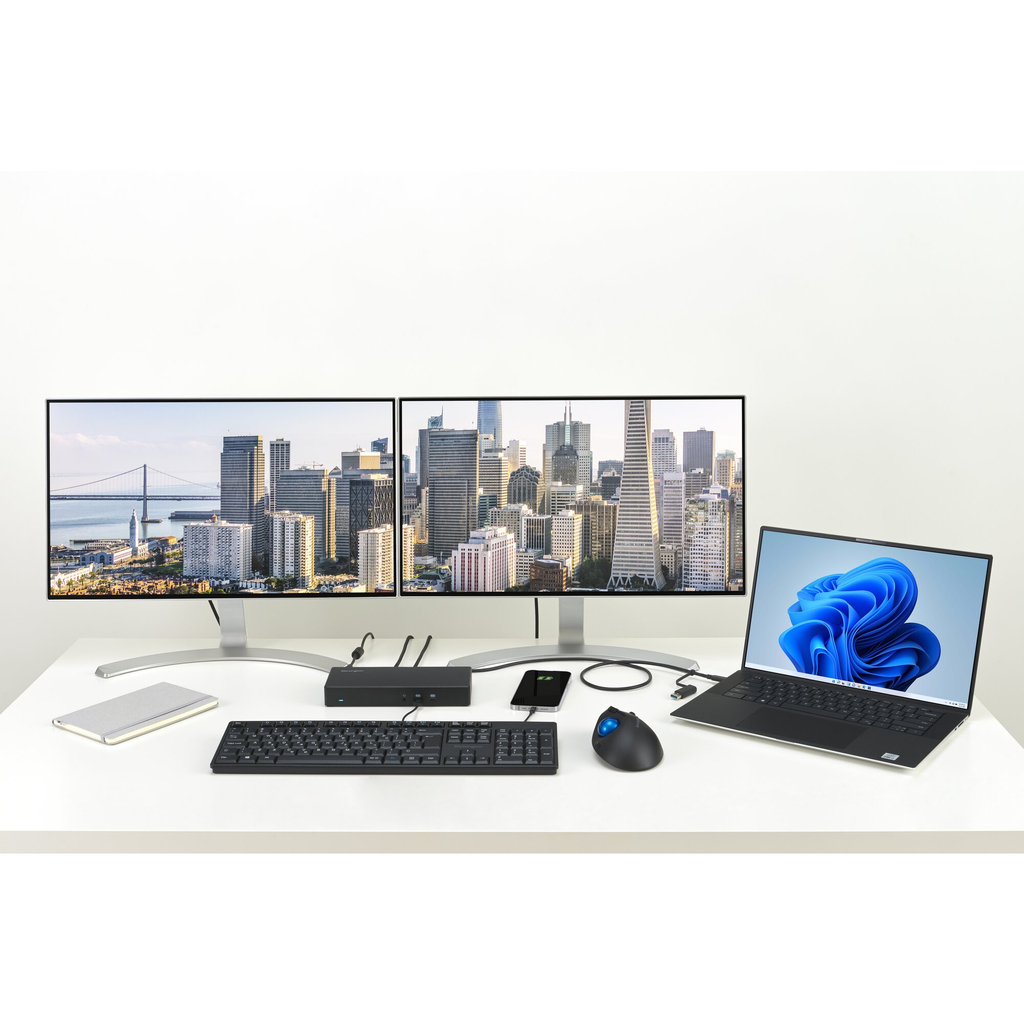

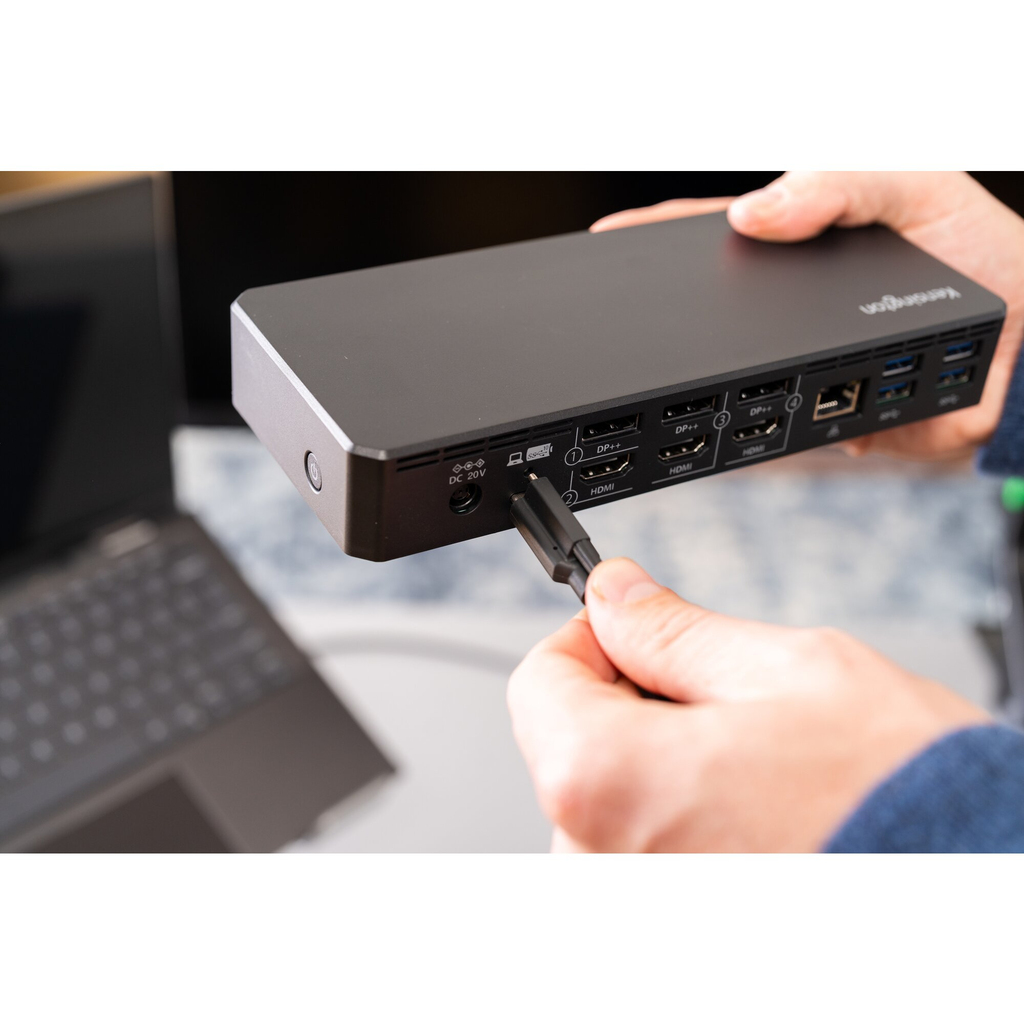

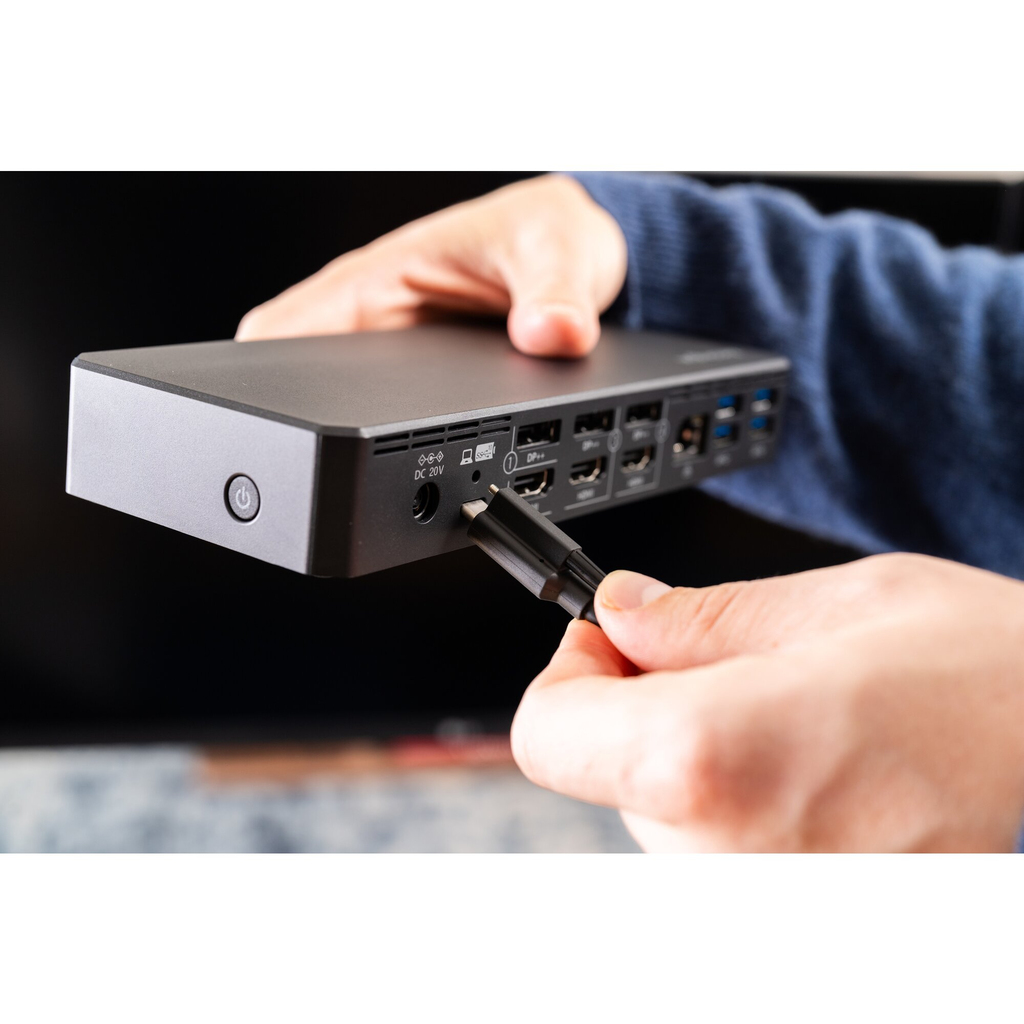

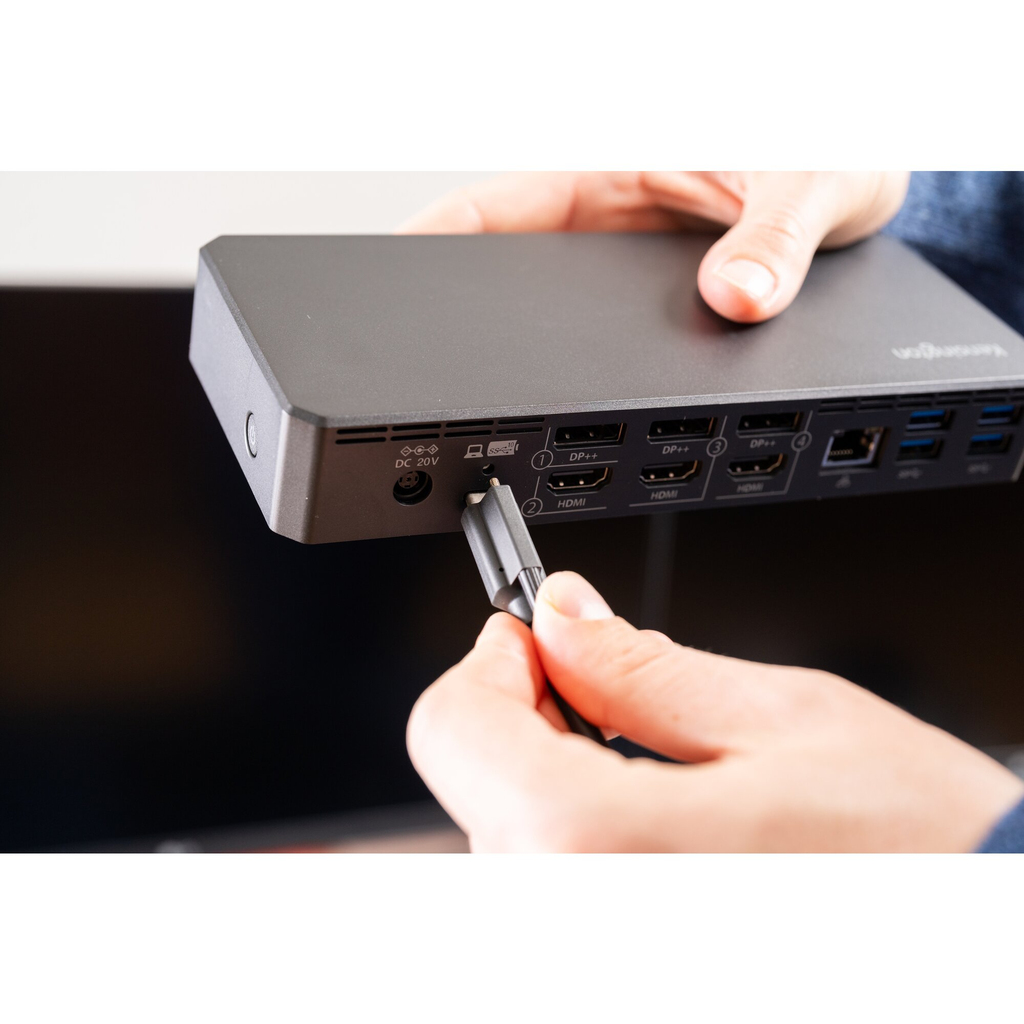

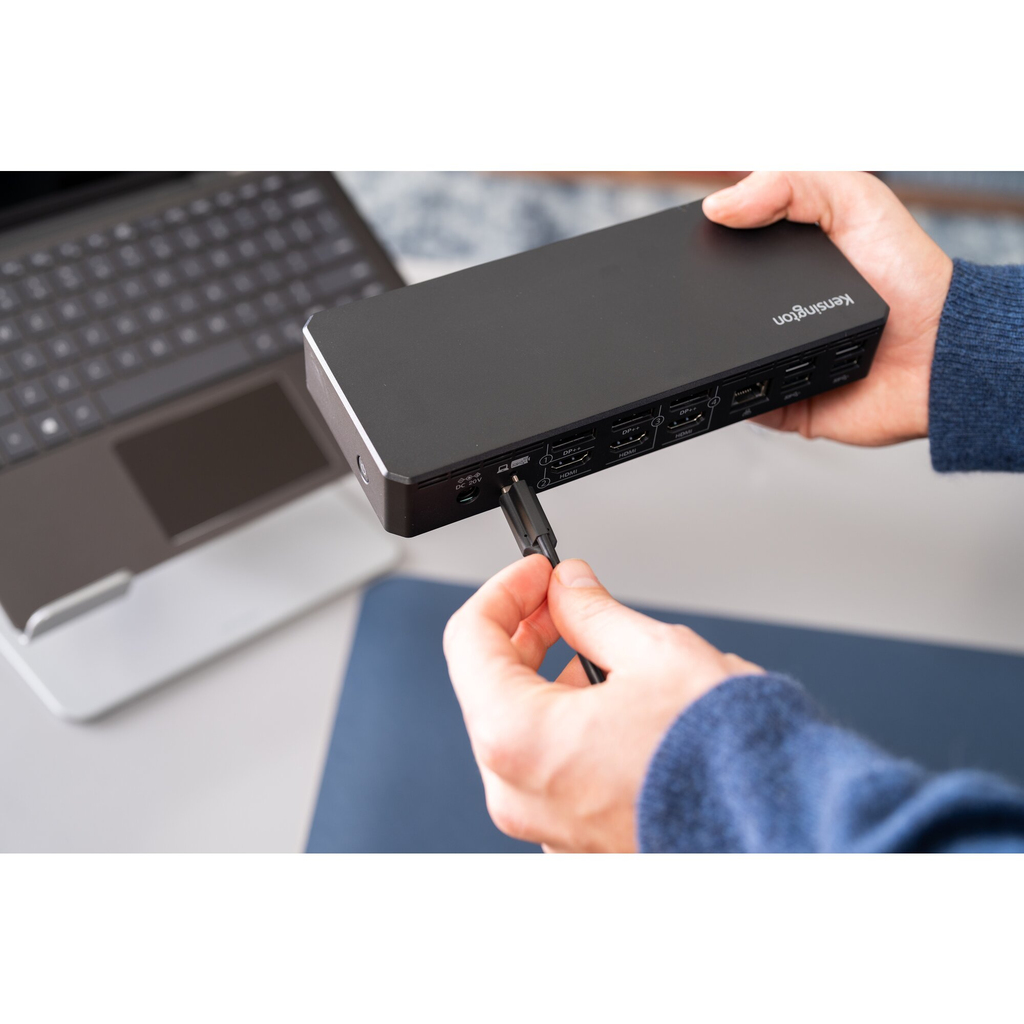

SD4781P’s outer case is composed of up to 50% post-consumer recycled content (PCR), aimed at reducing our environmental impact. The docking station supports up to 2 external Ultra HD monitors (4K @ 60Hz), with the ability to select between HDMI® 2.0 and DP++ 1.2 connections. A secure screw lock USB-C cable ensures the cable remains in place even in busy office environments.
Together with data transfer speeds up to 10Gbps via 6 x USB ports and up to 100W Power Delivery, the SD4781P EQ USB-C® & USB-A Dual 4K Docking Station is the perfect solution for a wide range of different workstation setups.
* USB-A devices require an alternative power source, sold separately.
Additional information
| Weight | 1.56 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Country of origin | Thailand |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 55% |
| Width | 210 mm |
| Depth | 90 mm |
| Height | 30 mm |
| Weight | 395 g |
| Quantity per pack | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 235 mm |
| Package height | 30 mm |
| Package weight | 1.46 kg |
| Plug and Play | No |
| Storage temperature (T-T) | -18 – 60 °C |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |

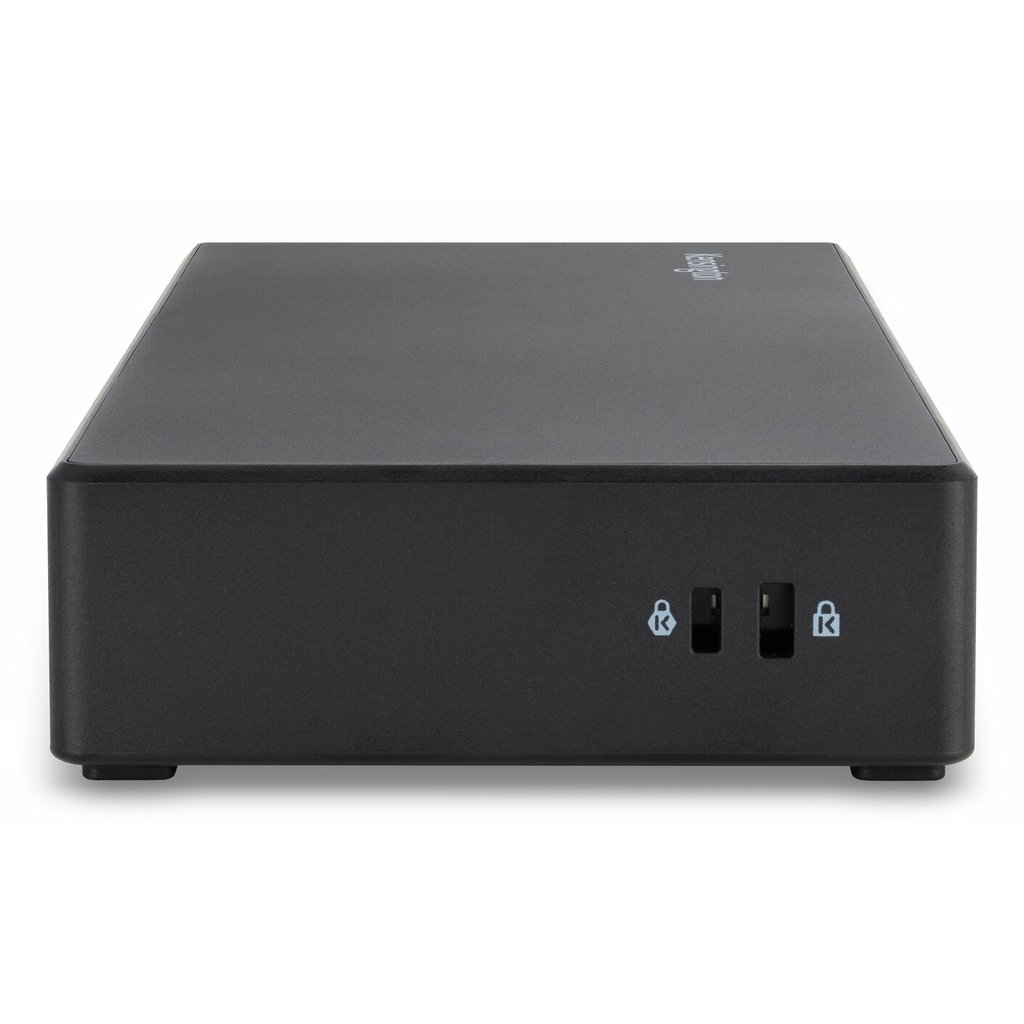

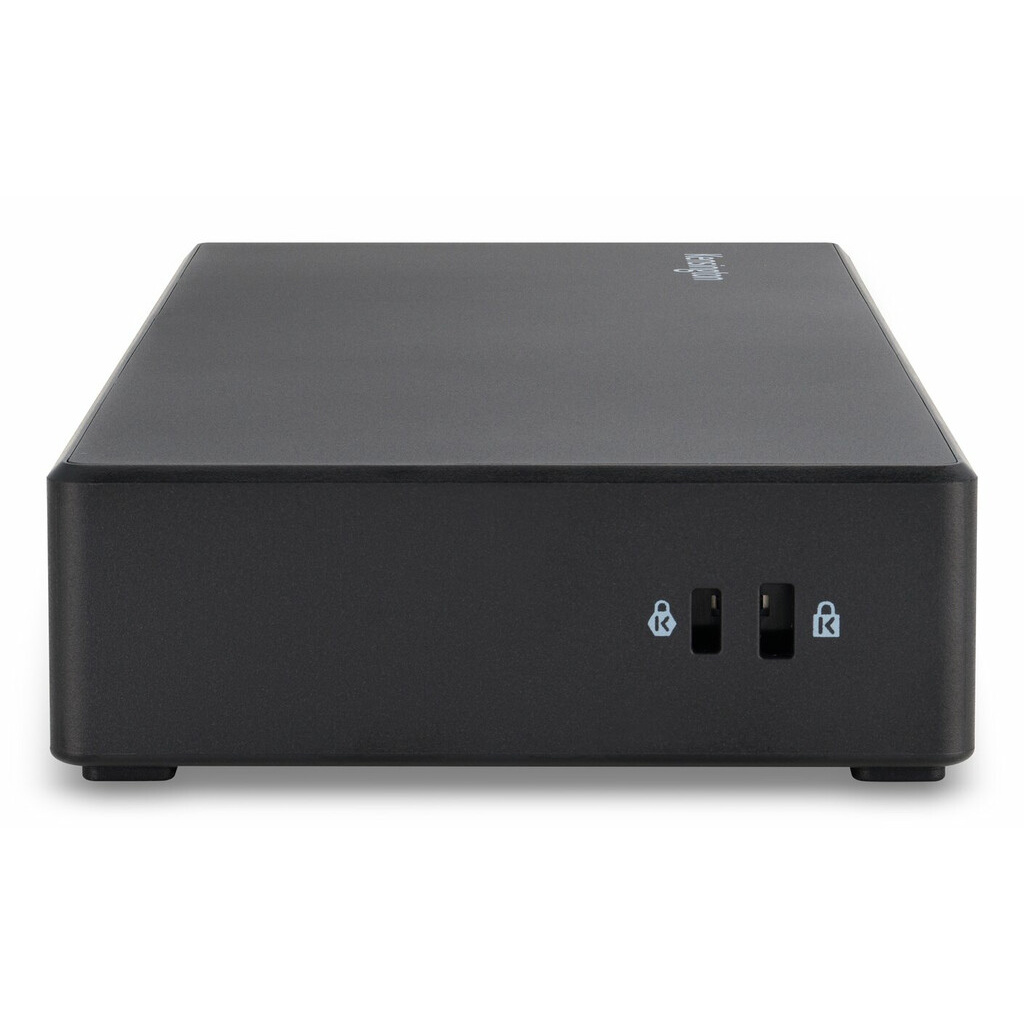

| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC) |
| AC input voltage | 100 – 240 V |
| Input current | 1.8 A |
| Output voltage | 20 V |
| Output current | 8.5 A |
| Warranty card | Yes |

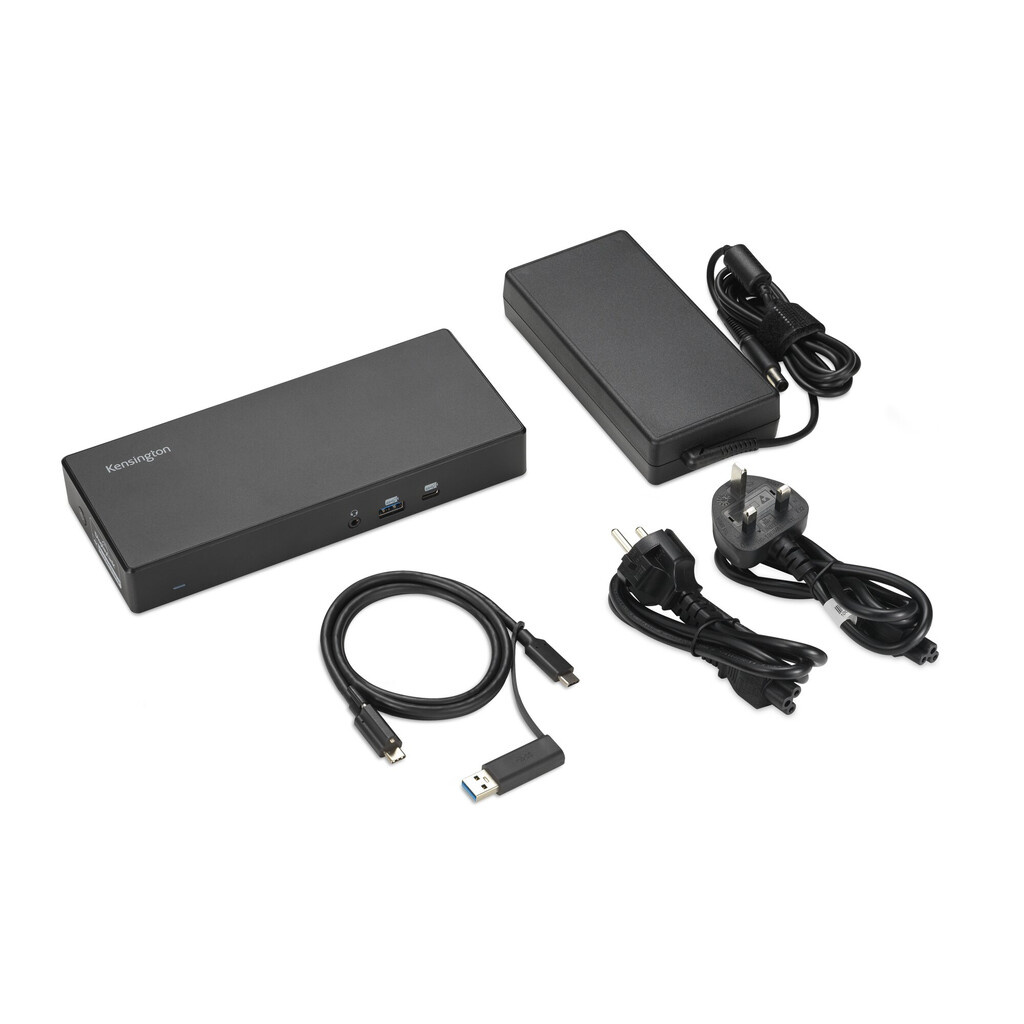

| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Compliance certificates | CB, CE, RoHS, UKCA |
| Products per master (outer) case | 6 pc(s) |
| Minimum system requirements | Intel Core i5 6th+8Gb RAMIntel HD Graphics 620 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Data transfer rate | 10 Gbit/s |
| Power source type | DC |
| Other operating systems supported | ChromeOS |
| Microphone in | No |
| Compatible power plug types | EU, UK |
| Master (outer) case width | 285 mm |
| Master (outer) case length | 486 mm |
| Master (outer) case height | 195 mm |
| Sustainability compliance | Yes |
| Interface adapters included | USB Type-A male – USB Type-C female |
| Sustainability certificates | ErP |
| Compatible operating systems | macOS 10.14 or above; Windows 7 or above; Chrome OS 44 or above |
| USB ports quantity | 6 |
| Compatibility | MacBook M-Series Base Chipset |
| Master (outer) case gross weight | 9.54 kg |
| Special features | EQ |
| Master (outer) case net weight | 9.54 kg |
