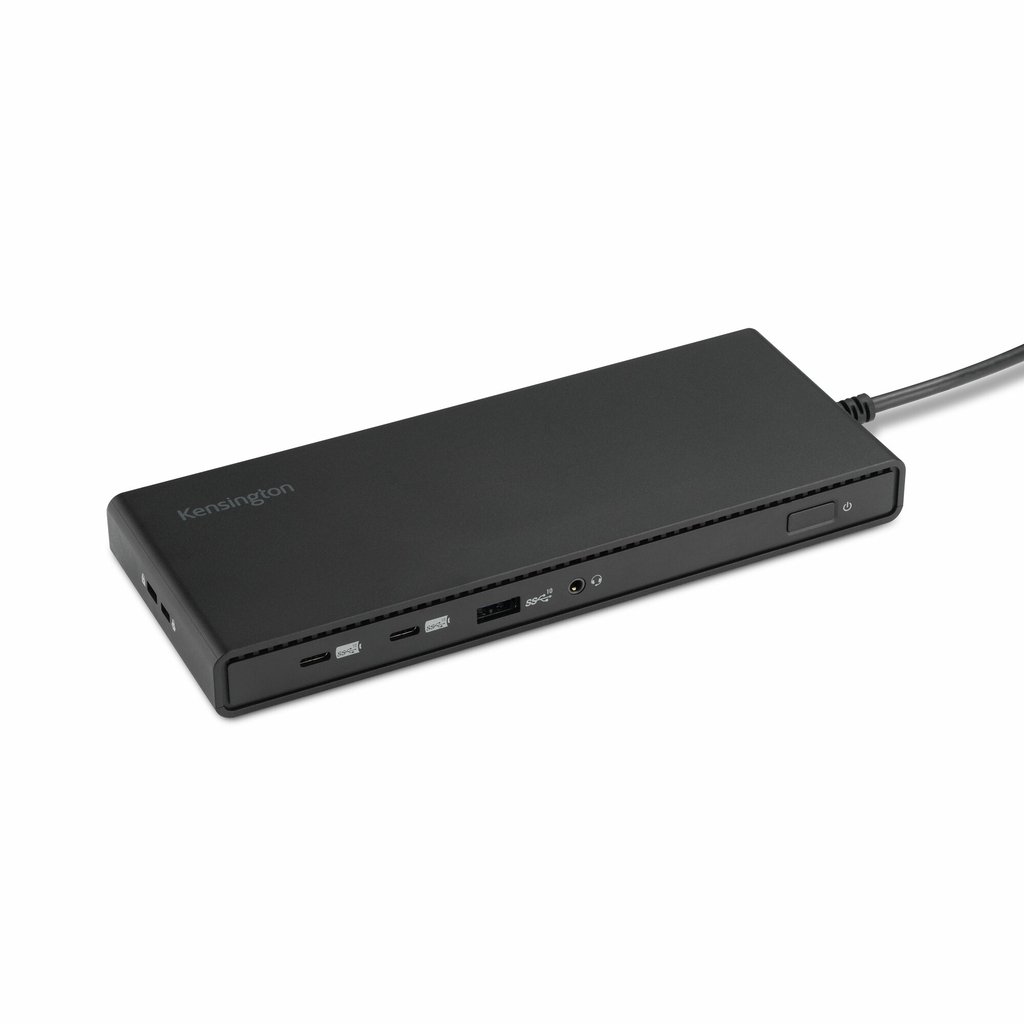

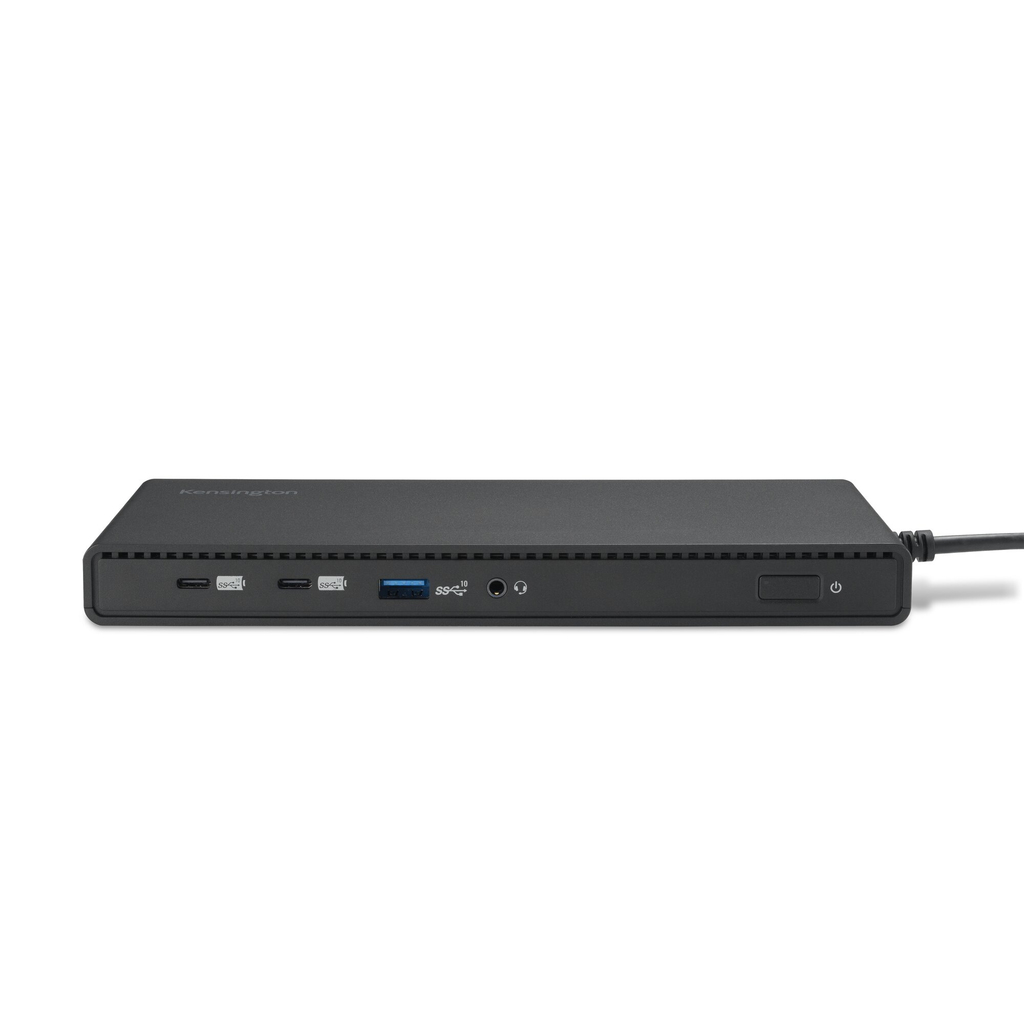

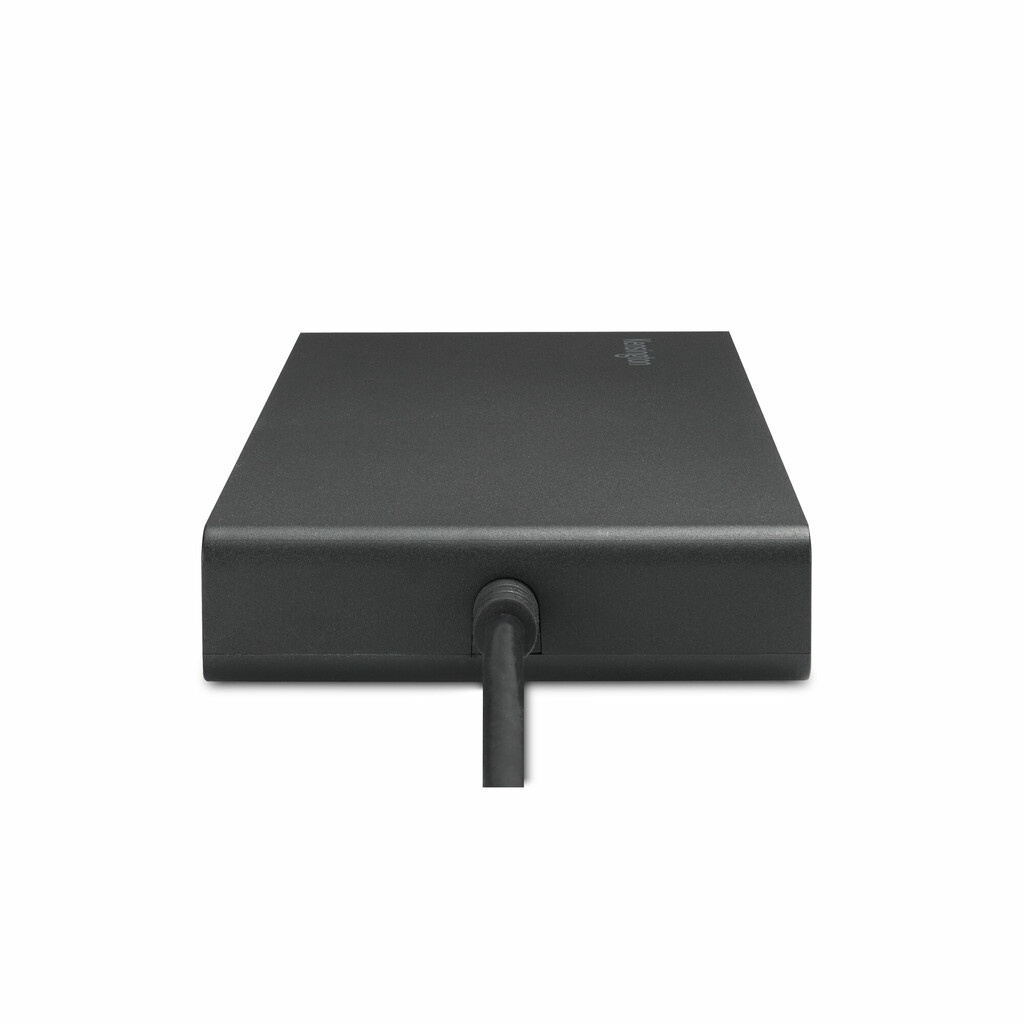

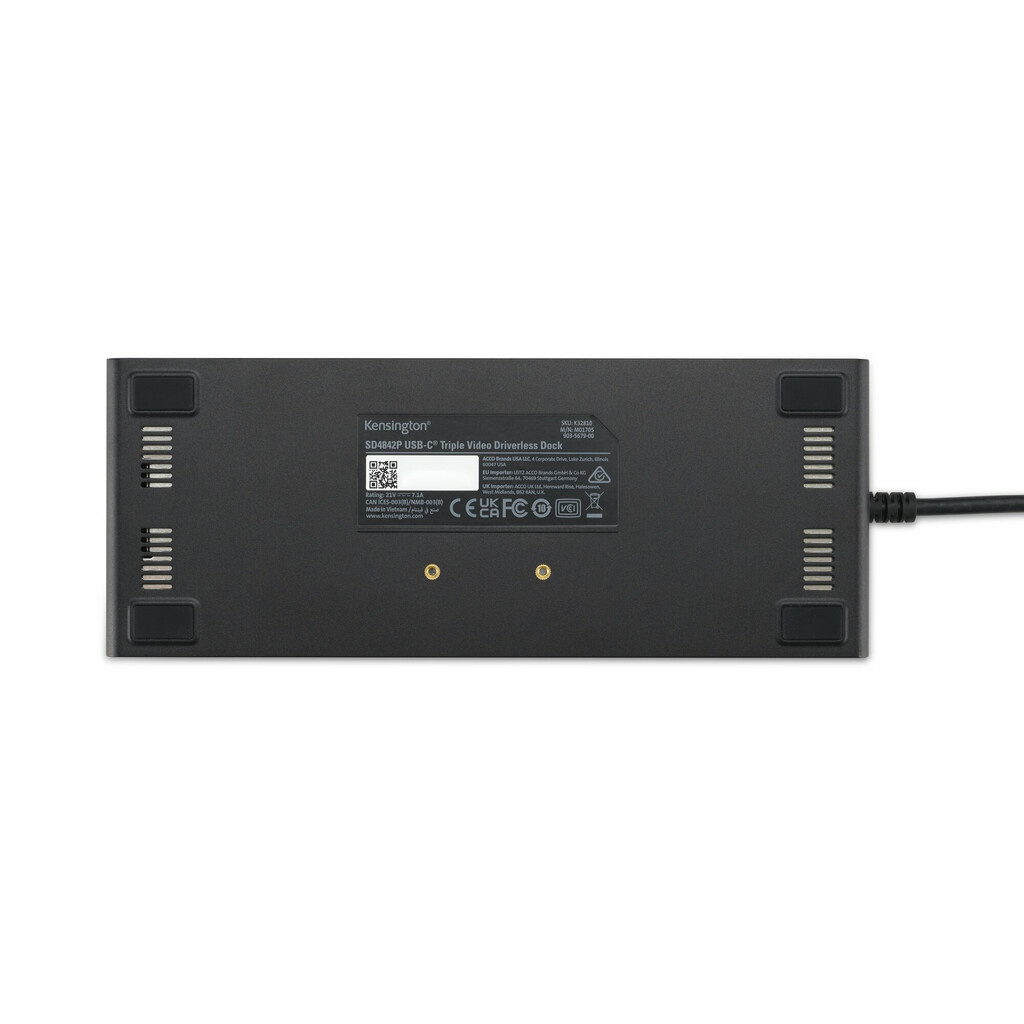

Kensington SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station with 100W Power Delivery
SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station with 100W Power Delivery
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity.

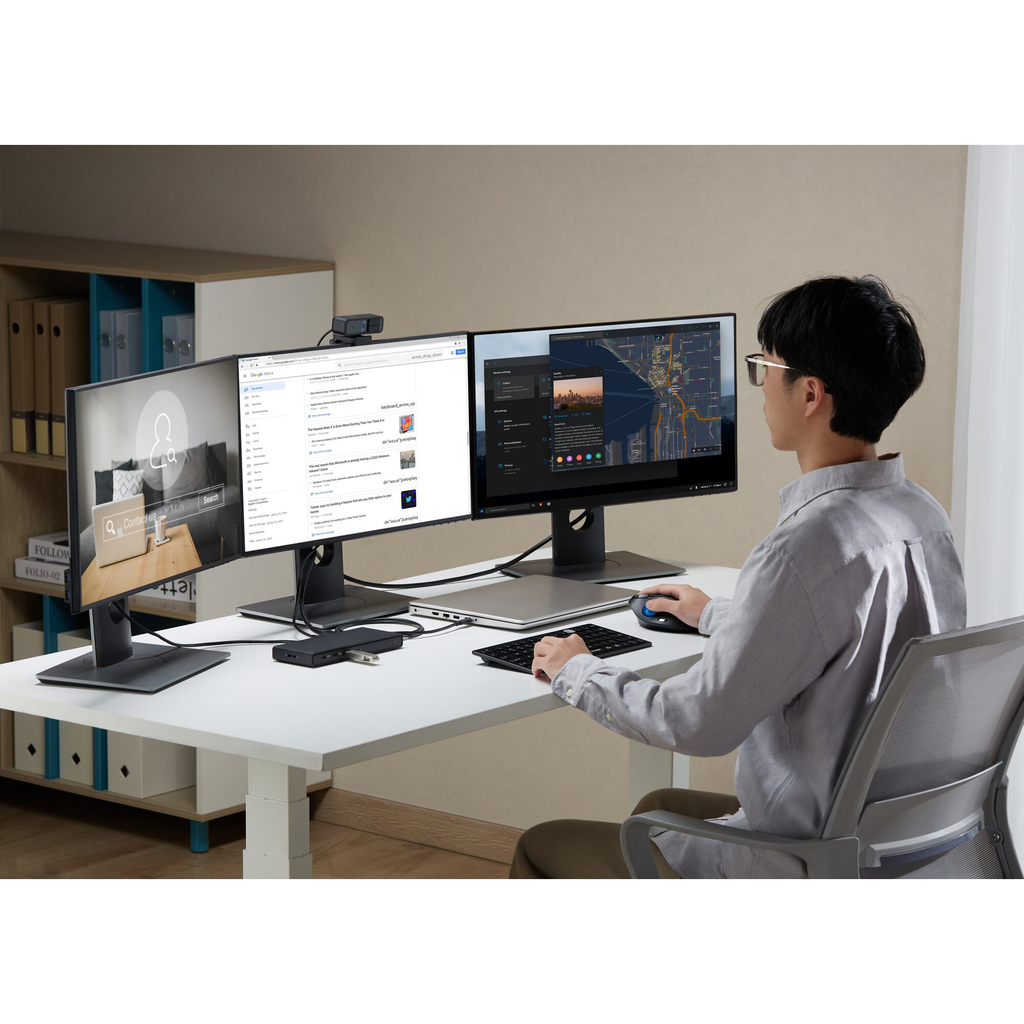

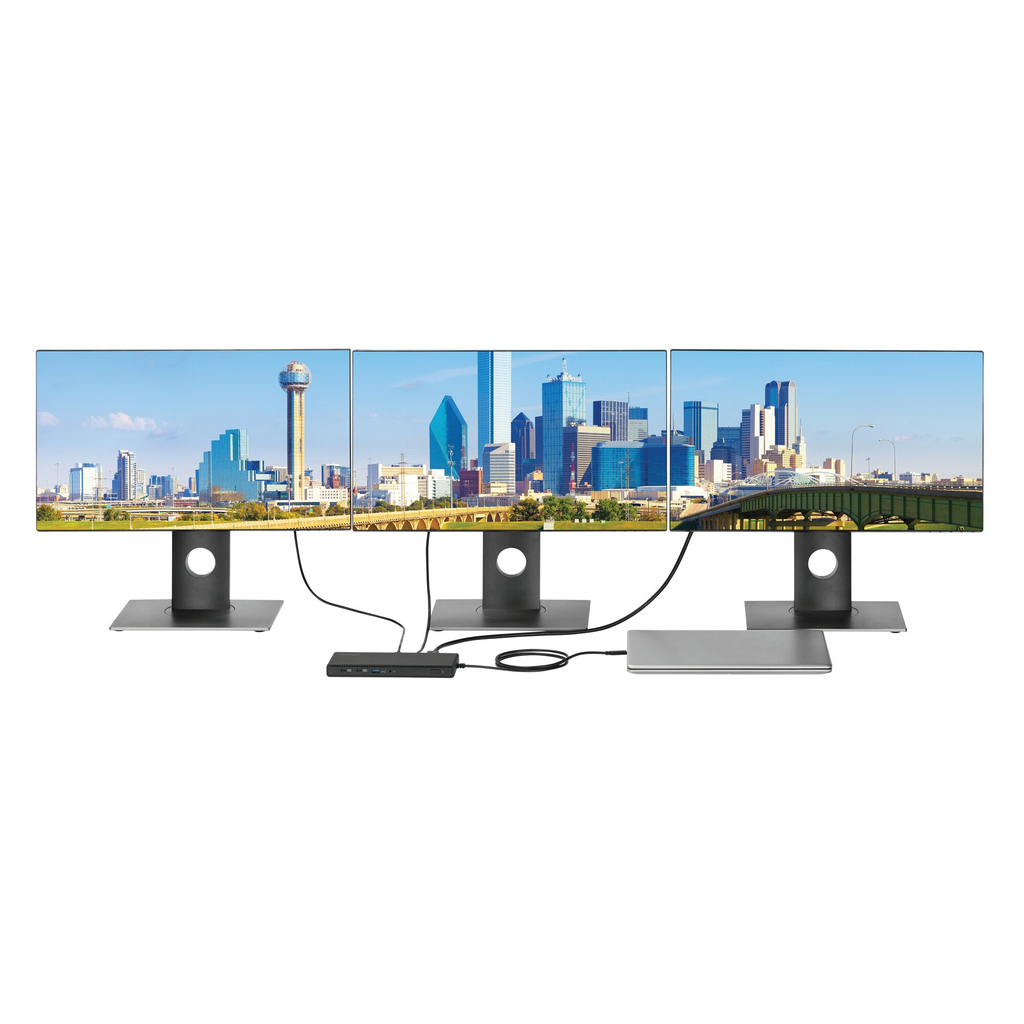

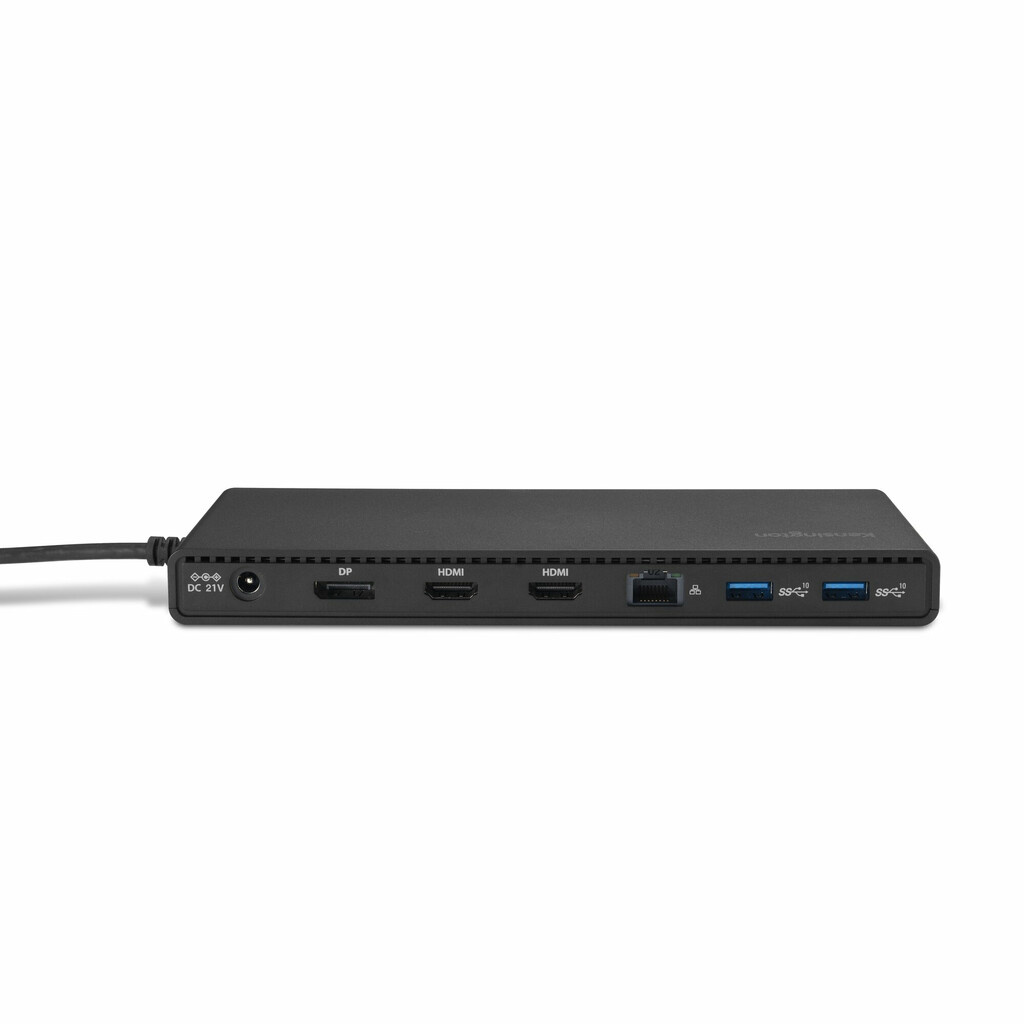

Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of up to 70% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection.
Expand your screens with an effortless dock that will enhance your workflow.
Additional information
| Weight | 1.24 lbs |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Product colour | Black |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 120 Hz |
| Country of origin | Vietnam |
| Windows operating systems supported | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 55% |
| Width | 195 mm |
| Depth | 104 mm |
| Height | 36 mm |
| Weight | 293 g |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 245 mm |
| Package height | 100 mm |
| Package weight | 1.15 kg |
| Plug and Play | Yes |
| Storage temperature (T-T) | -18 – 60 °C |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Number of displays supported | 3 |

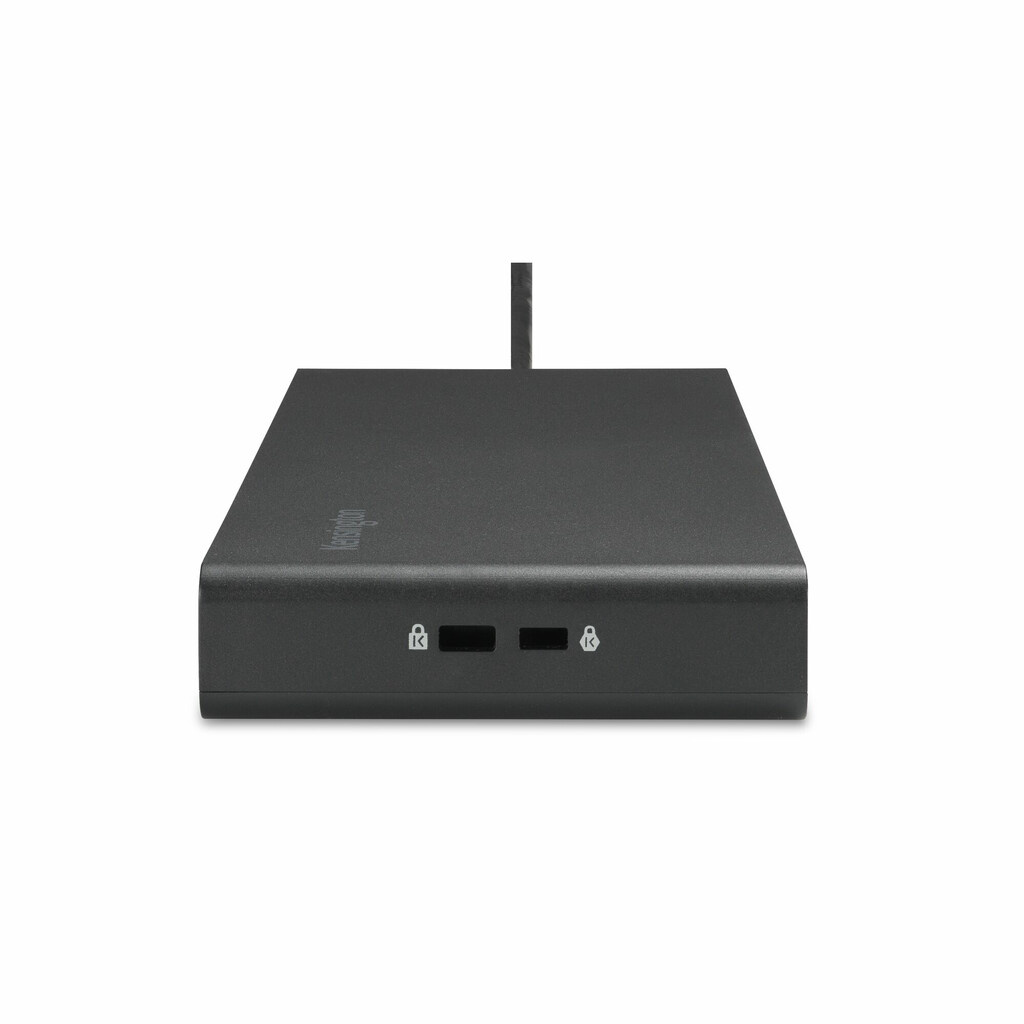

| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| AC input voltage | 100 – 240 V |
| Input current | 2.5 A |
| Output voltage | 21 V |
| Output current | 7.1 A |
| Warranty card | Yes |
| Cables included | AC |

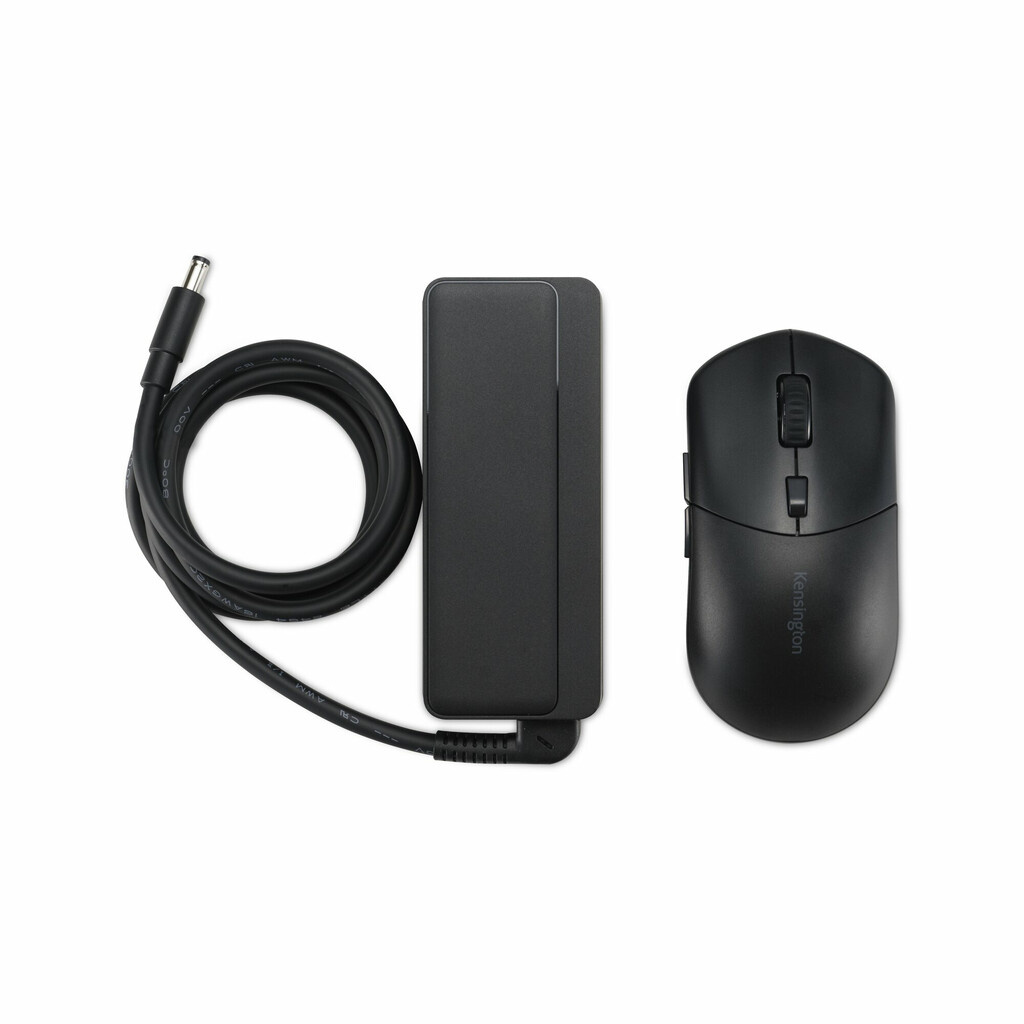

| AC adapter included | Yes |
| Quick start guide | Yes |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Products per master (outer) case | 6 pc(s) |
| Minimum system requirements | CPU: Intel Core i5 6th generation or aboveMemory: 8Gb or aboveGPU: Intel HD Graphics 620 or above |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Data transfer rate | 10 Gbit/s |
| On/off switch | Yes |
| Power source type | DC |
| Compatible power plug types | EU, UK |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 220 mm |
| Sustainability compliance | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDCP | Yes |
| Sustainability certificates | ErP |
| Compatible operating systems | Windows 10 or above |
| USB ports quantity | 5 |
| Master (outer) case gross weight | 7.5 kg |
| Special features | EQ |
| Master (outer) case net weight | 7.5 kg |
