Kensington SD5750T Thunderbolt 4 4K (DFS) Dock
SD5750T Thunderbolt 4 4K (DFS) Dock
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

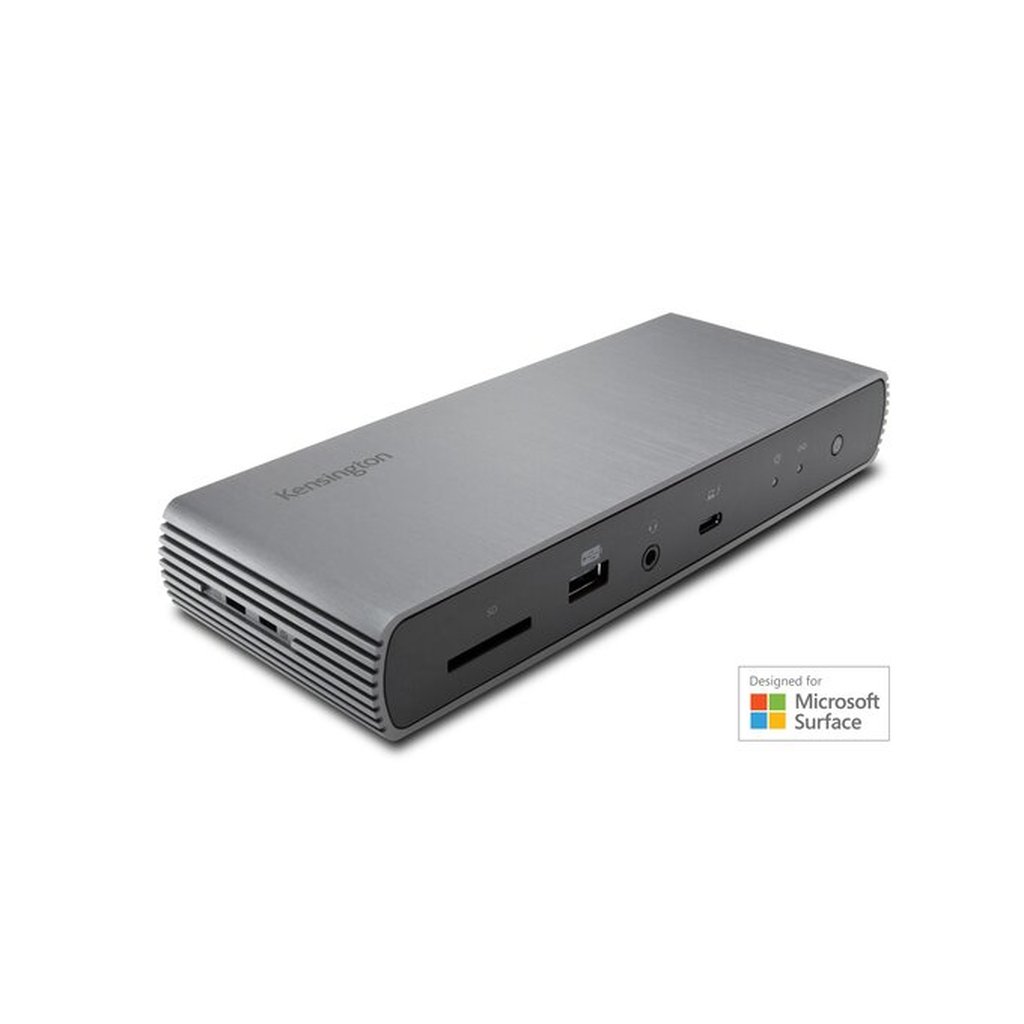

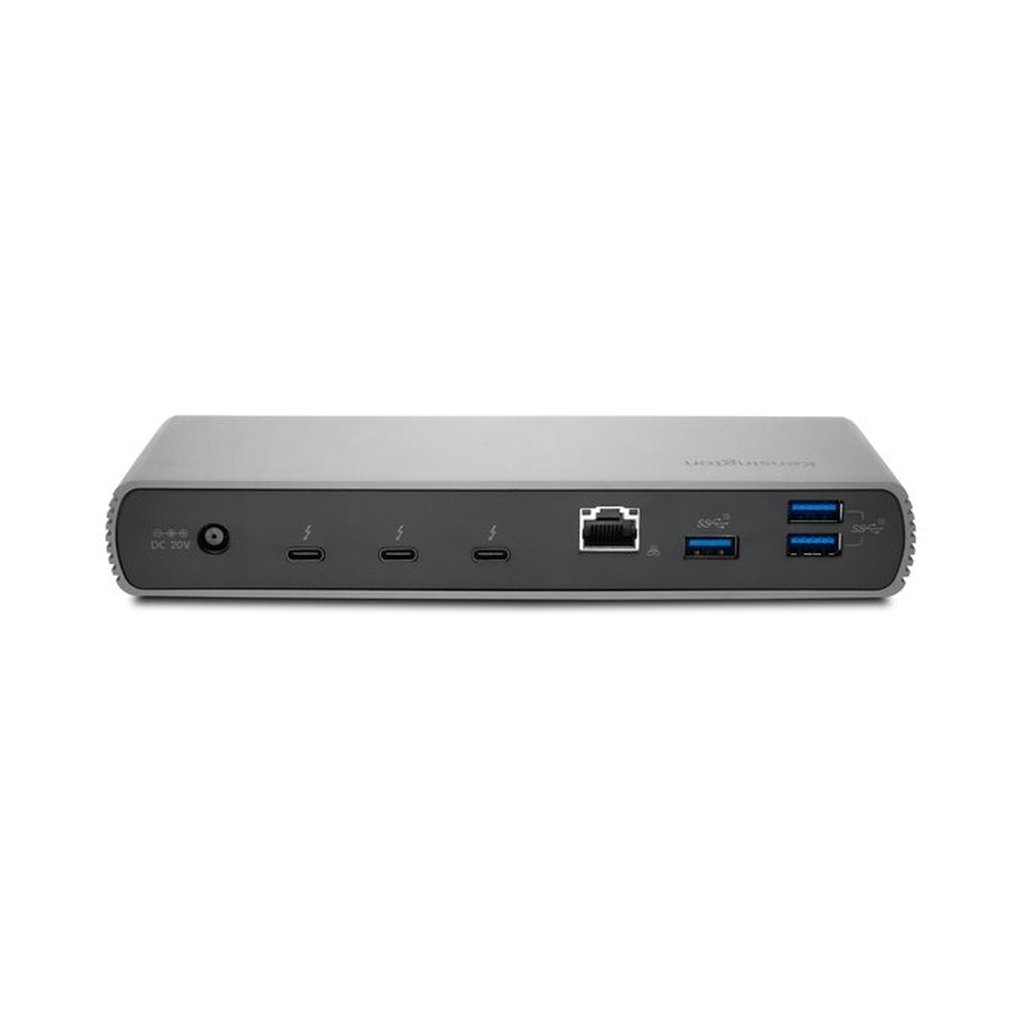

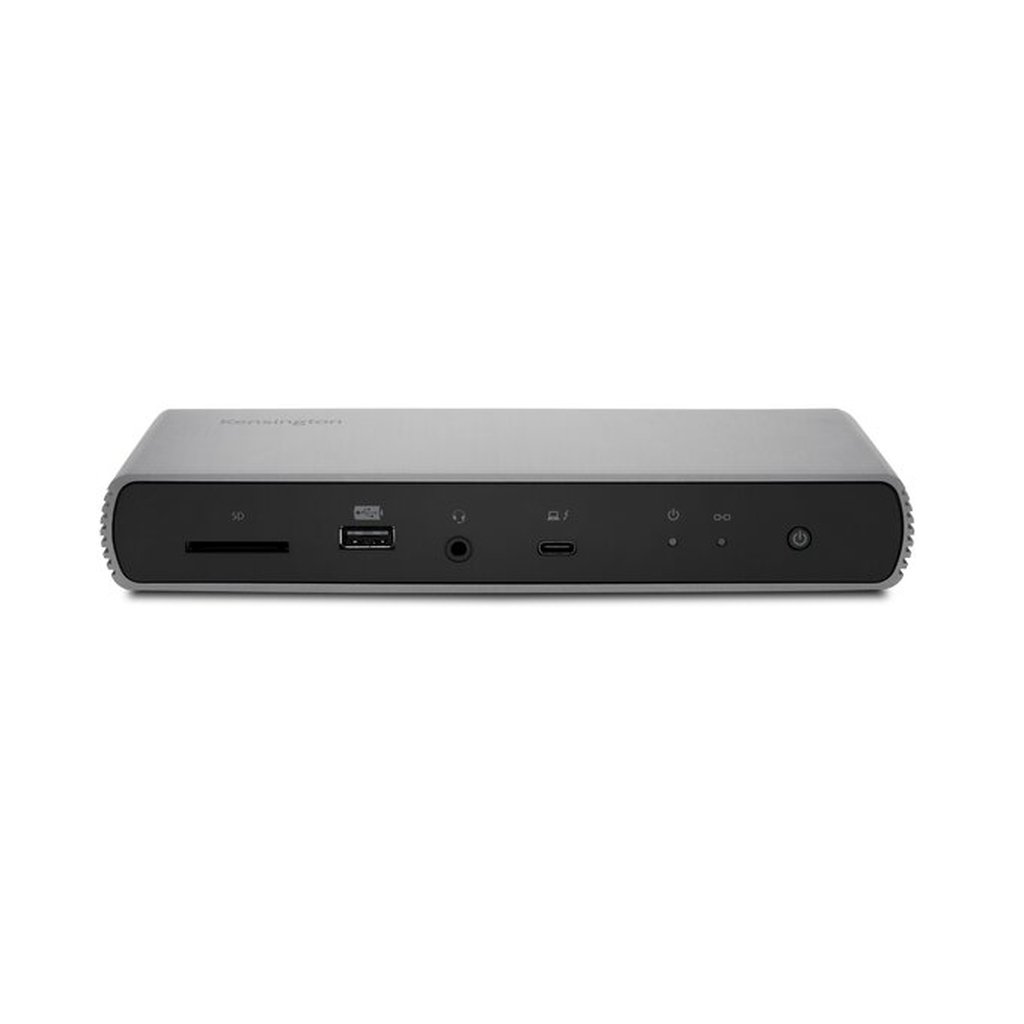

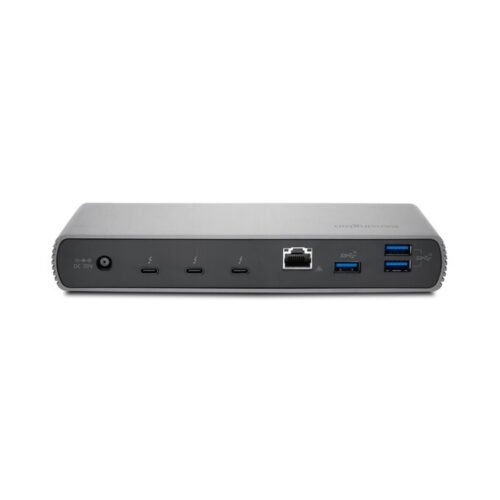

Designed exclusively for Surface, the SD5750T Thunderbolt™ 4 Dual 4K Dock (DFS) offers premium Thunderbolt benefits now and into the future. Compatible with USB4/Thunderbolt 4-enabled Surface laptops, supporting USB-C and USB-A accessories and provides full Power Delivery regardless of how many devices are connected. Features include 11-ports [4 x Thunderbolt 4, 4 x USB-A (1 x 5V/1.5A charging port on the front and 3 x Gen2 @ 10Gbps ports on the rear), 1 x Gigabit Ethernet port, 1 x audio combo jack and 1 x UHS-II SD 4.0 card reader], Single 8K @ 30 Hz or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, secure and manageable Intel VT-d DMA protection, a zero-footprint mounting option, security cable lock slots, free Kensington DockWorks™ software and a three-year warranty.
Best For: USB4/Thunderbolt 4 Surface devices. Supports Single 8K or Dual 4K video
Warranty: 3 Years
*This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches and the hardware and firmware performance of the host computer.
Connection Technology: Thunderbolt 4
Power Delivery: Supports USB-C PD 3.0 (90W of laptop charging)
Compatibility: Windows 10
No. of Monitors Supported: 2
Video Ports: Thunderbolt 4 ports
Maximum Resolution Supported: Thunderbolt – Single 8K 30Hz or Dual 4K 60Hz via the available Thunderbolt 4 ports
Plug and Play: Plug and play installation, optional Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington docking station
System Requirements: Compatible with USB4/Thunderbolt 4 Surface devices
Additional information
| Weight | 1.68 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Product colour | Grey |
| Card reader integrated | Yes |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Windows operating systems supported | Yes |
| Weight | 1.5 kg |
| Quantity per pack | 1 pc(s) |
| Plug and Play | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Number of displays supported | 2 |

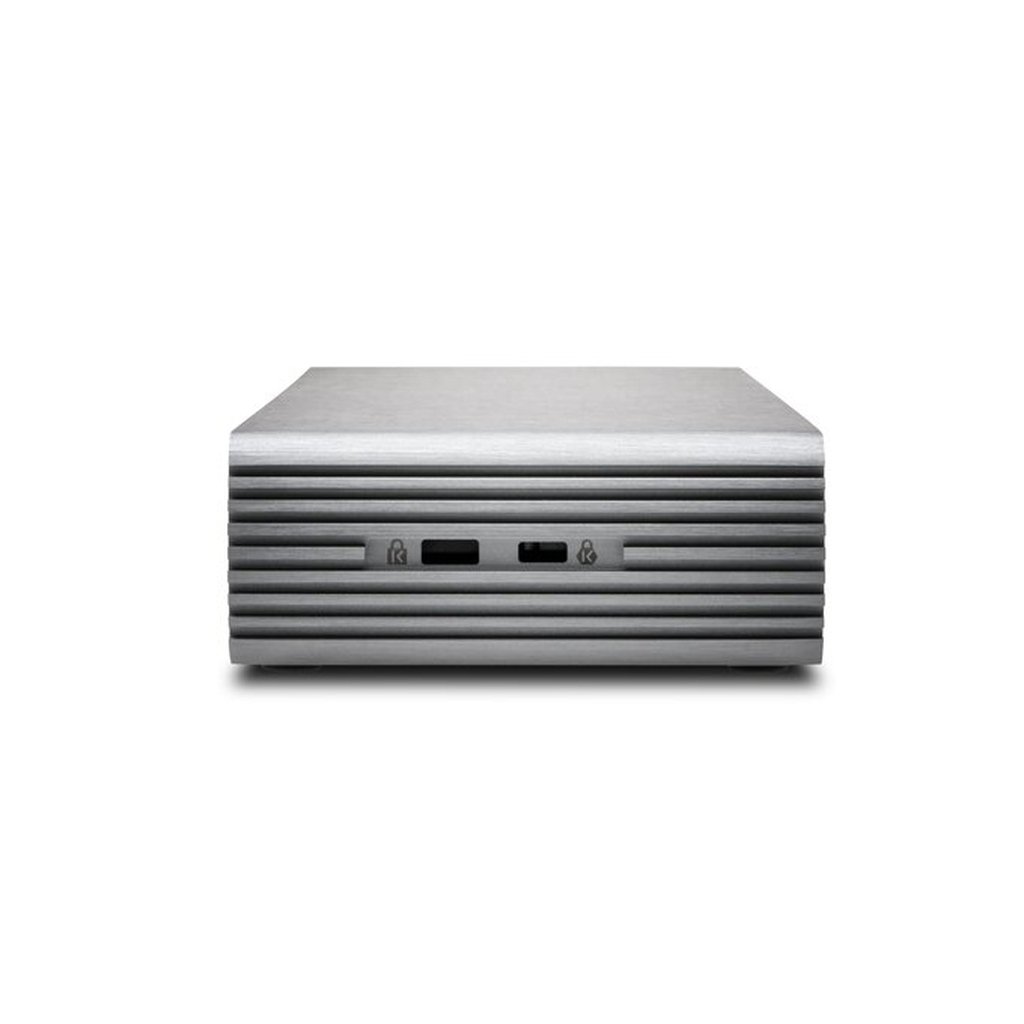

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Thunderbolt 4 ports quantity | 4 |
| Data transfer rate | 40 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Compatible operating systems | Windows 10 or above |
| Compatibility | Surface Pro 8, Surface Pro 9 (Intel), Surface Laptop 5 (15"), Surface Laptop Studio, Surface Laptop 5 (13.5") |
| USB Sleep-and-Charge | Yes |
