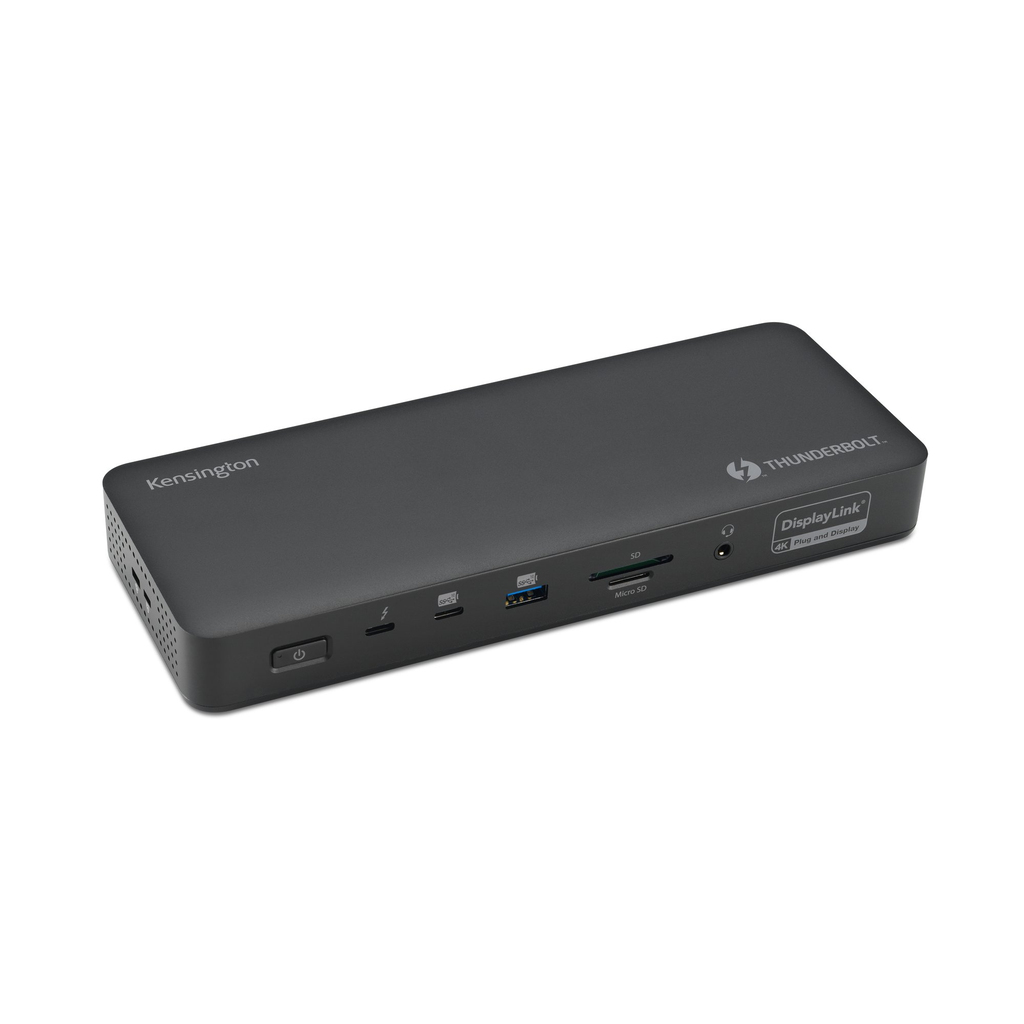

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology
SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

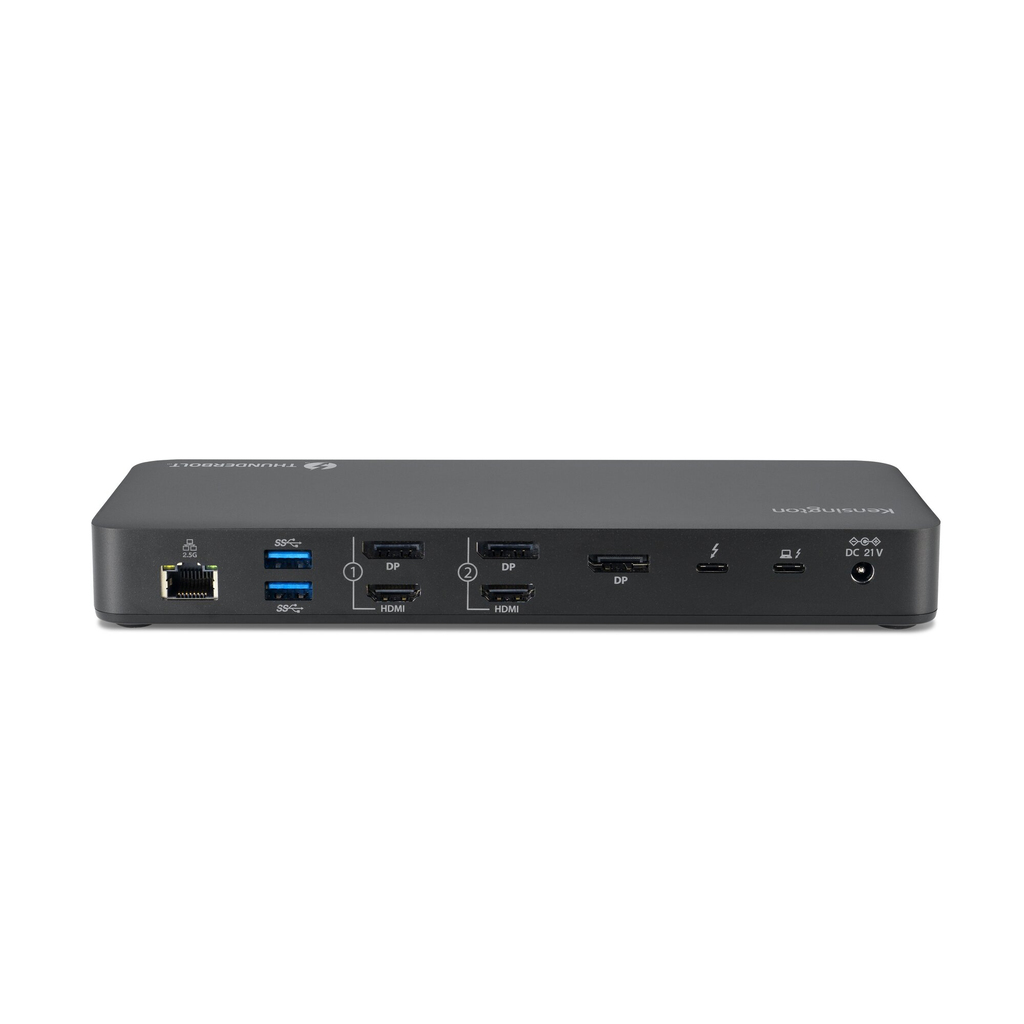

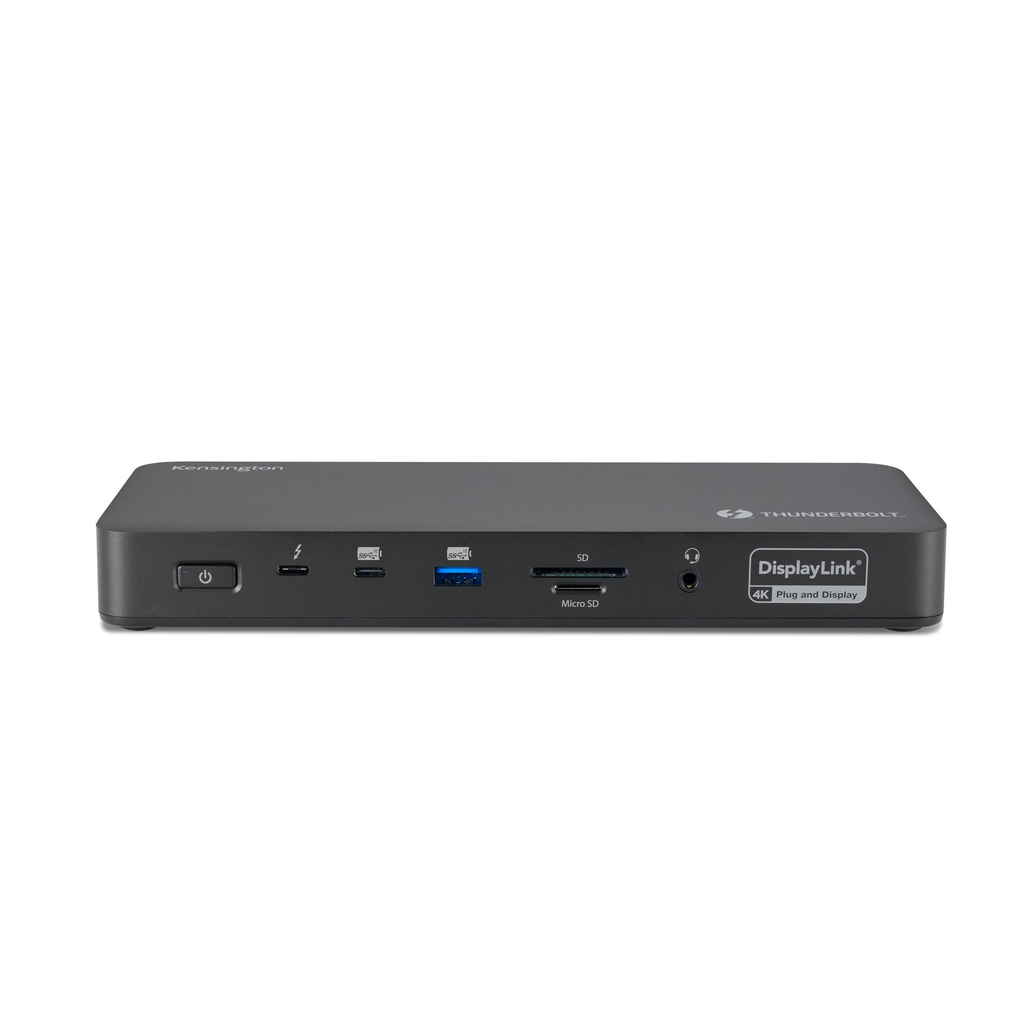

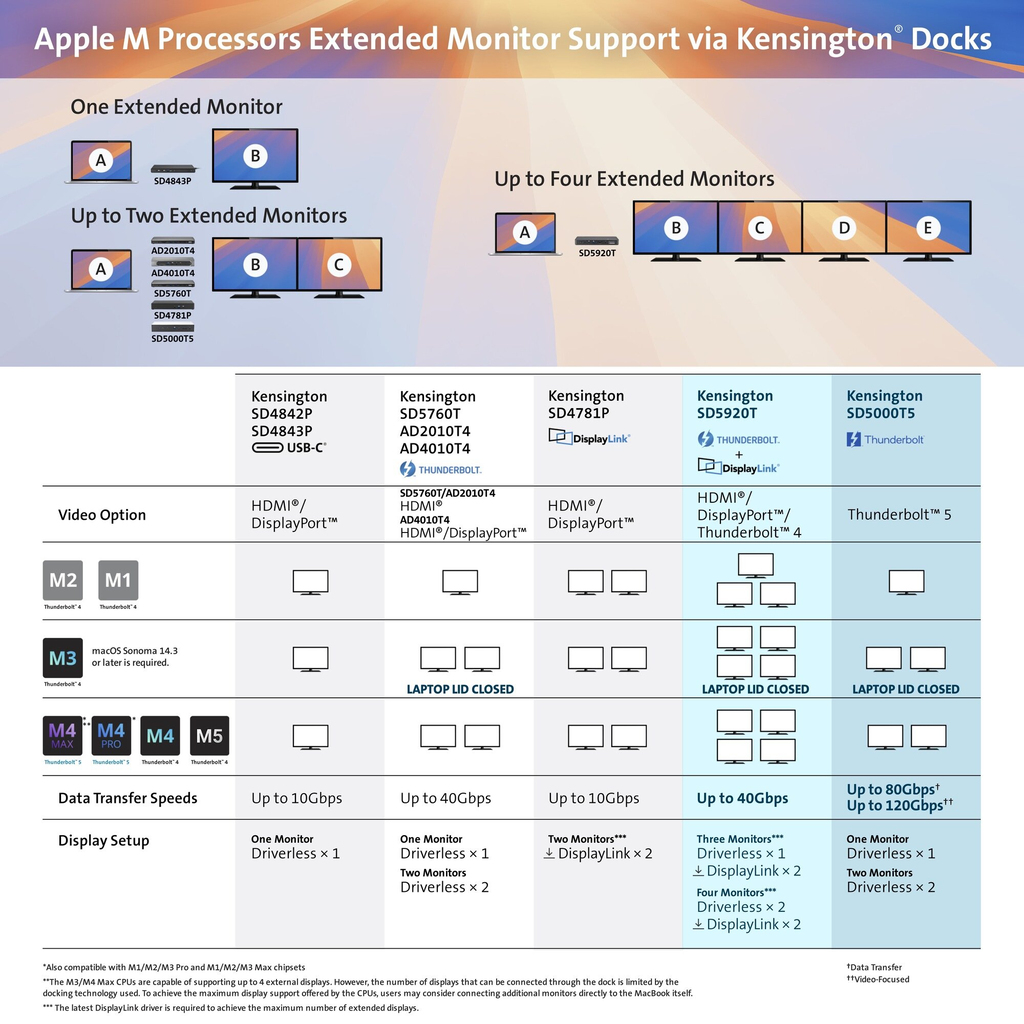

Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes security cable lock slots and 3-year limited warranty. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Additional information
| Weight | 1.47 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Product colour | Black |
| Card reader integrated | Yes |
| HD type | 8K Ultra HD |
| Country of origin | Vietnam |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 55% |
| Width | 2250 mm |
| Depth | 85 mm |
| Height | 22 mm |
| Weight | 600 g |
| Quantity per pack | 1 pc(s) |
| Package width | 245 mm |
| Package depth | 107 mm |
| Package height | 94 mm |
| Package weight | 1.5 kg |
| Plug and Play | Yes |
| Storage temperature (T-T) | -18 – 60 °C |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 96 W |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 4 |

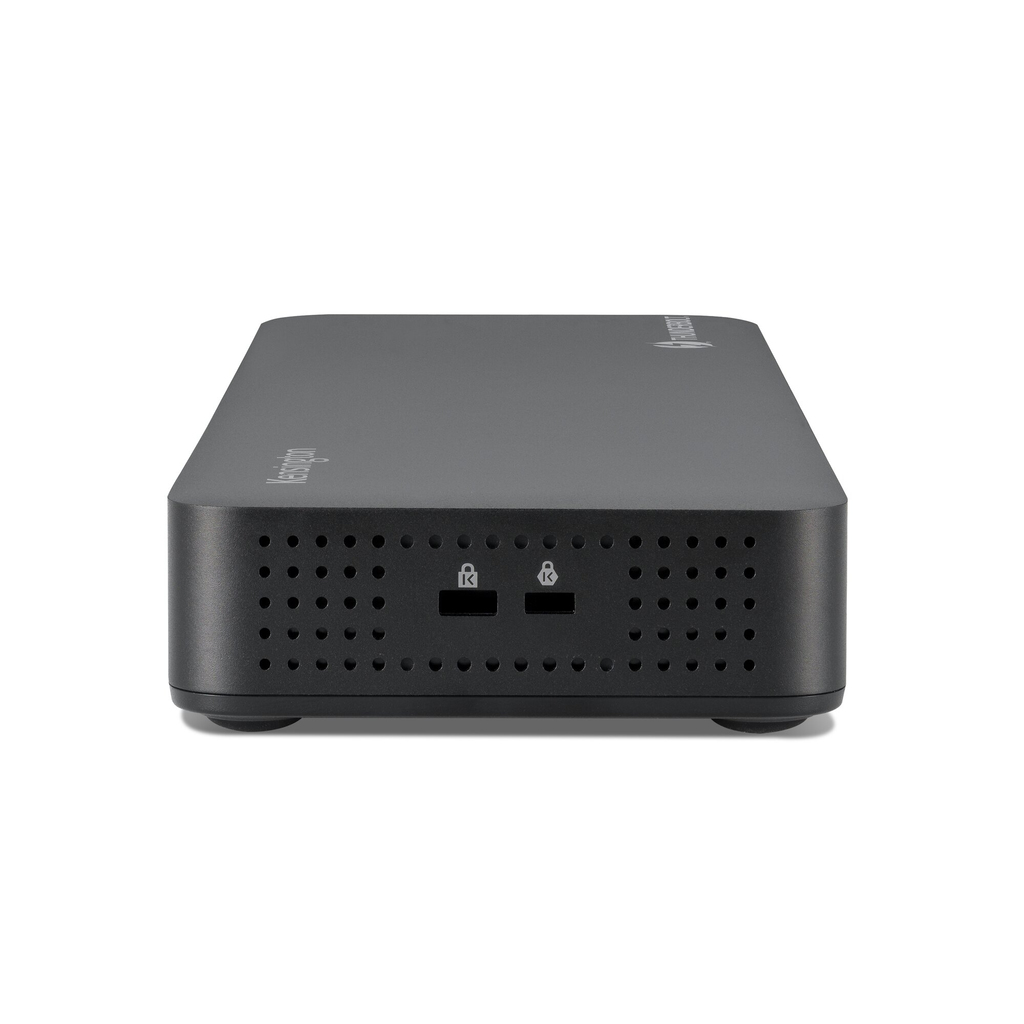

| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| AC input voltage | 100 – 240 V |
| Input current | 2.5 A |
| Output voltage | 21 V |
| Output current | 7.1 A |

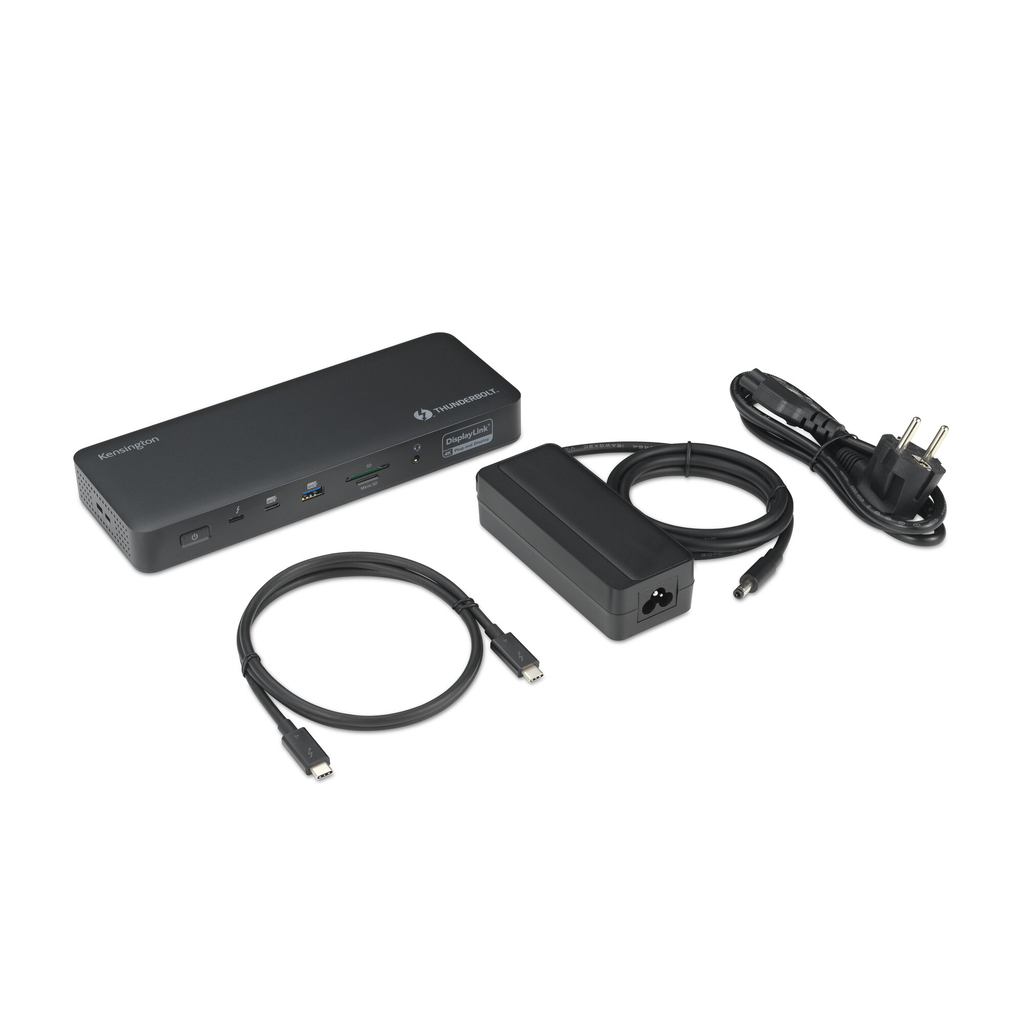

| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Products per master (outer) case | 6 pc(s) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Data transfer rate | 40 Gbit/s |
| On/off switch | Yes |
| Power source type | DC |
| Other operating systems supported | ChromeOS |
| Products per shipping (inner) case | 6 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 135 mm |
| Compatible operating systems | Windows 10 or above; Chrome OS 116 or above; macOS 11 or above |
| USB ports quantity | 4 |
| Master (outer) case gross weight | 9.63 kg |
| Special features | EQ |
| Master (outer) case net weight | 9.63 kg |
