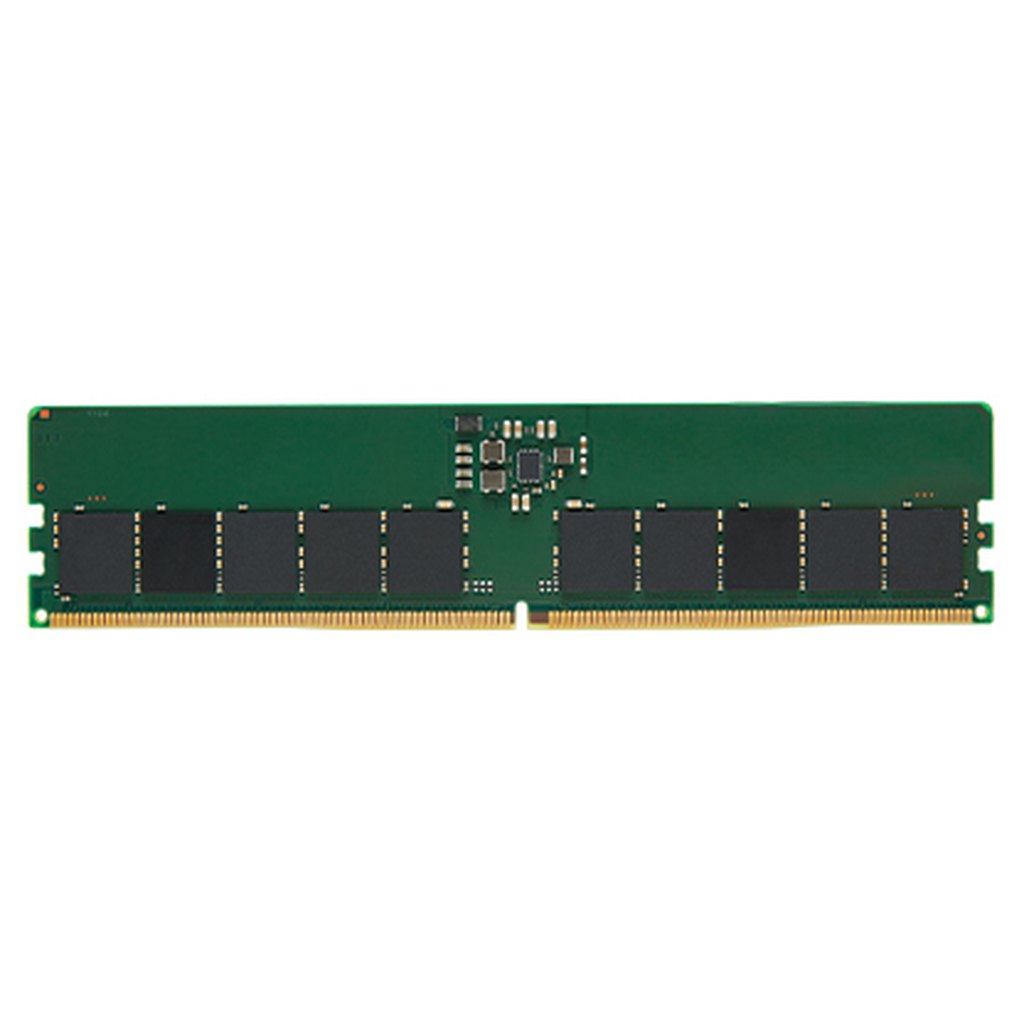

Kingston Technology KSM56E46BS8KM-16HA memory module 16 GB 1 x 16 GB DDR5 5600 MHz ECC
In Stock
16GB, DDR5, 5600MT/s, ECC, Unbuffered, DIMM, CL46, 1Rx8, 1.1V, 288-pin, 16Gbit, Hynix A
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Kingston’s KSM56E46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Additional information
| Weight | 0.026 lbs |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory clock speed | 5600 MHz |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Buffered memory type | Unregistered (unbuffered) |
| Memory voltage | 1.1 V |
| Module configuration | 2048M x 72 |
| Product colour | Black, Green |
| CAS latency | 46 |
| Width | 133.3 mm |
| Height | 31.2 mm |
| On-Die ECC | Yes |
| Memory ranking | 1 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operating temperature (T-T) | 0 – 95 °C |
| Storage temperature (T-T) | -55 – 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Sustainability compliance | Yes |
