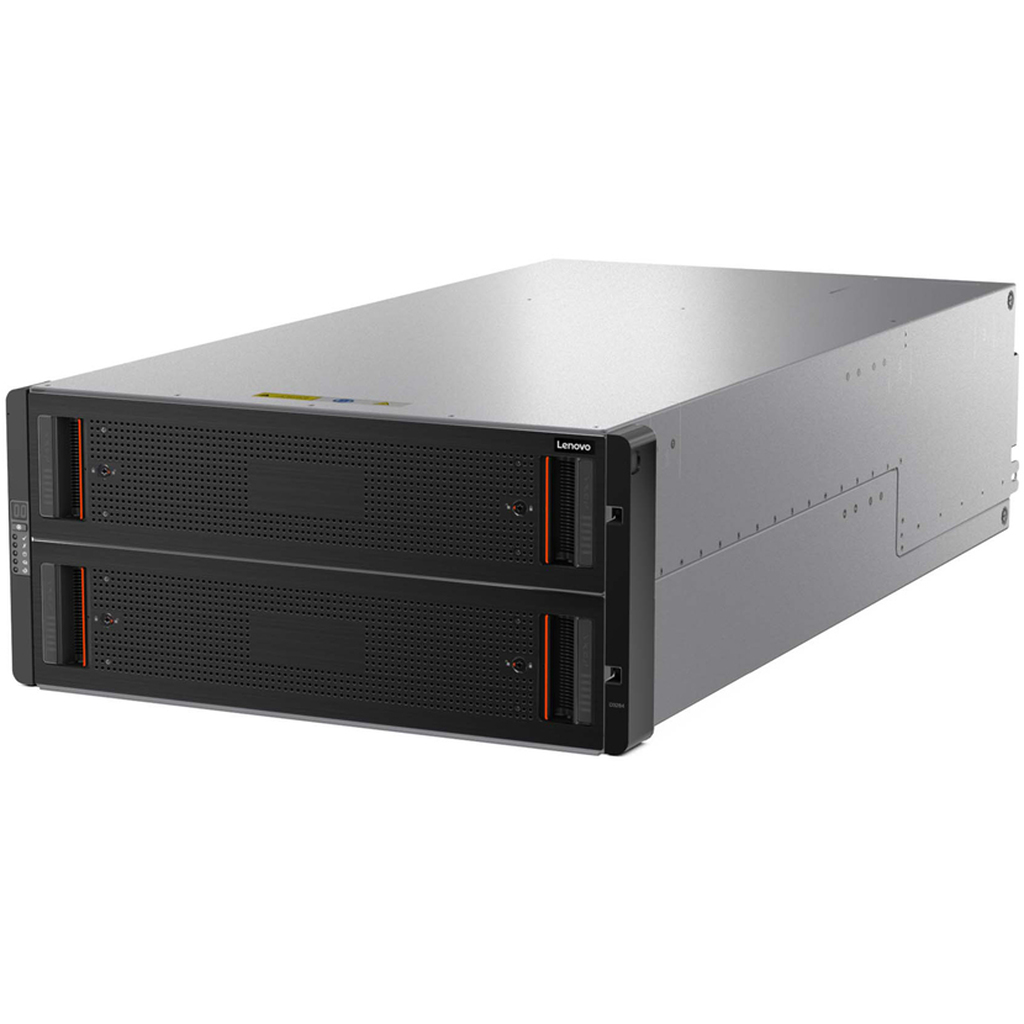

Lenovo D3284 disk array 0 TB Rack (5U) Black
D3284, 3x 12Gbps SAS x4, RAID, 5U
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density, speed, scalability, security, and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U and RAID or JBOD (non-RAID) host connectivity.
This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions.
Additional information
| Weight | 95 lbs |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| RAID levels | JBOD |
| Hot-swap drive bays | Yes |
| USB connectivity | No |
| Chassis type | Rack (5U) |
| Product colour | Black |
| LED indicators | Yes |
| Power supply unit (PSU) capacity | 2214 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 – 250 V |
| Width | 447 mm |
| Depth | 933 mm |
| Height | 221 mm |
| Weight | 131 kg |
| Operating temperature (T-T) | 5 – 35 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 100% |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| Data transfer rate | 12 Gbit/s |
| Operating altitude | 0 – 3048 m |
| Harmonized System (HS) code | 84717020 |
| Non-operating altitude | 0 – 12192 m |
| Compliance certificates | RoHS |
| Storage drive capacity | 0 GB |
| SAS host port | Yes |
| Number of SAS host ports | 3 |
