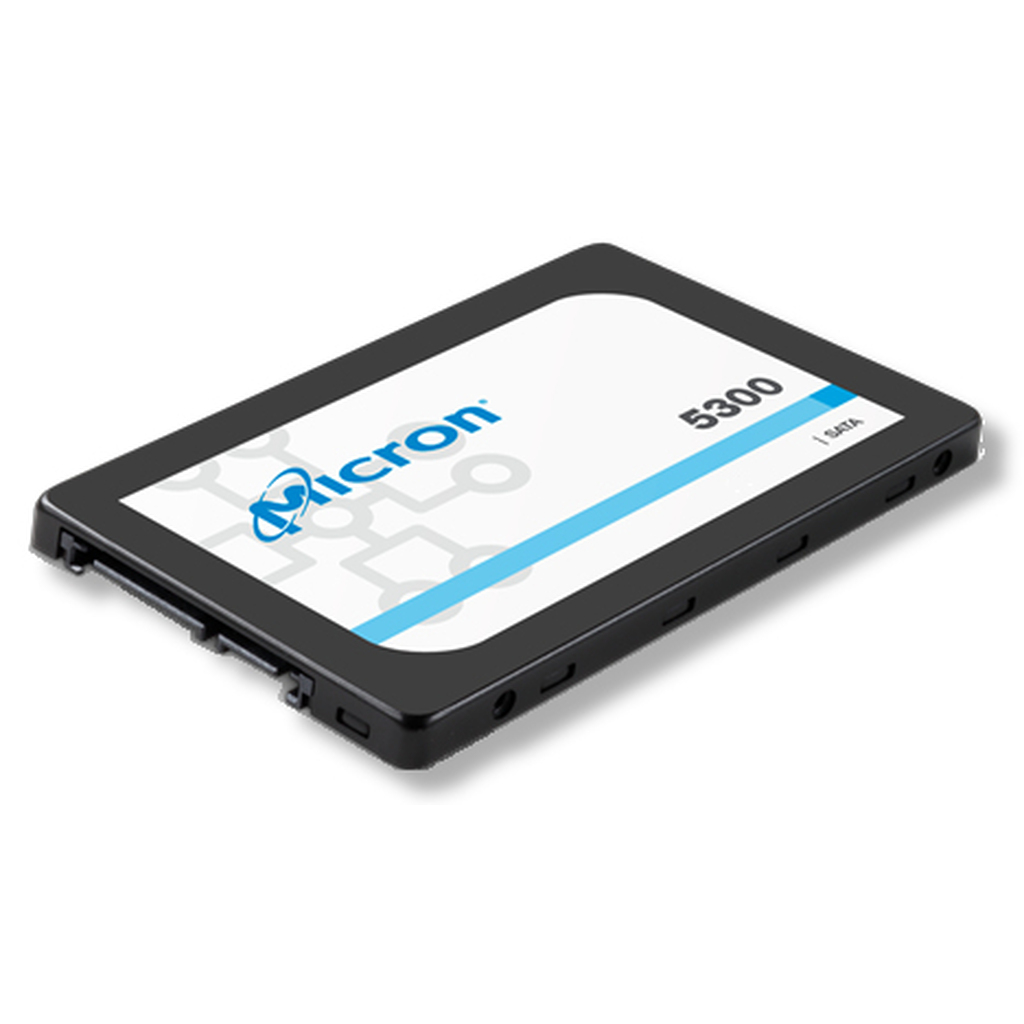

Lenovo 4XB7A38181 internal solid state drive 240 GB 2.5″ Serial ATA III 3D TLC NAND
ThinkSystem 7mm 5300 240GB Entry SATA 6Gb SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Additional information
| Weight | 0.188 lbs |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Memory type | 3D TLC NAND |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Mean time between failures (MTBF) | 3000000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Random read (4KB) | 67000 IOPS |
| Random write (4KB) | 40000 IOPS |
| Read latency | 175 µs |
| Write latency | 300 µs |
| S.M.A.R.T. support | Yes |
| Power consumption (read) | 2.5 W |
| Power consumption (write) | 3 W |
| Non-operating vibration | 3.13 G |
| Harmonized System (HS) code | 84717070 |
| Certification | Micron Green Standard<br />Built with sulfur resistant resistors<br />CE (Europe): EN 55032 Class B, RoHS<br />FCC: CFR Title 47, Part 15 Class B<br />UL: UL-60950-1, 2nd Edition<br />BSMI (Taiwan): a |
| Operating relative humidity (H-H) | 5 – 95% |
| Hardware encryption | Yes |
| Hot-swap | Yes |
| Operating shock | 1500 G |
| Security algorithms | 256-bit AES |
