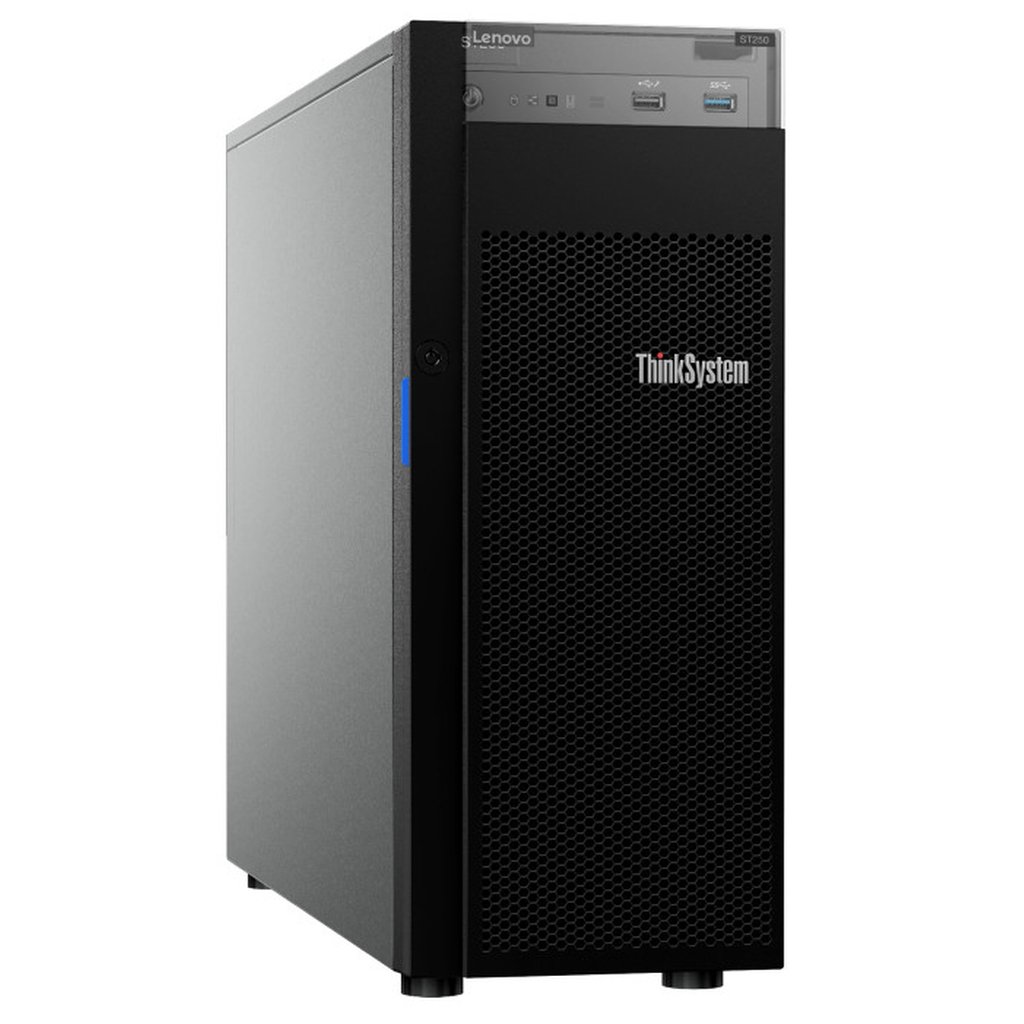

Lenovo ThinkSystem ST250 server Tower (4U) Intel Xeon E E-2278G 3.4 GHz 16 GB DDR4-SDRAM 550 W
Intel Xeon E-2278G (16MB Cache, 3.4GHz), 16GB DDR4-SDRAM (2666MHz), Intel UHD Graphics P630, LAN, 530-8i, 550W
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Lenovo ThinkSystem ST250 is a mainstream 1-socket tower server that also be rack mounted as a 4U rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server is now available with the Intel Xeon E-2200 Series processors, formerly codenamed “Coffee Lake-S Refresh”.
This product guide provides essential presales information to understand the ThinkSystem ST250 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 and consider its use in IT solutions.
Additional information
| Weight | 17.76 lbs |
|---|---|
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Processor model | E-2278G |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 5 GHz |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4 |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50 |
| Supported RAID controllers | 530-8i |
| Internal drive bays | 8 |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis type | Tower (4U) |
| Performance management | XClarity Standard |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
| Width | 176 mm |
| Depth | 578 mm |
| Height | 444 mm |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Serial ports quantity | 1 |
| Product colour | Black |
| Motherboard chipset | Intel C246 |
| On-board graphics card model | Intel UHD Graphics P630 |
| Number of redundant power supplies installed | 1 |
| Weight | 23.6 kg |
| Thermal Design Power (TDP) | 80 W |
| Processor threads | 16 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Maximum internal memory supported by processor | 128 GB |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| CPU configuration (max) | 1 |
| Harmonized System (HS) code | 84714100 |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Tcase | 73 °C |
| Tjunction | 100 °C |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Scalability | 1S |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 128 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x3E9A |
| PCI Express slots version | 3.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Processor ARK ID | 193745 |
| Sustainability certificates | ENERGY STAR |
