Neomounts DS75-450BL2 Monitor arm 17-32″ – gas spring – Topfix – 180°-stop
Neomounts NEXT Core DS75-450BL2 Dual crossbar monitor arm – 17-32″ – 1-8 kg/screen – gas spring – 180°-stop – Topfix – Easy Install-model – 100% plastic-free packaging – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

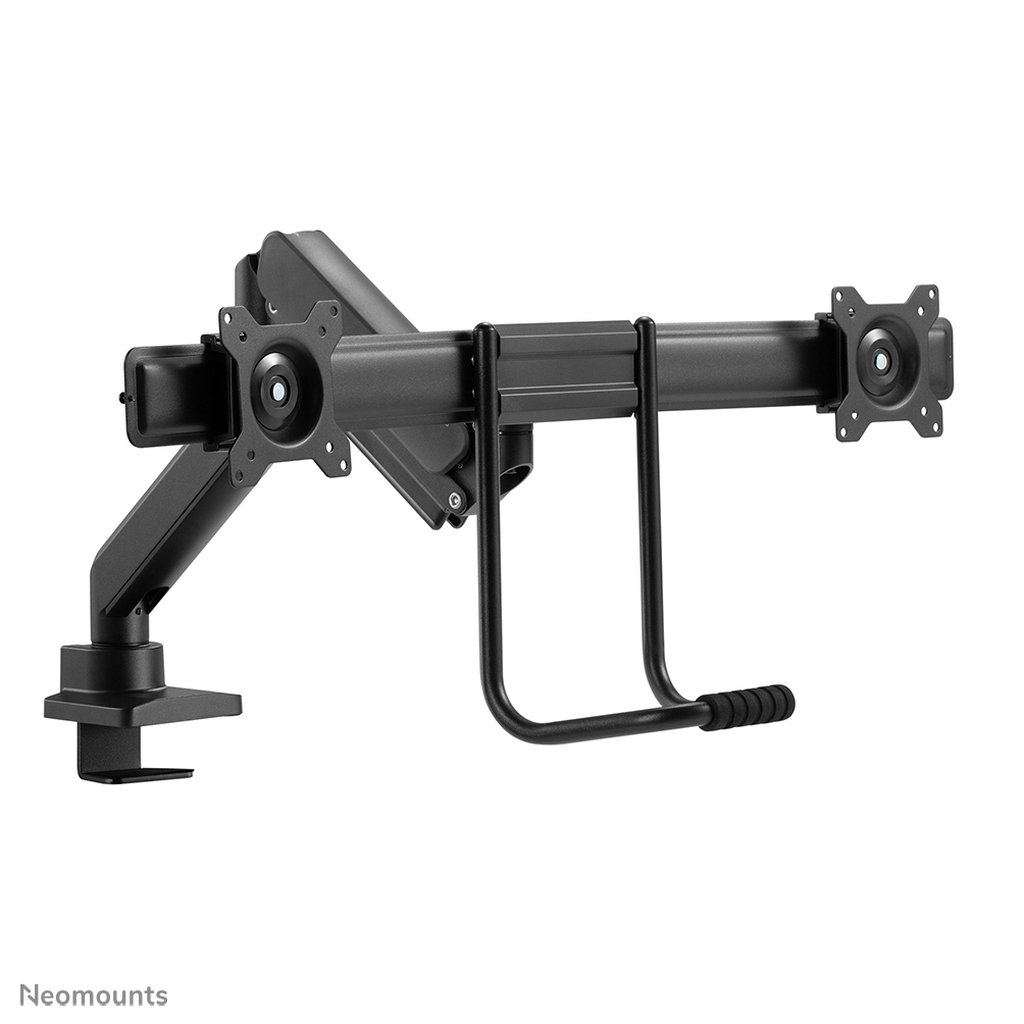

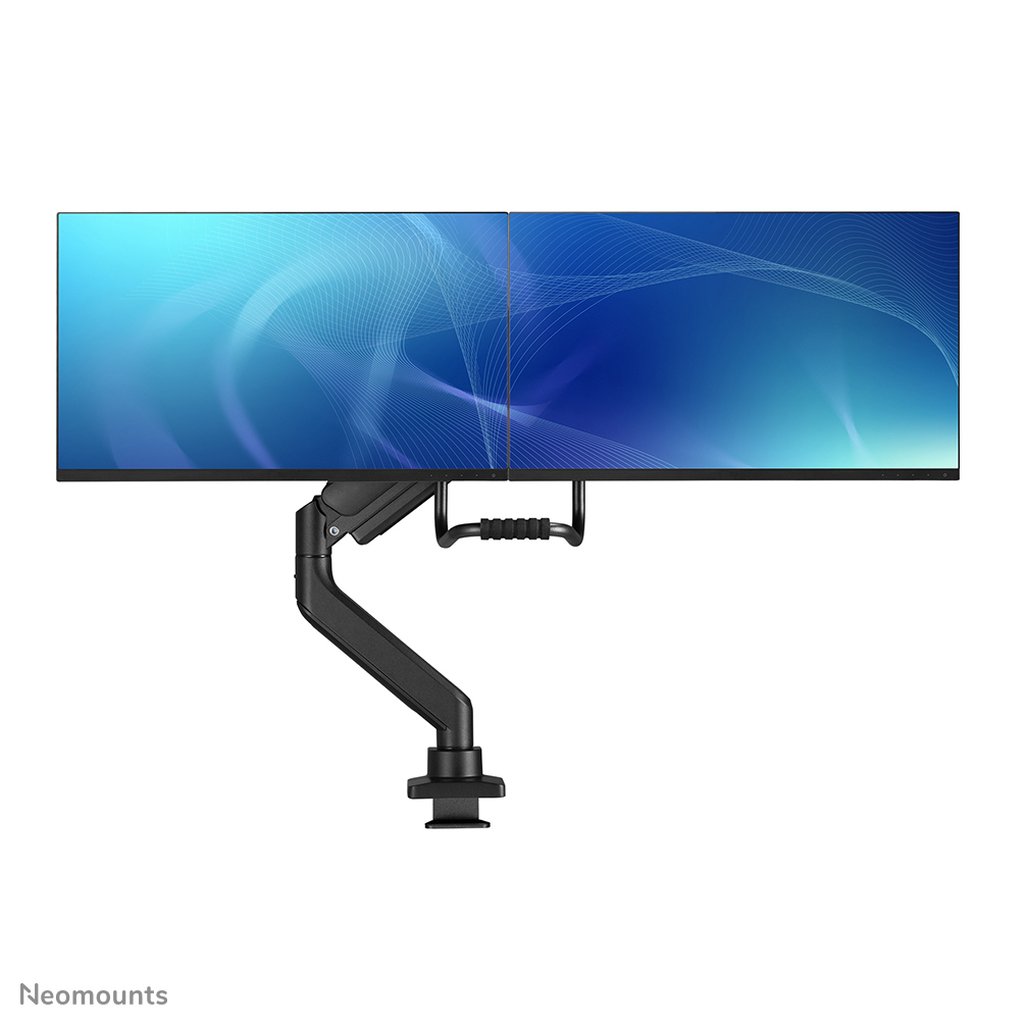

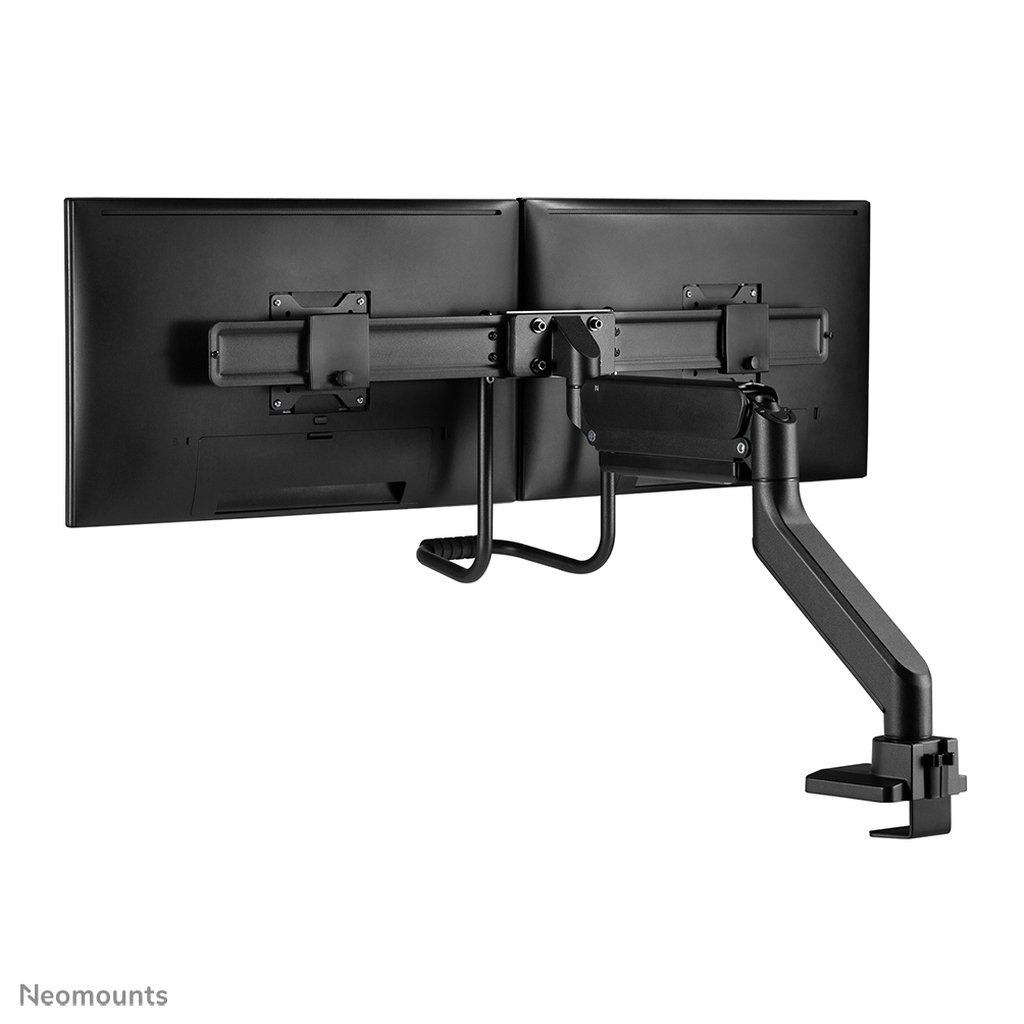

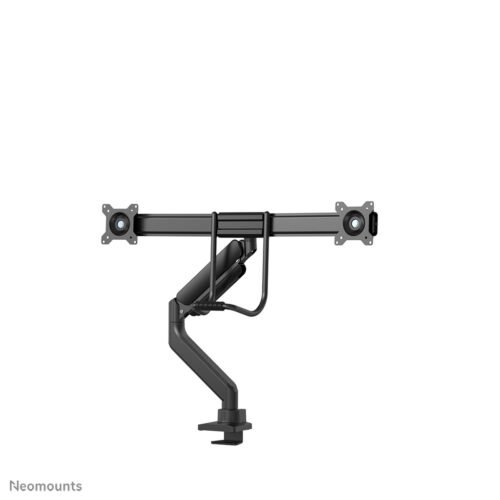

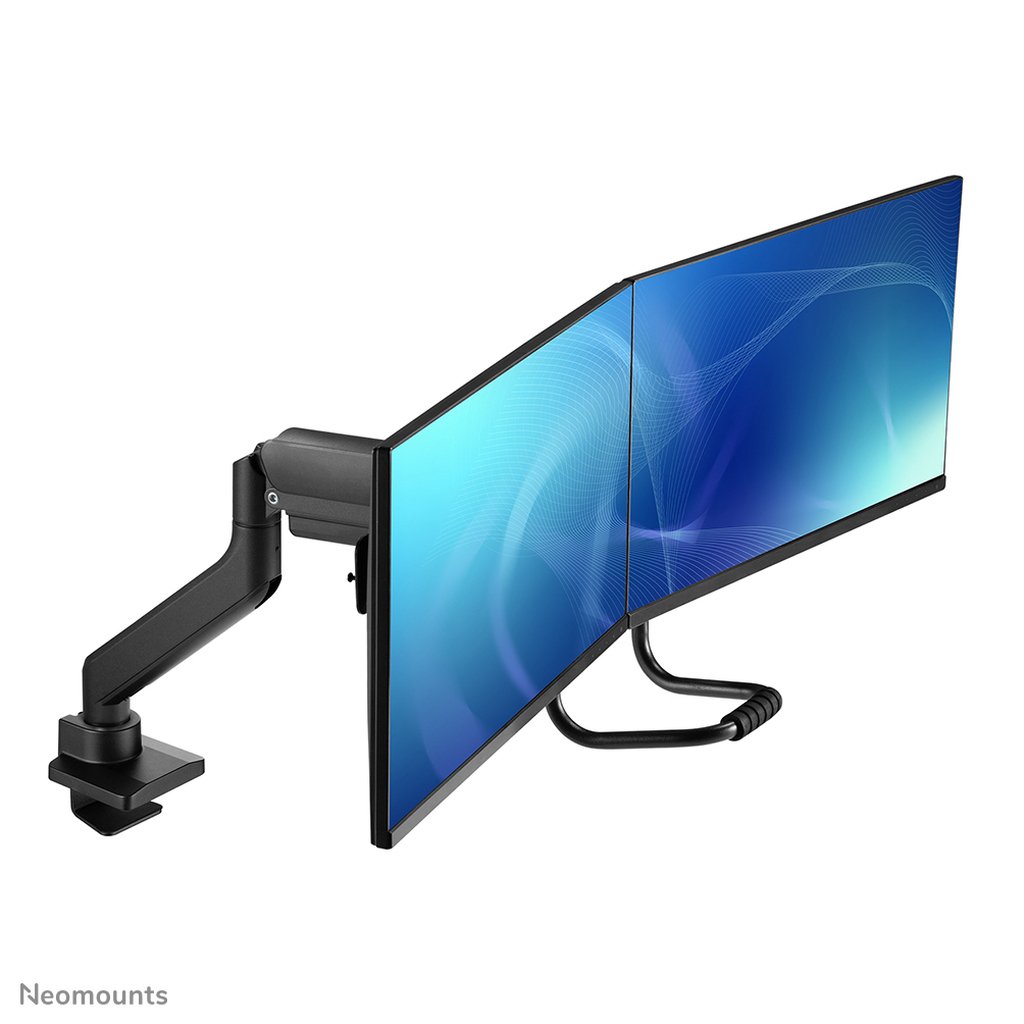

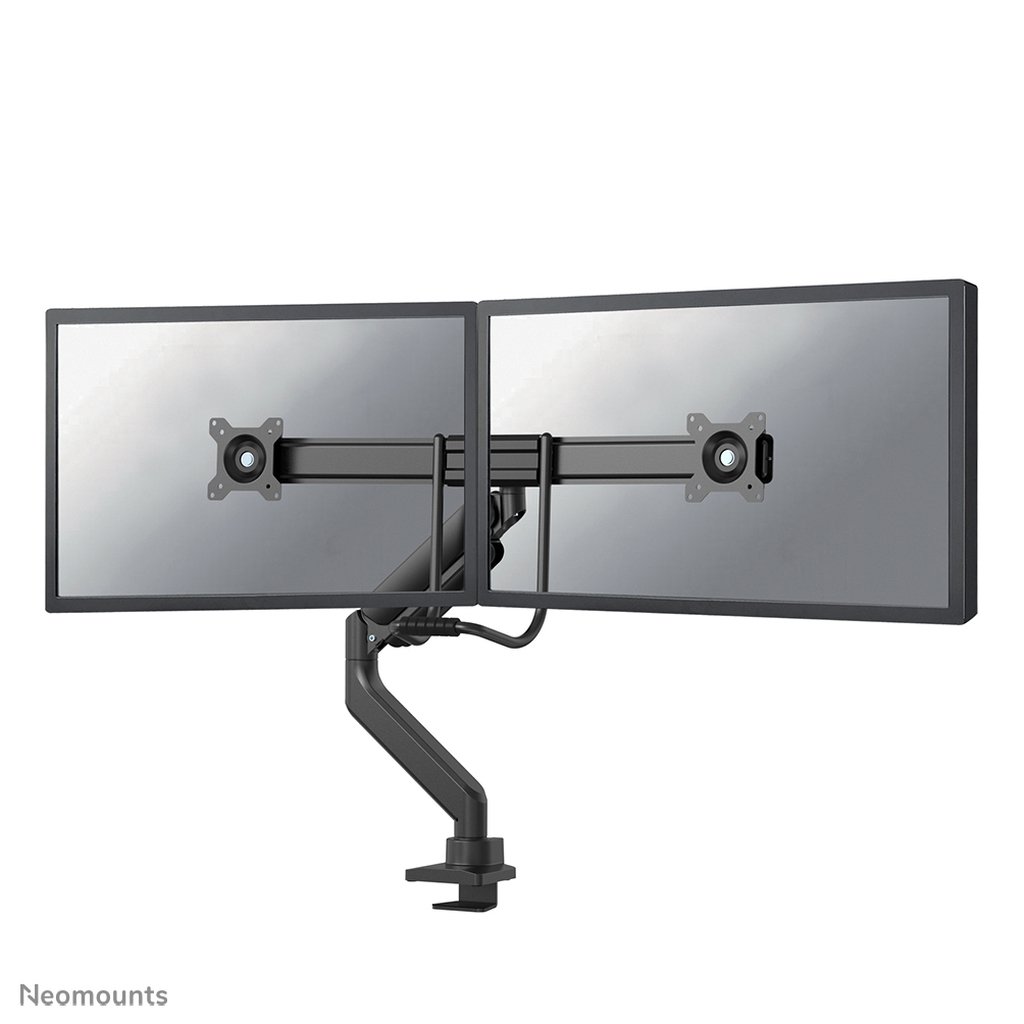

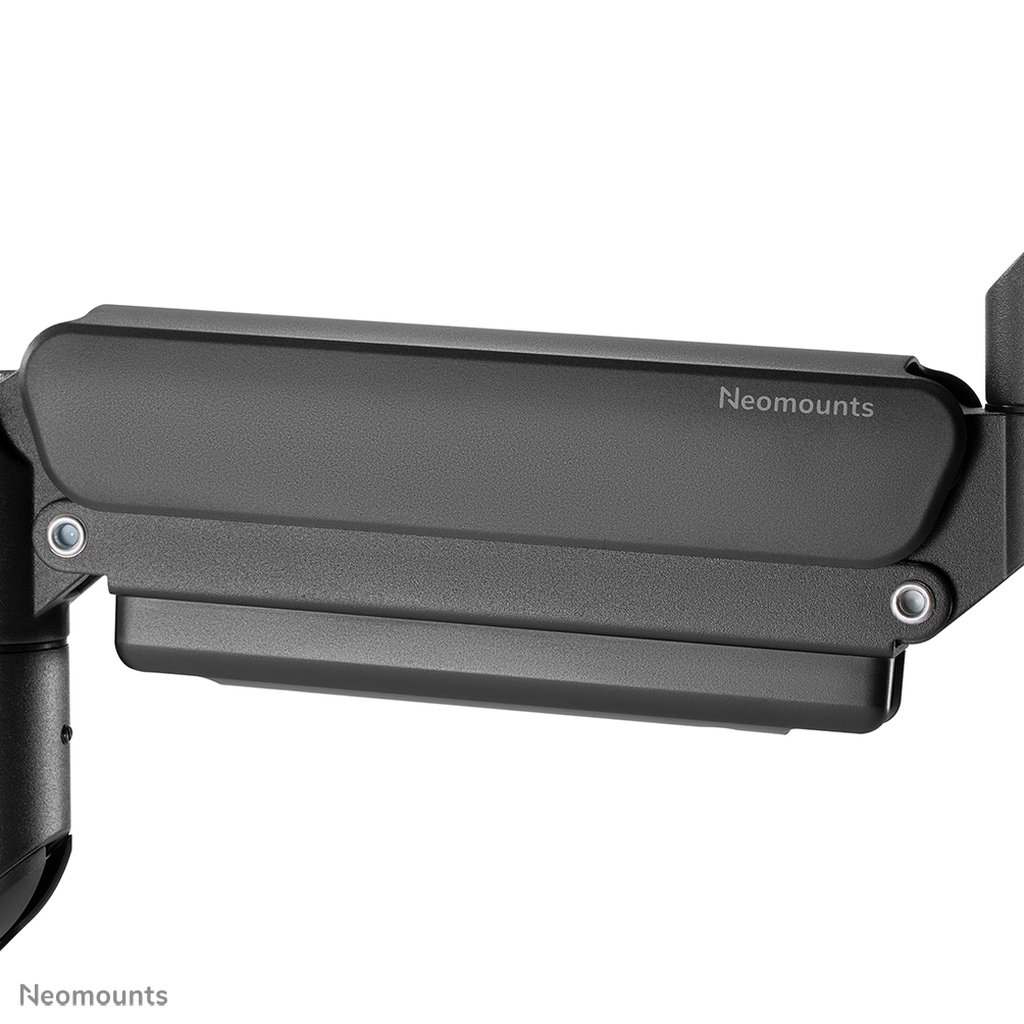

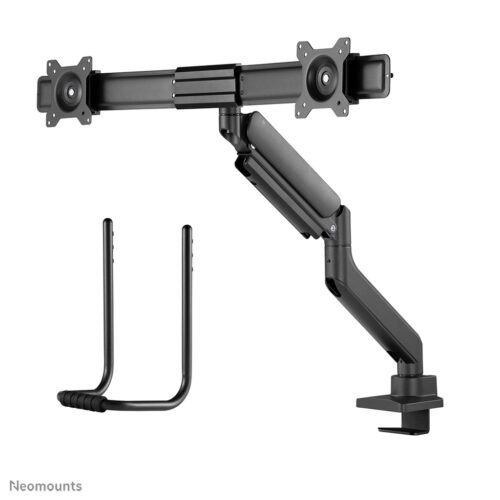

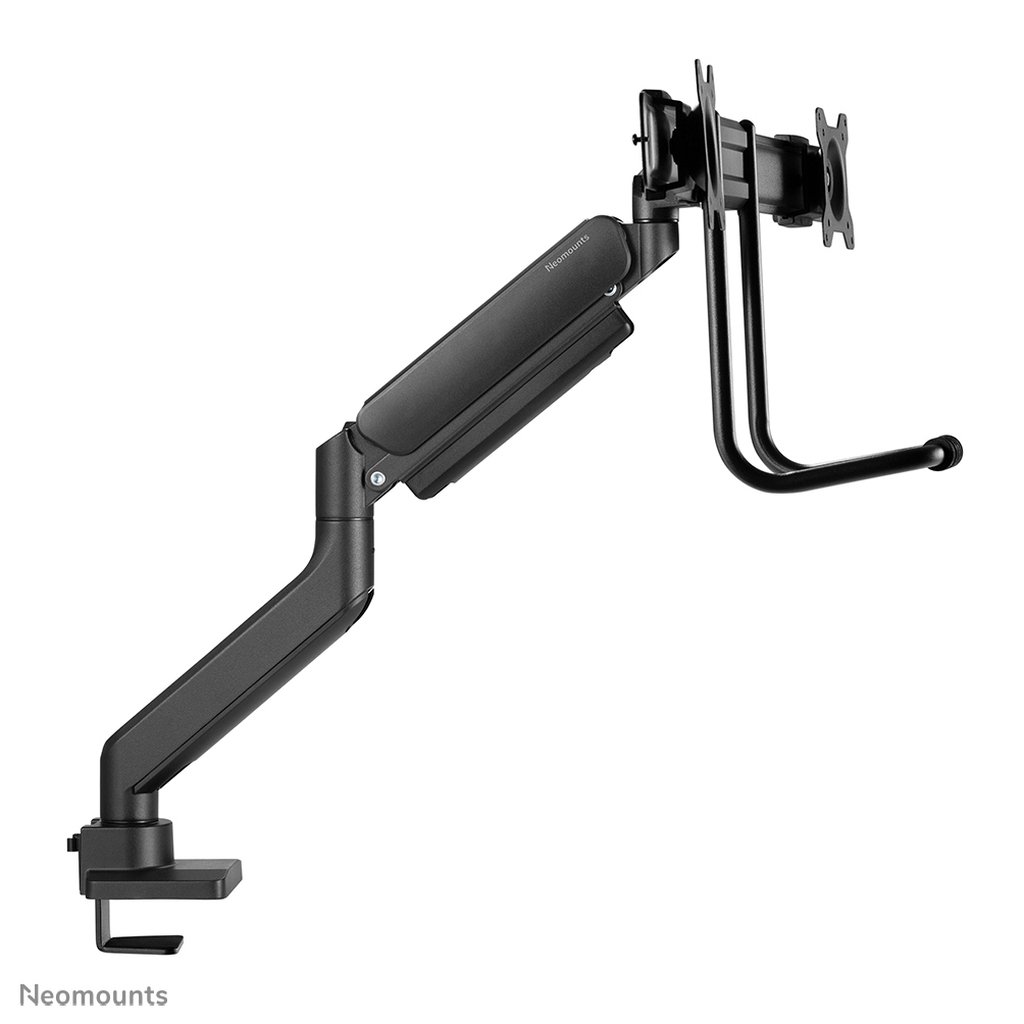

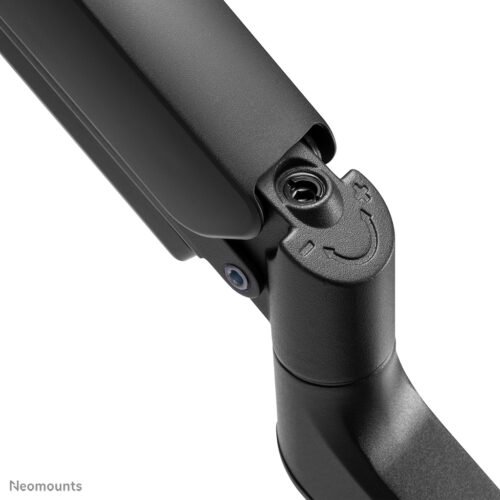

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32″ with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.

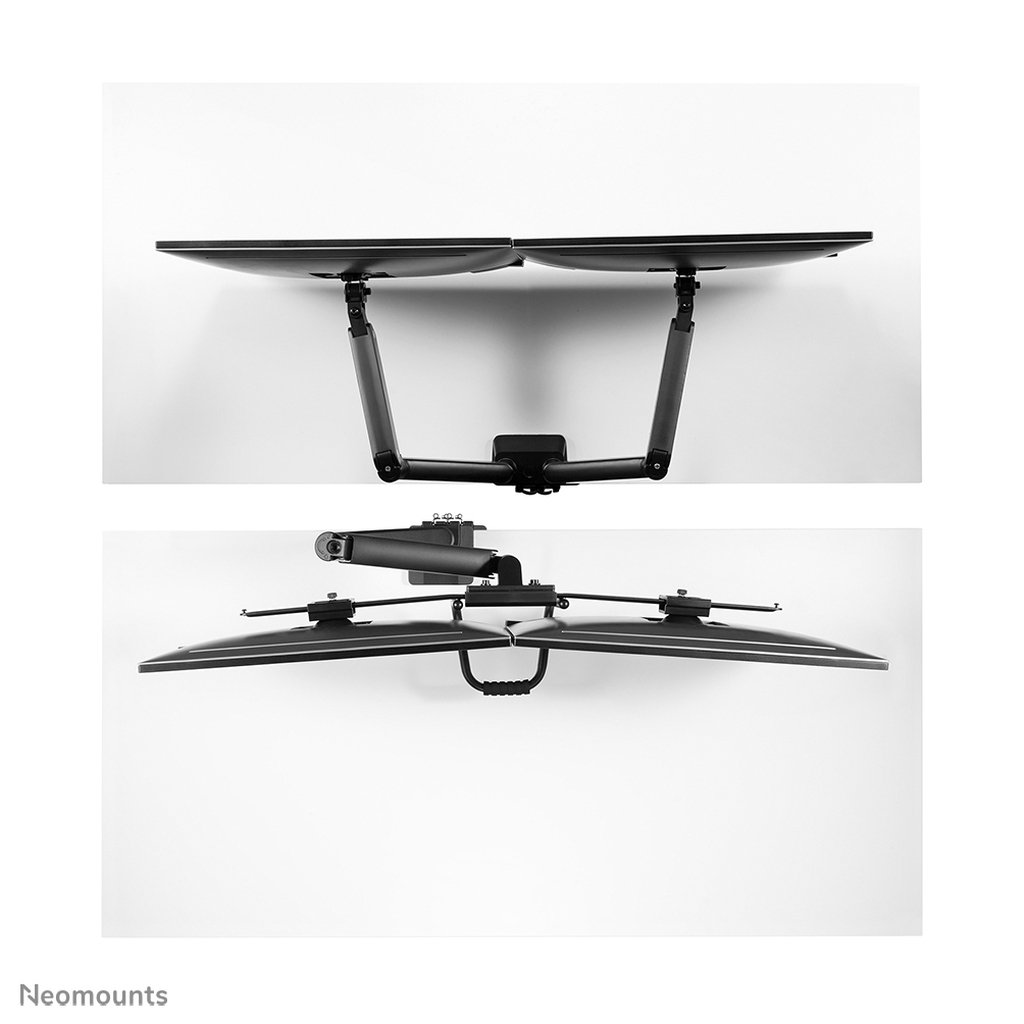

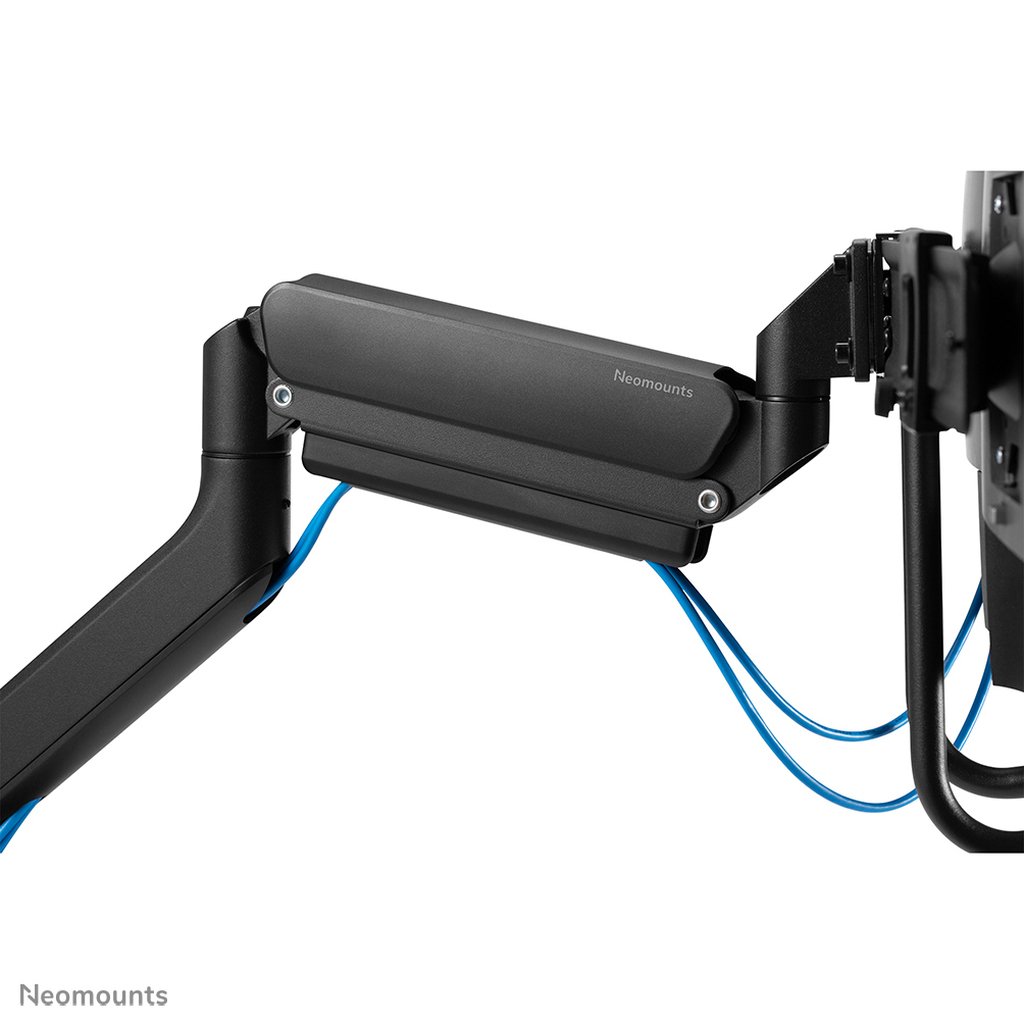

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

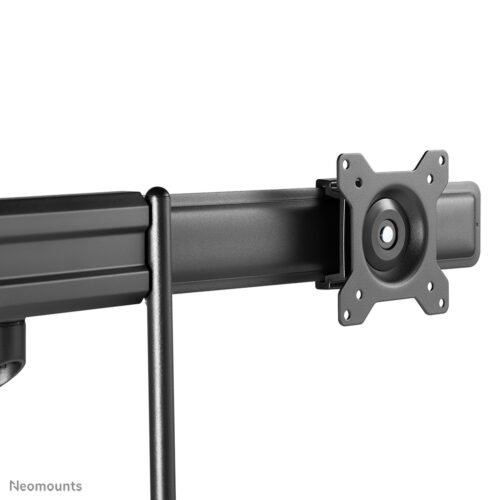

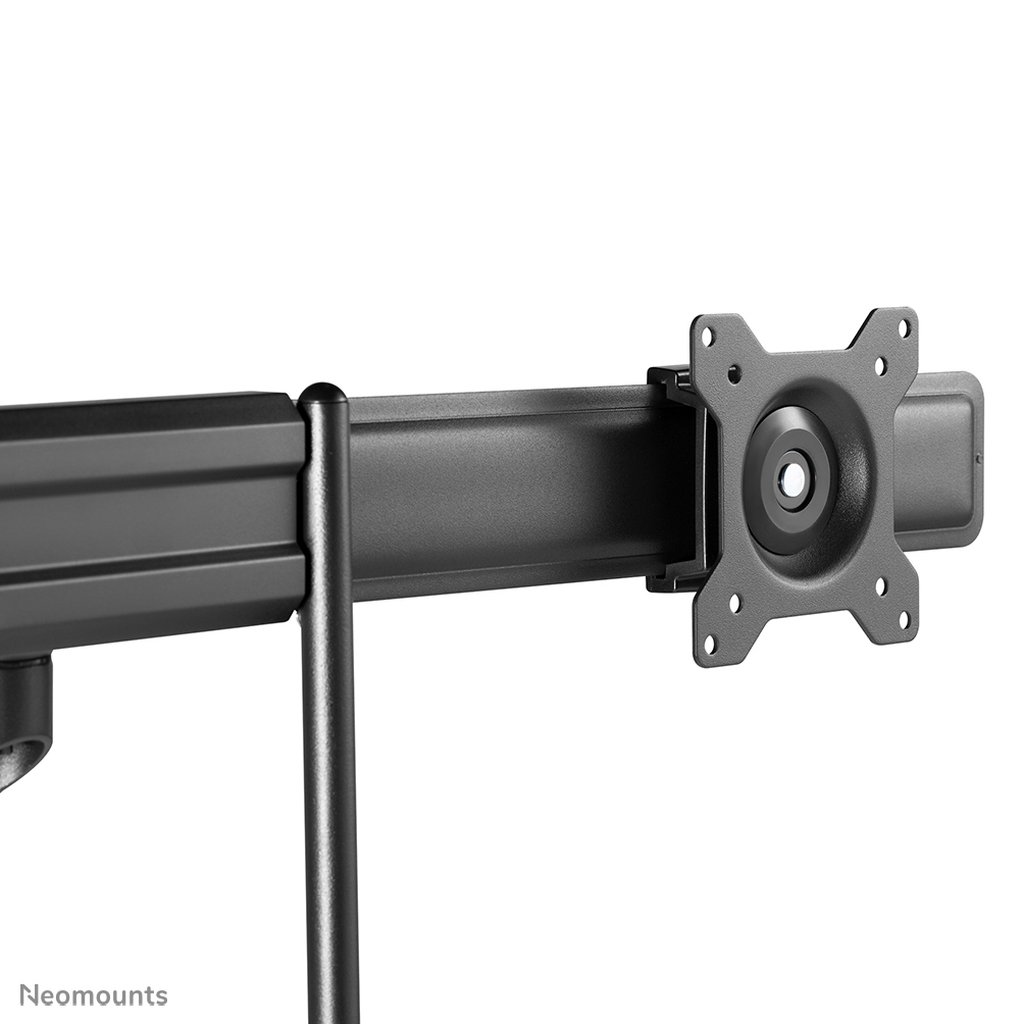

The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Additional information
| Weight | 7.5 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |

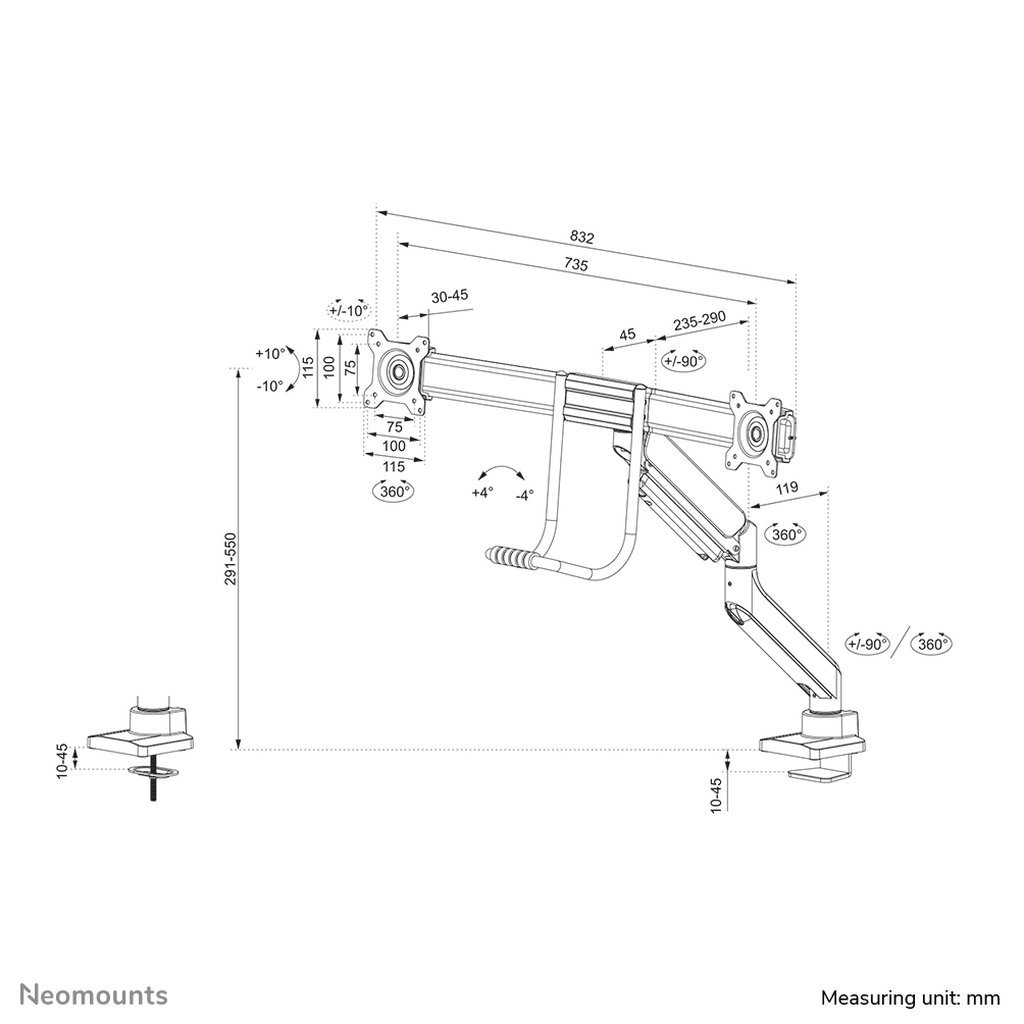

| Height adjustment range | 291 – 560 mm |
| Depth adjustment range | 143 – 553 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -10 – 10° |
| Swivelling | Yes |
| Swivel angle | 20° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Black |
| Housing material | Steel |
| Width | 761 mm |
| Depth | 115 mm |
| Height | 646 mm |
| Weight | 6.4 kg |
| Package width | 320 mm |
| Package depth | 152 mm |
| Package height | 445 mm |
| Package weight | 7.9 kg |
| Width adjustment range | 0 – 990 mm |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 14.3 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Minimum weight | 1 kg |
| Maximum weight capacity | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Pivot angle | -180 – 180° |
| Package net weight | 7.9 kg |
| Mounting kit | Yes |
| Width adjustment | 99 cm |
