Neomounts DS20-425BL2 Monitor arm with laptop holder 17-27″ – space saving
Neomounts NEXT Lite DS20-425BL2 Single monitor arm with laptop holder – 17-27″ – 0-8 kg – space saving T-Rex model – 100% plastic-free packaging – universal – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

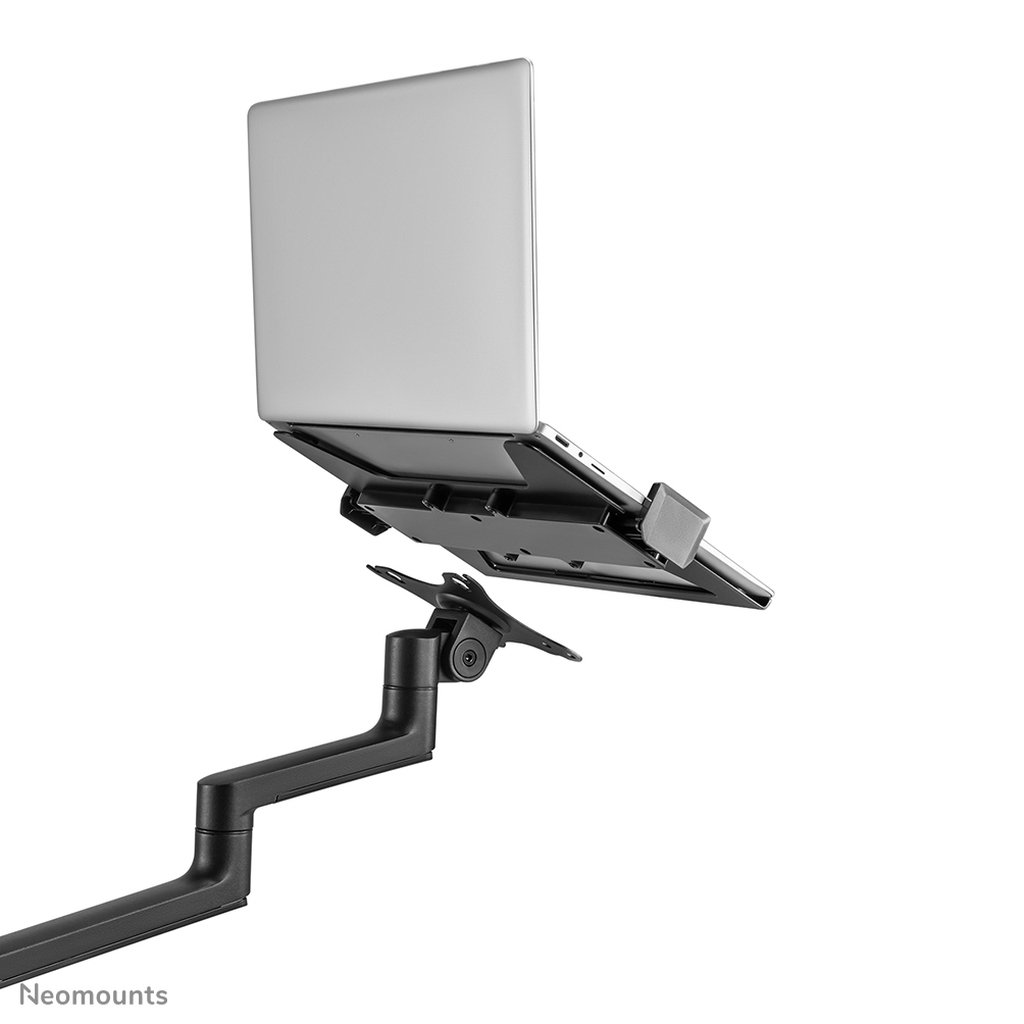

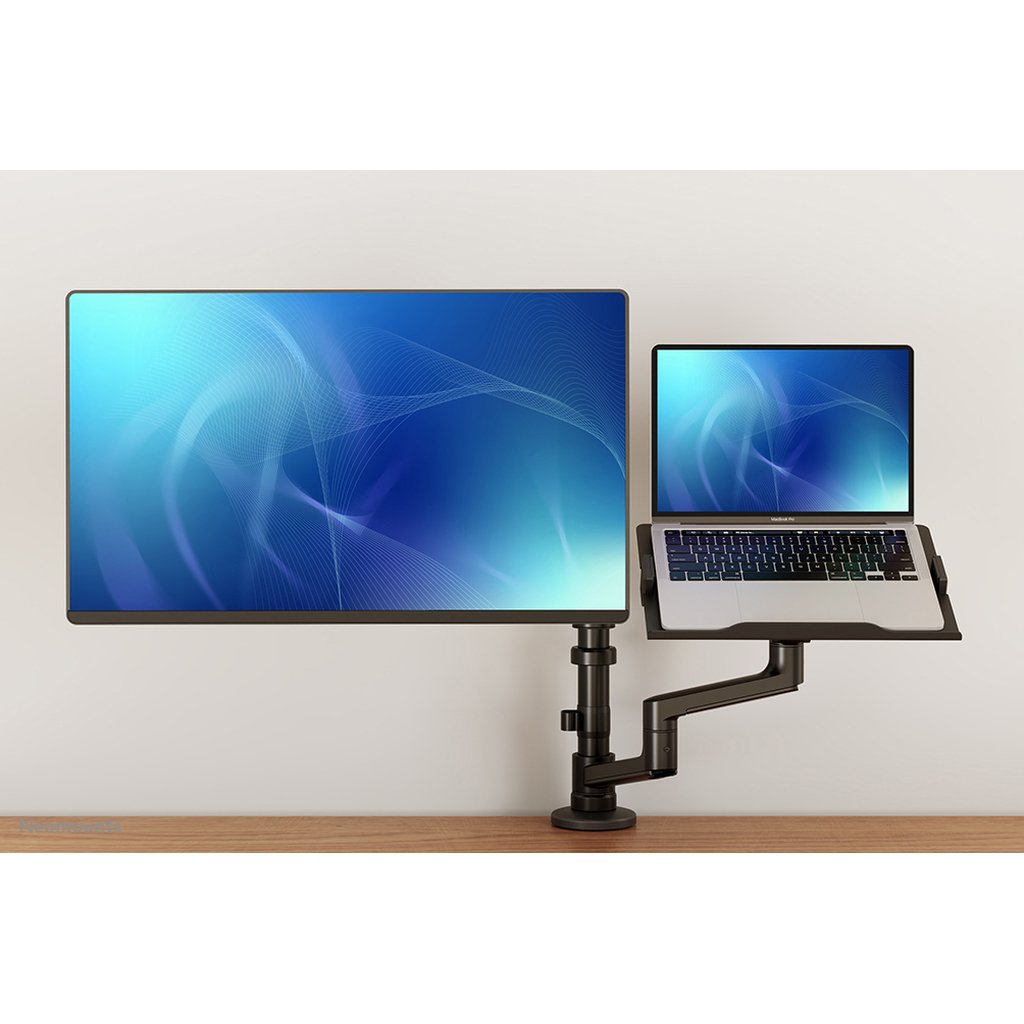

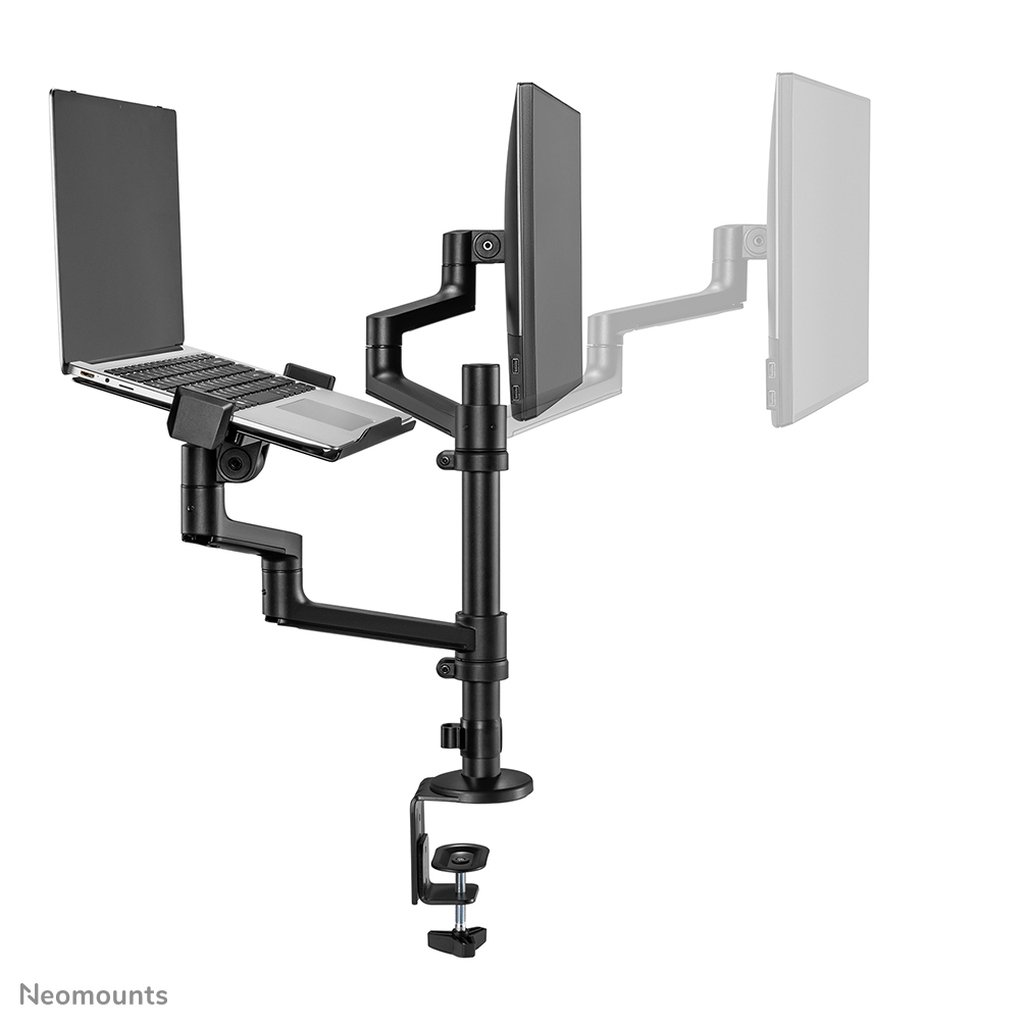

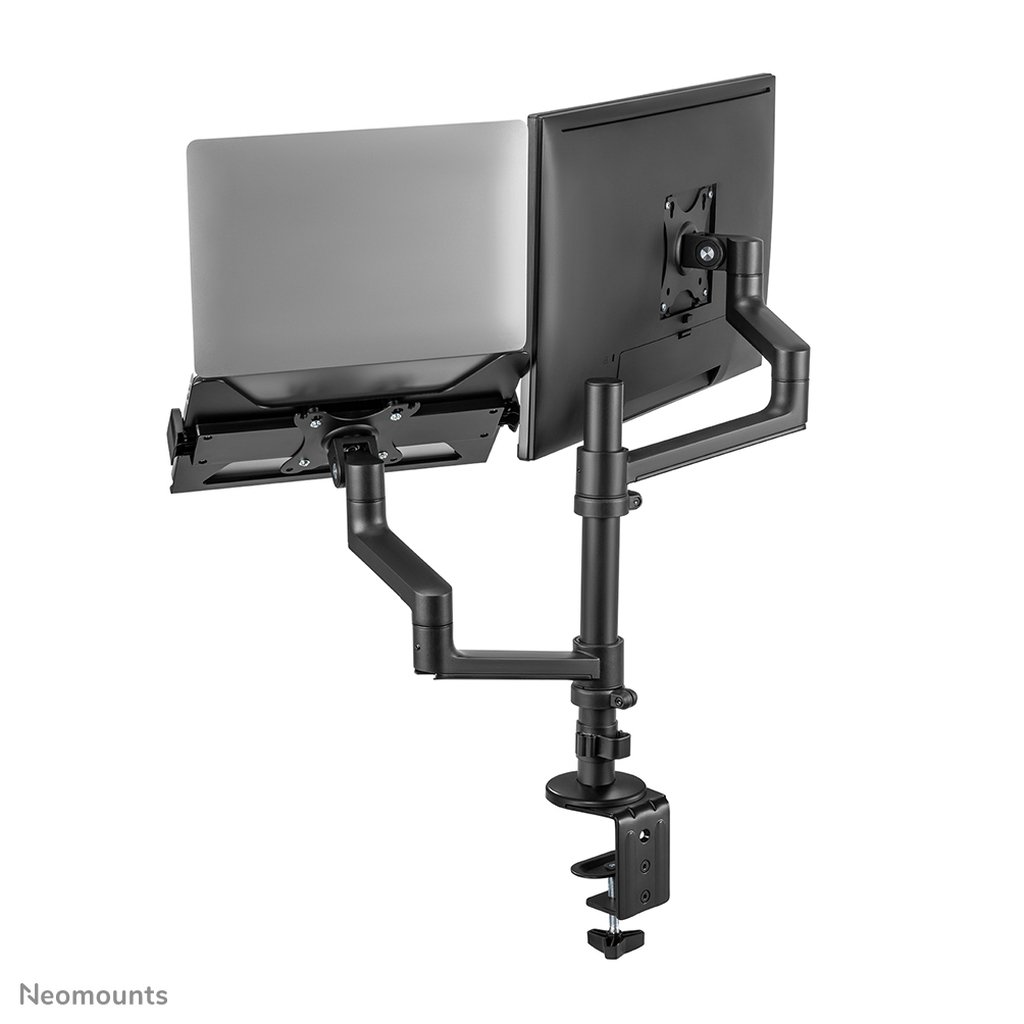

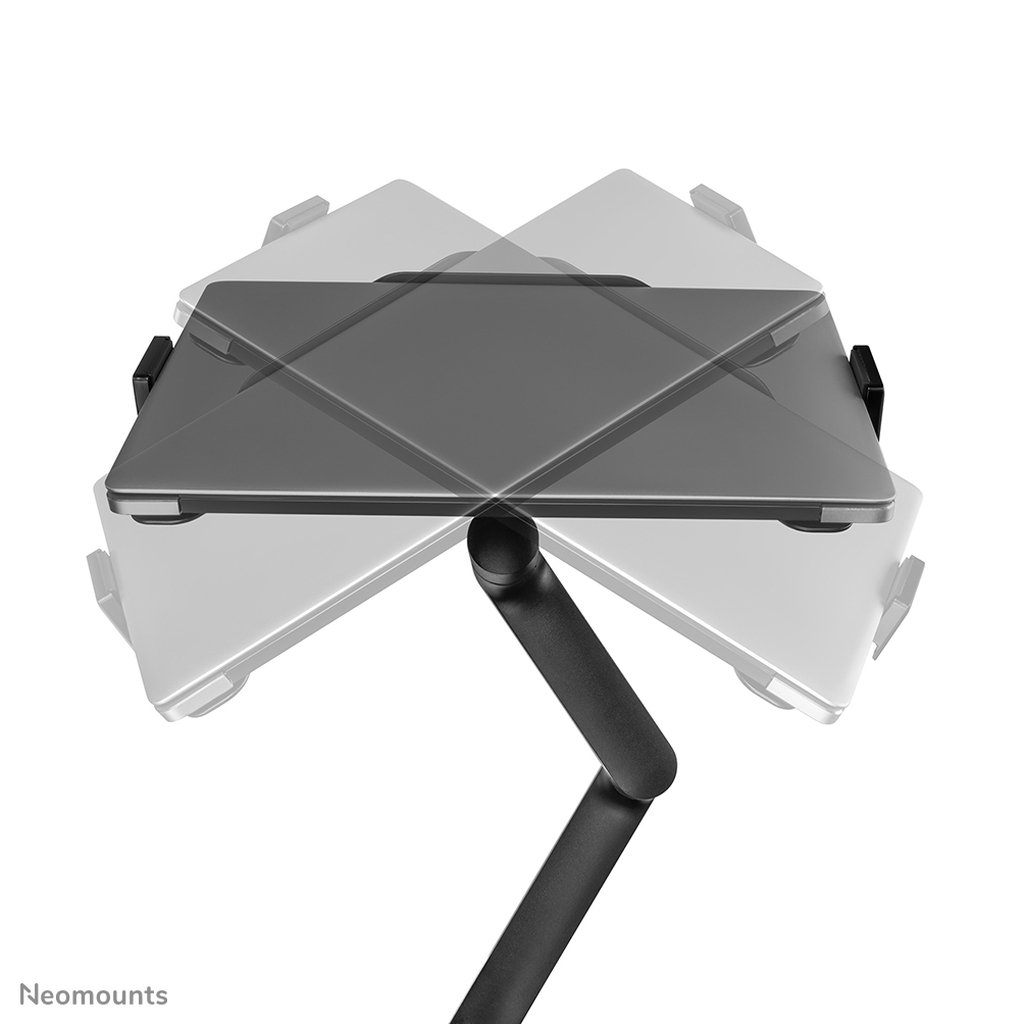

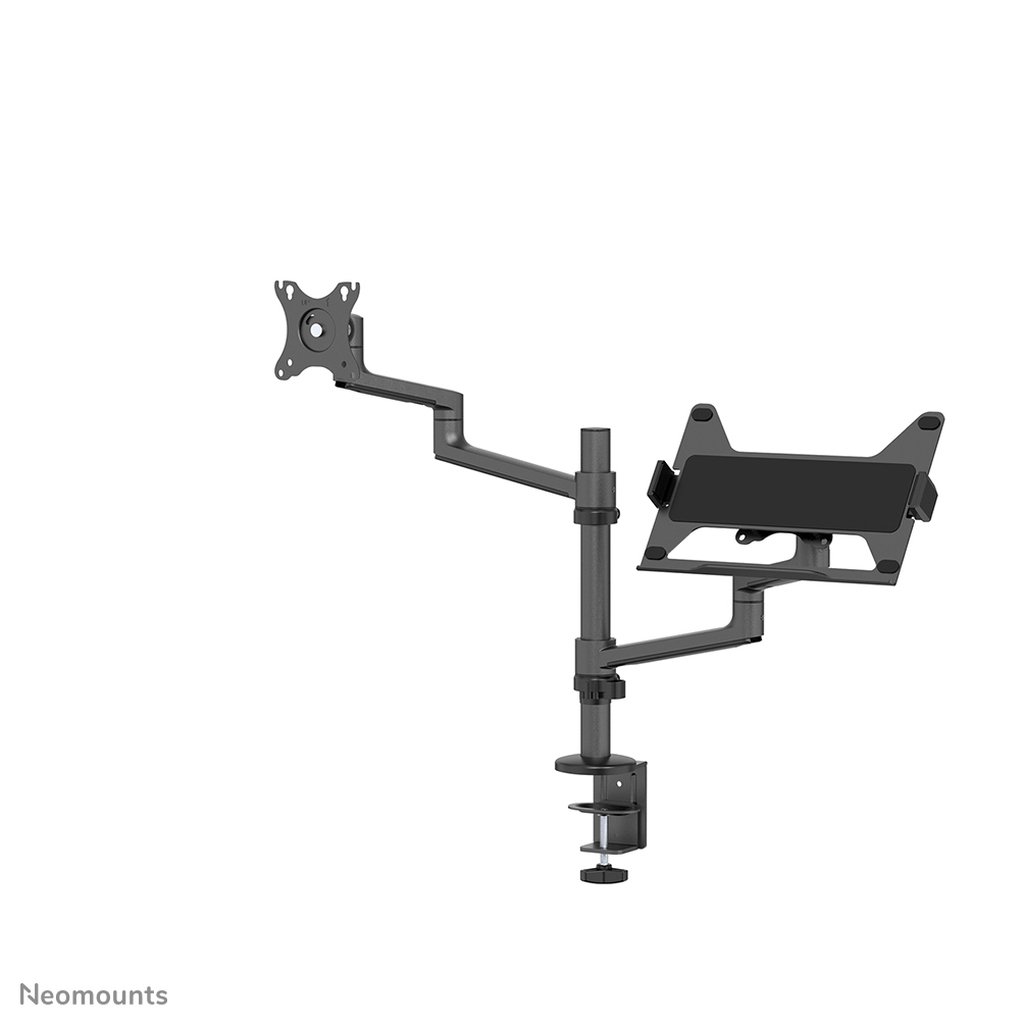

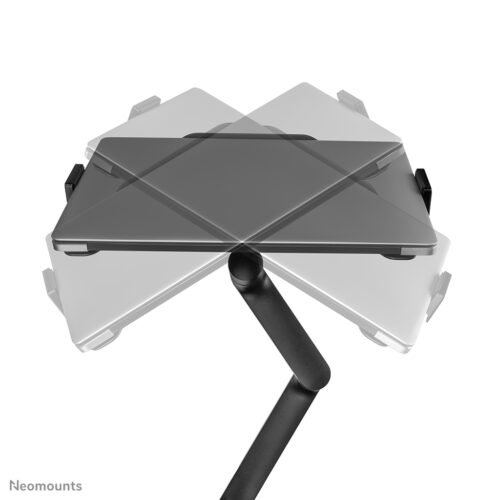

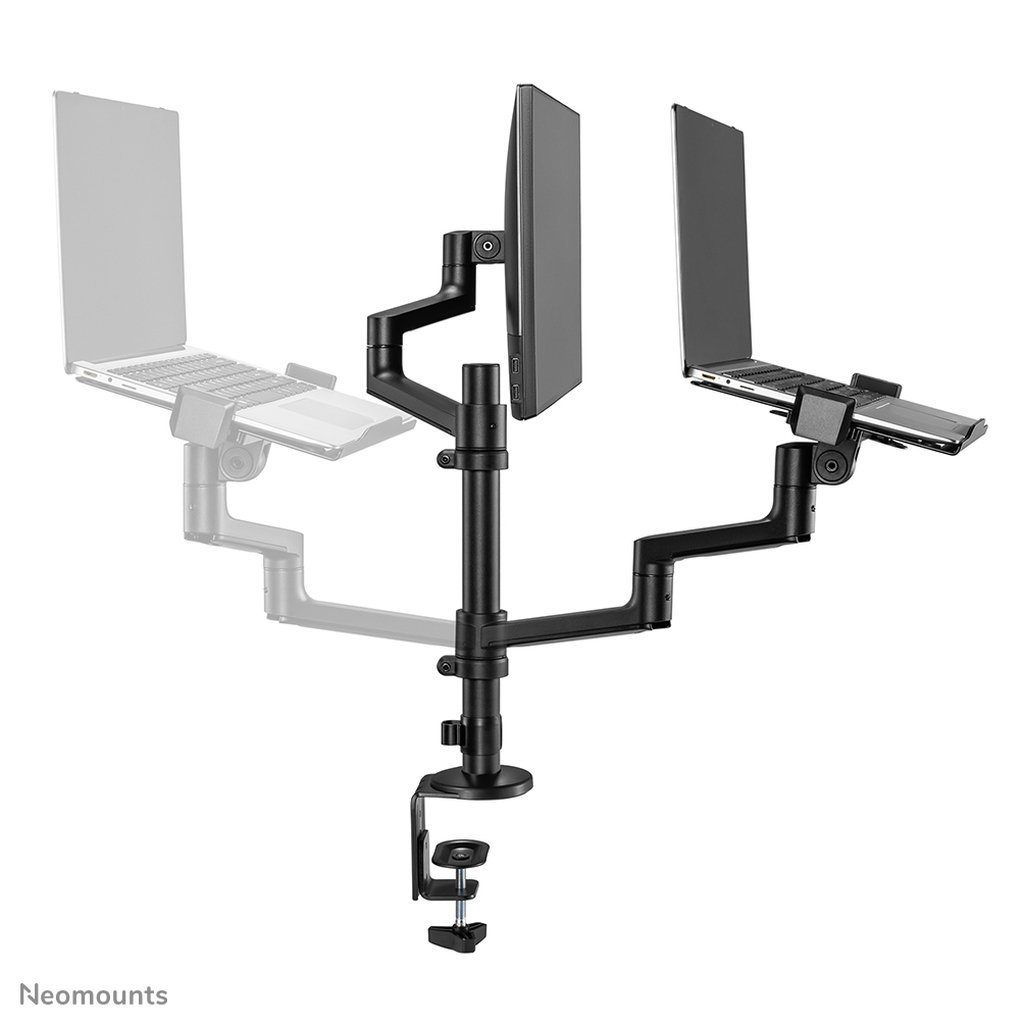

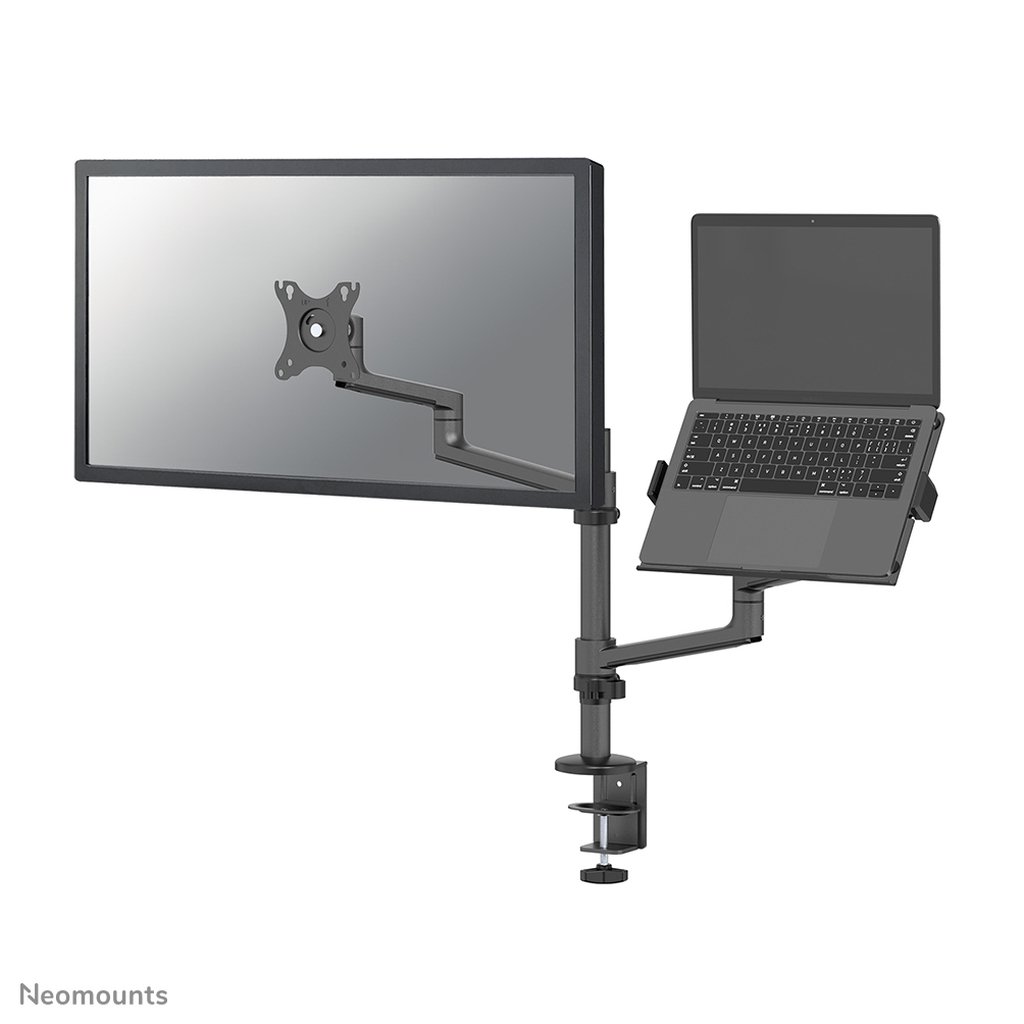

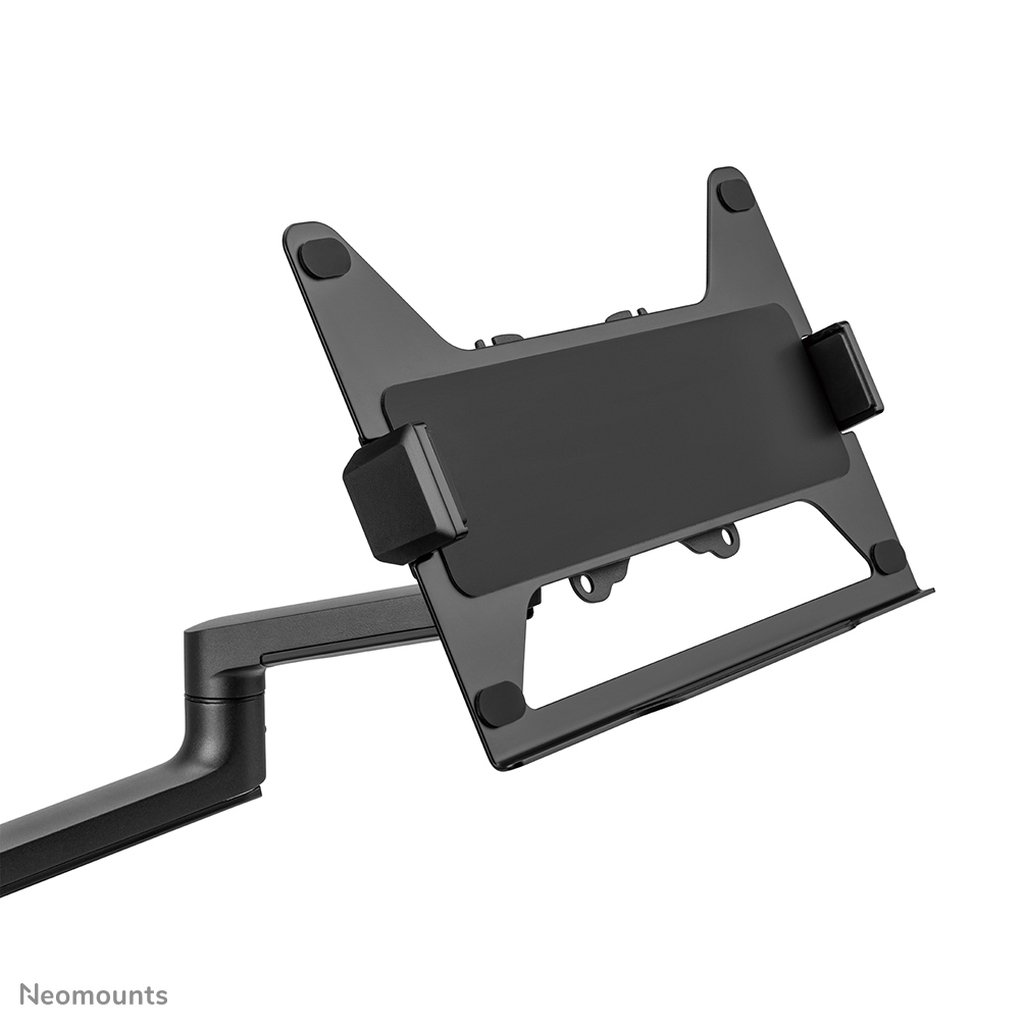

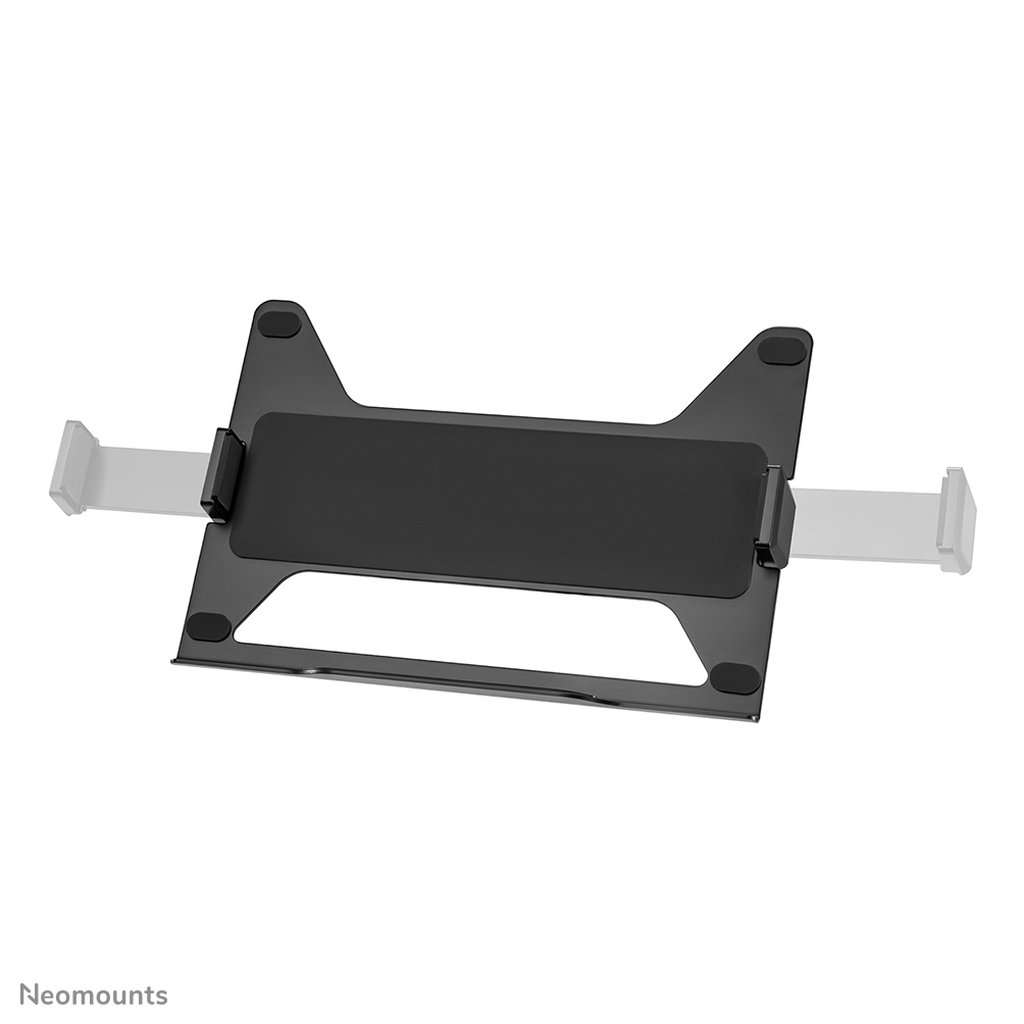

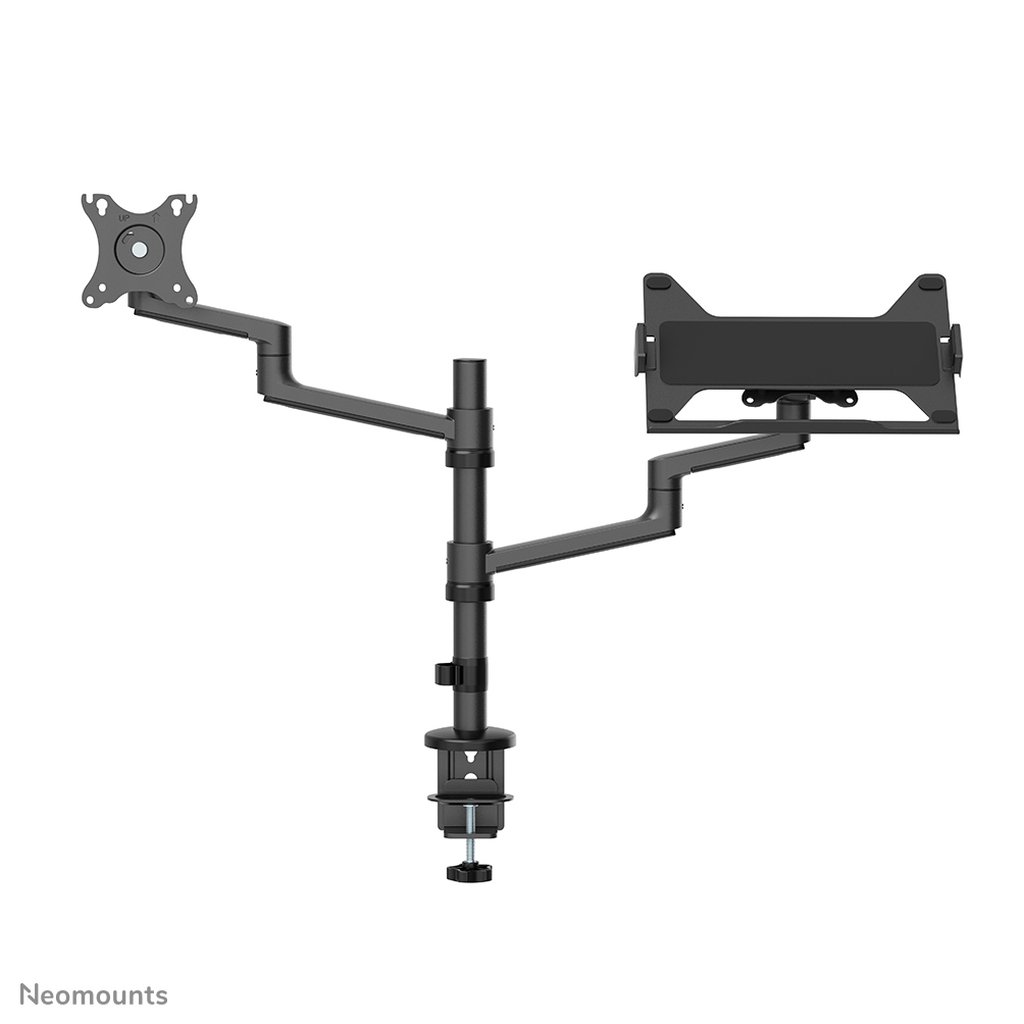

The Neomounts DS20-425BL2 NEXT Lite is a full motion desk mount for screens up to 27″ and laptops up to 17,3″ with a maximum weight capacity of respectively 8 and 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your screen and laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

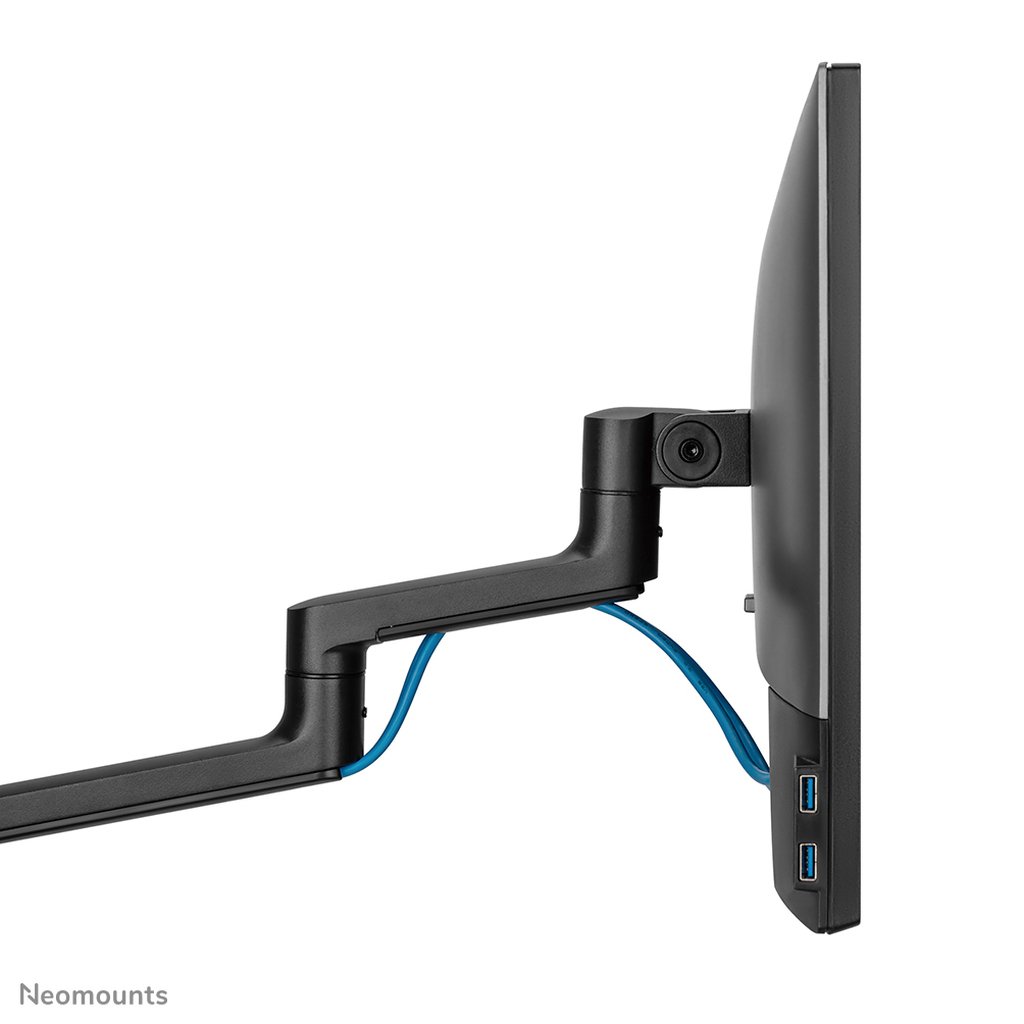

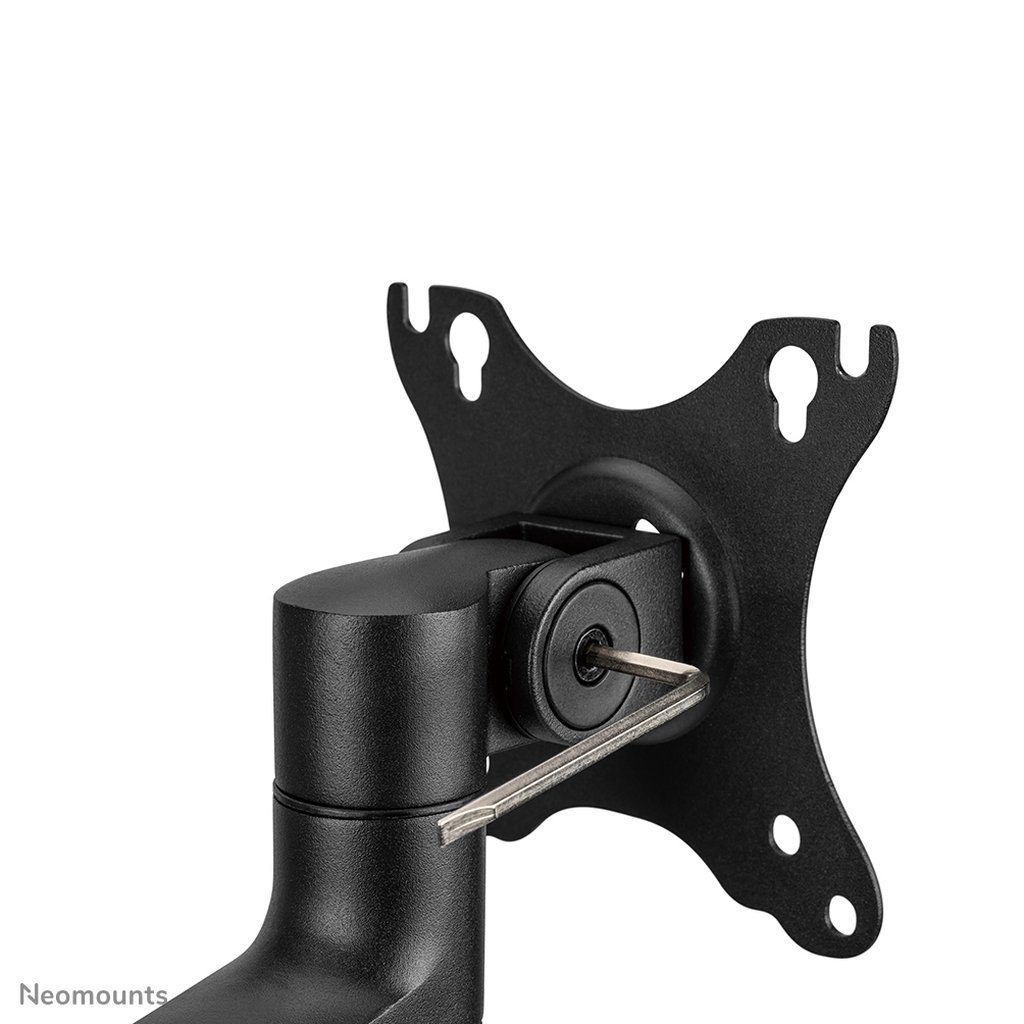

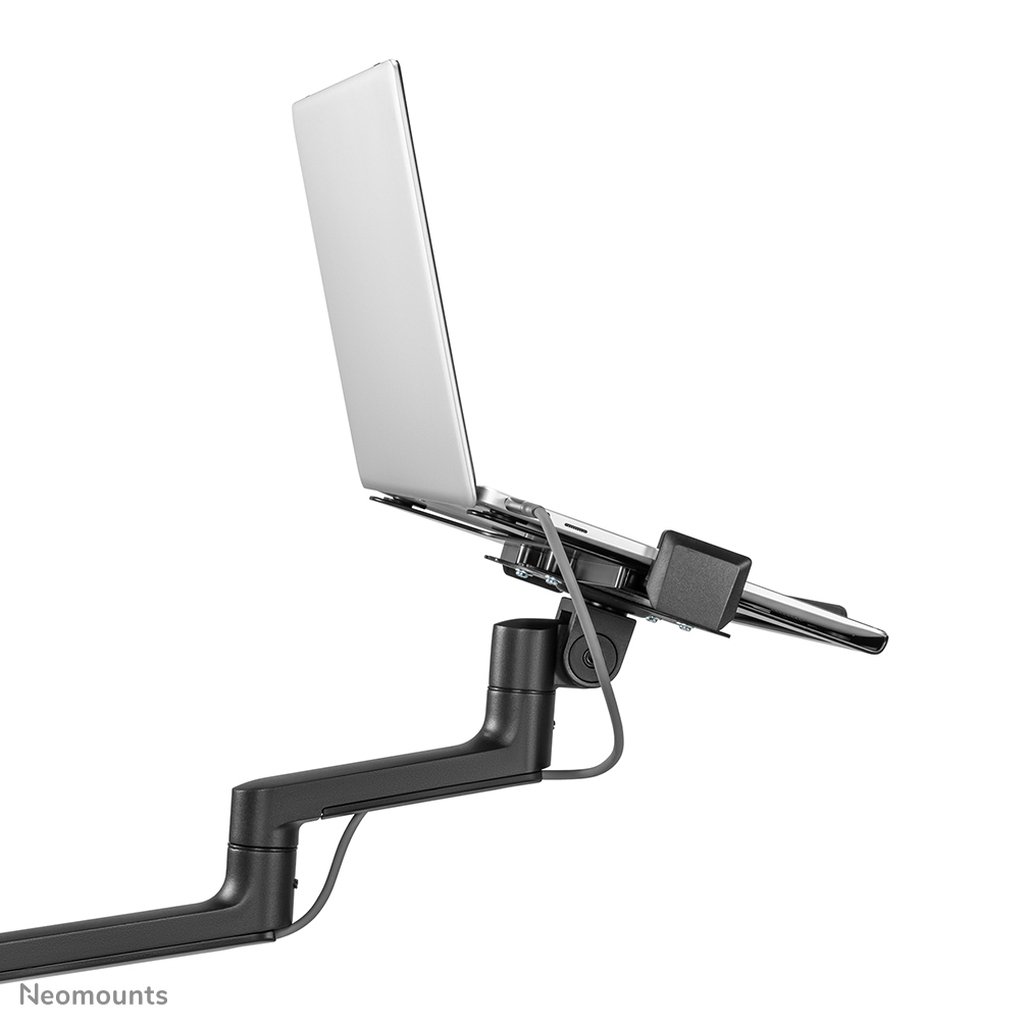

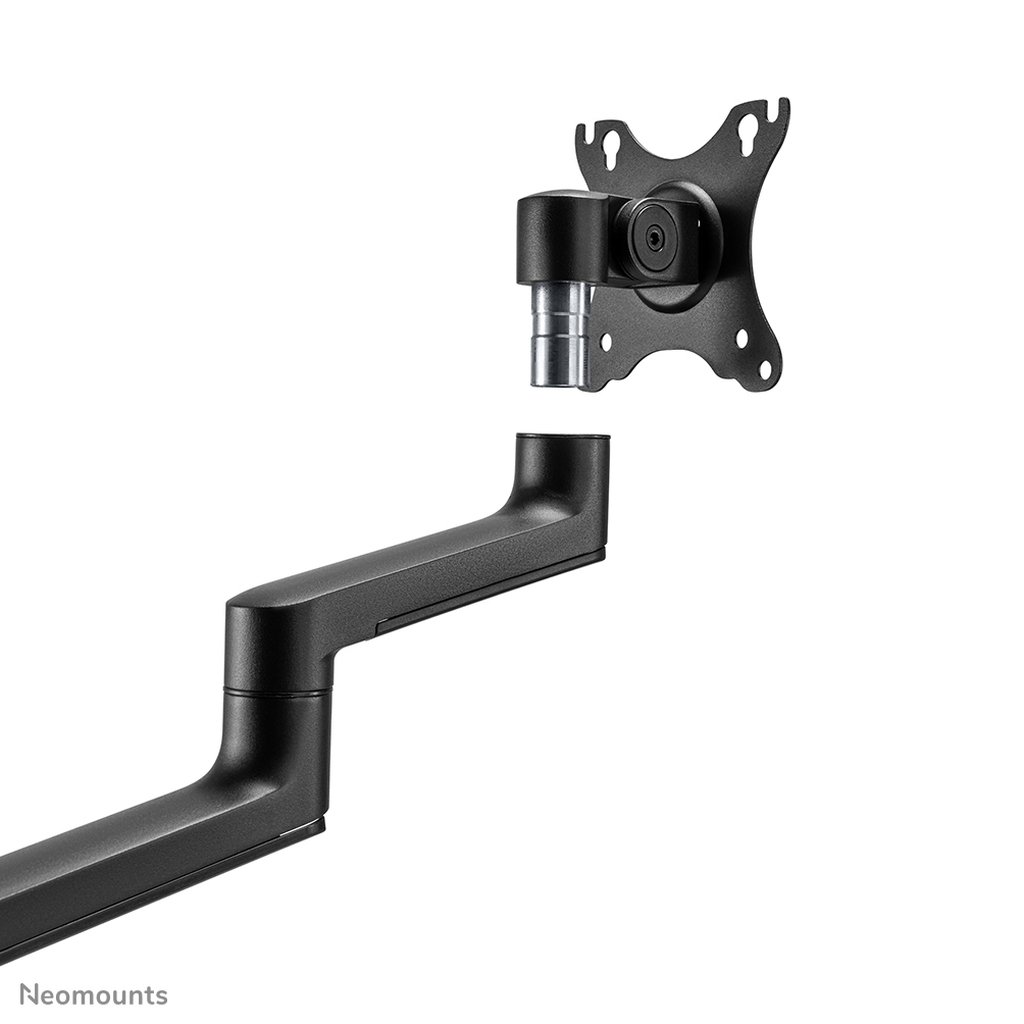

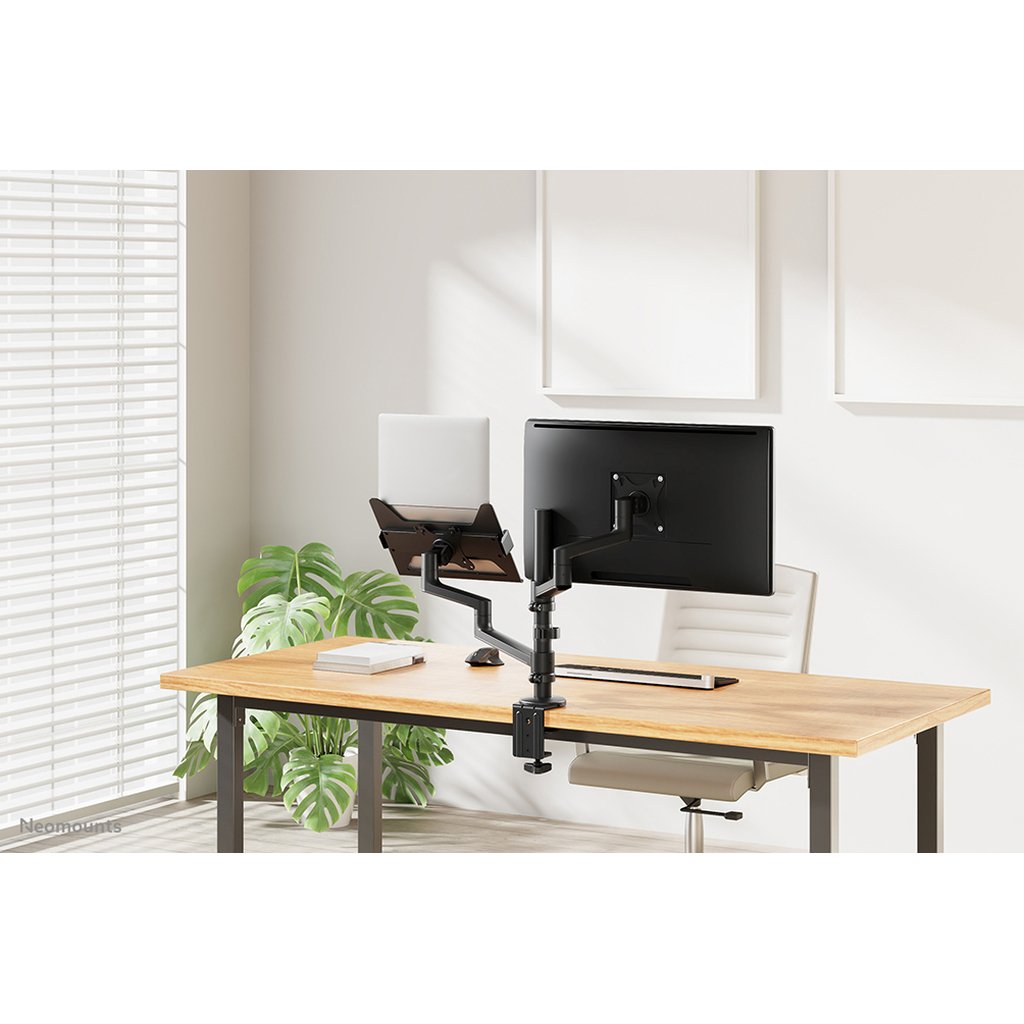

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Additional information
| Weight | 5.52 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |

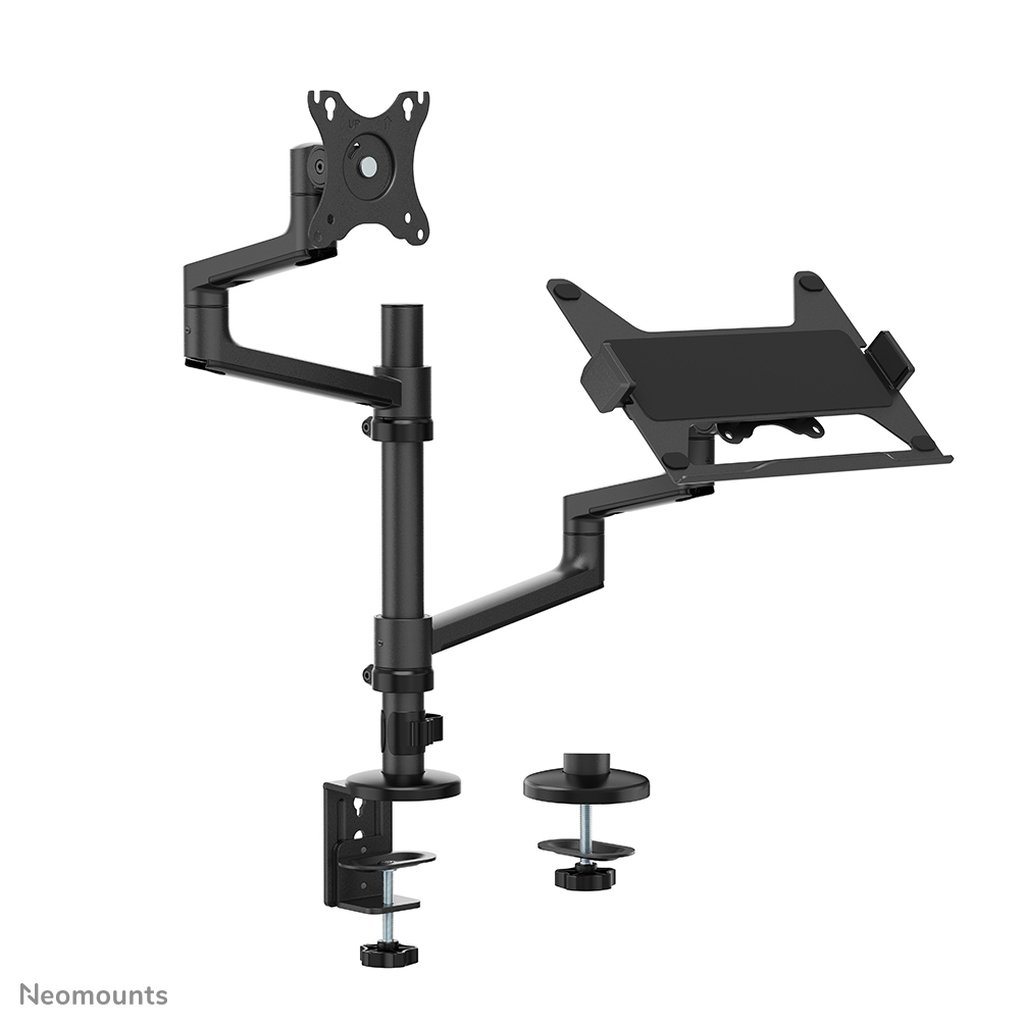

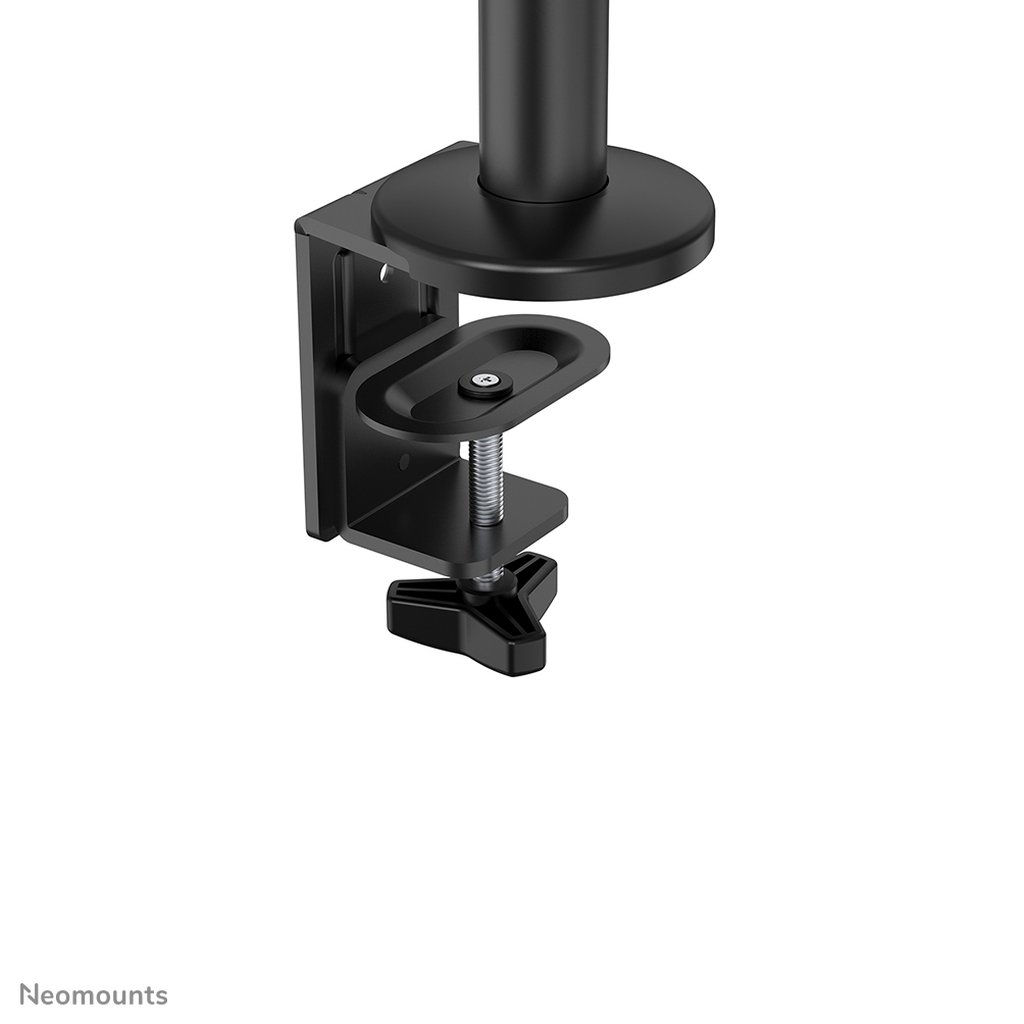

| Mounting | Clamp/Grommet |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Height adjustment | Yes |

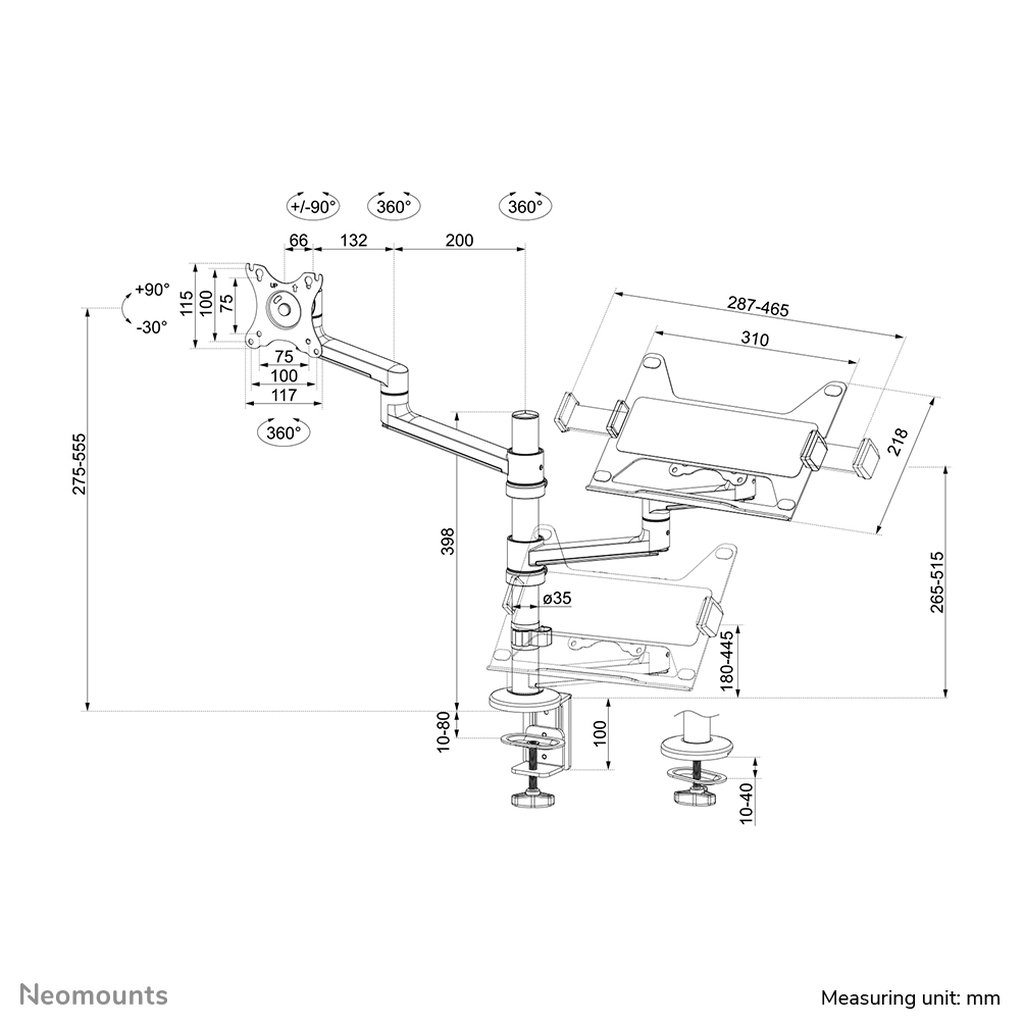

| Height adjustment range | 275 – 555 mm |
| Depth adjustment range | 66 – 398 mm |
| Tilt angle range | -30 – 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Black |
| Housing material | Steel |
| Width | 966 mm |
| Depth | 494 mm |
| Height | 611 mm |
| Weight | 4.55 kg |
| Package width | 233 mm |
| Package depth | 150 mm |
| Package height | 442 mm |
| Package weight | 5.5 kg |
| Width adjustment range | 0 – 332 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 465 mm |
| Master (outer) case gross weight | 17.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.7 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 63 pc(s) |
| Distance to the wall (min) | 16.2 cm |
| Distance to the wall (max) | 49.4 cm |
| Maximum weight capacity | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Package type | Box |
| Package net weight | 5.5 kg |
| Width adjustment | 33.2 cm |
| VESA mounting | Yes |
| Product type | Notebook & monitor arm |
| Adjustable | Yes |
