Neomounts DS70S-950BL1 Monitor arm 17-49″ – gas spring – Topfix – 180°-stop
Neomounts NEXT One DS70S-950BL1 Single monitor arm – 17-49″ – 1-18 kg (curved 15 kg) – gas spring – 180°-stop – Topfix – Easy Install-model – 100% plastic-free packaging – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

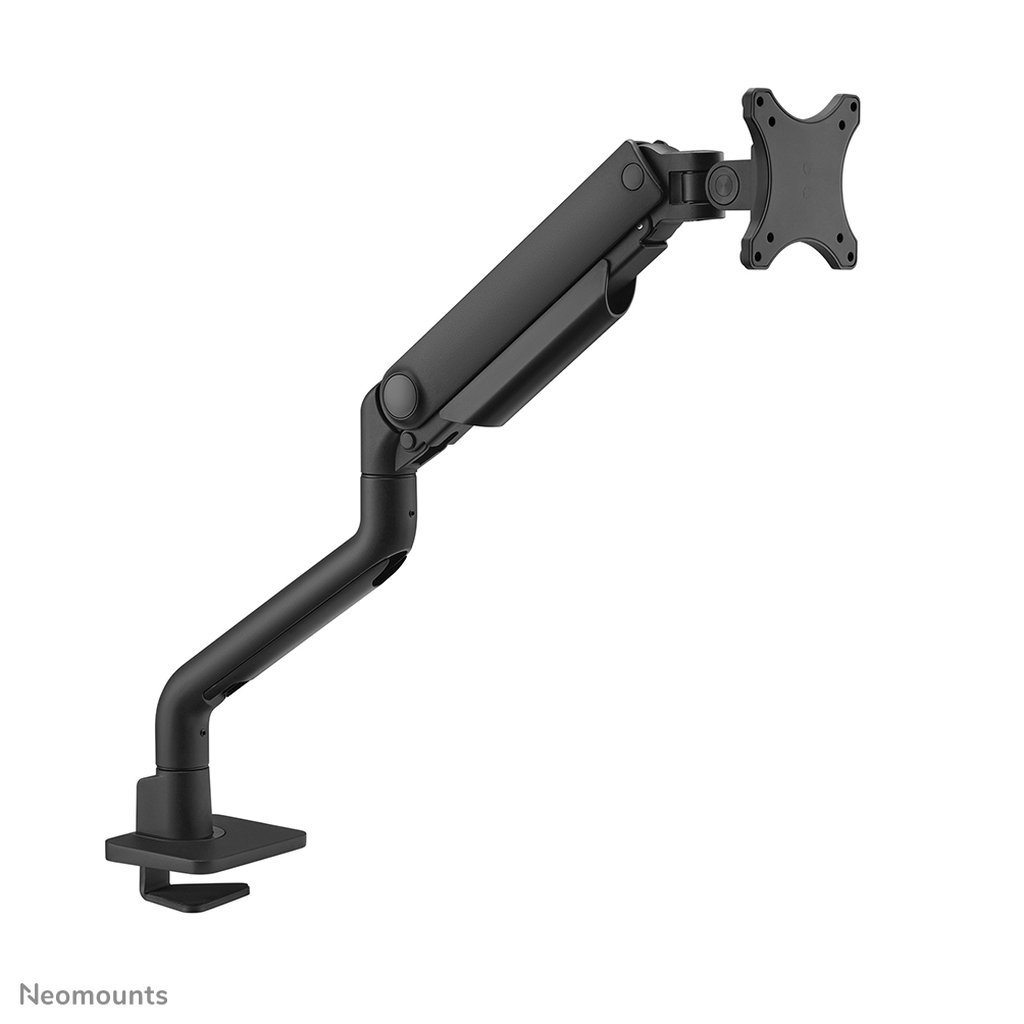

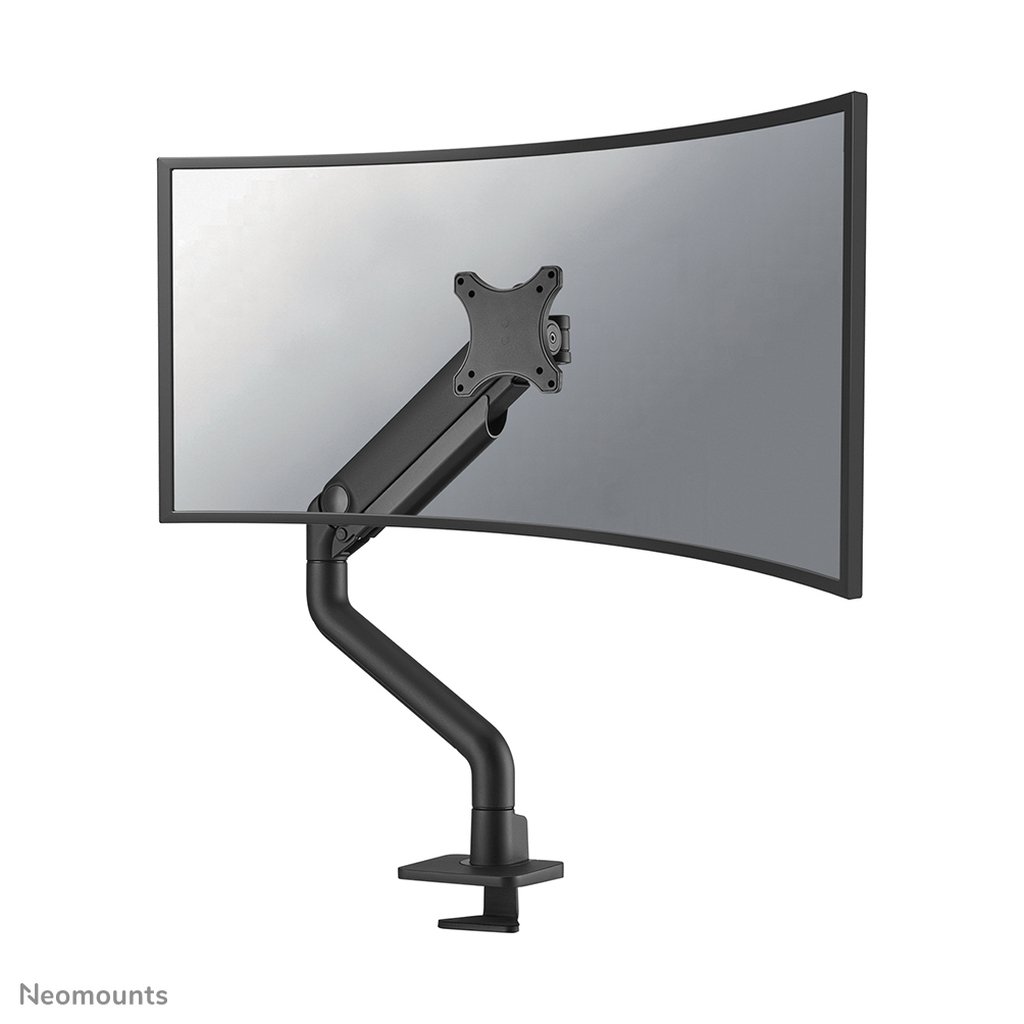

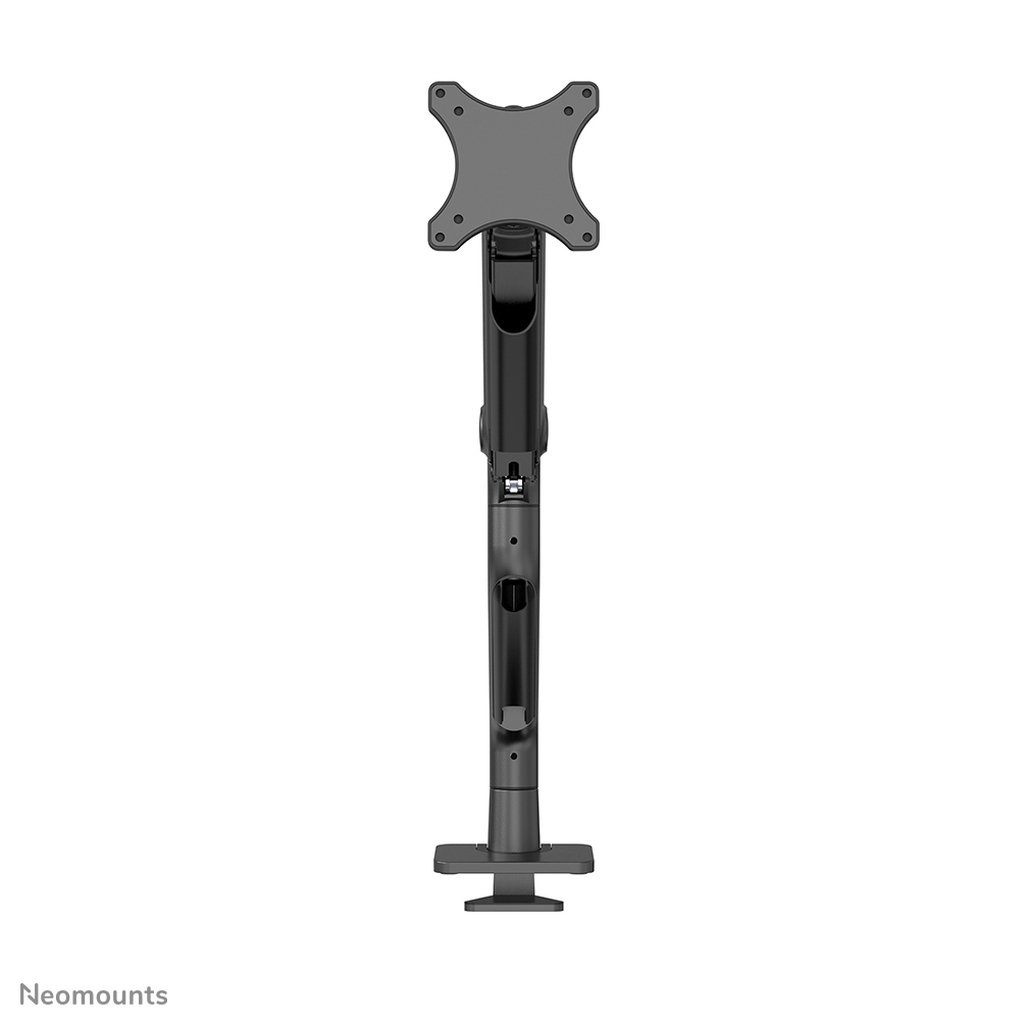

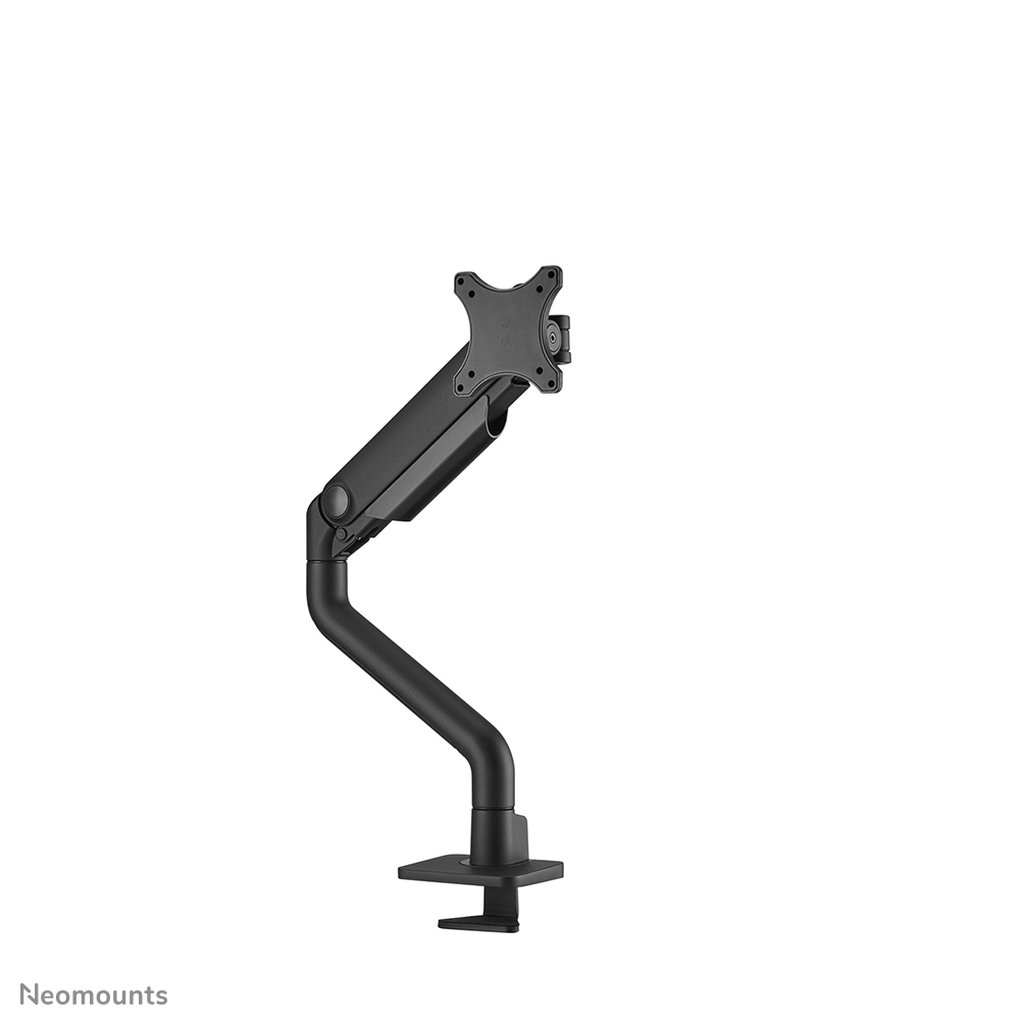

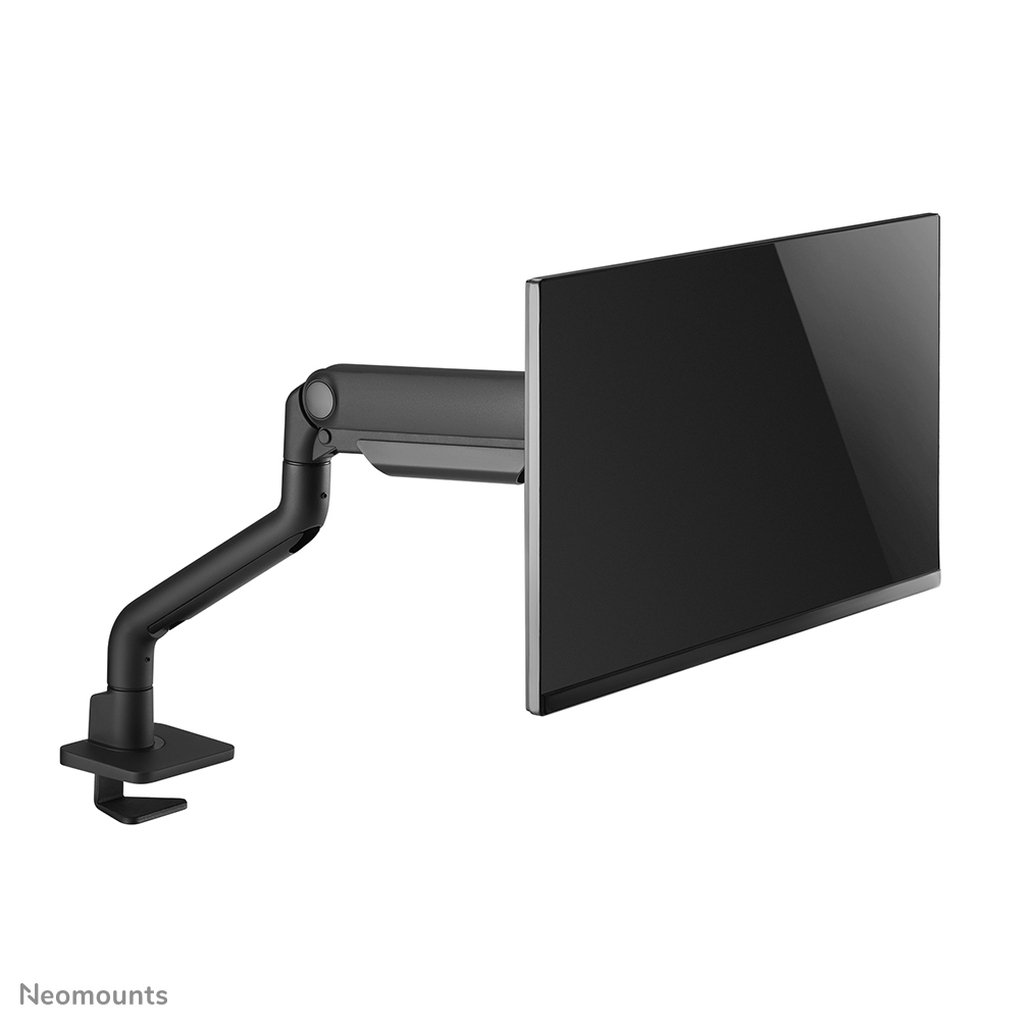

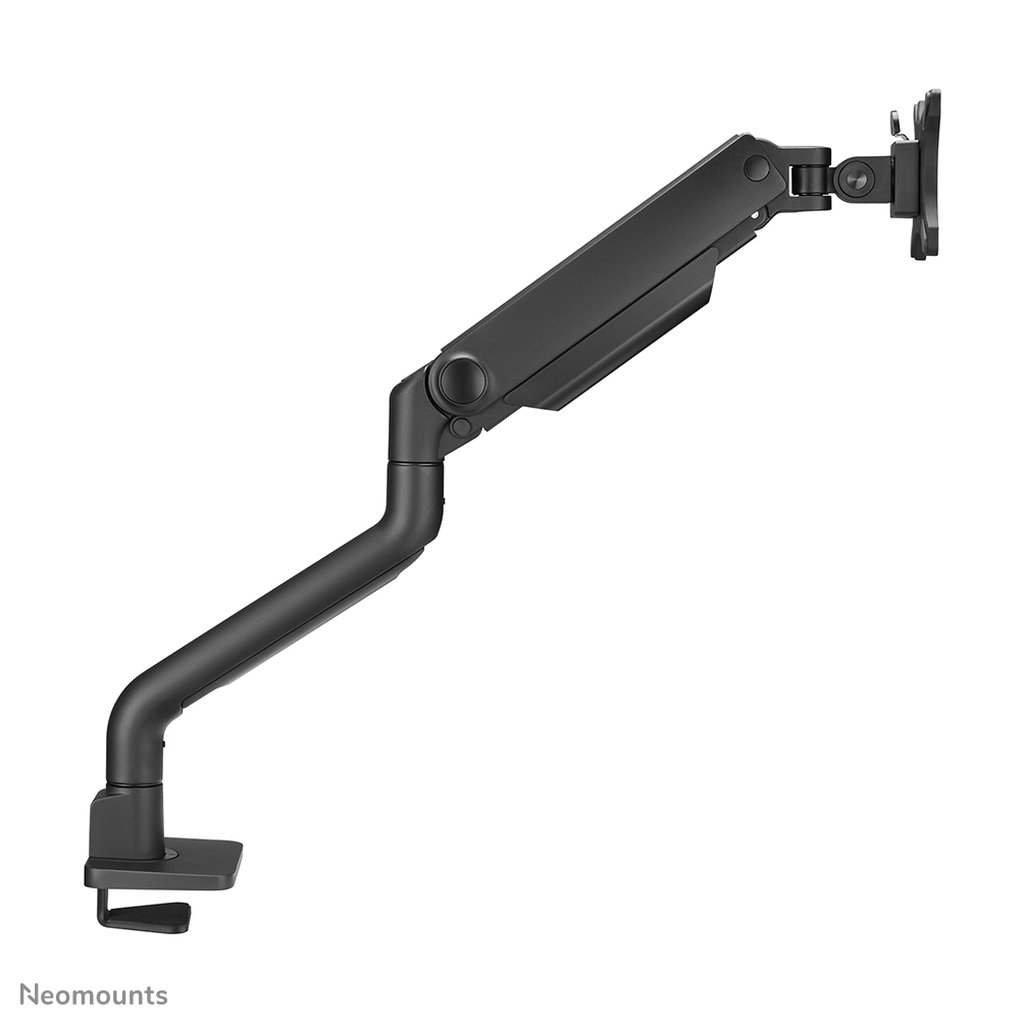

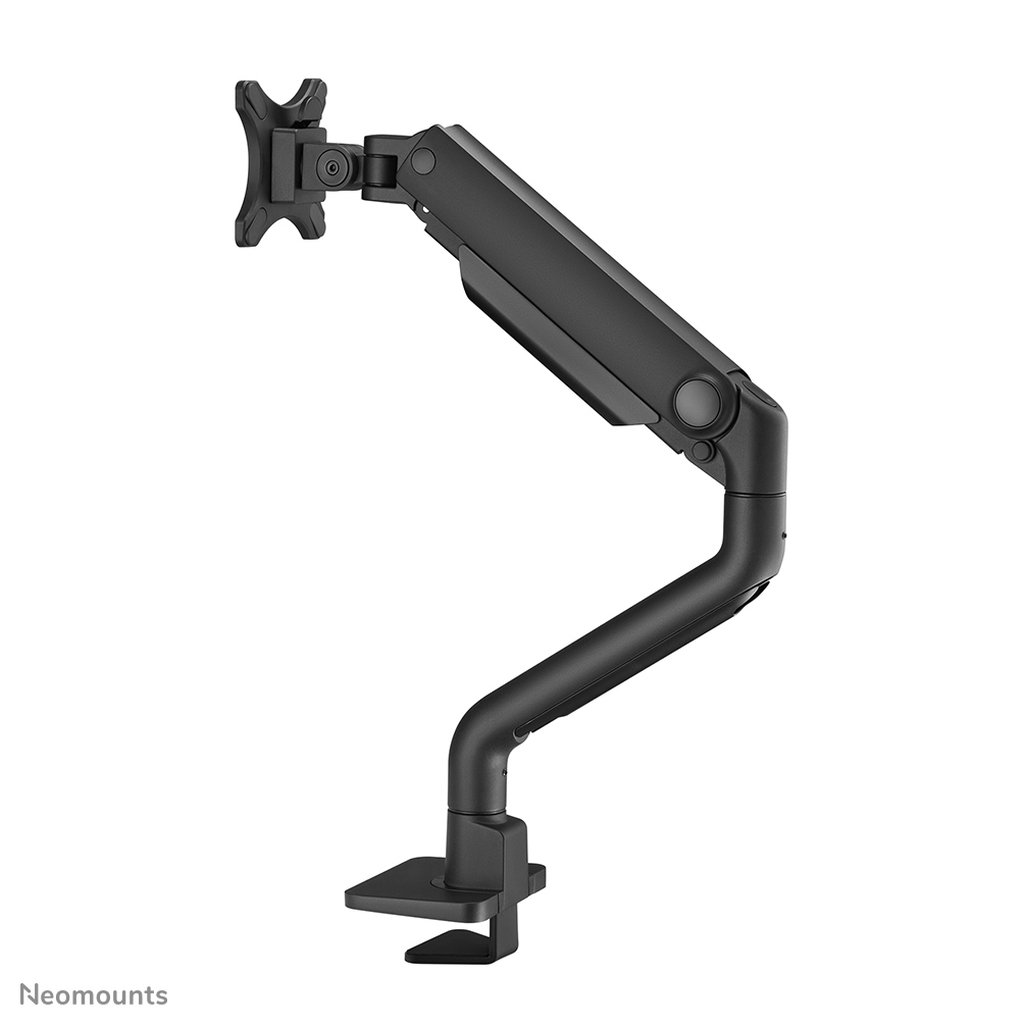

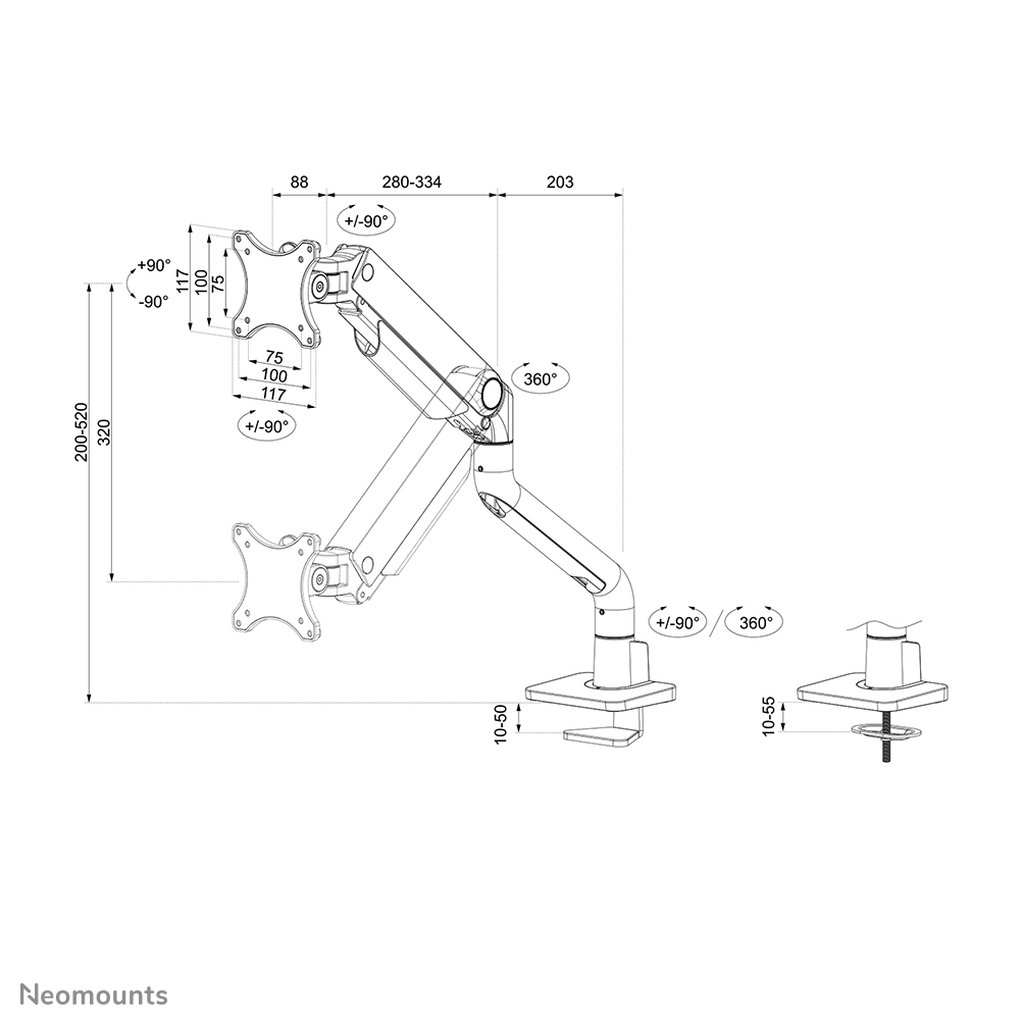

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49″. The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

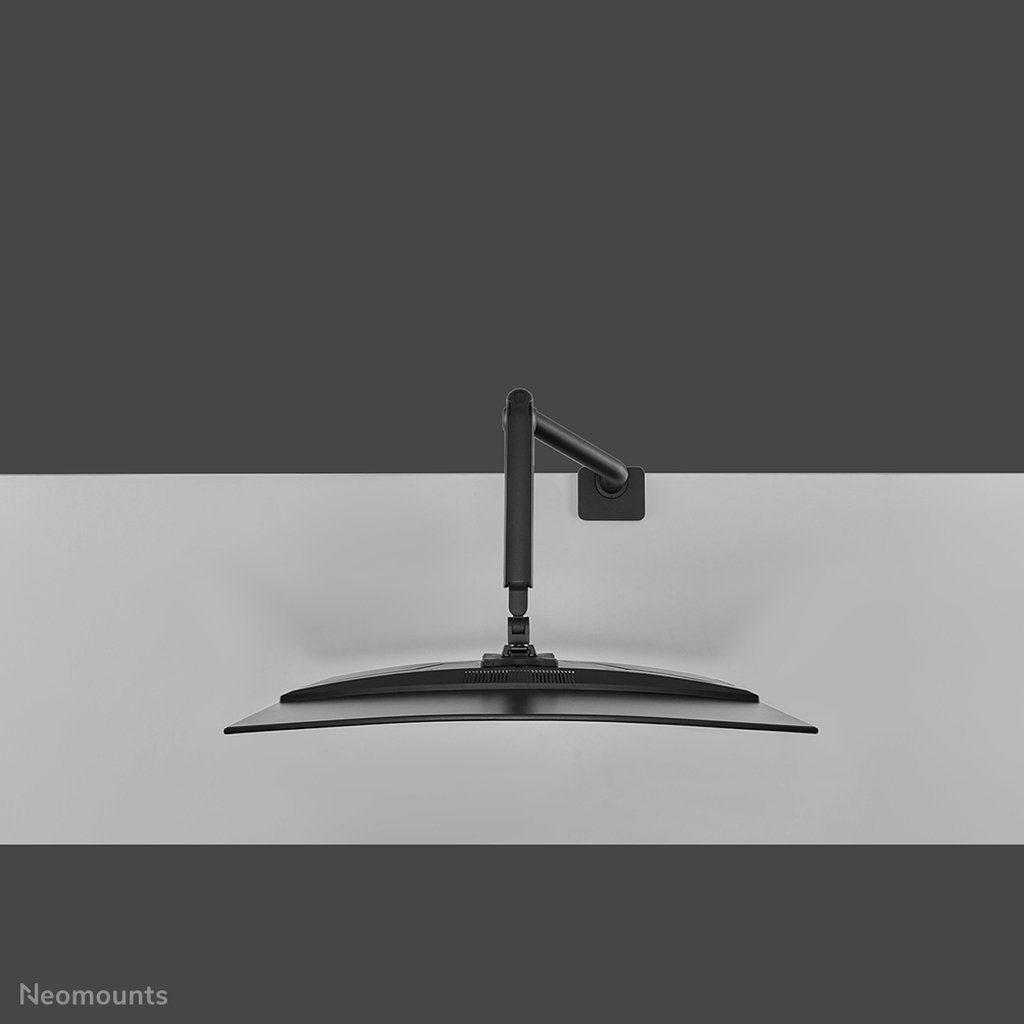

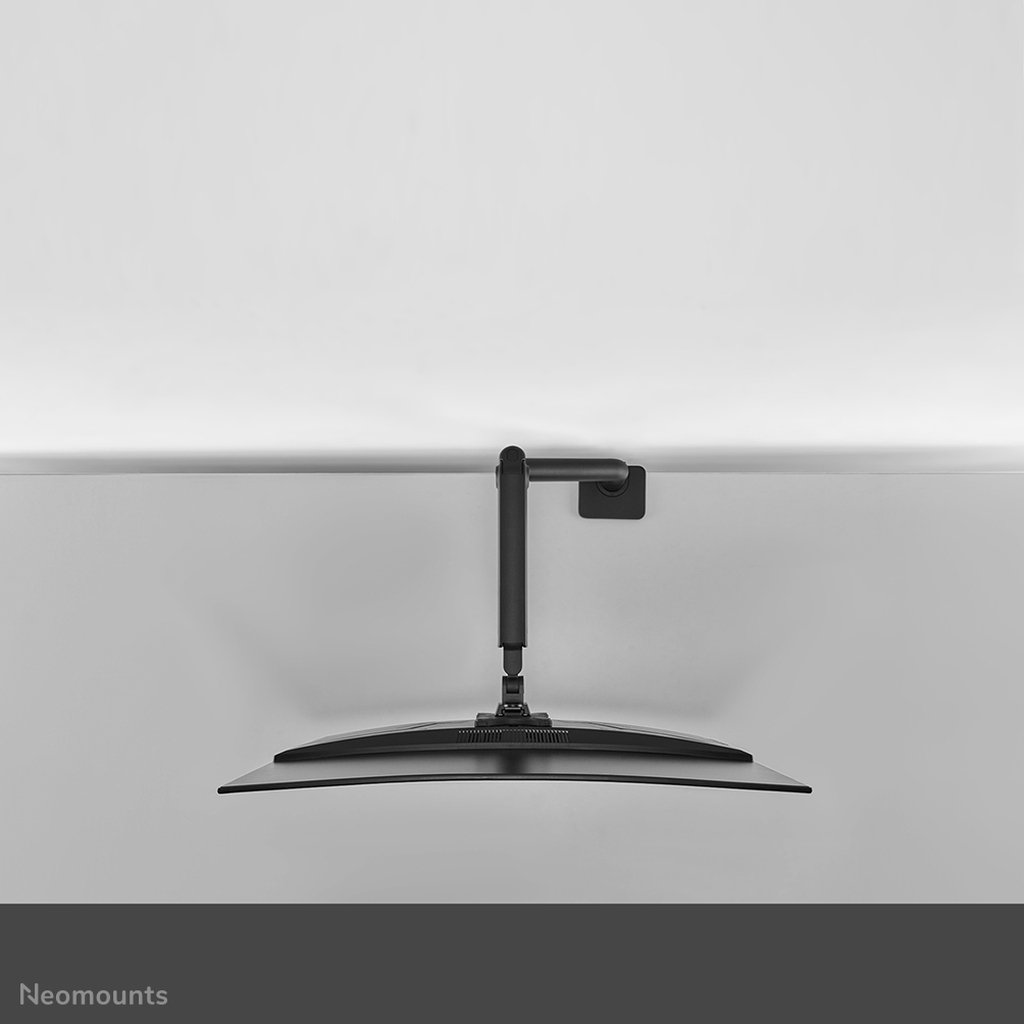

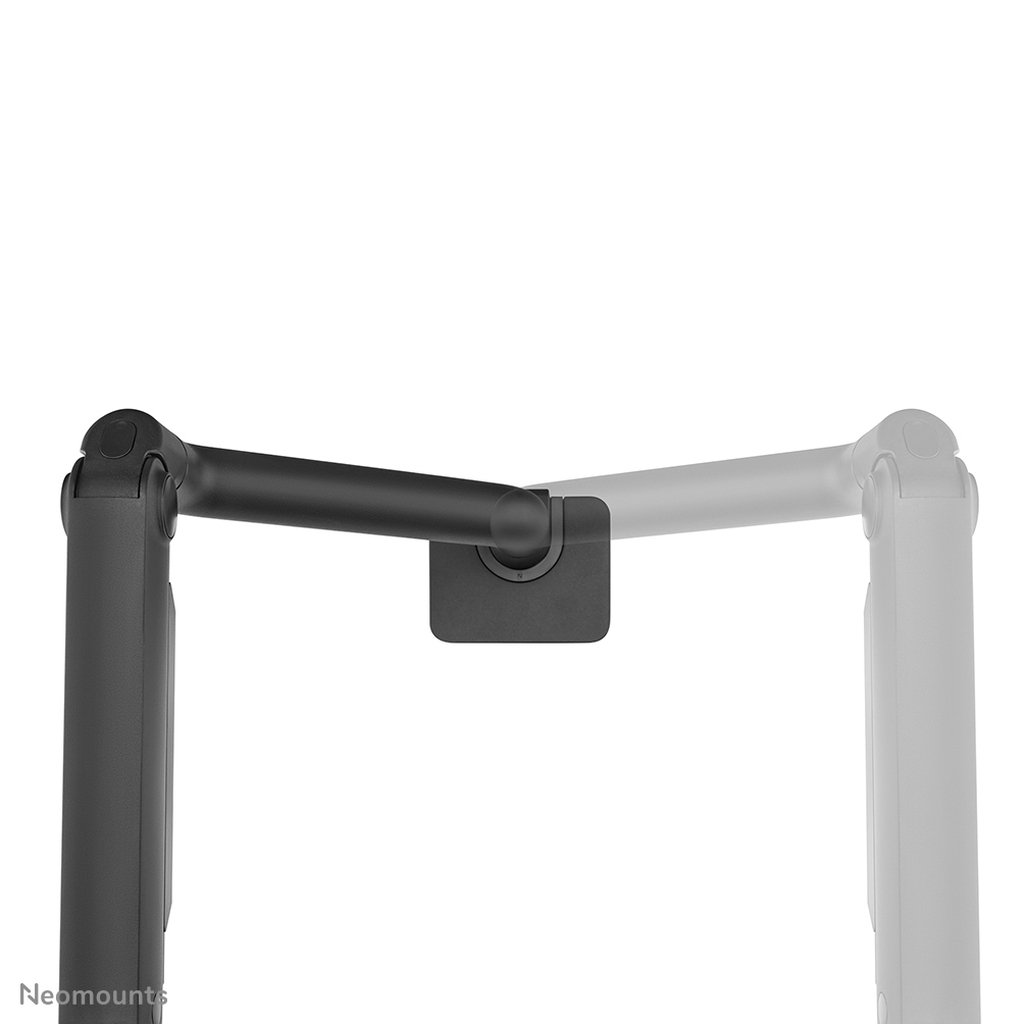

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

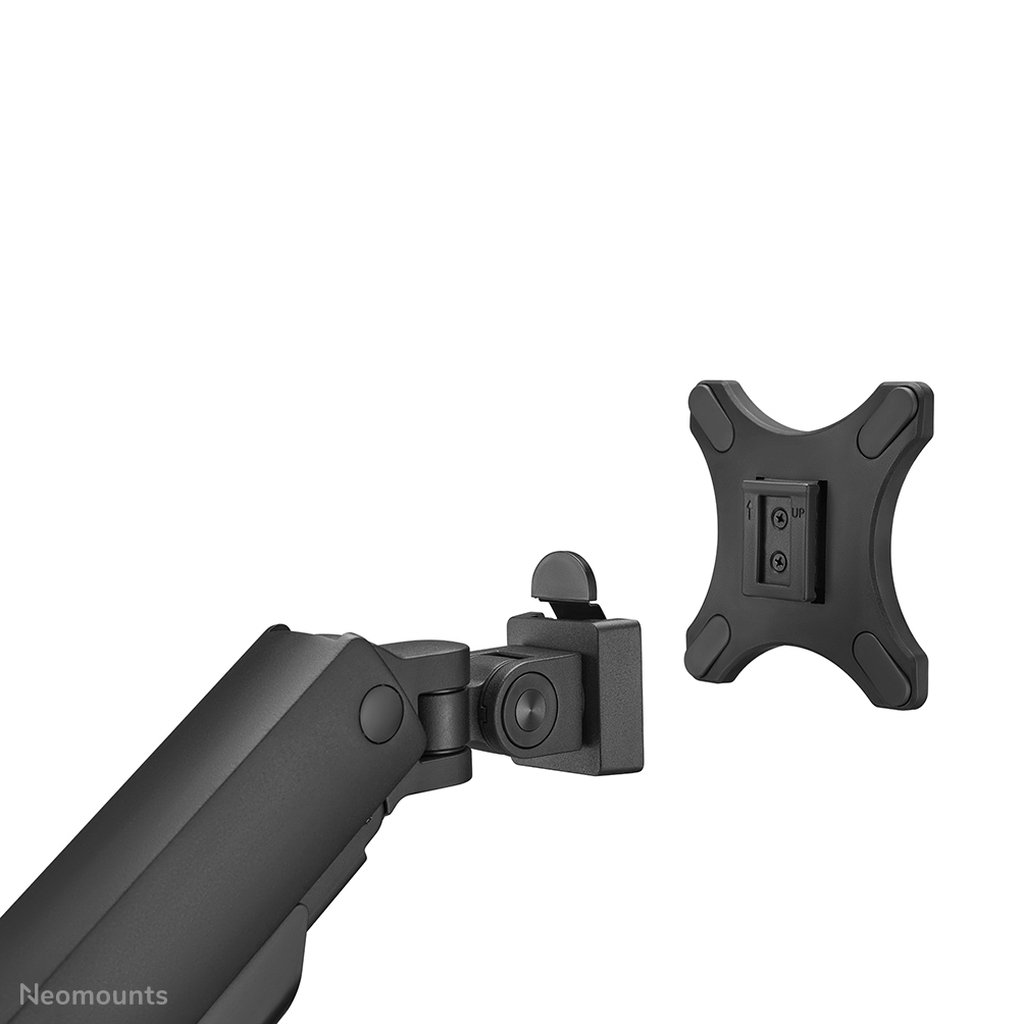

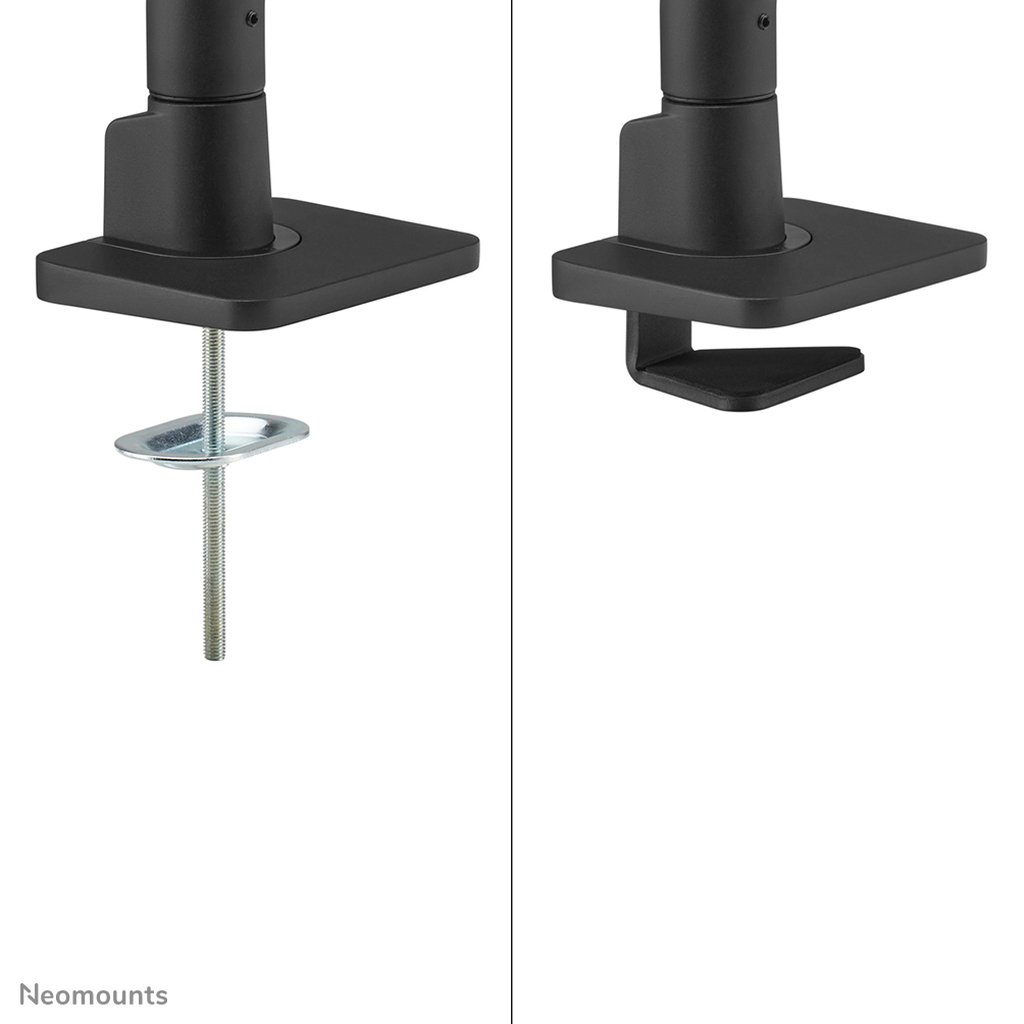

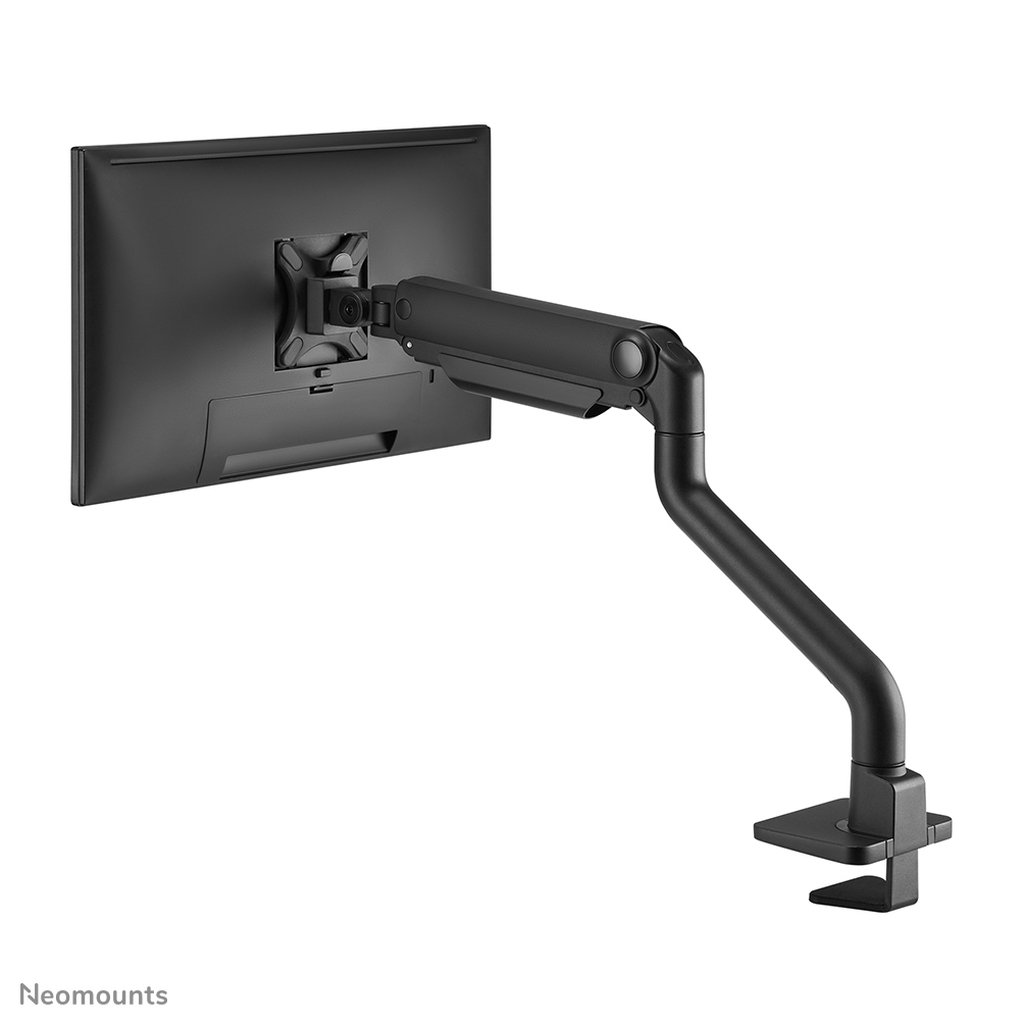

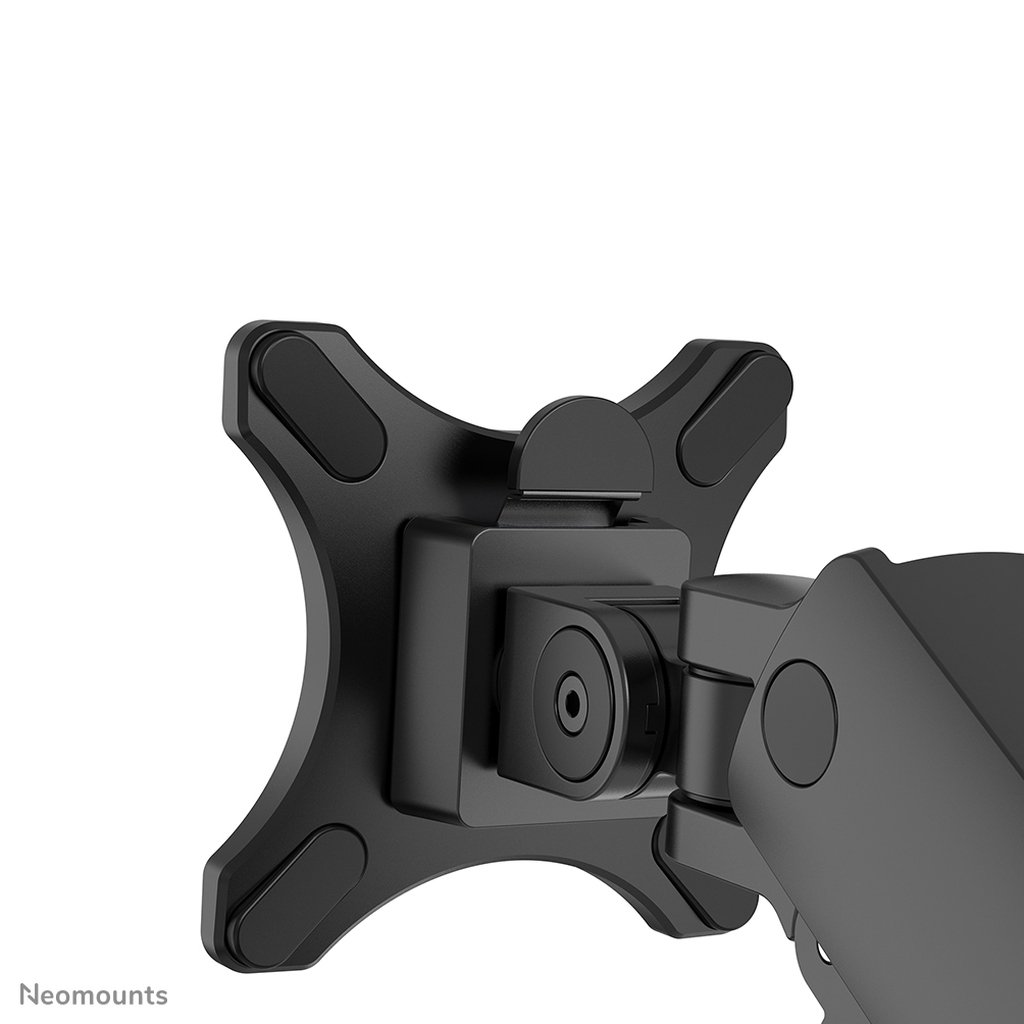

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

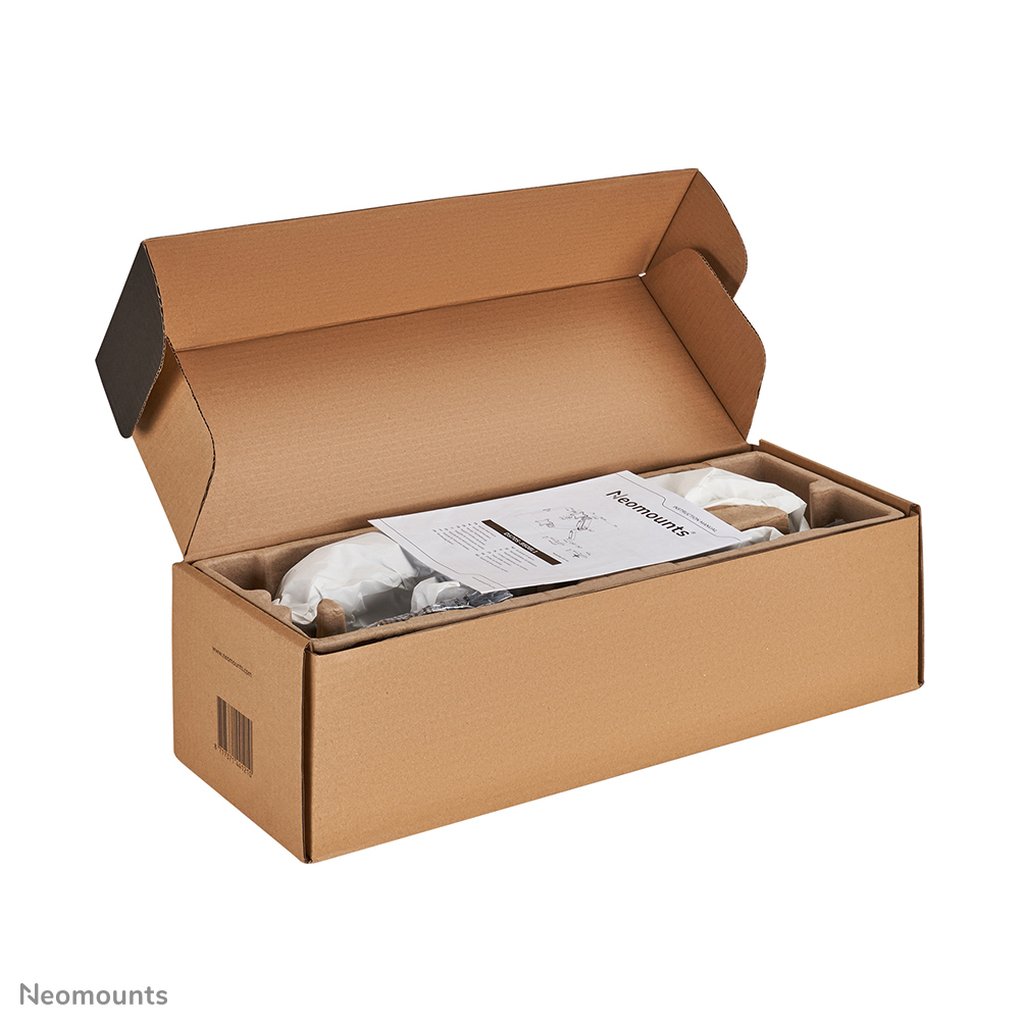

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Additional information
| Weight | 4.34 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 18 kg |
| Maximum screen size | 124.5 cm (49") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 200 – 520 mm |
| Depth adjustment range | 88 – 625 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -90 – 90° |
| Swivelling | Yes |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Black |
| Housing material | Aluminium |
| Width | 135 mm |
| Depth | 656 mm |
| Height | 579 mm |
| Weight | 3.72 kg |
| Package width | 333 mm |
| Package depth | 122 mm |
| Package height | 423 mm |
| Package weight | 4.3 kg |
| Width adjustment range | 0 – 1074 mm |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 490 mm |
| Master (outer) case gross weight | 17.9 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 14.9 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 80 pc(s) |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Minimum weight | 1 kg |
| Maximum weight capacity | 18 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5.5 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Warranty period | 10 year(s) |
| Pivot angle | -180 – 180° |
| Package type | Box |
| Package net weight | 4.3 kg |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Number of arms | 1 |
| Easy to install | Yes |
| Width adjustment | 107.4 cm |
