Neomounts FPMA-HAW050 Medical TV mount wall 10-40″ – full motion
Neomounts FPMA-HAW050 Medical TV mount wall – 10-40″ – max 10 kg – VESA 100×100-400×400 – full motion – white
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

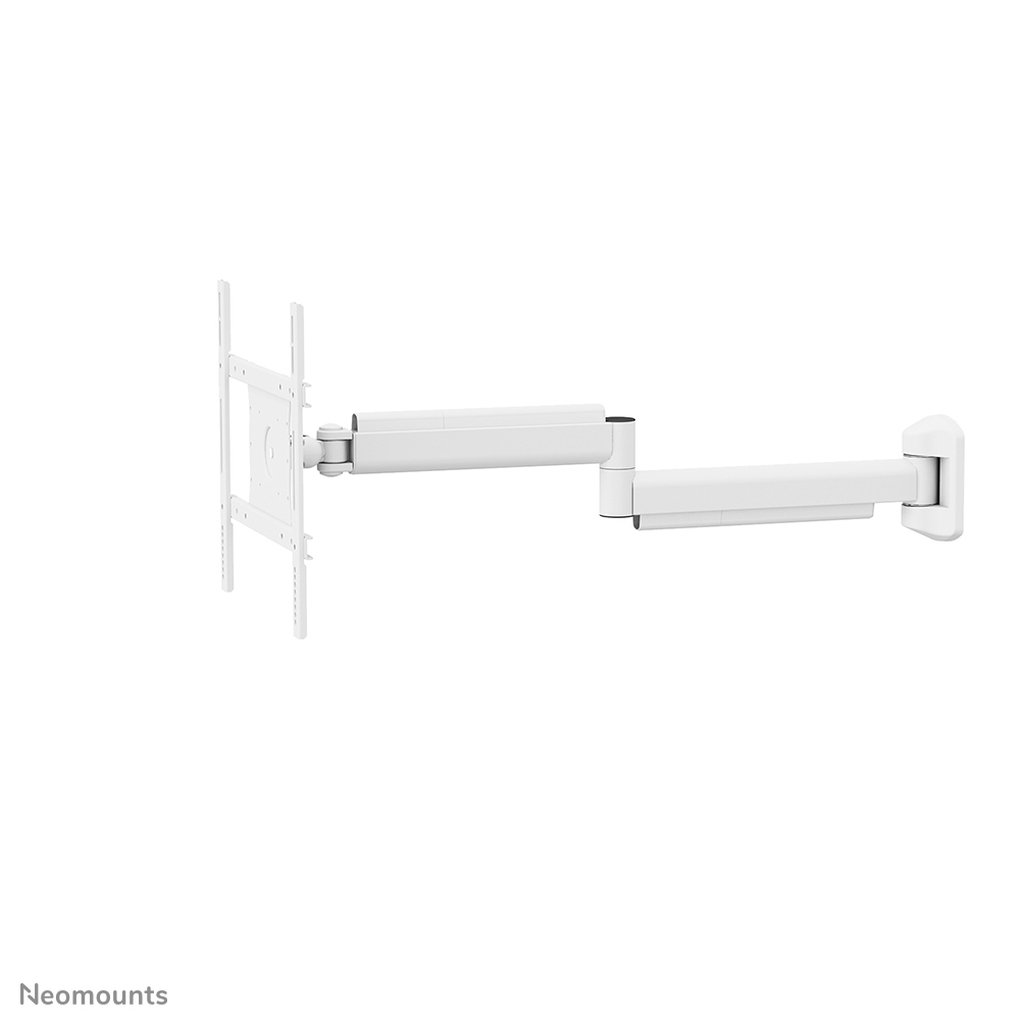

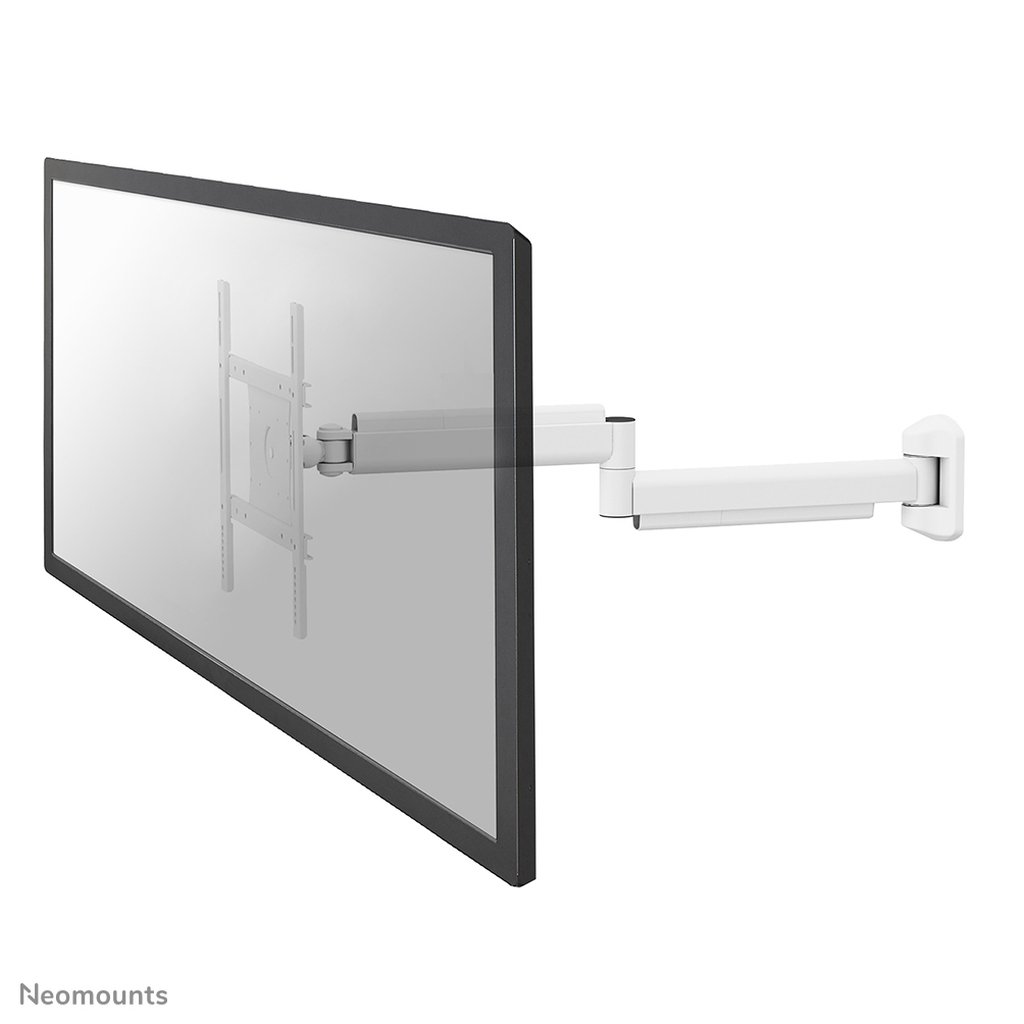

The Neomounts wall mount, model FPMA-HAW050 is a tilt-, turn- and swivel wall mount for medical flat screens up to 40″. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

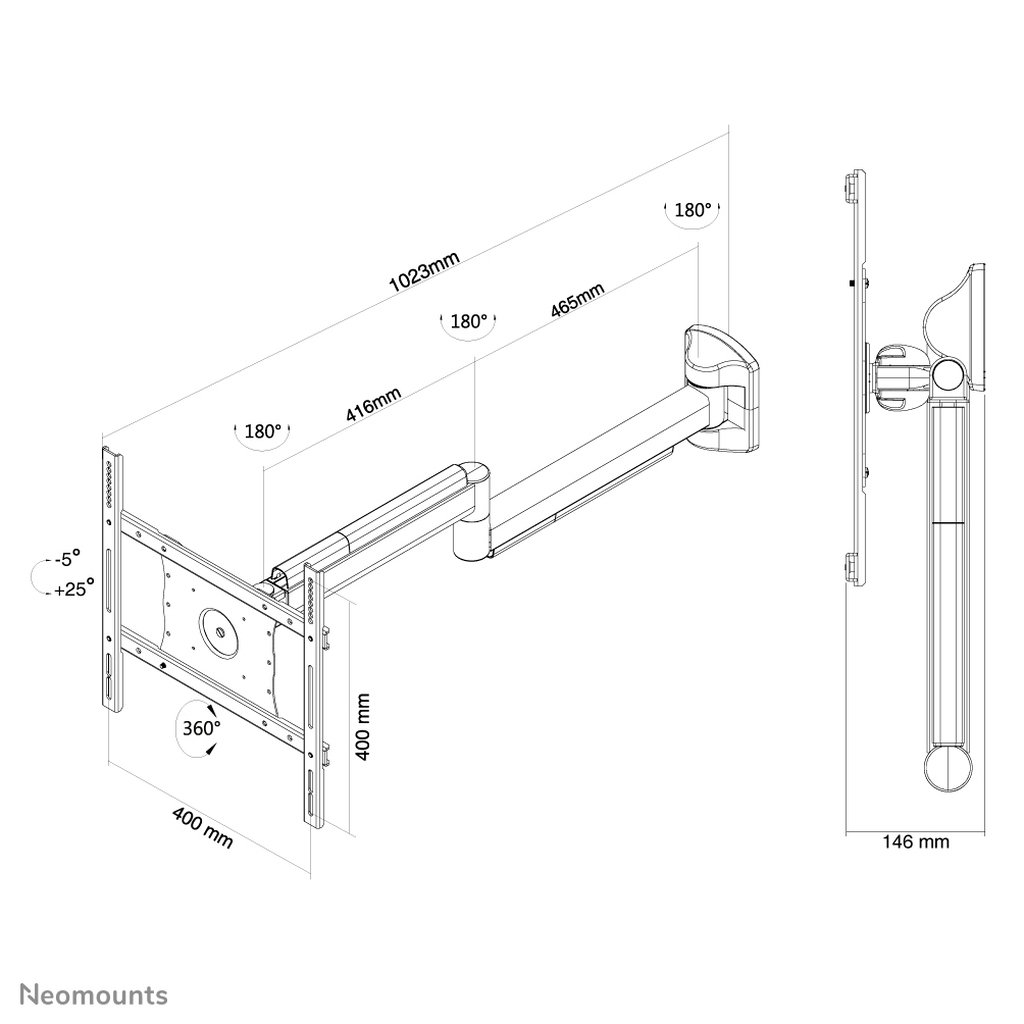

Neomounts’ unique tilt (30°), turn (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily depth adjustable from 15 to 102 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW050 has three pivot points and is suitable for screens up to 40″ (102 cm). The weight capacity of this product is 10 kg. The wall mount is suitable for screens that meet VESA hole pattern 100×100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Additional information
| Weight | 10 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 10 kg |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Wall |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 400 x 400 mm |
| Depth adjustment range | 150 – 1020 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 30° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | White |
| Housing material | Steel |
| Weight | 8.97 kg |
| Package width | 580 mm |
| Package depth | 310 mm |
| Package height | 200 mm |
| Package weight | 10 kg |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 10 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 50 pc(s) |
| Maximum weight capacity | 10 kg |
| Adjustable depth | Yes |
| Cable management | Yes |
| Package net weight | 10 kg |
| Number of pivot points | 3 |
| Depth (min) | 15 cm |
| Depth (max) | 102 cm |
