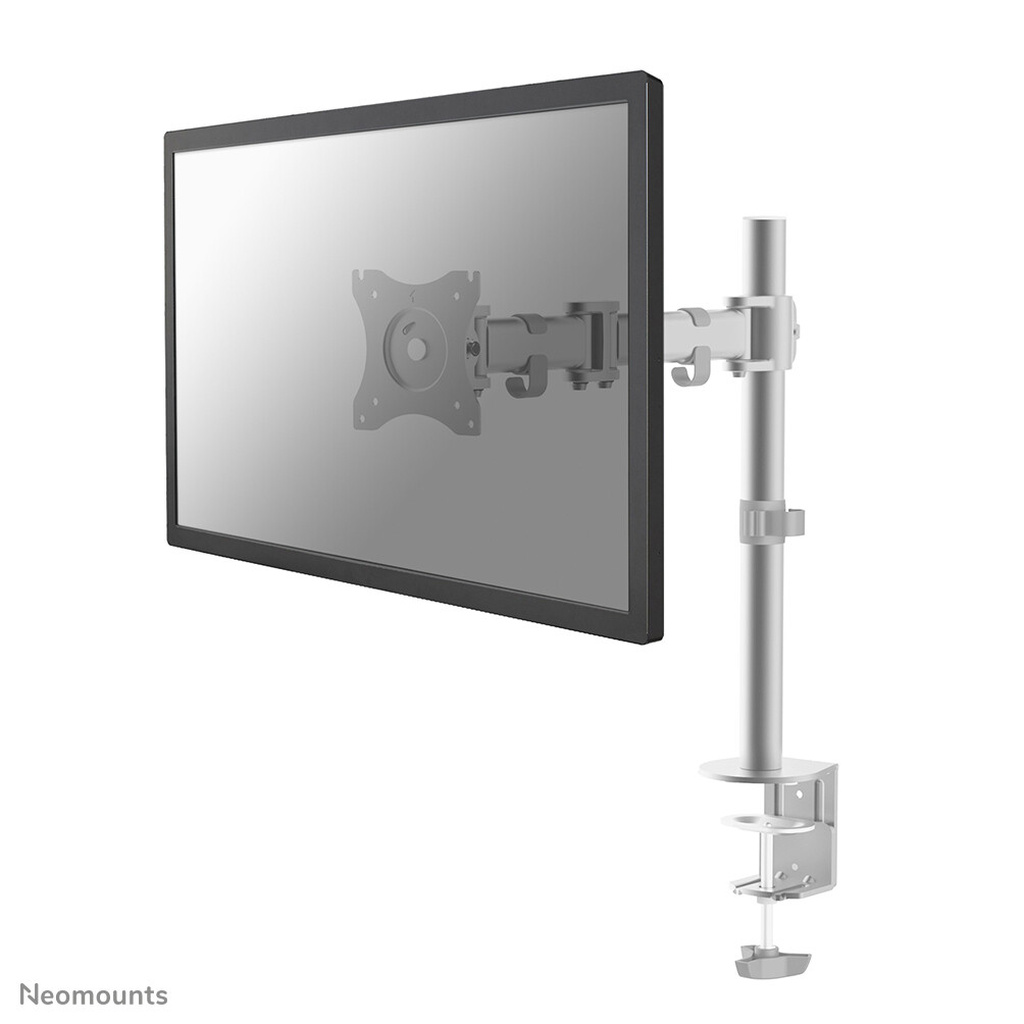

Neomounts NM-D135SILVER Monitor arm 10-30″
Neomounts NM-D135SILVER Single monitor arm – 10-30″ – 0-8 kg – silver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

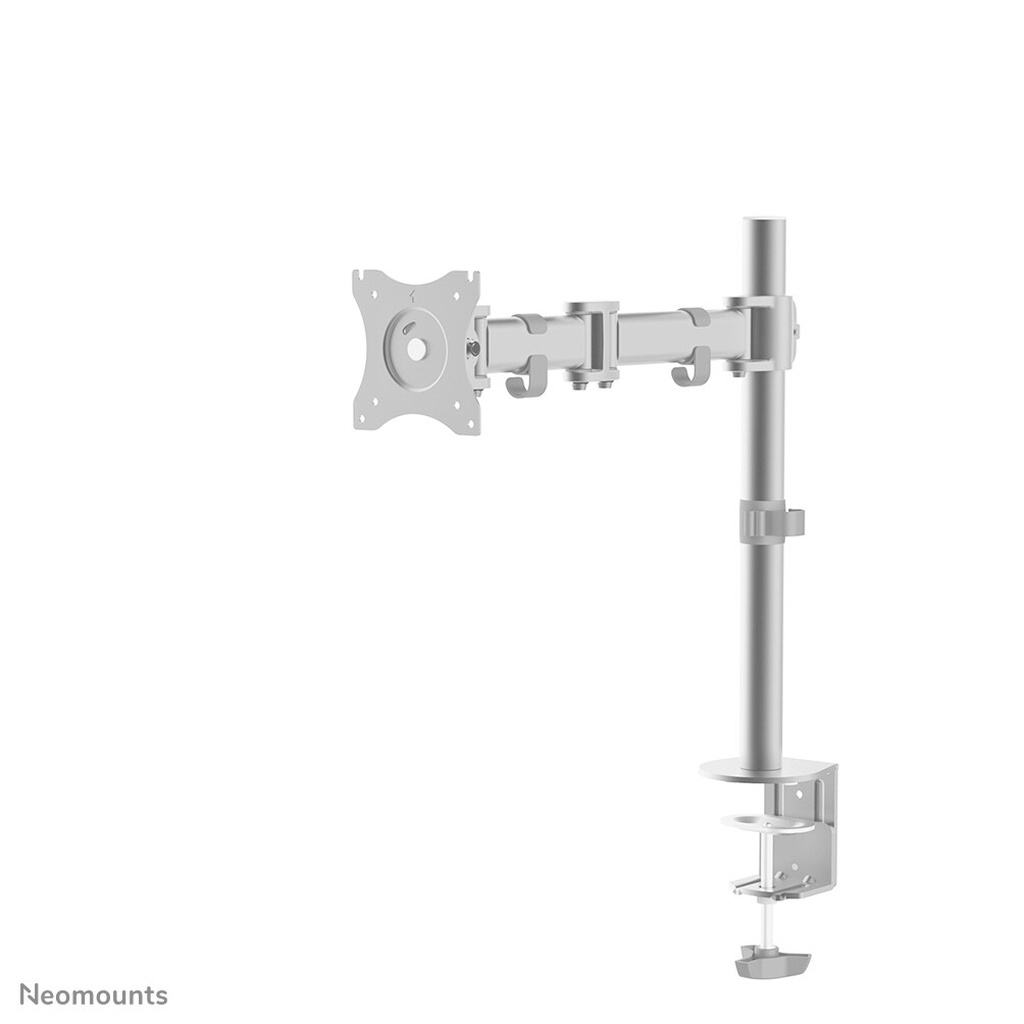

The Neomounts desk mount, model NM-D135SILVER is a tilt-, swivel and rotatable desk mount for flat screens up to 30″. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

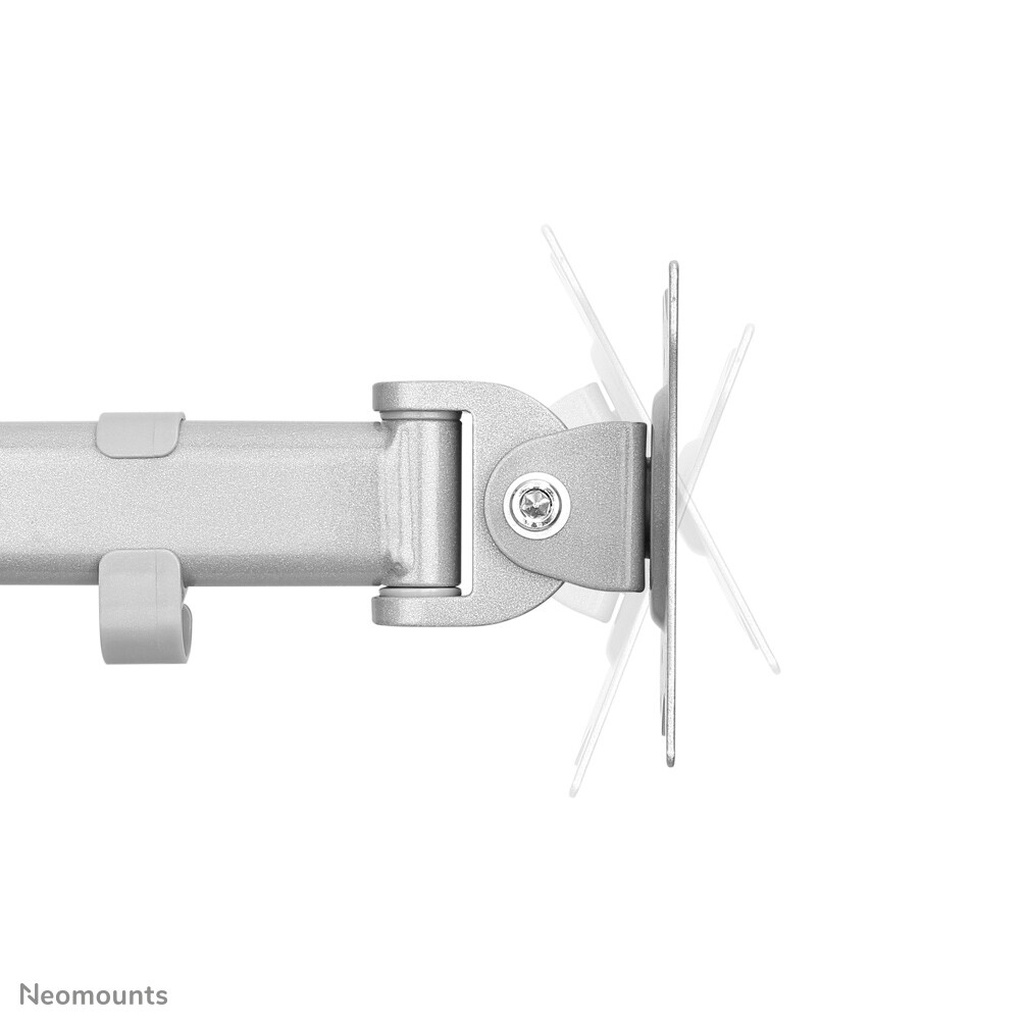

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 41 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135SILVER has three pivot points and is suitable for screens up to 30″ (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Additional information
| Weight | 3.88 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Desk |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 – 415 mm |
| Depth adjustment range | 0 – 410 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 90° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Silver |
| Housing material | Steel |
| Depth | 410 mm |
| Height | 415 mm |
| Weight | 3.33 kg |
| Package width | 163 mm |
| Package depth | 110 mm |
| Package height | 478 mm |
| Package weight | 3.3 kg |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 15.8 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.3 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 120 pc(s) |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 43 cm |
| Maximum weight capacity | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 9 cm |
| Swivel angle range | 0 – 180° |
| Package net weight | 3.33 kg |
