Neomounts NS-WMB200PBLACK Menuboard wall mount 40-52″ – tiltable – portrait
Neomounts NS-WMB200PBLACK Menuboard wall mount 2 screens – 40-52″ – max 50 kg/screen – VESA 200×200-400×600 – d 7,8 cm – tiltable – portrait – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

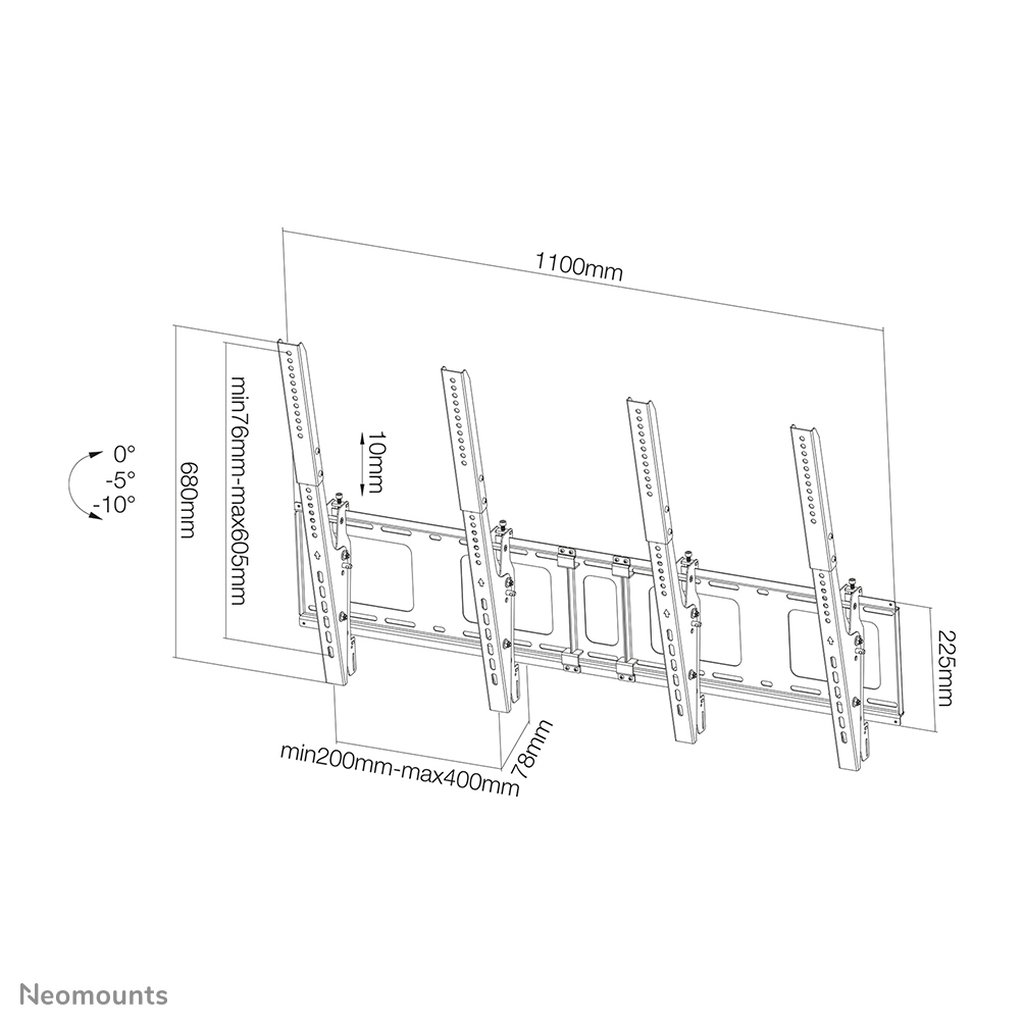

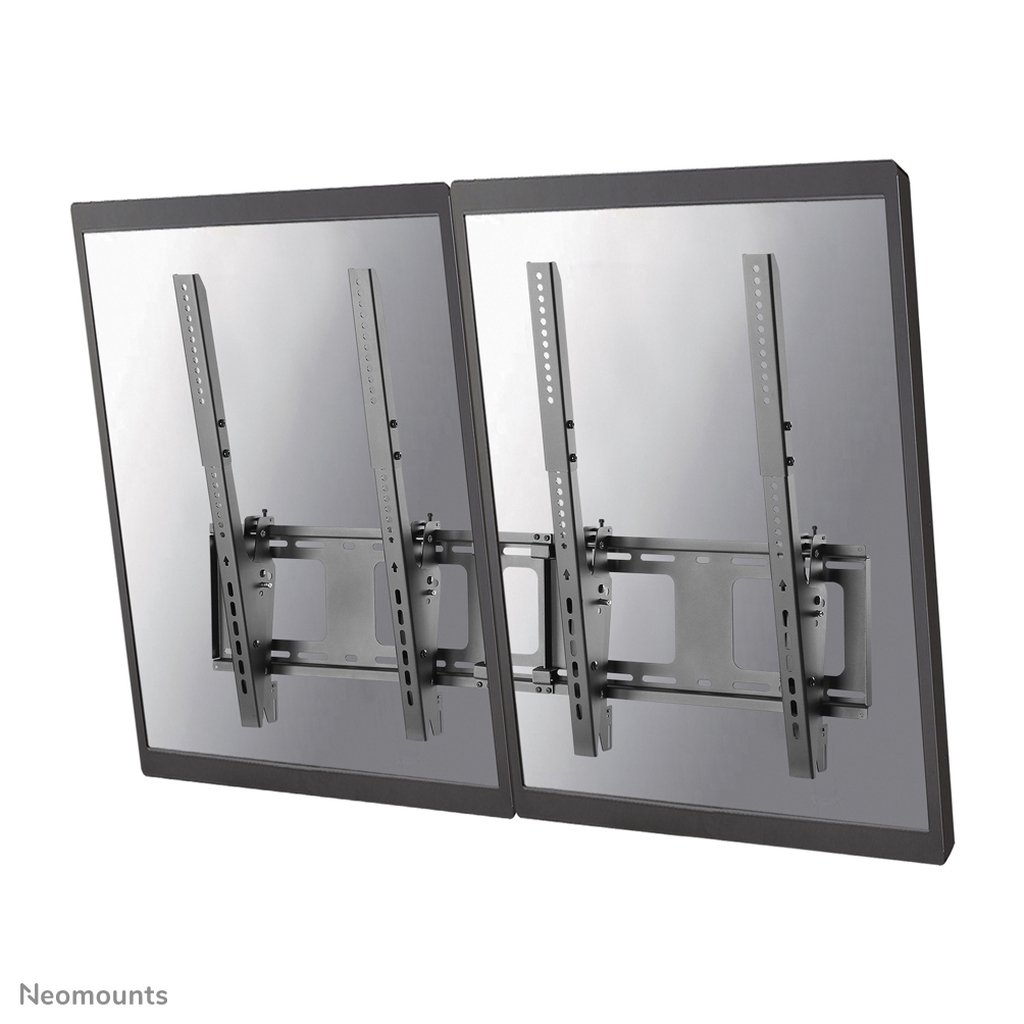

The Neomounts menu board wall mount (vertical mounting), model NS-WMB200PBLACK is a tiltable wall mount for two flat screens up to 52″ (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.
Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52″ (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200×200 to 400×600 mm (vertical mounting).
All installation material is included with the product.
Additional information
| Weight | 10.45 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum screen size | 132.1 cm (52") |
| Mounting type | Wall |
| Maximum VESA mount | 400 x 600 mm |
| Minimum screen size | 101.6 cm (40") |
| Product colour | Black |
| Housing material | Steel |
| Width | 1100 mm |
| Height | 68 mm |
| Weight | 9.16 kg |
| Package width | 250 mm |
| Package depth | 165 mm |
| Package height | 540 mm |
| Package weight | 10.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Height adjustment | 68 cm |
| Minimum VESA mount | 200 x 200 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Width adjustment | 110 cm |
| Distance to the wall (min) | 7.8 cm |
| Package net weight | 10.5 kg |
| Country of origin | China |
| Master (outer) case net weight | 10.5 kg |
| Products per pallet (EU) | 60 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 165 mm |
| Master (outer) case height | 540 mm |
| Master (outer) case gross weight | 10.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Maximum weight capacity (per display) | 50 kg |
| Tilt angle range | 0 – 10° |
| Height adjustment range | 0 – 680 mm |
| Tilt angle | 10° |
| Swivel angle | 6° |
| Angle of rotation | 6° |
| Width adjustment range | 0 – 1100 mm |
