Neomounts WL35S-950BL19 Heavy duty wall mount 55-110″ – tiltable – lockable – landscape and portrait

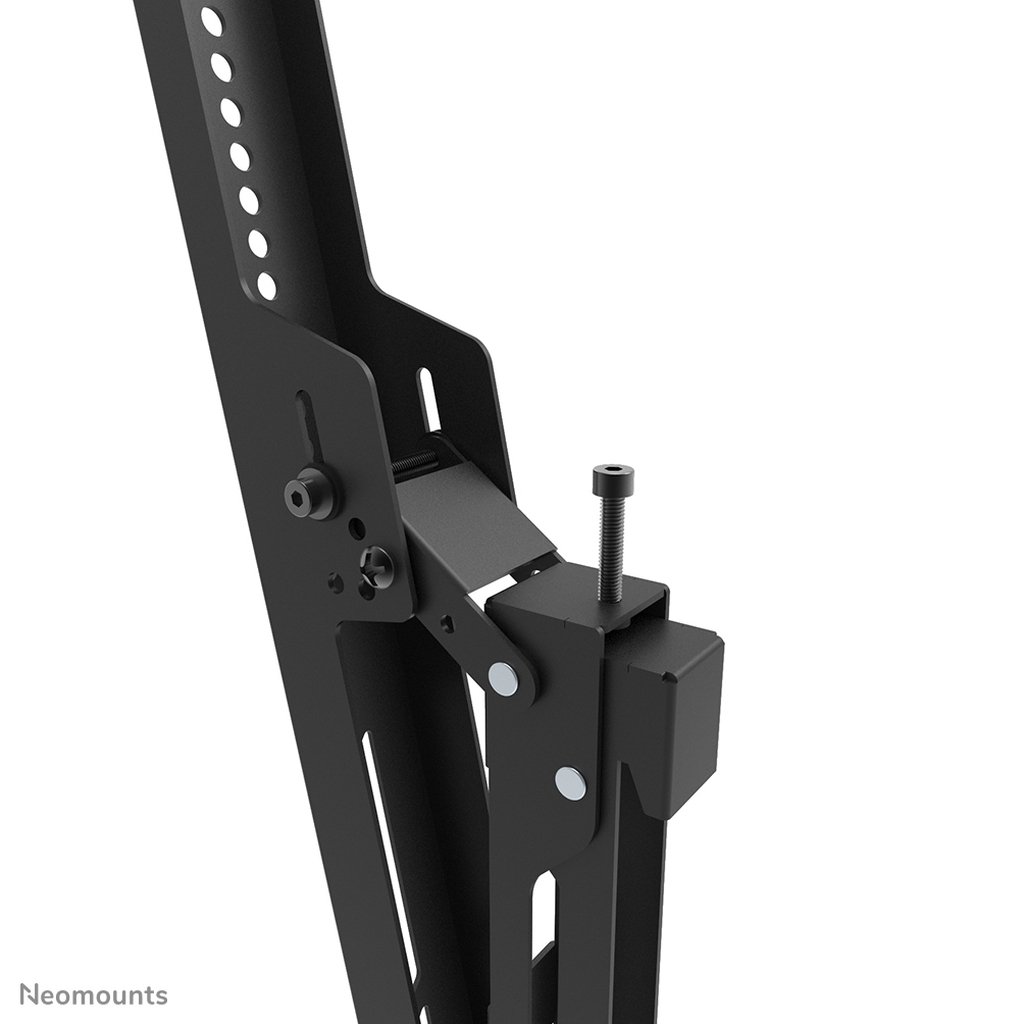

Neomounts WL35S-950BL19 Tiltable heavy duty wall mount – 55-110″ screen – max 160 kg – VESA 100×100-1500×900 – d 9 cm – level adjustment – lockable (incl. security screw, excl. lock) – landscape and portrait – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

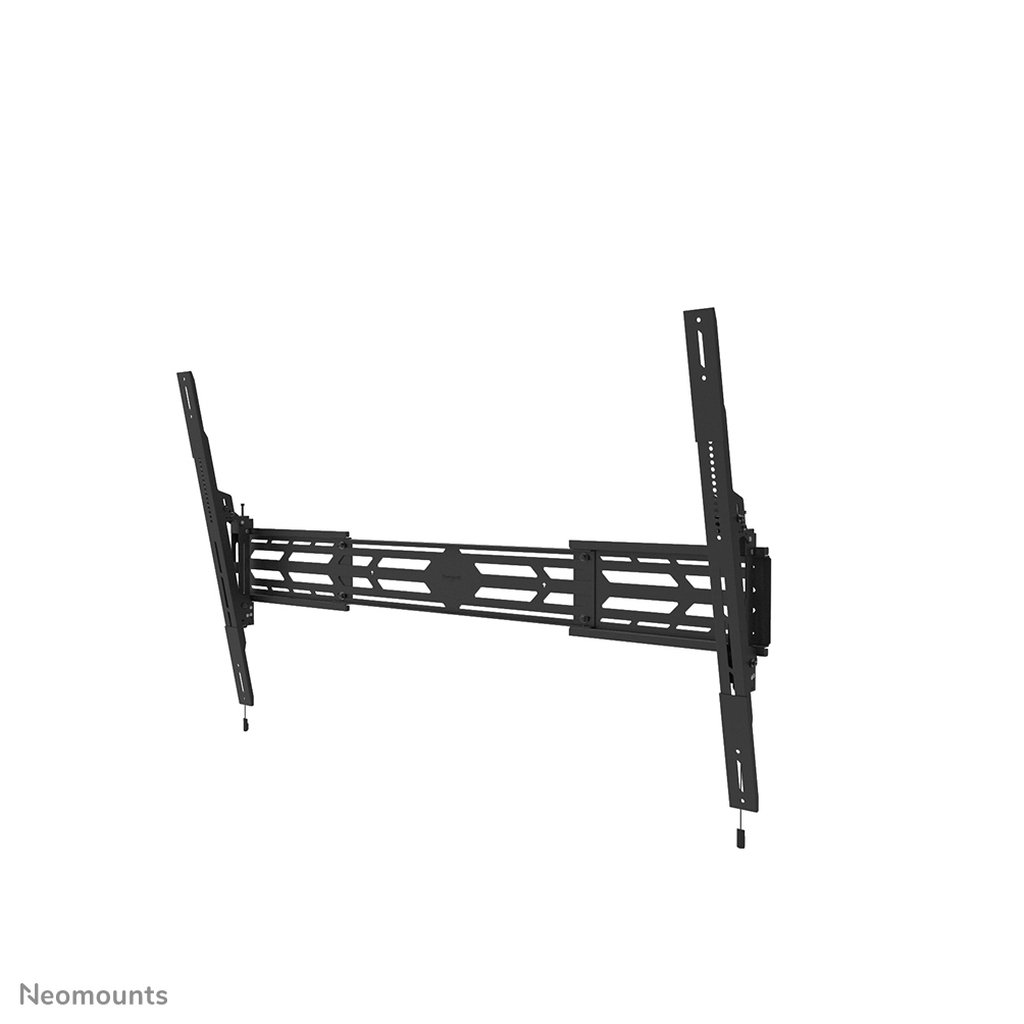

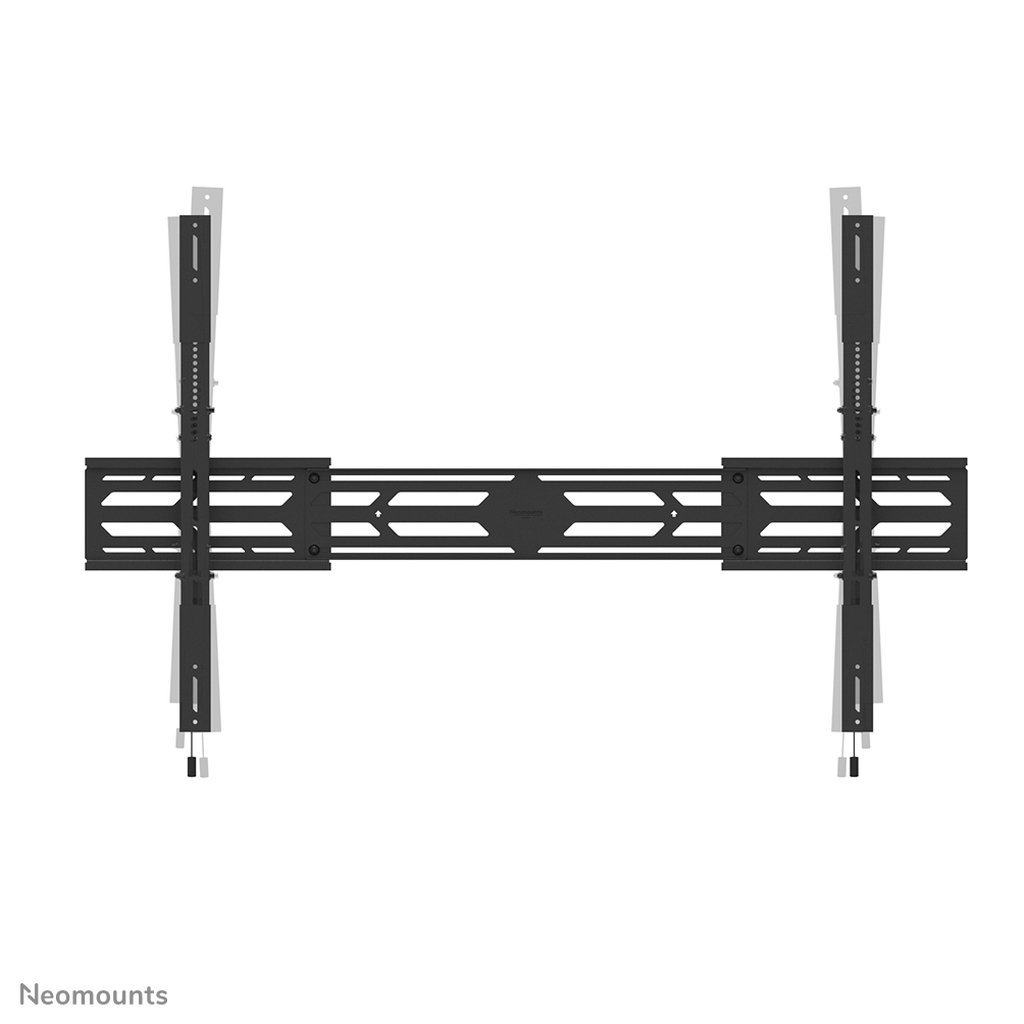

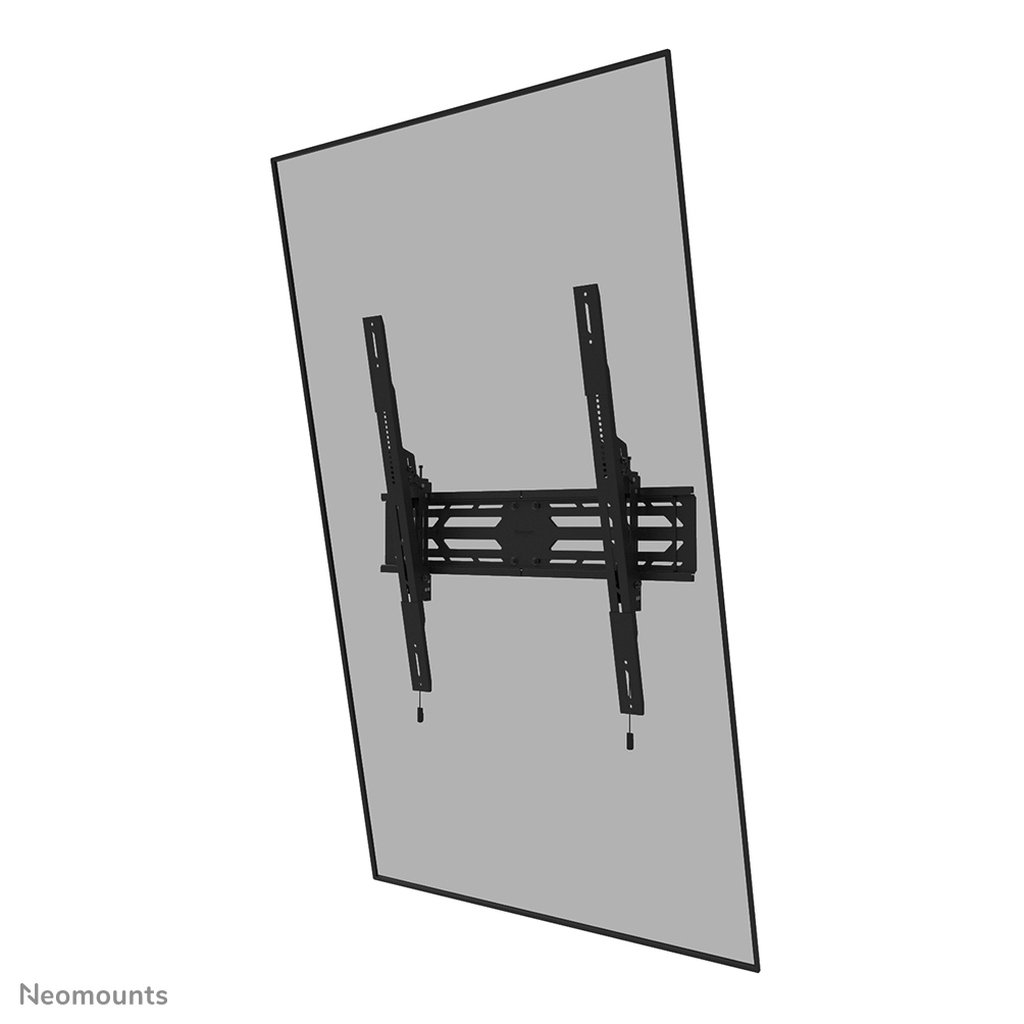

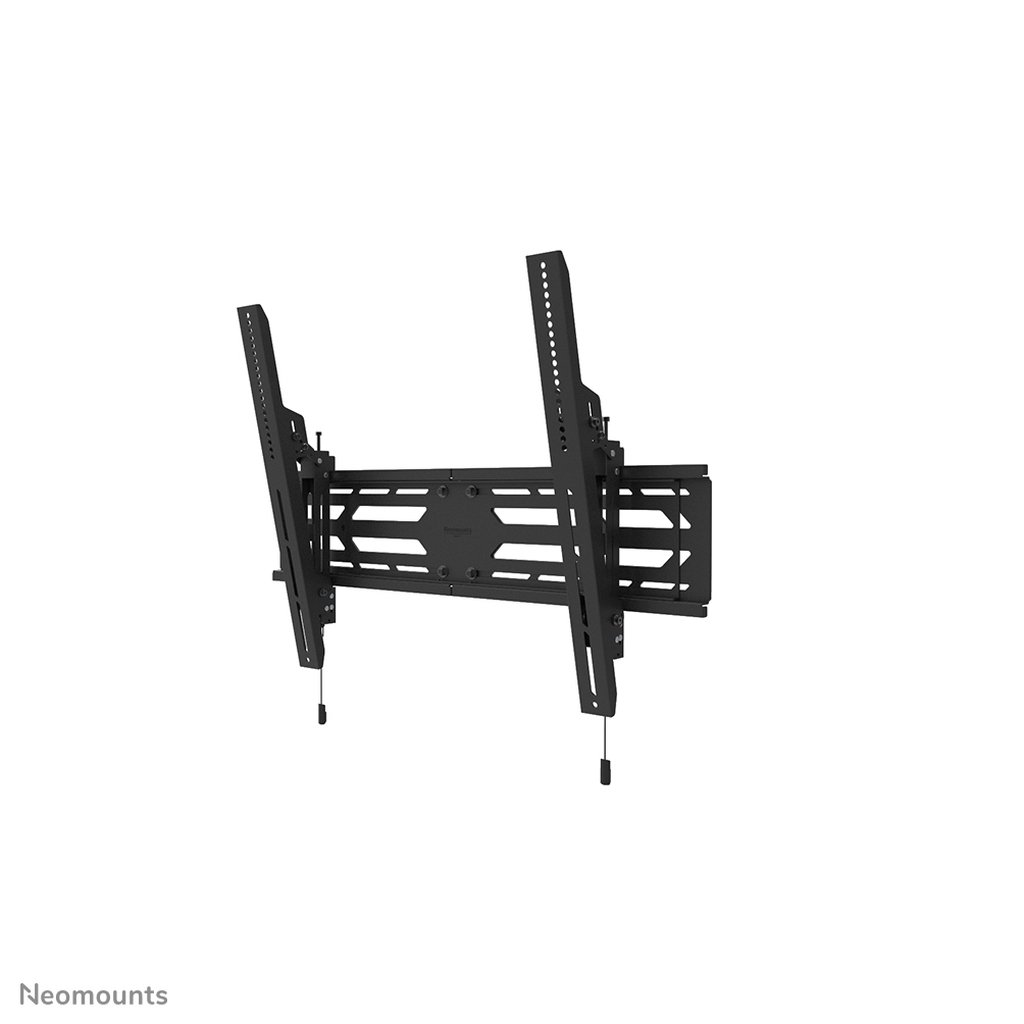

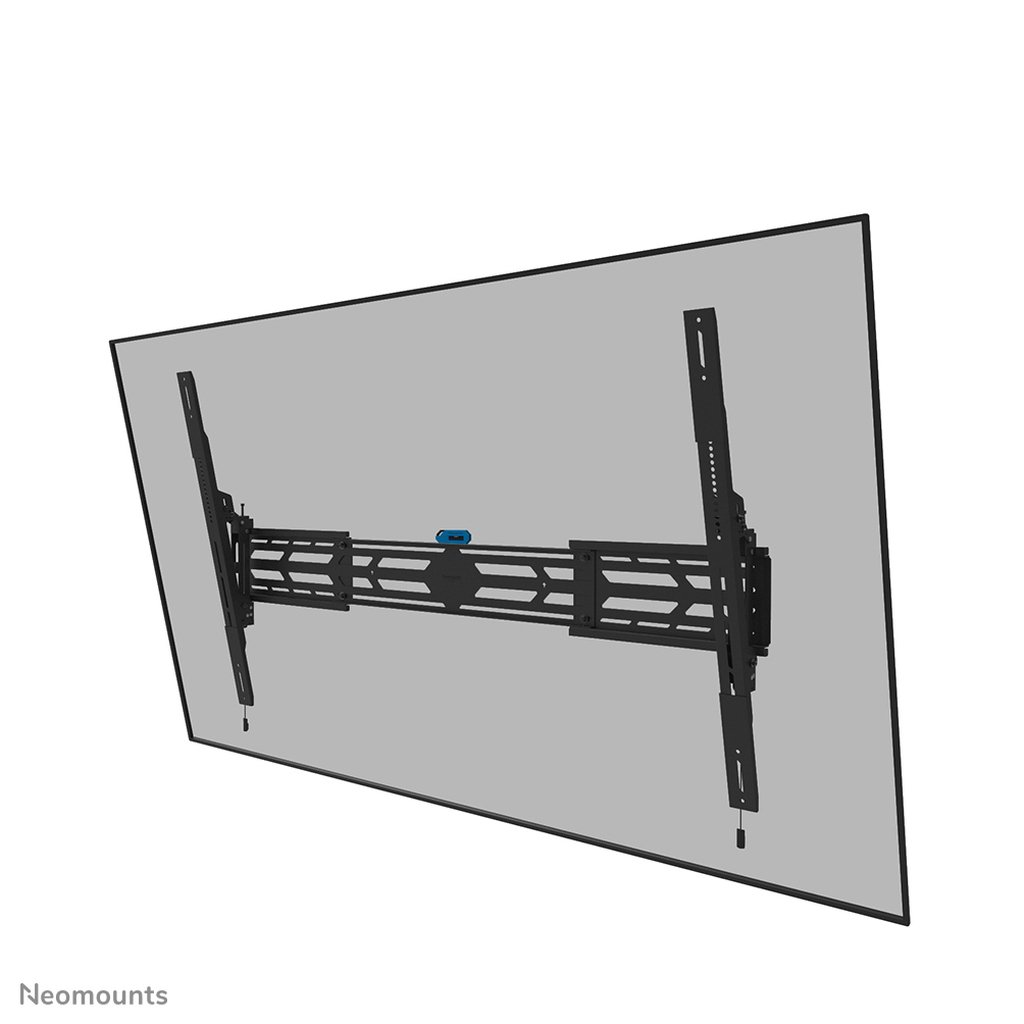

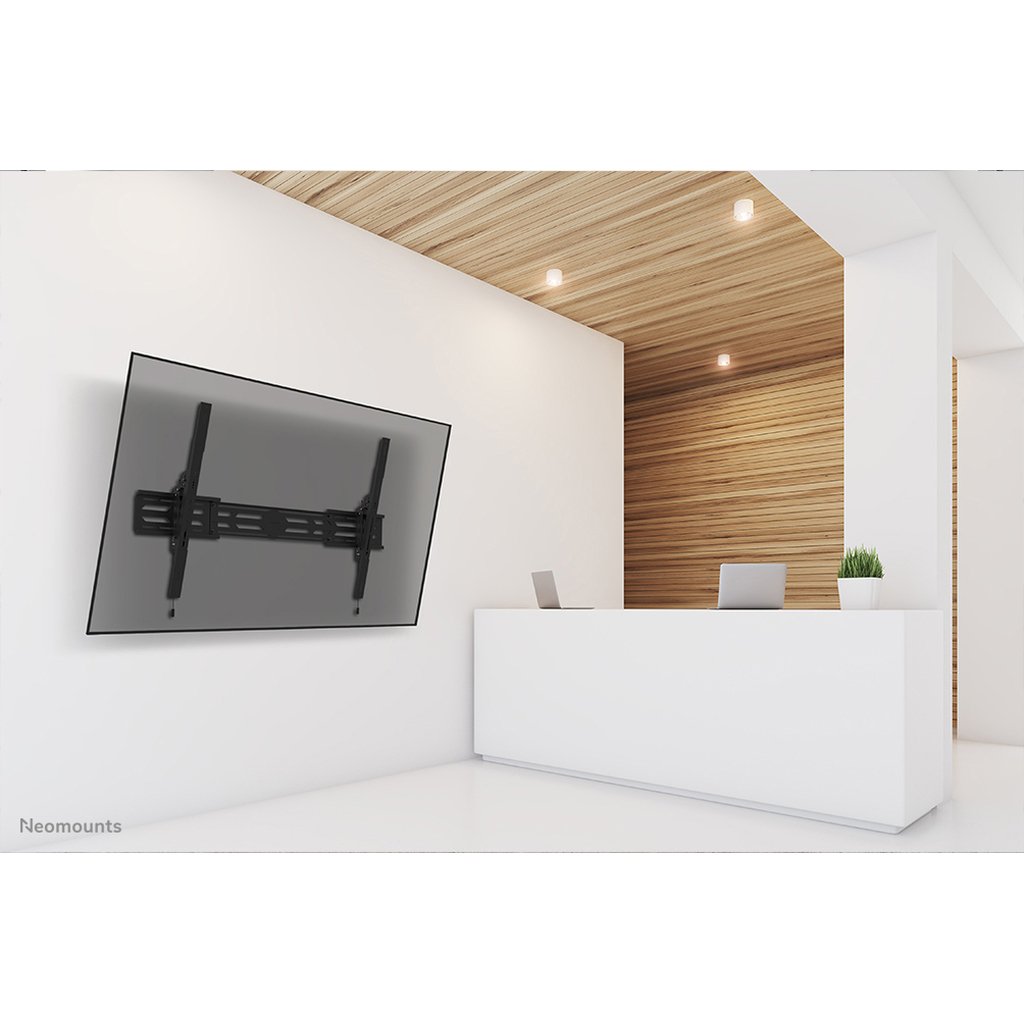

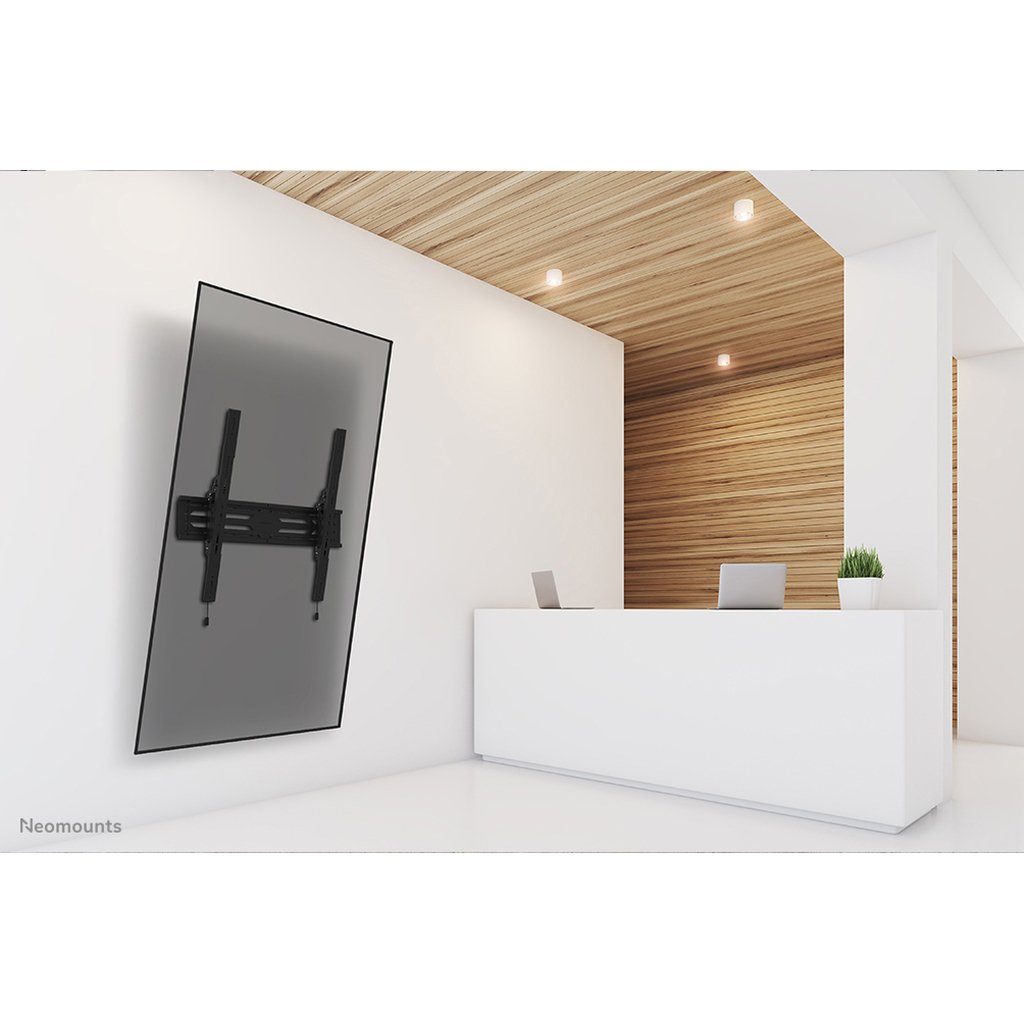

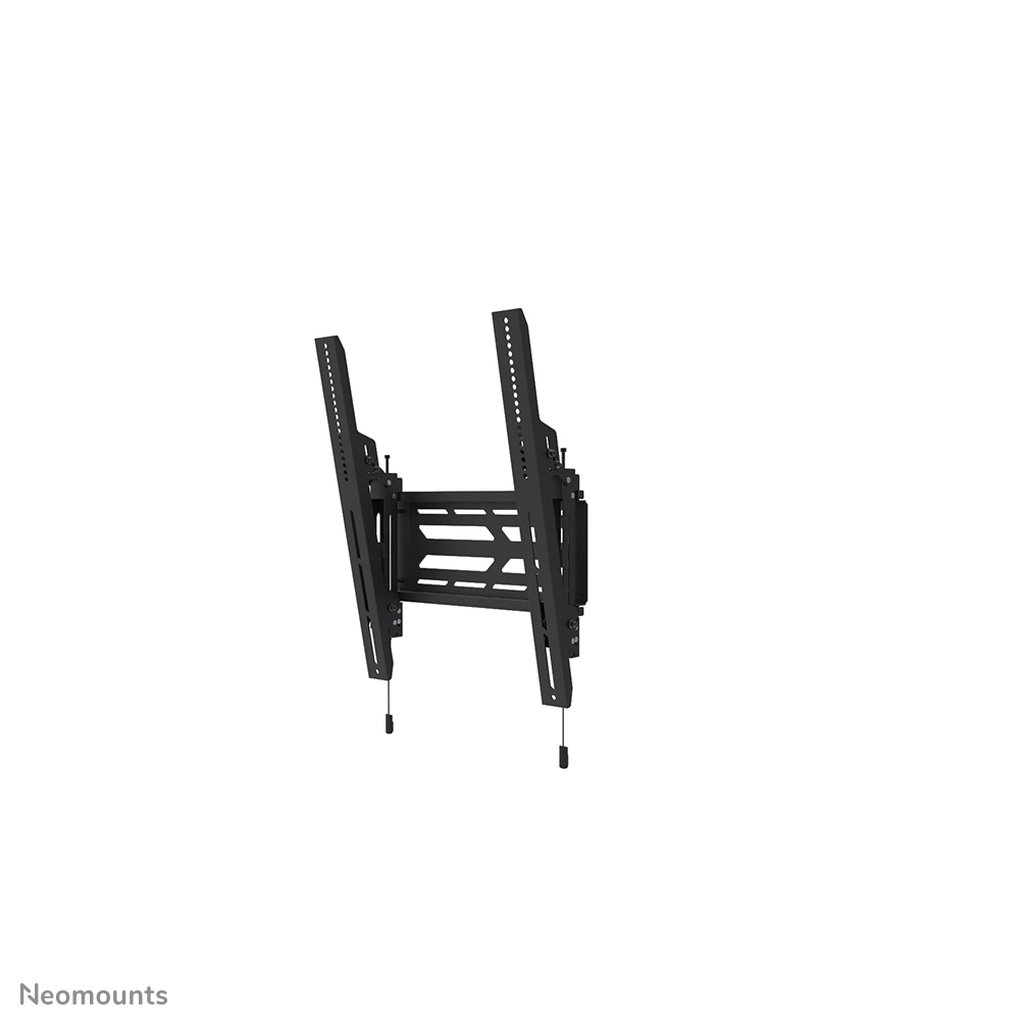

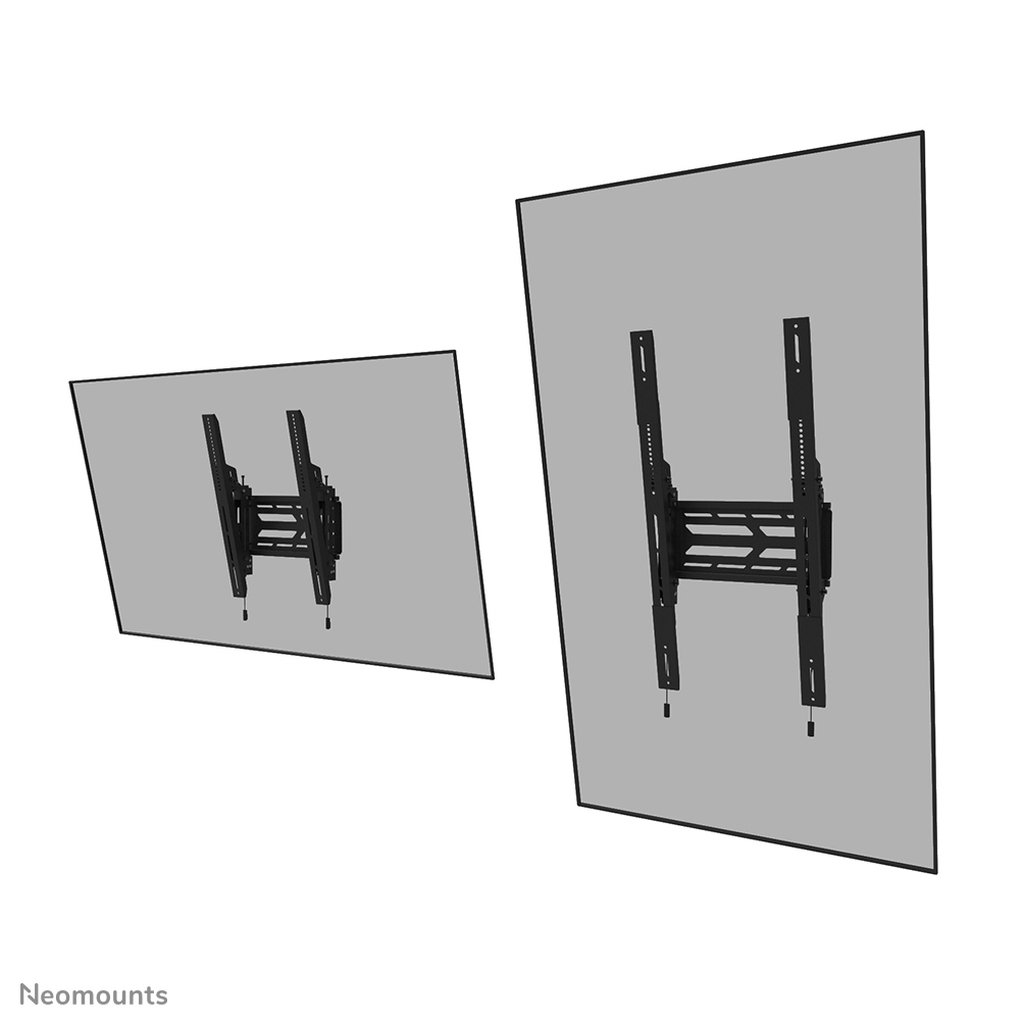

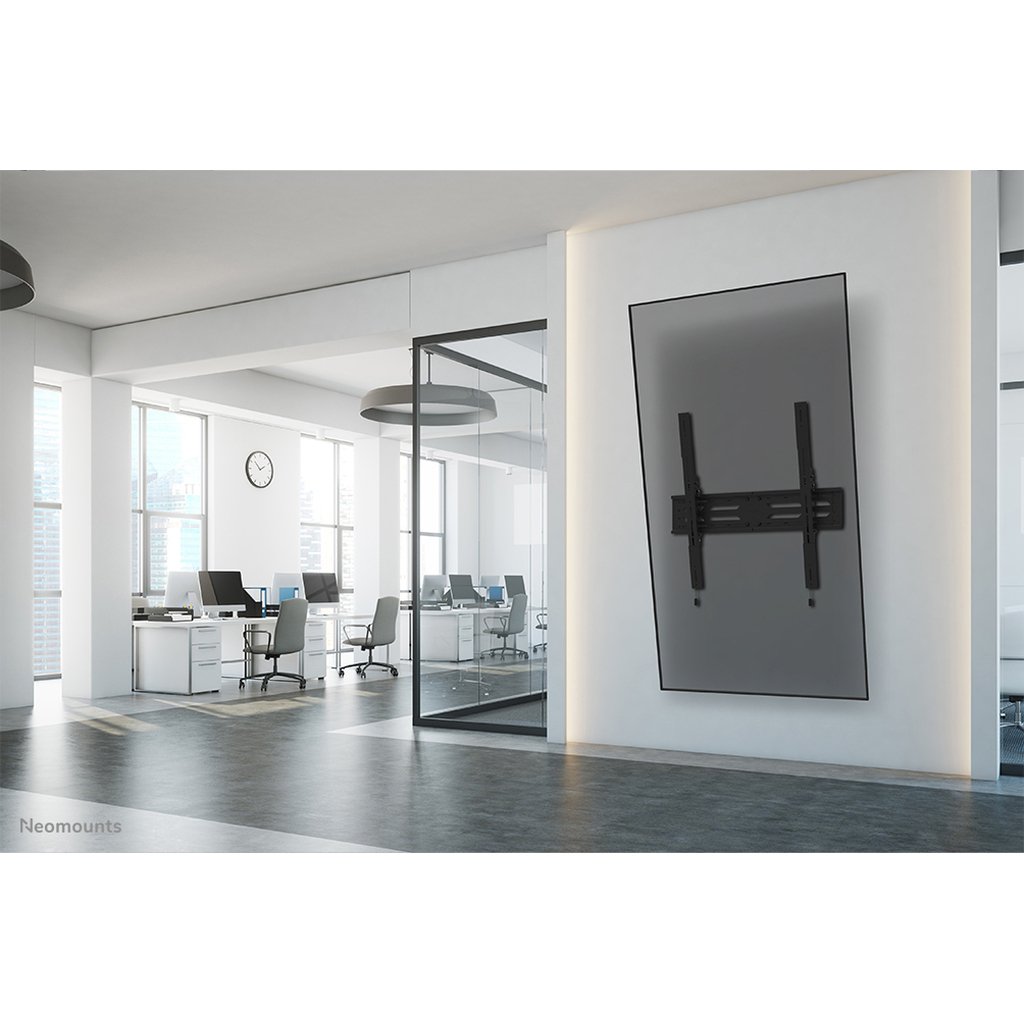

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 110″ with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

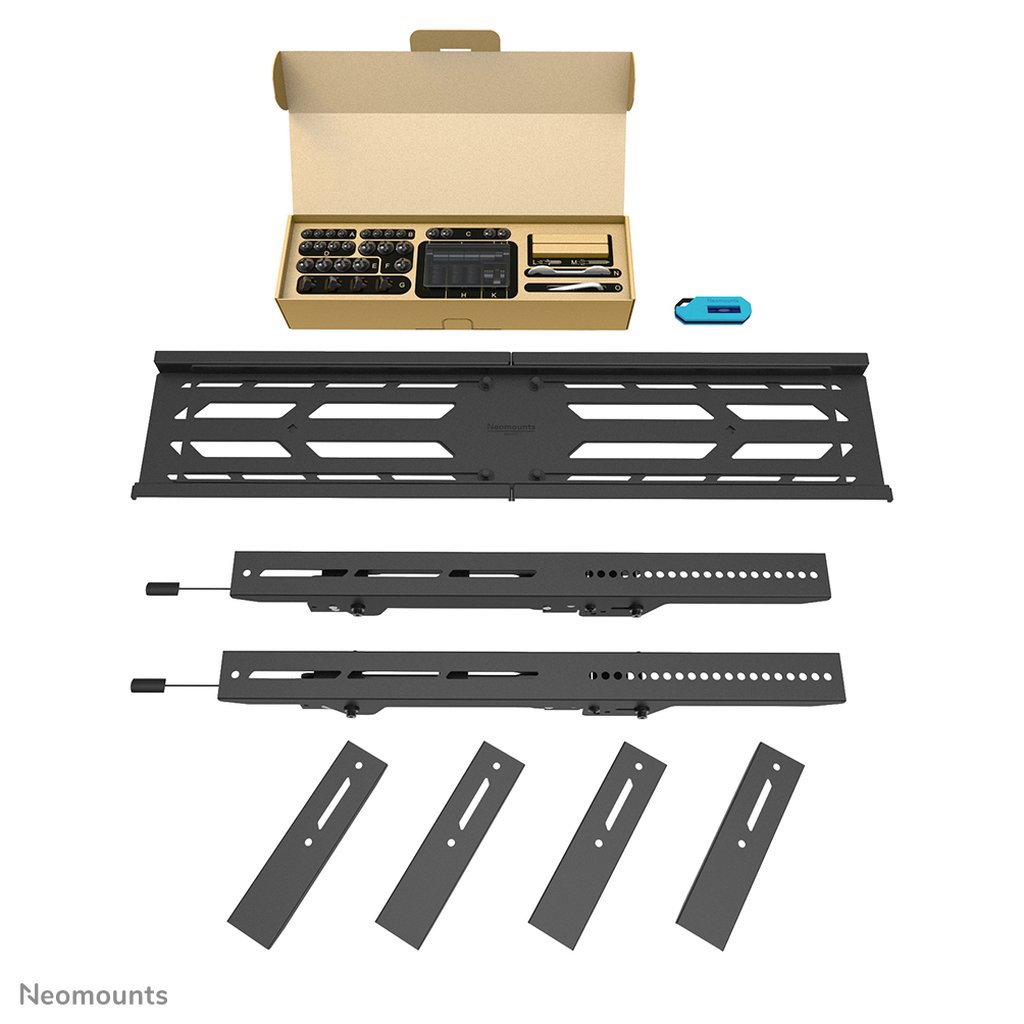

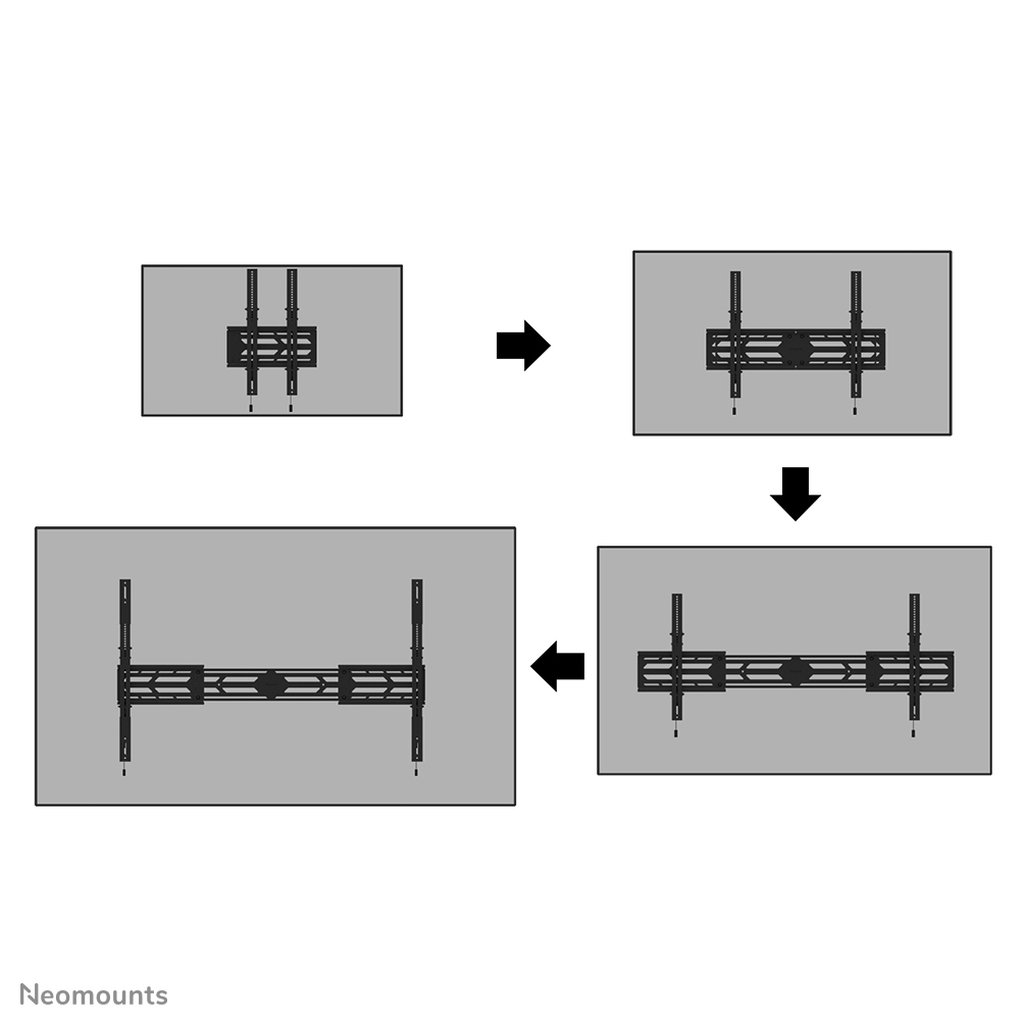

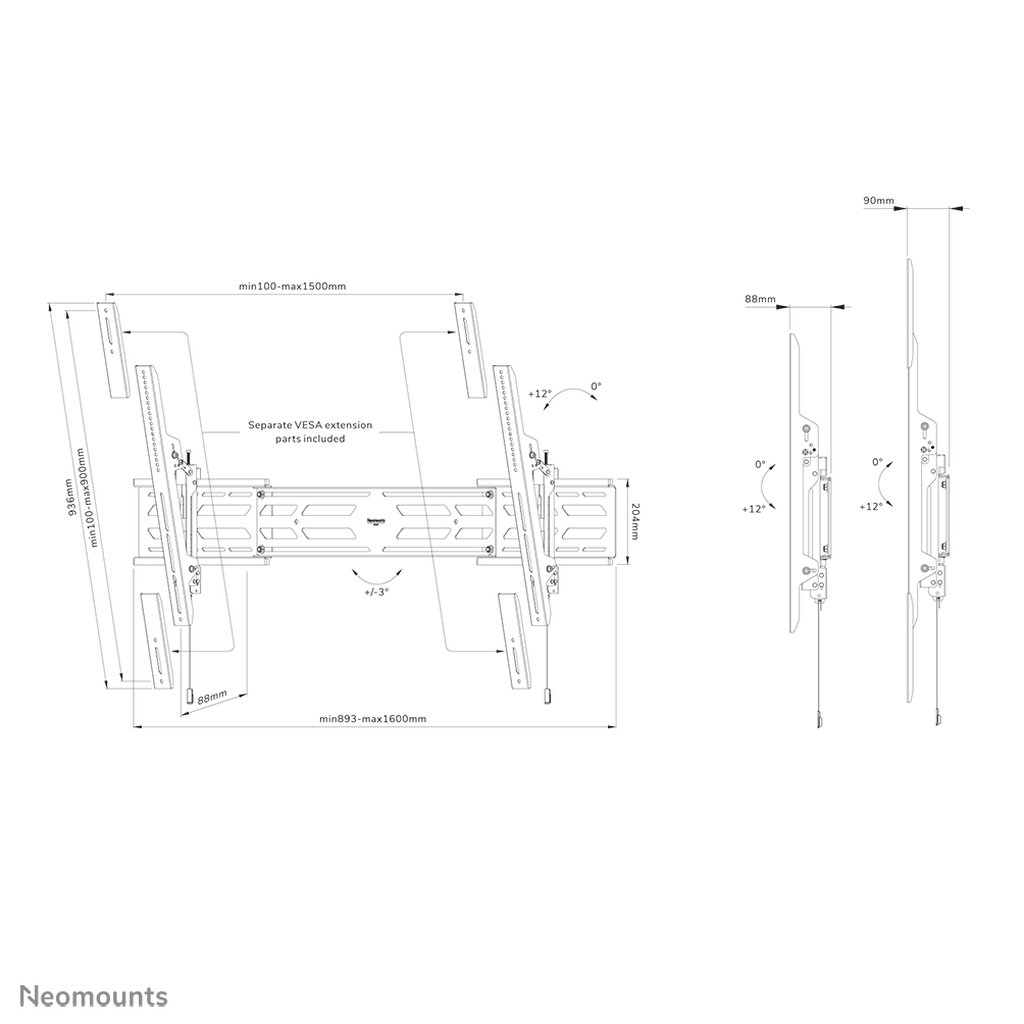

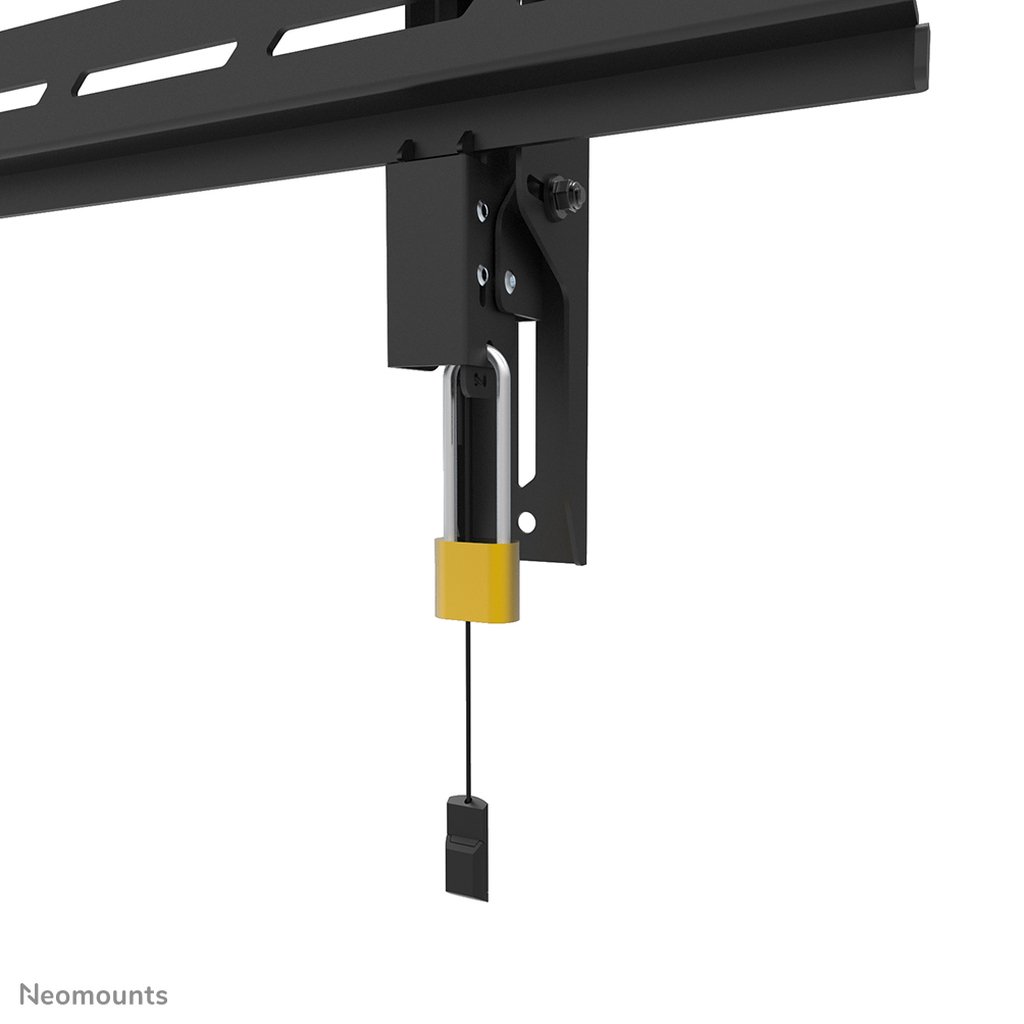

The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100×100 to 1500×900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55″ up to 110″. It is possible to lock the mount using a padlock (not included).

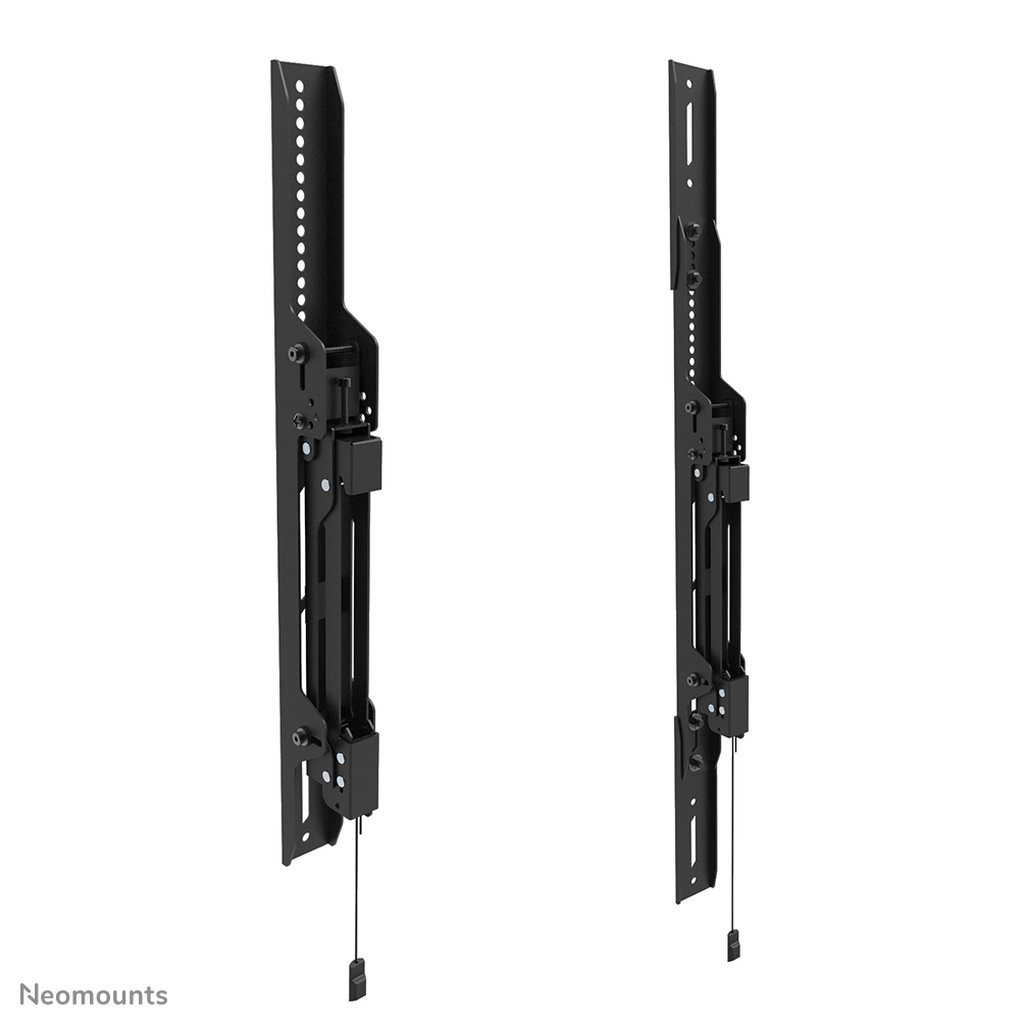

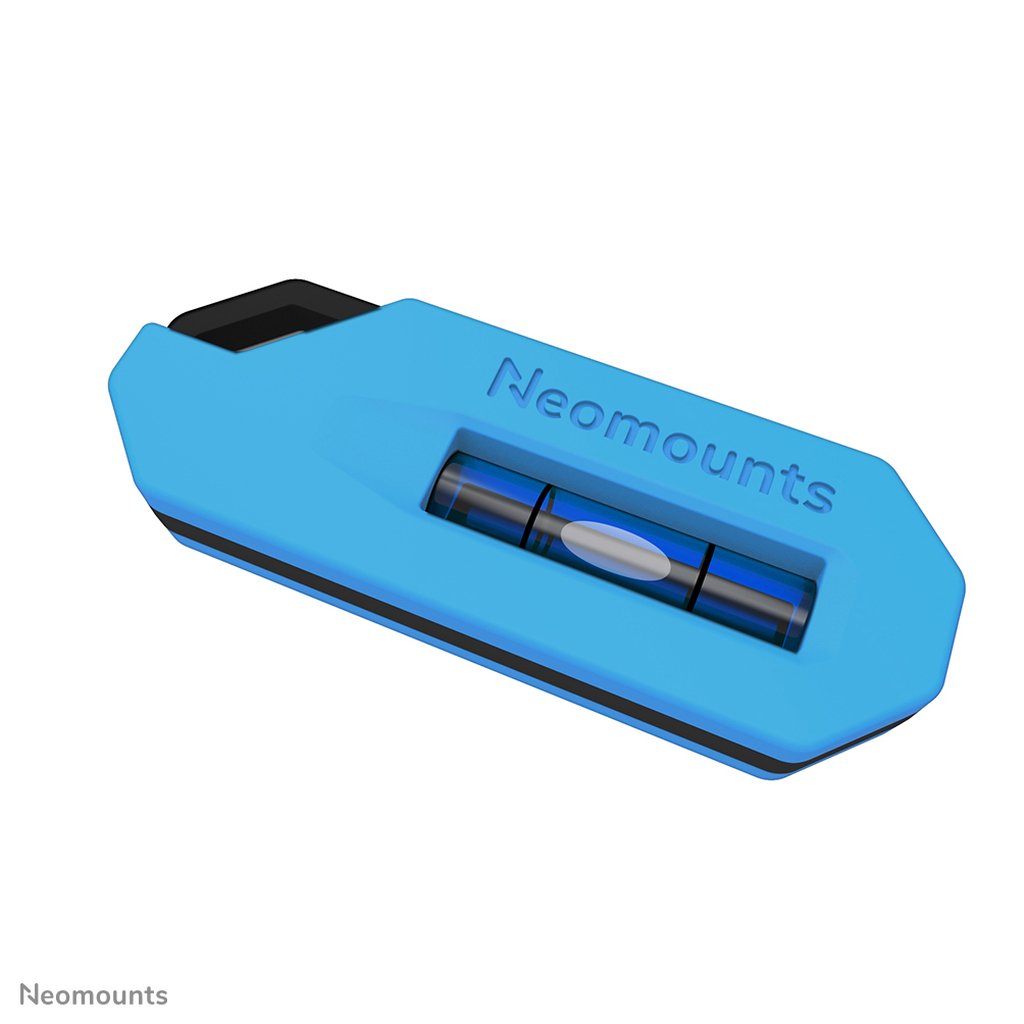

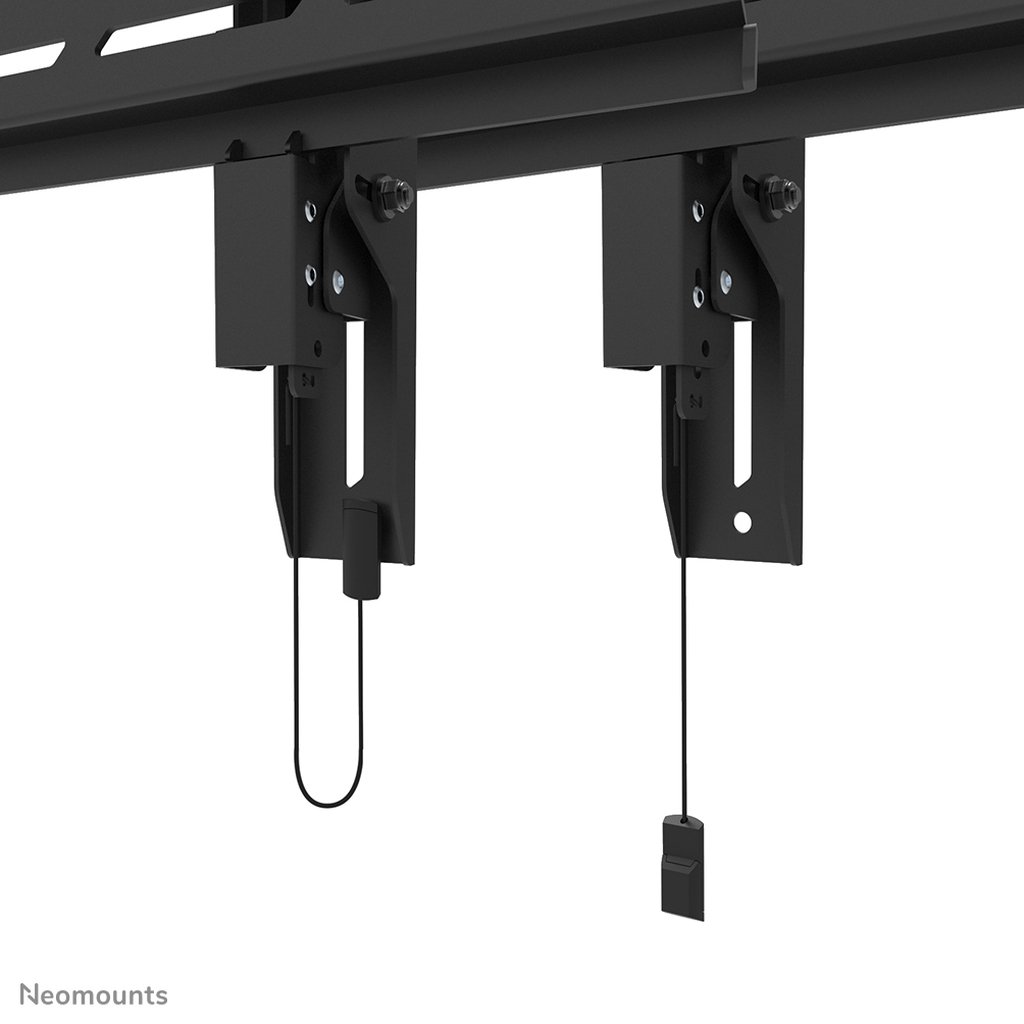

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Additional information
| Weight | 12.6 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 2.92 m (115") |
| Mounting type | Wall |
| Maximum weight capacity | 160 kg |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 1500 x 900 mm |
| Minimum screen size | 139.7 cm (55") |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100, |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 12° |
| Angle of rotation | 6° |
| Distance to the wall (max) | 9 cm |
| Product colour | Black |
| Housing material | Steel |
| Country of origin | China |
| Package net weight | 12.5 kg |
| Weight | 11.1 kg |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 12.5 kg |
| Master (outer) case width | 211 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case height | 938 mm |
| Master (outer) case gross weight | 25.7 kg |
| Master (outer) case net weight | 22.1 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 36 pc(s) |
| Height adjustment | Yes |
| Height adjustment range | 0 – 20 mm |
| Depth | 90 mm |
| Height | 936 mm |
| Warranty period | 5 year(s) |
| Width | 1600 mm |
| Depth (max) | 9 cm |
| Pivot angle | -3 – 3° |
| Accepts padlock | Yes |
| Width adjustment range | 893 – 1600 mm |
| Maximum weight capacity (per display) | 160 kg |
